VRRP6的配置

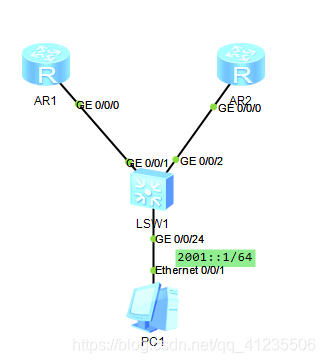

1.网络拓扑图
链接：https://pan.baidu.com/s/16NeEv1FwPRP6RkOhpE2FKQ
提取码：8888
eNSP
链接：https://pan.baidu.com/s/1wP0vHim4yqVV0bc0wmzhFw
提取码：8888

2.网络需求
在R1和R2上配置VRRPv6,并实现网络互通。

3.配置
vrrp6 vrid 1 virtual-ip FE80::FFFF link-local 这条命令指定VRRP6的虚拟IPv6链路本地地址。链路本地地址前缀是FE80的IPv6地址，用于同一链路的相邻节点间通信，有效域仅限于本地链路。链路本地地址的报文永远不会被IPv6交换机转发。配置VRRP6的虚拟IPv6地址时，第一个虚拟IPv6地址必须是链路本地地址。
3.1、R1的配置
display current-configuration
[V200R003C00]

sysname R1

snmp-agent local-engineid 800007DB03000000000000
snmp-agent

clock timezone China-Standard-Time minus 08:00:00

portal local-server load portalpage.zip

drop illegal-mac alarm

ipv6

set cpu-usage threshold 80 restore 75

aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher % % K8m.Nt84DZ}e#<0`8bmE3Uw}% %
local-user admin service-type http

firewall zone Local
priority 15

interface GigabitEthernet0/0/0
ipv6 enable
ipv6 address 2001::3/64
vrrp6 vrid 1 virtual-ip FE80::FFFF link-local
vrrp6 vrid 1 virtual-ip 2001::1
vrrp6 vrid 1 priority 120

interface GigabitEthernet0/0/1

interface GigabitEthernet0/0/2

interface NULL0

user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20

wlan ac

return
3.2、R2的配置
display current-configuration
[V200R003C00]

sysname R2

snmp-agent local-engineid 800007DB03000000000000
snmp-agent

clock timezone China-Standard-Time minus 08:00:00

portal local-server load portalpage.zip

drop illegal-mac alarm

ipv6

set cpu-usage threshold 80 restore 75

aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher % % K8m.Nt84DZ}e#<0`8bmE3Uw}% %
local-user admin service-type http

firewall zone Local
priority 15

interface GigabitEthernet0/0/0
ipv6 enable
ipv6 address 2001::4/64
vrrp6 vrid 1 virtual-ip FE80::FFFF link-local
vrrp6 vrid 1 virtual-ip 2001::1

interface GigabitEthernet0/0/1

interface GigabitEthernet0/0/2

interface NULL0

user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20

wlan ac

return
4.测试
