java PDF盖章-位置定位，请看这篇文章。
本文为关键词盖章，需求就是根据关键词在pdf进行签章，如：pdf尾页盖上xxx机构的电子章。
直接上代码：所需要的依赖和位置定位的差不多，请看上文。

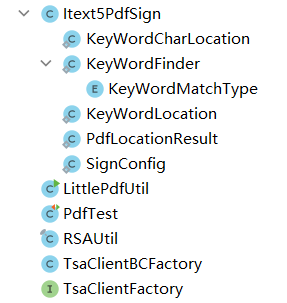

Itext5PdfSign.java
package test02itextpdf.keyword;
import com.itextpdf.text.Image;
import com.itextpdf.text.Rectangle;
import com.itextpdf.text.pdf.PdfReader;
import com.itextpdf.text.pdf.PdfSignatureAppearance;
import com.itextpdf.text.pdf.PdfSignatureAppearance.RenderingMode;
import com.itextpdf.text.pdf.PdfStamper;
import com.itextpdf.text.pdf.PdfStream;
import com.itextpdf.text.pdf.parser.PdfReaderContentParser;
import com.itextpdf.text.pdf.parser.TextMarginFinder;
import com.itextpdf.text.pdf.parser.TextRenderInfo;
import com.itextpdf.text.pdf.security.*;
import com.itextpdf.text.pdf.security.MakeSignature.CryptoStandard;
import lombok.Data;
import lombok.Getter;
import lombok.Setter;
import org.apache.commons.lang.StringUtils;
import org.bouncycastle.jce.provider.BouncyCastleProvider;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.security.KeyStore;
import java.security.PrivateKey;
import java.security.Security;
import java.security.cert.Certificate;
import java.util.ArrayList;
import java.util.List;
import java.util.Objects;
import java.util.stream.IntStream;
/**
* pdf 签章实现类
*/
public class Itext5PdfSign {
private static final Logger LOG = LoggerFactory.getLogger(Itext5PdfSign.class);
private SignConfig signConfig;
public void sign(InputStream waitSignPdf, OutputStream signedPdf) {
try {
PdfReader reader = new PdfReader(waitSignPdf);
/**
* false的话，pdf文件只允许被签名一次，多次签名，最后一次有效
* true的话，pdf可以被追加签名，验签工具可以识别出每次签名之后文档是否被修改
*/
PdfStamper stamper = PdfStamper.createSignature(reader, signedPdf, '\0', null, true);
/**
* 设定签章为高清章,默认模糊
*/
stamper.getWriter().setCompressionLevel(PdfStream.BEST_COMPRESSION);
/**
* 设定签章属性
*/
PdfSignatureAppearance appearance = stamper.getSignatureAppearance();
appearance.setReason(signConfig.getReason());
appearance.setLocation(signConfig.getLocation());
appearance.setSignatureCreator(signConfig.getSignername());
PdfLocationResult locationResult = calcSignLocation(reader, KeyWordFinder.KeyWordMatchType.MATCH_LAST);
appearance.setVisibleSignature(locationResult.getRectangle(), locationResult.getPageNum(), signConfig.getSignFiledName());
/**
* 设定签章图片,签章类别
*/
appearance.setSignatureGraphic(signConfig.getChapterImg());
//NOT_CERTIFIED 不会导致pdf上其他签章无效
appearance.setCertificationLevel(PdfSignatureAppearance.NOT_CERTIFIED);
/**
* 设置图章的显示方式，如下选择的是只显示图章（还有其他的模式，可以图章和签名描述一同显示）
*/
appearance.setRenderingMode(RenderingMode.GRAPHIC);
/**
* 指定摘要算法
*/
ExternalDigest digest = signConfig.getDigest();
/**
* 指定签名对象
*/
ExternalSignature signature = signConfig.getSignature();
/**
* 构造时间时间戳服务器
*/
TSAClient tsaClient = getTsaClient();
/**
* itext 签章
*/
MakeSignature.signDetached(appearance, digest, signature, signConfig.getChain(), null, null, tsaClient, 0, CryptoStandard.CMS);
} catch (Exception e) {
throw new RuntimeException("签章异常", e);
}
}
public Itext5PdfSign(SignConfig signConfig) {
checkInit(signConfig);
try {
BouncyCastleProvider bc = new BouncyCastleProvider();
Security.addProvider(bc);
if (StringUtils.isNotEmpty(signConfig.getSignP12Path())) {
String p12Path = signConfig.getSignP12Path();
String password = signConfig.getSignP12Password();
KeyStore ks = RSAUtil.getKeyStore(p12Path, password);
String alias = ks.aliases().nextElement();
PrivateKey privateKey = (PrivateKey) ks.getKey(alias, password.toCharArray());
signConfig.setChain(ks.getCertificateChain(alias));
signConfig.setPrivateKey(privateKey);
}
signConfig.setDigest(new BouncyCastleDigest());
signConfig.setSignature(new PrivateKeySignature(signConfig.getPrivateKey(), DigestAlgorithms.SHA256, BouncyCastleProvider.PROVIDER_NAME));
if (Objects.isNull(signConfig.getChapterImg())) {
signConfig.setChapterImg(Image.getInstance(signConfig.getChapterImgPath()));
}
Image chapterImg = signConfig.getChapterImg();
signConfig.setStampWidth(chapterImg.getWidth());
signConfig.setStampHeight(chapterImg.getHeight());
this.signConfig = signConfig;
} catch (Exception e) {
throw new RuntimeException("init error", e);
}
}
private void checkInit(SignConfig signConfig) {
if (StringUtils.isEmpty(signConfig.getSignP12Path())) {
throw new RuntimeException("缺少签章用的公私钥对信息");
}
if (StringUtils.isNotEmpty(signConfig.getSignP12Path()) && StringUtils.isEmpty(signConfig.getSignP12Password())) {
throw new RuntimeException("签章证书密码配置缺少");
}
if (Objects.isNull(signConfig.getChapterImg()) && StringUtils.isEmpty(signConfig.getChapterImgPath())) {
throw new RuntimeException("缺少签章图片地址信息");
}
if (StringUtils.isEmpty(signConfig.getSignername())) {
throw new RuntimeException("缺少签章者名称信息");
}
if (StringUtils.isEmpty(signConfig.getReason())) {
throw new RuntimeException("缺少签章原因信息");
}
if (StringUtils.isEmpty(signConfig.getLocation())) {
throw new RuntimeException("缺少签章位置信息");
}
if (StringUtils.isEmpty(signConfig.getSignFiledName())) {
throw new RuntimeException("缺少签章域名称信息");
}
if (Objects.nonNull(signConfig.getTsaClientFactory())) {
signConfig.setNoTsa(false);
}
if (Objects.nonNull(signConfig.getTsaUrl())) {
signConfig.setNoTsa(false);
signConfig.tsaClientFactory = new TsaClientBCFactory(signConfig.getTsaUrl());
}
}
private TSAClient getTsaClient() {
if (signConfig.isNoTsa()) {
return null;
}
return signConfig.tsaClientFactory.newTSAClient();
}
@Data
public static class SignConfig {
/**
* 签章hash 及签名实现
*/
private ExternalDigest digest;
private ExternalSignature signature;
/**
* 证书链及私钥
*/
private Certificate[] chain;
private PrivateKey privateKey;
/**
* 签章原因
*/
private String reason;
/**
* 签章位置
*/
private String location;
/**
* 签章者名称
*/
private String signername;
/**
* 签章图片地址
*/
private Image chapterImg;
private String chapterImgPath;
/**
* 签章域名称可根据域查找章的位置
*/
private String signFiledName;
/**
* 签章公私钥文件
*/
private String signP12Path;
private String signP12Password;
/**
* 签章关键词及关键词所在的页码
*/
private String signKeyWord;
private Integer signKeyWordPageNum;
/**
* 签章图片的宽高
*/
private float stampHeight;
private float stampWidth;
/**
* 签章时间服务
*/
private boolean noTsa = true;
private TsaClientFactory tsaClientFactory;
private String tsaUrl;
}
private PdfLocationResult calcSignLocation(PdfReader reader, KeyWordFinder.KeyWordMatchType matchType) {
/**
* 1. 如果关键字存在,则签章在关键字上
* 2. 如果关键字不存在 则签章在尾页的右下角
*/
KeyWordLocation keyWordLocation = keyWordLocation(reader, signConfig.getSignKeyWord(), signConfig.getSignKeyWordPageNum(), matchType);
if (Objects.nonNull(keyWordLocation)) {
/**

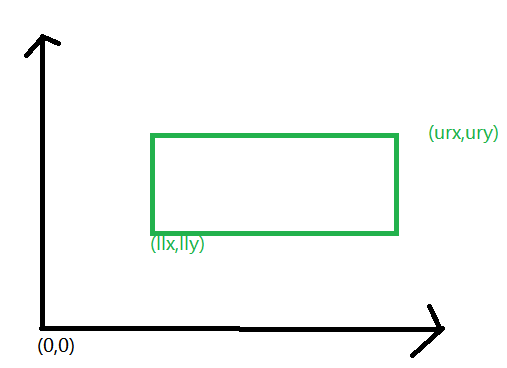

* 计算规则:
* 1. 由于获取的关键词文件块宽高过于夸张,所以先计算关键词文本块矩形右下角坐标( keyWordLocation.getUrx(),keyWordLocation.getUry()-文本块高度)
* 2. 然后将 文本块右下角坐标作为签章矩形的中心点,然后计算签章域的左下角右上角坐标
* 3.签章域超出pdf页宽高,并做溢出处理
*/
float keyWordTextBlockHeight = keyWordLocation.getKeyWordTextBlockHeight();
/**
* 关键字右下角坐标
*/
float keyWordLrx = keyWordLocation.getUrx();
float keyWordLry = keyWordLocation.getUry() - keyWordTextBlockHeight;
//签章域左下角坐标
float llx = keyWordLrx - signConfig.getStampWidth() / 2;
float lly = keyWordLry - signConfig.getStampHeight() / 2;
/**
* 横纵坐标向溢出处理
*/
Rectangle pageSize = reader.getPageSize(keyWordLocation.getPageNum());
if (llx + signConfig.getStampWidth() > pageSize.getWidth()) {
llx = pageSize.getWidth() - signConfig.getStampWidth();
}
if (lly < 0) {
llx = 0;
}
//签章域右上角坐标
float urx = llx + signConfig.getStampWidth();
float ury = lly + signConfig.getStampHeight();
Rectangle rectangle = new Rectangle(llx, lly, urx, ury);
LOG.debug("查找到关键词[{}]位置,坐标为{}", keyWordLocation.getText(), keyWordLocation);
return new PdfLocationResult(keyWordLocation.getPageNum(), rectangle);
} else {
int numberOfPages = reader.getNumberOfPages();
Rectangle lastPageSize = reader.getPageSize(numberOfPages);
float pageWidth = lastPageSize.getWidth();
//左下角坐标 lly 表示距离底部的距离
float llx = pageWidth - signConfig.getStampWidth();
float lly = 50;
//右上角坐标
float urx = llx + signConfig.getStampWidth();
float ury = lly + signConfig.getStampHeight();
Rectangle rectangle = new Rectangle(llx, lly, urx, ury);
LOG.debug("未查找到关键词位置,签章位置默认在尾页", signConfig.getSignKeyWord());
return new PdfLocationResult(numberOfPages, rectangle);
}
}
/**
* 根据关键词 计算签章位置
*
* @param pdfReader 解析reader
* @param keyWord 关键词
* @param keyWordPageNum 关键词所在页码
* @return
*/
private KeyWordLocation keyWordLocation(PdfReader pdfReader, String keyWord, Integer keyWordPageNum, KeyWordFinder.KeyWordMatchType matchType) {
List<KeyWordLocation> keyWordLocationList = new ArrayList<>();
try {
int pageSize = pdfReader.getNumberOfPages();
PdfReaderContentParser pdfReaderContentParser = new PdfReaderContentParser(pdfReader);
IntStream pageStream = null;
if (Objects.nonNull(keyWordPageNum)) {
pageStream = IntStream.of(keyWordPageNum);
} else {
pageStream = IntStream.range(1, pageSize + 1);//含头不含尾
}
pageStream.forEach(pageNum -> {
try {
pdfReaderContentParser.processContent(pageNum, new KeyWordFinder(keyWord, pageNum, keyWordLocationList));
} catch (IOException e) {
throw new RuntimeException(e);
}
});
} catch (Exception e) {
throw new RuntimeException(e);
}
KeyWordLocation keyWordLocation = null;
if (keyWordLocationList.isEmpty()) {
return null;
}
if (keyWordLocationList.size() == 1) {
keyWordLocation = keyWordLocationList.get(0);
} else {
switch (matchType) {
case MATCH_LAST:
keyWordLocation = LittlePdfUtil.getLast(keyWordLocationList);
break;
case MATCH_FIRST:
keyWordLocation = keyWordLocationList.get(0);
break;
default:
keyWordLocation = LittlePdfUtil.getLast(keyWordLocationList);
break;
}
}
if (KeyWordFinder.KEYWORD_MATCH_TYPE_FULL.equals(keyWordLocation.getKeywordMatchType())) {
return keyWordLocation;
} else if (KeyWordFinder.KEYWORD_MATCH_TYPE_MIX.equals(keyWordLocation.getKeywordMatchType()) &&
Objects.nonNull(keyWordLocation.getMixMatchCharList())) {
/**
* 如果关键词被分拆,则返回中间字符的坐标
*/
List<KeyWordCharLocation> mixMatchCharList = keyWordLocation.getMixMatchCharList();
KeyWordLocation midChar = KeyWordFinder.getMidChar(keyWord, mixMatchCharList);
keyWordLocation.setLlx(midChar.getLlx());
keyWordLocation.setLly(midChar.getLly());
keyWordLocation.setUrx(midChar.getUrx());
keyWordLocation.setUry(midChar.getUry());
keyWordLocation.setKeyWordTextBlockHeight(midChar.getKeyWordTextBlockHeight());
keyWordLocation.setKeyWordTextBlockWidth(midChar.getKeyWordTextBlockWidth());
return keyWordLocation;
}
return keyWordLocation;
}
public static class KeyWordFinder extends TextMarginFinder {
@Getter
@Setter
private String keyWord;
@Getter
@Setter
private Integer pageNum;
@Getter
@Setter
private List<KeyWordLocation> keyWordLocationList;
/**
* 匹配类型
* <p>
* KEYWORD_MATCH_TYPE_FULL 关键词完全匹配
* KEYWORD_MATCH_TYPE_MIX 关键词混乱匹配
*/
public static final Integer KEYWORD_MATCH_TYPE_FULL = 1,
KEYWORD_MATCH_TYPE_MIX = 2;
/**
* 当前模式 是否为混乱模式
*/
private boolean isMixMatch;
/**
* 混乱匹配模式,已匹配的字符数(左匹配)
*/
private Integer keyWordMixMatchCharMatchCount = 0;
public KeyWordFinder(String keyWord, Integer pageNum, List<KeyWordLocation> keyWordLocationList) {
this.keyWord = keyWord;
this.pageNum = pageNum;
this.keyWordLocationList = keyWordLocationList;
}
@Override
public void renderText(TextRenderInfo renderInfo) {
super.renderText(renderInfo);
String text = renderInfo.getText();
LOG.debug("pdf文本:[{}] 文本宽度{},文本高度", text, this.getWidth(), this.getHeight());
//查找到关键词,并设置关键词位置
if (LittlePdfUtil.isNotEmpty(text)) {
if (text.contains(keyWord)) {
keyWordLocationList.add(toKeyWordLocation(text, KEYWORD_MATCH_TYPE_FULL));
return;
} else {
handleMatchMix(text);
return;
}
}
}
private void handleMatchMix(String text) {
if (!isMixMatch) {
int matchCount = leftMatch(keyWord, text, 0);
if (matchCount > 0) {
isMixMatch = true;
keyWordMixMatchCharMatchCount = matchCount;
KeyWordLocation keyWordMixMatchLocation = toKeyWordLocation(text, KEYWORD_MATCH_TYPE_MIX);
KeyWordCharLocation keyWordCharLocation = toKeyWordCharLocation(text);
keyWordCharLocation.setMixMatchCount(matchCount);
keyWordCharLocation.setMixMatchStart(0);
List<KeyWordCharLocation> mixMatchCharList = new ArrayList<>();
mixMatchCharList.add(keyWordCharLocation);
keyWordMixMatchLocation.setMixMatchCharList(mixMatchCharList);
keyWordLocationList.add(keyWordMixMatchLocation);
return;
}
}
if (isMixMatch) {
int matchCount = leftMatch(keyWord, text, keyWordMixMatchCharMatchCount);
if (keyWordMixMatchCharMatchCount.equals(keyWord.length())) {
//匹配结束
isMixMatch = false;
keyWordMixMatchCharMatchCount = 0;
} else if (matchCount > 0) {
//继续匹配中
List<KeyWordCharLocation> mixMatchCharList = LittlePdfUtil.getLast(keyWordLocationList).getMixMatchCharList();
KeyWordCharLocation keyWordCharLocation = toKeyWordCharLocation(text);
keyWordCharLocation.setMixMatchCount(matchCount);
keyWordCharLocation.setMixMatchStart(keyWordMixMatchCharMatchCount);
mixMatchCharList.add(keyWordCharLocation);
keyWordMixMatchCharMatchCount += matchCount;
} else {
isMixMatch = false;
keyWordMixMatchCharMatchCount = 0;
//删除不完全匹配
LittlePdfUtil.removeLastList(keyWordLocationList, 1);
}
}
}
private static int leftMatch(String keyWord, String text, int pos) {
int matchCount = 0, keyWordLen = keyWord.length();
for (int i = 0, len = text.length(); i < len; i++) {
int matchStart = pos + matchCount;
if (matchStart >= keyWordLen) {
break;
}
if (Objects.equals(keyWord.charAt(matchStart), text.charAt(i))) {
matchCount++;
}
}
if (matchCount > 0) {
return matchCount;
}
return -1;
}
public static enum KeyWordMatchType {
MATCH_LAST,
MATCH_FIRST;
}
private KeyWordLocation toKeyWordLocation(String text, Integer keywordMatchType) {
KeyWordLocation keyWordLocation = new KeyWordLocation();
keyWordLocation.setKeyWordTextBlockHeight(this.getHeight());
keyWordLocation.setKeyWordTextBlockWidth(this.getWidth());
keyWordLocation.setLlx(this.getLlx());
keyWordLocation.setLly(this.getLly());
keyWordLocation.setUrx(this.getUrx());
keyWordLocation.setUry(this.getUry());
keyWordLocation.setText(text);
keyWordLocation.setPageNum(pageNum);
keyWordLocation.setKeywordMatchType(keywordMatchType);
return keyWordLocation;
}
private KeyWordCharLocation toKeyWordCharLocation(String text) {
KeyWordCharLocation keyWordCharLocation = new KeyWordCharLocation();
keyWordCharLocation.setKeyWordTextBlockHeight(this.getHeight());
keyWordCharLocation.setKeyWordTextBlockWidth(this.getWidth());
keyWordCharLocation.setLlx(this.getLlx());
keyWordCharLocation.setLly(this.getLly());
keyWordCharLocation.setUrx(this.getUrx());
keyWordCharLocation.setUry(this.getUry());
keyWordCharLocation.setText(text);
keyWordCharLocation.setPageNum(pageNum);
keyWordCharLocation.setKeywordMatchType(KEYWORD_MATCH_TYPE_MIX);
return keyWordCharLocation;
}
public static KeyWordCharLocation getMidChar(String keyWord, List<KeyWordCharLocation> mixMatchCharList) {
int midIndex = keyWord.length() / 2, count = 0;
for (int i = 0, len = mixMatchCharList.size(); i < len; i++) {
KeyWordCharLocation keyWordCharLocation = mixMatchCharList.get(i);
count += keyWordCharLocation.getMixMatchCount();
if (count >= midIndex) {
return keyWordCharLocation;
}
}
return mixMatchCharList.get(0);
}
}
/**
* 签章关键词文本位置
*/
@Data
public static class KeyWordLocation {
/**
* 文本
*/
private String text;
/**
* 关键词所在pdf页码
*/
private Integer pageNum;
/**
* 文本块所在矩形左下角坐标
*/
private float llx;
private float lly;
/**
* 文本块所在矩形右上角角坐标
*/
private float urx;
private float ury;
/**
* 文本块宽高
*/
private float keyWordTextBlockWidth;
private float keyWordTextBlockHeight;
/**
* 关键词匹配类型 参见keyFinder
*/
private Integer keywordMatchType;
/**
* 关键词被解析成多个TextRenderInfo
*/
private List<KeyWordCharLocation> mixMatchCharList;
}
/**
* 混乱匹配模式下的 打散的关键词字符位置
*/
@Data
public static class KeyWordCharLocation extends KeyWordLocation {
/**
* 混乱匹配时的起始位置
*/
private Integer mixMatchStart;
/**
* 匹配的字符数
*/
private Integer mixMatchCount;
}
@Data
public static class PdfLocationResult {
/**
* 签章所在pdf页码
*/
private int pageNum;
/**
* 签章矩形
*/
private Rectangle rectangle;
public PdfLocationResult(int pageNum, Rectangle rectangle) {
this.pageNum = pageNum;
this.rectangle = rectangle;
}
}
}
LittlePdfUtil.java
package test02itextpdf.keyword;
import org.apache.commons.io.IOUtils;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;
public class LittlePdfUtil {
public static String streamToString(InputStream inputStream, String encoding) throws IOException {
return IOUtils.toString(inputStream, encoding);
}
public static boolean isEmpty(String str) {
return str == null || str.length() == 0;
}
public static boolean isNotEmpty(String str) {
return str != null && str.length() >= 0;
}
public static byte[] streamToBytes(InputStream inputStream) throws IOException {
ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
byte[] buf = new byte[4 << 1024];
int len = -1;
while ((len = inputStream.read(buf)) != -1) {
outputStream.write(buf, 0, len);
}
inputStream.close();
return outputStream.toByteArray();
}
public static void removeLastList(List list, Integer num) {
for (int i = 0; i < num; i++) {
if (!list.isEmpty()) {
list.remove(list.size() - 1);
}
}
}
public static <T> T getLast(List<T> list) {
return list.get(list.size() - 1);
}
public static void main(String[] args) {
System.out.println("123".substring(0, 3));
}
}
RSAUtil.java
package test02itextpdf.keyword;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.File;
import java.io.FileInputStream;
import java.io.InputStream;
import java.security.KeyStore;
public final class RSAUtil {
private static final Logger LOG = LoggerFactory.getLogger(RSAUtil.class);
public static final String KEYSTORE_TYPE_P12 = "PKCS12";
public static final String KEYSTORE_TYPE_JKS = "JKS";
public static KeyStore getKeyStore(String filePath, String keyPassword) throws Exception {
KeyStore keyStore = KeyStore.getInstance(guessKeyStoreType(filePath));
FileInputStream file = new FileInputStream(new File(filePath));
keyStore.load(file, keyPassword.toCharArray());
return keyStore;
}
public static KeyStore getKeyStore(InputStream inputStream, String keyPassword) throws Exception {
KeyStore keyStore = KeyStore.getInstance(KEYSTORE_TYPE_P12);
keyStore.load(inputStream, keyPassword.toCharArray());
return keyStore;
}
public static String guessKeyStoreType(String filePath) {
String ext = filePath.substring(filePath.lastIndexOf(".")+1);
if (ext.equals("p12") || ext.equals("pfx")) {
return KEYSTORE_TYPE_P12;
}
if (ext.equals("jks")) {
return KEYSTORE_TYPE_JKS;
}
return null;
}
}
TsaClientBCFactory.java
package test02itextpdf.keyword;
import com.itextpdf.text.pdf.security.TSAClient;
import com.itextpdf.text.pdf.security.TSAClientBouncyCastle;
public class TsaClientBCFactory implements TsaClientFactory {
private String tsaUrl;
public TsaClientBCFactory(String tsaUrl) {
this.tsaUrl = tsaUrl;
}
@Override
public TSAClient newTSAClient() {
return new TSAClientBouncyCastle(tsaUrl);
}
}
TsaClientFactory.java
package test02itextpdf.keyword;
import com.itextpdf.text.pdf.security.TSAClient;
public interface TsaClientFactory {
TSAClient newTSAClient();
}PdfTest.java(测试)
package test02itextpdf.keyword;
import org.junit.Before;
import org.junit.Test;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import org.springframework.util.StopWatch;
public class PdfTest {
private Itext5PdfSign itext5PdfSign;
@Test
public void signTest() throws Exception {
StopWatch stopWatch = new StopWatch();
stopWatch.start("signBig");
itext5PdfSign.sign(new FileInputStream("E:\\iotest\\itextpdf\\keyword\\anxin2.pdf"), new FileOutputStream("E:\\iotest\\itextpdf\\keyword\\anxin2_sign.pdf"));
stopWatch.stop();
System.out.println(stopWatch.prettyPrint());
}
@Before
public void before() {
String signername = "安心集团有限公司";
String reason = "官方承认，不可篡改";
String location = "安心集团有限公司";
String password = "123456";
String p12Path = "E:\\iotest\\itextpdf\\keyword\\test2.p12";
String chapterPath = "E:\\iotest\\itextpdf\\keyword\\anxinseal.png";
String field_name = "sign_Field";
Itext5PdfSign.SignConfig signConfig = new Itext5PdfSign.SignConfig();
signConfig.setSignP12Path(p12Path);
signConfig.setSignP12Password(password);
signConfig.setChapterImgPath(chapterPath);
signConfig.setSignername(signername);
signConfig.setReason(reason);
signConfig.setLocation(location);
signConfig.setSignFiledName(field_name);
signConfig.setSignKeyWord("安心集团有限公司");
itext5PdfSign = new Itext5PdfSign(signConfig);
}
}
全部代码结构：
效果展示：(目前不清楚为啥不盖在关键词上面，等有时间再看看代码)
注意点：
pdf文本查找时,一个关键词可能被拆分成多个区块,所以要进行特殊处理
itext pdf坐标系
page页的左下角为坐标原点，定位一个矩形坐标时，根据左下角和右上角两个点坐标即可确定一个矩形的位置。
原文链接：https://blog.csdn.net/do_bset_yourself/article/details/109150218?spm=1001.2014.3001.5501
8588
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
