Keycloak集成项目

一、在keycloak上创建client(略)

二、client配置

2.1 在token中加入用户属性

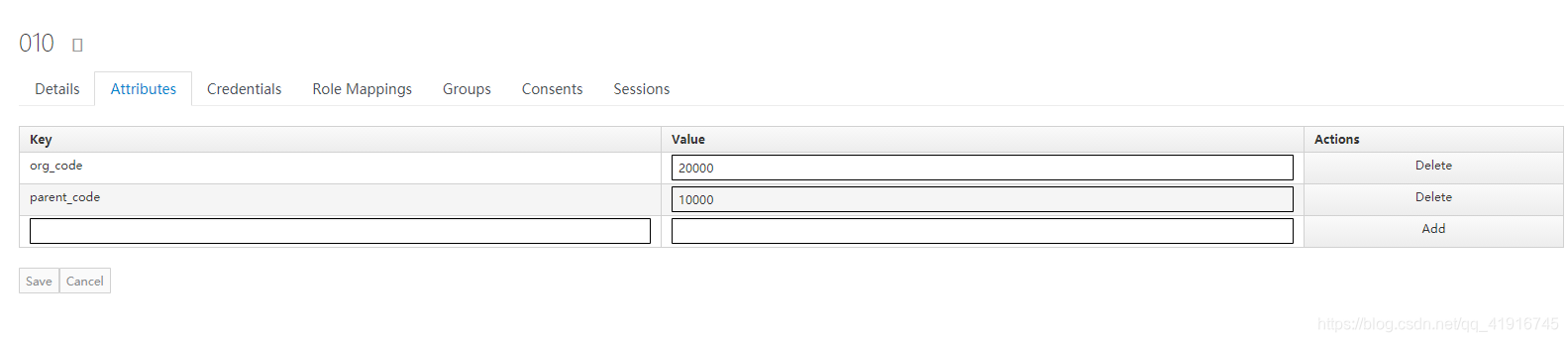

2.1.1 先为用户创建属性，如果所有用户都有这个属性，可以设置一个default role,再在role里面添加默认属性，

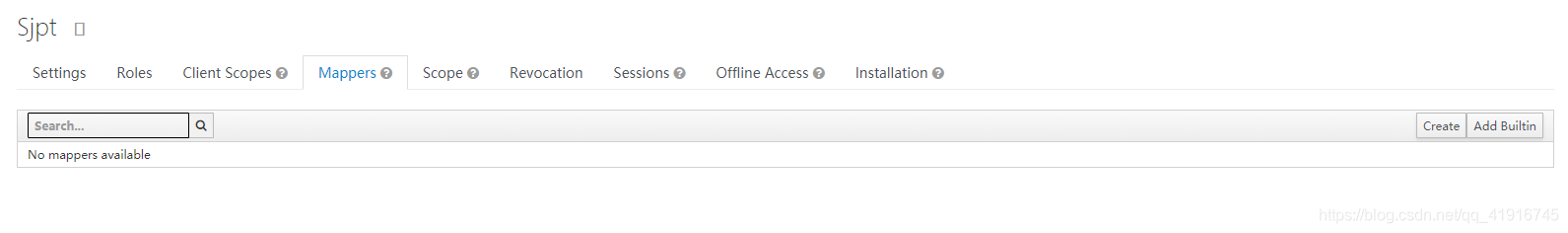

2.1.2 编辑client,点击mappers

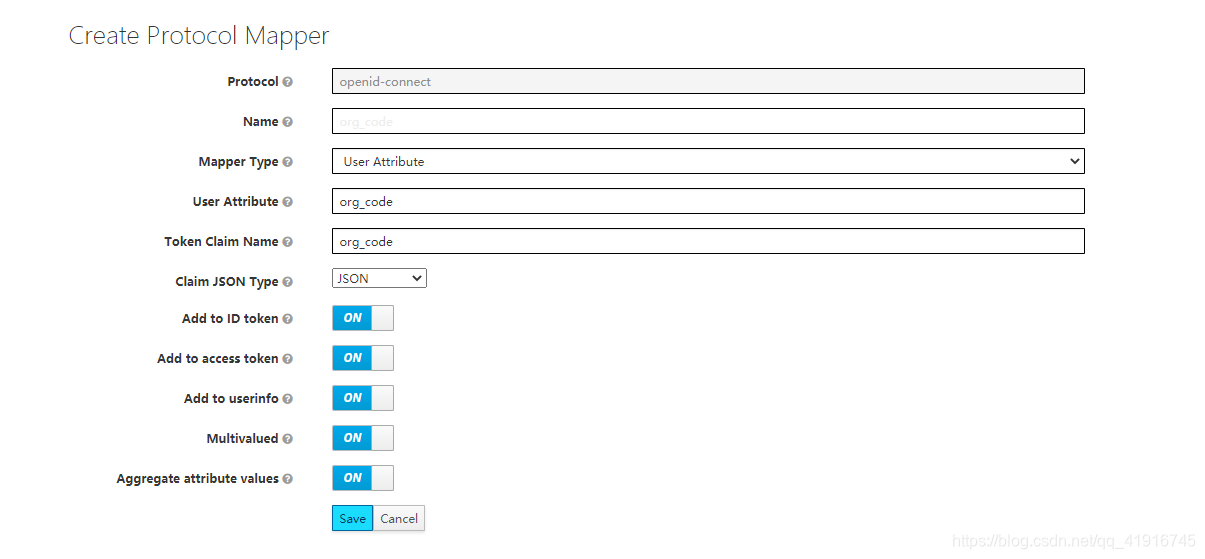

点create创建mappers，

图中Name的值也为org_code，省的乱了，如图配置，即可在token中看到org_code的值了

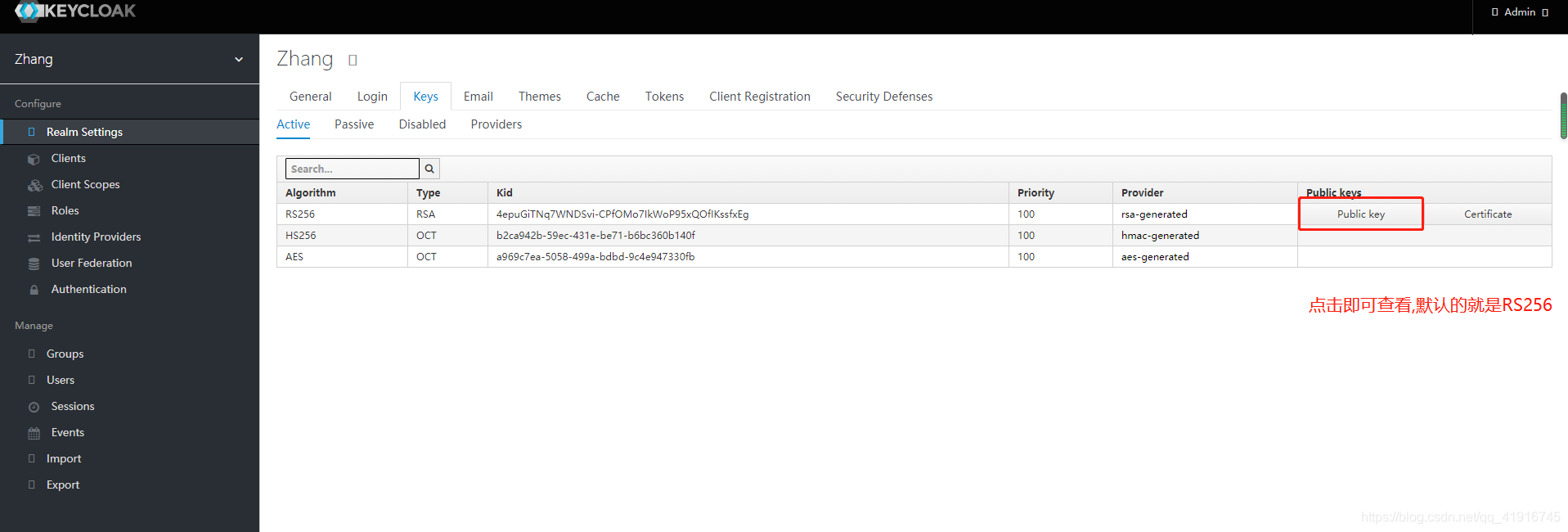

token的public 的值在这里查看

三、项目配置

我后端原来用的是django但其他厂家都是springboot,唉,但python也没有太好的单点登录框架。

3.1springboot项目

3.1.1前后端不分离

3.1.1.1 添加依赖

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.keycloak</groupId>
            <artifactId>keycloak-spring-boot-starter</artifactId>
            <version>7.0.0</version>
        </dependency>
        <dependency>
            <groupId>org.keycloak</groupId>
            <artifactId>keycloak-spring-security-adapter</artifactId>
            <version>7.0.0</version>
        </dependency>

3.1.1.2 添加配置

application.properties

//keycloak验证地址
keycloak.auth-server-url=http://127.0.0.1:8080/auth
keycloak.disable-trust-manager=true
keycloak.principal-attribute=preferred_username
//client秘钥
keycloak.credentials.secret=a96ee0d9-54af-4d0e-bba7-1e0d7cca5ad5
keycloak.public-client=false
//client所属群
keycloak.realm=zhang
//client id
keycloak.resource=InternalSec
keycloak.use-resource-role-mappings=true

keycloakConfig

import org.keycloak.adapters.springboot.KeycloakSpringBootConfigResolver;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class KeycloakConfig {

    @Bean
    public KeycloakSpringBootConfigResolver keycloakConfigResolver() {
        return new KeycloakSpringBootConfigResolver();
    }
}

KeycloakSecurityConfigurer

import org.keycloak.adapters.springsecurity.KeycloakConfiguration;
import org.keycloak.adapters.springsecurity.authentication.KeycloakAuthenticationProvider;
import org.keycloak.adapters.springsecurity.config.KeycloakWebSecurityConfigurerAdapter;
import org.keycloak.adapters.springsecurity.management.HttpSessionManager;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.core.authority.mapping.SimpleAuthorityMapper;
import org.springframework.security.web.authentication.session.NullAuthenticatedSessionStrategy;
import org.springframework.security.web.authentication.session.SessionAuthenticationStrategy;


@KeycloakConfiguration
public class KeycloakSecurityConfigurer  extends KeycloakWebSecurityConfigurerAdapter {

    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) {
        SimpleAuthorityMapper grantedAuthorityMapper = new SimpleAuthorityMapper();
        grantedAuthorityMapper.setPrefix("ROLE_");

        KeycloakAuthenticationProvider keycloakAuthenticationProvider = keycloakAuthenticationProvider();
        keycloakAuthenticationProvider.setGrantedAuthoritiesMapper(grantedAuthorityMapper);
        auth.authenticationProvider(keycloakAuthenticationProvider);

    }


    @Bean
    @Override
    protected SessionAuthenticationStrategy sessionAuthenticationStrategy() {
//        return new RegisterSessionAuthenticationStrategy(new SessionRegistryImpl());
        return new NullAuthenticatedSessionStrategy();
    }


    @Bean
    @Override
    @ConditionalOnMissingBean(HttpSessionManager.class)
    protected HttpSessionManager httpSessionManager() {
        return new HttpSessionManager();
    }


    @Override
    protected void configure(HttpSecurity http) throws Exception {
        super.configure(http);
        http
                .authorizeRequests()
                //  /**代表所有路由都由keycloak保护   hasAnyRole设置用有哪些权限的用户可以登录
                .antMatchers("/**").hasAnyRole(  "1-user","XiangTaiPolice","org_code")
                .anyRequest().permitAll()
                .and()
                .csrf().disable();
    }
}

3.1.1.3 获取用户信息

    @GetMapping(path = "/hello")
    public String customers(Principal principal, HttpServletRequest request,HttpServletResponse response){
        KeycloakAuthenticationToken kcToken=(KeycloakAuthenticationToken)principal;
        System.out.println(kcToken);
        SimpleKeycloakAccount account=(SimpleKeycloakAccount )kcToken.getAccount();
        RefreshableKeycloakSecurityContext rc=account.getKeycloakSecurityContext();
        System.out.println(rc.getTokenString());
        String[] vals=(rc.getTokenString()).split("\\.");
        for (int i = 0; i < vals.length; i++) {
            if(i==1){
                vals[1]=vals[1]+"==";
                byte[] a= Base64.decodeBase64(vals[1]);
                String b=new String(a);
                JSONObject jsonObject = JSONObject.parseObject(b);
                String org_code=jsonObject.getString("org_code");
                String parent_code=jsonObject.getString("parent_code");
                System.out.println(org_code);
                System.out.println(parent_code);
            }

        }
        return "index";
    }

3.1.2 前后端分离(vue)

前后端分离只需要配置前端即可

3.1.2.1 安装keycloak-js

npm i --save @dsb-norge/vue-keycloak-js

3.1.2.2 使用

main.js

import keycloak from '@dsb-norge/vue-keycloak-js';

Vue.use(keycloak , {
  init: {
      onLoad: 'login-required',
      checkLoginIframe: false
  },
  config: {
      url: 'http://127.0.0.1:8080/auth',
      realm: 'zhang',
      clientId: 'sjpt'
  },
  onReady: (keycloak) => {
       //获取用户的信息
      console.log(222,Vue.prototype.$keycloak.token)
          //用户的属性也在里面
      	  keycloak.loadUserProfile().success((data) => {
               console.log(data);
      });


  }
});

request.js

//在拦截器里配置,可全局使用
 config.headers.Authorization = `Bearer ${Vue.prototype.$keycloak.token}`

每次请求携带token，有效期为5分钟，后端如何解析token
验证token

import java.util.Base64;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import java.security.interfaces.RSAPublicKey;
import java.security.spec.InvalidKeySpecException;
import java.security.spec.X509EncodedKeySpec;
import java.security.KeyFactory;

final Base64.Decoder decoder = Base64.getDecoder();
final Base64.Encoder encoder = Base64.getEncoder();
byte[] decode = decoder.decode(public key);
X509EncodedKeySpec keySpecX509 = new X509EncodedKeySpec(decode);
KeyFactory keyFactory = KeyFactory.getInstance("RSA");
RSAPublicKey pubKey = (RSAPublicKey) keyFactory.generatePublic(keySpecX509);

//最好加个try()catch{}出错即验证错误或token过期
Claims claims = Jwts.parser()
        .setSigningKey(pubKey)
        .parseClaimsJws(token.getString("token")).getBody();

相关方法

//获取用户信息,可获取用户名,及其属性
keycloak.loadUserProfile()
//退出登录
keycloak.logoutFn()

3.2 ？

未完待续。。。
