SpringBoot整合MQTT（MqttClient）

一、SpringBoot整合MQTT

创建项目，引入 MQTT依赖：

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.3.12.RELEASE</version>
        </dependency>

        <!-- spring-integration-mqtt依赖 -->
        <dependency>
            <groupId>org.springframework.integration</groupId>
            <artifactId>spring-integration-mqtt</artifactId>
            <version>6.1.2</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.28</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>

1、yml配置文件

在 application.yml文件中，定义 MQTT连接信息。

## MQTT 基本连接参数 ##
mqtt:
  host: tcp://192.168.xxx.xxx:1883
  #  host: tcp://broker.emqx.io:1883
  userName: admin
  passWord: xxxxxx
  qos: 1
  clientId: ClientId_local #ClientId_local必须唯一。
  timeout: 10 # 超时时间
  keepalive: 30 # 保持连接时间
  clearSession: true   # 清除会话(设置为false,断开连接，重连后使用原来的会话 保留订阅的主题，能接收离线期间的消息)
  topic1: A/b/#  # 通配符主题只能用于订阅，不能用于发布。+：表示单层通配符，#：表示多层通配符
  topic2: A/abc
  topic3: ABC

2、MQTT配置类

创建一个 MqttConfig配置类，并获取配置文件的 MQTT的连接参数。创建 MyMqttClient类注入Spring。

@Slf4j
@Configuration
public class MqttConfig {

    @Value("${mqtt.host}")
    public String host;
    @Value("${mqtt.username}")
    public String username;
    @Value("${mqtt.password}")
    public String password;
    @Value("${mqtt.clientId}")
    public String clientId;
    @Value("${mqtt.timeout}")
    public int timeOut;
    @Value("${mqtt.keepalive}")
    public int keepAlive;

    @Value("${mqtt.clearSession}")
    public boolean clearSession;
    @Value("${mqtt.topic1}")
    public String topic1;
    @Value("${mqtt.topic2}")
    public String topic2;
    @Value("${mqtt.topic3}")
    public String topic3;

    @Bean//注入Spring
    public MyMqttClient myMqttClient() {
        MyMqttClient myMqttClient = new MyMqttClient(host, username, password, clientId, timeOut, keepAlive, clearSession);
        for (int i = 0; i < 10; i++) {
            try {
                myMqttClient.connect();
                // 这里可以订阅主题，推荐放到 MqttCallbackExtended.connectComplete方法中
                //myMqttClient.subscribe("ABC", 1);
                return myMqttClient;
            } catch (MqttException e) {
                log.error("== MqttConfig ==> MQTT connect exception, connect time = {}", i);
                try {
                    Thread.sleep(2000);
                } catch (InterruptedException e1) {
                    e1.printStackTrace();
                }
            }
        }
        return myMqttClient;
    }

}

3、MQTT 客户端封装类

创建 MQTT 客户端封装类MyMqttClient。对 MQTT Broker进行操作。

@Slf4j
public class MyMqttClient {

    /**
     * MQTT Broker 基本连接参数，用户名、密码为非必选参数
     */
    private String host;
    private String username;
    private String password;
    private String clientId;
    private int timeout;
    private int keepalive;
    private boolean clearSession;

    /**
     * MQTT 客户端
     */
    private static MqttClient client;

    public static MqttClient getClient() {
        return client;
    }

    public static void setClient(MqttClient client) {
        MyMqttClient.client = client;
    }

    public MyMqttClient(String host, String username, String password, String clientId, int timeOut, int keepAlive, boolean clearSession) {
        this.host = host;
        this.username = username;
        this.password = password;
        this.clientId = clientId;
        this.timeout = timeOut;
        this.keepalive = keepAlive;
        this.clearSession = clearSession;
    }

    /**
     * 设置 MQTT Broker 基本连接参数
     *
     * @param username
     * @param password
     * @param timeout
     * @param keepalive
     * @return
     */
    public MqttConnectOptions setMqttConnectOptions(String username, String password, int timeout, int keepalive) {
        MqttConnectOptions options = new MqttConnectOptions();
        options.setUserName(username);
        options.setPassword(password.toCharArray());
        options.setConnectionTimeout(timeout);
        options.setKeepAliveInterval(keepalive);
        options.setCleanSession(clearSession);
        options.setAutomaticReconnect(true);
        return options;
    }

    /**
     * 连接 MQTT Broker，得到 MqttClient连接对象
     */
    public void connect() throws MqttException {
        if (client == null) {
            client = new MqttClient(host, clientId, new MemoryPersistence());
            // 设置回调
            client.setCallback(new MyMqttCallback(MyMqttClient.this));
        }
        // 连接参数
        MqttConnectOptions mqttConnectOptions = setMqttConnectOptions(username, password, timeout, keepalive);
        if (!client.isConnected()) {
            client.connect(mqttConnectOptions);
        } else {
            client.disconnect();
            client.connect(mqttConnectOptions);
        }
        log.info("== MyMqttClient ==> MQTT connect success");//未发生异常，则连接成功
    }

    /**
     * 发布，默认qos为0，非持久化
     *
     * @param pushMessage
     * @param topic
     */
    public void publish(String pushMessage, String topic) {
        publish(pushMessage, topic, 0, false);
    }

    /**
     * 发布消息
     *
     * @param pushMessage
     * @param topic
     * @param qos
     * @param retained:留存
     */
    public void publish(String pushMessage, String topic, int qos, boolean retained) {
        MqttMessage message = new MqttMessage();
        message.setPayload(pushMessage.getBytes());
        message.setQos(qos);
        message.setRetained(retained);
        MqttTopic mqttTopic = MyMqttClient.getClient().getTopic(topic);
        if (null == mqttTopic) {
            log.error("== MyMqttClient ==> topic is not exist");
        }
        MqttDeliveryToken token;//Delivery:配送
        synchronized (this) {//注意：这里一定要同步，否则，在多线程publish的情况下，线程会发生死锁，分析见文章最后补充
            try {
                token = mqttTopic.publish(message);//也是发送到执行队列中，等待执行线程执行，将消息发送到消息中间件
                token.waitForCompletion(1000L);
            } catch (MqttPersistenceException e) {
                e.printStackTrace();
            } catch (MqttException e) {
                e.printStackTrace();
            }
        }
    }

    /**
     * 订阅某个主题，qos默认为0
     *
     * @param topic
     */
    public void subscribe(String topic) {
        subscribe(topic, 0);
    }

    /**
     * 订阅某个主题
     *
     * @param topic
     * @param qos
     */
    public void subscribe(String topic, int qos) {
        try {
            MyMqttClient.getClient().subscribe(topic, qos);
        } catch (MqttException e) {
            e.printStackTrace();
        }
        log.info("== MyMqttClient ==> 订阅主题成功：topic = {}， qos = {}", topic, qos);
    }


    /**
     * 取消订阅主题
     *
     * @param topic 主题名称
     */
    public void cleanTopic(String topic) {
        if (client != null && client.isConnected()) {
            try {
                client.unsubscribe(topic);
            } catch (MqttException e) {
                e.printStackTrace();
            }
        } else {
            log.error("== MyMqttClient ==> 取消订阅失败！");
        }
        log.info("== MyMqttClient ==> 取消订阅主题成功：topic = {}", topic);
    }

}

说明：

• MqttClient: 同步调用客户端，使用阻塞方法通信。
• MqttClientPersistence: 代表一个持久的数据存储，用于在传输过程中存储出站和入站的信息，使其能够传递到指定的 QoS。
• MqttConnectOptions: 连接选项，用于指定连接的参数，下面列举一些常见的方法。
  • setUserName: 设置用户名
  • setPassword: 设置密码
  • setCleanSession: 设置是否清除会话
  • setKeepAliveInterval: 设置心跳间隔
  • setConnectionTimeout: 设置连接超时时间
  • setAutomaticReconnect: 设置是否自动重连

4、MqttClient回调类

创建一个 MqttClient回调类MyMqttCallback。

@Slf4j
public class MyMqttCallback implements MqttCallbackExtended {

    //手动注入
    private MqttConfig mqttConfig = SpringUtils.getBean(MqttConfig.class);


    private MyMqttClient myMqttClient;

    public MyMqttCallback(MyMqttClient myMqttClient) {
        this.myMqttClient = myMqttClient;
    }

    /**
     * MQTT Broker连接成功时被调用的方法。在该方法中可以执行 订阅系统约定的主题（推荐使用）。
     * 如果 MQTT Broker断开连接之后又重新连接成功时，主题也需要再次订阅，将重新订阅主题放在连接成功后的回调方法中比较合理。
     *
     * @param reconnect
     * @param serverURI MQTT Broker的url
     */
    @Override
    public void connectComplete(boolean reconnect, String serverURI) {
        String connectMode = reconnect ? "重连" : "直连";
        log.info("== MyMqttCallback ==> MQTT 连接成功，连接方式：{}，serverURI：{}", connectMode, serverURI);
        //订阅主题
        myMqttClient.subscribe(mqttConfig.topic1, 1);
        myMqttClient.subscribe(mqttConfig.topic2, 1);
        myMqttClient.subscribe(mqttConfig.topic3, 1);

        List<String> topicList = new ArrayList<>();
        topicList.add(mqttConfig.topic1);
        topicList.add(mqttConfig.topic2);
        topicList.add(mqttConfig.topic3);
        log.info("== MyMqttCallback ==> 连接方式：{}，订阅主题成功，topic：{}", connectMode, topicList);
    }


    /**
     * 丢失连接，可在这里做重连
     * 只会调用一次
     *
     * @param throwable
     */
    @Override
    public void connectionLost(Throwable throwable) {
        log.error("== MyMqttCallback ==> connectionLost 连接断开，5S之后尝试重连: {}", throwable.getMessage());
        long reconnectTimes = 1;
        while (true) {
            try {
                if (MyMqttClient.getClient().isConnected()) {
                    //判断已经重新连接成功  需要重新订阅主题 可以在这个if里面订阅主题  或者 connectComplete（方法里面）  看你们自己选择
                    log.warn("== MyMqttCallback ==> mqtt reconnect success end  重新连接  重新订阅成功");
                    return;
                }
                reconnectTimes += 1;
                log.warn("== MyMqttCallback ==> mqtt reconnect times = {} try again...  mqtt重新连接时间 {}", reconnectTimes, reconnectTimes);
                MyMqttClient.getClient().reconnect();
            } catch (MqttException e) {
                log.error("== MyMqttCallback ==> mqtt断连异常", e);
            }
            try {
                Thread.sleep(5000);
            } catch (InterruptedException e1) {
            }
        }
    }

    /**
     * 接收到消息（subscribe订阅的主题消息）时被调用的方法
     *
     * @param topic
     * @param mqttMessage
     * @throws Exception 后得到的消息会执行到这里面
     */
    @Override
    public void messageArrived(String topic, MqttMessage mqttMessage) throws Exception {
        log.info("== MyMqttCallback ==> messageArrived 接收消息主题: {}，接收消息内容: {}", topic, new String(mqttMessage.getPayload()));
        /**
         * 根据订阅的主题分别处理业务。可以通过if-else或者策略模式来分别处理不同的主题消息。
         */
        //topic1主题
        if (topic.equals("ABC")) {
            Map maps = (Map) JSON.parse(new String(mqttMessage.getPayload(), StandardCharsets.UTF_8));
            //TODO 业务处理
            //doSomething1(maps);
            log.info("== MyMqttCallback ==> messageArrived 接收消息主题: {}，{}业务处理消息内容完成", topic, "TodoService1");
        }
        //topic2主题
        if (topic.equals("A/b/1qaz")) {
            Map maps = (Map) JSON.parse(new String(mqttMessage.getPayload(), StandardCharsets.UTF_8));
            //TODO 业务处理
            //doSomething2(maps);
            log.info("== MyMqttCallback ==> messageArrived 接收消息主题: {}，{}业务处理消息内容完成", topic, "TodoService2");
        }
    }

    /**
     * 消息发送（publish）完成时被调用的方法
     *
     * @param iMqttDeliveryToken
     */
    @Override
    public void deliveryComplete(IMqttDeliveryToken iMqttDeliveryToken) {
        log.info("== MyMqttCallback ==> deliveryComplete 消息发送完成，Complete= {}", iMqttDeliveryToken.isComplete());
    }

}

MqttCallback类方法说明：

• connectionLost(Throwable cause): 连接丢失时被调用
• messageArrived(String topic, MqttMessage message): 接收到消息时被调用
• deliveryComplete(IMqttDeliveryToken token): 消息发送完成时被调用

MqttCallbackExtended类方法说明：该类继承MqttCallback类

• connectComplete(boolean reconnect, String serverURI): 连接丢失时被调用

4.1 SpringUtils工具类

@Component
public class SpringUtils implements BeanFactoryPostProcessor, ApplicationContextAware {
    /**
     * Spring应用上下文环境
     */
    private static ConfigurableListableBeanFactory beanFactory;

    private static ApplicationContext applicationContext;

    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
        SpringUtils.beanFactory = beanFactory;
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        SpringUtils.applicationContext = applicationContext;
    }

    /**
     * 获取对象
     *
     * @param name
     * @return Object 一个以所给名字注册的bean的实例
     * @throws org.springframework.beans.BeansException
     */
    @SuppressWarnings("unchecked")
    public static <T> T getBean(String name) throws BeansException {
        return (T) beanFactory.getBean(name);
    }

    /**
     * 获取类型为requiredType的对象
     *
     * @param clz
     * @return
     * @throws org.springframework.beans.BeansException
     */
    public static <T> T getBean(Class<T> clz) throws BeansException {
        T result = (T) beanFactory.getBean(clz);
        return result;
    }

    /**
     * 如果BeanFactory包含一个与所给名称匹配的bean定义，则返回true
     *
     * @param name
     * @return boolean
     */
    public static boolean containsBean(String name) {
        return beanFactory.containsBean(name);
    }

    /**
     * 判断以给定名字注册的bean定义是一个singleton还是一个prototype。 如果与给定名字相应的bean定义没有被找到，将会抛出一个异常（NoSuchBeanDefinitionException）
     *
     * @param name
     * @return boolean
     * @throws org.springframework.beans.factory.NoSuchBeanDefinitionException
     */
    public static boolean isSingleton(String name) throws NoSuchBeanDefinitionException {
        return beanFactory.isSingleton(name);
    }

    /**
     * @param name
     * @return Class 注册对象的类型
     * @throws org.springframework.beans.factory.NoSuchBeanDefinitionException
     */
    public static Class<?> getType(String name) throws NoSuchBeanDefinitionException {
        return beanFactory.getType(name);
    }

    /**
     * 如果给定的bean名字在bean定义中有别名，则返回这些别名
     *
     * @param name
     * @return
     * @throws org.springframework.beans.factory.NoSuchBeanDefinitionException
     */
    public static String[] getAliases(String name) throws NoSuchBeanDefinitionException {
        return beanFactory.getAliases(name);
    }

    /**
     * 获取aop代理对象
     *
     * @param invoker
     * @return
     */
    @SuppressWarnings("unchecked")
    public static <T> T getAopProxy(T invoker) {
        return (T) AopContext.currentProxy();
    }

    /**
     * 获取当前的环境配置，无配置返回null
     *
     * @return 当前的环境配置
     */
    public static String[] getActiveProfiles() {
        return applicationContext.getEnvironment().getActiveProfiles();
    }

    /**
     * 获取当前的环境配置，当有多个环境配置时，只获取第一个
     *
     * @return 当前的环境配置
     */
    public static String getActiveProfile() {
        final String[] activeProfiles = getActiveProfiles();
        if (activeProfiles == null) {
            return null;
        }
        return activeProfiles[0];
    }

}

到此，Springboot 通过 MqttClient整合操作 MQTT Broker就可以了。

二、操作MQTT

我们在 service层创建一个 MqttService类，业务通过 MqttService类来统一操作 MqttClient。

1、自定义发送消息载体类

这里创建一个 MyXxxMqttMsg类，来约定发送消息的载体类格式。

@Data
public class MyXxxMqttMsg implements Serializable {

    private static final long serialVersionUID = -8303548938481407659L;

    /**
     * MD5值：MD5_lower(content + timestamp)
     */
    private String md5;

    /**
     * 消息内容
     */
    private String content = "";

    /**
     * 时间戳
     */
    private Long timestamp;


}

2、MqttService类

1）接口：

public interface MqttService {

    /**
     * 添加订阅主题
     *
     * @param topic 主题名称
     */
    void addTopic(String topic);

    /**
     * 取消订阅主题
     *
     * @param topic 主题名称
     */
    void removeTopic(String topic);

    /**
     * 发布主题消息内容
     *
     * @param msgContent
     * @param topic
     */
    void publish(String msgContent, String topic);

}

2）实现类：

@Service
public class MqttServiceImpl implements MqttService {

    @Autowired
    private MyMqttClient myMqttClient;

    @Override
    public void addTopic(String topic) {
        myMqttClient.subscribe(topic);
    }

    @Override
    public void removeTopic(String topic) {
        myMqttClient.cleanTopic(topic);
    }

    @Override
    public void publish(String msgContent, String topic) {
        //MyXxxMqttMsg 转Json
        MyXxxMqttMsg myXxxMqttMsg = new MyXxxMqttMsg();
        myXxxMqttMsg.setContent(msgContent);
        myXxxMqttMsg.setTimestamp(System.currentTimeMillis());
        // TODO Md5值
        myXxxMqttMsg.setMd5(UUID.randomUUID().toString());
        String msgJson = JSON.toJSONString(myXxxMqttMsg);

        //发布消息
        myMqttClient.publish(msgJson, topic);
    }

3、controller类

创建一个 MyMqttController类，来操作一下 MQTT。

@RestController
@RequestMapping("/mqtt")
@Api(value = "MyMqttController", tags = {"MQTT相关操作接口"})
public class MyMqttController {
    @Autowired
    private MqttService mqttService;

    @GetMapping("/addTopic")
    @ApiOperation(value = "添加订阅主题接口")
    public void addTopic(String topic) {
        mqttService.addTopic(topic);
    }

    @GetMapping("/removeTopic")
    @ApiOperation(value = "取消订阅主题接口")
    public void removeTopic(String topic) {
        mqttService.removeTopic(topic);
    }

    @PostMapping("/removeTopic")
    @ApiOperation(value = "发布主题消息内容接口")
    public void removeTopic(String msgContent, String topic) {
        mqttService.publish(msgContent, topic);
    }

}

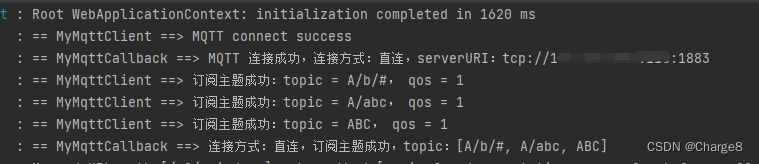

订阅和取消主题操作：MQTTX发布了一个主题消息。

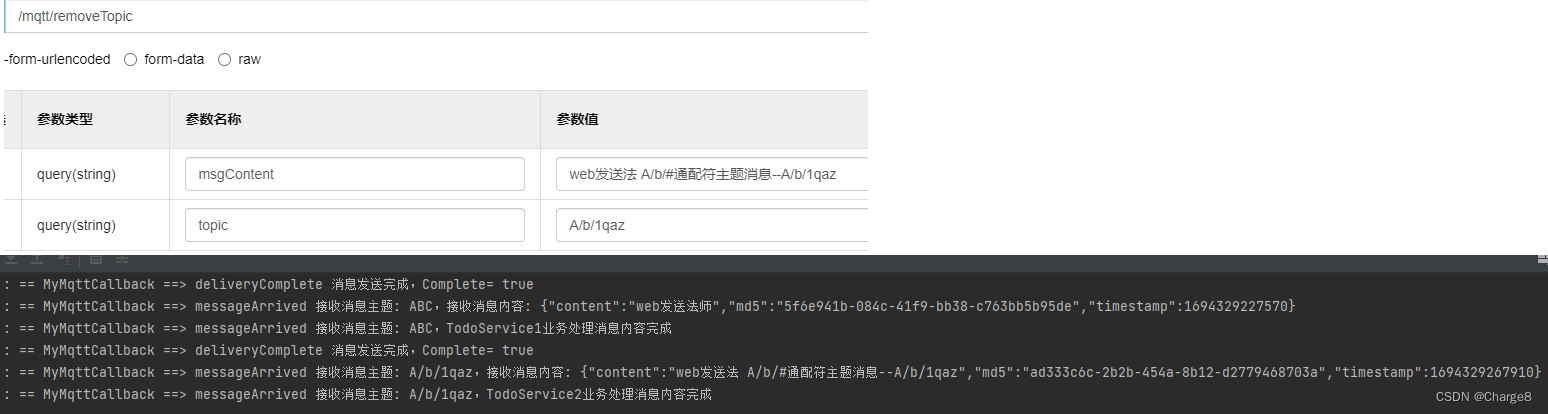

发布通配符主题消息：

– 求知若饥，虚心若愚。
