vue——实现图片上传、数量限制、可拖拽、删除、放大功能组件封装

---

主题思路

1.引用可拖拽属性。
2.使用el-upload进行二次封装。

---

一、引用可拖拽属性

使用npm进行安装

代码如下（示例）：

npm install vuedraggable --save

二、使用el-upload进行二次封装，并引用vuedraggable

代码如下（示例）：

 <template>
  <div class="upda fx">
    <!-- 图片可拖拽 -->
    <div class="col" v-if="imglisted.length != 0" style="margin-left: 10px">
      <draggable
        :disabled="disabled"
        v-model="imglisted"
        filter=".forbid"
        animation="300"
        @update="onMove"
      >
        <transition-group>
          <div
            v-for="(item, index) in imglisted"
            :key="index"
            style="display: inline-block; margin-right: 10px"
          >
            <div class="img-hover img_div">
              <img
                :src="nourl ? item : item.url"
                style="width: 100px; height: 100px"
                class="imgCSSS"
              />
              <div class="mask">
                <h3 style="line-height: 50px">
                  <span
                    v-show="!disabled"
                    class="el-icon-delete click_fly"
                    @click="handleRemove(index)"
                  ></span>
                  <span
                    class="el-icon-zoom-in click_fly"
                    style="margin-left: 10px"
                    @click="handlePreview(index)"
                  ></span>
                </h3>
              </div>
            </div>
          </div>
        </transition-group>
      </draggable>
    </div>
    <el-upload
      ref="upload"
      accept="image/*"
      :before-upload="handleBeforeUpload"
      v-if="imglisted.length != imgnumber && !loading"
      :disabled="disabled"
      :action="Url + '/common/fileUpload'"
      list-type="picture-card"
      name="file"
      :headers="token"
      :auto-upload="true"
      :show-file-list="false"
      :on-progress="handleExceed"
      :on-success="
        (response, file) => {
          onSuccess(response, file);
        }
      "
    >
      <i slot="default" class="el-icon-plus" />
    </el-upload>
    <div
      v-loading="loading"
      element-loading-text="上传中"
      element-loading-spinner="el-icon-loading"
      element-loading-background="rgba(0, 0, 0, 0.6)"
      class="loadse"
      v-if="loading"
    ></div>
    <!-- 图片放大弹窗 -->
    <el-dialog
      :visible.sync="dialogVisible"
      custom-class="el-dialog-s"
      append-to-body
    >
      <img width="100%" :src="dialogImageUrl" alt="" />
    </el-dialog>
  </div>
</template>

<script>
import draggable from "vuedraggable";
import { getToken } from "@/utils/auth";
import { mapGetters } from "vuex";
export default {
  name: "UpimgList",
  components: { draggable },
  props: {
    // 最多上传照片数量
    imgnumber: {
      type: Number,
      default: null
    },
    //是否禁用
    disabled: {
      type: Boolean,
      default: null
    },
    //
    nourl: {
      type: Boolean,
      default: false
    },
    //图片回显列表
    imglist: {
      type: Array,
      default() {
        return [];
      }
    },
    //限制上传图片大小
    imageSize: {
      type: Number,
      default: 3
    }
  },
  computed: {

  },
  data() {
    return {
      loading: false,
      Url: '',
      token: { token: getToken() },
      // 图片放大显示
      dialogImageUrl: "",
      // 图片放大显示弹窗
      dialogVisible: false,
      imglisted: this.imglist
    };
  },
  watch: {
    imglist() {
      this.imglisted = this.imglist;
    }
  },
  methods: {
    handleExceed(file) {
      if (file.loaded > 1000000 * this.imageSize) {
        // this.$message.error(`上传图片最大不能超过${this.imageSize}MB`);
        this.$refs.upload.abort();
      }
    },
    // 图片下载回显
    onSuccess(response, file) {
      this.loading = false;
      if (this.nourl) {
        this.imglist.push(response.content[0]);
      } else {
        this.imglist.push({ url: response.content[0] });
      }
      console.log(this.imglist);
      // this.$emit("deleUpimges", this.imglisted);
      this.$emit("changeimge");
    },
    //拖拽图片
    onMove() {
      this.$emit("Upimgsun", this.imglisted);
      console.log(this.imglisted);
      // this.imglist = [...this.imglisted];
    },
    //删除图片
    handleRemove(index) {
      this.imglist.splice(index, 1);
      this.$emit("changeimge");
      // this.$emit("deleUpimg", index);
    },
    //放大图片
    handlePreview(i) {
      this.dialogImageUrl = this.imglisted[i].url;
      if (this.dialogImageUrl == undefined) {
        this.dialogImageUrl = this.imglisted[i];
      }
      this.dialogVisible = true;
    },
    // 判断上传的是否为图片
    handleBeforeUpload(file) {
      if (file.size > 1000000 * this.imageSize) {
        this.$message.error(`上传图片最大不能超过${this.imageSize}MB`);
        return false;
      }
      var img = file.name.substring(file.name.lastIndexOf(".") + 1);
      const suffix = img.toLowerCase() === "jpg";
      const suffix2 = img.toLowerCase() === "png";
      const suffix3 = img.toLowerCase() === "jpeg";
      if (!suffix && !suffix2 && !suffix3) {
        this.$message.error("上传图片仅支持JPG,PNG,JPEG图片格式！");
        return false;
      }
      this.loading = true;
      // return suffix || suffix2 || suffix3;
    }
  }
};
</script>
<style lang="scss" scoped>
/deep/ .el-upload-list--picture-card .el-upload-list__item {
  width: 100px;
  height: 100px;
}
/deep/ .el-upload--picture-card {
  width: 100px;
  height: 100px;
  line-height: 100px;
}
.mask {
  position: absolute;
  background: rgba(101, 101, 101, 0.6);
  color: #ffffff;
  opacity: 0;
  top: 0;
  left: 0;
  width: 100px;
  height: 100px;
  border-radius: 10px;
  // pointer-events: none;
}
.mask h3 {
  text-align: center;
  margin-top: 25%;
}
.img_div:hover .mask {
  opacity: 1;
}
.img_div {
  border-radius: 10px;
  display: block;
  position: relative;
}
.loadse {
  width: 100px;
  height: 100px;
  border-radius: 10px;
  border: 1px dashed #c0ccda;
}
</style>

三、效果展示

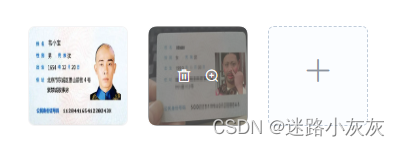

鼠标移入出现删除和放大功能

图片上传loading

实现图片可拖拽
