UReport2报表图片显示

1. 看UReport2图片加载的源码

package com.bstek.ureport.provider.image;

import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.util.ResourceUtils;
import org.springframework.web.context.WebApplicationContext;

import com.bstek.ureport.exception.ReportComputeException;

/**
 * @author Jacky.gao
 * @since 2017年3月6日
 */
public class DefaultImageProvider implements ImageProvider,ApplicationContextAware {
	private ApplicationContext applicationContext;
	private String baseWebPath;
	@Override
	public InputStream getImage(String path) {
		try {
			if(path.startsWith(ResourceUtils.CLASSPATH_URL_PREFIX) || path.startsWith("/WEB-INF")){
				return applicationContext.getResource(path).getInputStream();
			}else{
				path=baseWebPath+path;
				return new FileInputStream(path);
			}
		} catch (IOException e) {
			throw new ReportComputeException(e);
		}
	}

	@Override
	public boolean support(String path) {
		if(path.startsWith(ResourceUtils.CLASSPATH_URL_PREFIX)){
			return true;
		}else if(baseWebPath!=null && (path.startsWith("/") || path.startsWith("/WEB-INF"))){
			return true;
		}
		return false;
	}
	@Override
	public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
		if(applicationContext instanceof WebApplicationContext){
			WebApplicationContext context=(WebApplicationContext)applicationContext;
			baseWebPath=context.getServletContext().getRealPath("/");
		}
		this.applicationContext=applicationContext;
	}
}

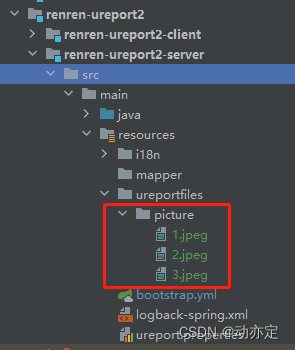

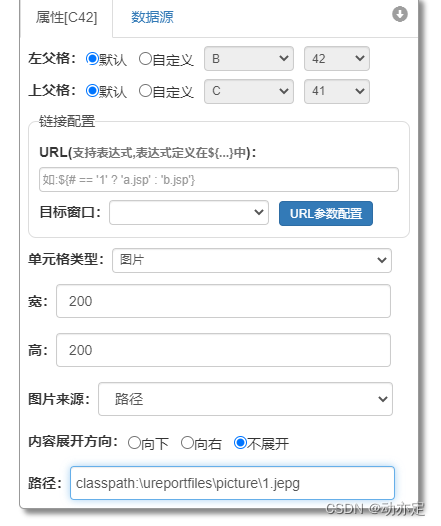

可以看出源码需要在设计页面配置“classpath:”开头的地址，并且图片得在本地源码指定目录，如图：

2.自定义图片路径
自定义就需要重新实现接口ImageProvider，ApplicationContextAware，自定义默认路径，代码如下：

package io.renren.ureport.provider;

import com.bstek.ureport.exception.ReportComputeException;
import com.bstek.ureport.provider.image.ImageProvider;
import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.context.annotation.Primary;
import org.springframework.stereotype.Component;
import org.springframework.web.context.WebApplicationContext;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.URL;

@Component
@Primary
public class ImageReportForm implements ImageProvider, ApplicationContextAware {

    private ApplicationContext applicationContext;
    private String baseWebPath;
    @Override
    public InputStream getImage(String path) {
        System.out.println(path);
        try {
            if( path.startsWith("E:\\ureportfiles\\picture")){
                //返回一个输入流，该输入流的读取位置是传入进来的path，也就是界面上输入的地址
                File file=new File(path);
                InputStream inputStream=new FileInputStream(file);
                return inputStream;
            }else if(path.startsWith("http://")||path.startsWith("https://")) {
                URL url = new URL(path);
                //打开链接
                HttpURLConnection conn = (HttpURLConnection)url.openConnection();
                //设置请求方式为"GET"
                conn.setRequestMethod("GET");
                //超时响应时间为5秒
                conn.setConnectTimeout(5 * 1000);
                //通过输入流获取图片数据
                InputStream inStream = conn.getInputStream();
                return inStream;
            } else{
                path=baseWebPath+path;
                return new FileInputStream(path);
            }
        } catch (IOException e) {
            throw new ReportComputeException(e);
        }
    }

    @Override
    public boolean support(String path) {
        if(path.startsWith("E:\\ureportfiles\\picture")){
            return true;
        }else if(path.startsWith("http://")||path.startsWith("https://")){
            return true;
        }else if(baseWebPath!=null && path.startsWith("E:\\ureportfiles\\picture")){
            return true;
        }
        return false;
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        if(applicationContext instanceof WebApplicationContext){
            WebApplicationContext context=(WebApplicationContext)applicationContext;
            baseWebPath=context.getServletContext().getRealPath("E:\\ureportfiles\\picture");
        }
        this.applicationContext=applicationContext;
    }
}

自定义实现接口后，此时就可以在设计页面配置自定义的 E:\ureportfiles\picture目录下图片或http https开头的的网络图片了

注意自定义实现接口后，@Primary注解必须加上 否则还走默认实现类
