5G NR Frame Structure, Numerologies and Time Units

1. Numerologies

μ: subcarrier spacing configuration, Δf=2μ∙15 [kHz]

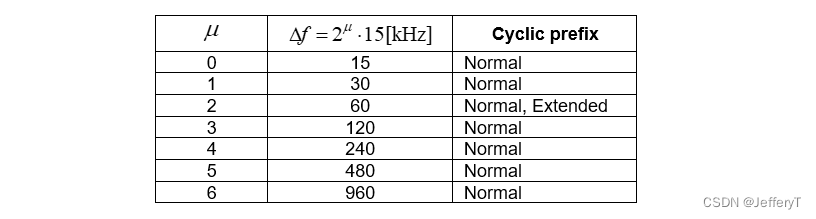

Figure 1.1: Supported transmission numerologies (38.211)
在这里插入图片描述

2. Time units

  • Δf: subcarrier spacing
  • Nf: Number of samples
  • Fs: Sampling frequency
  • Ts: Basic time unit for LTE (sampling time)
  • Tc: Basic time unit for NR
  • κ the ratio between Ts and Tc
  • TTA: Timing advance between downlink and uplink

2.1. Ts the basic time unit for LTE

LTE system, scs=15kHz, BW=20MHz contains at most 1200 subcarrier.
Then Nf should be 2048. (2048 is the min number of 2n in digital system which is greater than 1200)

Fs = 1 / Ts = Nf * Δf

Ts = 1 / (Nf * Δf) = 1 / (2048 * 15000) = 32.552ns

2.2. Tc the basic time unit for NR

The max bandwidth for 5G sub6 is 100MHz which contains at most 3276 samples. Hence, Nf = 4096.

Tc = 1 / (Δfmax * Nf) = 1 / (480∙103 * 4096) = 0.509ns

2.3. κ the ratio between Ts and Tc

κ = Ts / Tc = 64

2.4. TTA: Timing advance between downlink and uplink

The timing advance that gNB tells UE to start UL traffic
TTA = NTATc

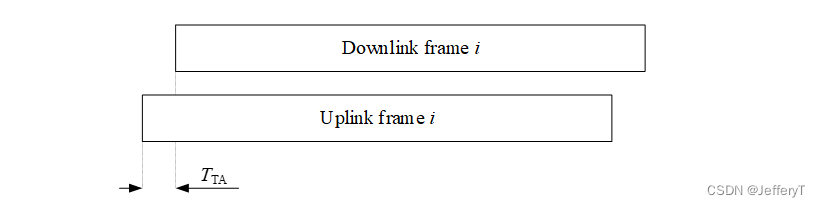

Figure 2.4.1: Uplink-downlink timing relation (38.211)
在这里插入图片描述

3. Frame structure

  • Frame: 10ms duration
  • Subframe: 1ms duration. 1 frame consists of 10 subframe.
  • Slot
  • Symbol: 14 consecutive OFDM symbols in 1 slot

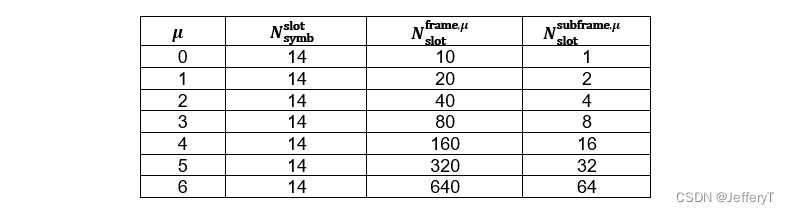

Figure 3.1: Number of OFDM symbols per slot, slots per frame, and slots per subframe for normal cyclic prefix (38.211)
在这里插入图片描述
Figure 3.2: Number of OFDM symbols per slot, slots per frame, and slots per subframe for extended cyclic prefix (38.211)

(only when μ=2, scs=60kHz, extented cyclic prefix numerology could be suppported)在这里插入图片描述

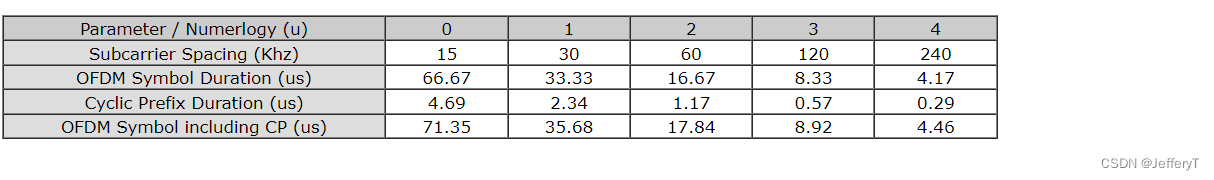

Figure 3.3: OFDM symbol duration在这里插入图片描述

NRx-Tx Minimum time from reception to transmission for a half-duplex UE
NTx-Rx Minimum time from transmission to reception for a half-duplex UE

Figure 3.4: Transition time NRx-Tx and NTx-Rx (38.211)
在这里插入图片描述

Reference

  1. 3GPP TS 38.211 V17.3.0 (2022-09)
  2. 3GPP TS 38.213 V17.3.0 (2022-09)
  3. http://sharetechnote.com/html/5G/5G_FrameStructure.html
