1. Digital communication system

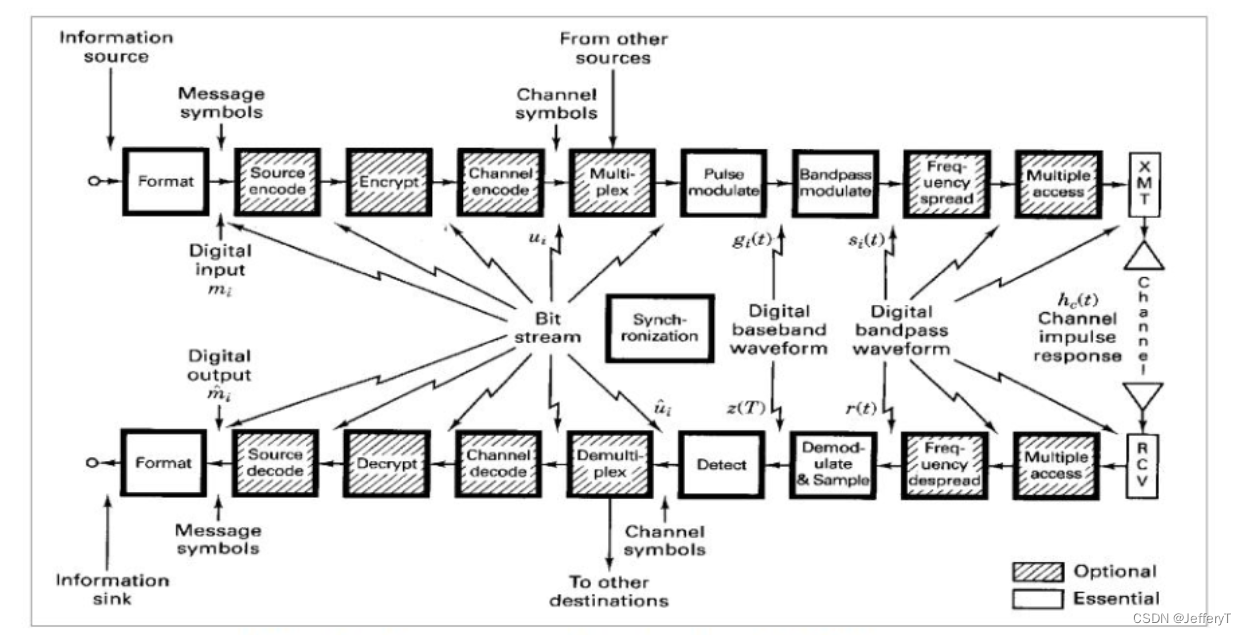

Figure 1: A typical digital communication system block diagram (DCS)
在这里插入图片描述

Information source generates messages for transmission which can be analog or digital.
Formatting transforms the source information into digital symbols and also makes the information compatible with the signal processing within a DCS.
Source encoding encodes the source information for more efficient transmission with little or no redundancy.
Encryption prevents unauthorized users from deriving transmitted messages or injecting false messages into the DCS.
Channel encoding encodes the source information for more reliability (anti-interference / error correction —> help SNR, reduce decoder complexity) so that better performance.
Multiplexing and multiple access combine signals with different characteristics, signals from different sources to share a portion of the communication resource.
Modulation is the process that converts the symbols to waveforms to be compatible with the transmission channels.
Frequency spreading (e.g. spread spectrum) can produce a signal that is less vulnerable to interference (intentional or unintentional) and can be used to enhance the privacy of the communicators.
Transmitter consists of a frequency up-conversion stage, a high-power amplifier, and an antenna.
10.Receiver portion consists of an antenna, a low-noise amplifier (LNA), and a down-conversion stage, typically to an intermediate frequency (IF).

note that,
A signal from the source —> the modulator is referred to a baseband signal or a bit stream. after modulation, it is called a digital waveform till the frequency up-conversion, vice versa.

2. Transceiver system (the analog part)

Figure 2: Block diagram of multimode and multiband transceiver [1]
在这里插入图片描述
For transmitting procedure, IQ signals from baseband are frequency up converted and added with 90-degree phase shift on Q signal. then the signals go thru bandpass filter and power amplifier, arrive at antenna port for transmission.
