本人因工作需要,需要实现页面的局部刷新功能,在网上找了很多资料都不是很完整,本人自己结合网上资料和自己经验多次实验写了一个,在这里记录一下,方便以后查阅。
1.绑定table实例
1.引用工具:Newtonsoft.Json.dll

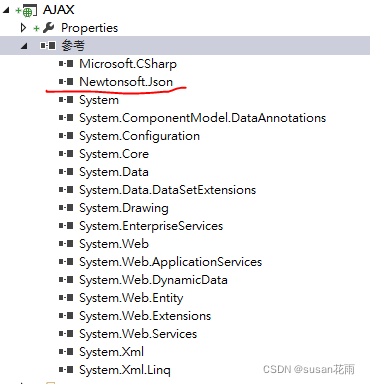

2.下载Newtonsoft.Json.dll:https://www.cnblogs.com/youmeng/p/4874897.html,如下图
实现table数据的自动刷新
aspx页面代码:
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm5.aspx.cs" Inherits="AJAX.WebForm5" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<title></title>
<link href="css/bootstrap.min.css" rel="stylesheet" />
<script type="text/javascript" src="js/jquery-1.4.0-jquery.js"></script>
<script src="js/jquery-1.8.1.min.js"></script>
</head>
<body>
<form id="form1" runat="server">
<div>
<table class="table table-bordered" id='tabletest'>
<thead >
<tr>
<th>当前产能</th>
<th>差异产能</th>
</tr>
</thead>
<tbody id="tbody-result">
</tbody>
</table>
<script type="text/javascript">
$(function () {
var tbody = window.document.getElementById("tbody-result");
setInterval(function () {
$.ajax({
url: 'WebForm5.aspx?action=Showcn',
type: 'post',
dataType: 'json',
async: false,
cache: false,
timeout: 3,
success: function (data) {
//方法中传入的参数data为后台获取的数据
console.log(data);
var str = "";
str += "<tr>" +
"<td>" + data[0].cn + "</td>" +
"<td>" + data[0].qs + "</td>" +
"</tr>";
tbody.innerHTML = str;
}
});
}, 1000); //一秒刷新
});
</script>
</div>
</form>
</body>
</html>
对应的CS代码如下:
using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace AJAX
{
public partial class WebForm5 : System.Web.UI.Page
{
string action = "";
SQLHelper sql = new SQLHelper();
protected void Page_Load(object sender, EventArgs e)
{
action = Request["action"] == null ? "" : Request["action"];
switch (action)
{
case "Showcn":
ShowCn();
break;
}
}
private void ShowCn()
{
DataTable dr = sql.f2();//连接数据库并返回DataTable的值
if (dr != null)
{
if (dr.Rows.Count != 0)
{
string strJson = ToJson(dr);
WriteJson(strJson);
}
}
}
public static string ToJson(object obj)
{
return NewtonsoftJson(obj);
}
public static string NewtonsoftJson(object obj)
{
return Newtonsoft.Json.JsonConvert.SerializeObject(obj, Newtonsoft.Json.Formatting.None);
}
private static void WriteJson(string str)
{
HttpContext.Current.Response.Write(str);
//HttpContext.Current.Response.ContentType = "text/plain"; //设置MIME格式
HttpContext.Current.Response.End();
}
}
}
2.绑定echart图表
部分代码如下:
<div class="biaoge" style="width:100%; height:25vh" id="chartmain_zhe"></div>
<script type="text/javascript">
//指定图表的配置项和数据
option2 = {
};
//获取dom容器
var myChart2 = echarts.init(document.getElementById('chartmain_zhe'));
// 使用刚指定的配置项和数据显示图表。
myChart2.setOption(option2);
$(function () {
setInterval(function () {
$.ajax({
url: 'Index.aspx?action=CTtime',
type: 'post',
dataType: 'json',
async: false,
cache: false,
timeout: 3,
success: function (data) {
//方法中传入的参数data为后台获取的数据
console.log(data);
//获取数据时显示加载状态图
myChart2.showLoading();
var name = [];
var factdata = [];
var up = [];
for (var i = 0; i < data.length; i++) {
name[i] = data[i]["Adress_name"];
factdata[i] = parseFloat(data[i]["DATA"]);
up[i] = parseFloat(data[i]["UP"]);
}
console.log(name);
console.log(factdata);
console.log(up);
myChart2.hideLoading(); //隐藏加载动画
myChart2.setOption({
title: {
text: ''
},
tooltip: {
trigger: 'axis'
},
legend: {
textStyle: {
color: '#fff',
fontSize: 12,
},
right: '10%',
data: ['实际','目标']
},
grid: {
x: 40,
y: 40,
x2: 20,
y2: 20,
},
toolbox: {
feature: {
//saveAsImage: {}
}
},
xAxis: {
type: 'category',
boundaryGap: false,
axisLabel: {
/*inside: true,*/
interval: 0,
textStyle: {
color: '#fff',
fontSize: 12
}
},
axisTick: {
show: false,
},
axisLine: {
show: true,
symbol: ['none', 'arrow'],
symbolOffset: 12,
lineStyle: {
color: '#fff',
}
},
data: name
},
yAxis: [
{
type: 'value',
//name: '实际',
min: 0,
axisLine: {
show: true,
symbol: ['none', 'arrow'],
symbolOffset: 12,
lineStyle: {
color: '#fff',
}
},
axisTick: {
show: false
},
axisLabel: {
textStyle: {
color: '#fff',
fontSize: 12
}
}
},
],
series: [
{
name: '目标',
type: 'line',
//stack: '总量',
data: up,
itemStyle: {
normal: {
label: {
show: true, //开启显示
position: 'top', //在上方显示
textStyle: { //数值样式
color: 'white',
fontSize: '70%'
},
formatter: '{c}'
}
},
}
},
{
name: '实际',
type: 'line',
//stack: '总量',
data: factdata,
itemStyle: {
normal: {
color: "#0efdff",//折线点的颜色
lineStyle: {
color: "#0efdff",//折线的颜色
width: 2,
},
label: {
show: true, //开启显示
position: 'top', //在上方显示
textStyle: { //数值样式
color: 'white',
fontSize: '70%'
},
formatter: '{c}'
}
},
},
},
]
});
}
});
}, 1000);
});
</script>

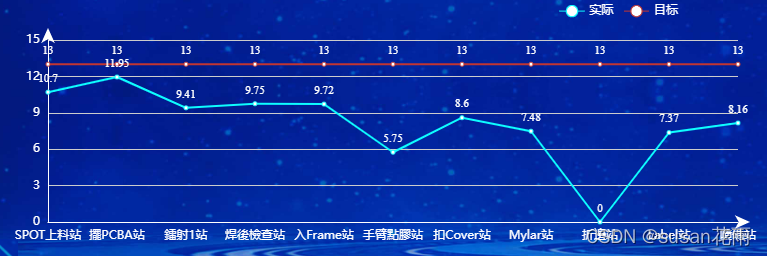

上面代码为aspx页面部分代码,cs部分与上面的cs部分雷同,页面布局请自行调整,下图为绑定的echart图表:
总结:本篇文章主要实现ajax动态加载数据,实现实时刷新的功能。
参考链接:https://www.cnblogs.com/youmeng/p/4874897.html
