米思齐Mixly图形化编程---遥控灯

实验材料与文件

硬件：Arduino、红外遥控传感器、遥控器
软件：Mixly IDE

【实验】遥控灯实验步骤

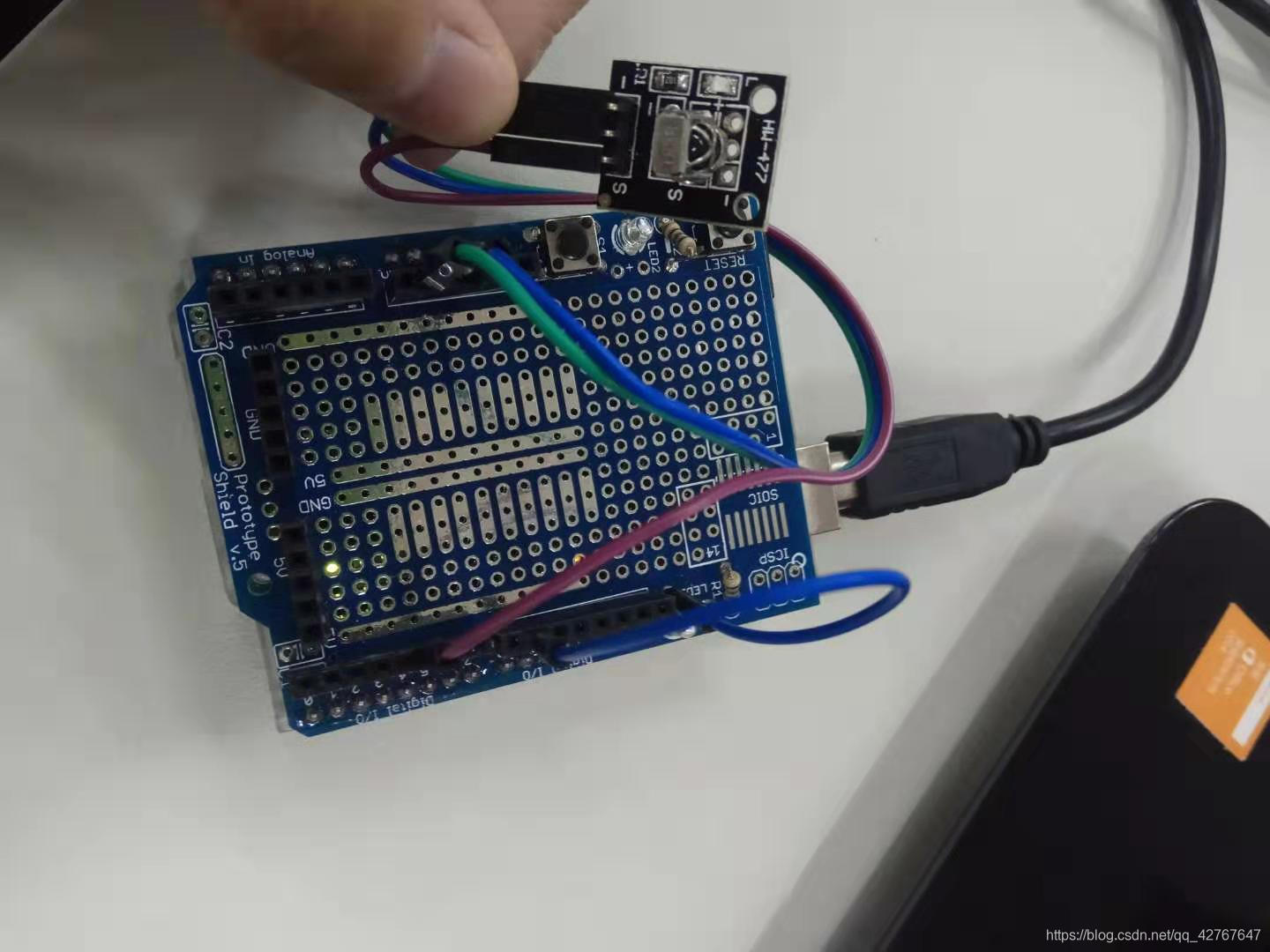

1.软硬件连接

–号连接GND
S是连数据接口
中间则连5V

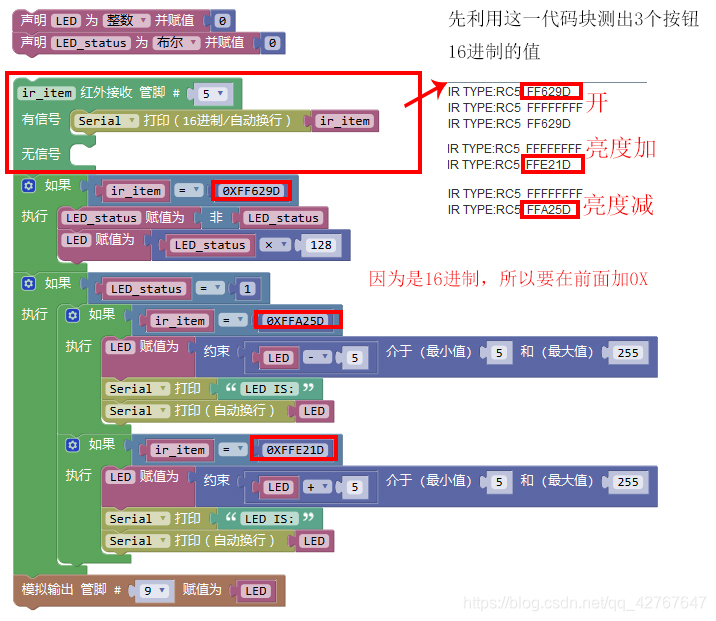

2.图形化编程块

我给了灯亮度的约束值，最暗的亮度我给了5，不让它熄灭，最亮是255。

3.代码块

#include <IRremote.h>

volatile int LED;
volatile boolean LED_status;
IRrecv irrecv_5(5);
decode_results results_5;

long ir_item;

void setup(){
  LED = 0;
  LED_status = 0;
  Serial.begin(9600);
  irrecv_5.enableIRIn();
}

void loop(){
  if (irrecv_5.decode(&results_5)) {
    ir_item=results_5.value;
    String type="UNKNOWN";
    String typelist[14]={"UNKNOWN", "NEC", "SONY", "RC5", "RC6", "DISH", "SHARP", "PANASONIC", "JVC", "SANYO", "MITSUBISHI", "SAMSUNG", "LG", "WHYNTER"};
    if(results_5.decode_type>=1&&results_5.decode_type<=13){
      type=typelist[results_5.decode_type];
    }
    Serial.print("IR TYPE:"+type+"  ");
    Serial.println(ir_item,HEX);
    irrecv_5.resume();
  } else {
  }
  if (ir_item == 0XFF629D) {
    LED_status = !LED_status;
    LED = LED_status * 128;

  }
  if (LED_status == 1) {
    if (ir_item == 0XFFA25D) {
      LED = constrain(LED - 5, 5, 255);			//我给了灯亮度的约束值，最暗的亮度我给了5，不让它熄灭，最亮是255。
      Serial.print("LED IS:");
      Serial.println(LED);

    }
    if (ir_item == 0XFFE21D) {
      LED = constrain(LED + 5, 5, 255);
      Serial.print("LED IS:");
      Serial.println(LED);

    }

  }
  analogWrite(9,LED);

}

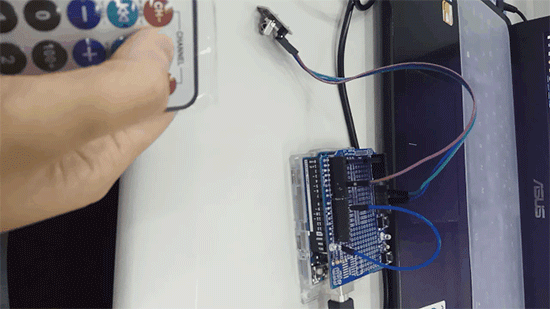

4.实验成果
