Winform中DatagridView使用ComboBoxColumn像普通comboBox一样

引言

需求：在表格中的下拉框选择完成后，立即改变其他列中的value。

由于DatagridView中使用comboBoxColumn，只有在选择完下拉框的值，并且点击其他位置，才会触发DatagridView的cellValueChanged事件，才能改变其他列的值，效果并不理想。

实现

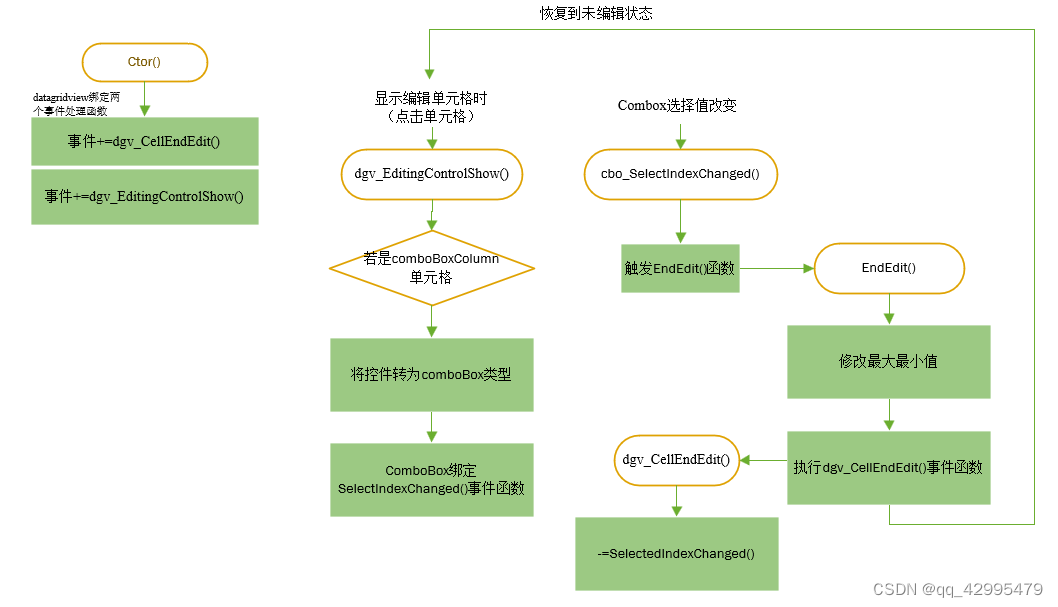

流程大致如下

实现示例

可复制代码，根据需求进行修改

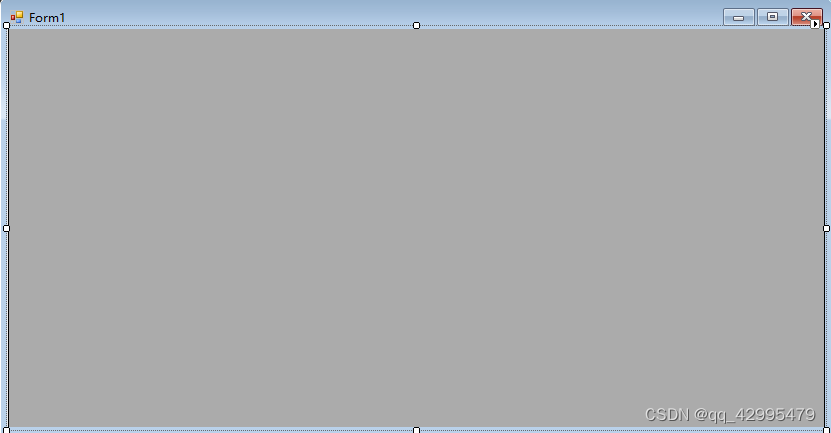

1、在设计器中创建一个DatagirdView控件

2、在代码中实现如下

public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

            DataTable typedt = new DataTable();
            typedt.Columns.Add("typeid", typeof(int));
            typedt.Columns.Add("typename");
            typedt.Columns.Add("typedescription");
            typedt.Rows.Add(0, "Typed 0", "description0");
            typedt.Rows.Add(1, "Typed 1", "description1");
            typedt.Rows.Add(2, "Typed 2", "description2");
            typedt.Rows.Add(3, "Typed 3", "description3");
            typedt.Rows.Add(4, "Typed 4", "description4");
            typedt.AcceptChanges();

            dt.Columns.Add("id");
            dt.Columns.Add("name");
            dt.Columns.Add("type", typeof(int));
            dt.Columns.Add("typedescription");
            for (int i = 0; i < 50; i++)
            {
                dt.Rows.Add(i.ToString("000"), "name" + i, i % 4);
            }

            dt.AcceptChanges();
            this.dataGridViewX1.DataSource = dt;
            this.dataGridViewX1.Columns.RemoveAt(2);
            DataGridViewComboBoxColumn cbc = new DataGridViewComboBoxColumn();
            cbc.DataPropertyName = "type";
            cbc.DisplayMember = "typename";
            cbc.ValueMember = "typeid";
            cbc.DataSource = typedt;
            cbc.HeaderText = "Type";
            this.dataGridViewX1.Columns.Insert(2, cbc);
            this.dataGridViewX1.CellEndEdit += new DataGridViewCellEventHandler(dataGridView1_CellEndEdit);
            this.dataGridViewX1.EditingControlShowing += new DataGridViewEditingControlShowingEventHandler(dataGridView1_EditingControlShowing);
        }

        DataTable dt = new DataTable();


        void dataGridView1_CellEndEdit(object sender, DataGridViewCellEventArgs e)
        {
            if (cbm != null)
            {
                cbm.SelectedIndexChanged -= new EventHandler(cbm_SelectedIndexChanged);
            }
        }



        ComboBox cbm;

        DataGridViewCell currentCell;

        void dataGridView1_EditingControlShowing(object sender, DataGridViewEditingControlShowingEventArgs e)
        {
            if (e.Control is ComboBox)
            {
                cbm = (ComboBox)e.Control;
                if (cbm != null)
                {
                    cbm.SelectedIndexChanged += new EventHandler(cbm_SelectedIndexChanged);
                }
                currentCell = this.dataGridViewX1.CurrentCell;
            }
        }



        void cbm_SelectedIndexChanged(object sender, EventArgs e)
        {
            this.BeginInvoke(new MethodInvoker(EndEdit));
        }



        void EndEdit()
        {
            if (cbm != null)
            {
                DataRowView drv = cbm.SelectedItem as DataRowView;
                if (drv != null)
                {
                    this.dataGridViewX1[currentCell.ColumnIndex + 1, currentCell.RowIndex].Value = drv[2].ToString();
                    this.dataGridViewX1.EndEdit();
                }
            }
        }


    }

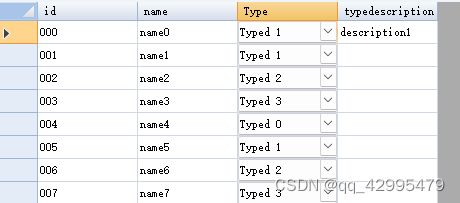

效果

typedescription列中的数值，可以立即跟随Type列的选择值变化而立即更新

示例源自：DatagridView combobox selection change (microsoft.com)
