Spring Security基于数据库的认证
上文向大家介绍的认证数据都是定义在内存中的,在真实项目中,用户的基本信息以及角色等都存储在数据库中,因此需要从数据库中获取数据进行认证。本节将向读者介绍如何使用数据库中的数据进行认证和授权。
1. 设计数据表

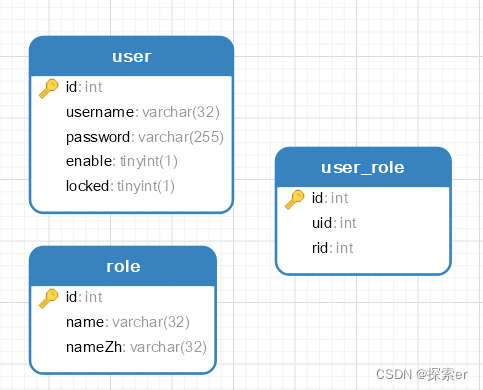

首先需要设计一个基本的用户角色表,如图所示。一共三张表,分别是用户表、角色表以及用户角色关联表。
为了方便测试,预置几条测试数据,如图所示。
mysql> select * from role;
+----+------------+--------------------+
| id | name | nameZh |
+----+------------+--------------------+
| 1 | ROLE_dba | 数据库管理员 |
| 2 | ROLE_admin | 系统管理员 |
| 3 | ROLE_user | 用户 |
+----+------------+--------------------+
3 rows in set (0.00 sec)
mysql> select * from user;
+----+----------+--------------------------------------------------------------+--------+--------+
| id | username | password | enable | locked |
+----+----------+--------------------------------------------------------------+--------+--------+
| 1 | root | $2a$10$Y7TCbZ.De3suSD.4boCArugDit4hyOgkywUMuLUquc7OZuL6sTAR. | 1 | 0 |
| 2 | admin | $2a$10$Y7TCbZ.De3suSD.4boCArugDit4hyOgkywUMuLUquc7OZuL6sTAR. | 1 | 0 |
| 3 | suo | $2a$10$Y7TCbZ.De3suSD.4boCArugDit4hyOgkywUMuLUquc7OZuL6sTAR. | 1 | 0 |
+----+----------+--------------------------------------------------------------+--------+--------+
3 rows in set (0.00 sec)
mysql> select * from user_role;
+----+------+------+
| id | uid | rid |
+----+------+------+
| 1 | 1 | 1 |
| 2 | 1 | 2 |
| 3 | 2 | 2 |
| 4 | 3 | 3 |
+----+------+------+
4 rows in set (0.00 sec)
注意:
角色名有一个默认的前缀"ROLE_"
2.创建项目
Mybatis灵活,JPA便利,本案例选择前者,因此创建Spring Boot Web添加以下依赖:
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.2.2</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.2.8</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
</dependencies>
<build>
<resources>
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/*.xml</include>
</includes>
</resource>
<resource>
<directory>src/main/resources</directory>
<includes>
<include>**/*</include>
</includes>
</resource>
</resources>
</build>
3. 配置数据库
在application.properties中进行数据库连接配置:
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://120.55.61.170:3306/fristweb?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8
spring.datasource.username=fristweb
spring.datasource.password=dTNFJW4B5MrwT4KS
spring.datasource.initialSize= 5
spring.datasource.minIdle=5
spring.datasource.maxActive= 20
spring.datasource.maxWait=60000
spring.datasource.timeBetweenEvictionRunsMillis=60000
spring.datasource.minEvictableIdleTimeMillis=300000
spring.datasource.validationQuery=SELECT 1 FROM DUAL
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.testOnReturn=false
spring.datasource.poolPreparedStatements=true
mybatis.type-aliases-package=suohechuan.testforever.model
mybatis.mapper-locations=classpath:mapper/*.xml
4. 创建实体类
分别创建角色表和用户表对应的实体类,代码如下:
@Data
@NoArgsConstructor
@AllArgsConstructor
public class Role {
private Integer id;
private String name;
private String nameZh;
}
@Data
@AllArgsConstructor
@NoArgsConstructor
public class User implements UserDetails {
private Integer id;
private String username;
private String password;
private Boolean enable;
private Boolean locked;
private List<Role> roles;
@Override
public String getUsername() {
return username;
}
@Override
public String getPassword() {
return password;
}
@Override
public Collection<? extends GrantedAuthority> getAuthorities() {
List<SimpleGrantedAuthority> authorities = new ArrayList<>();
for (Role role : roles) {
authorities.add(new SimpleGrantedAuthority(role.getName()));
}
return authorities;
}
@Override
public boolean isAccountNonExpired() {
return true;
}
@Override
public boolean isAccountNonLocked() {
return !locked;
}
@Override
public boolean isCredentialsNonExpired() {
return true;
}
@Override
public boolean isEnabled() {
return enable;
}
}
代码解释:
-
用户 实体类需要实现UserDetails接口,并实现该接口中的7个方法,如表所示。
方法名 解释 getAuthorities(); 获取当前用户对象所具有的角色信息 getPassword(); 获取当前用户对象的密码 getUsername(); 获取当前用户对象的用户名 isAccountNonExpired(); 当前账户是否未过期 isAccountNonLocked(); 当前账户是否未锁定 isCredentialsNonExpired(); 当前账号密码是否未过期 idEnabled(); 当前账号是否可用 - 用户根据实际情况设置这7个方法的返回值。因为默认情况下不需要开发者自己进行密码角色等信息的比对,开发者只需要提供相关信息即可,例如getPassword()方法返回的密码和用户输入的登录密码不匹配,会自动抛出BadCredentialsException异常,isAccountNonExpired()方法返回了false, 会自动抛出AccountExpiredException异常,因此对开发者而言,只需要按照数据库中的数据在这里返回相应的配置即可。本案例因为数据库中只有enabled和locked字段,故账户未过期和密码未过期两个方法都返回true。
- getAuthorities()方法用 来获取当前用户所具有的角色信息,本案例中,用户所具有的角色存储在roles属性中,因此该方法直接遍历roles 属性,然后构造SimpleGrantedAuthority集合并返回。
5. 创建UserService
接下来创建UserService,代码如下:
@Service
public class UserService implements UserDetailsService {
@Autowired
UserMapper userMapper;
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
User user = userMapper.loadUserByUsername(username);
if (user == null) {
throw new UsernameNotFoundException("账户不存在!");
}
user.setRoles(userMapper.getUserRolesByUid(user.getId()));
return user;
}
}
代码解释:
- 定义UserService实现UserDetailService接口,并实现该接口中的loadUserByUsername方法,该方法的参数就是用户登录时输入的用户名,通过用户名去数据库中查找用户,如果没有查找到用户,就抛出一个账户不存在的异常,如果查找到了用户,就继续查找该用户所具有的角色信息,并将获取到的user对象返回,再由系统提供的DaoAuthenticationProvider类去比对密码是否正确。
- loadUserByUsername 方法将在用户登录时自动调用。
当然,这里还涉及UserMapper和UserMapper.xml,相关源码如下:
@Mapper
public interface UserMapper {
User loadUserByUsername(String username);
List<Role> getUserRolesByUid(Integer id);
}
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--
namespace:必须有值,自定义的唯一字符串
推荐使用:dao 接口的全限定名称
-->
<mapper namespace="suohechuan.testforever.UserMapper">
<select id="loadUserByUsername" resultType="suohechuan.testforever.model.User">
select *
from user
where username = #{username}
</select>
<select id="getUserRolesByUid" resultType="suohechuan.testforever.model.Role">
select *
from role r,
user_role ur
where r.id = ur.rid and ur.uid =#{id}
</select>
</mapper>
6. 配置Spring Security
接下来对Spring Security进行配置,代码如下:
@Configuration
public class SpringSecurityConfig extends WebSecurityConfigurerAdapter {
@Autowired
UserService userService;
@Bean
public static PasswordEncoder passwordEncoder() {
return new BCryptPasswordEncoder(10);
}
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
auth.userDetailsService(userService);
}
@Override
protected void configure(HttpSecurity http) throws Exception {
http.authorizeRequests()
.antMatchers("/admin/**").hasRole("admin")
.antMatchers("/db/**").hasRole("dba")
.antMatchers("/user/**").hasRole("user")
.anyRequest().authenticated()
.and()
.formLogin()
.loginProcessingUrl("/login").permitAll()
.and()
.csrf().disable();
}
}
这里大部分配置和Security上节介绍的一致,唯一不同的是没有配置内存用户,而是将刚刚创建好的UserService配置到AuthenticationManagerBuilder中。配置完成后,接下来就可以创建Controller进行测试了,测试方式与Security上节致,这里不再赘述。
@RestController
public class HelloController {
@GetMapping("/admin/hello")
public String admin() {
return "hello admin!";
}
@GetMapping("/user/hello")
public String user() {
return "hello user! ";
}
@GetMapping(" /db/hello")
public String dba() {
return "hello dba!";
}
@GetMapping("/hello")
public String hello() {
return "hello!";
}
}
