前言：
最近公司在做一个有关地图的项目，说到地图，就我个人而言，还没接触过，所以拿到项目的时候是一愣一愣的，心想这都是些啥玩意？没办法，既然项目需要，那就得硬着头皮去干，除非你想卷覆盖走人。
需求：
- 拉动滑块实现地图放大缩小
- 拉框实现地图放大缩小
过程：

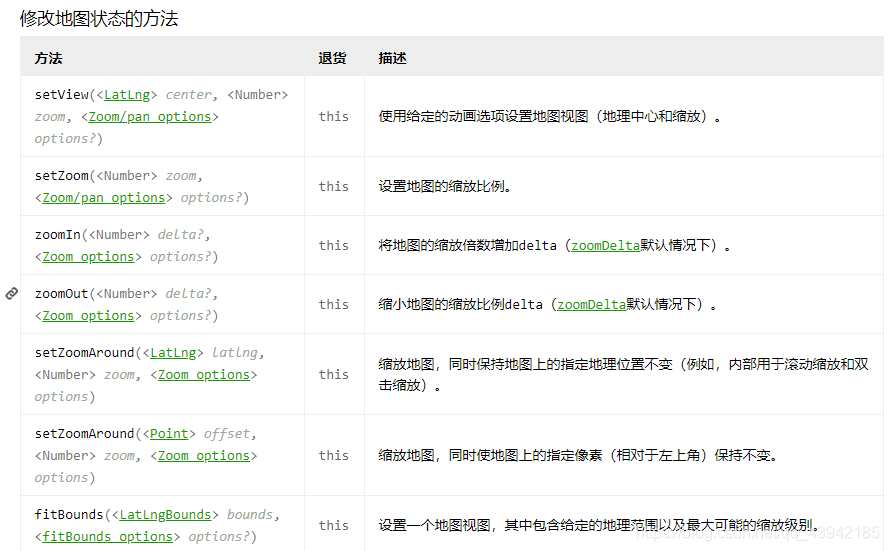

拿到需求的时候第一件事当然是找相关的API啦、找文档啦，公司这边要求使用的地图是leaflets地图，所以就得花时间看看leaflet的相关文档。虽然项目已经做的差不多，当由于产品这边提的两个需求刚好在文档里面找不到，也就是leaflet地图没有提供相关的属性（其实不是没有，只是本人对于这个地图了解得不够深入）。所以只能翻墙找相关案例。
一、leaflet 拉动滑块实现地图放大缩小
这个滑块功能我在leaflet地图上没有找到相关的属性，所以自己琢磨了很久也琢磨不出来。当时有想过自己写一下这个功能的，思路如下：
1. 使用 element ui 里面的滑块并且获取到滑块滚动的事件
2. 把滑块等级设置为32级（因为公司项目的地图的放大缩小支持到32级）
3. 滑块每滑动一次就调用一次对应的放大缩小方法（this.map.zoomin 或 this.map.zoomout ）
后来发现自己能力有限，虽然思路正确了，但只能实现滑块一级一级的滑动，无法实现越级滑动，所以这个思路无法实现（起码本人无法实现）。

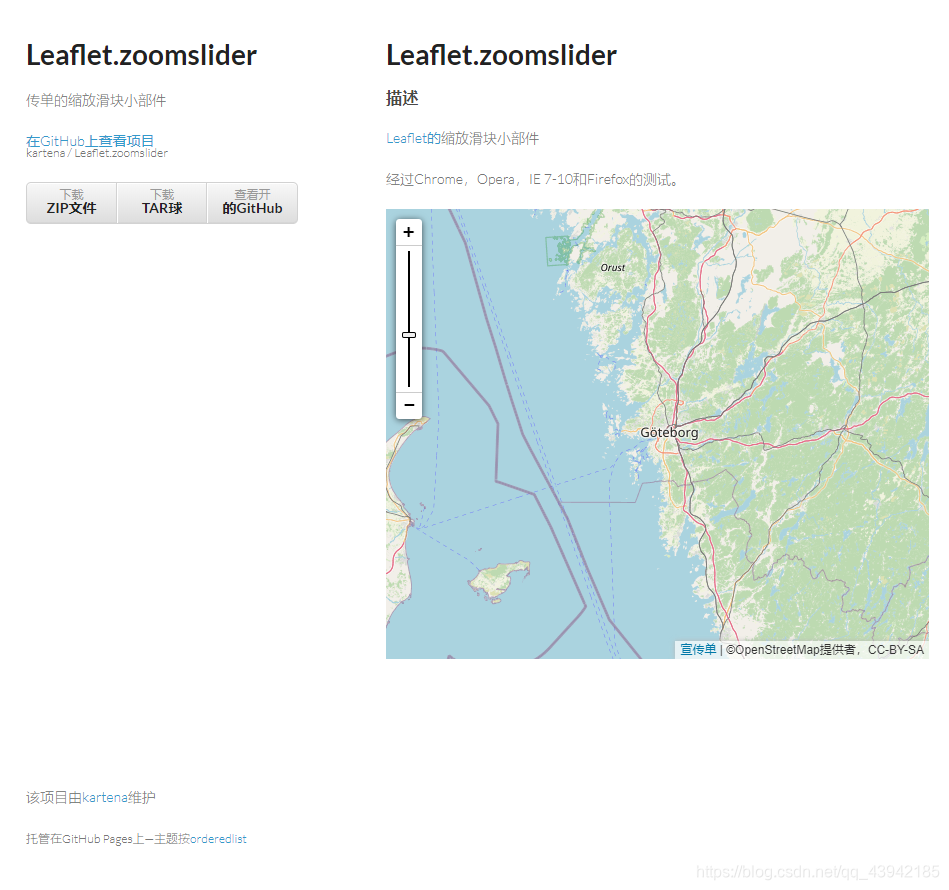

后来靠翻墙才找到相关案例（因为leaflet地图是国外开发的，所以案例在外网会比较多）。leaflet滑块，有需要的可以进去看看，不过需要翻墙，不然进不去。
一、详细写法
- 如果你使用下面的代码还是无法实现，可以尝试安装一下这个插件
npm i leaflet.zoomslider
js代码区域
L.Control.Zoomslider = (function() {
var Knob = L.Draggable.extend({
initialize: function(element, stepHeight, knobHeight) {
L.Draggable.prototype.initialize.call(this, element, element)
this._element = element
this._stepHeight = stepHeight
this._knobHeight = knobHeight
this.on('predrag', function() {
this._newPos.x = 0
this._newPos.y = this._adjust(this._newPos.y)
}, this)
},
_adjust: function(y) {
var value = Math.round(this._toValue(y))
value = Math.max(0, Math.min(this._maxValue, value))
return this._toY(value)
},
// y = k*v + m
_toY: function(value) {
return this._k * value + this._m
},
// v = (y - m) / k
_toValue: function(y) {
return (y - this._m) / this._k
},
setSteps: function(steps) {
var sliderHeight = steps * this._stepHeight
this._maxValue = steps - 1
// conversion parameters
// the conversion is just a common linear function.
this._k = -this._stepHeight
this._m = sliderHeight - (this._stepHeight + this._knobHeight) / 2
},
setPosition: function(y) {
L.DomUtil.setPosition(this._element,
L.point(0, this._adjust(y)))
},
setValue: function(v) {
this.setPosition(this._toY(v))
},
getValue: function() {
return this._toValue(L.DomUtil.getPosition(this._element).y)
}
})
var Zoomslider = L.Control.extend({
options: {
position: 'topleft',
// Height of zoom-slider.png in px
stepHeight: 6,
// Height of the knob div in px (including border)
knobHeight: 4,
styleNS: 'leaflet-control-zoomslider'
},
onAdd: function(map) {
this._map = map
this._ui = this._createUI()
this._knob = new Knob(this._ui.knob, this.options.stepHeight, this.options.knobHeight)
map.whenReady(this._initKnob, this)
.whenReady(this._initEvents, this)
.whenReady(this._updateSize, this)
.whenReady(this._updateKnobValue, this)
.whenReady(this._updateDisabled, this)
return this._ui.bar
},
onRemove: function(map) {
map.off('zoomlevelschange', this._updateSize, this)
.off('zoomend zoomlevelschange', this._updateKnobValue, this)
.off('zoomend zoomlevelschange', this._updateDisabled, this)
},
_createUI: function() {
var ui = {}
var ns = this.options.styleNS
ui.bar = L.DomUtil.create('div', ns + ' leaflet-bar'),
ui.zoomIn = this._createZoomBtn('in', 'top', ui.bar),
ui.wrap = L.DomUtil.create('div', ns + '-wrap leaflet-bar-part', ui.bar),
ui.zoomOut = this._createZoomBtn('out', 'bottom', ui.bar),
ui.body = L.DomUtil.create('div', ns + '-body', ui.wrap),
ui.knob = L.DomUtil.create('div', ns + '-knob')
L.DomEvent.disableClickPropagation(ui.bar)
L.DomEvent.disableClickPropagation(ui.knob)
return ui
},
_createZoomBtn: function(zoomDir, end, container) {
var classDef = this.options.styleNS + '-' + zoomDir +
' leaflet-bar-part' +
' leaflet-bar-part-' + end
var link = L.DomUtil.create('a', classDef, container)
link.href = '#'
link.title = 'Zoom ' + zoomDir
L.DomEvent.on(link, 'click', L.DomEvent.preventDefault)
return link
},
_initKnob: function() {
this._knob.enable()
this._ui.body.appendChild(this._ui.knob)
},
_initEvents: function(map) {
this._map
.on('zoomlevelschange', this._updateSize, this)
.on('zoomend zoomlevelschange', this._updateKnobValue, this)
.on('zoomend zoomlevelschange', this._updateDisabled, this)
L.DomEvent.on(this._ui.body, 'click', this._onSliderClick, this)
L.DomEvent.on(this._ui.zoomIn, 'click', this._zoomIn, this)
L.DomEvent.on(this._ui.zoomOut, 'click', this._zoomOut, this)
this._knob.on('dragend', this._updateMapZoom, this)
},
_onSliderClick: function(e) {
var first = (e.touches && e.touches.length === 1 ? e.touches[0] : e)
var y = L.DomEvent.getMousePosition(first, this._ui.body).y
this._knob.setPosition(y)
this._updateMapZoom()
},
_zoomIn: function(e) {
this._map.zoomIn(e.shiftKey ? 3 : 1)
},
_zoomOut: function(e) {
this._map.zoomOut(e.shiftKey ? 3 : 1)
},
_zoomLevels: function() {
var zoomLevels = this._map.getMaxZoom() - this._map.getMinZoom() + 1
return zoomLevels < Infinity ? zoomLevels : 0
},
_toZoomLevel: function(value) {
return value + this._map.getMinZoom()
},
_toValue: function(zoomLevel) {
return zoomLevel - this._map.getMinZoom()
},
_updateSize: function() {
var steps = this._zoomLevels()
this._ui.body.style.height = this.options.stepHeight * steps + 'px'
this._knob.setSteps(steps)
},
_updateMapZoom: function() {
this._map.setZoom(this._toZoomLevel(this._knob.getValue()))
},
_updateKnobValue: function() {
this._knob.setValue(this._toValue(this._map.getZoom()))
},
_updateDisabled: function() {
var zoomLevel = this._map.getZoom()
var className = this.options.styleNS + '-disabled'
L.DomUtil.removeClass(this._ui.zoomIn, className)
L.DomUtil.removeClass(this._ui.zoomOut, className)
if (zoomLevel === this._map.getMinZoom()) {
L.DomUtil.addClass(this._ui.zoomOut, className)
}
if (zoomLevel === this._map.getMaxZoom()) {
L.DomUtil.addClass(this._ui.zoomIn, className)
}
}
})
return Zoomslider
})()
L.Map.mergeOptions({
zoomControl: false,
zoomsliderControl: true
})
L.Map.addInitHook(function() {
if (this.options.zoomsliderControl) {
this.zoomsliderControl = new L.Control.Zoomslider()
this.addControl(this.zoomsliderControl)
}
})
L.control.zoomslider = function(options) {
return new L.Control.Zoomslider(options)
}
css代码区域
/** Slider **/
.leaflet-control-zoomslider-wrap {
padding-top: 5px;
padding-bottom: 5px;
background-color: #fff;
border-bottom: 1px solid #ccc;
}
.leaflet-control-zoomslider-body {
width: 22px;
border: solid #fff;
border-width: 0px 9px 0px 9px;
background-color: rgb(179, 178, 178);
margin: 0 auto;
}
.leaflet-control-zoomslider-knob {
position: relative;
width: 12px;
height: 4px;
background-color: #efefef;
-webkit-border-radius: 2px;
border-radius: 2px;
border: 1px solid rgb(179, 178, 178);
margin-left: -4px;
}
.leaflet-control-zoomslider-body:hover {
cursor: pointer;
}
.leaflet-control-zoomslider-knob:hover {
cursor: default;
cursor: -webkit-grab;
cursor: -moz-grab;
}
.leaflet-dragging .leaflet-control-zoomslider,
.leaflet-dragging .leaflet-control-zoomslider-wrap,
.leaflet-dragging .leaflet-control-zoomslider-body,
.leaflet-dragging .leaflet-control-zoomslider a,
.leaflet-dragging .leaflet-control-zoomslider a.leaflet-control-zoomslider-disabled,
.leaflet-dragging .leaflet-control-zoomslider-knob:hover {
cursor: move;
cursor: -webkit-grabbing;
cursor: -moz-grabbing;
}
/** Leaflet Zoom Styles **/
.leaflet-container .leaflet-control-zoomslider {
margin-left: 10px;
margin-top: 50px;
}
.leaflet-control-zoomslider a {
width: 24px;
height: 26px;
text-align: center;
text-decoration: none;
color: black;
display: block;
}
.leaflet-control-zoomslider a:hover {
width: 24px;
background-color: #f4f4f4;
}
.leaflet-control-zoomslider-in {
font: bold 18px 'Lucida Console', Monaco, monospace;
}
.leaflet-control-zoomslider-in:after{
content:"+"
}
.leaflet-control-zoomslider-out {
font: bold 22px 'Lucida Console', Monaco, monospace;
}
.leaflet-control-zoomslider-out:after{
content:"-"
}
.leaflet-control-zoomslider a.leaflet-control-zoomslider-disabled {
cursor: default;
color: #bbb;
}
/* Touch */
.leaflet-touch .leaflet-control-zoomslider-body {
background-position: 10px 0px;
}
.leaflet-touch .leaflet-control-zoomslider-knob {
width: 16px;
margin-left: -7px;
}
.leaflet-touch .leaflet-control-zoomslider a {
width: 30px;
line-height: 30px;
}
.leaflet-touch .leaflet-control-zoomslider a:hover {
width: 30px;
line-height: 30px;
}
.leaflet-touch .leaflet-control-zoomslider-in {
font-size: 24px;
line-height: 29px;
}
.leaflet-touch .leaflet-control-zoomslider-out {
font-size: 28px;
line-height: 30px;
}
.leaflet-touch .leaflet-control-zoomslider {
box-shadow: none;
border: 4px solid rgba(0,0,0,0.3);
}
二、简单粗暴法
对于看不懂的或者想偷懒的程序猿来说，复制粘贴是最快的方法，如果你不想动脑筋，可以把下面的两个文件直接复制粘贴到你的项目里面去，然后直接引用就可以了
滑块放大缩小的css
滑块放大缩小的js
引用：
- 在你的vue文件里把对应的js文件与css文件引入即可
效果：
二、leaflet 拉框放大
对于拉框放大，相信很多人都能从leaflet的相关文档里面找到它的相关属性，都知道按着Shift键加鼠标就可以实现拉框放大，但用户不知道啊，所以我们得把它显示到界面上。但leaflet只提供了相关的属性，并没有提供相关的用法，这就让人很苦恼。你不可能把Shift键当成一个按钮显示到页面上，当用户点击时按钮状态一直为true，这样的话如果Shift键在这时有什么用处，那这就会产生冲突，这明显不是最佳的解决方法。下面，我就给大家呈上正确的方法。
案例
一、详细解决方法
js代码区域
/*
* L.Control.BoxZoom
* A visible, clickable control for doing a box zoom.
* https://github.com/gregallensworth/L.Control.BoxZoom
*/
L.Control.BoxZoom = L.Control.extend({
options: {
position: 'topright',
title: 'Click here then draw a square on the map, to zoom in to an area',
aspectRatio: null,
divClasses: '',
enableShiftDrag: false,
iconClasses: '',
keepOn: true,
},
initialize: function(options) {
L.setOptions(this, options);
this.map = null;
this.active = false;
},
onAdd: function (map) {
// add a linkage to the map, since we'll be managing map layers
this.map = map;
this.active = false;
// create our button: uses FontAwesome cuz that font is... awesome
// assign this here control as a property of the visible DIV, so we can be more terse when writing click-handlers on that visible DIV
this.controlDiv = L.DomUtil.create('div', 'leaflet-control-boxzoom');
// if we're not using an icon, add the background image class
if (!this.options.iconClasses) {
L.DomUtil.addClass(this.controlDiv, 'with-background-image');
}
if (this.options.divClasses) {
L.DomUtil.addClass(this.controlDiv, this.options.divClasses);
}
this.controlDiv.control = this;
this.controlDiv.title = this.options.title;
this.controlDiv.innerHTML = ' ';
L.DomEvent
.addListener(this.controlDiv, 'mousedown', L.DomEvent.stopPropagation)
.addListener(this.controlDiv, 'click', L.DomEvent.stopPropagation)
.addListener(this.controlDiv, 'click', L.DomEvent.preventDefault)
.addListener(this.controlDiv, 'click', function () {
this.control.toggleState();
});
// start by toggling our state to off; this disables the boxZoom hooks on the map, in favor of this one
this.setStateOff();
if (this.options.iconClasses) {
var iconElement = L.DomUtil.create('i', this.options.iconClasses, this.controlDiv);
if (iconElement) {
iconElement.style.color = this.options.iconColor || 'black';
iconElement.style.textAlign = 'center';
iconElement.style.verticalAlign = 'middle';
} else {
console.log('Unable to create element for icon');
}
}
// if we're enforcing an aspect ratio, then monkey-patch the map's real BoxZoom control to support that
// after all, this control is just a wrapper over the map's own BoxZoom behavior
if (this.options.aspectRatio) {
this.map.boxZoom.aspectRatio = this.options.aspectRatio;
this.map.boxZoom._onMouseMove = this._boxZoomControlOverride_onMouseMove;
this.map.boxZoom._onMouseUp = this._boxZoomControlOverride_onMouseUp;
}
// done!
return this.controlDiv;
},
onRemove: function (map) {
// on remove: if we had to monkey-patch the aspect-ratio stuff, undo that now
if (this.options.aspectRatio) {
delete this.map.boxZoom.aspectRatio;
this.map.boxZoom._onMouseMove = L.Map.BoxZoom.prototype._onMouseMove;
this.map.boxZoom._onMouseUp = L.Map.BoxZoom.prototype._onMouseUp;
}
},
toggleState: function () {
this.active ? this.setStateOff() : this.setStateOn();
},
setStateOn: function () {
L.DomUtil.addClass(this.controlDiv,'leaflet-control-boxzoom-active');
this.active = true;
this.map.dragging.disable();
if (!this.options.enableShiftDrag) {
this.map.boxZoom.addHooks();
}
this.map.on('mousedown', this.handleMouseDown, this);
if (!this.options.keepOn) {
this.map.on('boxzoomend', this.setStateOff, this);
}
L.DomUtil.addClass(this.map._container,'leaflet-control-boxzoom-active');
},
setStateOff: function () {
L.DomUtil.removeClass(this.controlDiv,'leaflet-control-boxzoom-active');
this.active = false;
this.map.off('mousedown', this.handleMouseDown, this);
this.map.dragging.enable();
if (!this.options.enableShiftDrag) {
this.map.boxZoom.removeHooks();
}
L.DomUtil.removeClass(this.map._container,'leaflet-control-boxzoom-active');
},
handleMouseDown: function (event) {
this.map.boxZoom._onMouseDown.call(this.map.boxZoom, { clientX:event.originalEvent.clientX, clientY:event.originalEvent.clientY, which:1, shiftKey:true });
},
// monkey-patched applied to L.Map.BoxZoom to handle aspectRatio and to zoom to the drawn box instead of the mouseEvent point
// in these methods, "this" is not the control, but the map's boxZoom instance
_boxZoomControlOverride_onMouseMove: function (e) {
if (!this._moved) {
this._box = L.DomUtil.create('div', 'leaflet-zoom-box', this._pane);
L.DomUtil.setPosition(this._box, this._startLayerPoint);
//TODO refactor: move cursor to styles
this._container.style.cursor = 'crosshair';
this._map.fire('boxzoomstart');
}
var startPoint = this._startLayerPoint,
box = this._box,
layerPoint = this._map.mouseEventToLayerPoint(e),
offset = layerPoint.subtract(startPoint),
newPos = new L.Point(
Math.min(layerPoint.x, startPoint.x),
Math.min(layerPoint.y, startPoint.y));
L.DomUtil.setPosition(box, newPos);
this._moved = true;
var width = (Math.max(0, Math.abs(offset.x) - 4)); // from L.Map.BoxZoom, TODO refactor: remove hardcoded 4 pixels
var height = (Math.max(0, Math.abs(offset.y) - 4)); // from L.Map.BoxZoom, TODO refactor: remove hardcoded 4 pixels
if (this.aspectRatio) {
height = width / this.aspectRatio;
}
box.style.width = width + 'px';
box.style.height = height + 'px';
},
_boxZoomControlOverride_onMouseUp: function (e) {
// the stock behavior is to generate a bbox based on the _startLayerPoint and the mouseUp event point
// we don't want that; we specifically want to use the drawn box with the fixed aspect ratio
// fetch the box and convert to a map bbox, before we clear it
var ul = this._box._leaflet_pos;
var lr = new L.Point(this._box._leaflet_pos.x + this._box.offsetWidth, this._box._leaflet_pos.y + this._box.offsetHeight);
var nw = this._map.layerPointToLatLng(ul);
var se = this._map.layerPointToLatLng(lr);
if (nw.equals(se)) { return; }
this._finish();
var bounds = new L.LatLngBounds(nw, se);
this._map.fitBounds(bounds);
this._map.fire('boxzoomend', {
boxZoomBounds: bounds
});
},
});
L.Control.boxzoom = function(options) {
return new L.Control.BoxZoom(options);
}
css代码区域
/*
* BOXZOOM
*/
.leaflet-control-boxzoom {
background-color:white;
border-radius:4px;
border:1px solid #cccccc;
width:25px;
height:25px;
line-height:25px;
box-shadow:0 1px 2px rgba(0,0,0,0.65);
cursor:pointer !important;
}
.with-background-image {
background-image:url(leaflet-control-boxzoom.svg);
background-repeat:no-repeat;
background-size:21px 21px; /* 25px image, 25px box; subtract 2px for padding on every side = 21px rendering height */
background-position:2px 2px;
}
.leaflet-control-boxzoom.leaflet-control-boxzoom-active {
background-color:#aaaaaa;
}
.leaflet-container.leaflet-control-boxzoom-active, .leaflet-container.leaflet-control-boxzoom-active path.leaflet-interactive {
cursor:crosshair !important;
}
.leaflet-control-boxzoom i {
display:block;
}
.leaflet-control-boxzoom i.icon {
font-size:17px;
margin-left:1px;
margin-top:3px;
}
.leaflet-control-boxzoom i.fa {
margin-top:6px;
}
.leaflet-control-boxzoom i.glyphicon {
margin-top:5px;
}
二，快速解决法
对于懒惰的人来说，我还给他准备了快速的解决方法，直接复制粘贴（注意：文件都是配套的，不可复制少文件）
引用方法
与滑块引用方法一样，把代码路径引进来
再到相关配置文件里面把它 addTo 到地图上面去，就可以正常使用啦。
L.Control.boxzoom({ position: ‘topleft’ }).addTo(map)
效果：
对于拉框缩小来说，鄙人还没有找到相关的属于以及解决方法，等后续找到相关方法，再给大家接上。或者你已经有解决方法，也麻烦教一下，毕竟甲方需求必须完成，谢谢。
1145
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
