创建maven父工程：spring-boot-grpc

父工程删去src目录，具体 maven 依赖如下所示：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.10</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.example</groupId>
    <artifactId>spring-boot-grpc</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-boot-grpc</name>
    <description>Demo project for Spring Boot</description>

    <modules>
        <module>spring-boot-grpc-lib</module>
        <module>local-server</module>
    </modules>

    <properties>
        <java.version>1.8</java.version>
    </properties>


    <dependencies>

        <!-- web 依赖，子模块会继承这些依赖  -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- 单元测试依赖，子模块会继承这些依赖  -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- Lombok引入，子模块会继承这些依赖 -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

    </dependencies>


    <!--    <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                </plugin>
            </plugins>
        </build>-->

</project>

创建公用子模块：spring-boot-grpc-lib

该模块的 maven 依赖如下所示：该模块打包后会被其他模块引用，且该maven中配置了proto文件生成java文件的插件属性。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-boot-grpc</artifactId>
        <groupId>com.example</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-boot-grpc-lib</artifactId>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>


    <dependencies>

        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-netty-shaded</artifactId>
            <version>1.37.0</version>
        </dependency>

        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-protobuf</artifactId>
            <version>1.37.0</version>
        </dependency>

        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-stub</artifactId>
            <version>1.37.0</version>
        </dependency>

        <dependency> <!-- necessary for Java 9+ -->
            <groupId>org.apache.tomcat</groupId>
            <artifactId>annotations-api</artifactId>
            <version>6.0.53</version>
            <scope>provided</scope>
        </dependency>


    </dependencies>


    <build>

        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.6.2</version>
            </extension>
        </extensions>

        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.6.1</version>
                <configuration>
                    <!-- 指定Protobuf编译器protoc具体版本，用于生成Java消息对象 -->
                    <protocArtifact>com.google.protobuf:protoc:3.17.3:exe:${os.detected.classifier}</protocArtifact>
                    <!-- 指定protoc的插件Id -->
                    <pluginId>grpc-java</pluginId>
                    <!-- 指定生成Java代码的具体插件版本,用于生成Java接口服务 -->
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.37.0:exe:${os.detected.classifier}</pluginArtifact>

                    <!-- proto文件所在目录 -->
                    <protoSourceRoot>src/main/proto</protoSourceRoot>
                    <!-- Java类输出目录 -->
                    <outputDirectory>src/main/java</outputDirectory>
                    <!-- 是否需要清理输出目录 -->
                    <clearOutputDirectory>false</clearOutputDirectory>

                </configuration>

                <executions>
                    <execution>
                        <!-- goals目标说明 -->
                        <goals>
                            <!-- 编译消息对象 -->
                            <goal>compile</goal>
                            <!-- 依赖上一步生成的消息对象,生成接口服务 -->
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>

            </plugin>
        </plugins>

    </build>


</project>

在spring-boot-grpc-lib模块的src/main/proto目录下新增名为test01.proto的文件，这里面定义了一个grpc服务，里面含有一个接口，并且还有这个接口的入参和返回结果的定义，该文件的示例如下所示：

// 文件的第一行指定您使用的是proto3语法
syntax = "proto3";

// 生成类的包名
option java_multiple_files = true;
// 生成类的文件名，否则默认生成的类名为proto文件名的驼峰命名
option java_package = "com.chenj.grpc.lib";
// 定义的所有消息、枚举和服务生成对应的多个类文件，而不是以内部类的形式出现
option java_outer_classname = "Test01Proto";


// The greeting service definition.(greeting服务定义)
// 生成 Service01Grpc类、以及该类的方法
service Service01 {

    // Sends a greeting.
    // 生成method01方法(格式为"方法名 请求参数 返回参数")
    rpc method01 (Method01Request) returns (Method01Reply) {
    }

    // Sends a greeting.
    // 生成method02方法(格式为"方法名 请求参数 返回参数")
    rpc method02 (Method02Request) returns (Method02Reply) {
    }

}
// 生成方法请求类、以及该类的属性
message Method01Request {
    string name = 1;
}
// 生成方法响应类、以及该类的属性
message Method01Reply {
    string message = 1;
}
// 生成方法请求类、以及该类的属性
message Method02Request {
    string param1 = 1;
    string param2 = 2;
}
// 生成方法响应类、以及该类的属性
message Method02Reply {
    string param1 = 1;
    string param2 = 2;
}

proto文件已经做好，接下来要根据这个文件来生成Java代码；操作方式如下：

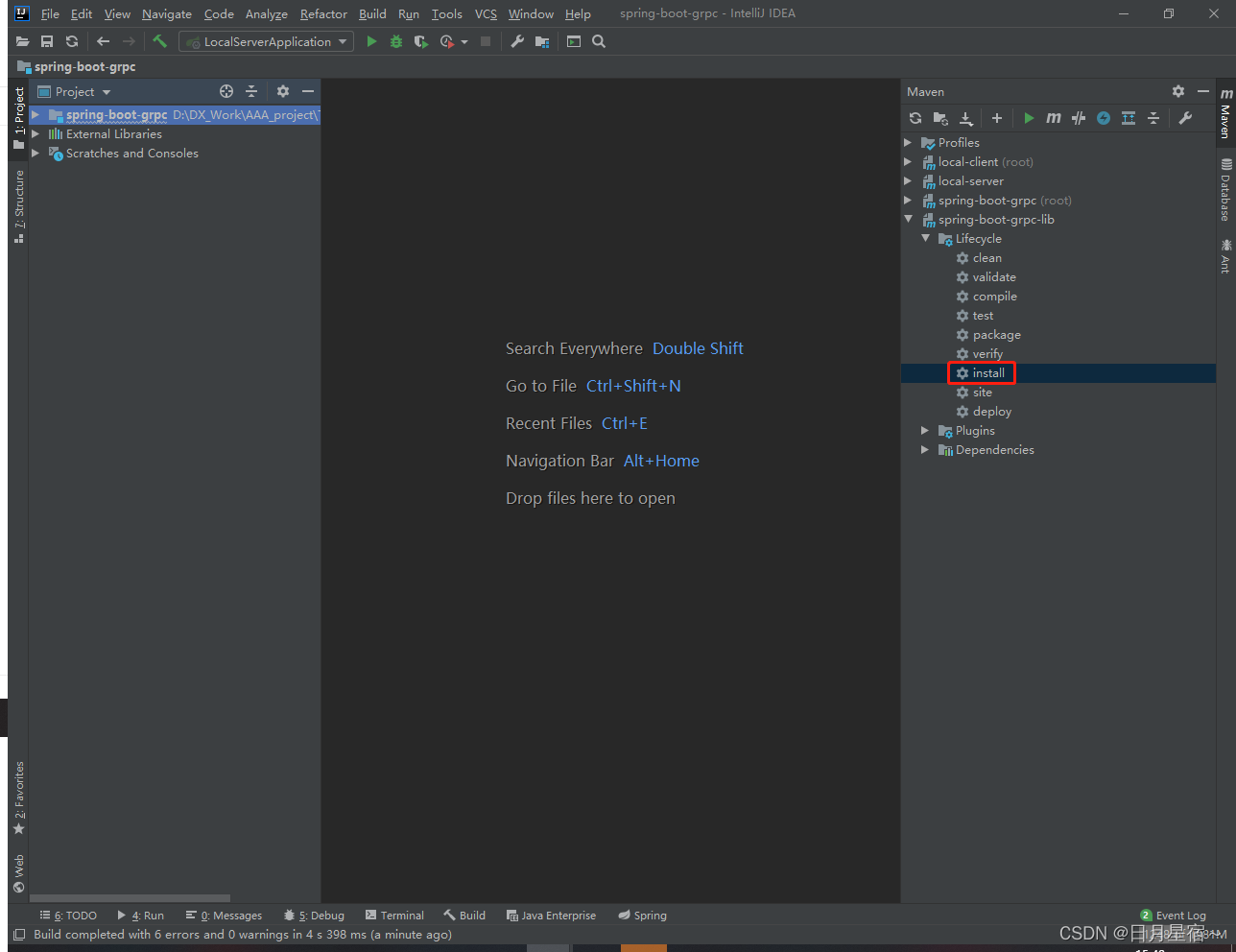

点击install打成jar包，这样，一则根据spring-boot-grpc-lib模块的maven依赖配置中的<plugin>插件配置生成java代码；二是可以使其他模块在maven中添加该模块的依赖包。

创建子模块：local-server（gRPC服务端）

在父工程下面新建名为local-server的springboot模块，该模块的maven依赖如下所示：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <artifactId>spring-boot-grpc</artifactId>
        <groupId>com.example</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

    <groupId>com.example</groupId>
    <artifactId>local-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>local-server</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>net.devh</groupId>
            <artifactId>grpc-server-spring-boot-starter</artifactId>
            <version>2.12.0.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>com.example</groupId>
            <artifactId>spring-boot-grpc-lib</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <!--Lombok引入-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot</artifactId>
            <version>2.7.10</version>
        </dependency>


    </dependencies>

    <!--    <build>-->
    <!--        <plugins>-->
    <!--            <plugin>-->
    <!--                <groupId>org.springframework.boot</groupId>-->
    <!--                <artifactId>spring-boot-maven-plugin</artifactId>-->
    <!--            </plugin>-->
    <!--        </plugins>-->
    <!--    </build>-->

</project>

local-server 模块的application.yml文件配置如下：

server:
  port: 8080

spring:
  application:
    name: spring-boot-grpc-server

# gRPC有关的配置，这里只需要配置服务端口号
grpc:
  server:
    port: 9898

在 local-server 模块新建拦截类LogGrpcInterceptor.java，每当gRPC请求到来后该类会先执行，这里是将方法名字在日志中打印出来，您可以对请求响应做更详细的处理：

package com.chenj.springbootgrpcserver.interceptor;

import io.grpc.Metadata;
import io.grpc.ServerCall;
import io.grpc.ServerCallHandler;
import io.grpc.ServerInterceptor;
import lombok.extern.slf4j.Slf4j;


@Slf4j
public class LogGrpcInterceptor implements ServerInterceptor {
    @Override
    public <ReqT, RespT> ServerCall.Listener<ReqT> interceptCall(ServerCall<ReqT, RespT> serverCall, Metadata metadata,
                                                                 ServerCallHandler<ReqT, RespT> serverCallHandler) {
        log.info(serverCall.getMethodDescriptor().getFullMethodName());
        return serverCallHandler.startCall(serverCall, metadata);
    }
}

为了让LogGrpcInterceptor可以在gRPC请求到来时被执行，需要做相应的配置，如下所示，在普通的bean的配置中添加注解即可：

package com.chenj.springbootgrpcserver.config;

import com.chenj.springbootgrpcserver.interceptor.LogGrpcInterceptor;
import io.grpc.ServerInterceptor;
import net.devh.boot.grpc.server.interceptor.GrpcGlobalServerInterceptor;
import org.springframework.context.annotation.Configuration;


@Configuration(proxyBeanMethods = false)
public class GlobalInterceptorConfiguration {
    @GrpcGlobalServerInterceptor
    ServerInterceptor logServerInterceptor() {
        return new LogGrpcInterceptor();
    }
}

接下来是最重要的service类，gRPC服务在此处对外暴露出去，完整代码如下：

package com.example.service;

import com.chenj.grpc.lib.*;
import io.grpc.stub.StreamObserver;
import net.devh.boot.grpc.server.service.GrpcService;

import java.util.Date;

@GrpcService
public class GrpcTest01Service extends Service01Grpc.Service01ImplBase {


    @Override
    public void method01(Method01Request request,
                         StreamObserver<Method01Reply> responseObserver) {
        Method01Reply reply = Method01Reply.newBuilder()
                .setMessage("name：" + request.getName() + ", " + new Date())
                .build();
        responseObserver.onNext(reply);
        responseObserver.onCompleted();

    }

    @Override
    public void method02(Method02Request request,
                         StreamObserver<Method02Reply> responseObserver) {
        Method02Reply reply = Method02Reply.newBuilder()
                .setParam1("参数1：" + request.getParam1())
                .setParam2("参数2：" + request.getParam2())
                .build();
        responseObserver.onNext(reply);
        responseObserver.onCompleted();

    }


}

至此，grpc服务端编码完成。

创建子模块：local-client（gRPC客户端）

在父工程spring-boot-grpc下面新建名为local-client的模块，该模块的maven依赖如下所示：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <artifactId>spring-boot-grpc</artifactId>
        <groupId>com.example</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

    <groupId>com.example</groupId>
    <artifactId>local-client</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>local-client</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>net.devh</groupId>
            <artifactId>grpc-client-spring-boot-starter</artifactId>
            <version>2.12.0.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>com.example</groupId>
            <artifactId>spring-boot-grpc-lib</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

local-client 模块的application.yml文件配置如下：

server:
  port: 8088

spring:
  application:
    name: local-client

grpc:
  client:
    # gRPC配置的名字，GrpcClient注解会用到
    local-grpc-server:
      # gRPC服务端地址
      address: 'static://127.0.0.1:9898'
      enableKeepAlive: true
      keepAliveWithoutCalls: true
      negotiationType: plaintext

新建拦截类LogGrpcInterceptor，与服务端的拦截类差不多，不过实现的接口不同：

package com.chenj.springbootgrpcclient.interceptor;


import io.grpc.*;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class LogGrpcInterceptor implements ClientInterceptor {

    private static final Logger log = LoggerFactory.getLogger(LogGrpcInterceptor.class);

    @Override
    public <ReqT, RespT> ClientCall<ReqT, RespT> interceptCall(MethodDescriptor<ReqT, RespT> method,
                                                               CallOptions callOptions, Channel next) {
        log.info(method.getFullMethodName());
        return next.newCall(method, callOptions);
    }
}

为了让拦截类能够正常工作，即发起gRPC请求的时候被执行，需要新增一个配置类：

package com.chenj.springbootgrpcclient.config;


import com.chenj.springbootgrpcclient.interceptor.LogGrpcInterceptor;
import io.grpc.ClientInterceptor;
import net.devh.boot.grpc.client.interceptor.GrpcGlobalClientInterceptor;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;

@Order(Ordered.LOWEST_PRECEDENCE)
@Configuration(proxyBeanMethods = false)
public class GlobalClientInterceptorConfiguration {

    @GrpcGlobalClientInterceptor
    ClientInterceptor logClientInterceptor() {
        return new LogGrpcInterceptor();
    }
}

接下来是最重要的服务类GrpcClientService：

package com.example.service;

import com.chenj.grpc.lib.*;
import io.grpc.StatusRuntimeException;
import net.devh.boot.grpc.client.inject.GrpcClient;
import org.springframework.stereotype.Service;

@Service
public class GrpcClientService {


    @GrpcClient("local-grpc-server")
    private Service01Grpc.Service01BlockingStub service01Stub;


    public String method01(final String name) {
        try {
            final Method01Reply response = this.service01Stub.method01(
                    Method01Request.newBuilder().setName(name).build());
            return response.getMessage();
        } catch (final StatusRuntimeException e) {
            return "FAILED with " + e.getStatus().getCode().name();
        }
    }


    public String method02(final String param1,
                           final String param2) {
        try {
            final Method02Reply response = this.service01Stub.method02(
                    Method02Request.newBuilder()
                            .setParam1(param1)
                            .setParam2(param2)
                            .build());
            return response.getParam1();
        } catch (final StatusRuntimeException e) {
            return "FAILED with " + e.getStatus().getCode().name();
        }
    }


}

为了验证gRPC服务调用能否成功，再新增个web接口，接口内部会调用GrpcClientService.sendMessage，这样就可通过浏览器或postman就能验证gRPC服务是否调用成功了：

package com.example.controller;

import com.example.service.GrpcClientService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


@RestController
public class GrpcClientController {


    @Autowired
    private GrpcClientService grpcClientService;


    @RequestMapping("/test02")
    public String test02(@RequestParam(defaultValue = "will") String name) {
        return grpcClientService.method01(name);
    }


    @RequestMapping("/test03")
    public String test03(@RequestParam(defaultValue = "param1") String param1,
                         @RequestParam(defaultValue = "param2") String param2) {
        return grpcClientService.method02(param1, param2);
    }


}

参考：3小时快速入门Java版gRPC系列（九）-使用spring boot集成grpc - 知乎 (zhihu.com)
