mybatis框架异常org.apache.ibatis.exceptions.PersistenceException ：全面解析

在mybatis框架中遇到了org.apache.ibatis.exceptions.PersistenceException问题，由于比较常见于测试映射文件，一不小心犯个小错就出现了，于是给自己总结一下，当然也希望对你有所帮助！！！

解析

出现这个org.apache.ibatis.exceptions.PersistenceException问题大多数都是找不到映射文件，这和没有遵循mybatis的mapper代理配置规范有关
例如：
1、文件读写出现问题，系统找不到这个文件

2、mapper接口与映射的mapper.xml 的命名是否一致，是否在同一目录下。

3、SqlMapConfig.xml配置文件加载mapper接口文件的路径有错误（一般有两种方试，第一扫描

类<mapper class=:“类路径和类名”/>第二种批量扫描加载：选择扫描包< package name=“包名” / >）

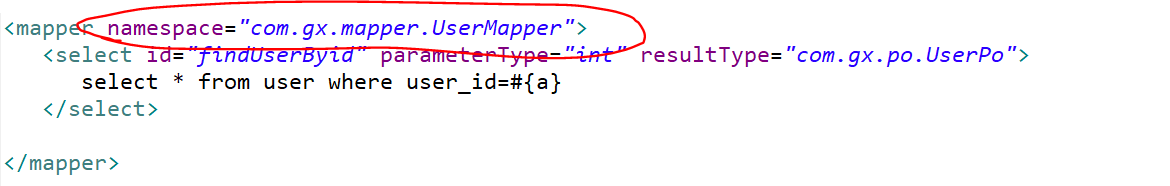

4、使用mapper代理方法开发mapper接口时mapper.xml中的namespace与mapper接口的类路径相

同，忘记写namespace也会报该异常。

5、在mapper.xml里面resultMap的Type用到那个实体类名的话就要把包名也写上去

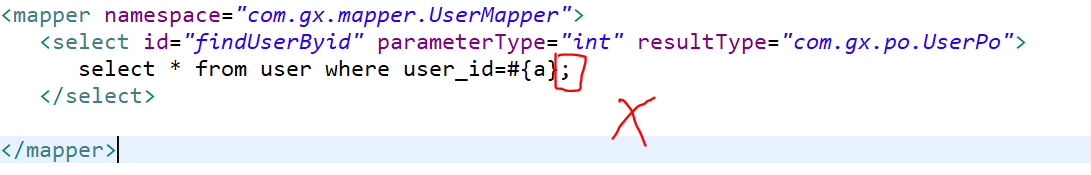

6、当然有时大意犯个小错也会报此异常比如写SQL语句时结尾习惯性添加了“；” 如下图，反正

写SQL语句千万要仔细再仔细，一不小心就报这个异常

7、开发mybatis动态代理时要注意四点开发规范：

1.接口 方法名 == User.xml 中 id 名

2. 返回值类型 与 Mapper.xml文件中返回值类型要一致

3.方法的入参类型 与Mapper.xml中入参的类型要一致

4.命名空间 绑定此接口

异常代码

咳咳。。。当然这异常代码就不需要再看了，毕竟在座各位电脑控制台就是这代码

org.apache.ibatis.exceptions.PersistenceException:
### Error building SqlSession.
### The error may exist in com/gx/mapper/UserMapper.xml
### Cause: org.apache.ibatis.builder.BuilderException: Error parsing SQL Mapper Configuration. Cause: org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. Cause: java.lang.NullPointerException
	at org.apache.ibatis.exceptions.ExceptionFactory.wrapException(ExceptionFactory.java:26)
	at org.apache.ibatis.session.SqlSessionFactoryBuilder.build(SqlSessionFactoryBuilder.java:82)
	at org.apache.ibatis.session.SqlSessionFactoryBuilder.build(SqlSessionFactoryBuilder.java:66)
	at com.gx.junit.FirstTest.testMybatis(FirstTest.java:19)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
	at java.lang.reflect.Method.invoke(Method.java:597)
	at org.junit.runners.model.FrameworkMethod$1.runReflectiveCall(FrameworkMethod.java:44)
	at org.junit.internal.runners.model.ReflectiveCallable.run(ReflectiveCallable.java:15)
	at org.junit.runners.model.FrameworkMethod.invokeExplosively(FrameworkMethod.java:41)
	at org.junit.internal.runners.statements.InvokeMethod.evaluate(InvokeMethod.java:20)
	at org.junit.runners.BlockJUnit4ClassRunner.runNotIgnored(BlockJUnit4ClassRunner.java:79)
	at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:71)
	at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:49)
	at org.junit.runners.ParentRunner$3.run(ParentRunner.java:193)
	at org.junit.runners.ParentRunner$1.schedule(ParentRunner.java:52)
	at org.junit.runners.ParentRunner.runChildren(ParentRunner.java:191)
	at org.junit.runners.ParentRunner.access$000(ParentRunner.java:42)
	at org.junit.runners.ParentRunner$2.evaluate(ParentRunner.java:184)
	at org.junit.runners.ParentRunner.run(ParentRunner.java:236)
	at org.eclipse.jdt.internal.junit4.runner.JUnit4TestReference.run(JUnit4TestReference.java:50)
	at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:38)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:467)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:683)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:390)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.main(RemoteTestRunner.java:197)
Caused by: org.apache.ibatis.builder.BuilderException: Error parsing SQL Mapper Configuration. Cause: org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. Cause: java.lang.NullPointerException
	at org.apache.ibatis.builder.xml.XMLConfigBuilder.parseConfiguration(XMLConfigBuilder.java:109)
	at org.apache.ibatis.builder.xml.XMLConfigBuilder.parse(XMLConfigBuilder.java:92)
	at org.apache.ibatis.session.SqlSessionFactoryBuilder.build(SqlSessionFactoryBuilder.java:80)
	... 25 more
Caused by: org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. Cause: java.lang.NullPointerException
	at org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XMLMapperBuilder.java:120)
	at org.apache.ibatis.builder.xml.XMLMapperBuilder.parse(XMLMapperBuilder.java:92)
	at org.apache.ibatis.builder.annotation.MapperAnnotationBuilder.loadXmlResource(MapperAnnotationBuilder.java:164)
	at org.apache.ibatis.builder.annotation.MapperAnnotationBuilder.parse(MapperAnnotationBuilder.java:118)
	at org.apache.ibatis.binding.MapperRegistry.addMapper(MapperRegistry.java:71)
	at org.apache.ibatis.binding.MapperRegistry.addMappers(MapperRegistry.java:96)
	at org.apache.ibatis.binding.MapperRegistry.addMappers(MapperRegistry.java:104)
	at org.apache.ibatis.session.Configuration.addMappers(Configuration.java:647)
	at org.apache.ibatis.builder.xml.XMLConfigBuilder.mapperElement(XMLConfigBuilder.java:313)
	at org.apache.ibatis.builder.xml.XMLConfigBuilder.parseConfiguration(XMLConfigBuilder.java:107)
	... 27 more
Caused by: java.lang.NullPointerException
	at org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XMLMapperBuilder.java:109)
	... 36 more
