<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>拖拽排序</title>
<style>
body, div {
margin: 0;
paading: 0;
font-size: 12px;
}
body {
width: 100%;
margin: 0 auto;
}
.drag_module_box {
width: 100%;
height: auto;
margin: 25px 0 0 0;
padding: 5px;
border: 1px solid #f00;
}
.drag_module_box1 {
width: 100%;
height: auto;
margin: 25px 0 0 0;
padding: 5px;
border: 1px solid #f00;
}
.drag_module_main {
position: static;
width: 100%;
height: 80px;
margin-bottom: 5px;
border: 1px solid blue;
background: #ccc;
user-select: none;
}
.drag_module_maindash {
position: absolute;
width: 100%;
height: 80px;
margin-bottom: 5px;
border: 1px dashed blue;
background: #ececec;
opacity: 0.7;
}
.drag_module_hide {
width: 100%;
height: 80px;
margin-bottom: 5px;
}
.drag_module_dash {
position: static;
width: 100%;
height: 80px;
margin-bottom: 5px;
border: 1px dashed #f00;
}
</style>
<script src="https://code.jquery.com/jquery-3.1.1.min.js"></script>
</head>
<body>
<div class="drag_module_box" id="drag_module_box1"></div>
<script type="text/javascript">
var flag = false;
var list = ['1', '2', '3', '4', '5'];
for (var i = 0; i < 5; i++) {
falg = true;
$("#drag_module_box1").append("<div class='drag_module_main' id='main'+" + i + ">" + i + "</div>");
// $("#drag_module_box1").append("<tr class='drag_module_main'> <td>"+i+"</td></tr>");
}
if (falg) {
var range = {
x: 0,
y: 0
}; //鼠标元素偏移量
var lastPos = {
x: 0,
y: 0,
x1: 0,
y1: 0
}; //拖拽对象的四个坐标
var tarPos = {
x: 0,
y: 0,
x1: 0,
y1: 0
}; //目标元素对象的坐标初始化
var theDiv = null,
move = false,
choose = false; //拖拽对象 拖拽状态 选中状态
var theDivId = 0,
theDivHeight = 0,
theDivHalf = 0,
tarFirstY = 0; //拖拽对象的索引、高度的初始化。
var tarDiv = null,
tarFirst,
tempDiv = null; //要插入的目标元素的对象, 临时的虚线对象
var initPos = {
x: 0,
y: 0
};
var maxTop = $(".drag_module_main:last").offset().top; //最大类容坐标
$(".drag_module_main").each(function() {
$(this).mousedown(function(event) {
//清空未正常删除的tempDiv
if (tempDiv != null) {
tempDiv.remove();
tempDiv = null;
}
choose = true;
//拖拽对象
theDiv = $(this);
//记录拖拽元素初始位置
initPos.x = theDiv.offset().left;
initPos.y = theDiv.offset().top;
//鼠标元素相对偏移量
range.x = event.pageX - theDiv.offset().left;
range.y = event.pageY - theDiv.offset().top;
theDivId = theDiv.index();
theDivHeight = theDiv.height();
theDivHalf = theDivHeight / 2;
theDiv.attr("class", "drag_module_maindash");
theDiv.css({
left: initPos.x + 'px',
top: initPos.y + 'px'
});
// 创建新元素 插入拖拽元素之前的位置(虚线框)
$("<div class='drag_module_dash'></div>").insertBefore(theDiv);
tempDiv = $(".drag_module_dash");
});
});
$(".drag_module_box").mousemove(function(event) {
if (!choose) return false;
move = true;
lastPos.x = event.pageX - range.x;
lastPos.y = event.pageY - range.y;
lastPos.y1 = lastPos.y + theDivHeight;
//判断拖拽元素,禁止超出范围
if (lastPos.x != 0) {
lastPos.x = 0;
}
if (lastPos.y <= 0) {
lastPos.y = 0;
}
if (lastPos.y >= maxTop) {
lastPos.y = maxTop;
}
// 拖拽元素随鼠标移动
theDiv.css({
left: lastPos.x + 'px',
top: lastPos.y + 'px'
});
// 拖拽元素随鼠标移动 查找插入目标元素
var $main = $('.drag_module_main'); // 局部变量:按照重新排列过的顺序 再次获取 各个元素的坐标,
$main.each(function() {
tarDiv = $(this);
tarPos.x = tarDiv.offset().left;
tarPos.y = tarDiv.offset().top;
tarPos.y1 = tarPos.y + tarDiv.height() / 2;
tarFirst = $main.eq(0); // 获得第一个元素
tarFirstY = tarFirst.offset().top + theDivHalf; // 第一个元素对象的中心纵坐标
//拖拽对象 移动到第一个位置
if (lastPos.y <= tarFirstY) {
tempDiv.insertBefore(tarFirst);
}
//判断要插入目标元素的 坐标后, 直接插入
if (lastPos.y >= tarPos.y - theDivHalf && lastPos.y1 >= tarPos.y1) {
tempDiv.insertAfter(tarDiv);
}
});
}).mouseup(function(event) {
if (!choose) {
return false;
}
if (!move) {
theDiv.attr("class", "drag_module_main");
tempDiv.remove(); // 删除新建的虚线div
tempDiv = null;
choose = false;
return false;
}
theDiv.insertBefore(tempDiv); // 拖拽元素插入到 虚线div的位置上
theDiv.attr("class", "drag_module_main"); //恢复对象的初始样式
tempDiv.remove(); // 删除新建的虚线div
tempDiv = null;
move = false;
choose = false;
});
}
</script>
</body>
</html>

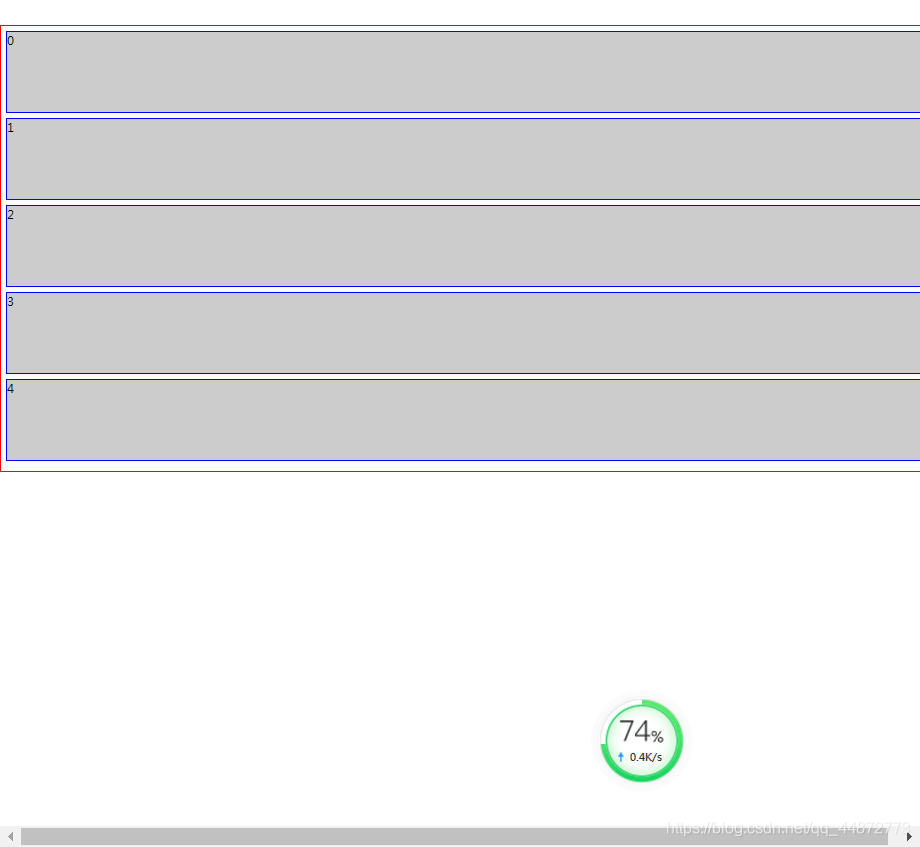

效果:
