HFP(Hands-Free):蓝牙免提协议,两个角色AG,HF端,AG端通常是手机设备,HF免提端一般为耳机车载等,hfp的连接首先要进行SDP,然后建立RFCOMM,然后SLC连接完成,HFP正式建立成功
inbandring tone:同步响铃功能,支持inbandring在电话响铃时会直接建立sco,通过sco播放手机端铃声,不支持inbandring则只会发ring给到耳机,播放自带铃声 叮叮叮~
SCO:区别于ACL,sco是另一条物理链路,用来同步传输实时语音数据
-

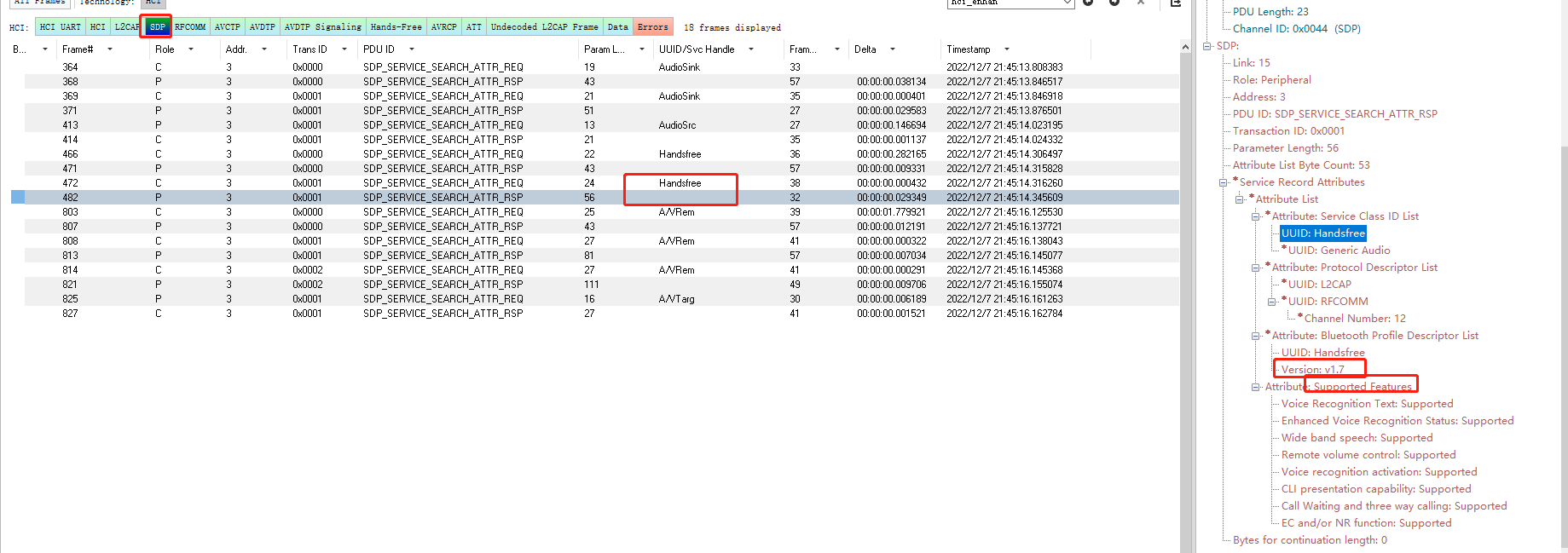

HFP两个角色,音频网关AG端,HF免提端,在配对认证完成后L2CAP发起SDP,AG端去问询对端设备HF端支持的版本和features

-
HFP建立连接需要在RFCOMM连接的基础上,L2CAP先发起RFCOMM的连接

3.RFCOMM帧类型:RFCOMM基于GSM TS 07.10,这是一种由GSM手机使用的一种非对称协议,可以将多个数据流复用到同一个物理串行电缆上。RFCOMM是对称的,使用TS 07.10特征帧和命令的子集通过L2CAP发送TS 07.10帧。TS 07.10的一些功能适用于蓝牙。
RFCOMM使用帧进行通信,RFCOMM帧作为L2CAP数据包中的有效负载数据。有五种不同的帧类型:
• SABM—Start Asynchronous Balanced Mode (startup command). 设置异步平衡模式
• UA—Unnumbered Acknowledgement (response when connected). 未编号的确认信息
• DISC—Disconnect (disconnect command). 断开连接
• DM—Disconnected Mode (response to a command when disconnected). 断开连接模式
• UIH—Unnumbered Information with Header check. 未编号的带校验头的信息
SABM, UA, DM和 DISC是底层的控制帧,RFCOMM使用信道,每个信道有一个数据连接链路标识(DLCI),UIH帧上的 DLCI = 0时用作发送控制信息, DLCI≠0时用作发送数据。
RFCOMM详细介绍:原文链接:RFCOMM简单介绍_cmax098的博客-CSDN博客

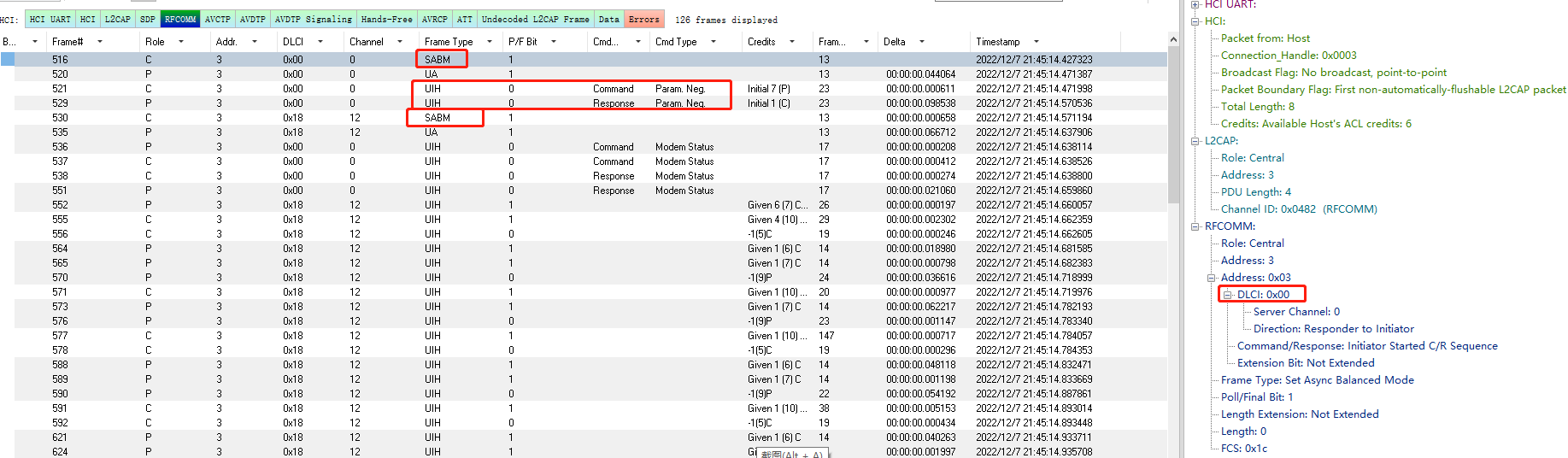

4.RFCOMM第一个控制帧是SABM,之后对端UA响应,UIH进行参数协商,然后第二帧SABM进行数据链路的连接,然后RFCOMM建立完成

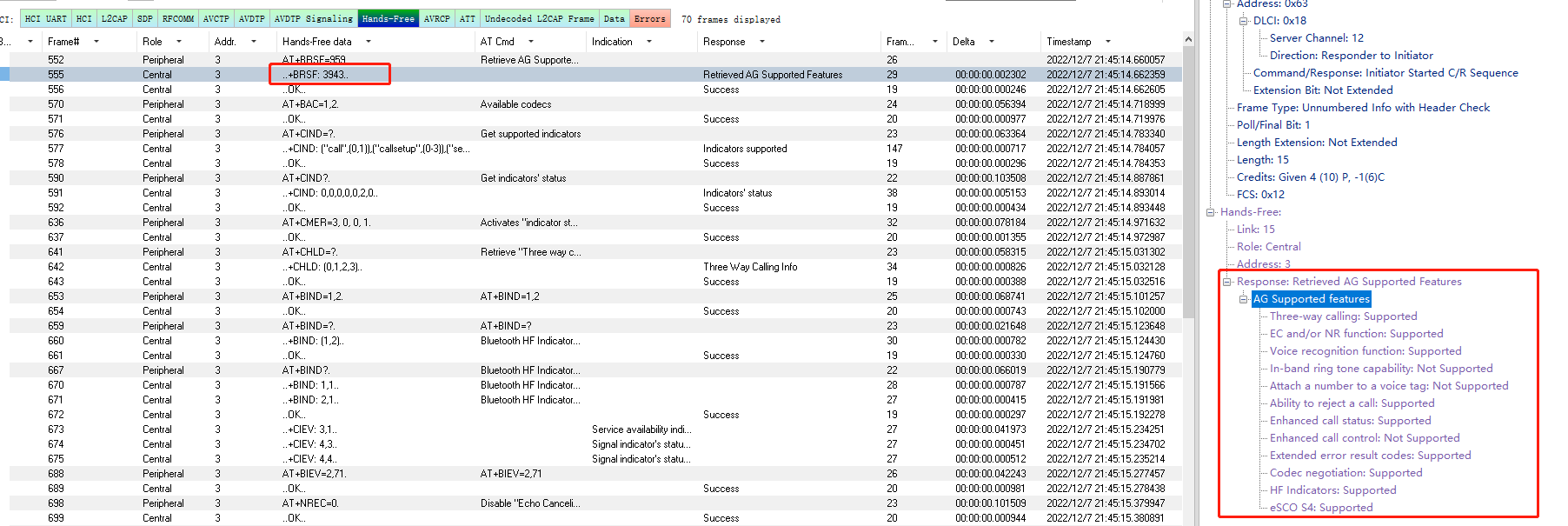

5.基于RFCOMM的连接,HFP进行AT指令的交互,首先是AT+BRSF,HF端告诉AG端支持哪些features
EC and/or NR function: Supported (echo canceling and noise reduction functions)
AG端回声消除和噪音减弱, 可以通过AT+NREC= 0关闭
Call waiting or 3-way calling: Supported 三方电话
CLI presentation capability: Supported CLIP来电显示
Voice recognition activation: Supported 语音识别
Remote volume control: Supported 通话音量调节
Enhanced call status: Supported 电话状态
Enhanced call control: Not Supported
Codec negotiation: Supported 编码协商
HF Indicators: Supported
eSCO S4: Supported

6.+BRSF AG端回复HFP所支持features
Three-way calling: Supported
EC and/or NR function: Supported
Voice recognition function: Supported
In-band ring tone capability: Not Supported 同步响铃功能
Attach a number to a voice tag: Not Supported
Ability to reject a call: Supported
Enhanced call status: Supported
Enhanced call control: Not Supported
Extended error result codes: Supported
Codec negotiation: Supported
HF Indicators: Supported
eSCO S4: Supported

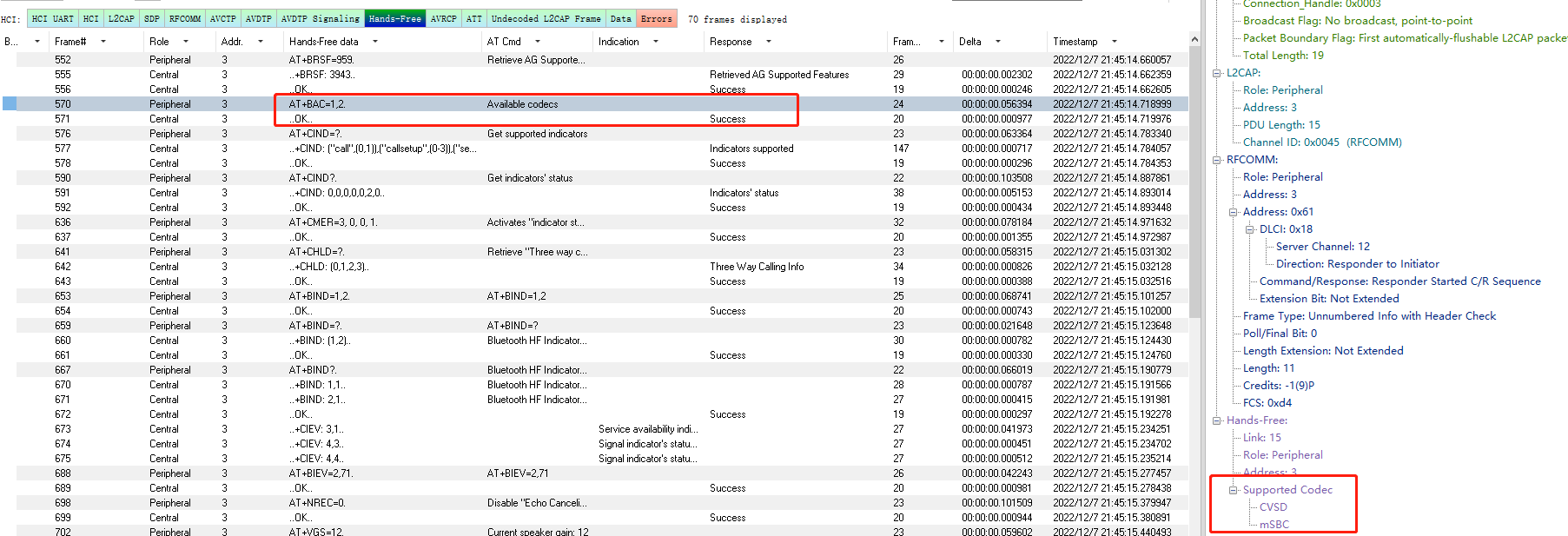

7.AT+BAC = 1,2. 通话sco支持的编码,cvsd 8k,msbc 16k

8.AT+CIND=? AT Command: Get supported indicators, 问询AG支持各种指示灯状态下的值范围
Indicators Supported
Call Status indicator:Values it can take: 0,1
Call Setup indicator:Range of values it can take: 0-3
Service availability indicator:Range of values it can take: 0-1
Signal indicator:Range of values it can take: 0-5
Roaming indicator:Values it can take: 0,1
Battery charge indicator:Range of values it can take: 0-5
Call Held indicator:Range of values it can take: 0-2
9.AT+CIND=? AT Command: Get indicators' status 问询当前AG端当前各个指示灯状态值
Indicator's Status
Call Status: No calls in progress
Call Setup: Not currently in call set up
Service availability: No service. No Home/Roam network available.
Signal indicator: Signal strength level 0
Roaming indicator: Roaming is not active
Battery charge indicator: Level 2
Call Held indicator: No calls held
10.AT+CMER=3, 0, 0, 1.Activates "indicator status reporting" 激活AG端通话状态报告
11.AT+CHLD=?.Retrieve "Three way calling" Info 获取AG端三方电话信息
12.AT+BIND = …,HF 告知 AG 其支持指示器特性
13.AT+BIND=? ,HF 向 AG 询问 AG 所支持的HF指示器信息
以上指令交互完成后,HFP SLC(service level connection)建立完成,HFP连接完成
14.其它常用AT指令
AT+NREC = 0 关闭回声消除和噪音减弱
AT+BIEV = *,* HF端蓝牙电量
AT+VGS = 12 (0-15) HF端speaker音量等级
AT+VGM = 12 (0-15) HF端mic送花音量等级
AT+CLIP = 1 开启来电显示
AT+CCWA = 1 AT Command: Enable call waiting notification
ATA 接听电话
AT+CHUP 挂断电话
AT+BCS = 2 sco编码协商时选择第二个编码msbc
.......
15.AG端ciev状态值
+CIEV:1,0 挂断电话或无活跃的通话
+CIEV:1,1 接听电话
+CIEV:2,0 当前没有等待的电话需要处理
+CIEV:2,2 拨打电话
+CIEV:2,3 已拨通
....
16.sco通话的建立流程
先AT+BCS进行编码协商
Command: HCI_Enhanced_Setup_Synchronous_Connection
Event: HCI_Synchronous_Connection_Complete
端开的话看对应连接的Connection_Handle
