该博客介绍了一个基于Web的3D模型查看器，利用model-viewer组件展示了如何在网页上加载和交互3D模型，并提供了模型切换功能。用户可以通过点击按钮在多个3D模型间切换，同时支持开启或关闭3D模型的背景图像。此外，还提供了手机和PC端的预览效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

我做的Demo链接(pc或手机都可以看): 模型观察者model-viewer

码云demo地址: javascriptWeb3D: 模型观察者-model-viewer Demo

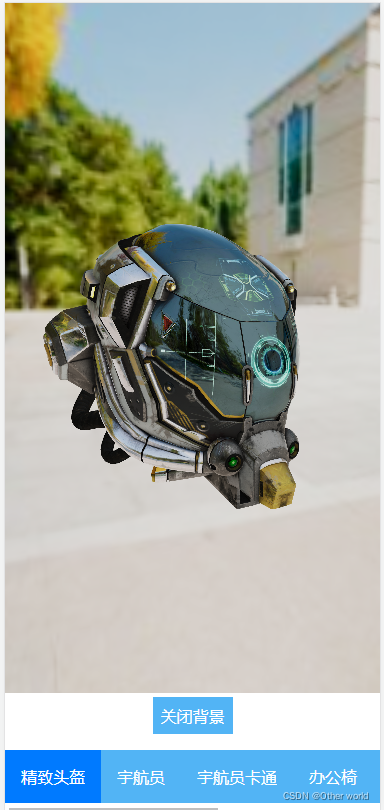

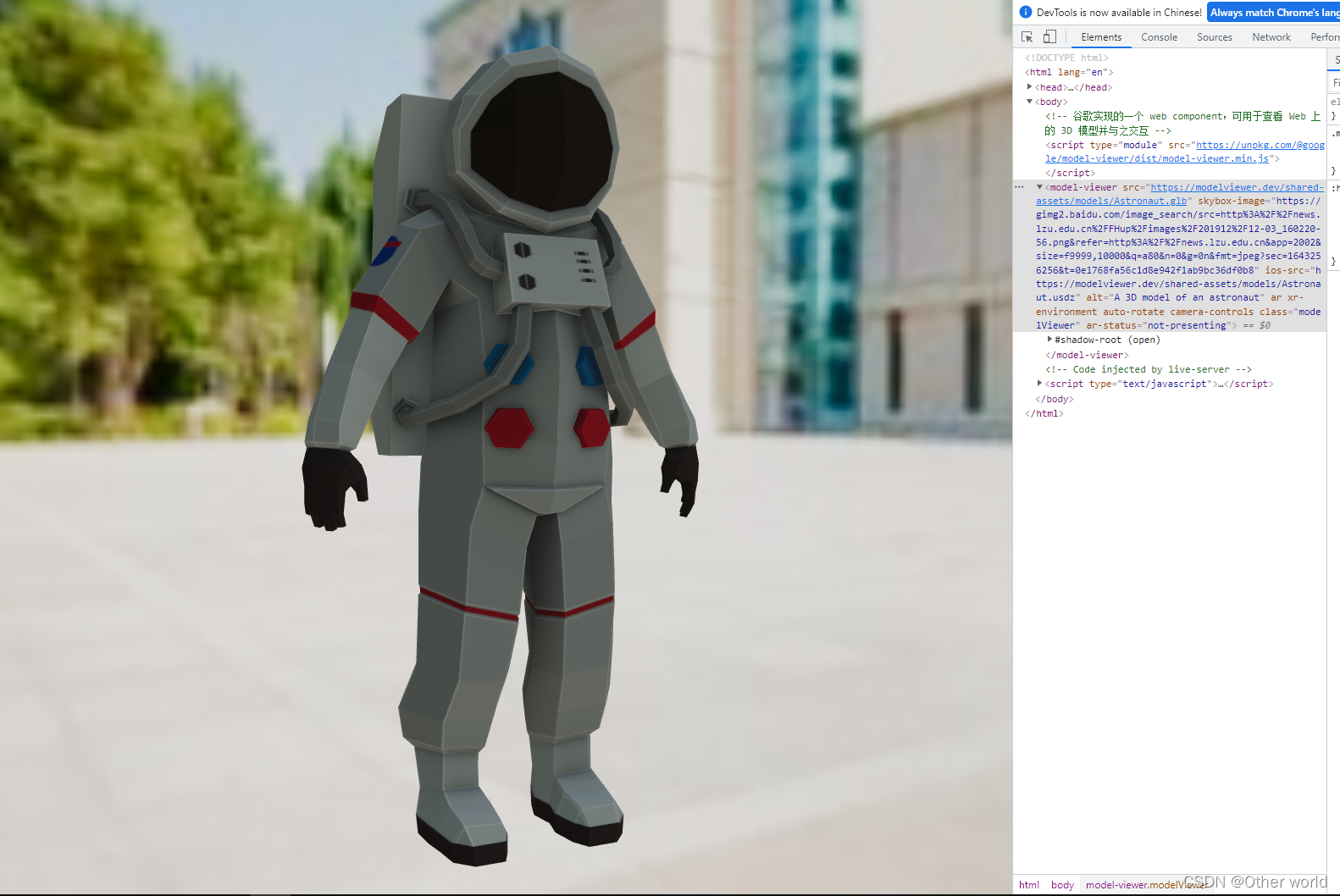

手机+PC效果图:

去参考文档: <model-viewer> Augmented Reality

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>模型观察者-model-viewer</title>
    <style>
        body { margin: 0; padding: 0;}
        .modelViewer{
            width: 100vw;
            height: 80vh;
        }
        .footer{
            height: 20vh;
            display: flex;
            align-items: center;
            flex-direction: column;
            justify-content: center;
        }
        #btn{
            width: 100%;
            padding: 15px 0;
            bottom: 0;
            /* 溢出呈现滚动条 */
            overflow-y: hidden;
            overflow-x: scroll;
            white-space: nowrap;
            text-align: center;
        }
        #btn .btn_list{
            display: inline-block;
            padding: .8rem;
            cursor: pointer;
            background-color: rgb(82, 180, 245);
            color: #fff;
            font-size: 1rem;
        }
        #btn .btn_list:hover{
            background-color: #007aff;
        }
        #btn .active{
            background-color: #007aff;
        }
        .close{
            width: 4rem;
            padding: .5rem;
            cursor: pointer;
            background-color: rgb(82, 180, 245);
            color: #fff;
        }
        .close:hover{
            background-color: #007aff;
        }
    </style>
</head>
<body>
    <!-- 谷歌实现的一个 web component，可用于查看 Web 上的 3D 模型并与之交互 -->
    <script type="module" src="https://unpkg.com/@google/model-viewer/dist/model-viewer.min.js"></script>
<model-viewer
  src=""
  id="view"
  skybox-image=""
  ios-src="https://modelviewer.dev/shared-assets/models/Astronaut.usdz"
  alt="A 3D model of an astronaut"
  ar
  xr-environment
  auto-rotate
  camera-controls
  class="modelViewer"
  ></model-viewer>
  <div class="footer">
    <div class="close" id="closeBj">关闭背景</div>
    <div id="btn"></div>
  </div>
  <script>
      //模型列表
      var model_list = [
        {
            id: 1,
            name: '小船',
            src: './3dSourceMaterial/Canoe.glb',
        },
        {
            id: 2,
            name: '宇航员',
            src: './3dSourceMaterial/NeilArmstrong.glb',
        },
        {
            id: 3,
            name: '精致头盔',
            src: './3dSourceMaterial/DamagedHelmet/glTF/DamagedHelmet.gltf',
        },
        {
            id: 4,
            name: '宇航员卡通',
            src: './3dSourceMaterial/Astronaut.glb',
        },
        {
            id: 5,
            name: '办公椅',
            src: './3dSourceMaterial/Chair.glb',
        },
        {
            id: 6,
            name: '搅拌机',
            src: './3dSourceMaterial/Mixer.glb',
        },
        {
            id: 7,
            name: '仙人掌',
            src: './3dSourceMaterial/GeoPlanter.glb',
        },
        {
            id: 8,
            name: '火车',
            src:  './3dSourceMaterial/ToyTrain.glb',
        },
        {
            id: 9,
            name: '音响',
            src:  './3dSourceMaterial/BoomBox.glb',
        },
        {
            id: 10,
            name: '碰撞世界',
            src:  './3dSourceMaterial/collision-world.glb',
        },
        {
            id: 11,
            name: '小鸟',
            src:  './3dSourceMaterial/Flamingo.glb',
        },
        {
            id: 12,
            name: '马',
            src:  './3dSourceMaterial/Horse.glb',
        },
        {
            id: 13,
            name: '食物',
            src:  './3dSourceMaterial/IridescentDishWithOlives.glb',
        },
        {
            id: 14,
            name: '小型世界',
            src:  './3dSourceMaterial/LittlestTokyo.glb',
        },
        {
            id: 15,
            name: '鹦鹉',
            src:  './3dSourceMaterial/Parrot.glb',
        },
        {
            id: 16,
            name: '炫酷形状',
            src:  './3dSourceMaterial/PrimaryIonDrive.glb',
        },
        {
            id: 17,
            name: 'hi圆形',
            src:  './3dSourceMaterial/ShadowmappableMesh.glb',
        },
        {
            id: 18,
            name: '红色椅子',
            src:  './3dSourceMaterial/SheenChair.glb',
        },
        {
            id: 19,
            name: '武装人员',
            src:  './3dSourceMaterial/Soldier.glb',
        },
        {
            id: 20,
            name: '白色小鸟',
            src:  './3dSourceMaterial/Stork.glb',
        },
        {
            id: 21,
            name: '展示物品',
            src:  './3dSourceMaterial/ClearcoatTest/ClearcoatTest.glb',
        },
        {
            id: 22,
            name: '高脚池',
            src:  './3dSourceMaterial/Flower/Flower.glb',
        },
        {
            id: 23,
            name: '人体塑型',
            src:  './3dSourceMaterial/LeePerrySmith/LeePerrySmith.glb',
        },
        {
            id: 24,
            name: '运动鞋',
            src:  './3dSourceMaterial/MaterialsVariantsShoe/glTF/MaterialsVariantsShoe.gltf',
        },
        {
            id: 25,
            name: '古代石像',
            src:  './3dSourceMaterial/Nefertiti/Nefertiti.glb',
        },
        {
            id: 26,
            name: '机器人',
            src:  './3dSourceMaterial/RobotExpressive/RobotExpressive.glb',
        },
    ];
    //反转数组
    // model_list = model_list.reverse();
      //封装渲染
      class Render {
        //定义公共字段
        //列表数据
        models = [];
        //开关状态
        flag = false;
        //获取视图控件
        toggleModel = document.getElementById('view');
        //列表按钮
        btn = document.getElementById('btn');
        //关闭按钮
        closeBj = document.getElementById('closeBj');

        //获取元素并渲染第一个(方法)
        domRender(){
            var that = this;
            this.btnClick(0);
            this.models.forEach((v,index)=>{
            var btnElement = document.createElement('div');
            btnElement.className = 'btn_list';
            btnElement.innerHTML = v.name;
            btnElement.setAttribute('id',v.id);
            //绑定点击事件
            btnElement.addEventListener('click',function(){
            //按钮排他思想
             that.models.forEach((v,index)=>{
                btn.children[index].classList.remove('active')
                if(v.id == this.getAttribute('id')){
                    btn.children[index].classList.add('active')
                    that.btnClick(index);
                    that.closeBj.innerHTML = '关闭背景'
                }
             })
            })
            btn.appendChild(btnElement);
            })
            //给第一个按钮新增一个按钮
            btn.children[0].classList.add('active');
            //关闭或开启背景图
            this.closeBj.addEventListener('click',function(){
                that.flag = !that.flag;
                if(that.flag){
                    that.toggleModel.setAttribute('skybox-image', '');
                    that.closeBj.innerHTML = '开启背景'
                }else{
                    that.closeBj.innerHTML = '关闭背景'
                    that.toggleModel.setAttribute('skybox-image', 'https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fnews.lzu.edu.cn%2FFHup%2Fimages%2F201912%2F12-03_160220-56.png&refer=http%3A%2F%2Fnews.lzu.edu.cn&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=jpeg?sec=1643256256&t=0e1768fa56c1d8e942f1ab9bc36df0b8')
                }
            })
        }

        //viewChange切换改变模型内容
        btnClick(index){
            this.toggleModel.setAttribute('src', `${this.models[index].src}`)
            this.toggleModel.setAttribute('skybox-image', `https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fnews.lzu.edu.cn%2FFHup%2Fimages%2F201912%2F12-03_160220-56.png&refer=http%3A%2F%2Fnews.lzu.edu.cn&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=jpeg?sec=1643256256&t=0e1768fa56c1d8e942f1ab9bc36df0b8`)
        }

        constructor(models) {
            this.models = models;
        }
      }
      var render = new Render(model_list);
      //渲染以及绑定事件
      render.domRender();
  </script>
</body>
</html>
<!-- https://modelviewer.dev/shared-assets/models/Astronaut.glb -->
<!-- 背景图 -->
<!-- https://modelviewer.dev/shared-assets/environments/spruit_sunrise_1k_HDR.hdr -->
