项目名称:迷宫之逃出生天
1、开发背景
迷宫这个游戏风靡已久,便想尝试设计一个迷宫,网络上设计的迷宫大多是通过已有模板生成的,不能按照自己的想法来进行创造设计,于是我们设想设计一个能通过自己设计TXT文档的迷宫程序,游玩者可自己设计地图,通过程序将地图绘制处理进行游戏,于是便有了这个游戏的来源。
主角、墙壁、道路、逃生标志、死亡标志、装饰符以及文字构成。自建一个txt文档储存数据,用数字1代替墙壁"▓",2代表角色"♀" ,3代表道路" “,4代表文字"破败圣迹之逃出生天”、5代表装饰符"卐"、6代表装饰符"卍"、7代表逃生标志"○"、*代表死亡标志"◎"来构成图形化界面。
2、.系统功能设计
2.1系统功能模块设计
分为游戏界面绘制,走迷宫的基本操作,游戏控制模块三个模块,其中游戏界面绘制包括了导入TXT文件,输出地图,走迷宫的操作包括移动,到达终点,游戏控制包括作者介绍,游戏帮助,进入游戏与退出游戏按键。

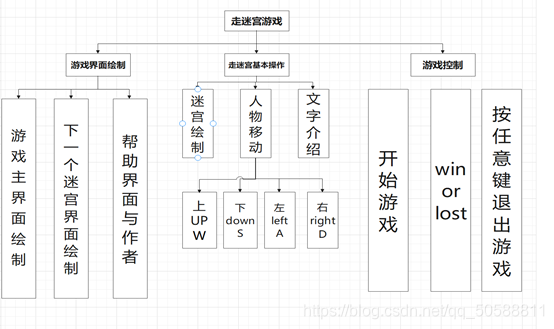

图1 系统功能模块图
2.2 系统业务流程设计
• 用户进入界面后,会出现四个选项,进入游戏,游戏帮助,开发小组,退出游戏,选择进入游戏,生成地图,用户控制小人移动,按esc键可退出游戏。

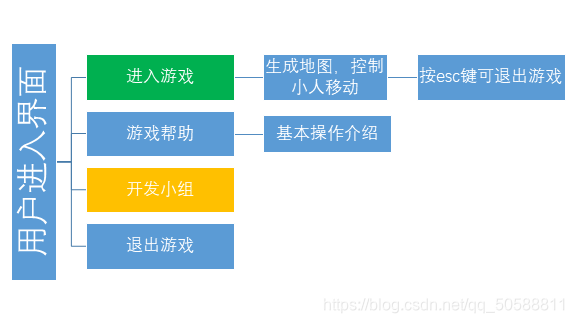

图2 业务流程图
3.项目创建
3.1系统开发环境要求
本项目的开发及运行环境要求:
操作系统:win10(2019)
开发工具:Visual Studio 2019
开发语言:c语言
3.2 项目创建过程

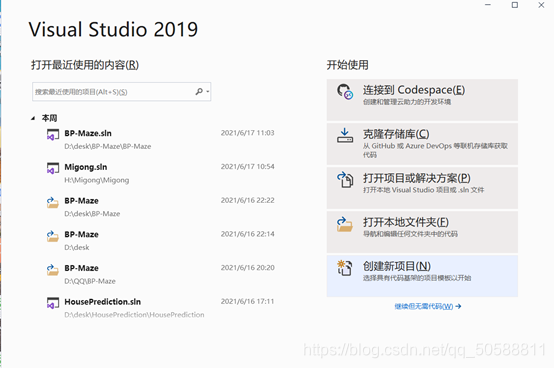

1、打开Visual Studio 2019,选择创建新项目

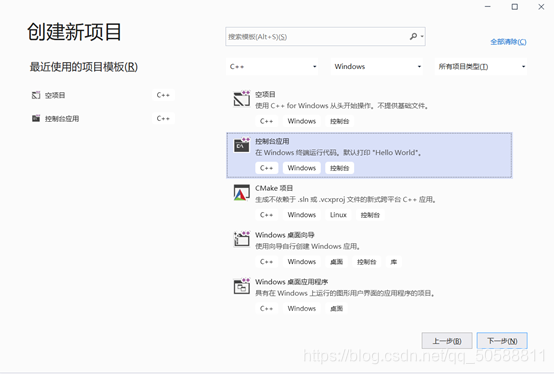

2、选择控制台应用,并命名,选择保存地址
3、创建项目成功
四、预处理模块设计
1、文件引用
order.h文件
#include "stdio.h" //标准输入输出库
#include "stdlib.h"//标准库函数头文件stdlib 头文件里包含了C、C++语言的最常用的系统函数该文件包含了C语言标准库函数的定义
#include "string.h"//字符数组的函数定义的头文件
#include "windows.h"//是一个最重要的头文件,它包含了其他Windows头文件,这些头文件的某些也包含了其他头文件
#include "time.h"//头文件定义了四个变量类型、两个宏和各种操作日期和时间的函数
#include "conio.h"//其中定义了通过控制台进行数据输入和数据输出的函数,主要是一些用户通过按键盘产生的对应操作,比如getch()函数
``
``
m.h文件
#include "stdio.h" //标准输入输出库
#include "stdlib.h"//标准库函数头文件stdlib 头文件里包含了C、C++语言的最常用的系统函数该文件包含了C语言标准库函数的定义
#include "string.h"//字符数组的函数定义的头文件
#include "windows.h"//是一个最重要的头文件,它包含了其他Windows头文件,这些头文件的某些也包含了其他头文件
#include "time.h"//头文件定义了四个变量类型、两个宏和各种操作日期和时间的函数
#include "conio.h"//其中定义了通过控制台进行数据输入和数据输出的函数,主要是一些用户通过按键盘产生的对应操作,比如getch()函数
源码
Main.cpp
#include"m.h"
int main()
{
srand((unsigned int)time(0));
while (flag)
{
system("cls");//清屏
flag = Menu();
switch (flag)
{
case GAME:
Move();
break;
case HELP:
Help();
break;
case WORKER:
Worker();
break;
}
}
return 0;
}
Order.cpp
#define _CRT_SECURE_NO_WARNINGS
#include"order.h"
void GotoXY(int x, int y)
{
HANDLE hout;
COORD cor;
hout = GetStdHandle(STD_OUTPUT_HANDLE);
cor.X = x;
cor.Y = y;
SetConsoleCursorPosition(hout, cor);
}
void Hide()
{
HANDLE hout = GetStdHandle(STD_OUTPUT_HANDLE);
CONSOLE_CURSOR_INFO cor_info = { 1, 0 };
SetConsoleCursorInfo(hout, &cor_info);
}
int Menu()
{
GotoXY(40, 12); //定位光标位置
printf("欢迎来到走迷宫小游戏");
GotoXY(43, 14);
printf("1.开始游戏");
GotoXY(43, 16);
printf("2.帮助");
GotoXY(43, 18);
printf("3.小组成员");
GotoXY(43, 20);
printf("4.按任意键退出");
Hide(); //隐藏光标
char ch;
int result = 0;
while (_kbhit());
ch = _getch(); //接收用户输入的菜单选项
switch (ch) //根据选项设置返回结果值
{
case '1':result = 1; break;
case '2':result = 2; break;
case '3':result = 3; break;
case '4':result = 4; break;
}
system("cls"); //调用系统命令cls完成清屏操作
return result;
}
void Help()
{
char ch;
GotoXY(40, 12);
printf("w 上");
GotoXY(40, 14);
printf("s 下");
GotoXY(40, 16);
printf("a 左");
GotoXY(40, 18);
printf("d 右");
GotoXY(40, 20);
printf("当人走完时游戏结束");
GotoXY(40, 22);
printf("按esc返回上级菜单");
Hide(); //隐藏光标
while (1)
{
while (!_kbhit());
ch = _getch();
if (ch == 27) break;
}
// system("cls");
}
void Worker()
{
char ch = 0;
system("cls");//清屏
GotoXY(40, 16);
printf("小组成员:姜习武,林成栋");
while (1)
{
while (!_kbhit());
ch = _getch();
if (ch == 27) break;
}
// system("cls");
}
void Move()
{
void shuru(char shuju[29][26], int* a, int* b);
void shuchu(char shuju[29][26], int* a, int* b);
int a, b;
char ch, c;
char shuju[29][26] = { "\0" };
shuru(shuju, &a, &b);
shuchu(shuju, &a, &b);
ch = _getch();
while (1)
{
switch (ch)
{
case 'w':
case 'W':
{
if (shuju[a - 1][b] == '&' || shuju[a - 1][b] == '*')
{
c = shuju[a - 1][b];
shuju[a - 1][b] = shuju[a][b];
shuju[a][b] = c;
shuchu(shuju, &a, &b);
}
break;
}
case 'a':
case 'A':
{
if (shuju[a][b - 1] == '&' ||shuju[a][b - 1] == '*')
{
c = shuju[a][b - 1];
shuju[a][b - 1] = shuju[a][b];
shuju[a][b] = c;
shuchu(shuju, &a, &b);
}
break;
}
case 's':
case 'S':
{
if ((shuju[a+1][b] == '&') ||(shuju[a+1][b] == '*')||(shuju[a ][b+1] == '*'))
{
c = shuju[a+1][b];
shuju[a+1][b] = shuju[a][b];
shuju[a][b] = c;
shuchu(shuju, &a, &b);
}
break;
}
case 'd':
case 'D':
{
if (shuju[a][b + 1] == '&' ||shuju[a][b + 1] == '*')
{
c = shuju[a][b + 1];
shuju[a][b + 1] = shuju[a][b];
shuju[a][b] = c;
shuchu(shuju, &a, &b);
}
break;
}
}
if (shuju[22][23] == '2')
{
printf("你已逃出生天!\n");
break;
}
if (shuju[3][13] == '2' || shuju[3][19] == '2' || shuju[9][5] == '2' || shuju[7][20] == '2' || shuju[12][19] == '2' || shuju[17][13] == '2' || shuju[23][19] == '2')
{
printf("你已死亡!\n");
break;
}
ch = _getch();
}
}
void shuru(char shuju[29][26], int* a, int* b)
{
int i = 0, j = 0;
FILE* fp;
char ch;
if ((fp = fopen("走迷宫.txt", "r")) == NULL)
{
printf("文件路径不正确!");
exit(1);
}
ch = fgetc(fp);
while (ch != EOF)
{
if (ch == '1')
{
shuju[i][j] = ch;
j++;
if (j == 26)
{
i++;
j = 0;
}
}
else if (ch == '2')
{
shuju[i][j] = ch;
(*a) = i;
(*b) = j;
j++;
if (j == 26)
{
i++;
j = 0;
}
}
else if (ch == '&')
{
shuju[i][j] = ch;
j++;
if (j == 26)
{
i++;
j = 0;
}
}
else
{
shuju[i][j] = ch;
j++;
if (j == 26)
{
i++;
j = 0;
}
}
ch = fgetc(fp);
}
fclose(fp);
}
void shuchu(char shuju[29][26], int* a, int* b)
{
int i, j;
system("cls");
for (i = 0; i < 29; i++)
for (j = 0; j < 26; j++)
{
if (shuju[i][j] == '1')
printf("●");
else if (shuju[i][j] == '2')
{
printf("♀");
(*a) = i;
(*b) = j;
}
else if (shuju[i][j] == '&')
{
printf(" ");
}
else if (shuju[i][j] == '4')
{
printf("快逃啊");
}
else if (shuju[i][j] == '5')
{
printf("卐");
}
else if (shuju[i][j] == '6')
{
printf("卍");
}
else if (shuju[i][j] == '7')
{
printf("○");
}
else if (shuju[i][j] == '*')
{
printf("◎");
}
else if (shuju[i][j] == '8')
{
printf("W:向上移动\tS:向下移动");
}
else if (shuju[i][j] == '9')
{
printf("A:向左移动\tD:向右移动");
}
else if (shuju[i][j] == 'k')
{
printf("向○处逃生!触碰◎则死亡!\0");
}
else
{
putchar(shuju[i][j]);
}
}
printf("\n");
}
Order.h
#pragma once
#ifndef _IMGUI_H
#define _IMGUI_H
#include "stdio.h"
#include "stdlib.h"
#include "string.h"
#include "windows.h"
#include "time.h"
#include "conio.h"
#define UP 'w'
#define DOWN 's'
#define LEFT 'a'
#define RIGHT 'd'
void GotoXY(int x, int y); //光标定位函数
/*隐藏光标*/
void Hide();
//开始菜单
int Menu();
//帮助界面
void Help();
//小组成员界面
void Worker();
void Move();
void shuru(char shuju[38][26], int* a, int* b);
void shuchu(char shuju[38][26], int* a, int* b);
#endif // !_IMGUI_H
m.h
#pragma once
#ifndef _M_H
#define _M_H
#define _CRT_SECURE_NO_WARNINGS
#include "stdio.h"
#include "stdlib.h"
#include "string.h"
#include "windows.h"
#include "time.h"
#include "conio.h"
#include "order.h"
#define GAME 1
#define HELP 2
#define WORKER 3
#define UP 'w'
#define DOWN 's'
#define LEFT 'a'
#define RIGHT 'd'
static int flag = 1;
static int end_flag = 1;
#endif // !
