c++opencv Chapter 6 - Color Detection

将图片转换成HSV，手动调节阈值进行颜色提取；

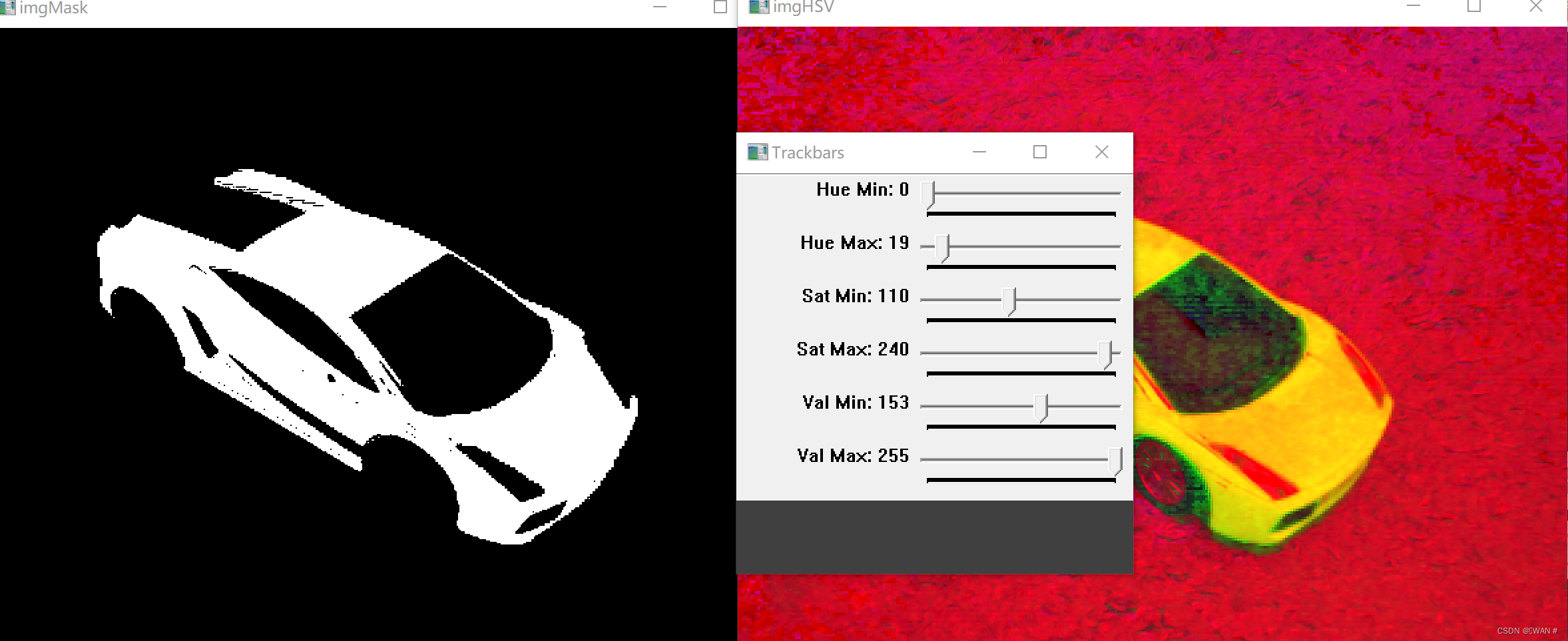

结果图：

显示代码：

#include <opencv2/imgcodecs.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/imgproc.hpp>
#include <iostream>

using namespace cv;
using namespace std;

    Color Detecction     /

void main() {
	string path = "Learn-OpenCV-cpp-in-4-Hours-main\\Resources\\lambo.png";
	Mat img = imread(path),imgHSV,mask;
	int hmin = 0, smin = 110, vmin = 153;
	int hmax = 19 ,smax = 240, vmax = 255;

	cvtColor(img, imgHSV,COLOR_BGR2HSV);

	namedWindow("Trackbars", (640, 220));
	createTrackbar("Hue Min", "Trackbars", &hmin, 179);
	createTrackbar("Hue Max", "Trackbars", &hmax, 255);
	createTrackbar("Sat Min", "Trackbars", &smin, 255);
	createTrackbar("Sat Max", "Trackbars", &smax, 255);
	createTrackbar("Val Min", "Trackbars", &vmin, 255);
	createTrackbar("Val Max", "Trackbars", &vmax, 255);
	while (true) {
		Scalar lower(hmin, smin, vmin);
		Scalar upper(hmax, smax, vmax);
		inRange(imgHSV, lower, upper, mask);

		imshow("Image", img);
		imshow("imgHSV", imgHSV);
		imshow("imgMask", mask);
		waitKey(1);
	}
	destroyAllWindows();
}
