Java读取tiff图像的踩坑总结：
1.环境：spring boot+maven
2.包：imageio ，jai，codec，metadata；
还有一个从github上面下载的。这几个包都不大好找，等后续补上下载路径。
import javax.imageio.__;
import javax.media.jai.JAI;
import com.sun.media.jai.codec.;
import com.github.jaiimageio.impl.plugins.tiff.*；
主要就是这几个了，下面是接触到的有关代码。
注意：从外部下载的包加载到本地maven仓库需要使用cmd打开输入
mvn install:install-file -DgroupId=com.sun.media -DartifactId=jai_codec -Dversion=1.1.3 -Dpackaging=jar -Dfile=E:\BaiduNetdiskDownload\jai_codec-1.1.3.jar
metadata
首先：metadata，是tiff图像的元数据，下面有两个方式。
1.调用TiffMetadataReader包，此方法比较简单，
引入的包：
import com.drew.imaging.tiff.TiffMetadataReader;
import com.drew.imaging.tiff.TiffProcessingException;
import com.drew.metadata.Directory;
import com.drew.metadata.Metadata;
import com.drew.metadata.Tag;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import java.util.Iterator;
//详细过程：
File file = new File("C:/Users/86156/Desktop/Show.tif");
BufferedImage bufferedImage = ImageIO.read(file);
String[] image = ImageIO.getWriterFileSuffixes();
System.out.println(image);
System.out.println(bufferedImage);
try{
Metadata metadata = TiffMetadataReader.readMetadata(file);
//输出元数据信息
System.out.println(metadata);
}catch (TiffProcessingException e){
System.out.println("发生进程异常");
System.out.println(e);
}catch (IOException e) {
System.out.println("发生读取异常");
}
try{
Metadata metadata = TiffMetadataReader.readMetadata(file);
Iterable<Directory> a = metadata.getDirectories();
for(Directory directory : a) {
Iterator<Tag> tag = directory.getTags().iterator();
while (tag.hasNext()) {
System.out.println(tag.next());
}
}
}catch(TiffProcessingException e){
System.out.println("发生异常！");
System.out.println(e);
}
System.out.println("执行完毕");
如果出现读取时是空值：

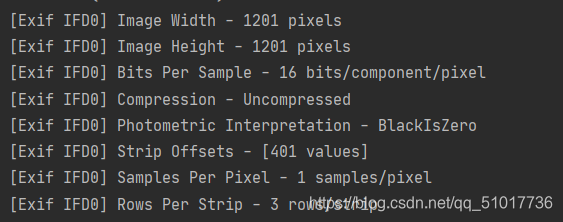

执行部分结果如下：
包含了tiff图像的长宽和位数即16，这也为后面的大坑做了铺垫。

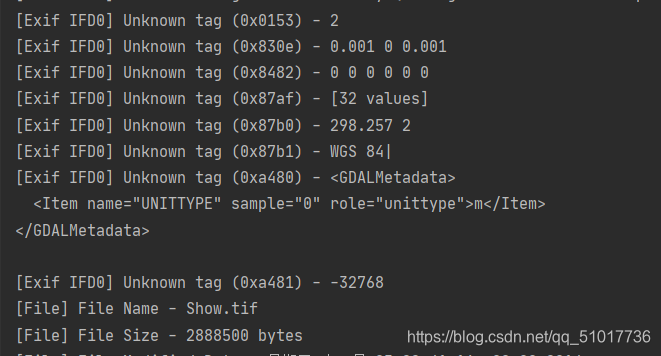

含有投影坐标：WGS84；
方法二：
参考链接：https://vimsky.com/examples/detail/java-class-com.drew.imaging.tiff.TiffMetadataReader.html
这个其实自己重写了内置的方法，可以进行修改。
打印效果和上面一样。
tiff图像向其他类型转换（转换后原本的元数据可能会丢失）
如果要转换其他格式只需要更改 filePath.replace(“tiff”, “jpg”);
ImageCodec.createImageEncoder(“JPEG”, ops, param); //指定输出格式
import com.sun.media.jai.codec.ImageCodec;
import com.sun.media.jai.codec.ImageEncoder;
import com.sun.media.jai.codec.JPEGEncodeParam;
import javax.media.jai.JAI;
import javax.media.jai.RenderedOp;
import java.io.*;
/**
* 将 tiff 转换 jpg 格式
* @param filePath
* @return
*/
public static String tiffTuanJPG(String filePath){
String format = filePath.substring(filePath.lastIndexOf(".")+1);
String turnJpgFile = filePath.replace("tiff", "jpg");
if(format.equals("tiff")){
File fileTiff = new File(turnJpgFile);
if(fileTiff.exists()){
System.out.println("该tiff文件已经转换为 JPG 文件："+turnJpgFile);
return turnJpgFile;
}
RenderedOp rd = JAI.create("fileload", filePath);//读取iff文件
OutputStream ops = null;
try {
ops = new FileOutputStream(turnJpgFile);
//文件存储输出流
JPEGEncodeParam param = new JPEGEncodeParam();
ImageEncoder image = ImageCodec.createImageEncoder("JPEG", ops, param); //指定输出格式
image.encode(rd);
//解析输出流进行输出
ops.close();
System.out.println("tiff转换jpg成功:"+filePath);
} catch (FileNotFoundException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
}
return turnJpgFile;
}
注意：传参时需要写入main内
String filePath = "E:/eeee/eee/aod.tiff";
String qq = tiffTuanJPG(filePath);
System.out.println(qq);
方法二resizebyaspect（ ， ， ）；
可以重新调整大小
private static BufferedImage resizebyaspect(BufferedImage img, int height, int width) {
int ori_width = img.getWidth();
int ori_height = img.getHeight();
float ratio_w = (float)width/ori_width;
float ratio_h = (float)height/ori_height;
int new_width = (ratio_w < ratio_h) ? width : (int)(ratio_h * ori_width);
int new_height = (ratio_h < ratio_w) ? height : (int)(ratio_w * ori_height);
System.out.println(new_width);
System.out.println(new_height);
Image tmp = img.getScaledInstance(new_width, new_height, Image.SCALE_SMOOTH);
BufferedImage bufferedImage = new BufferedImage(new_width, new_height, BufferedImage.TYPE_BYTE_GRAY);
Graphics2D g2d = bufferedImage.createGraphics();
g2d.drawImage(tmp, 0, 0, null);
g2d.dispose();
System.out.println("转换成功");
return bufferedImage;
}
调用：
File input = new File("E:/aod.tiff");
BufferedImage image = ImageIO.read(input);
BufferedImage resized = resizebyaspect(image,230,238);
File output = new File("E:/挑战杯/市数据/保定/aod.jpg");
ImageIO.write(resized, "jpg", output);

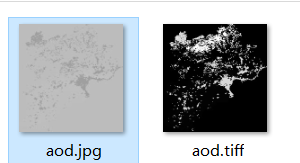

转换后对比
3.读取tiff图像的像素值：
这部分自始自终是最令我头痛的了，数组越界。
废话不多说直接上图：
但单个读取时，不会有报错。可能是颜色模型的原因。
因此我尝试着将一个普通的jpg转换成tiff格式后，再次调用该方法却没有报错。
转换格式链接：https://www.aconvert.com/cn/image/tiff-to-png/
代码太多了，放到最后了
获取单个像素点的rgb值
System.out.println(img.getRGB(155, 88));

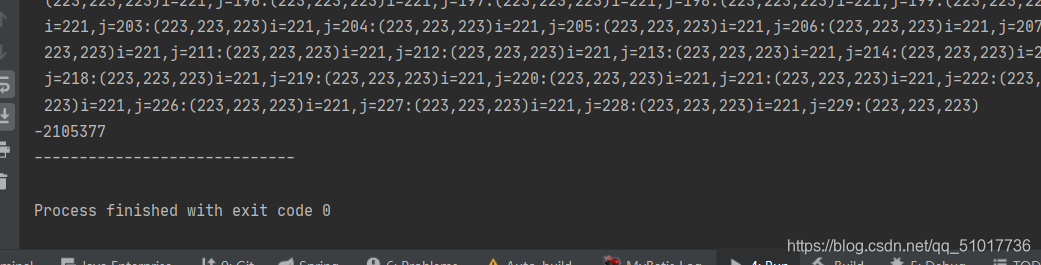

jpg转tiff后读取rgb值运行结果如下：
-2185377是单个像素点

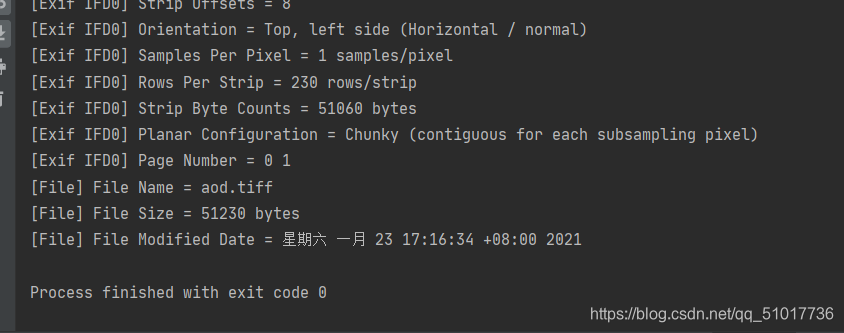

这个运行结果是jpg转换成tiff的读取结果。但转换过后元数据会有所丢失。

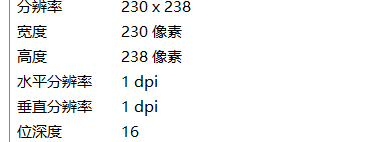

所以很是让人抓狂，16位的图。
虽然至此仍不知该怎么去解决，但是通过此次的自我摸索也获得了很多知识，希望此次能够为正处于这个阶段的同志能够少走一些弯路，另外由衷感谢以上各位提供的开源代码。感谢！
import javax.media.jai.JAI;
import javax.imageio.ImageIO;
import javax.imageio.ImageReader;
import javax.imageio.ImageWriter;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.stream.FileImageInputStream;
import javax.imageio.stream.FileImageOutputStream;
import javax.media.jai.operator.TransposeDescriptor;
import java.awt.image.renderable.ParameterBlock;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Hashtable;
import java.util.NoSuchElementException;
import java.util.Vector;
//使用java库对tiff文件进行操作
import java.awt.Color;
import java.awt.Graphics2D;
import java.awt.Image;
import java.awt.Point;
import java.awt.RenderingHints;
import java.awt.image.BufferedImage;
import java.awt.image.ColorModel;
import java.awt.image.DataBuffer;
import java.awt.image.IndexColorModel;
import java.awt.image.MultiPixelPackedSampleModel;
import java.awt.image.RenderedImage;
import java.awt.image.SampleModel;
import java.awt.image.WritableRaster;
import java.io.*;
import javax.media.jai.ColorCube;
import javax.media.jai.ImageLayout;
import javax.media.jai.Interpolation;
import javax.media.jai.KernelJAI;
import javax.media.jai.LookupTableJAI;
import com.sun.media.jai.codec.ImageCodec;
import com.sun.media.jai.codec.ImageEncoder;
import com.sun.media.jai.codec.PNGEncodeParam;
import com.sun.media.jai.codec.TIFFEncodeParam;
import com.sun.media.jai.codec.TIFFField;
import com.sun.media.jai.codecimpl.TIFFImageDecoder;
public class tiff {
public static void main(String[] args) throws IOException {
ImageReader reader = null;
FileImageInputStream fis = null;
//C:\Users\86156\Desktop\aod.tiff
//E:\保定/aod.tiff
File file = new File("C:\\Users\\86156\\Desktop\\aod.tiff");
Object[] src = readTiff(file);
if (src == null)
System.out.println("读取失败");
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
System.out.println(reader);
System.out.println(fis);
long[] dpiData = new long[]{1, 1};
BufferedImage img = loadTiff(file, dpiData);
System.out.println(img.getColorModel());
if (img == null)
System.out.println("空值");
//获取图片的长宽和最小值
int width = img.getWidth();
int height = img.getHeight();
int minx = img.getMinX();
int miny = img.getMinY();
int rgb[] = new int[width * height];
int a[][]=new int[img.getWidth()][img.getHeight()];
/*for (int i = minx; i < img.getWidth(); i++) {
for (int j = miny; j < img.getHeight(); j++) {
a[i][j] = img.getRGB(i, j);
}
}
for (int i = 0; i < img.getWidth(); i++) {
for (int j = 0; j < img.getHeight(); j++) {
System.out.print(a[i][j]);
}
System.out.println();
}*/
for (int i = minx; i < width; i++) {
for (int j = miny; j < height; j++) {
int pixel = img.getRGB(i, j); // 下面三行代码将一个数字转换为RGB数字
rgb[0] = (pixel & 0xff0000) >> 16;
rgb[1] = (pixel & 0xff00) >> 8;
rgb[2] = (pixel & 0xff);
System.out.print("i=" + i + ",j=" + j + ":(" + rgb[0] + "," + rgb[1] + "," + rgb[2] + ")");
}
System.out.println();
}
System.out.println(img.getRGB(155, 88));
System.out.println("-----------------------------");
//img.getRGB(0,0,width-1,height-1 , rgb,0,width);
File pfile = new File("E:/挑战杯/市数据/保定/aod_tiff.png");
//boolean b = makeDispPage(file,0,pfile);
//System.out.println(b);
}
//读取tiff文件到 ImageReader Object[0]：ImageReader ,Object[1]:FileImageInputStream
private static Object[] readTiff(File tifFile) {
ImageReader reader = null;
FileImageInputStream fis = null;
Object[] res = null;
try {
reader = ImageIO.getImageReadersByFormatName("tiff").next();
fis = new FileImageInputStream(tifFile);
reader.setInput(fis);
res = new Object[]{reader, fis};
} catch (NoSuchElementException e) {
e.printStackTrace();
} catch (Exception e) {
e.printStackTrace();
} finally {
}
return res;
}
//获取tiff dpi
public static long[] getTiffDPI(ImageReader reader, int index) {
long[] dpi = new long[2];
IIOMetadata meta = null;
try {
meta = reader.getImageMetadata(index);
org.w3c.dom.Node n = meta.getAsTree("javax_imageio_1.0");
n = n.getFirstChild();
while (n != null) {
if (n.getNodeName().equals("Dimension")) {
org.w3c.dom.Node n2 = n.getFirstChild();
while (n2 != null) {
if (n2.getNodeName().equals("HorizontalPixelSize")) {
org.w3c.dom.NamedNodeMap nnm = n2.getAttributes();
org.w3c.dom.Node n3 = nnm.item(0);
float hps = Float.parseFloat(n3.getNodeValue());
dpi[0] = Math.round(25.4f / hps);
}
if (n2.getNodeName().equals("VerticalPixelSize")) {
org.w3c.dom.NamedNodeMap nnm = n2.getAttributes();
org.w3c.dom.Node n3 = nnm.item(0);
float vps = Float.parseFloat(n3.getNodeValue());
dpi[1] = Math.round(25.4f / vps);
}
n2 = n2.getNextSibling();
}
}
n = n.getNextSibling();
}
} catch (IOException e) {
e.printStackTrace();
}
return dpi;
}
//读取tiff文件到 BufferedImage
private static BufferedImage loadTiff(File tifFile, long[] dpiData) {
ImageReader reader = null;
FileImageInputStream fis = null;
BufferedImage res = null;
try {
Object[] src = readTiff(tifFile);
if (src == null) {
return null;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
int numPages = reader.getNumImages(true);
if (numPages > 0) {
long[] dpiArr = getTiffDPI(reader, 0);
dpiData[0] = dpiArr[0];
dpiData[1] = dpiArr[1];
res = reader.read(0);
}
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
return res;
}
/**
* 从tiff文件生成原始像素大小tiff文件
*
* @param fTiff 源tiff文件
* @param decDir tiff目标路径,目标文件将会以0001.tif,0002.tif...置于此路径下
* @return true表示成功, false表示失败
*/
public static boolean makeSingleTif(File fTiff, File decDir) {
boolean bres = true;
ImageReader reader = null;
FileImageInputStream fis = null;
try {
reader = ImageIO.getImageReadersByFormatName("tiff").next();
fis = new FileImageInputStream(fTiff);
reader.setInput(fis);
int numPages = reader.getNumImages(true);
for (int i = 0; i < numPages; i++) {
long[] dpiData = getTiffDPI(reader, i);
BufferedImage bi = reader.read(i);
File tif = new File(decDir.getPath() + File.separator
+ String.format("%1$04d", i + 1) + ".tif");
bres = createTiff(tif, new RenderedImage[]{bi}, dpiData, false);
}
} catch (Exception e) {
e.printStackTrace();
bres = false;
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
return bres;
}
/**
* 合并多个Tiff文件成一个多页Tiff文件
*
* @param fTiff 目标tiff文件
* @param tifDir 源tiff文件路径,tiff文件必须以0001.tif,0002.tif...置于此路径下
* @return true表示成功, false表示失败
*/
static public boolean mergeTiff(File fTiff, File tifDir) {
boolean bres = true;
ImageReader reader = null;
FileImageInputStream fis = null;
Vector<BufferedImage> biV = new Vector<BufferedImage>();
File[] fs = tifDir.listFiles();
long[] dpi = null;
for (File f : fs) {
String fileName = f.getName();
if (!fileName.endsWith(".tif")) {
continue;
}
try {
reader = ImageIO.getImageReadersByFormatName("tiff").next();
fis = new FileImageInputStream(f);
reader.setInput(fis);
biV.add(reader.read(0));
if (dpi == null) {
dpi = getTiffDPI(reader, 0);
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
RenderedImage[] biArr = new RenderedImage[biV.size()];
for (int i = 0; i < biArr.length; i++) {
biArr[i] = biV.get(i);
}
bres = createTiff(fTiff, biArr, dpi, false);
return bres;
}
//获取tiff文件的页数
public static int getTiffPages(File tifFile) {
ImageReader reader = null;
FileImageInputStream fis = null;
int numpages = 0;
try {
Object[] src = readTiff(tifFile);
if (src == null) {
return 0;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
numpages = reader.getNumImages(true);
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
return numpages;
}
/**
* 生成tiff原始dpi的png
*
* @param fTiff 用于生成文件的tif文件
* @param decFile 目标png
* @param tifIdx tif文件页码索引，从0开始
*/
public static void makePrintPngFromTifByScal(File fTiff, File decFile, int tifIdx) {
long d = System.currentTimeMillis();
FileOutputStream os = null;
ImageReader reader = null;
FileImageInputStream fis = null;
try {
Object[] src = readTiff(fTiff);
if (src == null) {
return;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
int numPages = reader.getNumImages(true);
if (numPages > 0 && tifIdx < numPages) {
long[] dpiData = getTiffDPI(reader, tifIdx);
BufferedImage img = reader.read(tifIdx);
double meter2inchRatio = 1d / 0.0254d;
int dimX = (int) (dpiData[0] * meter2inchRatio) + 1;
int dimY = (int) (dpiData[0] * meter2inchRatio) + 1;
int iYScal = (Math.abs(dpiData[0] - dpiData[1]) <= 10) ? 1 : 2;
int width = img.getWidth();
int height = img.getHeight() * iYScal;
//200 * 210 /25.4 ---- 200 * 297 /25.4
double whScal = 230.0 / 238.0;
double realScal = (double) width / (double) height;
int drawPtX = 0; //图像起始x位置
int drawPtY = 0; //图像起始Y位置
int newW = 230;
int newH = 238;
if (realScal < whScal) { // 以高度为缩放基准
newW = (int) (238.0 * realScal);
drawPtX = (230 - newW) / 2;
} else {
newH = (int) (230 / realScal);
drawPtY = (238 - newH) / 2;
}
//System.out.println("width=" + width + ", height=" + height + ", newW=" + newW + ", newH=" + newH + ", dimX=" + dimX + ", dimY=" + dimY);
BufferedImage decImg = new BufferedImage(230, 238, BufferedImage.TYPE_3BYTE_BGR);
Graphics2D g2 = decImg.createGraphics();
g2.setColor(Color.white);
g2.fillRect(0, 0, 230, 238);
g2.drawImage(img.getScaledInstance(newW, newH, Image.SCALE_SMOOTH), drawPtX, drawPtY, null);
PNGEncodeParam paramEnc = PNGEncodeParam.getDefaultEncodeParam(decImg);
paramEnc.setPhysicalDimension(dimX, dimY, 1);
os = new FileOutputStream(decFile);
JAI.create("encode", decImg, os, "PNG", paramEnc);
os.flush();
os.close();
}
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
if (os != null) {
try {
os.flush();
os.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
System.out.println(("----make print Pngs time----" + (System.currentTimeMillis() - d) + "ms"));
}
/**
* 从tiff文件生成用于显示的一页png
*
* @param fTiff 源tiff文件
* @param pageIdx 页号,从0开始
* @param dDecPng 目标png文件
* @return true表示成功, false表示失败
*/
static public boolean makeDispPage(File fTiff, int pageIdx, File dDecPng) {
long d = System.currentTimeMillis();
ImageReader reader = null;
FileImageInputStream fis = null;
boolean bres = false;
try {
Object[] src = readTiff(fTiff);
if (src == null) {
return false;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
int numPages = reader.getNumImages(true);
if (numPages > 0) {
if (pageIdx >= 0 && (pageIdx < numPages)) {
long[] dpi = getTiffDPI(reader, pageIdx);
if (dpi != null && dpi.length == 2) {
if (dpi[0] <= 0)
dpi[0] = 1;
if (dpi[1] <= 0)
dpi[1] = 1;
double dXFac = 1 / dpi[0];
double dYFac = 1 / dpi[1];
BufferedImage img = reader.read(pageIdx);
RenderedImage decImg = ScaleImg(img, dXFac, dYFac);
ImageIO.write(decImg, "png", dDecPng);
bres = true;
}
}
}
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
System.out.println(("----make disp png by IO use time:" + (System.currentTimeMillis() - d) + "ms"));
return bres;
}
/**
* 从tiff生成缩略图
*
* @param fTiff
* @param decDir
* @return
*/
public static boolean makeThumbsFromTiff(File fTiff, File decDir) {
long d = System.currentTimeMillis();
int numPages = 0;
int thumbWidth = 188;
int thumbHeight = 254;
ImageReader reader = null;
FileImageInputStream fis = null;
boolean bres = true;
try {
Object[] src = readTiff(fTiff);
if (src == null) {
return false;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
numPages = reader.getNumImages(true);
if (numPages > 0) {
for (int i = 0; i < numPages; i++) {
long[] dpiData = getTiffDPI(reader, i);
BufferedImage img = reader.read(i);
int ht = img.getHeight();
int wid = img.getWidth();
float fsc = (float) dpiData[0] / (float) dpiData[1];
if (Math.abs(fsc - 1.0) > 0.2) {
if (fsc < 1) {
wid = (int) (wid / fsc);
} else {
ht = (int) (ht * fsc);
}
}
double realScal = (double) wid / (double) ht;
double whScal = (double) thumbWidth / (double) thumbHeight;
int newW = thumbWidth;
int newH = thumbHeight;
if (realScal < whScal) { // 以高度为缩放基准
newW = (int) (thumbHeight * realScal);
} else {
newH = (int) (thumbWidth / realScal);
}
int x = (thumbWidth - newW) / 2;
int y = (thumbHeight - newH) / 2;
System.out.println(newW + "," + newH + "," + x + "," + y);
BufferedImage decImg = new BufferedImage(thumbWidth,
thumbHeight, BufferedImage.TYPE_3BYTE_BGR);
Graphics2D g2 = (Graphics2D) decImg.createGraphics();
g2.setColor(new Color(160, 160, 160));
g2.fillRect(0, 0, thumbWidth, thumbHeight);
g2.drawImage(img.getScaledInstance(newW, newH, Image.SCALE_SMOOTH),
x, y, null);
File decPng = new File(decDir.getPath() + File.separator
+ String.format("%1$04d", i + 1) + ".png");
ImageIO.write(decImg, "png", decPng);
}
}
}
} catch (Exception e) {
e.printStackTrace();
bres = false;
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
System.out.println(("----make Thumbs time----" + (System.currentTimeMillis() - d) + "ms") + "-----make pages---" + numPages);
return bres;
}
/**
* 旋转Tiff文件
*
* @param fTiff 要旋转的tiff文件
* @param angle 旋转角度: 90,180,270
* @return true表示成功, false表示失败
*/
static public boolean RotateTiff(File fTiff, double angle) {
FileOutputStream out = null;
File fTiffTmp = new File(fTiff.getPath() + ".tmpABCD.tmp");
// File fTiffTmp = new File("c:\\io.tif");
long d = System.currentTimeMillis();
ImageReader reader = null;
FileImageInputStream fis = null;
boolean bres = false;
try {
Object[] src = readTiff(fTiff);
if (src == null) {
return false;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
int numPages = reader.getNumImages(true);
if (numPages > 0) {
long[] dpiData = getTiffDPI(reader, 0);
BufferedImage bi = reader.read(0);
RenderedImage dec1 = RotateImg(bi, angle);
bres = createTiff(fTiffTmp, new RenderedImage[]{dec1}, dpiData, false);
}
}
} catch (IOException e) {
e.printStackTrace();
}
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
if (bres && fTiffTmp.exists()) {
fTiff.delete();
fTiffTmp.renameTo(fTiff);
}
System.out.println(("----rotate tiff by IO use time:" + (System.currentTimeMillis() - d) + "ms"));
return bres;
}
/**
* 在Tiff图像上进行盖章操作
*
* @param fTiff 单页tiff文件
* @param stamp 图章tiff文件
* @param pt 盖章位置
* @return true表示成功, false表示失败
*/
static public boolean DrawStamp(File fTiff, File stamp, Point pt) {
ImageReader reader = null;
FileImageInputStream fis = null;
boolean bRes = false;
try {
Object[] src = readTiff(fTiff);
if (src == null) {
return false;
}
reader = (ImageReader) src[0];
fis = (FileImageInputStream) src[1];
if (reader != null) {
int numPages = reader.getNumImages(true);
if (numPages > 0) {
long[] dpiDataSrc = getTiffDPI(reader, 0);
BufferedImage imageDec = reader.read(0);
long[] dpiData = new long[]{200, 200};
BufferedImage img = loadTiff(stamp, dpiData);
if (img == null)
return false;
if (java.lang.Math.abs(dpiData[0] - dpiDataSrc[0]) > 10 ||
java.lang.Math.abs(dpiData[1] - dpiDataSrc[1]) > 10) {
double factorX = (double) dpiDataSrc[0] / (double) dpiData[0];
double factorY = (double) dpiDataSrc[1] / (double) dpiData[1];
img = convertRenderedImage(ScaleImg(img, factorX, factorY));
}
imageDec = DoStamp(imageDec, img, pt);
bRes = createTiff(fTiff, new RenderedImage[]{imageDec}, dpiDataSrc, false);
}
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
reader.dispose();
}
if (fis != null) {
try {
fis.flush();
fis.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
return bRes;
}
private static BufferedImage convertRenderedImage(RenderedImage img) {
if (img instanceof BufferedImage) {
return (BufferedImage) img;
}
ColorModel cm = img.getColorModel();
int width = img.getWidth();
int height = img.getHeight();
WritableRaster raster = cm.createCompatibleWritableRaster(width, height);
boolean isAlphaPremultiplied = cm.isAlphaPremultiplied();
Hashtable<String, Object> properties = new Hashtable<String, Object>();
String[] keys = img.getPropertyNames();
if (keys != null) {
for (int i = 0; i < keys.length; i++) {
try {
properties.put(keys[i], img.getProperty(keys[i]));
} catch (Exception e) {
e.printStackTrace();
}
}
}
BufferedImage result = new BufferedImage(cm, raster, isAlphaPremultiplied, properties);
img.copyData(raster);
return result;
}
private static RenderedImage RGBToBilevel(RenderedImage srcImg,
boolean isErrorDiffusion) {
// Load the ParameterBlock for the dithering operation
// and set the operation name.
RenderedImage res = null;
ParameterBlock pb = new ParameterBlock();
pb.addSource(srcImg);
String opName = null;
if (isErrorDiffusion) {
opName = "errordiffusion";
LookupTableJAI lut = new LookupTableJAI(new byte[][]{
{(byte) 0x00, (byte) 0xff}, {(byte) 0x00, (byte) 0xff},
{(byte) 0x00, (byte) 0xff}});
pb.add(lut);
pb.add(KernelJAI.ERROR_FILTER_FLOYD_STEINBERG);
} else {
opName = "ordereddither";
ColorCube cube = ColorCube.createColorCube(DataBuffer.TYPE_BYTE, 0,
new int[]{2, 2, 2});
pb.add(cube);
pb.add(KernelJAI.DITHER_MASK_443);
}
// Create a layout containing an IndexColorModel which maps
// zero to zero and unity to 255; force SampleModel to be bilevel.
ImageLayout layout = new ImageLayout();
byte[] map = new byte[]{(byte) 0x00, (byte) 0xff};
ColorModel cm = new IndexColorModel(1, 2, map, map, map);
layout.setColorModel(cm);
SampleModel sm = new MultiPixelPackedSampleModel(DataBuffer.TYPE_BYTE,
srcImg.getWidth(), srcImg.getHeight(), 1);
layout.setSampleModel(sm);
// Create a hint containing the layout.
RenderingHints hints = new RenderingHints(JAI.KEY_IMAGE_LAYOUT, layout);
// Dither the image.
res = JAI.create(opName, pb, hints);
return res;
}
private static RenderedImage RotateImg(RenderedImage img, double angle) {
ParameterBlock params = new ParameterBlock();
params.addSource(img);
if (angle == 90.0) {
params.add(TransposeDescriptor.ROTATE_90);
return JAI.create("Transpose", params, null);
} else if (angle == 180.0) {
params.add(TransposeDescriptor.ROTATE_180);
return JAI.create("Transpose", params, null);
} else if (angle == 270.0) {
params.add(TransposeDescriptor.ROTATE_270);
return JAI.create("Transpose", params, null);
}
Interpolation interp = Interpolation
.getInstance(Interpolation.INTERP_BILINEAR);
params.add(0.0F);
params.add(0.0F);
params.add((float) java.lang.Math.toRadians(angle));
params.add(interp);
return JAI.create("rotate", params, null);
}
private static RenderedImage ScaleImg(RenderedImage img, double factorX, double factorY) {
BufferedImage imgB = convertRenderedImage(img);
int iType = imgB.getType();
if (iType == BufferedImage.TYPE_BYTE_BINARY || iType == BufferedImage.TYPE_CUSTOM
|| iType == BufferedImage.TYPE_BYTE_INDEXED)
iType = BufferedImage.TYPE_3BYTE_BGR;
double newWidth = img.getWidth() * factorX;
double newHeight = img.getHeight() * factorX;
System.out.println( img.getWidth());
System.out.println( img.getHeight());
BufferedImage bufferedImage = new BufferedImage((int) newWidth, (int) newHeight, iType);
bufferedImage.getGraphics().drawImage(imgB.getScaledInstance((int) newWidth, (int) newHeight, Image.SCALE_SMOOTH), 0, 0, null);
return bufferedImage;
}
private static RenderedImage DoAndImg(RenderedImage img1, RenderedImage img2) {
ParameterBlock params = new ParameterBlock();
params.addSource(img1);
params.addSource(img2);
return JAI.create("And", params, null);
}
private static RenderedImage DoOrImg(RenderedImage img1, RenderedImage img2) {
ParameterBlock params = new ParameterBlock();
params.addSource(img1);
params.addSource(img2);
return JAI.create("Or", params, null);
}
private static BufferedImage DoStamp(BufferedImage image1,
BufferedImage image2, Point pt) throws Exception {
int imgTp1 = image1.getType();
int imgTp2 = image2.getType();
System.out.println("imgTp1=" + imgTp1 + ", imgTp2=" + imgTp2 +
", BufferedImage.TYPE_BYTE_BINARY=" + BufferedImage.TYPE_BYTE_BINARY);
if (BufferedImage.TYPE_BYTE_BINARY == imgTp1
&& imgTp2 != BufferedImage.TYPE_BYTE_BINARY) {
BufferedImage tmpImg = new BufferedImage(image1.getWidth(),
image1.getHeight(), BufferedImage.TYPE_3BYTE_BGR);
tmpImg.createGraphics().drawImage(image1, 0, 0, null);
image1 = tmpImg;
}
if (BufferedImage.TYPE_BYTE_BINARY == imgTp2
&& imgTp1 != BufferedImage.TYPE_BYTE_BINARY) {
BufferedImage tmpImg = new BufferedImage(image2.getWidth(),
image2.getHeight(), BufferedImage.TYPE_3BYTE_BGR);
tmpImg.createGraphics().drawImage(image2, 0, 0, null);
image2 = tmpImg;
}
// BufferedImage TmpImg2 = new BufferedImage(image2.getWidth(),
// image2.getHeight(), BufferedImage.TYPE_3BYTE_BGR);
// TmpImg2.createGraphics().drawImage(image1, 0, 0, image2.getWidth(),
// image2.getHeight(), pt.x, pt.y, pt.x + image2.getWidth(),
// pt.y + image2.getHeight(), null);
// RenderedImage res = DoAndImg(TmpImg2, image2);
Graphics2D g2 = image1.createGraphics();
g2.drawImage(image2, pt.x, pt.y, null);
return image1;
}
private static boolean createTiff(File fTiff, RenderedImage[] images, long[] dpiData, boolean bFax) {
// //
if (dpiData == null || dpiData.length != 2 || fTiff == null || images == null || images.length == 0)
return false;
RenderedImage img1 = null;
FileOutputStream out = null;
boolean bres = false;
try {
int iCompress = TIFFEncodeParam.COMPRESSION_GROUP4;
for (int i = 0; i < images.length; ++i) {
if (images[i].getColorModel().getPixelSize() > 1) {
if (bFax) {
images[i] = RGBToBilevel(images[i], true);
} else {
iCompress = TIFFEncodeParam.COMPRESSION_PACKBITS;
break;
}
}
}
img1 = images[0];
out = new FileOutputStream(fTiff);
TIFFEncodeParam paramEnc = new TIFFEncodeParam();
paramEnc.setCompression(iCompress);
ImageEncoder encoder = ImageCodec.createImageEncoder("tiff", out, paramEnc);
Vector<RenderedImage> lastImgs = new Vector<RenderedImage>();
if (images.length > 1) {
for (int i = 1; i < images.length; ++i)
lastImgs.add(images[i]);
paramEnc.setExtraImages(lastImgs.iterator());
}
if (dpiData[0] > 0 || dpiData[1] > 0) {
int fieldCount = 1;
if (dpiData[0] > 0 && dpiData[1] > 0) {
fieldCount = 2;
}
fieldCount += 1;
TIFFField[] tiffFields = new TIFFField[fieldCount];
int index = 0;
if (dpiData[0] > 0) {
long xdpiArray[][] = new long[1][2];
xdpiArray[0] = new long[]{dpiData[0], 1};
TIFFField xRes = new TIFFField(
TIFFImageDecoder.TIFF_X_RESOLUTION,
TIFFField.TIFF_RATIONAL, 1, xdpiArray);
tiffFields[index++] = xRes;
}
if (dpiData[1] > 0) {
long ydpiArray[][] = new long[1][2];
ydpiArray[0] = new long[]{dpiData[1], 1};
TIFFField yRes = new TIFFField(
TIFFImageDecoder.TIFF_Y_RESOLUTION,
TIFFField.TIFF_RATIONAL, 1, ydpiArray);
tiffFields[index++] = yRes;
}
TIFFField fSoft = new TIFFField(0x0131, TIFFField.TIFF_ASCII,
1, new String[]{"bena create"});
tiffFields[index++] = fSoft;
paramEnc.setExtraFields(tiffFields);
}
encoder.encode(img1);
bres = true;
} catch (FileNotFoundException e1) {
e1.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
} finally {
if (out != null) {
try {
out.flush();
out.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
return bres;
}
}
下面是pom.xml中的依赖
<!-- https://mvnrepository.com/artifact/commons-codec/commons-codec -->
<dependency>
<groupId>commons-codec</groupId>
<artifactId>commons-codec</artifactId>
<version>1.15</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.maven/maven-repository-metadata -->
<dependency>
<groupId>org.apache.maven</groupId>
<artifactId>maven-repository-metadata</artifactId>
<version>3.6.3</version>
</dependency>
<!--从github上面找到有关于tiff文件操作的依赖包-->
<dependency>
<groupId>com.github.jai-imageio</groupId>
<artifactId>jai-imageio-core</artifactId>
<version>1.3.1</version>
</dependency>
<!-- https://mvnrepository.com/artifact/javax.media/jai-core-->
<dependency>
<groupId>javax.media</groupId>
<artifactId>jai-core</artifactId>
<version>1.1.3</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.sun.media/jai-codec -->
<dependency>
<groupId>com.sun.media</groupId>
<artifactId>jai-codec</artifactId>
<version>1.1.3</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.adobe.xmp/xmpcore -->
<dependency>
<groupId>com.adobe.xmp</groupId>
<artifactId>xmpcore</artifactId>
<version>5.1.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.drewnoakes/metadata-extractor -->
<dependency>
<groupId>com.drewnoakes</groupId>
<artifactId>metadata-extractor</artifactId>
<version>2.14.0</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.glassfish.jersey.media/jersey-media-json-jackson -->
<dependency>
<groupId>org.glassfish.jersey.media</groupId>
<artifactId>jersey-media-json-jackson</artifactId>
<version>3.0.0</version>
</dependency>
<!--读取tiff的依赖包-->
<dependency>
<groupId>com.twelvemonkeys.imageio</groupId>
<artifactId>imageio-tiff</artifactId>
<version>3.3.2</version>
</dependency>
扫一扫
3886
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
