从BUCK电路理解DC-AC

本文介绍了如何通过BUCK电路实现DC-DC转换,特别是当负载变化时,开关管的占空比调整以保持输出电压稳定。讲解了占空比与输出电压的关系,以及如何通过改变占空比模拟正弦波输出,将直流变为交流。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

上一次我们以LC滤波的角度解释如何变成正弦波(方波可以看成由基波和高次谐波叠加而成,再用LC电路把高频成分滤除,保留50HZ)。

这次我们以BUCK电路的角度理解DC——AC

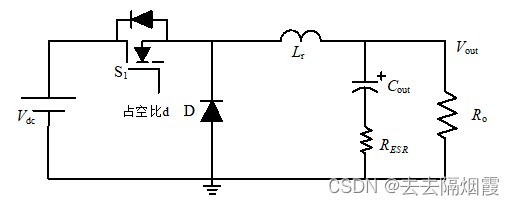

BUCK电路图如下图所示

BUCK电路实现DC-DC(例如400V电压通过BUCK电路可以降压为310V)

在负载稳定情况下,开关管的PWM波的占空比 只需要稳定在一个数值就好,但是如果负载不稳定,突然加重,一开始是电容放电给负载,但开关管也会调节占空比来稳定输出电压。

这是直流转直流变化幅值大小

如果负载不变的情况下,不同的输出电压对应不同的占空比,比如

80%——310V

78%——300V

50%——200V

0%——0V

如果输出电压按照正弦规率变化,也可以实现DC-AC。
