用PyTorch实现MNIST手写数字识别(运行结果+代码 非常详细！！！)

用PyTorch实现MNIST手写数字识别(运行结果+代码）

mnist_train.py

import torch

from torch.nn import functional as F
from torch import optim
import torch.nn as nn
import torchvision
from matplotlib import pyplot as plt

from utils import plot_image, plot_curve, one_hot

batch_size = 512

# step1. load dataset
train_loader = torch.utils.data.DataLoader(
    torchvision.datasets.MNIST('mnist_data', train=True, download=True,
                               transform=torchvision.transforms.Compose([
                                   torchvision.transforms.ToTensor(),
                                   torchvision.transforms.Normalize(
                                       (0.1307,), (0.3081,))
                               ])),
    batch_size=batch_size, shuffle=True)

test_loader = torch.utils.data.DataLoader(
    torchvision.datasets.MNIST('mnist_data/', train=False, download=True,
                               transform=torchvision.transforms.Compose([
                                   torchvision.transforms.ToTensor(),
                                   torchvision.transforms.Normalize(
                                       (0.1307,), (0.3081,))
                               ])),
    batch_size=batch_size, shuffle=False)

x, y = next(iter(train_loader))
print(x.shape, y.shape, x.min(), x.max())
plot_image(x, y, 'image sample')


class Net(nn.Module):

    def __init__(self):
        super(Net, self).__init__()

        # xw+b
        self.fc1 = nn.Linear(28 * 28, 256)
        self.fc2 = nn.Linear(256, 64)
        self.fc3 = nn.Linear(64, 10)

    def forward(self, x):
        # x: [b, 1, 28, 28]
        # h1 = relu(xw1+b1)
        x = F.relu(self.fc1(x))
        # h2 = relu(h1w2+b2)
        x = F.relu(self.fc2(x))
        # h3 = h2w3+b3
        x = self.fc3(x)

        return x


net = Net()
# [w1, b1, w2, b2, w3,  b3]
optimizer = optim.SGD(net.parameters(), lr=0.01, momentum=0.9)

train_loss = []

for epoch in range(0):
    # for epoch in range(3):

    for batch_idx, (x, y) in enumerate(train_loader):

        # x: [b, 1, 28, 28], y: [512]，batch size
        # [b, 1, 28, 28] => [b, 784]
        x = x.view(x.size(0), 28 * 28)
        # => [b, 10]
        out = net(x)
        # [b, 10]
        y_onehot = one_hot(y)
        # loss = mse(out, y_onehot)
        loss = F.mse_loss(out, y_onehot)

        # 清零梯度
        optimizer.zero_grad()
        # 计算梯度
        loss.backward()
        # 更新梯度
        # w' = w - lr*grad
        optimizer.step()

        train_loss.append(loss.item())

        if batch_idx % 10 == 0:
            print(epoch, batch_idx, loss.item())

plot_curve(train_loss)
# we get optimal [w1, b1, w2, b2, w3, b3]


total_correct = 0
for x, y in test_loader:
    x = x.view(x.size(0), 28 * 28)
    out = net(x)
    # out: [b, 10] => pred: [b]
    pred = out.argmax(dim=1)
    correct = pred.eq(y).sum().float().item()
    total_correct += correct

total_num = len(test_loader.dataset)
acc = total_correct / total_num
print('test acc:', acc)

x, y = next(iter(test_loader))
out = net(x.view(x.size(0), 28 * 28))
pred = out.argmax(dim=1)
plot_image(x, pred, 'test')

print("train_loader=", train_loader)

test1.py

import  torch
from    torch.nn import functional as F
from    torch import optim
import torch.nn as nn
import  torchvision
from    matplotlib import pyplot as plt
from    utils import plot_image, plot_curve, one_hot

batch_size = 512

# step1. load dataset，加载train和test两个数据集
train_loader = torch.utils.data.DataLoader(
    torchvision.datasets.MNIST('mnist_data', train=True, download=True,
                               transform=torchvision.transforms.Compose([
                                   torchvision.transforms.ToTensor(),
                                   torchvision.transforms.Normalize(
                                       (0.1307,), (0.3081,))
                               ])),
    batch_size=batch_size, shuffle=True)

test_loader = torch.utils.data.DataLoader(
    torchvision.datasets.MNIST('mnist_data/', train=False, download=True,
                               transform=torchvision.transforms.Compose([
                                   torchvision.transforms.ToTensor(),
                                   torchvision.transforms.Normalize(
                                       (0.1307,), (0.3081,))
                               ])),
    batch_size=batch_size, shuffle=False)

# # 查看train长相
# x, y = next(iter(train_loader))
# print(x.shape, y.shape, x.min(), x.max())
# # x是四维向量，batch*{28*28}
# print("x=",x)
# # y是标签
# print("y=",y)
# # plot_image(x, y, 'image sample')
# print(type(train_loader))

class Net(nn.Module):

    def __init__(self):
        super(Net, self).__init__()

        # xw+b
        self.fc1 = nn.Linear(28*28, 256)
        self.fc2 = nn.Linear(256, 64)
        self.fc3 = nn.Linear(64, 10)

    def forward(self, x):
        # x: [b, 1, 28, 28]
        # h1 = relu(xw1+b1)
        x = F.relu(self.fc1(x))
        # h2 = relu(h1w2+b2)
        x = F.relu(self.fc2(x))
        # h3 = h2w3+b3
        x = self.fc3(x)

        return x

# 定义新的网络，定义优化器，定义相应的train_loss方便作图
net = Net()
# [w1, b1, w2, b2, w3,  b3]
optimizer = optim.SGD(net.parameters(), lr=0.01, momentum=0.9)
train_loss = []

# 开始训练
for epoch in range(1):
    for batch_idx, (x, y) in enumerate(train_loader):
        x = x.view(x.size(0), 28 * 28)
        # => [b, 10]
        out = net(x)
        # [b, 10]
        y_onehot = one_hot(y)
        # loss = mse(out, y_onehot)
        loss = F.mse_loss(out, y_onehot)

        # 清零梯度
        optimizer.zero_grad()
        # 计算梯度
        loss.backward()
        # 更新梯度
        # w' = w - lr*grad
        optimizer.step()

        # 把train_loss给记录下来，loss是tensor数据类型，train_loss是numpy数据类型
        train_loss.append(loss.item())

        # if batch_idx % 10 == 0:
        #     print(epoch, batch_idx, loss.item())



# plot_curve(train_loss)
# print(type(train_loader))
print("**************************************************************************************************************************")
for x,y in train_loader:
    print(x,y)```
# utils.py

```python
import  torch
from    matplotlib import pyplot as plt


def plot_curve(data):
    fig = plt.figure()
    plt.plot(range(len(data)), data, color='blue')
    plt.legend(['value'], loc='upper right')
    plt.xlabel('step')
    plt.ylabel('value')
    plt.show()



def plot_image(img, label, name):

    fig = plt.figure()
    for i in range(6):
        plt.subplot(2, 3, i + 1)
        plt.tight_layout()
        plt.imshow(img[i][0]*0.3081+0.1307, cmap='gray', interpolation='none')
        plt.title("{}: {}".format(name, label[i].item()))
        plt.xticks([])
        plt.yticks([])
    plt.show()


def one_hot(label, depth=10):
    out = torch.zeros(label.size(0), depth)
    idx = torch.LongTensor(label).view(-1, 1)
    out.scatter_(dim=1, index=idx, value=1)
    return out

main.py

# This is a sample Python script.

# Press Shift+F10 to execute it or replace it with your code.
# Press Double Shift to search everywhere for classes, files, tool windows, actions, and settings.


def print_hi(name):
    # Use a breakpoint in the code line below to debug your script.
    print(f'Hi, {name}')  # Press Ctrl+F8 to toggle the breakpoint.


# Press the green button in the gutter to run the script.
if __name__ == '__main__':
    print_hi('PyCharm')

# See PyCharm help at https://www.jetbrains.com/help/pycharm/

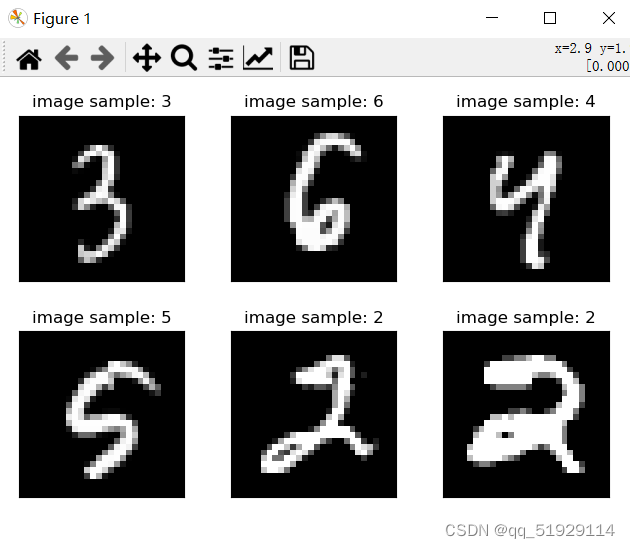

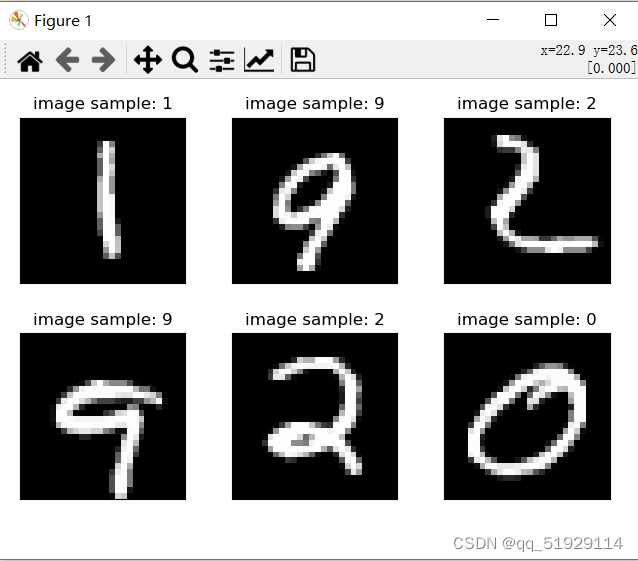

运行效果
