（三）为视频增加滤镜效果

新建一个滤镜操作的类ImageFilter，已经实现了原图，灰度图，二值化，马赛克效果。

import java.awt.*;
import java.awt.image.BufferedImage;

public class ImageFilter {

    public BufferedImage drawImage(Graphics g, BufferedImage image) {
        g.drawImage(image, 0, 0, null);
        return image;
    }

    public BufferedImage grayImageFilter(Graphics g, BufferedImage image) {
        int width = image.getWidth();
        int height = image.getHeight();
        for (int i = 0; i < width; i++) {
            for (int j = 0; j < height; j++) {
                int rgb = image.getRGB(i, j);
                int red = (rgb >> 16) & 0xff;
                int green = (rgb >> 8) & 0xff;
                int blue = rgb & 0xff;
                int gray = (int) (0.3 * red + 0.35 * green + 0.35 * blue);
                rgb = (rgb & 0xff000000) | (gray << 16) | (gray << 8) | gray;
                image.setRGB(i, j, rgb);
            }
        }
        g.drawImage(image, 0, 0, null);
        return image;
    }

    public BufferedImage binaryImageFilter(Graphics g, BufferedImage image) {
        int width = image.getWidth();
        int height = image.getHeight();
        for (int i = 0; i < width; i++) {
            for (int j = 0; j < height; j++) {
                int rgb = image.getRGB(i, j);
                int red = (rgb >> 16) & 0xff;
                int green = (rgb >> 8) & 0xff;
                int blue = rgb & 0xff;
                int gray = (int) (0.3 * red + 0.35 * green + 0.35 * blue);
                if (gray > 70) {
                    gray = 255;
                } else {
                    gray = 0;
                }
                rgb = (rgb & 0xff000000) | (gray << 16) | (gray << 8) | gray;
                image.setRGB(i, j, rgb);
            }
        }
        g.drawImage(image, 0, 0, null);
        return image;
    }

        public BufferedImage mosaicImageFilter(Graphics g, BufferedImage image) {
        int width = image.getWidth();
        int height = image.getHeight();
        BufferedImage image0 = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
        for (int i = 0; i < width; i+=10) {
            for (int j = 0; j < height; j+=10) {
                int rgb = image.getRGB(i, j);
                for (int k = 0; k < 10; k++) {
                    for (int l = 0; l < 10; l++) {
                        image0.setRGB(i+k, j+l, rgb);
                    }
                }
            }
        }
        g.drawImage(image0, 0, 0, null);
        return image0;
    }

}

在线程RunVideoAble中的run()函数中加入判断选择滤镜效果。

import com.github.sarxos.webcam.Webcam;

import java.awt.*;
import java.awt.image.BufferedImage;

public class RunVideoAble implements Runnable{
    Webcam webcam = Webcam.getDefault();
    boolean flag = false;
    Graphics g = null;
    BufferedImage image = null;
    ImageFilter imageFilter = new ImageFilter();
    String videoOp = "原图";
    public RunVideoAble(Webcam webcam, Graphics g) {
        this.webcam = webcam;
        this.g = g;
    }
    public BufferedImage getImage() {
        return image;
    }
    public void open() {
        flag = true;
        webcam.open();
    }
    public void close() {
        flag = false;
        webcam.close();
    }
    public void setVideoOp(String videoOp) {
        this.videoOp = videoOp;
    }

    @Override
    public void run() {
        while (flag) {
            image = webcam.getImage();
            if (videoOp.equals("原图")) {
                g.drawImage(image, 0, 0, null);
            } else if (videoOp.equals("灰度图")) {
                image = imageFilter.grayImageFilter(g, image);
            } else if (videoOp.equals("二值化")) {
                image = imageFilter.binaryImageFilter(g, image);
            } else if (videoOp.equals("马赛克")) {
                image = imageFilter.mosaicImageFilter(g, image);
            }

        }
    }
}

滤镜的效果依旧通过监听器（VCListener）来选择。修改RunVideoAble中的videoOp控制滤镜。

import com.github.sarxos.webcam.Webcam;
import com.github.sarxos.webcam.WebcamResolution;

import javax.imageio.ImageIO;
import javax.swing.*;
import javax.swing.filechooser.FileNameExtensionFilter;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.image.BufferedImage;
import java.io.IOException;

public class VCListener implements ActionListener {

    Graphics g = null;
    boolean flag = false;
    RunVideoAble rvt;
    Webcam webcam = Webcam.getDefault();
    public void setG(Graphics g) {
        this.g = g;
    }
    @Override
    public void actionPerformed(ActionEvent e) {
        String ac = e.getActionCommand();
        JButton btn = (JButton)e.getSource();
        String str = btn.getText();
//        webcam.setViewSize(WebcamResolution.VGA.getSize());
        if (ac.equals("camOp")) {
            if (str.equals("启动")) {
                rvt = new RunVideoAble(webcam, g);
                rvt.open();
                Thread t = new Thread(rvt);
                t.start();
            } else if (str.equals("关闭")) {
                rvt.close();
                webcam.close();
            } else if (str.equals("拍照")) {
                BufferedImage image = rvt.getImage();
//            g.drawImage(image, 500, 500, null);
                JFileChooser chooser = new JFileChooser();
                FileNameExtensionFilter filter = new FileNameExtensionFilter(
                        "JPG & GIF Images", "jpg", "gif");
                chooser.setFileFilter(filter);
                int returnVal = chooser.showOpenDialog(null);
                if(returnVal == JFileChooser.APPROVE_OPTION) {
                    System.out.println("You chose to open this file: " +
                            chooser.getSelectedFile().getName());
                    try {
                        ImageIO.write(image, "png", chooser.getSelectedFile());
                    } catch (IOException ex) {
                        ex.printStackTrace();
                    }
                }
            }
        } else if (ac.equals("videoOp")) {
            rvt.setVideoOp(str);
        }


    }
}

按钮处 setActionCommand() 用于监听器中判断是 camOp 还是 videoOp 。

import javax.swing.*;
import java.awt.*;

public class VideoCapture extends JFrame {
    String[] camstrs = {"启动", "关闭", "拍照"};
    String[] filterstrs = {"原图", "灰度图", "二值化", "马赛克"};
    VCListener vcl = new VCListener();

    public void initUI() {
        setTitle("VideoCapture");
        setDefaultCloseOperation(EXIT_ON_CLOSE);
        setSize(800, 500);
        setLocation(360, 210);
        JPanel vpanel = new JPanel();
        JPanel bpanel = new JPanel();
        vpanel.setBackground(Color.BLACK);
        bpanel.setBackground(Color.LIGHT_GRAY);
        add(vpanel, BorderLayout.CENTER);
        add(bpanel, BorderLayout.SOUTH);
        for (String str: camstrs) {
            JButton btn = new JButton(str);
            btn.setPreferredSize(new Dimension(80, 50));
            btn.setActionCommand("camOp");
            btn.addActionListener(vcl);
            bpanel.add(btn);
        }
        for (String str: filterstrs) {
            JButton btn = new JButton(str);
            btn.setPreferredSize(new Dimension(80, 50));
            btn.setActionCommand("videoOp");
            btn.addActionListener(vcl);
            bpanel.add(btn);
        }


        setVisible(true);
        vcl.setG(vpanel.getGraphics());
    }

    public static void main(String[] args) {
        new VideoCapture().initUI();
    }
}

通过运行程序，并将加上滤镜后的效果成功保存到计算机中。

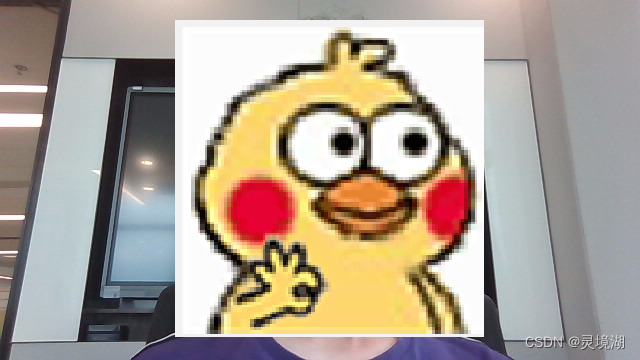

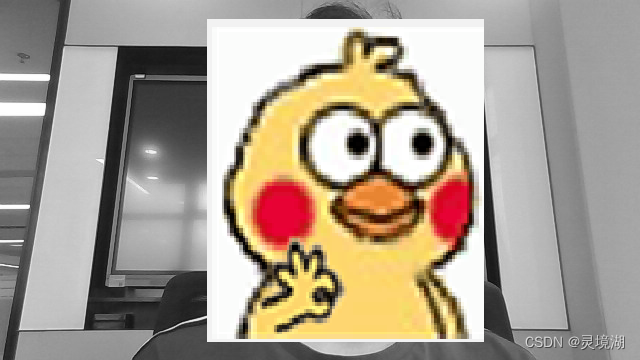

                                1. 原图                                                                  2. 灰度图

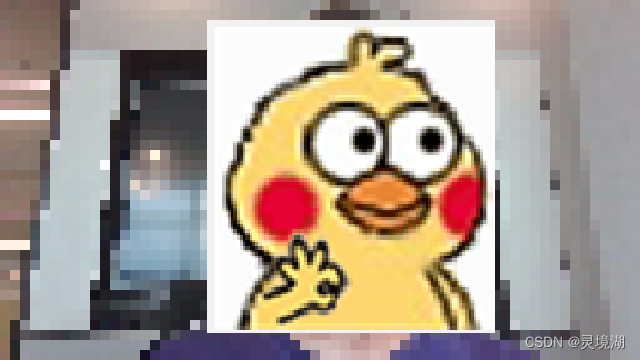

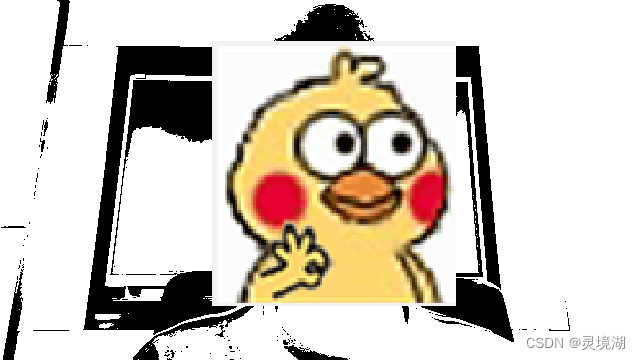

                                3. 二值化                                                               4. 马赛克
