Spring Boot 7 微服务执行Bot代码(传递路线是难点)

本节课也是新开一个微服务：BotRunningSystem

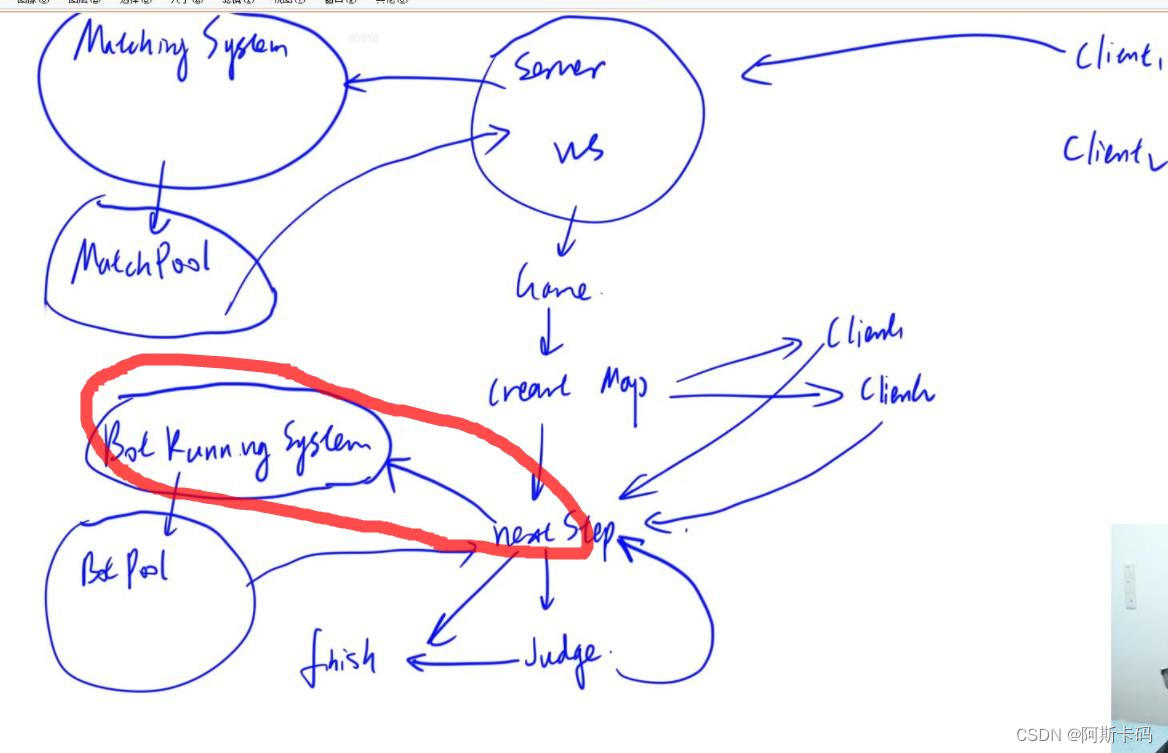

红色为本次实现：

代码执行，此项目只支持java代码的执行，用的是joor java 8实现。

可扩展为docker实现，设置内存上限，时间，用命令可执行所有语言代码，并具备一定安全性，因为docker与运行环境隔绝。

1.让BotRunning System获得到前端选择的Bot

1.1.新建Bot执行微服务项目

右键backendcloud->新建->maven

1.2.修改pom依赖

1.复制粘贴matchingsystem的pom中的所有依赖
2.添加新依赖 joor-java-8 ：可以在Java中动态编译Java代码

1.3.BotRunningSystem接收前端选择的botId

文件结构

botrunningsystem
    config
        RestTemplateConfig.java
        SecurityConfig.java
    controller
        BotRunningController.java
    service
        impl
            BotRunningServiceImpl.java
        BotRunningService.java
    BotRunningSystemApplication.java

将BotRunningSystem/Main.java 更名为 BotRunningSystemApplication.java

package com.kob.botrunningsystem;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class BotRunningSystemApplication {
    public static void main(String[] args) {
        SpringApplication.run(BotRunningSystemApplication.class,args);
    }
}

接口

package com.kob.botrunningsystem.service;

public interface BotRunningService {
    public String addBot(Integer userId,String botCode,String input);
}

接口实现

package com.kob.botrunningsystem.service.impl;

import com.kob.botrunningsystem.service.BotRunningService;
import org.springframework.stereotype.Service;

@Service
public class BotRunningServiceImpl implements BotRunningService {
    @Override
    public String addBot(Integer userId, String botCode, String input) {
        System.out.println("add bot: " + userId + " " + botCode + " " + input);
        return "add bot success";
    }
}

控制器

package com.kob.botrunningsystem.controller;

import com.kob.botrunningsystem.service.BotRunningService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.Objects;

@RestController
public class BotRunningController {
    @Autowired
    private BotRunningService botRunningService;

    @PostMapping("/bot/add/")
    public String addBot(@RequestParam MultiValueMap<String,String> data){
        Integer userId = Integer.parseInt(Objects.requireNonNull(data.getFirst("user_id")));
        String botCode = data.getFirst("bot_code");
        String input = data.getFirst("input");
        return botRunningService.addBot(userId,botCode,input);
    }
}

权限控制(网关)

package com.kob.botrunningsystem.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.csrf().disable()
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                .and()
                .authorizeRequests()
                .antMatchers("/bot/add/").hasIpAddress("127.0.0.1")//新加
                .antMatchers(HttpMethod.OPTIONS).permitAll()
                .anyRequest().authenticated();
    }
}

服务间发送消息的RestTemplate

package com.kob.botrunningsystem.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class RestTemplateConfig {
    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

端口配置
在resources新建文件

1.4.前端选择Bot+发送bot_id给后端

匹配界面
添加选择操作方式

<template>
  <div class="matchground">
    <div class="row">

        <!-- 自己 -->
        <div class="col-4">
            <div class="user-photo">
                <img :src="$store.state.user.photo" alt="">
            </div>
            <div class="user-username">
                {{$store.state.user.username}}
            </div>
        </div>
        <!-- 选择Bot -->
        <div class="col-4">
            <div class="user-select-bot">
                <select class="form-select" aria-label="Default select example" v-model="select_bot">
                    <option value="-1" selected>亲自出马</option>
                    <option v-for="bot in bots" :key="bot.id" :value="bot.id">{{ bot.title }}</option>
                </select>
            </div>
        </div>
        <!-- 对手 -->
        <div class="col-4">
            <div class="user-photo">
                <img :src="$store.state.pk.opponent_photo" alt="">
            </div>
            <div class="user-username">
                {{$store.state.pk.opponent_username}}
            </div>
        </div>

        <div class="col-12" style="text-align : center;  padding-top : 12vh;">
            <button type="button" class="btn btn-warning btn-lg" @click="click_match_btn">{{match_btn_info}}</button>
        </div>

    </div>
  </div>
</template>

<script>
import { ref } from "vue"
import { useStore } from "vuex"
import $ from "jquery"

export default {
    setup(){
        const store = useStore();
        let match_btn_info = ref("开始匹配")
        let bots = ref([])
        let select_bot = ref(-1)

        const click_match_btn = ( )=>{
            if(match_btn_info.value === "开始匹配"){
                match_btn_info.value = "取消";

                //向后端发送信息
                store.state.pk.socket.send(JSON.stringify({
                    event:"start-matching",
                    bot_id: select_bot.value,
                }));
            } else if(match_btn_info.value === "取消"){
                match_btn_info.value = "开始匹配";

                store.state.pk.socket.send(JSON.stringify({
                    event:"stop-matching",
                }));
            }
        }

        const refresh_bots = () => {
            $.ajax({
                url: "http://127.0.0.1:3000/user/bot/getlist/",
                type: "get",
                headers: {
                    'Authorization': "Bearer " + store.state.user.token,
                },
                success(resp) {
                    bots.value = resp;
                }
            })
        };
        refresh_bots();

        return {
            match_btn_info,
            click_match_btn,
            bots,
            select_bot,
        }
    }
}
</script>

<style scoped>

div.matchground {
    width: 60vw;
    height: 70vh;
    background-color:rgba(50 ,50 ,50 ,0.5);
    margin: 40px auto;
}
div.user-photo {
    text-align: center;
    padding-top: 10vh;
}
div.user-photo > img{
    border-radius: 50%;
    width: 20vh;
}
div.user-username {
    text-align: center;
    font-size: 20px;
    font-weight: 600;
    color: white;
    margin-top: 2vh;
}
div.user-select-bot {
    padding-top: 20vh;
}
div.user-select-bot > select {
    width: 60%;
    margin: 0 auto;
}

</style>

1.5.后端接收bot

backend接收Bot

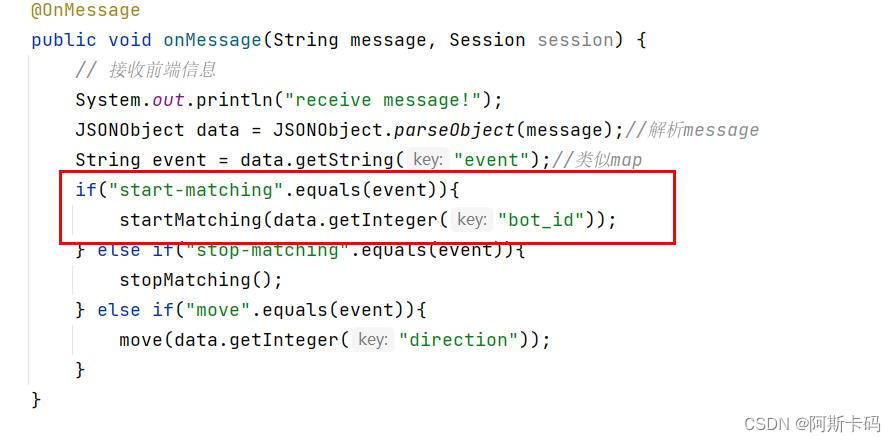

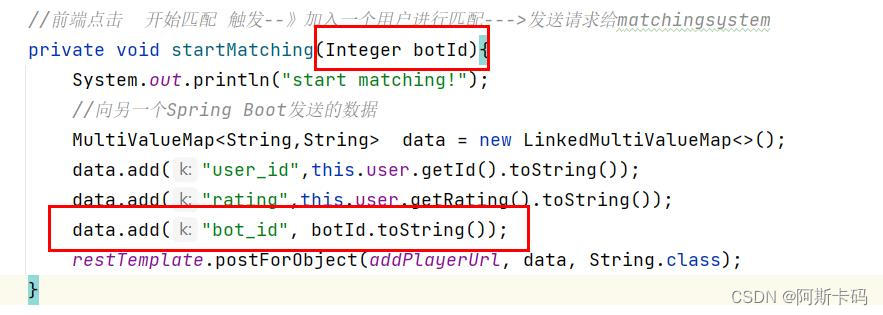

WebSocketServer接收到匹配请求，将bot传给匹配服务

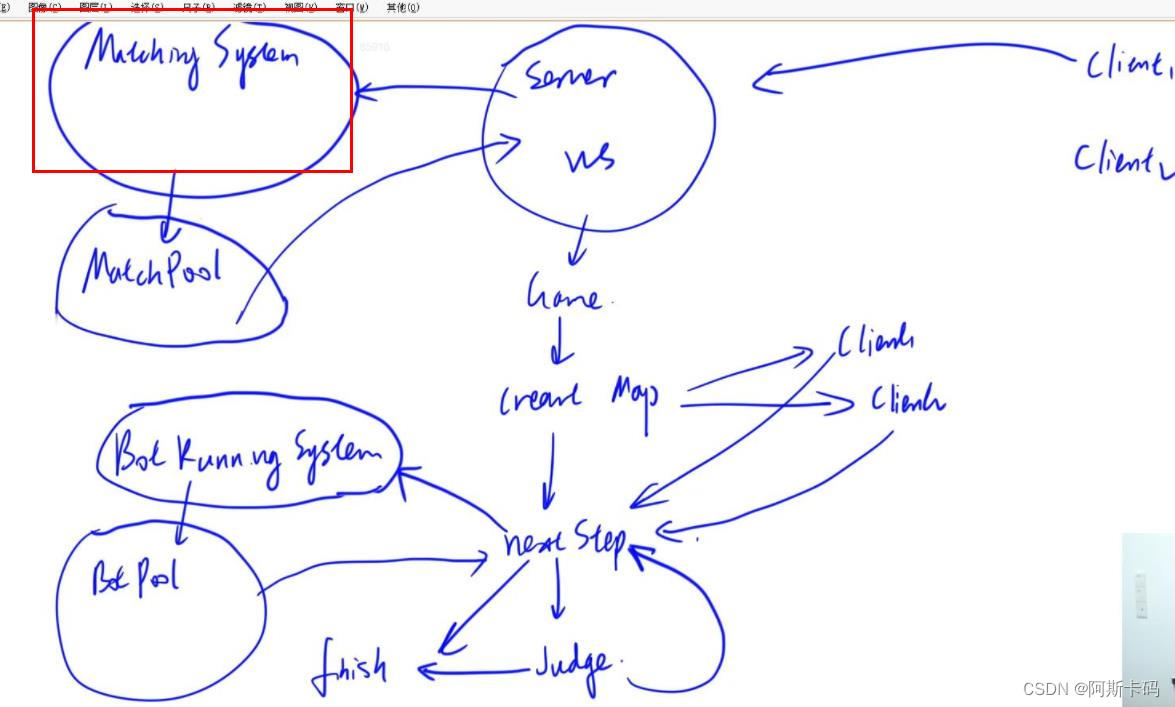

Matching System接收Bot

Matching System接收到backend传的botId，将bot传给BotRunningSystem服务

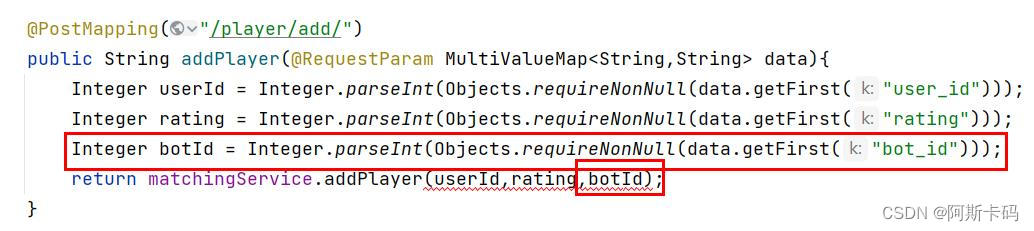

控制器

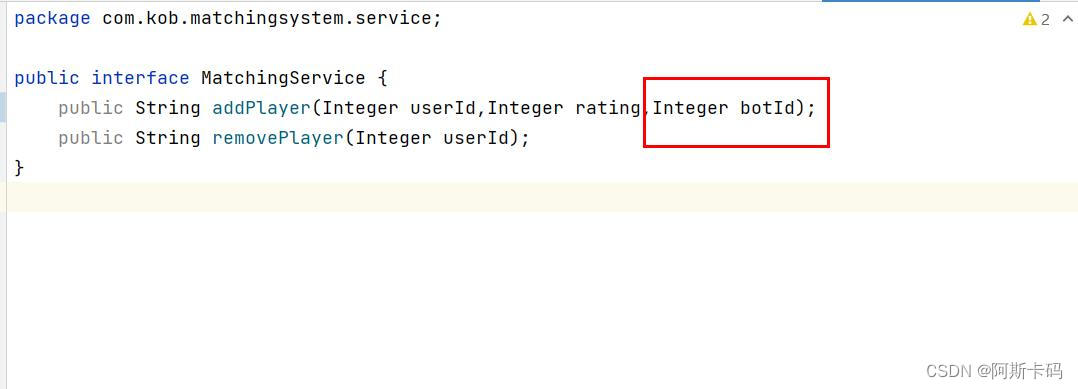

接口

实现接口

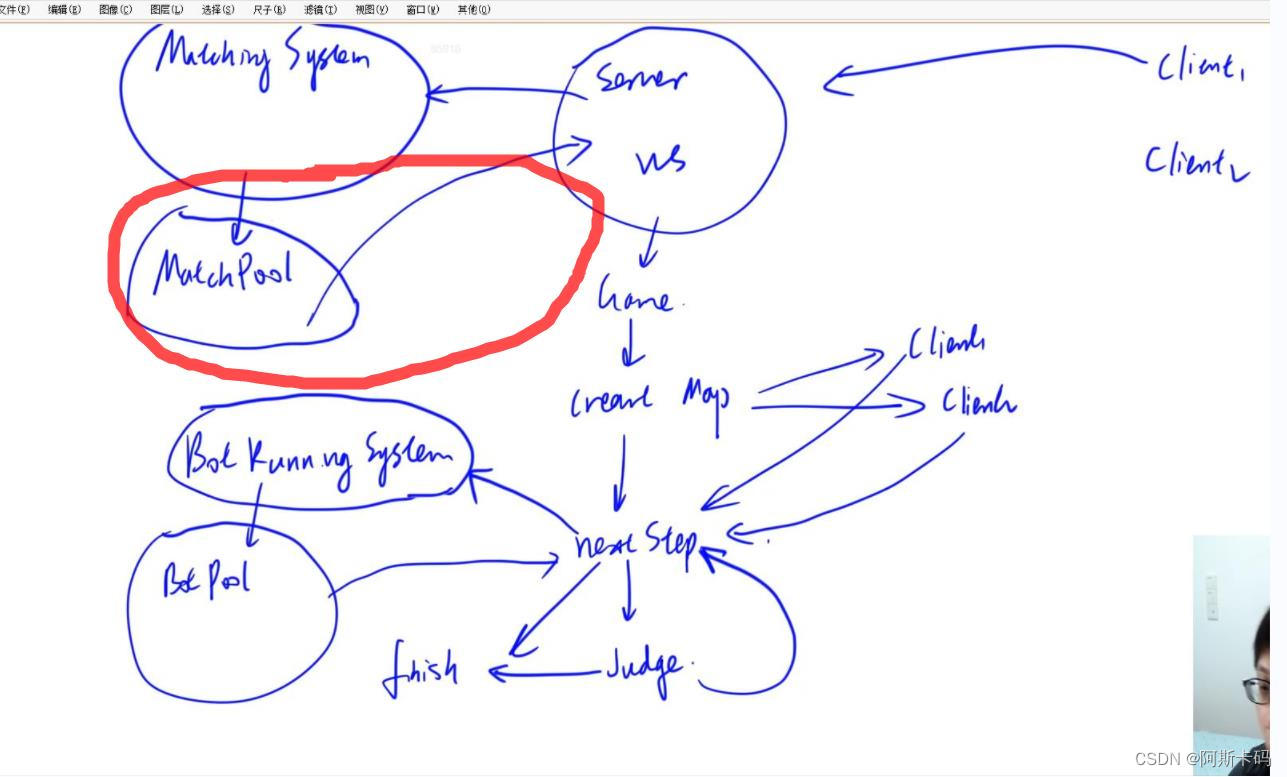

匹配池

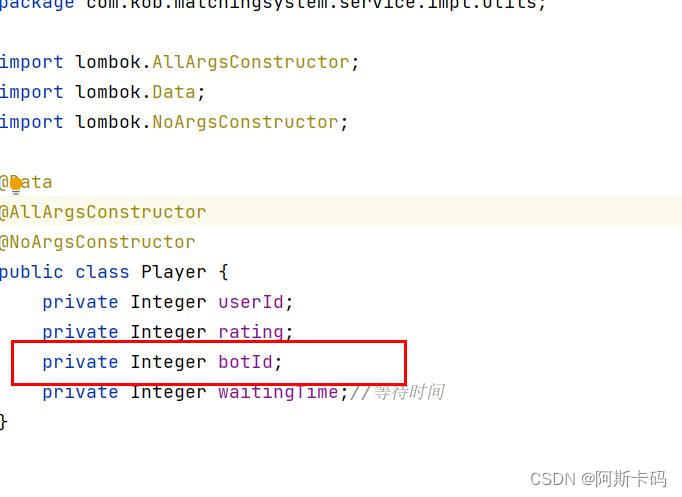

匹配池的Player

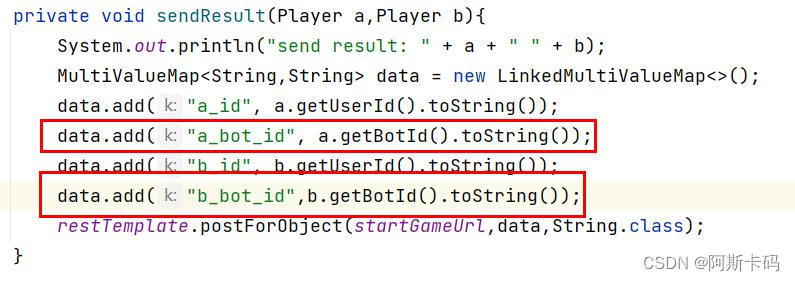

匹配池返回结果加上botId

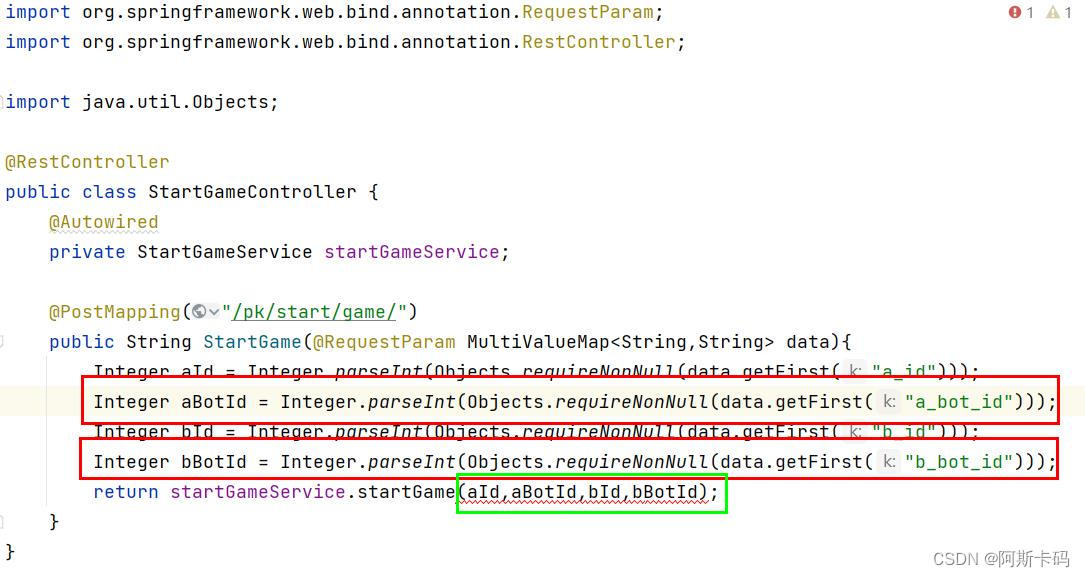

StartGameController.java

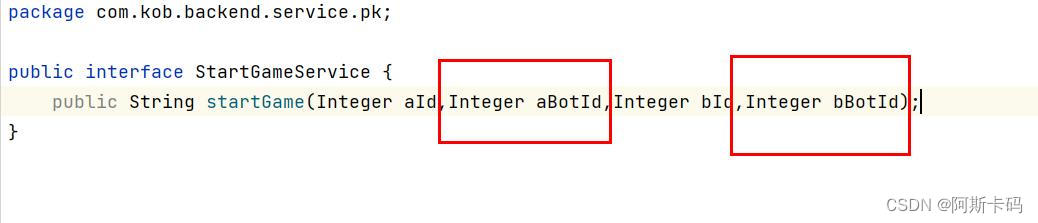

StartGameService.java

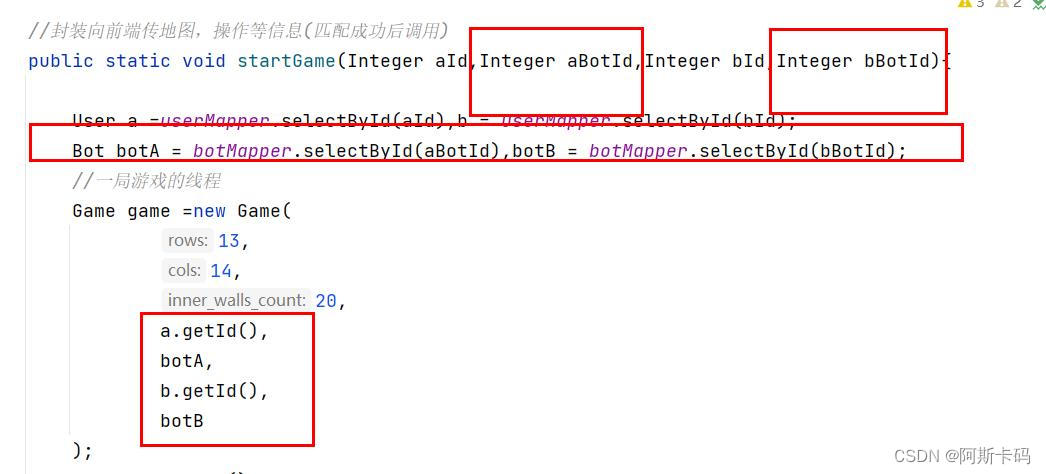

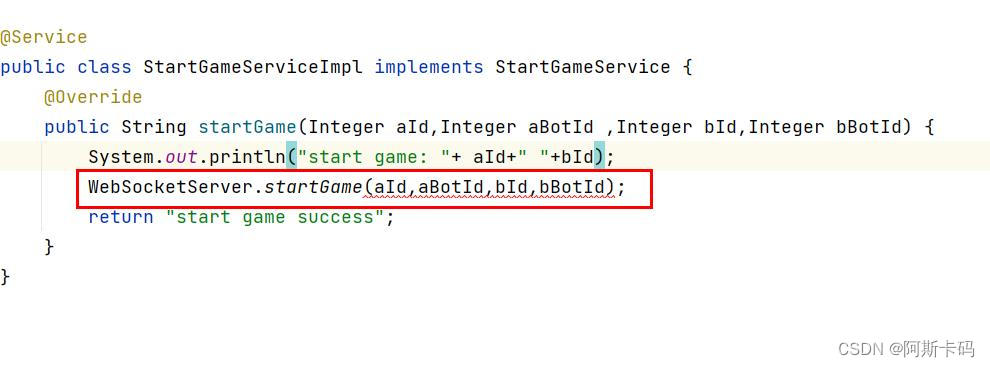

StartGameServiceImpl.java

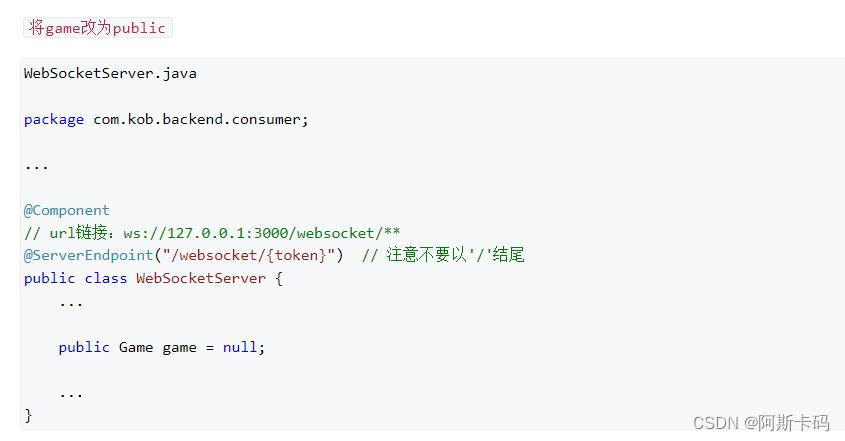

WebSocketServer.java

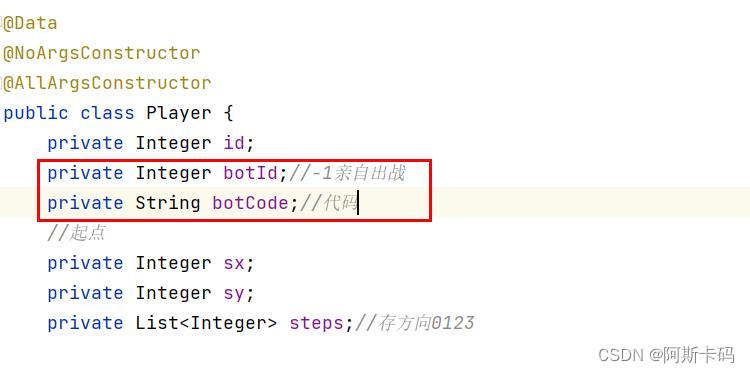

Player.java

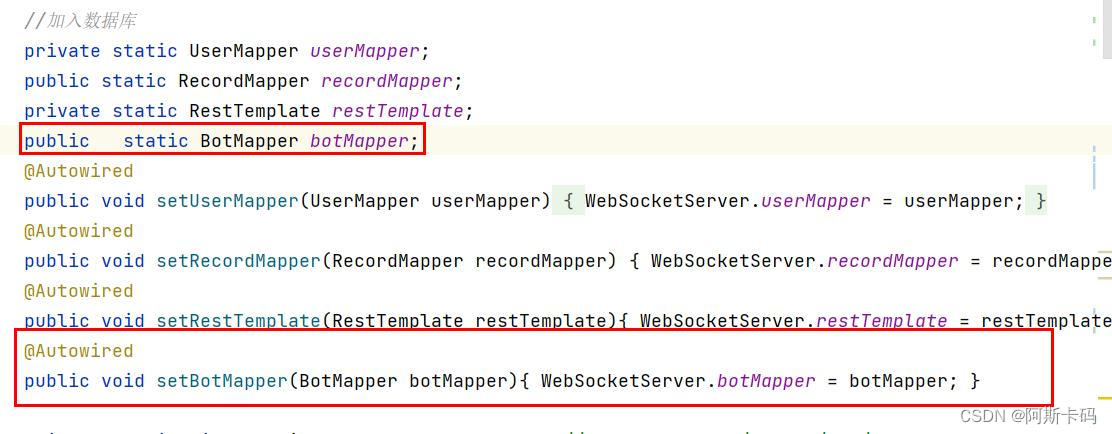

WebSocketServer.java

将RestTemplate变成public，若是代码输入则屏蔽人的输入

Game.java

private final Player playerA,playerB;
private final static String addBotUrl = "http://127.0.0.1:3002/bot/add/";

public Game(
        Integer rows,
        Integer cols,
        Integer inner_walls_count,
        Integer idA,
        Bot botA,
        Integer idB,
        Bot botB
) {
    this.rows = rows;
    this.cols = cols;
    this.inner_walls_count = inner_walls_count;
    this.g = new int[rows][cols];
    Integer botIdA = -1,botIdB = -1;
    String botCodeA = "",botCodeB = "";
    if(botA != null){
        botIdA = botA.getId();
        botCodeA = botA.getContent();
    }
    if(botB != null){
        botIdB = botB.getId();
        botCodeB = botB.getContent();
    }
    playerA = new Player(idA,botIdA,botCodeA,this.rows - 2, 1, new ArrayList<>());
    playerB = new Player(idB,botIdB,botCodeB,1, this.cols - 2, new ArrayList<>());
}



//获得input
private String getInput(Player player){
    Player me,you ;
    if(playerA.getId().equals(player.getId())){
        me = playerA ;
        you = playerB ;
    } else {
        me = playerB ;
        you = playerA ;
    }
    return getMapString() + "#" +
            me.getSx() + "#" +
            me.getSy() + "#(" +
            me.getStepsString() + ")#" +
            you.getSx() + "#" +
            you.getSy() + "#(" +
            you.getStepsString() + "#)" ;
}

private void sendBotCode(Player player){
    if(player.getBotId().equals(-1)) return ;//亲自出马
    MultiValueMap<String,String> data = new LinkedMultiValueMap<>();
    data.add("user_id",player.getId().toString());
    data.add("bot_code",player.getBotCode());
    data.add("input",getInput(player));
    WebSocketServer.restTemplate.postForObject(addBotUrl,data,String.class);
}

private boolean nextStep(){//两名玩家的下一步
    try {
        Thread.sleep(200);//因为前端走一格200ms
    } catch (InterruptedException e) {
        e.printStackTrace();
    }

    sendBotCode(playerA);
    sendBotCode(playerB);
......
}

private String getMapString(){
    StringBuilder res = new StringBuilder();
    for(int i=0;i<rows;i++){
        for(int j=0;j<cols;j++){
            res.append(g[i][j]);
        }
    }
    return res.toString();
}

成功

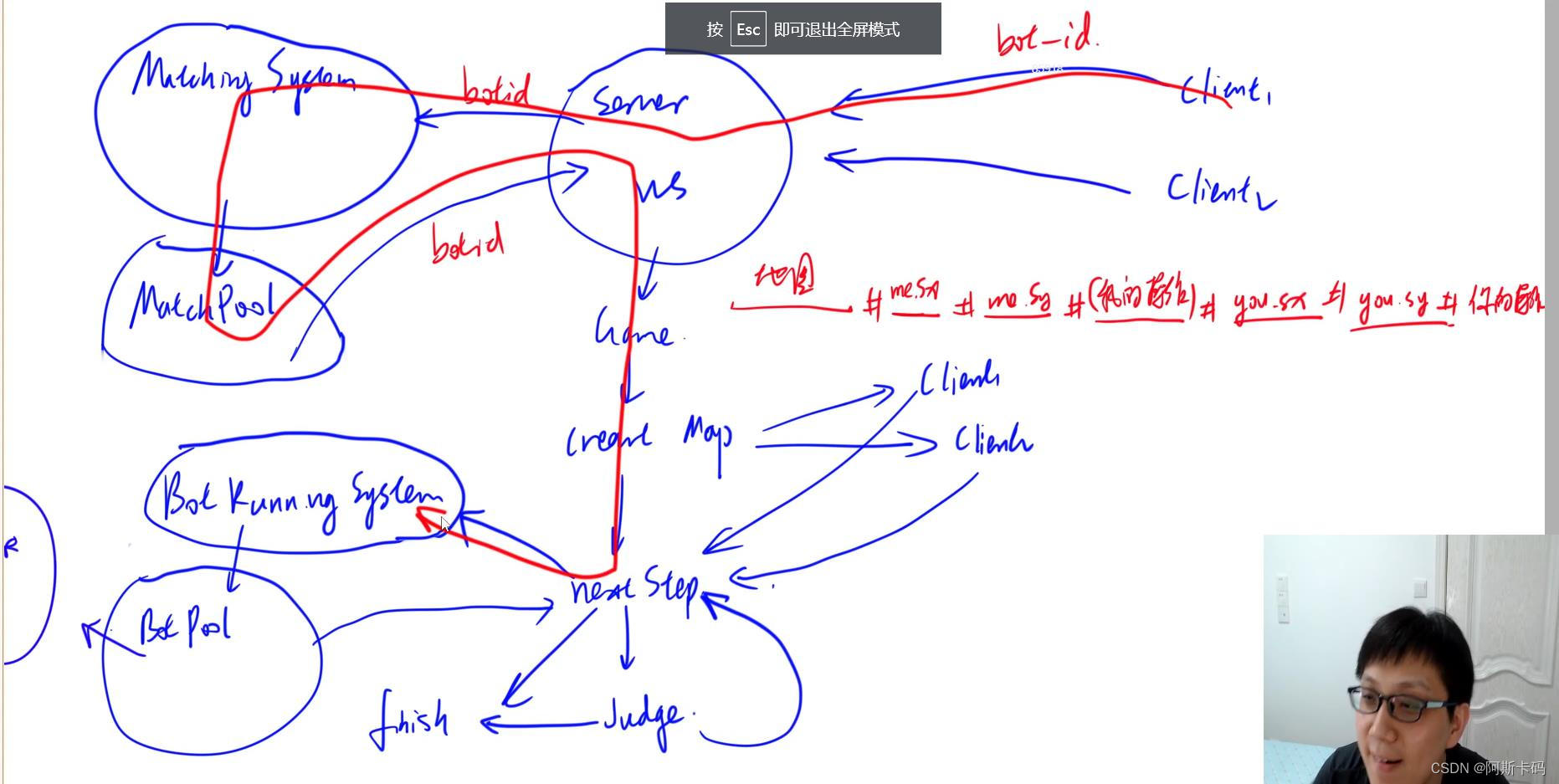

1.6.总结：实现了BotId传送到BotRunningSystem系统

2.BotRunning System的实现

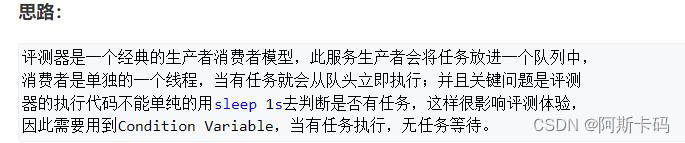

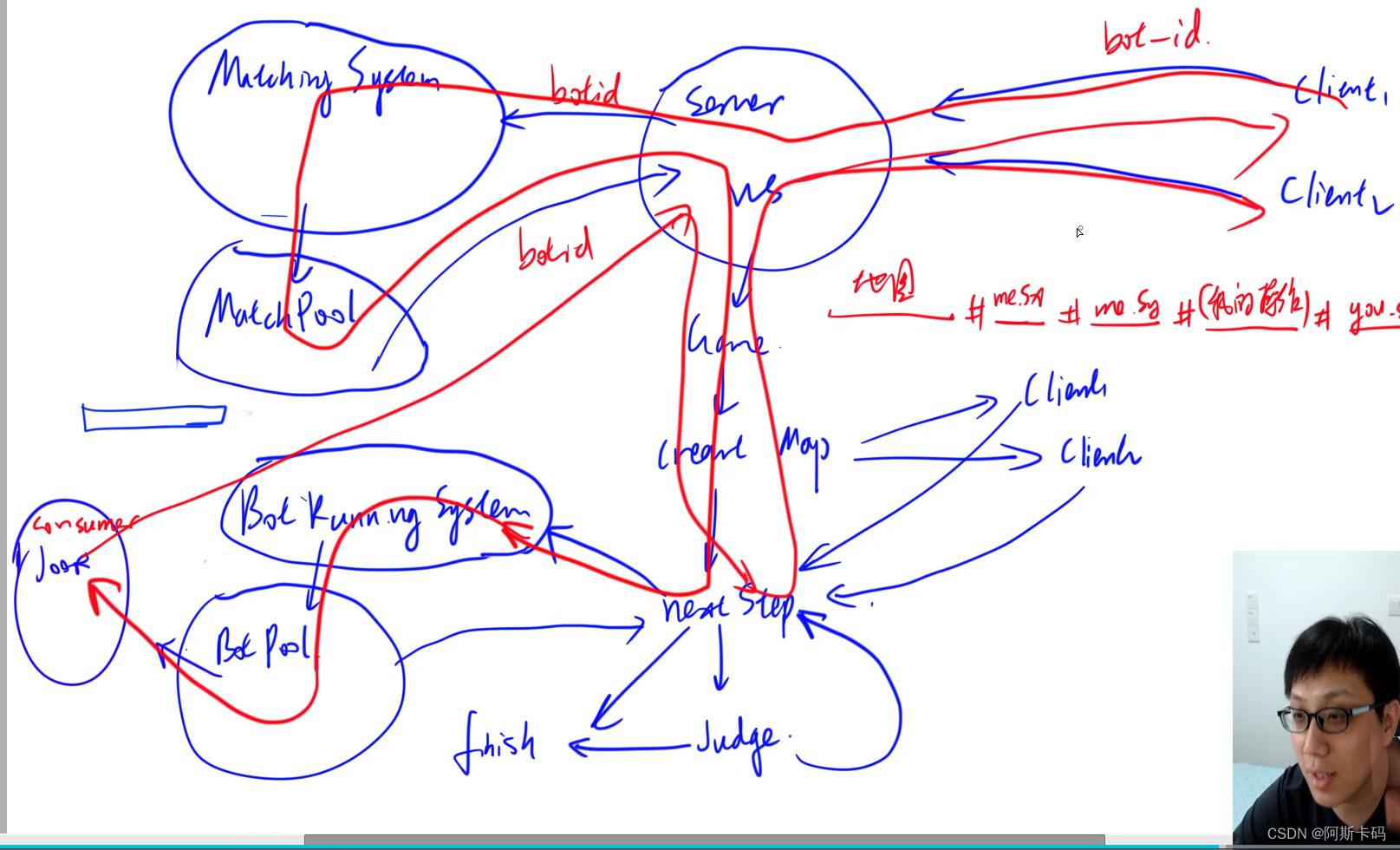

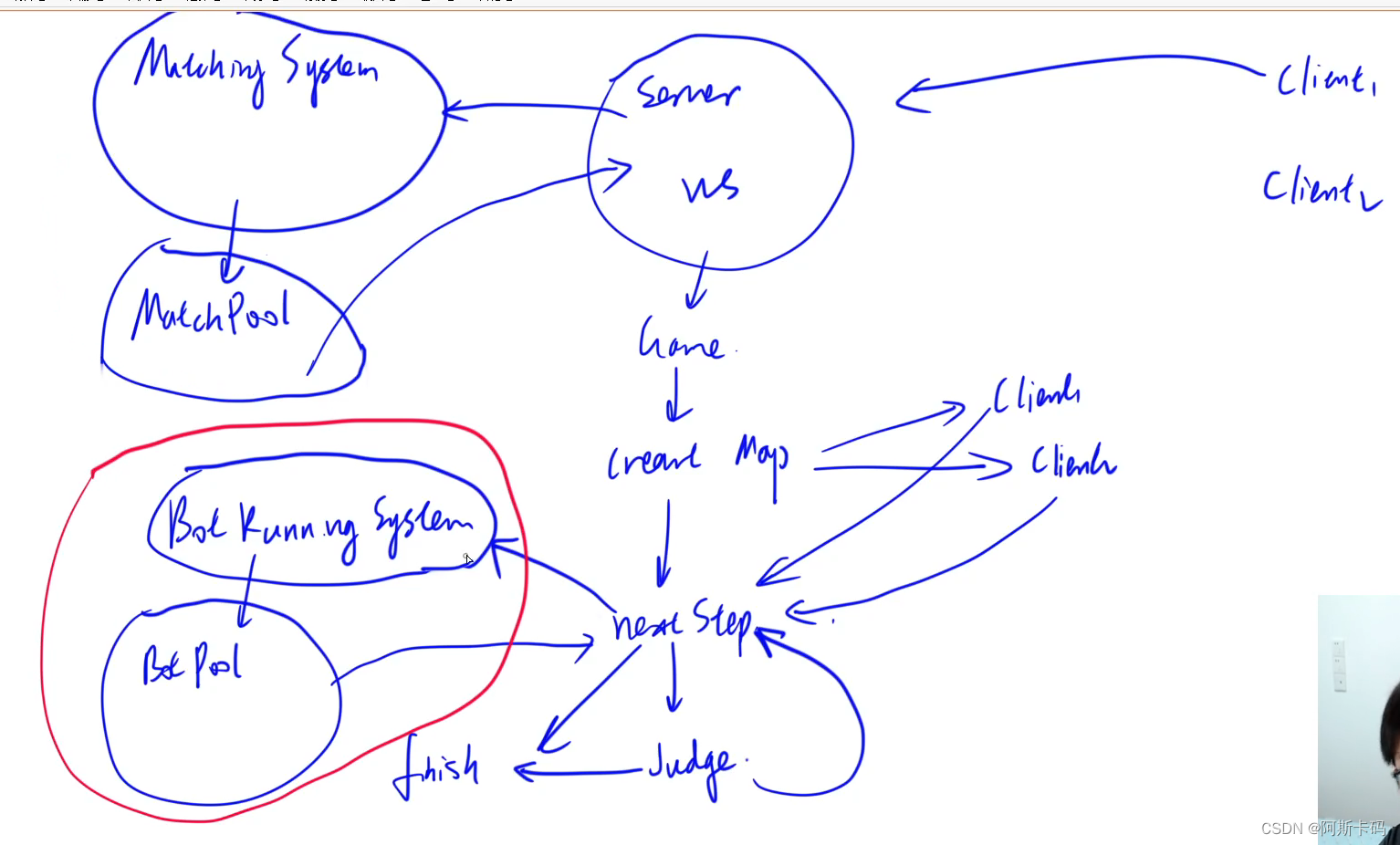

2.1思路：生产者消费者模型

2.2文件结构

BotRunningSystem
    service
        impl
            utils
                Bot.java
                BotPool.java
                Consumer.java
    utils
        Bot.java
        BotInterface.java

2.3Bot的实现

package com.kob.botrunningsystem.service.impl.utils;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Bot {
    private Integer userId;
    private String botCode;
    private String input;
}

2.4BotPoll的实现

虽然队列没用消息队列，但是因为我们写了条件变量与锁的操作，所以等价于消息队列

package com.kob.botrunningsystem.service.impl.utils;

import java.util.LinkedList;
import java.util.Queue;
import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.ReentrantLock;

public class BotPool extends Thread{

    private final ReentrantLock lock = new ReentrantLock();
    private final Condition condition = lock.newCondition();//条件变量
    private final Queue<Bot> bots = new LinkedList<>();//消息队列-->add,remove-->锁

    //添加一个任务-Bot
    public void addBot(Integer userId,String botCode,String input){
        lock.lock();//涉及到bots
        try {
            bots.add(new Bot(userId,botCode,input));
            condition.signalAll();
        } finally {
            lock.unlock();
        }

    }

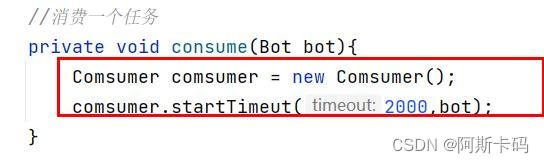

    //消费一个任务
    private void consume(Bot bot){
        Comsumer comsumer = new Comsumer();
        comsumer.startTimeut(2000,bot);
    }

    @Override
    public void run() {
        while (true){
            lock.lock();
            if(bots.isEmpty()){//空
                try {
                    condition.await();//【消息队列空】阻塞当前线程，直到被唤醒(默认包含解锁)
                } catch (InterruptedException e) {
                    e.printStackTrace();
                    lock.unlock();
                    break;
                }
            } else {
                Bot bot = bots.remove();//取出当前任务+移除
                lock.unlock();
                consume(bot);//消耗任务，用时长，执行代码
            }
        }
    }
}

2.5BotRunningServiceImpl.java

加任务

package com.kob.botrunningsystem.service.impl;

import com.kob.botrunningsystem.service.BotRunningService;
import com.kob.botrunningsystem.service.impl.utils.BotPool;
import org.springframework.stereotype.Service;

@Service
public class BotRunningServiceImpl implements BotRunningService {
6    public final static BotPool botPool = new BotPool();

    @Override
    public String addBot(Integer userId, String botCode, String input) {
        System.out.println("add bot: " + userId + " " + botCode + " " + input);
        botPool.addBot(userId,botCode,input);
        return "add bot success";
    }
}

2.6BotPool线程的启动

package com.kob.botrunningsystem;

import com.kob.botrunningsystem.service.impl.BotRunningServiceImpl;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class BotRunningSystemApplication {
    public static void main(String[] args) {
        BotRunningServiceImpl.botPool.start();//启动线程
        SpringApplication.run(BotRunningSystemApplication.class,args);
    }
}

2.7BotInterface.java

用户写Bot实现的接口

package com.kob.botrunningsystem.utils;

public interface BotInterface {
    public Integer nextMove(String input);//下一步方向
}

2.8Bot.java

package com.kob.botrunningsystem.utils;

public class Bot implements com.kob.botrunningsystem.utils.BotInterface {
    @Override
    public Integer nextMove(String input) {
        return 0;
    }
}

2.9Consumer的实现

package com.kob.botrunningsystem.service.impl.utils;

import com.kob.botrunningsystem.utils.BotInterface;
import org.joor.Reflect;

import java.util.UUID;

public class Comsumer extends Thread{
    private Bot bot;
    public void startTimeut(long timeout,Bot bot){
        this.bot = bot;
        this.start();
        try {
            this.join(timeout);
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            this.interrupt();
        }
    }

    private String addUid(String code,String uid){
        int k = code.indexOf(" implements com.kob.botrunningsystem.utils.BotInterface");
        return code.substring(0,k) + uid +code.substring(k);
    }

    @Override
    public void run() {
        UUID uuid = UUID.randomUUID();
        String uid = uuid.toString().substring(0,8);

        BotInterface botInterface = Reflect.compile(
                "com.kob.botrunningsystem.utils.Bot" + uid,
                addUid(bot.getBotCode(),uid)
        ).create().get();
        Integer direction = botInterface.nextMove(bot.getInput());

        System.out.println("move-direction: " + bot.getUserId() + " " + direction);
    }
}

2.10BotPool.java

2.11测试

package com.kob.botrunningsystem.utils;

public class Bot implements com.kob.botrunningsystem.utils.BotInterface {
    @Override
    public Integer nextMove(String input) {
        return 0;
    }
}

package com.kob.botrunningsystem.utils;

public class Bot implements com.kob.botrunningsystem.utils.BotInterface {
    @Override
    public Integer nextMove(String input) {
        return 2;
    }
}

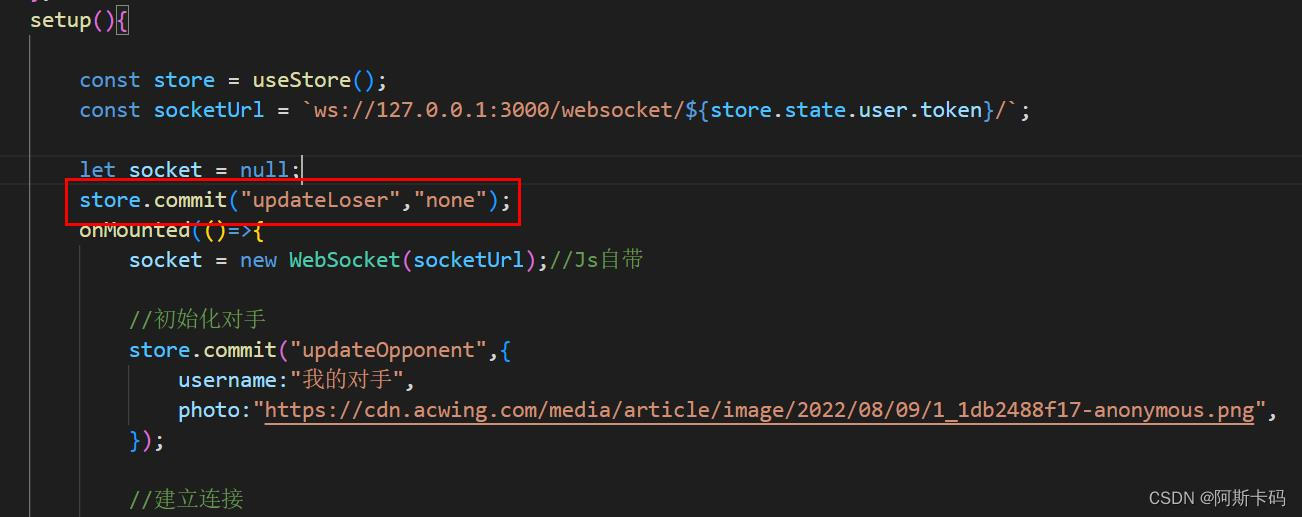

2.12小Bug

在游戏结束后，点到其他页面再点回pk页面，结果没有消失

3.将Bot执行结果传给前端

3.1.BackEnd接收Bot代码的结果

文件结构

backend
    controller
        pk
            ReceiveBotMoveController.java
    service
        impl
            pk
                ReceiveBotMoveServiceImpl.java
        pk
            ReceiveBotMoveService.java

接口

package com.kob.backend.service.pk;

public interface ReceiveBotMoveService {
    public String receiveBotMove(Integer userId,Integer direction);
}

WebSocketServer操作类

接口实现

package com.kob.backend.service.impl.pk;

import com.kob.backend.consumer.WebSocketServer;
import com.kob.backend.consumer.utils.Game;
import com.kob.backend.service.pk.ReceiveBotMoveService;
import org.springframework.stereotype.Service;

@Service
public class ReceiveBotMoveServiceImpl implements ReceiveBotMoveService {
    @Override
    public String receiveBotMove(Integer userId, Integer direction) {

        System.out.println("receive bot move: " + userId + " " +direction);
        if(WebSocketServer.users.get(userId)!=null){
            Game game = WebSocketServer.users.get(userId).game;
            if(game != null){
                if(game.getPlayerA().getId().equals(userId)){//当前链接是A用户
                    game.setNextStepA(direction);
                } else if(game.getPlayerB().getId().equals(userId)){//当前链接是B用户
                    game.setNextStepB(direction);
                }
            }
        }
        return "receive bot move success";
    }
}

控制器

package com.kob.backend.controller.pk;

import com.kob.backend.service.pk.ReceiveBotMoveService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.Objects;

@RestController
public class ReceiveBotMoveController {
    @Autowired
    private ReceiveBotMoveService receiveBotMoveService;

    @PostMapping("/pk/receive/bot/move/")
    public String receiveBotMove(@RequestParam MultiValueMap<String,String> data){
        System.out.println("+++++++++++++++++++++++++++++++");
        Integer userId = Integer.parseInt(Objects.requireNonNull(data.getFirst("user_id")));
        Integer direction = Integer.parseInt(Objects.requireNonNull(data.getFirst("direction")));
        return receiveBotMoveService.receiveBotMove(userId,direction);
    }
}

权限控制(网关)

//实现用户密码的加密存储。==>加上此文件，必须是密文存储
//实现公开页面
package com.kob.backend.config;

import com.kob.backend.config.filter.JwtAuthenticationTokenFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Autowired
    private JwtAuthenticationTokenFilter jwtAuthenticationTokenFilter;

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.csrf().disable()
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                .and()
                .authorizeRequests()
                .antMatchers("/user/account/token/", "/user/account/register/").permitAll()
                .antMatchers("/pk/start/game/","/pk/receive/bot/move/").hasIpAddress("127.0.0.1")
                .antMatchers(HttpMethod.OPTIONS).permitAll()
                .anyRequest().authenticated();

        http.addFilterBefore(jwtAuthenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);
    }


    @Override
    public void configure(WebSecurity web) throws Exception {
        web.ignoring().antMatchers("/websocket/**");//放行这一类链接
    }
}

3.2.BotRunningSystem返回Bot执行结果

Consumer.java

package com.kob.botrunningsystem.service.impl.utils;

import com.kob.botrunningsystem.utils.BotInterface;
import org.joor.Reflect;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.web.client.RestTemplate;

import java.util.UUID;

@Component
public class Consumer extends Thread{

    private static RestTemplate restTemplate ;
    @Autowired
    public void setRestTemplate(RestTemplate restTemplate){
        Consumer.restTemplate = restTemplate;
    }
    private Bot bot;
    private final static String receiveBotMoveUrl = "http://127.0.0.1:3000/pk/receive/bot/move/";


    public void startTimeout(long timeout,Bot bot){
        this.bot = bot;
        this.start();
        try {
            this.join(timeout);
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            this.interrupt();
        }
    }

    private String addUid(String code,String uid){
        int k = code.indexOf(" implements com.kob.botrunningsystem.utils.BotInterface");
        System.out.println(k);
        return code.substring(0,k) + uid +code.substring(k);
    }

    @Override
    public void run() {
        UUID uuid = UUID.randomUUID();
        String uid = uuid.toString().substring(0,8);

        BotInterface botInterface = Reflect.compile(
                "com.kob.botrunningsystem.utils.Bot" + uid,
                addUid(bot.getBotCode(),uid)
        ).create().get();

        Integer direction = botInterface.nextMove(bot.getInput());

        System.out.println("move-direction: " + bot.getUserId() + " " + direction);

        MultiValueMap<String,String> data = new LinkedMultiValueMap<>();
        data.add("user_id",bot.getUserId().toString());
        data.add("direction",direction.toString());

        restTemplate.postForObject(receiveBotMoveUrl,data,String.class);
    }
}

测试

y总bot代码：

package com.kob.botrunningsystem.utils;

import java.util.ArrayList;
import java.util.List;

public class Bot implements com.kob.botrunningsystem.utils.BotInterface {
    static class Cell {
        public int x, y;
        public Cell(int x, int y) {
            this.x = x;
            this.y = y;
        }
    }

    private boolean check_tail_increasing(int step) {  // 检验当前回合，蛇的长度是否增加
        if (step <= 10) return true;
        return step % 3 == 1;
    }

    public List<Cell> getCells(int sx, int sy, String steps) {
        steps = steps.substring(1, steps.length() - 1);
        List<Cell> res = new ArrayList<>();

        int[] dx = {-1, 0, 1, 0}, dy = {0, 1, 0, -1};
        int x = sx, y = sy;
        int step = 0;
        res.add(new Cell(x, y));
        for (int i = 0; i < steps.length(); i ++ ) {
            int d = steps.charAt(i) - '0';
            x += dx[d];
            y += dy[d];
            res.add(new Cell(x, y));
            if (!check_tail_increasing( ++ step)) {
                res.remove(0);
            }
        }
        return res;
    }

    @Override
    public Integer nextMove(String input) {
        String[] strs = input.split("#");
        int[][] g = new int[13][14];
        for (int i = 0, k = 0; i < 13; i ++ ) {
            for (int j = 0; j < 14; j ++, k ++ ) {
                if (strs[0].charAt(k) == '1') {
                    g[i][j] = 1;
                }
            }
        }

        int aSx = Integer.parseInt(strs[1]), aSy = Integer.parseInt(strs[2]);
        int bSx = Integer.parseInt(strs[4]), bSy = Integer.parseInt(strs[5]);

        List<Cell> aCells = getCells(aSx, aSy, strs[3]);
        List<Cell> bCells = getCells(bSx, bSy, strs[6]);

        for (Cell c: aCells) g[c.x][c.y] = 1;
        for (Cell c: bCells) g[c.x][c.y] = 1;

        int[] dx = {-1, 0, 1, 0}, dy = {0, 1, 0, -1};
        for (int i = 0; i < 4; i ++ ) {
            int x = aCells.get(aCells.size() - 1).x + dx[i];
            int y = aCells.get(aCells.size() - 1).y + dy[i];
            if (x >= 0 && x < 13 && y >= 0 && y < 14 && g[x][y] == 0) {
                return i;
            }
        }

        return 0;
    }
}
