深度测试

 深度测试：

ZTest 	[_ZComp] shader属性Enum(
        / LEqual / Always / Never(Off) / Greater / Less /GEqual / Equal / NotEqual

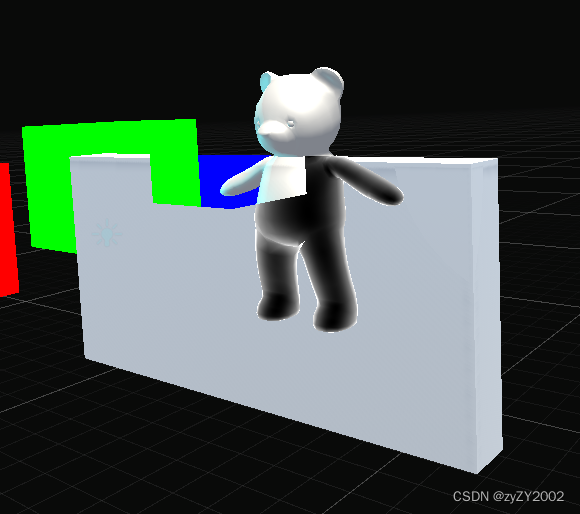

相机位置1 ：绘制顺序：绿红蓝

相机位置2：绘制顺序：绿蓝红

红：LEqual  绿：LEqual 蓝：Greater

渲染队列都是2000

Shader "may/Depth test"
{
    Properties
    {
        [Header(Depth)]
        [Enum( Off,0,On,1)]_ZWriteMode("Z Write Mode", Float ) = 1
        [Enum(UnityEngine.Rendering.CompareFunction)] _ZTestMode("Z Test Mode", Float) = 4

        [Header(Diffuse)]
        _BaseColor ("Base Color", 2D) = "white" {}
        _ColorTint ("Color Tint", Color) = (1, 1, 1, 1)

    }
    SubShader
    {
        Tags { "Queue" = "Geometry" "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            Name "Z Test"
            Tags {"LightMode" = "ForwardBase"}
            ZWrite [_ZWriteMode]
            ZTest [_ZTestMode]
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_fwdbase
            #include "UnityCG.cginc"


            struct a2v
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _BaseColor;
            float4 _BaseColor_ST;
            fixed4 _ColorTint;

            v2f vert (a2v v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _BaseColor);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                // diffuse
                fixed4 diffuseColor = tex2D(_BaseColor, i.uv) * _ColorTint;

                return diffuseColor;
            }
            ENDCG
        }
    }
}

XRay：

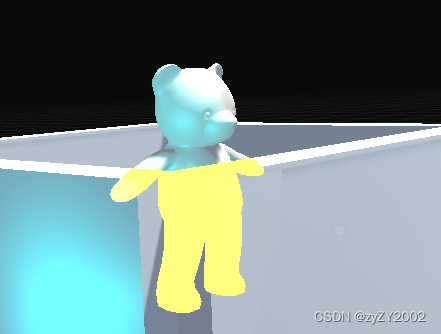

正常效果

Shader "may/XRay Depth Test"
{
    Properties
    {
        _AmbientOcclusion("AO Map",     2D) = "white"{}
        _BaseColor ("Base Color",       2D) = "white" {}
        _ColorTint("Color Tint",        Color) = (1,1,1,1)
        _XRayColor("XRay Color",        Color) = (1,1,1,1)
        _SpecularPow("Specular Pow",    Range(1, 40)) = 8
    }
    SubShader
    {

        CGINCLUDE
        #include "UnityCG.cginc"
        #include "Lighting.cginc"
        #include "AutoLight.cginc"
        sampler2D _AmbientOcclusion;
        float4 _AmbientOcclusion_ST;
        sampler2D _BaseColor;
        float4 _BaseColor_ST;
        fixed4 _ColorTint;
        fixed4 _XRayColor;
        half _SpecularPow;
        struct a2v
        {
            float4 vertex       :POSITION;
            fixed3 normalMS     :NORMAL;
            float2 uv           :TEXCOORD;
        };
        struct v2f
        {
            float4 pos          :SV_POSITION;
            fixed3 posWS        :TEXCOORD;
            float4 uv           :TEXCOORD1;
            half3 normalWS      :TEXCOORD2;
            SHADOW_COORDS(3)
        };
        v2f vert(a2v v)
        {
            v2f o;
            o.pos = UnityObjectToClipPos(v.vertex);
            o.posWS = mul(unity_ObjectToWorld, v.vertex);
            o.uv.xy = TRANSFORM_TEX(v.uv, _AmbientOcclusion);
            o.uv.zw = TRANSFORM_TEX(v.uv, _BaseColor);
            o.normalWS = UnityObjectToWorldNormal(v.normalMS);
            TRANSFER_SHADOW(o)
            return o;
        }
        fixed4 fragRegularBase(v2f i):SV_TARGET0
        {
            fixed3 normalWS = normalize(i.normalWS);
            fixed3 viewDirWS = normalize(UnityWorldSpaceViewDir(i.posWS));
            fixed3 lightDirWS = normalize(UnityWorldSpaceLightDir(i.posWS));

            //ambient
            fixed3 ambientColor = UNITY_LIGHTMODEL_AMBIENT.rgb * tex2D(_AmbientOcclusion, i.uv.xy);

            //diffuse
            fixed3 albedo = _ColorTint * pow( tex2D(_BaseColor,i.uv.zw), 2.2);      // Gamma correct
            fixed Lambert = max(0, dot(lightDirWS, normalWS));
            fixed3 diffuseColor = albedo * _LightColor0.rgb * Lambert;

            //specular
            fixed3 halfVector = normalize(viewDirWS + lightDirWS);
            fixed3 specularColor = _LightColor0 * pow( max(0, dot(halfVector, normalWS)), _SpecularPow );

            //shadow
            //fixed atten = SHADOW_ATTENUATION(i);
            UNITY_LIGHT_ATTENUATION(atten, i , i.posWS);

            fixed4 finalColor =  fixed4(ambientColor + (diffuseColor + specularColor) * atten, 1);
            return pow(finalColor, 0.45);     // convert to Gamma4
        }
        fixed4 fragRegularAdd(v2f i):SV_TARGET0
        {
            fixed3 normalWS = normalize(i.normalWS);
            fixed3 viewDirWS = normalize(UnityWorldSpaceViewDir(i.posWS));
            fixed3 lightDirWS = normalize(UnityWorldSpaceLightDir(i.posWS));

            //diffuse
            fixed3 albedo = _ColorTint * pow( tex2D(_BaseColor,i.uv.zw), 2.2);      // Gamma correct
            fixed Lambert = max(0, dot(lightDirWS, normalWS));
            fixed3 diffuseColor = albedo * _LightColor0.rgb * Lambert;

            //specular
            fixed3 halfVector = normalize(viewDirWS + lightDirWS);
            fixed3 specularColor = _LightColor0 * pow( max(0, dot(halfVector, normalWS)), _SpecularPow );

            //shadow
            UNITY_LIGHT_ATTENUATION(atten, i , i.posWS);

            fixed4 finalColor =  fixed4( (diffuseColor + specularColor) * atten, 1);
            return pow(finalColor, 0.45);     // convert to Gamma4
        }
        fixed4 fragXRay(v2f i):SV_TARGET0
        {
            return fixed4(1,1,0.5,1);
        }
        ENDCG


        Tags { "Queue" = " Geometry" "RenderType"="Opaque" }
        LOD 100

        pass
        {
            Name "XRay"
            Tags{"LightMode" = "ForwardBase"}
            ZTest Greater
            ZWrite Off

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment fragXRay
            ENDCG
        }
        Pass
        {
            Name "RegularBase"
            Tags{"LightMode" = "ForwardBase"}
            ZTest LEqual

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment fragRegularBase
            #pragma multi_compile_fwdbase
            ENDCG
        }
        Pass
        {
            Name "RegularAdd"
            Tags{"LightMode" = "ForwardAdd"}
            ZTest LEqual
            Blend One One

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment fragRegularAdd
            #pragma multi_compile_fwdadd
            ENDCG
        }


    }
    FallBack "Diffuse"
}

主要是两个Pass   P1：一个是画露出的部分           vert     fragRegularBase          fragRegularAdd
                              P2：一个是画遮挡的部分          vert     fragXRay

要先画P2， 如果先画P1，P1要写入深度，再画 P2 会画到自遮挡的部分


先画 P1 不能写入深度，模型深度（较大）不然会覆盖掉墙（较小）的深度
保证墙在该模型前面绘制，即墙先写入深度。

其实可以在Transparent队列渲染，保证渲染顺序

较大深度值覆盖较小的深度值：

ZWrite On ZTest Greater

物体：墙，熊，绿块，蓝块，

渲染队列都是 2000，渲染顺序：墙，蓝块，绿块，熊被遮挡部分，熊露出的部分fwdbase，熊露出部分fwdadd。

渲染蓝块时，会将墙写入的较小的深度，改为较大的深度，此时绿块和熊的部分算作没被墙遮挡。
