前言
Mathworks在2016年初推出R2016a,这个版本初次引入App Designer,用于代替GUIDE。我之前看了很多关于GUIDE的新手教程,在接触App Designer之后,感觉一点点的一言难尽。对于老手来说,App Designer确实有实力去代替GUIDE,界面更加灵活,而且排版都很接见现代社会;但是对于新手来说,App Designer的学习难度高于GUIDE(对于我来说)。
这里强烈推荐一个MATLAB App Designer的学习网站:
https://www.bilibili.com/video/BV1Kz4y1R7X2/?p=5&spm_id_from=333.880.my_history.page.click&vd_source=1861080cbedb7db7f4b12c242abf7138
下面就初步介绍一下App Designer的基础创建与使用,以及与遥感基础图像处理相结合。
一、app.UIAxes和app.button创建与使用
-

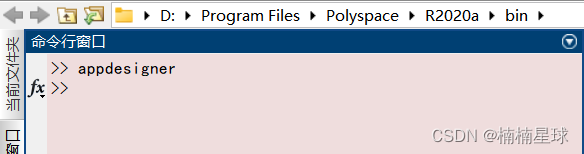

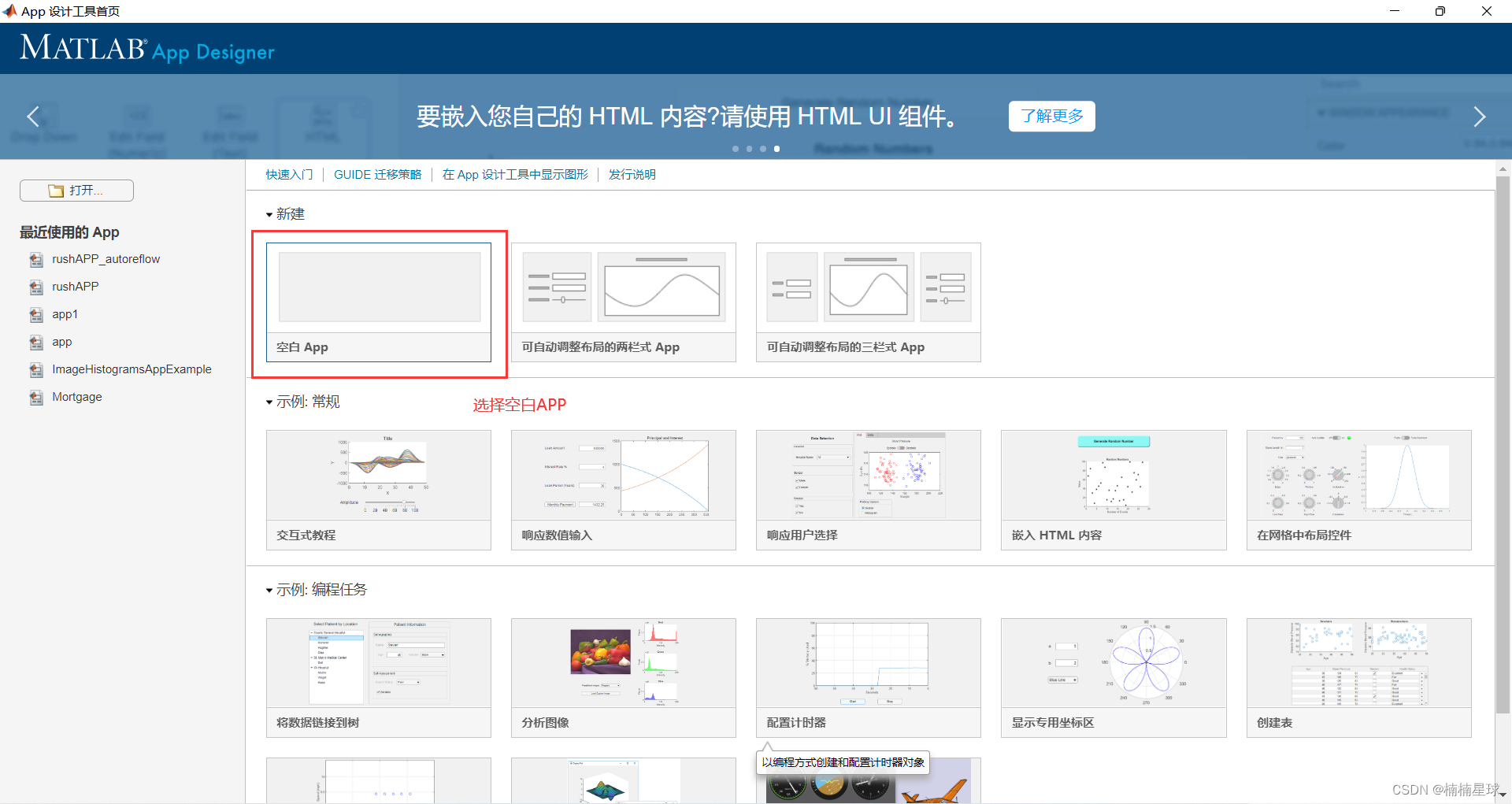

在命令行窗口输入appdesinger
-

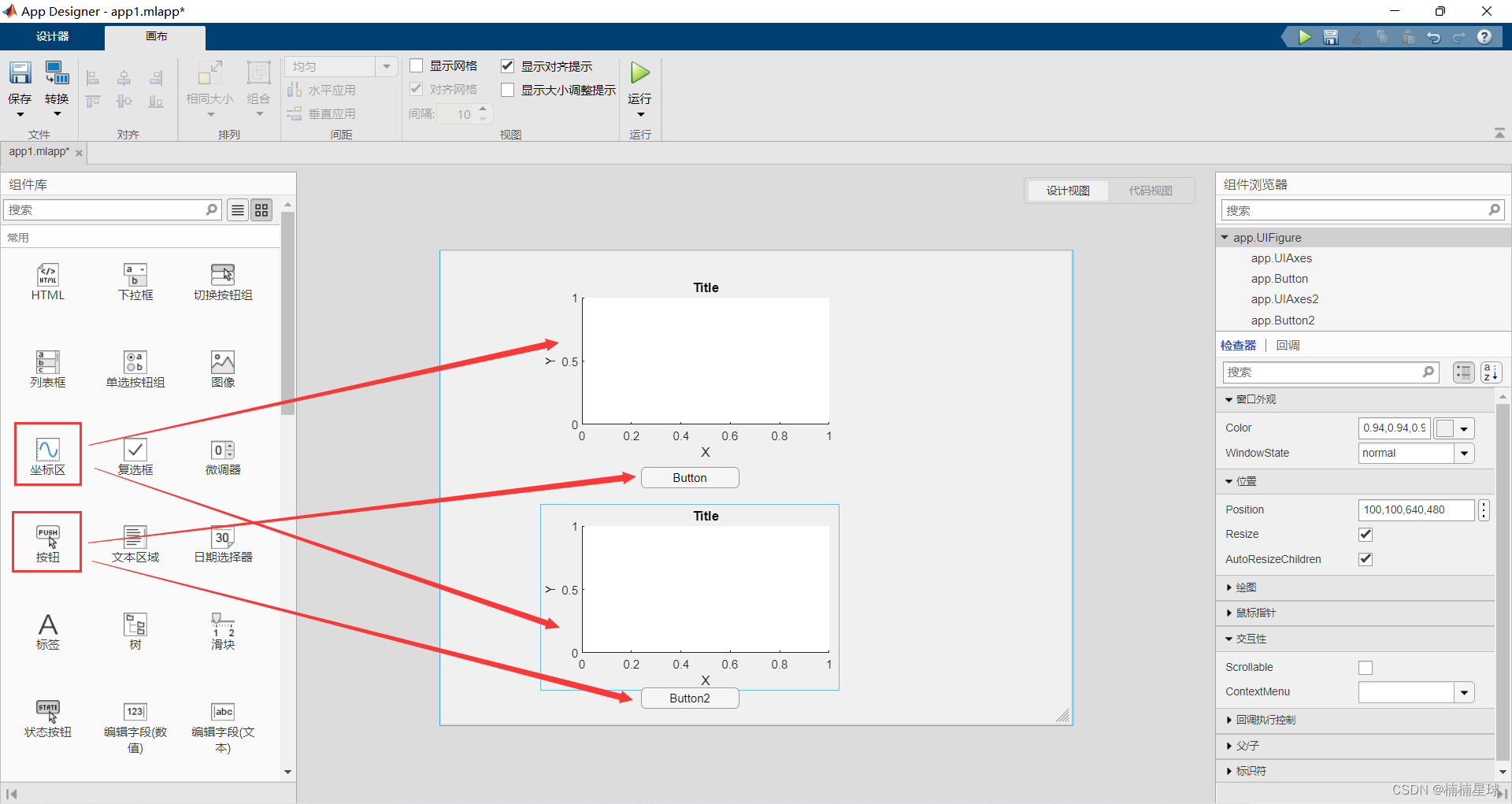

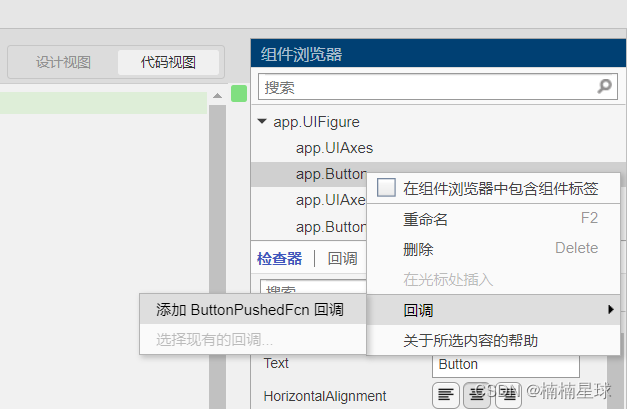

布局好组件之后,在上方点击代码视图,在右侧的组件浏览器找到app.button,右击选择回调—添加ButtonPushedFcn回调
-

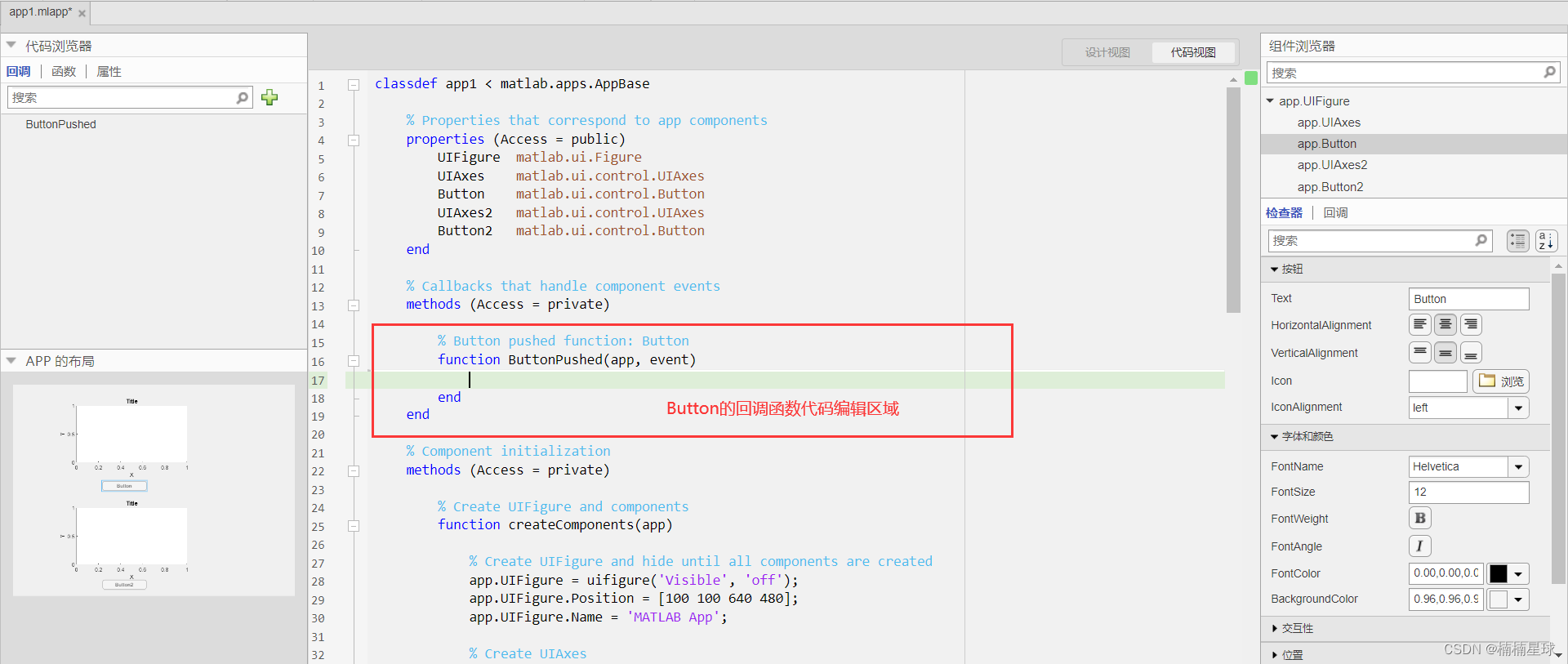

在代码编辑区里面输入自己的代码,和正常代码一样
需要注意一下几点:
1、由于我们的坐标区和按钮各有两个,button2会借用button的值,所以需要声明全局变量image2
2、坐标区app.UIAxes是没有回调函数,而是里面imshow函数,将image图像矩阵作为父级反馈给app.UIAxes

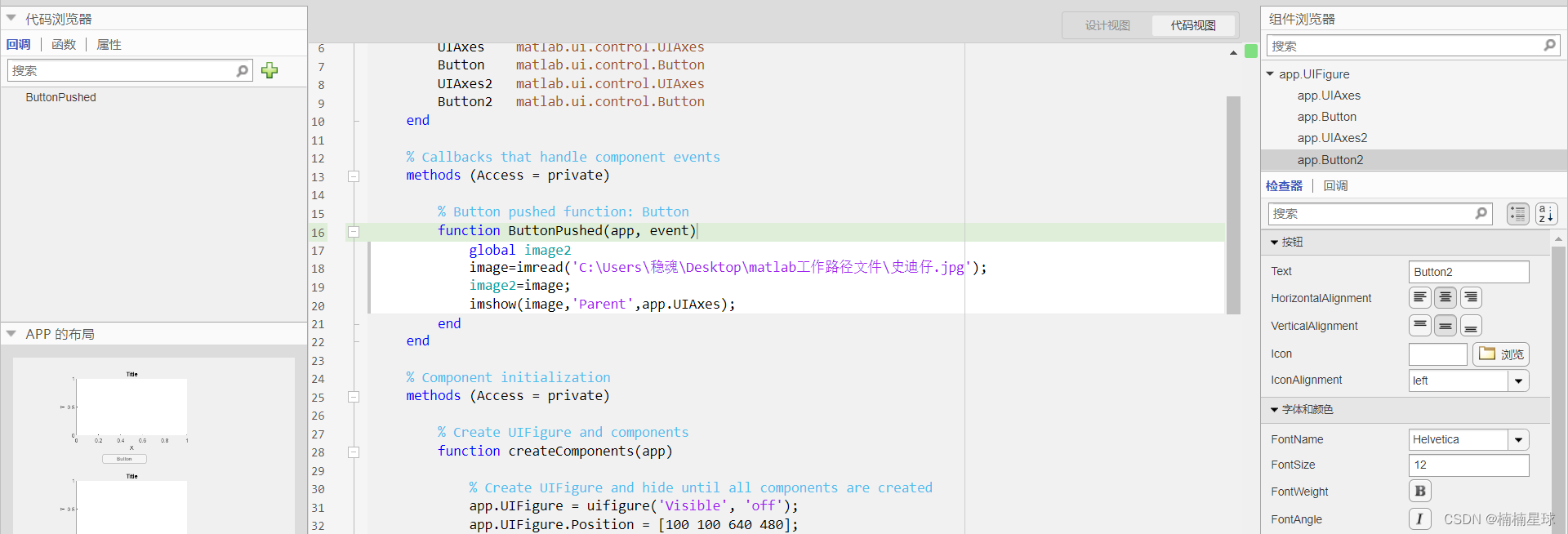

% Button pushed function: Button
function ButtonPushed(app, event)
global image2
image=imread('C:\Users\稳魂\Desktop\matlab工作路径文件\史迪仔.jpg');
image2=image;
imshow(image,'Parent',app.UIAxes);
end
-

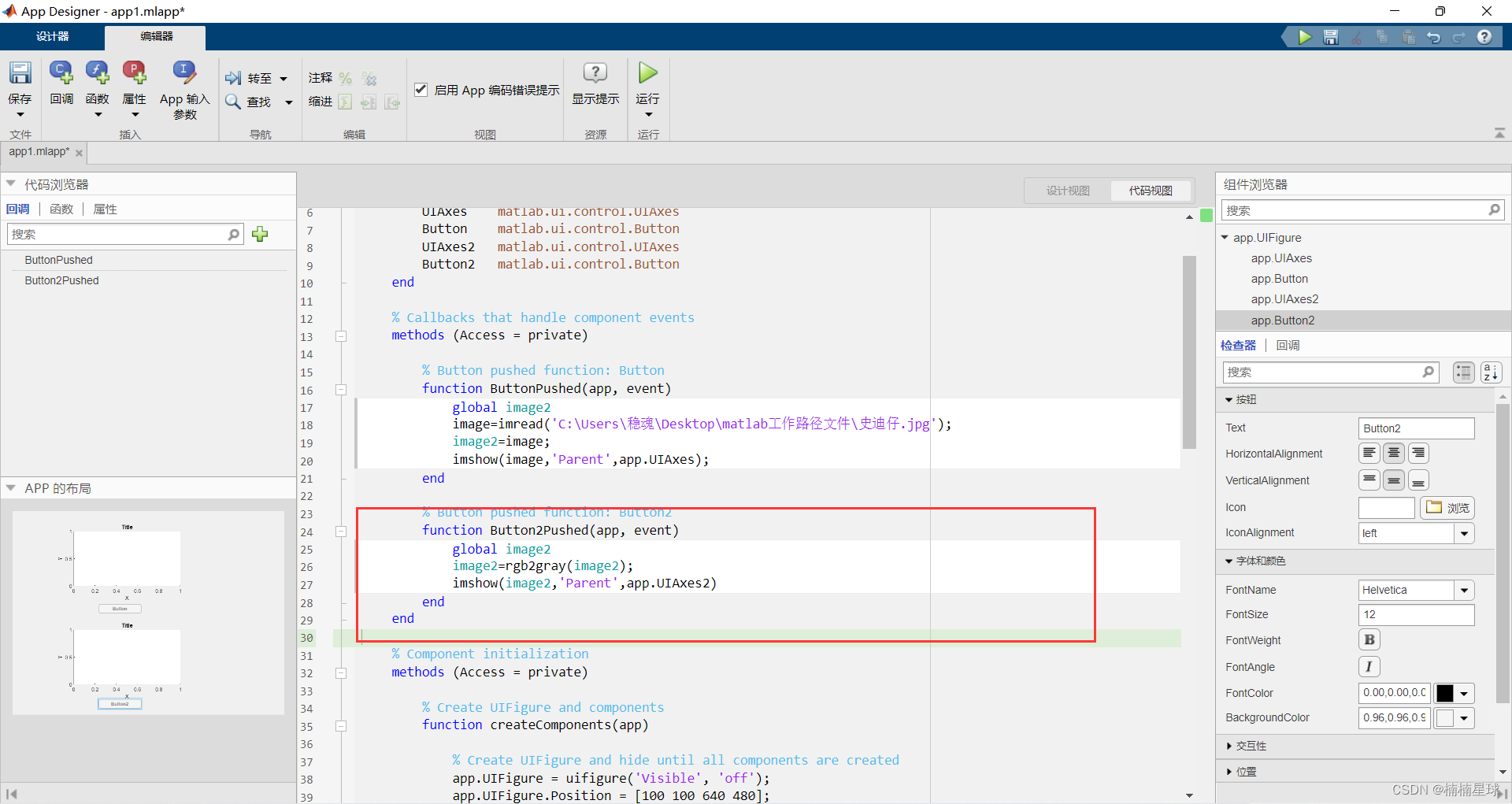

按照步骤二的方法,我们添加button2的回调函数,在代码编辑区里面输入代码
同样需要里面global函数声明一下image2,便与传递
% Button pushed function: Button2
function Button2Pushed(app, event)
global image2
image2=rgb2gray(image2);
imshow(image2,'Parent',app.UIAxes2)
end
-

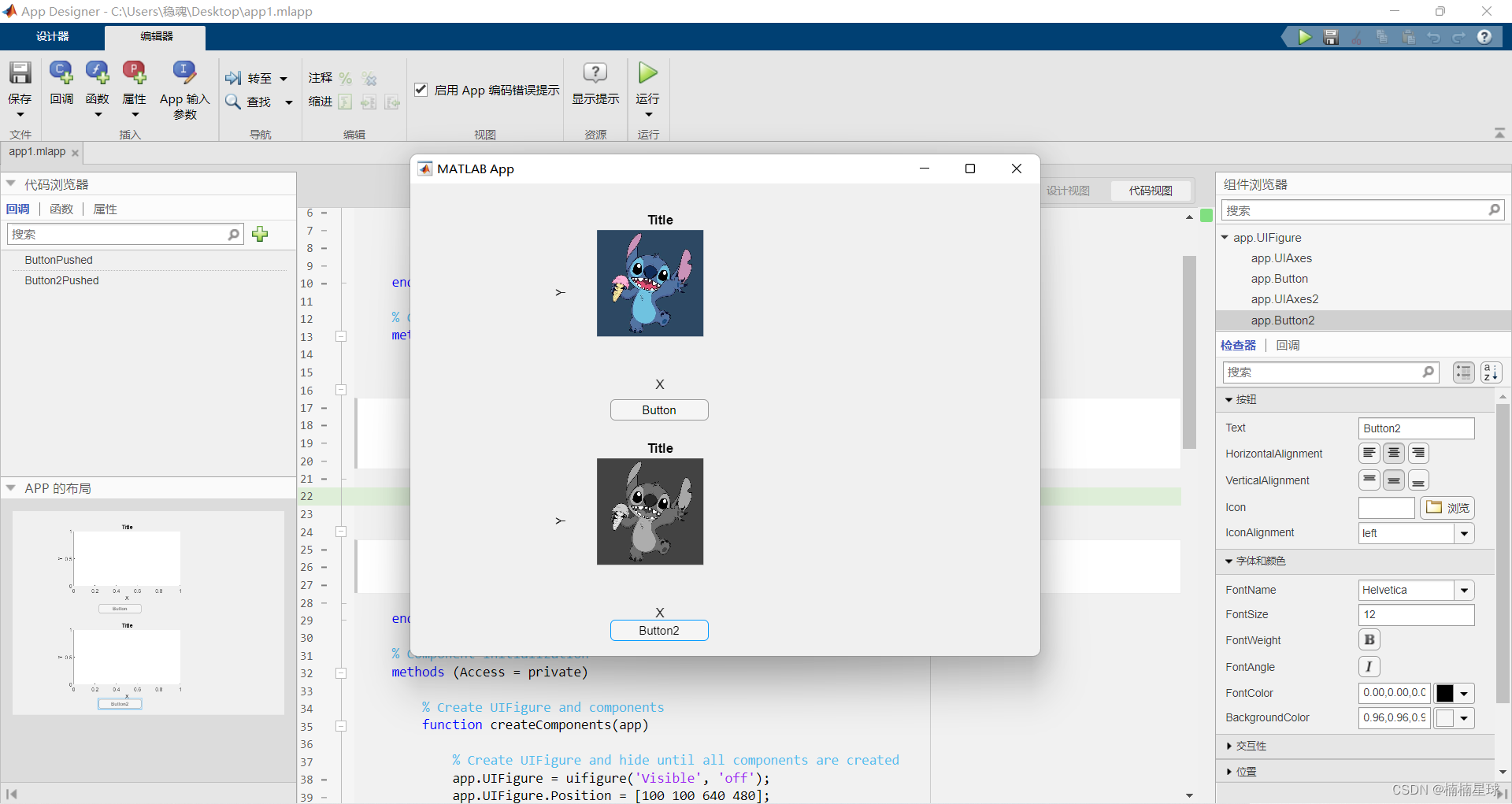

完成上述步骤,之后我们点击运行

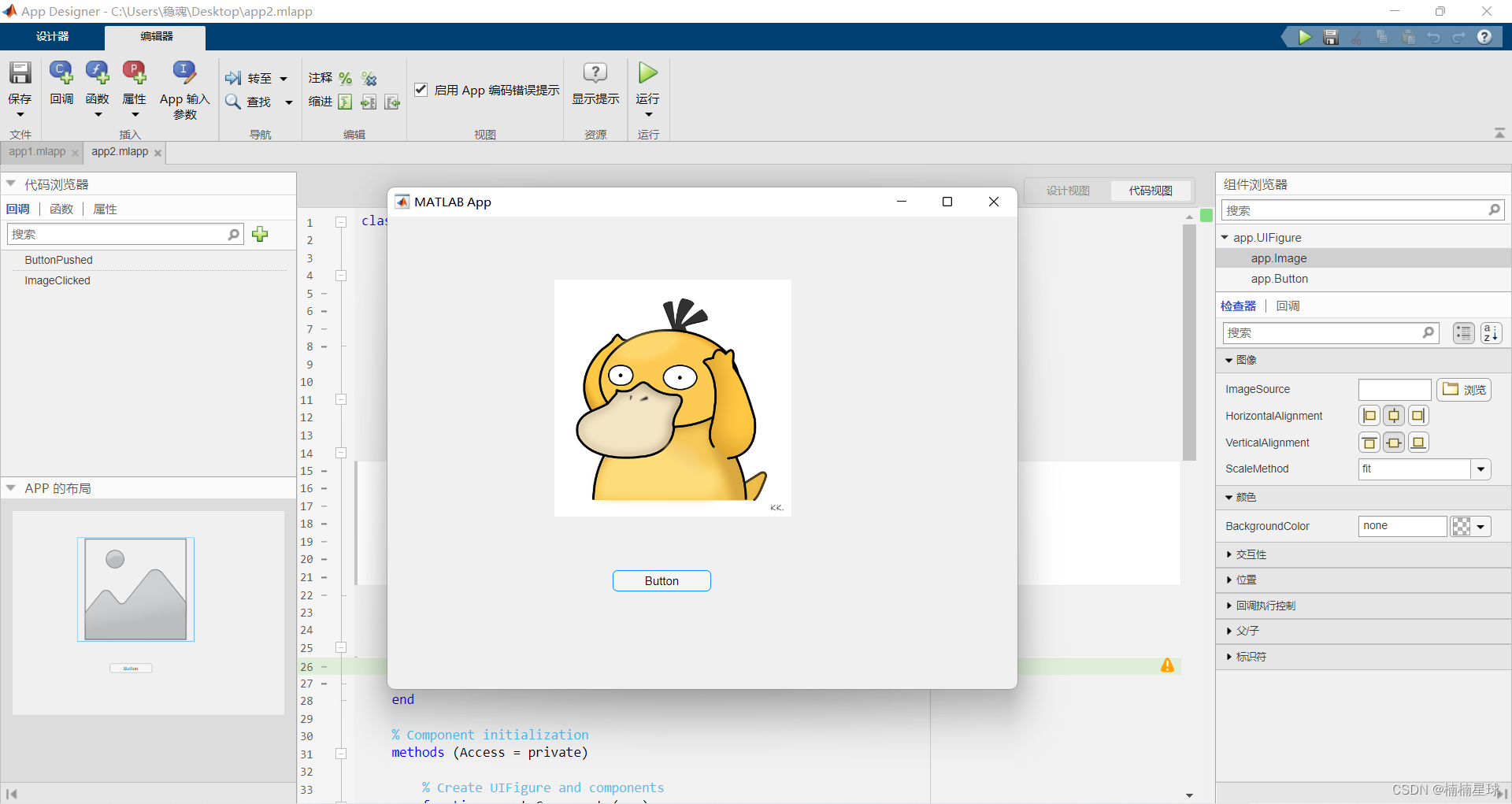

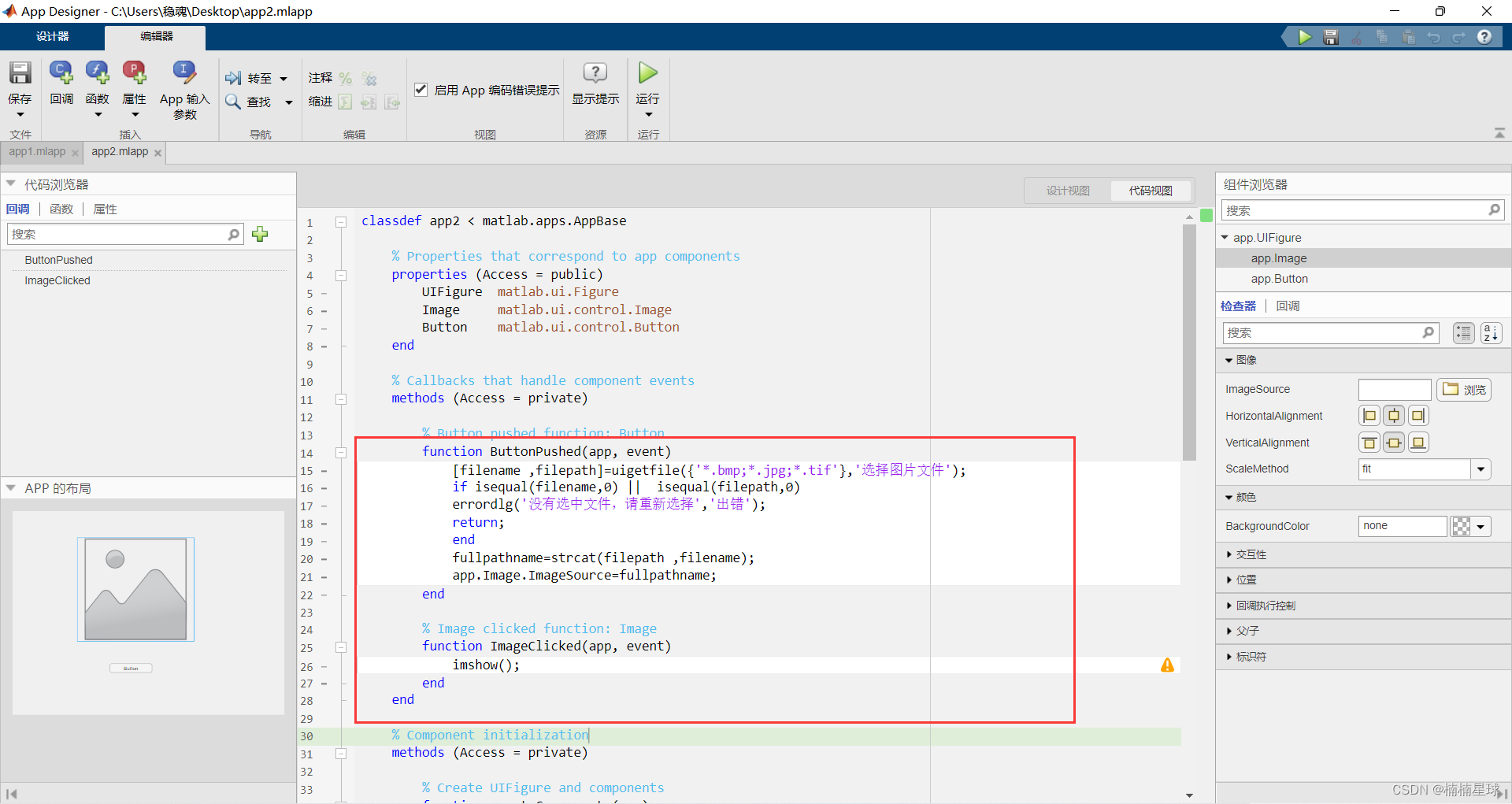

二、app.image和app.button创建与使用
其实这些组件间的变量传递有很多方法,只要不触碰Appdesigner的代码写作规则,还是和基础脚本差不多。

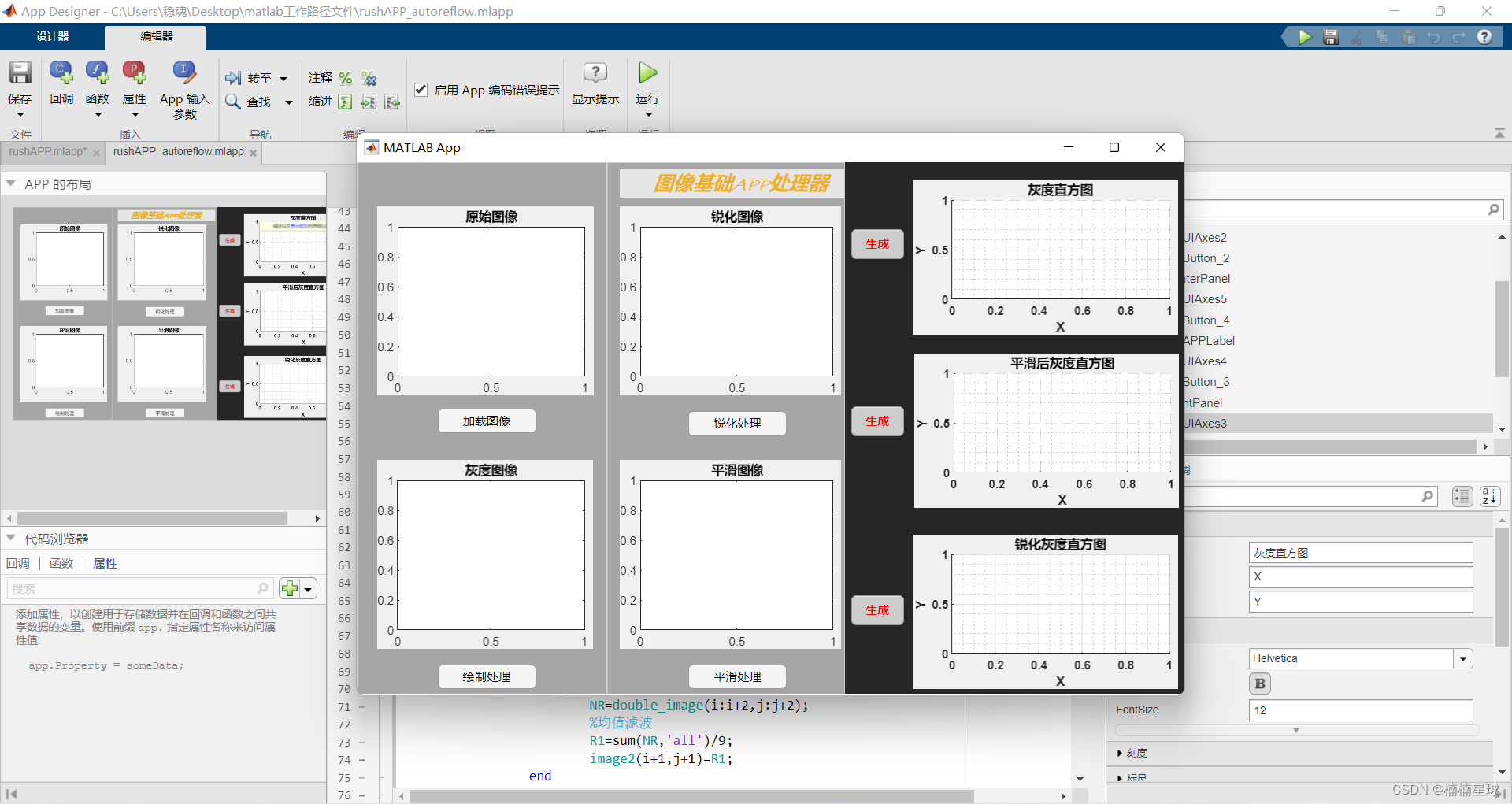

三、MATLAB appdesinger与图像基础处理结合
代码必要解释
uigetfile是调用读取文件的人机交互窗口的函数
isequal函数是判断变量是否满足某一条件
isequal函数是判断变量是否满足某一条件
padarry是用于在矩阵外围拓展一圈的函数
imhist函数是用于统计图像矩阵,[像元值,像元个数]
imfilter函数是matlab自带的锐化处理的函数
% Button pushed function: Button
function ButtonPushed(app, event)
%-------------------------------------------------------------------
% '加载影像'的button代码段
%-------------------------------------------------------------------
global image image2 image3 ;
[filename ,filepath]=uigetfile({'*.bmp;*.jpg;*.tif'},'选择图片文件');
if isequal(filename,0) || isequal(filepath,0)
errordlg('没有选中文件,请重新选择','出错');
return;
end
fullpathname=strcat(filepath ,filename);
image=imread(fullpathname);
image2=imread(fullpathname);
image3=imread(fullpathname);
imshow(image,'Parent',app.UIAxes);
end
% Button pushed function: Button_3
function Button_3Pushed(app, event)
%-------------------------------------------------------------------
%'平滑处理'的button代码段
%-------------------------------------------------------------------
global image2 double_image NR R1 rows cols;
image2=rgb2gray(image2);
image2=padarray(image2,[1,1]);
double_image=double(image2);
[rows,cols]=size(double_image);
for i=1:rows-2
for j=1:cols-2
NR=double_image(i:i+2,j:j+2);
%均值滤波
R1=sum(NR,'all')/9;
image2(i+1,j+1)=R1;
end
end
imshow(image2,'Parent',app.UIAxes4);
end
% Button pushed function: Button_2
function Button_2Pushed(app, event)
%-------------------------------------------------------------------
% '灰度处理'的button代码段
%-------------------------------------------------------------------
global image image1 ;
image1=rgb2gray(image);
imshow(image1,'Parent',app.UIAxes2);
end
% Button pushed function: Button_5
function Button_5Pushed(app, event)
%-------------------------------------------------------------------
% '生成'灰度直方图的button代码段
%-------------------------------------------------------------------
global image1 hd_hist image1_k;
image1_k=padarray(image1,[1,1]);
[x,y]=imhist(image1_k,255);
hd_hist=[x,y];
plot(hd_hist,'Parent',app.UIAxes3);
app.UIAxes3.XLabel.String='像元值';
app.UIAxes3.YLabel.String='频数';
end
% Button pushed function: Button_4
function Button_4Pushed(app, event)
%-------------------------------------------------------------------
% '锐化处理'的button代码段
%-------------------------------------------------------------------
global I4 image3 image_ruihua;
I4=imfilter(image3,fspecial('laplacian',0.2),'replicate','same');
image_ruihua=imadd(I4.*0.95,image3);
imshow(image_ruihua,'Parent',app.UIAxes5);
end
% Button pushed function: Button_6
function Button_6Pushed(app, event)
%-------------------------------------------------------------------
% '生成'平滑后灰度直方图的button代码段
%-------------------------------------------------------------------
global image2 hd_hist2 ;
[x,y]=imhist(image2,255);
hd_hist2=[x,y];
plot(hd_hist2,'Parent',app.UIAxes6);
app.UIAxes6.XLabel.String='像元值';
app.UIAxes6.YLabel.String='频数';
end
% Button pushed function: Button_7
function Button_7Pushed(app, event)
%-------------------------------------------------------------------
% '生成'锐化后灰度直方图的button代码段
%-------------------------------------------------------------------
global image3 hd_hist3 rgb_image3;
rgb_image3=rgb2gray(image3);
[x,y]=imhist(rgb_image3,255);
hd_hist3=[x,y];
plot(hd_hist3,'Parent',app.UIAxes7);
app.UIAxes7.XLabel.String='像元值';
app.UIAxes7.YLabel.String='频数';
end

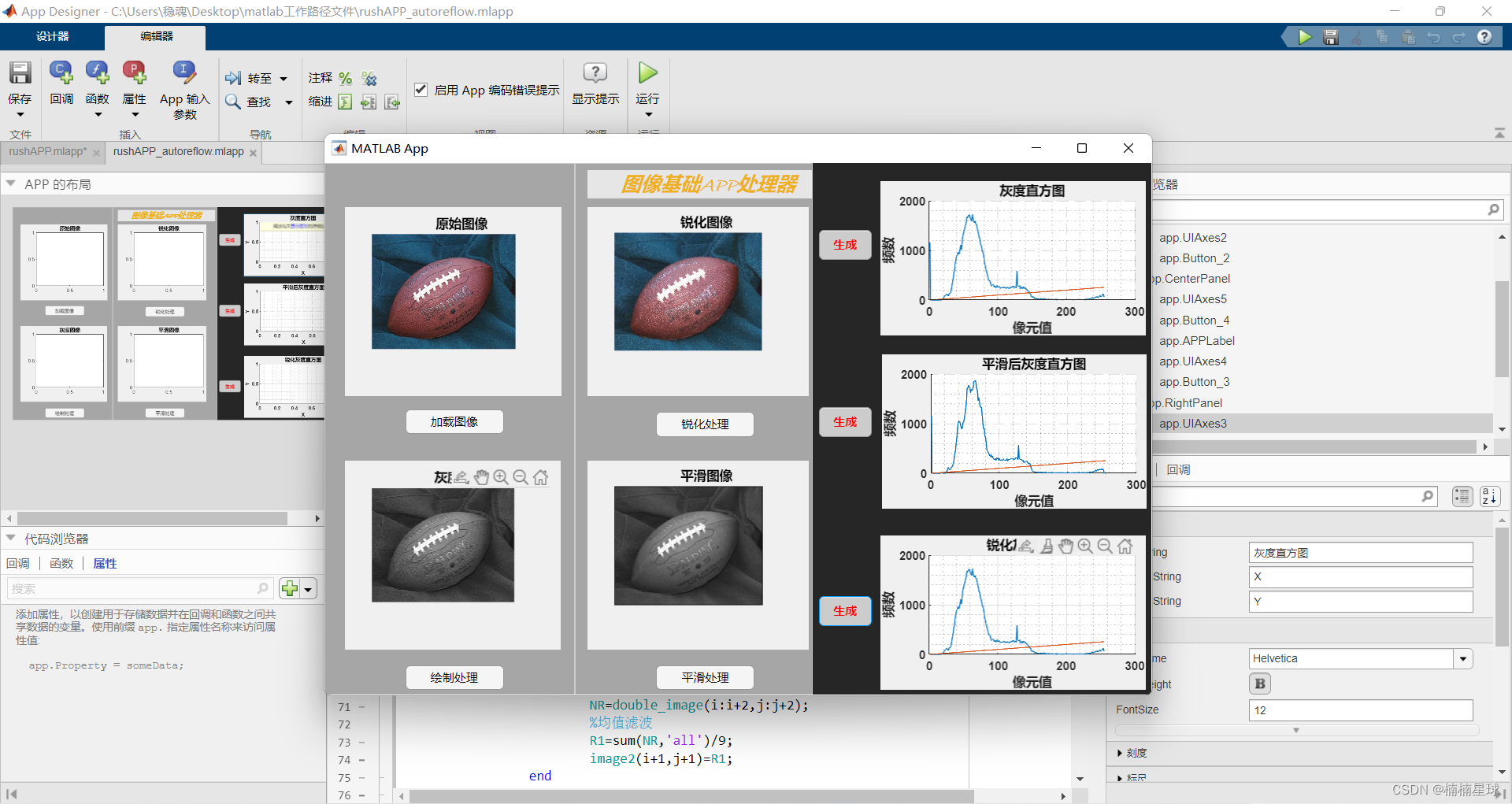

运行结果
