EasyExcel的单元格内插入多张图片的实现

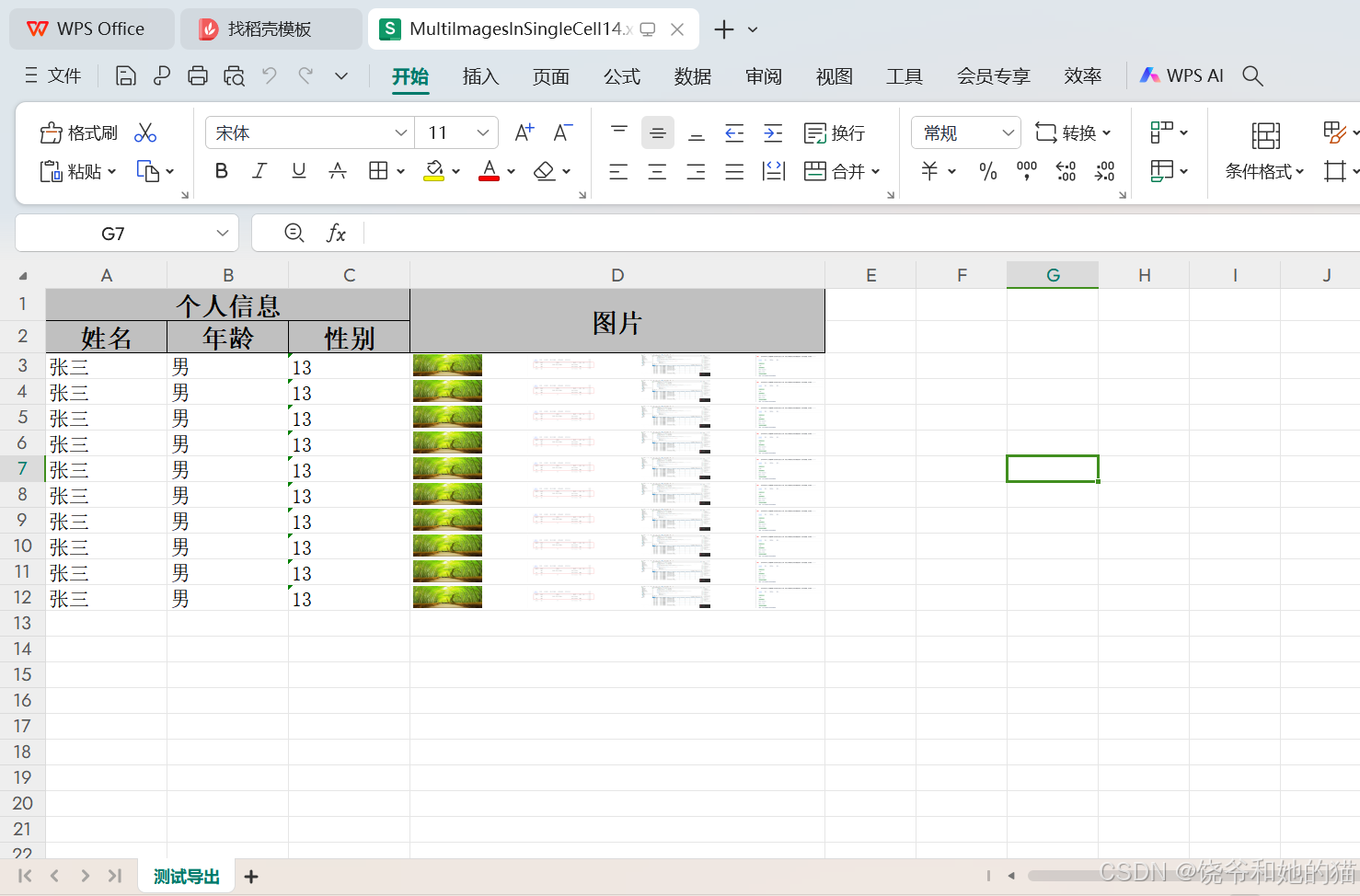

话不多说，先上结果展示



我经常使用的excel的导出库只有EasyExcel 和ApachePoi，但是经过我的研究，发现ApachePoi实现不了在同一个单元格内插入多张图片的需求，及时使用了锚点相关的x1,x2,y1,y2去控制，但是所呈现出来的结果，仅仅是两张图片稍微错开了一小点，所以就放弃了对ApachePoi的研究，转而去研究了EasyExcel

涉及到的Maven坐标如下

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>easyexcel</artifactId>
    <version>3.0.5</version>
</dependency>

以下是我所有涉及到的代码


import com.alibaba.excel.enums.CellDataTypeEnum;
import com.alibaba.excel.metadata.Head;
import com.alibaba.excel.metadata.data.WriteCellData;
import com.alibaba.excel.util.MapUtils;
import com.alibaba.excel.write.metadata.holder.WriteSheetHolder;
import com.alibaba.excel.write.style.column.AbstractColumnWidthStyleStrategy;
import com.baomidou.mybatisplus.core.toolkit.CollectionUtils;
import org.apache.poi.ss.usermodel.Cell;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class AutoColumnWidthStyleStrategy extends AbstractColumnWidthStyleStrategy {

    private static final int MAX_COLUMN_WIDTH = 255;

    //自定义列的列宽
    private Map<String, Integer> zdyColumnWidth = MapUtils.newHashMapWithExpectedSize(2);


    private final Map<Integer, Map<Integer, Integer>> cache = MapUtils.newHashMapWithExpectedSize(8);

    @Override
    protected void setColumnWidth(WriteSheetHolder writeSheetHolder, List<WriteCellData<?>> cellDataList, Cell cell,
                                  Head head,
                                  Integer relativeRowIndex, Boolean isHead) {
        boolean needSetWidth = isHead || !CollectionUtils.isEmpty(cellDataList);
        if (!needSetWidth) {
            return;
        }

        if (zdyColumnWidth.containsKey(cell.toString())) {
            writeSheetHolder.getSheet().setColumnWidth(cell.getColumnIndex(), zdyColumnWidth.get(cell.toString()) * 256);
            return;
        }

        Map<Integer, Integer> maxColumnWidthMap = cache.get(writeSheetHolder.getSheetNo());
        if (maxColumnWidthMap == null) {
            maxColumnWidthMap = new HashMap<Integer, Integer>(16);
            cache.put(writeSheetHolder.getSheetNo(), maxColumnWidthMap);
        }
        Integer columnWidth = dataLength(cellDataList, cell, isHead);
        if (columnWidth < 0) {
            return;
        }
        if (columnWidth > MAX_COLUMN_WIDTH) {
            columnWidth = MAX_COLUMN_WIDTH;
        }
        Integer maxColumnWidth = maxColumnWidthMap.get(cell.getColumnIndex());
        if (maxColumnWidth == null || columnWidth > maxColumnWidth) {
            maxColumnWidthMap.put(cell.getColumnIndex(), columnWidth);
            writeSheetHolder.getSheet().setColumnWidth(cell.getColumnIndex(), columnWidth * 256);
        }
    }

    private Integer dataLength(List<WriteCellData<?>> cellDataList, Cell cell, Boolean isHead) {
        if (isHead) {
            return cell.getStringCellValue().getBytes().length;
        }
        WriteCellData<?> cellData = cellDataList.get(0);
        CellDataTypeEnum type = cellData.getType();
        if (type == null) {
            return -1;
        }
        switch (type) {
            case STRING:
                return cellData.getStringValue().getBytes().length;
            case BOOLEAN:
                return cellData.getBooleanValue().toString().getBytes().length;
            case NUMBER:
                return cellData.getNumberValue().toString().getBytes().length;
            default:
                return -1;
        }
    }

    public void setZdyColumnWidth(Map<String, Integer> zdyColumnWidth) {
        this.zdyColumnWidth = zdyColumnWidth;
    }
}

@Test
    void 导出() {
        try {
            // 指定文件保存的路径
            String targetFolderPath = "C:\\Users\\IEBE\\AEDI\\";
            File targetFolder = new File(targetFolderPath);
            if (!targetFolder.exists()) {
                targetFolder.mkdirs(); // 如果文件夹不存在，创建文件夹
            }

            // 生成文件名
            Random random = new Random();
            int randomNumber = 10 + random.nextInt(90);
            String name = "MultiImagesInSingleCell" + randomNumber + ".xlsx";
            String fileName = URLEncoder.encode(name, "UTF-8").replaceAll("\\+", "%20");
            AutoColumnWidthStyleStrategy longWidth = new AutoColumnWidthStyleStrategy();

            // 创建文件对象
            File outputFile = new File(targetFolder, fileName);
            List<List<Object>> list = 填充数据(longWidth);
            // 使用FileOutputStream写入数据
            EasyExcel.write(new FileOutputStream(outputFile))
                    .head(填充标题())
                    .registerWriteHandler(longWidth)
                    .sheet("测试导出")
                    .doWrite(list);
            log.info("+++++++++++++" + name);
        } catch (Exception e) {
            log.info("导出失败===》[{}]", e);
        }
    }

    private List<List<String>> 填充标题() {
        LinkedList<List<String>> list = new LinkedList<>();
        List<String> head1 = List.of("个人信息", "姓名");
        list.add(head1);
        List<String> head2 = List.of("个人信息", "年龄");
        list.add(head2);
        List<String> head3 = List.of("个人信息", "性别");
        list.add(head3);
        List<String> head4 = List.of("图片", "图片");
        list.add(head4);

        return list;

    }

    private List<List<Object>> 填充数据(AutoColumnWidthStyleStrategy longWidth) {
        List<List<Object>> list = new LinkedList<>();
        for (int j = 0; j < 10; j++) {
            int i = 0;
            List<Object> row = new ArrayList<>();
            row.add(i++, "张三");
            row.add(i++, "男");
            row.add(i++, "13");
            i = 填充图片(row, i, longWidth, List.of(
                    "C:\\Users\\23606\\Desktop\\图片测试\\a.png",
                    "C:\\Users\\23606\\Desktop\\图片测试\\b.png",
                    "C:\\Users\\23606\\Desktop\\图片测试\\c.png",
                    "C:\\Users\\23606\\Desktop\\图片测试\\d.png"));

            list.add(row);
        }


        return list;
    }

    private int 填充图片(List<Object> row, int index, AutoColumnWidthStyleStrategy longWidth, List<String> imagePaths) {

        final Integer[] sumWidthArray = {120};
        imagePaths.forEach(item -> {

            //每张图片间距
            Integer splitWidth = 2;
            //每张图片的长度
            Integer imageWidth = 60;
            //图片列的最大长度
            sumWidthArray[0] = imagePaths.size() * (imageWidth + splitWidth);
        });

        //每张图片间距
        Integer splitWidth = 2;
        //每张图片的长度
        Integer imageWidth = 60;
        //图片列的最大长度
        Integer sumWidth = imagePaths.size() * (imageWidth + splitWidth);
        WriteCellData<Void> writeCellData = new WriteCellData<>();
        List<ImageData> imageDataList = new ArrayList<>();
        for (int i = 1; i <= imagePaths.size(); i++) {

            Integer left = imageWidth * (i - 1) + i * splitWidth;
            Integer right = sumWidth - imageWidth - left;
            ImageData imageData = new ImageData();
            byte[] bytes = null;
            InputStream inputStream = null;
            ByteArrayOutputStream outputStream = null;
            try {
                inputStream = new FileInputStream(imagePaths.get(i - 1));
                outputStream = new ByteArrayOutputStream();
                // 对图片进行压缩
                Thumbnails.of(inputStream).scale(0.9f).outputQuality(0.3f).toOutputStream(outputStream);
                bytes = outputStream.toByteArray();
            } catch (IOException e) {
                log.error(e.getMessage(), e);
                continue;
            } finally {
                if (inputStream != null) {
                    try {
                        inputStream.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
            }
            if (bytes.length < 1) {
                continue;
            }

            imageData.setImage(bytes);
            imageData.setImageType(ImageData.ImageType.PICTURE_TYPE_JPEG);
            //距离单元格顶部距离
            imageData.setTop(1);
            //距离单元格底部距离
            imageData.setBottom(1);
            //距离单元格左边距离
            imageData.setLeft(left);
            //距离单元格右边距离
            imageData.setRight(right);
            imageData.setAnchorType(ClientAnchorData.AnchorType.DONT_MOVE_DO_RESIZE);
            imageDataList.add(imageData);
        }

        writeCellData.setImageDataList(imageDataList);
        writeCellData.getType();

        Map<String, Integer> zdyColumnWidth = new HashMap<>();
        //图片列名称，对应导出对象的列名称，图片列长度
        zdyColumnWidth.put("图片", sumWidthArray[0] / 6);
        longWidth.setZdyColumnWidth(zdyColumnWidth);
        row.add(index++, writeCellData);
        return index;
    }
