project.exec {
if (Os.isFamily(Os.FAMILY_WINDOWS)) {
commandLine(‘cmd’, ‘/c’, “attrib -r ${assetsDirectory}/* /s”)
} else {
commandLine(‘chmod’, ‘-R’, ‘u+w’, assetsDirectory)
}
}
}
}
//项目构建中间产物的文件，也就是根目录下build/intermediates/flutter/debug/libs.jar文件
File libJar = project.file(“ p r o j e c t . b u i l d D i r / {project.buildDir}/ project.buildDir/{AndroidProject.FD_INTERMEDIATES}/flutter/${variant.name}/libs.jar”)
//6、创建packLibsFlutterBuildProfile、packLibsFlutterBuildDebug、packLibsFlutterBuildRelease任务，主要是产物的复制挪位置操作，Jar 类型的 task
//作用就是把build/intermediates/flutter/debug/下依据abi生成的app.so通过jar命令打包成build/intermediates/flutter/debug/libs.jar
Task packFlutterAppAotTask = project.tasks.create(name: “packLibs F L U T T E R B U I L D P R E F I X {FLUTTER_BUILD_PREFIX} FLUTTERBUILDPREFIX{variant.name.capitalize()}”, type: Jar) {
//目标路径为build/intermediates/flutter/debug目录
destinationDir libJar.parentFile
//文件名为libs.jar
archiveName libJar.name
//依赖前面步骤5定义的compileFlutterBuildDebug，也就是说，这个task基本作用是产物处理
dependsOn compileTask
//targetPlatforms取值为android-arm、android-arm64、android-x86、android-x64
targetPlatforms.each { targetPlatform ->
//abi取值为armeabi-v7a、arm64-v8a、x86、x86_64
String abi = PLATFORM_ARCH_MAP[targetPlatform]
//数据来源来自步骤5的compileFlutterBuildDebug任务中间产物目录
//即把build/intermediates/flutter/debug/下依据abi生成的app.so通过jar命令打包成一个build/intermediates/flutter/debug/libs.jar文件
from(“ c o m p i l e T a s k . i n t e r m e d i a t e D i r / {compileTask.intermediateDir}/ compileTask.intermediateDir/{abi}”) {
include “*.so”
// Move app.so to lib/<abi>/libapp.so
rename { String filename ->
return “lib/ a b i / l i b {abi}/lib abi/lib{filename}”
}
}
}
}
//前面有介绍过addApiDependencies作用，把 packFlutterAppAotTask 产物加到依赖项里面参与编译
//类似implementation files(‘libs.jar’)，然后里面的so会在项目执行标准mergeDebugNativeLibs task时打包进标准lib目录
addApiDependencies(project, variant.name, project.files {
packFlutterAppAotTask
})
// 当构建有is-plugin属性时则编译aar
boolean isBuildingAar = project.hasProperty(‘is-plugin’)
//7、当是Flutter Module方式，即Flutter以aar作为已存在native安卓项目依赖时才有这些:flutter:模块依赖，否则没有这些task
//可以参见新建的FlutterModule中.android/include_flutter.groovy中gradle.project(“:flutter”).projectDir实现
Task packageAssets = project.tasks.findByPath(“:flutter:package${variant.name.capitalize()}Assets”)
Task cleanPackageAssets = project.tasks.findByPath(“:flutter:cleanPackage${variant.name.capitalize()}Assets”)
//判断是否为FlutterModule依赖
boolean isUsedAsSubproject = packageAssets && cleanPackageAssets && !isBuildingAar
//8、新建copyFlutterAssetsDebug task，目的就是copy产物，也就是assets归档
//常规merge中间产物类似，不再过多解释，就是把步骤5 task产物的assets目录在mergeAssets时复制到主包中间产物目录
Task copyFlutterAssetsTask = project.tasks.create(
name: “copyFlutterAssets${variant.name.capitalize()}”,
type: Copy,
) {
dependsOn compileTask
with compileTask.assets
if (isUsedAsSubproject) {
dependsOn packageAssets
dependsOn cleanPackageAssets
into packageAssets.outputDir
return
}
// variant.mergeAssets will be removed at the end of 2019.
def mergeAssets = variant.hasProperty(“mergeAssetsProvider”) ?
variant.mergeAssetsProvider.get() : variant.mergeAssets
dependsOn mergeAssets
dependsOn “clean${mergeAssets.name.capitalize()}”
mergeAssets.mustRunAfter(“clean${mergeAssets.name.capitalize()}”)
into mergeAssets.outputDir
}
if (!isUsedAsSubproject) {
def variantOutput = variant.outputs.first()
def processResources = variantOutput.hasProperty(“processResourcesProvider”) ?
variantOutput.processResourcesProvider.get() : variantOutput.processResources
processResources.dependsOn(copyFlutterAssetsTask)
}
return copyFlutterAssetsTask
} // end def addFlutterDeps
…
}
上面这段比较直观，步骤5细节我们后面会分析这个 FlutterTask；对于步骤 6 其实也蛮直观，我们执行 flutter build apk 后看产物目录如下：
这个 jar 也是重点，它里面其实不是 class，而是上图中的 abi 对应 app.so，也就是 dart app 编译的 so。所以 libs.jar 解压如下：
这货会被类似 implementation files(‘libs.jar’) 添加进我们 project 的编译依赖项中，然后里面的 so 会在项目执行标准 mergeDebugNativeLibs task 时打包进标准 lib 目录，所以最终 apk 中 app.so 位于 lib 目录下（好奇反思：官方这里为什么不直接弄成 aar，而是把 so 打进 jar，感觉回到了 eclipse 时代，没整明白为什么）。
对于步骤 8 来说，assets 合并复制操作在 app 主包的中间产物中效果如下：
因此，步骤 6、步骤 8 的产物最终编译后就是 apk 中对应的东西，对应 apk 解压如下：
上面步骤5中的 FlutterTask 我们先放一放，让我们先继续看 addFlutterTasks 这个方法剩下的部分：
private void addFlutterTasks(Project project) {
//…上面已分析，下面接续分析
//1、如果是applicationVariants就走进去，也就是说project是app module
if (isFlutterAppProject()) {
project.android.applicationVariants.all { variant ->
//也就是assemble task咯
Task assembleTask = getAssembleTask(variant)
//正常容错，不用关心
if (!shouldConfigureFlutterTask(assembleTask)) {
return
}
//把前面定义的addFlutterDeps函数调用返回的copyFlutterAssetsTask任务拿到作为依赖项
//这货的作用和产物前面已经图示贴了产物
Task copyFlutterAssetsTask = addFlutterDeps(variant)
def variantOutput = variant.outputs.first()
def processResources = variantOutput.hasProperty(“processResourcesProvider”) ?
variantOutput.processResourcesProvider.get() : variantOutput.processResources
processResources.dependsOn(copyFlutterAssetsTask)
//2、执行flutter run或者flutter build apk的产物apk归档处理
//不多解释，下面会图解说明
variant.outputs.all { output ->
assembleTask.doLast {
// packageApplication became packageApplicationProvider in AGP 3.3.0.
def outputDirectory = variant.hasProperty(“packageApplicationProvider”)
-
? variant.packageApplicationProvider.get().outputDirectory
- variant.packageApplication.outputDirectory
// outputDirectory is a DirectoryProperty in AGP 4.1.
String outputDirectoryStr = outputDirectory.metaClass.respondsTo(outputDirectory, “get”)
-
? outputDirectory.get()
- outputDirectory
String filename = “app”
String abi = output.getFilter(OutputFile.ABI)
if (abi != null && !abi.isEmpty()) {
filename += “-${abi}”
}
if (variant.flavorName != null && !variant.flavorName.isEmpty()) {
filename += “-${variant.flavorName.toLowerCase()}”
}
filename += “-${buildModeFor(variant.buildType)}”
project.copy {
from new File(“ o u t p u t D i r e c t o r y S t r / outputDirectoryStr/ outputDirectoryStr/{output.outputFileName}”)
into new File(“${project.buildDir}/outputs/flutter-apk”);
rename {
return “${filename}.apk”
}
}
}
}
}
//3、小重点
configurePlugins()
return
}
//3、是不是模块源码依赖方式集成到现有项目，参见 https://flutter.cn/docs/development/add-to-app/android/project-setup
//是的话对模块也做类似一堆处理即可，不再重复分析了，也是 assets 合并
String hostAppProjectName = project.rootProject.hasProperty(‘flutter.hostAppProjectName’) ? project.rootProject.property(‘flutter.hostAppProjectName’) : “app”
Project appProject = project.rootProject.findProject(“😒{hostAppProjectName}”)
assert appProject != null : “Project 😒{hostAppProjectName} doesn’t exist. To custom the host app project name, set org.gradle.project.flutter.hostAppProjectName=<project-name> in gradle.properties.”
// Wait for the host app project configuration.
appProject.afterEvaluate {
assert appProject.android != null
project.android.libraryVariants.all { libraryVariant ->
Task copyFlutterAssetsTask
appProject.android.applicationVariants.all { appProjectVariant ->
Task appAssembleTask = getAssembleTask(appProjectVariant)
if (!shouldConfigureFlutterTask(appAssembleTask)) {
return
}
// Find a compatible application variant in the host app.
//
// For example, consider a host app that defines the following variants:
// | ----------------- | ----------------------------- |
// | Build Variant | Flutter Equivalent Variant |
// | ----------------- | ----------------------------- |
// | freeRelease | release |
// | freeDebug | debug |
// | freeDevelop | debug |
// | profile | profile |
// | ----------------- | ----------------------------- |
//
// This mapping is based on the following rules:
// 1. If the host app build variant name is profile then the equivalent
// Flutter variant is profile.
// 2. If the host app build variant is debuggable
// (e.g. buildType.debuggable = true), then the equivalent Flutter
// variant is debug.
// 3. Otherwise, the equivalent Flutter variant is release.
String variantBuildMode = buildModeFor(libraryVariant.buildType)
if (buildModeFor(appProjectVariant.buildType) != variantBuildMode) {
return
}
if (copyFlutterAssetsTask == null) {
copyFlutterAssetsTask = addFlutterDeps(libraryVariant)
}
Task mergeAssets = project
.tasks
.findByPath(“: h o s t A p p P r o j e c t N a m e : m e r g e {hostAppProjectName}:merge hostAppProjectName:merge{appProjectVariant.name.capitalize()}Assets”)
assert mergeAssets
mergeAssets.dependsOn(copyFlutterAssetsTask)
}
}
}
configurePlugins()
}
上面这段代码分析中的步骤2本质就是对标准安卓构建产物进行一次重新按照格式归档，如果是 split api 模式就能很直观看出来效果，下面图示是直接运行 flutter build apk 的步骤 2 效果：
对于上面代码片段中的步骤 3，我们可以详细来分析下：
/**
-
flutter的依赖都添加在pubspec.yaml中
-
接着都会执行flutter pub get，然后工具会生成跟目录下.flutter-plugins等文件
-
这里做的事情就是帮忙给module自动添加上这些插件dependencies依赖模块
*/
private void configurePlugins() {
if (!buildPluginAsAar()) {
//项目根目录下的.flutter-plugins文件
getPluginList().each this.&configurePluginProject
//项目根目录下的.flutter-plugins-dependencies文件
getPluginDependencies().each this.&configurePluginDependencies
return
}
project.repositories {
maven {
url “${getPluginBuildDir()}/outputs/repo”
}
}
getPluginList().each { pluginName, pluginPath ->
configurePluginAar(pluginName, pluginPath, project)
}
}
到此整个 addFlutterTasks 核心方法我们就分析完毕。接下来让我们把目光转向 FlutterTask 的实现，Task 机制不懂就自己去补习 gradle 基础吧，重点入口就是 @TaskAction，如下（比较长，但是比较直观简单）：
abstract class BaseFlutterTask extends DefaultTask {
//…一堆task属性声明，忽略
@OutputFiles
FileCollection getDependenciesFiles() {
FileCollection depfiles = project.files()
// Includes all sources used in the flutter compilation.
depfiles += project.files(“${intermediateDir}/flutter_build.d”)
return depfiles
}
//重点！！！！！！！！！！！！！！！！！！！！！
//整个flutter android编译的核心实现在此！！！！
void buildBundle() {
if (!sourceDir.isDirectory()) {
throw new GradleException(“Invalid Flutter source directory: ${sourceDir}”)
}
//1、默认以app为例创建build/app/intermediates/flutter目录
intermediateDir.mkdirs()
//2、计算flutter assemble的规则名称列表
String[] ruleNames;
if (buildMode == “debug”) {
ruleNames = [“debug_android_application”]
} else if (deferredComponents) {
ruleNames = targetPlatformValues.collect { “android_aot_deferred_components_bundle_KaTeX parse error: Expected group after '_' at position 12: {buildMode}_̲it” }
} else {
ruleNames = targetPlatformValues.collect { “android_aot_bundle_KaTeX parse error: Expected group after '_' at position 12: {buildMode}_̲it” }
}
//3、重点执行命令
project.exec {
logging.captureStandardError LogLevel.ERROR
//4、windows的话就是flutter SDK路径下 bin/flutter.bat文件，unix就是bin/flutter
executable flutterExecutable.absolutePath
//5、我们app的build.gradle中配置的flutter { source ‘…/…/’ }闭包，路径，也就是项目根目录下
workingDir sourceDir
//6、使用本地自己编译的flutter engine才需要的参数
if (localEngine != null) {
args “–local-engine”, localEngine
args “–local-engine-src-path”, localEngineSrcPath
}
//7、类似标准gradle构建参数打印控制
if (verbose) {
args “–verbose”
} else {
args “–quiet”
}
//8、追加一堆编译参数
args “assemble”
args “–no-version-check”
args “–depfile”, “${intermediateDir}/flutter_build.d”
//flutter 编译产物输出路径
args “–output”, “${intermediateDir}”
if (performanceMeasurementFile != null) {
args “–performance-measurement-file=${performanceMeasurementFile}”
}
//Flutter dart程序入口，默认为lib/main.dart
if (!fastStart || buildMode != “debug”) {
args “-dTargetFile=${targetPath}”
} else {
args “-dTargetFile=${Paths.get(flutterRoot.absolutePath, “examples”, “splash”, “lib”, “main.dart”)}”
}
args “-dTargetPlatform=android”
args “-dBuildMode=${buildMode}”
if (trackWidgetCreation != null) {
args “-dTrackWidgetCreation=${trackWidgetCreation}”
}
if (splitDebugInfo != null) {
args “-dSplitDebugInfo=${splitDebugInfo}”
}
if (treeShakeIcons == true) {
args “-dTreeShakeIcons=true”
}
if (dartObfuscation == true) {
args “-dDartObfuscation=true”
}
if (dartDefines != null) {
args “–DartDefines=${dartDefines}”
}
if (bundleSkSLPath != null) {
args “-iBundleSkSLPath=${bundleSkSLPath}”
}
if (codeSizeDirectory != null) {
args “-dCodeSizeDirectory=${codeSizeDirectory}”
}
if (extraGenSnapshotOptions != null) {
args “–ExtraGenSnapshotOptions=${extraGenSnapshotOptions}”
}
if (extraFrontEndOptions != null) {
args “–ExtraFrontEndOptions=${extraFrontEndOptions}”
}
args ruleNames
}
}
}
class FlutterTask extends BaseFlutterTask {
//默认以app为例则为build/app/intermediates/flutter目录。
@OutputDirectory
File getOutputDirectory() {
return intermediateDir
}
//默认以app为例则为build/app/intermediates/flutter/flutter_assets目录，前面我们已经截图展示过这个目录产物。
@Internal
String getAssetsDirectory() {
return “${outputDirectory}/flutter_assets”
}
//assets复制操作定义，intermediateDir就是getOutputDirectory路径
@Internal
CopySpec getAssets() {
return project.copySpec {
from “${intermediateDir}”
include “flutter_assets/**” // the working dir and its files
}
}
//dart编译的产物复制操作定义（注意：release和profile模式才是so产物），intermediateDir就是getOutputDirectory路径
@Internal
CopySpec getSnapshots() {
return project.copySpec {
from “${intermediateDir}”
if (buildMode == ‘release’ || buildMode == ‘profile’) {
targetPlatformValues.each {
include “${PLATFORM_ARCH_MAP[targetArch]}/app.so”
}
}
}
}
//依赖格式解析生成文件路径集合
FileCollection readDependencies(File dependenciesFile, Boolean inputs) {
if (dependenciesFile.exists()) {
// Dependencies file has Makefile syntax:
// :
String depText = dependenciesFile.text
// So we split list of files by non-escaped(by backslash) space,
def matcher = depText.split(': ')[inputs ? 1 : 0] =~ /(\ |[^\s])+/
// then we replace all escaped spaces with regular spaces
def depList = matcher.collect{it[0].replaceAll("\\ ", " ")}
return project.files(depList)
}
return project.files();
}
//输入源为所有依赖模块的pubspec.yaml文件集合
@InputFiles
FileCollection getSourceFiles() {
FileCollection sources = project.files()
for (File depfile in getDependenciesFiles()) {
sources += readDependencies(depfile, true)
}
return sources + project.files(‘pubspec.yaml’)
}
@OutputFiles
FileCollection getOutputFiles() {
FileCollection sources = project.files()
for (File depfile in getDependenciesFiles()) {
sources += readDependencies(depfile, false)
}
return sources
}
//重点实现！！！！！！！
@TaskAction
void build() {
buildBundle()
}
}
可以很直观的看到，整个构建编译的核心都是通过执行 Flutter SDK 中 bin 目录下的 flutter 脚本完成的，大段代码只是为了为执行这个脚本准备参数配置信息。也就是说 flutter 编译本质命令大致如下：
flutter assemble --no-version-check \
–depfile build/app/intermediates/flutter/release/flutter_build.d \
–output build/app/intermediates/flutter/release/ \
-dTargetFile=lib/main.dart \
-dTargetPlatform=android \
-dBuildMode=release \
-dDartObfuscation=true \
android_aot_bundle_release_android-arm \
android_aot_bundle_release_android-arm64 \
android_aot_bundle_release_android-x86 \
android_aot_bundle_release_android-x64
这就走到了 SDK 里面的纯 flutter 命令脚本了。
Flutter SDK 下bin/flutter编译命令分析
承接上面分析，上一小节最后的命令本质就是本小节的脚本，我们把目光转向 Flutter SDK 中 bin 目录下的 flutter 脚本，如下：
#!/usr/bin/env bash
#1、该命令之后出现的代码，一旦出现了返回值非零，整个脚本就会立即退出，那么就可以避免一些脚本的危险操作。
set -e
#2、清空CDPATH变量值
unset CDPATH
在Mac上，readlink -f不起作用，因此follow_links一次遍历一个链接的路径，然后遍历cd进入链接目的地并找出它。
返回的文件系统路径必须是Dart的URI解析器可用的格式，因为Dart命令行工具将其参数视为文件URI，而不是文件名。
例如，多个连续的斜杠应该减少为一个斜杠，因为双斜杠表示URI的authority。
function follow_links() (
cd -P “$(dirname – “$1”)”
file=“ P W D / PWD/ PWD/(basename – “$1”)”
while [[ -h “$file” ]]; do
cd -P “ ( d i r n a m e − − " (dirname -- " (dirname−−"file”)"
file=“ ( r e a d l i n k − − " (readlink -- " (readlink−−"file”)"
cd -P “ ( d i r n a m e − − " (dirname -- " (dirname−−"file”)"
file=“ P W D / PWD/ PWD/(basename – “$file”)”
done
echo “$file”
)
这个变量的值就是Flutter SDK根目录下的bin/flutter
PROG_NAME=“ ( f o l l o w l i n k s " (follow_links " (followlinks"{BASH_SOURCE[0]}”)"
BIN_DIR=“ ( c d " (cd " (cd"{PROG_NAME%/*}” ; pwd -P)"
OS=“$(uname -s)”
平台兼容
if [[ $OS =~ MINGW.* || $OS =~ CYGWIN.* ]]; then
exec “ B I N D I R / f l u t t e r . b a t " " {BIN_DIR}/flutter.bat" " BINDIR/flutter.bat""@”
fi
#3、source导入这个shell脚本后执行其内部的shared::execute方法
source “$BIN_DIR/internal/shared.sh”
shared::execute “$@”
很明显，我们需要将目光转向 Flutter SDKbin/internal/shared.sh文件，且关注其内部的shared::execute方法，如下：
#…
function shared::execute() {
#1、默认FLUTTER_ROOT值为FlutterSDK根路径
export FLUTTER_ROOT=“ ( c d " (cd " (cd"{BIN_DIR}/…” ; pwd -P)"
#2、如果存在就先执行bootstrap脚本，默认SDK下面是没有这个文件的，我猜是预留给我们自定义初始化挂载用的。
BOOTSTRAP_PATH=“$FLUTTER_ROOT/bin/internal/bootstrap.sh”
if [ -f “$BOOTSTRAP_PATH” ]; then
source “$BOOTSTRAP_PATH”
fi
#3、一堆基于FlutterSDK路径的位置定义
FLUTTER_TOOLS_DIR=“$FLUTTER_ROOT/packages/flutter_tools”
SNAPSHOT_PATH=“$FLUTTER_ROOT/bin/cache/flutter_tools.snapshot”
STAMP_PATH=“$FLUTTER_ROOT/bin/cache/flutter_tools.stamp”
SCRIPT_PATH=“$FLUTTER_TOOLS_DIR/bin/flutter_tools.dart”
DART_SDK_PATH=“$FLUTTER_ROOT/bin/cache/dart-sdk”
DART=“$DART_SDK_PATH/bin/dart”
PUB=“$DART_SDK_PATH/bin/pub”
#4、路径文件平台兼容，常规操作，忽略
case “$(uname -s)” in
MINGW*)
DART=“$DART.exe”
PUB=“$PUB.bat”
;;
esac
#5、测试运行脚本的账号是否为超级账号，是的话警告提示，Docker和CI环境不警告。
if [[ “KaTeX parse error: Expected 'EOF', got '&' at position 14: EUID" == "0" &̲& ! -f /.docker…CI” != “true” && “KaTeX parse error: Expected 'EOF', got '&' at position 16: BOT" != "true" &̲& "CONTINUOUS_INTEGRATION” != “true” ]]; then
&2 echo " Woah! You appear to be trying to run flutter as root."
&2 echo " We strongly recommend running the flutter tool without superuser privileges."
&2 echo " /"
&2 echo “📎”
fi
#6、测试git命令行环境配置是否正常，不正常就抛出错误。
if ! hash git 2>/dev/null; then
&2 echo “Error: Unable to find git in your PATH.”
exit 1
fi
#7、FlutterSDK是否来自clone等测试。
if [[ ! -e “$FLUTTER_ROOT/.git” ]]; then
&2 echo “Error: The Flutter directory is not a clone of the GitHub project.”
&2 echo " The flutter tool requires Git in order to operate properly;"
&2 echo " to install Flutter, see the instructions at:"
&2 echo " https://flutter.dev/get-started"
exit 1
fi
To debug the tool, you can uncomment the following lines to enable checked
mode and set an observatory port:
FLUTTER_TOOL_ARGS=“–enable-asserts $FLUTTER_TOOL_ARGS”
FLUTTER_TOOL_ARGS=“$FLUTTER_TOOL_ARGS --observe=65432”
#7、日常编译遇到命令lock文件锁住问题就是他，本质该方法就是创建/bin/cache目录并维持锁状态等事情，不是我们关心的重点。
upgrade_flutter 7< “$PROG_NAME”
#8、相关参数值，别问我怎么知道的，问就是自己在源码对应位置echo输出打印的
BIN_NAME=flutter、PROG_NAME=FLUTTER_SDK_DIR/bin/flutter
DART=FLUTTER_SDK_DIR/bin/cache/dart-sdk/bin/dart
FLUTTER_TOOLS_DIR=FLUTTER_SDK_DIR/packages/flutter_tools
FLUTTER_TOOL_ARGS=空
SNAPSHOT_PATH=FLUTTER_SDK_DIR/bin/cache/flutter_tools.snapshot
@=build apk
BIN_NAME=“ ( b a s e n a m e " (basename " (basename"PROG_NAME”)"
case “$BIN_NAME” in
flutter*)
FLUTTER_TOOL_ARGS aren’t quoted below, because it is meant to be
considered as separate space-separated args.
“ D A R T " − − d i s a b l e − d a r t − d e v − − p a c k a g e s = " DART" --disable-dart-dev --packages=" DART"−−disable−dart−dev−−packages="FLUTTER_TOOLS_DIR/.packages” F L U T T E R T O O L A R G S " FLUTTER_TOOL_ARGS " FLUTTERTOOLARGS"SNAPSHOT_PATH" “$@”
;;
dart*)
“ D A R T " " DART" " DART""@”
;;
*)
&2 echo “Error! Executable name $BIN_NAME not recognized!”
exit 1
;;
esac
}
可以看到，由于 Flutter SDK 内部内置了 Dart，所以当配置环境变量后 flutter、dart 命令都可以使用了。而我们安装 Flutter SDK 后首先做的事情就是把 SDK 的 bin 目录配置到了环境变量，所以执行的 flutter build apk、flutter upgrade、flutter pub xxx 等命令本质都是走进了上面这些脚本，且 flutter 命令只是对 dart 命令的一个包装，所以执行flutter pub get其实等价于dart pub get。所以假设我们执行flutter build apk命令，本质走到上面脚本最终执行的命令如下：
FLUTTER_SDK_DIR/bin/cache/dart-sdk/bin/dart \
–disable-dart-dev --packages=FLUTTER_SDK_DIR/packages/flutter_tools/.packages \
FLUTTER_SDK_DIR/bin/cache/flutter_tools.snapshot \
build apk
上面命令行中 FLUTTER_SDK_DIR 代表的就是 Flutter SDK 的根目录，--packages可以理解成是一堆 SDK 相关依赖，FLUTTER_SDK_DIR/bin/cache/flutter_tools.snapshot就是FLUTTER_SDK_DIR/packages/flutter_tools的编译产物。所以，上面其实通过 dart 命令执行flutter_tools.snapshot文件也就是等价于执行flutter_tools.dart的main()方法。因此上面命令继续简化大致如下：
dart --disable-dart-dev --packages=xxx flutter_tools.dart build apk
也就是说，我们执行的任何 flutter 命令，本质都是把参数传递到了FLUTTER_SDK_DIR/packages/flutter_tools/bin/flutter_tools.dart源码的 main 方法中，所以真正做事情的都在这部分源码里。这里由于篇幅问题不展开说明，后面专门写一篇解析，然后与本文关联阅读即可彻底搞懂。
=================================================================================
对于包含 android 代码的 flutter plugin 模块来说，其 android 部分就是一个标准的原生 android library，没有任何额外的干预脚本，所以就不分析了。这里只是提醒下，当我们新建一个 flutter plugin 时，其项目默认除过 plugin 会帮我们生成一个 example 的模块，目的只是为了方便我们独立开发 flutter plugin 时能脱离自己主项目进行 demo 验证，大致目录如下：
=================================================================================
对于原生现有工程集成 flutter 来说，flutter module 就是最好的隔离选择，这也就造就了其与 flutter app 在编译上的一些差异与共性。这部分我们重点分析 flutter module 与 上面分析的 app 编译流程差异，共性部分不再分析。
同样先从.android/settings.gradle看起来：
// app 是测试 module，用来验证 flutter module 的，本质最后 flutter module 会生成可集成的 aar
include ‘:app’
//导入配置.android/include_flutter.groovy
rootProject.name = ‘android_generated’
setBinding(new Binding([gradle: this]))
evaluate(new File(settingsDir, ‘include_flutter.groovy’))
目光转向当前 flutter module 项目.android/include_flutter.groovy文件，如下：
//1、以当前脚本为坐标找到当前项目根路径
def scriptFile = getClass().protectionDomain.codeSource.location.toURI()
def flutterProjectRoot = new File(scriptFile).parentFile.parentFile
//2、导入flutter module名称为相对当前目录的flutter
gradle.include “:flutter”
//3、flutter module android真正的实现位于.android/Flutter目录下
gradle.project(“:flutter”).projectDir = new File(flutterProjectRoot, “.android/Flutter”)
//4、前面见过了，就是获取 flutter sdk 路径，然后导入脚本
def localPropertiesFile = new File(flutterProjectRoot, “.android/local.properties”)
def properties = new Properties()
assert localPropertiesFile.exists(), “❗️The Flutter module doesn’t have a $localPropertiesFile file.” +
“\nYou must run flutter pub get in $flutterProjectRoot.”
localPropertiesFile.withReader(“UTF-8”) { reader -> properties.load(reader) }
def flutterSdkPath = properties.getProperty(“flutter.sdk”)
assert flutterSdkPath != null, “flutter.sdk not set in local.properties”
//5、类似之前，apply导入一个flutter sdk目录下的脚本
gradle.apply from: “$flutterSdkPath/packages/flutter_tools/gradle/module_plugin_loader.gradle”
自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。
深知大多数初中级安卓工程师，想要提升技能，往往是自己摸索成长，但自己不成体系的自学效果低效又漫长，而且极易碰到天花板技术停滞不前！
因此收集整理了一份《2024年最新Android移动开发全套学习资料》送给大家，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。

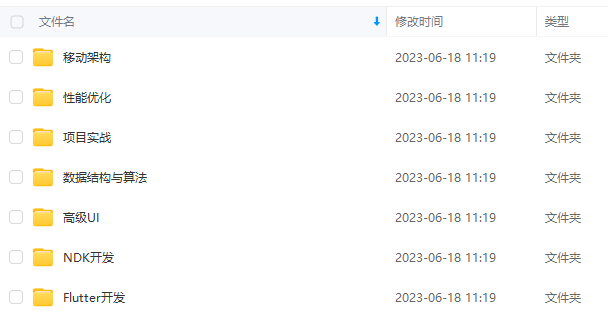

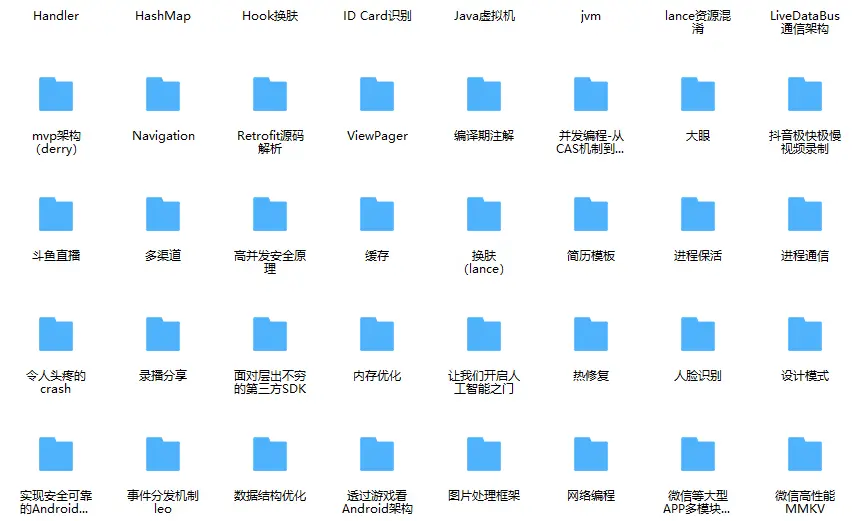

由于文件比较大，这里只是将部分目录截图出来，每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频
如果你觉得这些内容对你有帮助，可以添加下面V无偿领取！（备注Android）
新的开始
改变人生，没有什么捷径可言，这条路需要自己亲自去走一走，只有深入思考，不断反思总结，保持学习的热情，一步一步构建自己完整的知识体系，才是最终的制胜之道，也是程序员应该承担的使命。
如果有需要进阶Android高级工程师系统学习资料的，我可以免费分享给大家，需要完整版的朋友，【点这里可以看到全部内容】。
《系列学习视频》

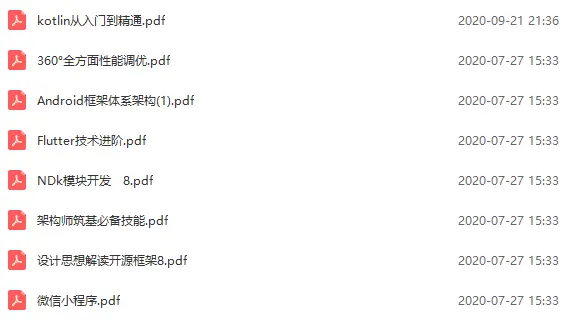

《系列学习文档》

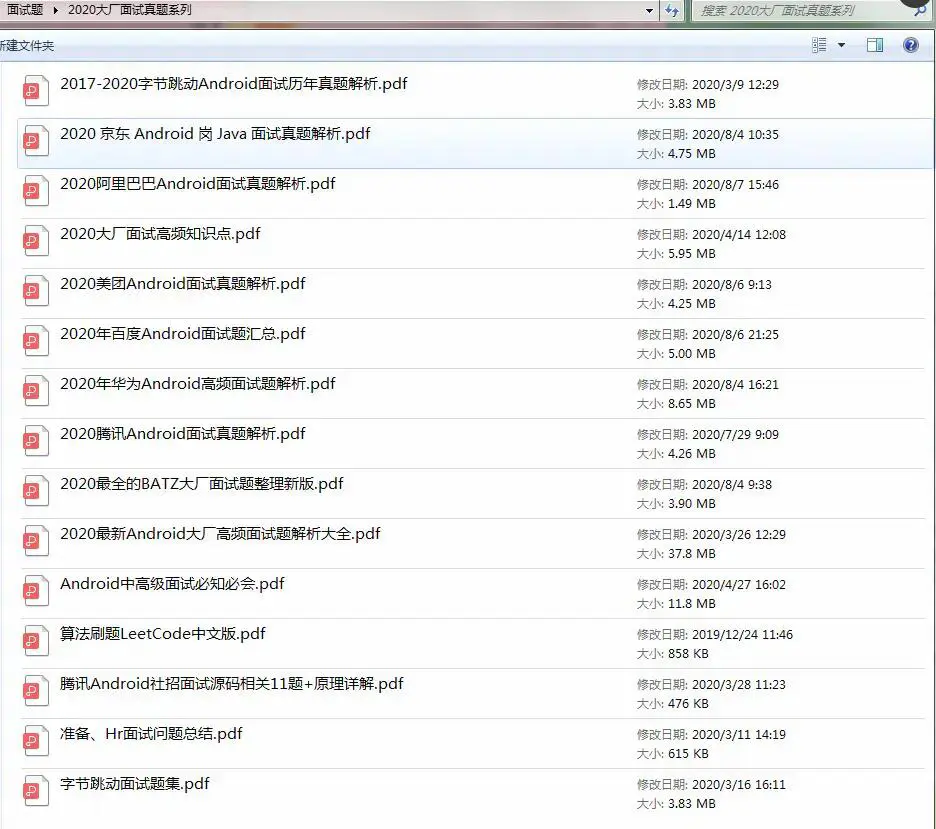

《我的大厂面试之旅》
.load(reader) }
def flutterSdkPath = properties.getProperty(“flutter.sdk”)
assert flutterSdkPath != null, “flutter.sdk not set in local.properties”
//5、类似之前，apply导入一个flutter sdk目录下的脚本
gradle.apply from: “$flutterSdkPath/packages/flutter_tools/gradle/module_plugin_loader.gradle”
自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。
深知大多数初中级安卓工程师，想要提升技能，往往是自己摸索成长，但自己不成体系的自学效果低效又漫长，而且极易碰到天花板技术停滞不前！
因此收集整理了一份《2024年最新Android移动开发全套学习资料》送给大家，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。
[外链图片转存中…(img-KYBU260F-1711181918698)]
[外链图片转存中…(img-EcJBzNTd-1711181918698)]
[外链图片转存中…(img-Z4PdXwIP-1711181918699)]
[外链图片转存中…(img-Lr4kuclQ-1711181918699)]
由于文件比较大，这里只是将部分目录截图出来，每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频
如果你觉得这些内容对你有帮助，可以添加下面V无偿领取！（备注Android）
[外链图片转存中…(img-Ep5wzVld-1711181918699)]
新的开始
改变人生，没有什么捷径可言，这条路需要自己亲自去走一走，只有深入思考，不断反思总结，保持学习的热情，一步一步构建自己完整的知识体系，才是最终的制胜之道，也是程序员应该承担的使命。
如果有需要进阶Android高级工程师系统学习资料的，我可以免费分享给大家，需要完整版的朋友，【点这里可以看到全部内容】。
《系列学习视频》
[外链图片转存中…(img-9HDXvrRq-1711181918700)]
《系列学习文档》
[外链图片转存中…(img-G8DAAVPw-1711181918700)]
《我的大厂面试之旅》
[外链图片转存中…(img-KMdqh5iU-1711181918701)]
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
