方案三:Vue组件展示 全景图,适用Vue项目(H5,PC都可以)
小程序/Html5/Vue 实现全景图播放功能
三种方案,分别适用小程序项目 H5项目 Vue项目,请根据项目场景选择合适方案展示全景图
方案一:使用小程序全景图插件
注意事项:建议插件使用2.0.3版本,全景图分辨率控制在2048*1024
文档地址:
wxPano | 小程序插件 | 微信公众平台 (qq.com)
方案二:Html5全景图
适用场景:兼容移动端和PC端,也可以用于小程序外链H5全景图
引用的关键资源:three.min.js和photo-sphere-viewer.min.js
Demo可在我的github下载:https://github.com/Summer-Lola/Panorama
Demo使用须知:
运行环境:要放在PHP环境或node环境才能运行,
比如可以 把demo里面的文件复制粘贴到vue项目中访问
Html5全景图h5.html代码如下:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>全景图</title>
<script src="./three.min.js"></script>
<script src="./photo-sphere-viewer.min.js"></script>
<style>
html,
body {
height: 100%;
margin: 0;
padding: 0;
}
#container {
width: 100%;
height: 100%;
}
</style>
</head>
<body>
<div id="container"></div>
</body>
<script>
//获取微信小程序传过来的全景图地址
var param = getParamer()
console.log('--param--', param)
//获取并处理小程序传递过来的参数
function getParamer() {
var url = window.location.href.split("?")[1]; /*获取url里"?"后面的值*/
if (url) { /*判断是否是一个参数还是多个参数*/
url = url.split("=")
return url[1]; /*返回想要的参数值*/
} else {
return '';
}
}
var PSV = new PhotoSphereViewer({
// Path to the panorama
panorama: param ? param : 'b.jpg', //这里放全景图地址
// Container
container: 'container'
});
</script>
</html>
如果是微信小程序端使用还需要在传个全景图地址给html5页面:
wxml代码:
<!--pages/panoramDetail/index.wxml-->
<view class="page" style='margin-top: {{height}}px'>
<web-view src="{{url}}"></web-view>
</view>
JS代码:
// pages / panoramView / index.js
var app = getApp();
Page({
data: {
height: app.globalData.height * 2 + 20,
url: '', //跳转的H5全景图地址
panoramaUrl: '', //全景图地址
panoramaCode: '', //全景图Code
token: wx.getStorageSync('token')
},
/**
* 生命周期函数--监听页面加载
*/
onLoad: function (options) {
//url:你要跳转的Html5全景图页面地址
// var url = 'https://ldz.csheidou.com/h5_view/h5.html'
var url = 'http://192.168.8.93:8080/h5.html'
this.setData({
panoramaUrl: options.panoramaUrl,
panoramaCode: options.panoramaCode,
url: url + '?panoramaUrl=' + decodeURIComponent(options.panoramaUrl)
})
},
})
方案三:Vue组件展示 全景图,适用Vue项目(H5,PC都可以)
第一步:安装依赖
npm install three --save
npm install photo-sphere-viewer --save

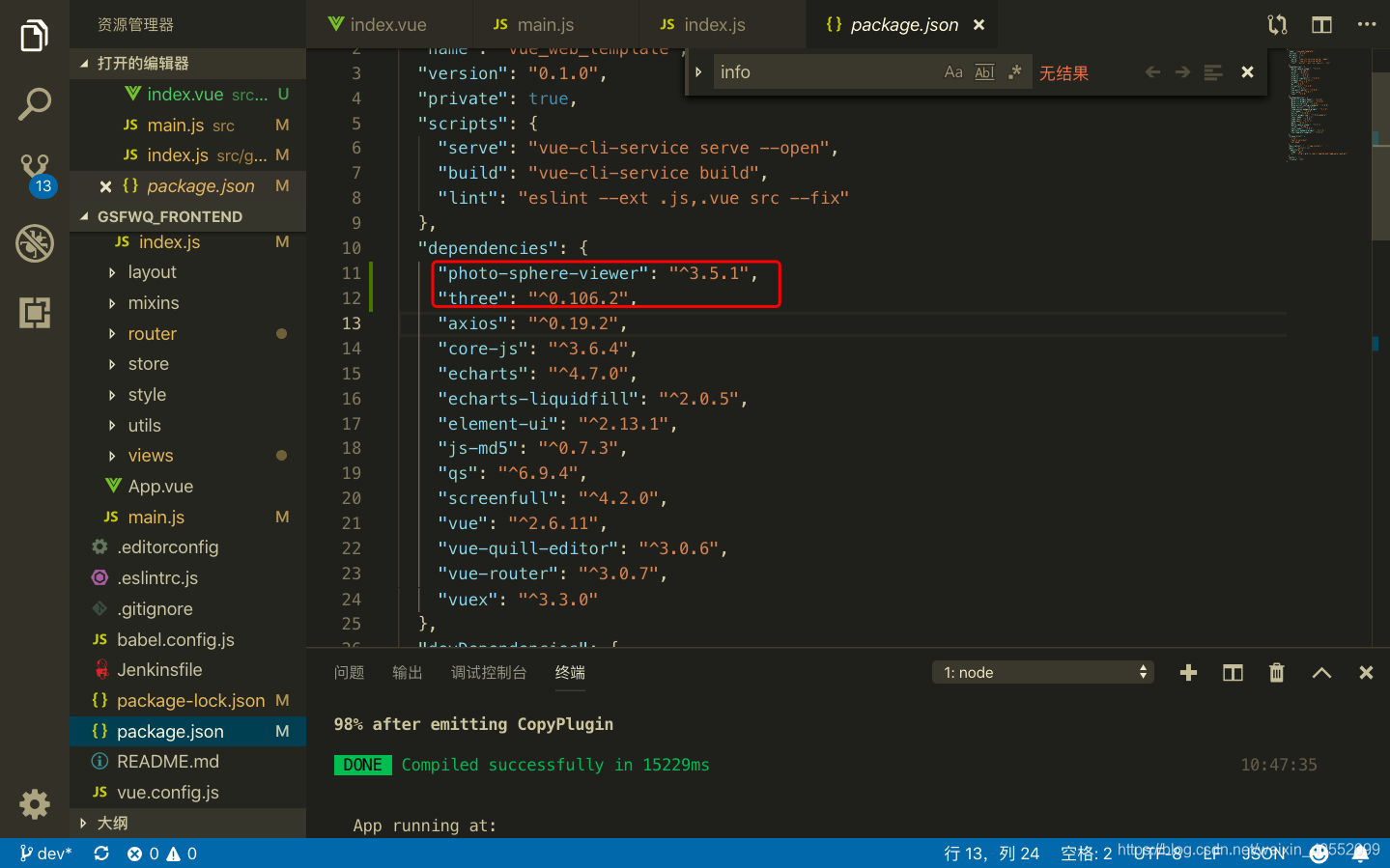

确保依赖在package.json 文件如下位置

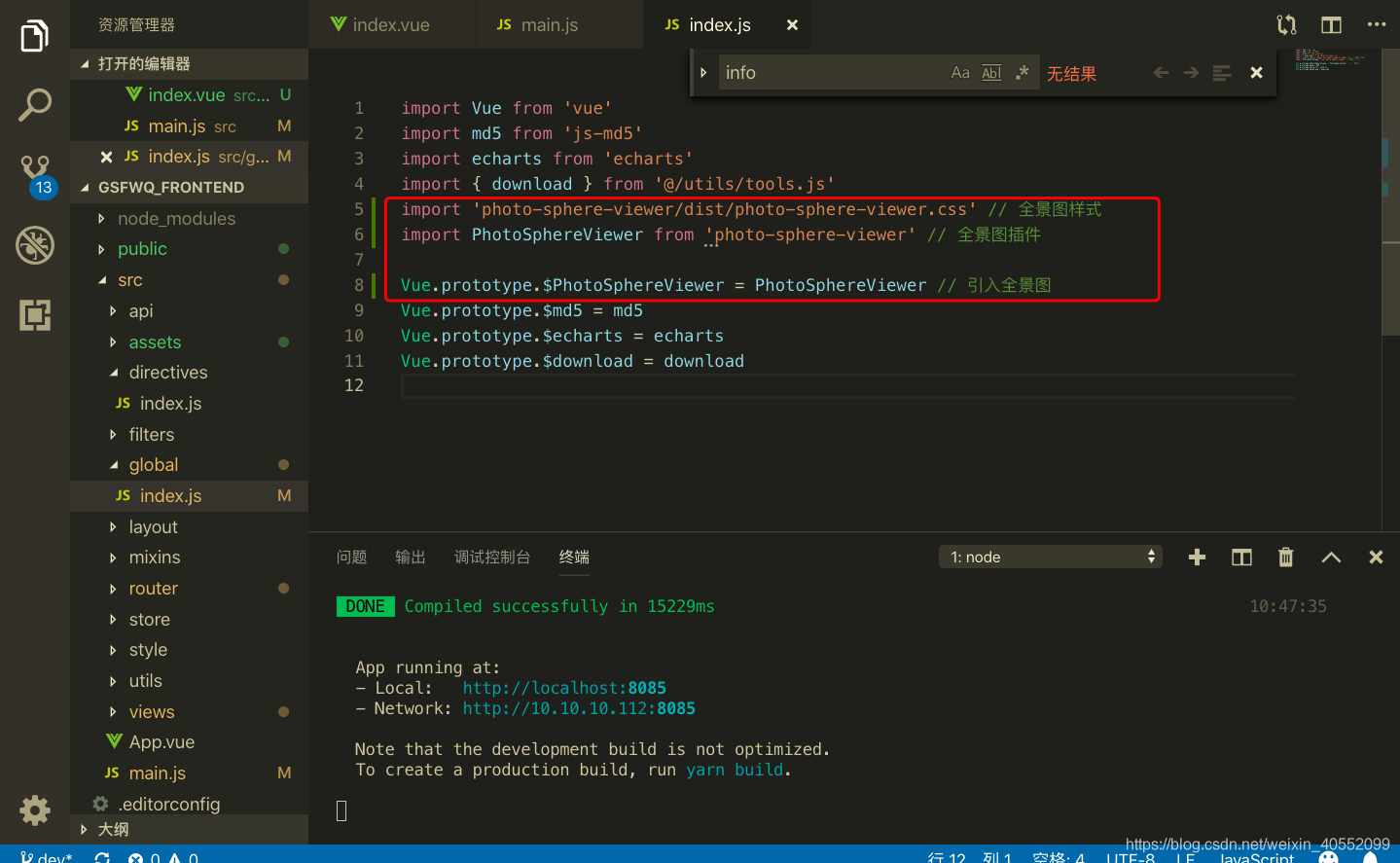

第二步:全局挂载 PhotoSphereViewer
import 'photo-sphere-viewer/dist/photo-sphere-viewer.css' // 全景图样式
import PhotoSphereViewer from 'photo-sphere-viewer' // 全景图插件
Vue.prototype.$PhotoSphereViewer = PhotoSphereViewer // 引入全景图
第三步:vue组件中使用PhotoSphereViewer展示全景图
<template>
<div class="inspection">
<div class="detail-header">
<img @click="handleGoBack" class="left" src="../../assets/left.png" alt="">
<span>全景图</span>
</div>
<!-- 全景图容器 -->
<div id="inner-quanjing" style="position:relative;top:10rem;width:100%;height:100%"></div>
</div>
</template>
<script>
export default {
data () {
return {
PSV: null, // 全景图对象
imgReturn: false, // 查看照片弹窗是否显示
dialogVisible: false, // 是否显示全景图弹窗
superiorPanoramaCode: '', // 上级全景图编码
detailList: {},
panoramaUrl: require('../../assets/b.jpg')
}
},
mounted () {
this.$nextTick(() => { this.initPhotoSphere() })
},
methods: {
// 全景图初始化
initPhotoSphere () {
var panoramaUrl = this.panoramaUrl
document.getElementById('inner-quanjing').innerHTML = ''
this.PSV = null
this.PSV = new this.$PhotoSphereViewer({
panorama: panoramaUrl, // 全景图地址
container: document.getElementById('inner-quanjing'), // 全景图的容器
size: { width: '100%', height: '65vh' }// 全景图容器大小
})
},
handleLinkRouter (val) {
if (val === 1) {
this.$router.push('/Inspection')
}
},
handleGoBack () {
window.history.go(-1)
}
}
}
</script>
<style lang='less' scoped>
.detail {
&-header{
display: flex;
justify-content: space-between;
padding: 0 3.2rem;
box-sizing: border-box;
align-items: center;
width: 100%;
height: 11.73rem;
font-size: 4.8rem;
font-weight: 500;
background-color: #FCFFFE;
.left{
width: 2.8rem;
height: 5.07rem;
}
}
&-content{
color: #333;
&-item{
width: 100%;
height: 10.8rem;
font-size: 3.73rem;
display: flex;
justify-content: space-between;
padding: 0 3.2rem;
box-sizing: border-box;
align-items: center;
border-bottom: .5px solid #F0F2FC;
.item-val{
color: #666;
}
}
}
}
</style>

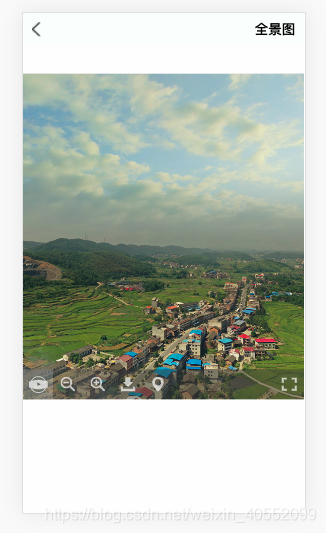

效果图:
