echart地图+高德map(可下钻)
高德地图和echarts结合实现可下钻的地图分布图、散点图、飞线图
gitee源码: gitee源码
echart引入教程:echart引入和组件封装-CSDN博客
1.根据区划编码调用高德api获取地理信息
1.1 引入UI组件库
UI组件库:简介 - AMapUI 组件库|高德地图API
<!--引入高德地图JSAPI -->
<script src="//webapi.amap.com/maps?v=2.0&key=您申请的key值"></script>
<!--引入UI组件库(1.1版本) -->
<script src="//webapi.amap.com/ui/1.1/main.js"></script>
1.2 加载DistrictExplorer(模块名:ui/geo/DistrictExplorer)
高德api获取初始化地理信息:AMapUI 组件库 参考手册 行政地理 行政区划浏览
/**
* @description 根据区划编码调用高德api获取地理信息
* @param {number} adcode 区划编码
*/
getGeoJson(adcode) {
let that = this;
// 高德api获取初始化地理信息,详情可查看 https://lbs.amap.com/api/amap-ui/reference-amap-ui/geo/district-explorer
// DistrictExplorer(行政区划浏览) 提供了全国范围内到区县一级的行政区划数据(含边界)
AMapUI.loadUI(["geo/DistrictExplorer"], (DistrictExplorer) => {
var districtExplorer = new DistrictExplorer();
districtExplorer.loadAreaNode(adcode, function (error, areaNode) {
// 错误信息 - error
if (error) {
console.error(error);
return;
}
// 区域节点 - AreaNode
// getSubFeatures() 返回该区域中全部的子级区划Feature数组
let Json = areaNode.getSubFeatures();
// 存在子级区域时,直接赋值
if (Json.length > 0) {
that.geoJson.features = Json;
} else if (Json.length === 0) {
// 不存在子级区域时,在原数组中筛选自己本身
that.geoJson.features = that.geoJson.features.filter(
(item) => item.properties.adcode == adcode
);
if (that.geoJson.features.length === 0) return;
}
that.getMapData();
});
});
}
/**
* @description 获取并整理形成需要的数据
*/
getMapData() {
let mapData = this.geoJson.features.map((item) => {
return {
name: item.properties.name,
value: Math.random() * 1000,
cityCode: item.properties.adcode,
};
});
// 排序,方便后续更快获取最大值和最小值
mapData = mapData.sort(function (a, b) {
return b.value - a.value;
});
this.initEcharts(mapData);
},
1.3 选择切换市县
chooseArea(val, index) {
// 如果点击自己,直接return
if (this.parentInfo.length === index + 1) {
return;
}
//从aparentInfo索引为 index + 1 的位置开始其后面的都删除,返回的是移除的所有元素所构成的新数组
this.parentInfo.splice(index + 1);
this.getGeoJson(this.parentInfo[this.parentInfo.length - 1].code);
},
2.分布图

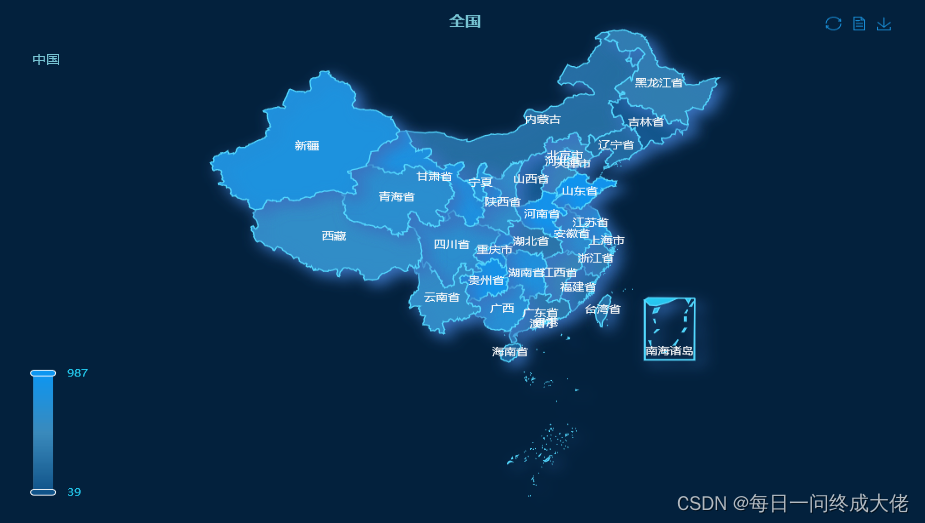

2.1 实际效果
2.2 echarts地图渲染
/**
* @description 渲染echarts
* @param {array} mapData 图表数据 [{name: string,value: number,cityCode:number}]
*/
initEcharts(mapData) {
// 获取最小值
var min = mapData[mapData.length - 1].value;
// 获取最大值
var max = mapData[0].value;
// length === 1 时默认本身为最大值,最小值取 0
if (mapData.length === 1) {
min = 0;
}
// 重绘图表时,把之前已经渲染好的图表清空,避免报错
if (this.chart) {
this.chart.dispose();
}
// 创建一个 ECharts 实例
this.chart = echarts.init(this.$refs.DistributionMap, {
renderer: "svg",
});
//注册可用的地图,只在 geo 组件或者 map 图表类型中使用
if (this.parentInfo.length === 1) {
echarts.registerMap("china", this.geoJson); //注册
} else {
echarts.registerMap("map", this.geoJson); //注册
}
// 设置图表实例的配置项以及数据
this.chart.setOption(
{
// 背景色
backgroundColor: "#03213D",
// 提示框
tooltip: {
trigger: "item", //触发类型,数据项图形触发
formatter: (p) => {
//提示框浮层内容格式器,支持字符串模板和回调函数两种形式。
let val = p.value;
if (!val) {
val = 0;
}
let txtCon = p.name + ":" + val.toFixed(2);
return txtCon;
},
},
// 标题
title: {
show: true,
left: "center",
top: "15",
text: this.parentInfo[this.parentInfo.length - 1].cityName,
textStyle: {
color: "rgba(147, 235, 248, .8)",
fontSize: 16,
},
},
// 工具栏
toolbox: {
// 各工具配置项
feature: {
restore: {
//配置项还原
show: true, //true - 可还原地图缩放,数据栏筛选等功能
},
dataView: {
//数据视图
optionToContent: function (opt) {
let series = opt.series[0].data; //折线图数据
let div = `<div style="display: flex;align-items: center;justify-content: center;height: 100%;">`;
let tdHeads =
'<th style="padding: 0 50px">所在地区</th><th style="padding: 0 50px">销售额</th>'; //表头
let tdBodys = ""; //数据
let table = `<table border="1" style="border-collapse:collapse;font-size:14px;text-align:left;"><tbody><tr>${tdHeads} </tr>`;
for (let i = 0; i < series.length; i++) {
table += `<tr>
<td style="padding: 0 50px">${series[i].name}</td>
<td style="padding: 0 50px">${series[
i
].value.toFixed(2)}万</td>
</tr>`;
}
table += "</tbody></table></div>";
return div + table;
},
},
saveAsImage: {
//保存为图片
name:
this.parentInfo[this.parentInfo.length - 1].cityName + "地图",
},
dataZoom: {
//数据区域缩放
show: false,
},
magicType: {
//动态类型切换
show: false,
},
},
// 公用的 icon 样式设置
iconStyle: {
borderColor: "#1990DA", //图形的描边颜色
},
top: 15, //工具栏组件离容器上侧的距离
right: 35, //工具栏组件离容器右侧的距离
},
// 视觉映射组件,将数据映射到视觉元素(左下方数据组件)
visualMap: {
min: min, //最小值
max: max, //最大值
left: "3%", //组件离容器左侧的距离
bottom: "5%", // 组件离容器下侧的距离
calculable: true, //是否显示拖拽用的手柄(手柄能拖拽调整选中范围)
seriesIndex: [0], //指定取哪个系列的数据,即哪个系列的 series.data
inRange: {
//定义 在选中范围中 的视觉元素
color: ["#105389", "#3a8abc", "#0D96F1"], //从高到低颜色渐变
},
textStyle: {
//文字的颜色
color: "#24CFF4",
},
},
series: [
{
name: "地图分布",
type: "map", //地图
map: this.parentInfo.length === 1 ? "china" : "map", //使用 registerMap 注册的地图名称 ,必须和 registerMap 注册的一致
roam: false, //是否开启鼠标缩放和平移漫游
zoom: 1.1, //当前视角的缩放比例
data: mapData,
label: {
//图形上的文本标签
show: true,
color: "rgb(249, 249, 249)", //省份标签字体颜色
formatter: (p) => {
switch (p.name) {
case "内蒙古自治区":
p.name = "内蒙古";
break;
case "西藏自治区":
p.name = "西藏";
break;
case "新疆维吾尔自治区":
p.name = "新疆";
break;
case "宁夏回族自治区":
p.name = "宁夏";
break;
case "广西壮族自治区":
p.name = "广西";
break;
case "香港特别行政区":
p.name = "香港";
break;
case "澳门特别行政区":
p.name = "澳门";
break;
default:
break;
}
return p.name;
},
},
itemStyle: {
//地图区域的多边形 图形样式
areaColor: "#24CFF4",
borderColor: "#53D9FF",
borderWidth: 1.3,
shadowBlur: 15,
shadowColor: "rgb(58,115,192)",
shadowOffsetX: 7,
shadowOffsetY: 6,
},
emphasis: {
//高亮状态下的多边形和标签样式
label: {
show: true,
color: "#f75a00",
},
itemStyle: {
areaColor: "#8dd7fc",
borderWidth: 1.6,
shadowBlur: 25,
},
},
},
],
},
true
);
let that = this;
// 解绑鼠标点击事件处理函数,以防重复点击
this.chart.off("click");
// 绑定鼠标点击事件处理函数
this.chart.on("click", (params) => {
if (
that.parentInfo[that.parentInfo.length - 1].code ==
params.data.cityCode
) {
return;
}
let data = params.data;
that.parentInfo.push({
cityName: data.name,
code: data.cityCode,
});
that.getGeoJson(data.cityCode);
});
},
3.散点图
3.1 实际效果
您的浏览器不支持播放该视频!
3.2 echarts地图渲染
initEcharts(mapData) {
// 重绘图表时,把之前已经渲染好的图表清空,避免报错
if (this.chart) {
this.chart.dispose()
}
// 创建一个 ECharts 实例
this.chart = echarts.init(this.$refs.ScatterMap, { renderer: 'svg' });
//注册可用的地图,只在 geo 组件或者 map 图表类型中使用
if (this.parentInfo.length === 1) {
echarts.registerMap('china', this.geoJson); //注册
} else {
echarts.registerMap('map', this.geoJson); //注册
}
// 设置图表实例的配置项以及数据
this.chart.setOption({
// 背景色
backgroundColor: "#03213D",
// 提示框
tooltip: {
trigger: "item",//触发类型,数据项图形触发
formatter: p => { //提示框浮层内容格式器,支持字符串模板和回调函数两种形式。
let val = p.value[2];
if (!val) {
val = 0;
}
let txtCon = p.name + ":" + val.toFixed(2);
return txtCon;
}
},
// 标题
title: {
show: true,
left: "center",
top: "15",
text: this.parentInfo[this.parentInfo.length - 1].cityName,
textStyle: {
color: "rgba(147, 235, 248, .8)",
fontSize: 16
}
},
// 工具栏
toolbox: {
// 各工具配置项
feature: {
restore: {//配置项还原
show: true,//true - 可还原地图缩放,数据栏筛选等功能
},
dataView: {//数据视图
optionToContent: function (opt) {
let series = opt.series[0].data; //折线图数据
let div = `<div style="display: flex;align-items: center;justify-content: center;height: 100%;">`
let tdHeads =
'<th style="padding: 0 50px">所在地区</th><th style="padding: 0 50px">销售额</th>'; //表头
let tdBodys = ""; //数据
let table =
`<table border="1" style="border-collapse:collapse;font-size:14px;text-align:left;"><tbody><tr>${tdHeads} </tr>`;
for (let i = 0; i < series.length; i++) {
table += `<tr>
<td style="padding: 0 50px">${series[i].name}</td>
<td style="padding: 0 50px">${series[i].value[2].toFixed(2)}万</td>
</tr>`;
}
table += "</tbody></table></div>";
return div + table;
}
},
saveAsImage: {//保存为图片
name: this.parentInfo[this.parentInfo.length - 1].cityName + "地图"
},
dataZoom: {//数据区域缩放
show: false
},
magicType: {//动态类型切换
show: false
}
},
// 公用的 icon 样式设置
iconStyle: {
borderColor: "#1990DA" //图形的描边颜色
},
top: 15,//工具栏组件离容器上侧的距离
right: 35//工具栏组件离容器右侧的距离
},
geo: {
show: true,//是否显示地理坐标系组件
map: this.parentInfo.length === 1 ? 'china' : 'map', //使用 registerMap 注册的地图名称 ,必须和 registerMap 注册的一致
roam: true,//是否开启鼠标缩放和平移漫游
zoom: 1.1, //当前视角的缩放比例
itemStyle: {//地图区域的多边形 图形样式
areaColor: "#105389",
borderColor: "#53D9FF",
borderWidth: 1.3,
shadowBlur: 15,
shadowColor: "rgb(58,115,192)",
shadowOffsetX: 7,
shadowOffsetY: 6,
},
emphasis: {//高亮状态下的多边形和标签样式
label: {
show: true,
color: "#f75a00"
},
itemStyle: {
areaColor: "#8dd7fc",
borderWidth: 1.6,
shadowBlur: 25
}
},
label: {//图形上的文本标签
show: true,
color: "rgb(249, 249, 249)", //省份标签字体颜色
formatter: p => {
switch (p.name) {
case "内蒙古自治区":
p.name = "内蒙古";
break;
case "西藏自治区":
p.name = "西藏";
break;
case "新疆维吾尔自治区":
p.name = "新疆";
break;
case "宁夏回族自治区":
p.name = "宁夏";
break;
case "广西壮族自治区":
p.name = "广西";
break;
case "香港特别行政区":
p.name = "香港";
break;
case "澳门特别行政区":
p.name = "澳门";
break;
default:
break;
}
// let val = p.value[2];
// if (!val) {
// val = 0;
// }
return p.name;
},
},
},
series: [{
name: '散点',
type: 'effectScatter',//类型
data: mapData,
coordinateSystem: 'geo',//使用地理坐标系
showEffectOn: 'render', // 加载完毕显示特效
symbolSize: function (val) {//设置点的大小
return val[2] / 1.5
},
rippleEffect: {//涟漪特效相关配置
number: 5, // 波纹数量
period: 4, // 动画周期 数值越大,波动越慢
scale: 3.5, // 动画中波纹的最大缩放比例
brushType: 'stroke'
},
label: {//图形上的文本标签
show: false,//地图上是否有文字
formatter: p => {
return p.value[2].toFixed()
},
position: 'center',
color: '#fff'
},
emphasis: {//高亮的图形和标签样式
show: false,
scale: true
},
itemStyle: {//图形样式
color: '#f9b207', //地图点的颜色
},
layoutCenter: ['50%', '50%'], //属性定义地图中心在屏幕中的位置,一般结合layoutSize 定义地图的大小
layoutSize: 430
}]
},
true
);
let that = this;
// 解绑鼠标点击事件处理函数,以防重复点击
this.chart.off("click");
// 绑定鼠标点击事件处理函数
this.chart.on("click", params => {
console.log('params :>> ', params);
if (!params.data) {
return
}
if (
that.parentInfo[that.parentInfo.length - 1].code ==
params.data.cityCode
) {
return;
}
let data = params.data;
that.parentInfo.push({
cityName: data.name,
code: data.cityCode
});
that.getGeoJson(data.cityCode);
});
},
4.飞线图
4.1 实际效果
您的浏览器不支持播放该视频!
4.2 echarts地图渲染
initEcharts(mapData, lineToLf) {
var planePath = 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z'
// 重绘图表时,把之前已经渲染好的图表清空,避免报错
if (this.chart) {
this.chart.dispose()
}
// 创建一个 ECharts 实例
this.chart = echarts.init(this.$refs.FlightMap, { renderer: 'svg' });
//注册可用的地图,只在 geo 组件或者 map 图表类型中使用
if (this.parentInfo.length === 1) {
echarts.registerMap('china', this.geoJson); //注册
} else {
echarts.registerMap('map', this.geoJson); //注册
}
// 设置图表实例的配置项以及数据
this.chart.setOption({
// 背景色
backgroundColor: "#03213D",
// 提示框
tooltip: {
trigger: "item",//触发类型,数据项图形触发
formatter: p => { //提示框浮层内容格式器,支持字符串模板和回调函数两种形式。
let txtCon = ''
if (p.seriesType === "effectScatter") {
let val = p.value[2];
if (!val) {
val = 0;
}
txtCon = p.name + ":" + val.toFixed(2);
} else if (p.seriesType === "lines") {
txtCon = p.data.lineToName[0] + " - " + p.data.lineToName[1]
}
return txtCon;
}
},
// 标题
title: {
show: true,
left: "center",
top: "15",
text: this.parentInfo[this.parentInfo.length - 1].cityName,
textStyle: {
color: "rgba(147, 235, 248, .8)",
fontSize: 16
}
},
// 工具栏
toolbox: {
// 各工具配置项
feature: {
restore: {//配置项还原
show: true,//true - 可还原地图缩放,数据栏筛选等功能
},
dataView: {//数据视图
optionToContent: function (opt) {
let series = opt.series[0].data; //折线图数据
let div = `<div style="display: flex;align-items: center;justify-content: center;height: 100%;">`
let tdHeads =
'<th style="padding: 0 50px">所在地区</th><th style="padding: 0 50px">销售额</th>'; //表头
let tdBodys = ""; //数据
let table =
`<table border="1" style="border-collapse:collapse;font-size:14px;text-align:left;"><tbody><tr>${tdHeads} </tr>`;
for (let i = 0; i < series.length; i++) {
table += `<tr>
<td style="padding: 0 50px">${series[i].name}</td>
<td style="padding: 0 50px">${series[i].value[2].toFixed(2)}万</td>
</tr>`;
}
table += "</tbody></table></div>";
return div + table;
}
},
saveAsImage: {//保存为图片
name: this.parentInfo[this.parentInfo.length - 1].cityName + "地图"
},
dataZoom: {//数据区域缩放
show: false
},
magicType: {//动态类型切换
show: false
}
},
// 公用的 icon 样式设置
iconStyle: {
borderColor: "#1990DA" //图形的描边颜色
},
top: 15,//工具栏组件离容器上侧的距离
right: 35//工具栏组件离容器右侧的距离
},
geo: {
show: true,//是否显示地理坐标系组件
map: this.parentInfo.length === 1 ? 'china' : 'map', //使用 registerMap 注册的地图名称 ,必须和 registerMap 注册的一致
roam: true,//是否开启鼠标缩放和平移漫游
zoom: 1.1, //当前视角的缩放比例
itemStyle: {//地图区域的多边形 图形样式
areaColor: "#105389",
borderColor: "#53D9FF",
borderWidth: 1.3,
shadowBlur: 15,
shadowColor: "rgb(58,115,192)",
shadowOffsetX: 7,
shadowOffsetY: 6,
},
emphasis: {//高亮状态下的多边形和标签样式
label: {
show: true,
color: "#f75a00"
},
itemStyle: {
areaColor: "#8dd7fc",
borderWidth: 1.6,
shadowBlur: 25
}
},
label: {//图形上的文本标签
show: true,
color: "rgb(249, 249, 249)", //省份标签字体颜色
formatter: p => {
switch (p.name) {
case "内蒙古自治区":
p.name = "内蒙古";
break;
case "西藏自治区":
p.name = "西藏";
break;
case "新疆维吾尔自治区":
p.name = "新疆";
break;
case "宁夏回族自治区":
p.name = "宁夏";
break;
case "广西壮族自治区":
p.name = "广西";
break;
case "香港特别行政区":
p.name = "香港";
break;
case "澳门特别行政区":
p.name = "澳门";
break;
default:
break;
}
// let val = p.value[2];
// if (!val) {
// val = 0;
// }
return p.name;
},
},
},
series: [
{
name: '散点',
type: 'effectScatter',//类型
data: mapData,
coordinateSystem: 'geo',//使用地理坐标系
showEffectOn: 'render', // 加载完毕显示特效
symbolSize: function (val) {//设置点的大小
return val[2] / 1.5
},
rippleEffect: {//涟漪特效相关配置
number: 5, // 波纹数量
period: 4, // 动画周期 数值越大,波动越慢
scale: 3.5, // 动画中波纹的最大缩放比例
brushType: 'stroke'
},
label: {//图形上的文本标签
show: true,//地图上是否有文字
formatter: p => {
return p.value[2].toFixed()
},
position: 'center',
color: '#fff'
},
emphasis: {//高亮的图形和标签样式
show: false,
scale: true
},
itemStyle: {//图形样式
color: '#f9b207', //地图点的颜色
},
layoutCenter: ['50%', '50%'], //属性定义地图中心在屏幕中的位置,一般结合layoutSize 定义地图的大小
layoutSize: 430
},
// 地图线的动画效果
{
type: 'lines',
zlevel: 2,
symbol: ['none', 'arrow'],
// 自定义图标
effect: {
show: true,
period: 6,
trailLength: 0,
symbol: planePath,
symbolSize: 15
},
lineStyle: {
color: 'a6c84c',
width: 1,
opacity: 0.6,
curveness: 0.2
},
// 默认图标
// effect: {
// show: true,
// period: 4, // 箭头指向速度,值越小速度越快
// trailLength: 0.02, // 特效尾迹长度[0,1]值越大,尾迹越长重
// symbol: 'arrow', // 箭头图标
// symbolSize: 3, // 图标大小
// },
// lineStyle: {
// color: '#f9b207',
// width: 0.1, // 尾迹线条宽度
// opacity: 0.5, // 尾迹线条透明度
// curveness: 0.3 // 尾迹线条曲直度
// },
data: lineToLf,
z: 3
}]
},
true
);
let that = this;
// 解绑鼠标点击事件处理函数,以防重复点击
this.chart.off("click");
// 绑定鼠标点击事件处理函数
this.chart.on("click", params => {
// 只有点击散点可以下钻
if (params.seriesType !== "effectScatter") {
return
}
if (!params.data) {
return
}
if (
that.parentInfo[that.parentInfo.length - 1].code ==
params.data.cityCode
) {
return;
}
let data = params.data;
that.parentInfo.push({
cityName: data.name,
code: data.cityCode
});
that.getGeoJson(data.cityCode);
});
},
5.分布散点地图
5.1 实际效果
您的浏览器不支持播放该视频!
5.2 echarts地图渲染
/**
* @description 渲染echarts
* @param {array} mapData 图表数据 [{name: string,value: number,cityCode:number}]
*/
initEcharts(mapData) {
// 获取最小值
var min = mapData[mapData.length - 1].value[2];
// 获取最大值
var max = mapData[0].value[2];
// length === 1 时默认本身为最大值,最小值取 0
if (mapData.length === 1) {
min = 0;
}
// 重绘图表时,把之前已经渲染好的图表清空,避免报错
if (this.chart) {
this.chart.dispose();
}
// 创建一个 ECharts 实例
this.chart = echarts.init(this.$refs.AllMap, { renderer: "svg" });
//注册可用的地图,只在 geo 组件或者 map 图表类型中使用
if (this.parentInfo.length === 1) {
echarts.registerMap("china", this.geoJson); //注册
} else {
echarts.registerMap("map", this.geoJson); //注册
}
// 设置图表实例的配置项以及数据
this.chart.setOption(
{
// 背景色
backgroundColor: "#03213D",
// 提示框
tooltip: {
trigger: "item", //触发类型,数据项图形触发
// formatter: p => { //提示框浮层内容格式器,支持字符串模板和回调函数两种形式。
// let val = p.value[2];
// if (!val) {
// val = 0;
// }
// let txtCon = p.name + ":" + val.toFixed(2);
// return txtCon;
// }
},
// 标题
title: {
show: true,
left: "center",
top: "15",
text: this.parentInfo[this.parentInfo.length - 1].cityName,
textStyle: {
color: "rgba(147, 235, 248, .8)",
fontSize: 16,
},
},
grid: {
right: "2%",
top: "12%",
bottom: "8%",
width: "20%",
},
// 工具栏
toolbox: {
// 各工具配置项
feature: {
restore: {
//配置项还原
show: true, //true - 可还原地图缩放,数据栏筛选等功能
},
dataView: {
//数据视图
optionToContent: function (opt) {
let series = opt.series[0].data; //折线图数据
let div = `<div style="display: flex;align-items: center;justify-content: center;height: 100%;">`;
let tdHeads =
'<th style="padding: 0 50px">所在地区</th><th style="padding: 0 50px">销售额</th>'; //表头
let tdBodys = ""; //数据
let table = `<table border="1" style="border-collapse:collapse;font-size:14px;text-align:left;"><tbody><tr>${tdHeads} </tr>`;
for (let i = 0; i < series.length; i++) {
table += `<tr>
<td style="padding: 0 50px">${series[i].name}</td>
<td style="padding: 0 50px">${series[
i
].value[2].toFixed(2)}万</td>
</tr>`;
}
table += "</tbody></table></div>";
return div + table;
},
},
saveAsImage: {
//保存为图片
name:
this.parentInfo[this.parentInfo.length - 1].cityName + "地图",
},
dataZoom: {
//数据区域缩放
show: false,
},
magicType: {
//动态类型切换
show: false,
},
},
// 公用的 icon 样式设置
iconStyle: {
borderColor: "#1990DA", //图形的描边颜色
},
top: 15, //工具栏组件离容器上侧的距离
right: 35, //工具栏组件离容器右侧的距离
},
// 视觉映射组件,将数据映射到视觉元素(左下方数据组件)
visualMap: {
type: "continuous",
min: min, //最小值
max: max, //最大值
left: "3%", //组件离容器左侧的距离
bottom: "5%", // 组件离容器下侧的距离
calculable: true, //是否显示拖拽用的手柄(手柄能拖拽调整选中范围)
seriesIndex: [0], //指定取哪个系列的数据,即哪个系列的 series.data
inRange: {
//定义 在选中范围中 的视觉元素
color: ["#24CFF4", "#2E98CA", "#1E62AC"], //从高到低颜色渐变
},
textStyle: {
//文字的颜色
color: "#24CFF4",
},
},
geo: {
show: true, //是否显示地理坐标系组件
map: this.parentInfo.length === 1 ? "china" : "map", //使用 registerMap 注册的地图名称 ,必须和 registerMap 注册的一致
roam: true, //是否开启鼠标缩放和平移漫游
zoom: 1.1, //当前视角的缩放比例
itemStyle: {
//地图区域的多边形 图形样式
areaColor: "#24CFF4",
borderColor: "#53D9FF",
borderWidth: 1.3,
shadowBlur: 15,
shadowColor: "rgb(58,115,192)",
shadowOffsetX: 7,
shadowOffsetY: 6,
},
emphasis: {
//高亮状态下的多边形和标签样式
label: {
show: true,
color: "#f75a00",
},
itemStyle: {
areaColor: "#8dd7fc",
borderWidth: 1.6,
shadowBlur: 25,
},
},
label: {
//图形上的文本标签
show: true,
color: "rgb(249, 249, 249)", //省份标签字体颜色
formatter: (p) => {
switch (p.name) {
case "内蒙古自治区":
p.name = "内蒙古";
break;
case "西藏自治区":
p.name = "西藏";
break;
case "新疆维吾尔自治区":
p.name = "新疆";
break;
case "宁夏回族自治区":
p.name = "宁夏";
break;
case "广西壮族自治区":
p.name = "广西";
break;
case "香港特别行政区":
p.name = "香港";
break;
case "澳门特别行政区":
p.name = "澳门";
break;
default:
break;
}
return p.name;
},
},
},
series: [
{
name: "地图分布",
type: "map",
geoIndex: 0,
map: this.parentInfo.length === 1 ? "china" : "map",
roam: true,
zoom: 1.3,
tooltip: {
trigger: "item",
formatter: (p) => {
//提示框浮层内容格式器,支持字符串模板和回调函数两种形式。
let txtCon = "";
let val = p.data;
// if (p.name == '南海诸岛') return
if (!!val && !!val?.value) {
txtCon =
val.name +
"<br />series地图数据:" +
val.value[2].toFixed(2) +
"万";
} else {
txtCon = p.name + "<br />series地图数据:" + 0.0 + "万";
}
return txtCon;
},
},
label: {
show: false,
},
emphasis: {
label: {
show: false,
},
},
data: mapData,
},
{
name: "散点",
type: "effectScatter", //类型
data: mapData,
coordinateSystem: "geo", //使用地理坐标系
showEffectOn: "render", // 加载完毕显示特效
symbolSize: function (val) {
//设置点的大小
return val[2] / 1.5;
},
rippleEffect: {
//涟漪特效相关配置
number: 5, // 波纹数量
period: 4, // 动画周期 数值越大,波动越慢
scale: 3.5, // 动画中波纹的最大缩放比例
brushType: "stroke",
},
label: {
//图形上的文本标签
show: false, //地图上是否有文字
},
emphasis: {
//高亮的图形和标签样式
show: false,
scale: true,
},
itemStyle: {
//图形样式
color: "#f9b207", //地图点的颜色
},
},
],
},
true
);
let that = this;
// 解绑鼠标点击事件处理函数,以防重复点击
this.chart.off("click");
// 绑定鼠标点击事件处理函数
this.chart.on("click", (params) => {
if (!params.data) {
return;
}
if (
that.parentInfo[that.parentInfo.length - 1].code ==
params.data.cityCode
) {
return;
}
let data = params.data;
that.parentInfo.push({
cityName: data.name,
code: data.cityCode,
});
that.getGeoJson(data.cityCode);
});
},
6.完整代码
以分布图为示例,只需要把 initEcharts()
函数替换即可。
<template>
<div class="echarts">
<div style="width: 100; height: 100%" ref="DistributionMap"></div>
<div class="mapChoose">
<span v-for="(item, index) in parentInfo" :key="item.code">
<button class="button type1" @click="chooseArea(item, index)">
{{ item.cityName == "全国" ? "中国" : item.cityName }}
</button>
<span
class="iconfont icon-xiayige"
v-show="index + 1 != parentInfo.length"
></span>
</span>
</div>
</div>
</template>
<script>
import * as echarts from "echarts";
import resize from "./mixins/resize";
export default {
name: "DistributionMap",
mixins: [resize],
data() {
return {
chart: null, //地图实列
geoJson: {
//高德api获取的地理信息
features: [],
},
parentInfo: [
{
//地图列表(默认为全国-中国)
cityName: "全国", //
code: 100000, //全国的区划编码
},
],
};
},
mounted() {
// 初始化地理信息,并实例化地图
this.$nextTick(() => {
this.getGeoJson(100000);
});
},
//页面销毁前,销毁事件和实例
beforeDestroy() {
if (!this.chart) {
return;
}
this.chart.dispose();
this.chart = null;
},
methods: {
/**
* @description 根据区划编码调用高德api获取地理信息
* @param {number} adcode 区划编码
*/
getGeoJson(adcode) {
let that = this;
// 高德api获取初始化地理信息,详情可查看 https://lbs.amap.com/api/amap-ui/reference-amap-ui/geo/district-explorer
// DistrictExplorer(行政区划浏览) 提供了全国范围内到区县一级的行政区划数据(含边界)
AMapUI.loadUI(["geo/DistrictExplorer"], (DistrictExplorer) => {
var districtExplorer = new DistrictExplorer();
districtExplorer.loadAreaNode(adcode, function (error, areaNode) {
// 错误信息 - error
if (error) {
console.error(error);
return;
}
// 区域节点 - AreaNode
// getSubFeatures() 返回该区域中全部的子级区划Feature数组
let Json = areaNode.getSubFeatures();
// 存在子级区域时,直接赋值
if (Json.length > 0) {
that.geoJson.features = Json;
} else if (Json.length === 0) {
// 不存在子级区域时,在原数组中筛选自己本身
that.geoJson.features = that.geoJson.features.filter(
(item) => item.properties.adcode == adcode
);
if (that.geoJson.features.length === 0) return;
}
that.getMapData();
});
});
},
/**
* @description 获取并整理形成需要的数据
*/
getMapData() {
let mapData = this.geoJson.features.map((item) => {
return {
name: item.properties.name,
value: Math.random() * 1000,
cityCode: item.properties.adcode,
};
});
// 排序,方便后续更快获取最大值和最小值
mapData = mapData.sort(function (a, b) {
return b.value - a.value;
});
this.initEcharts(mapData);
},
/**
* @description 渲染echarts
* @param {array} mapData 图表数据 [{name: string,value: number,cityCode:number}]
*/
initEcharts(mapData) {
// 获取最小值
var min = mapData[mapData.length - 1].value;
// 获取最大值
var max = mapData[0].value;
// length === 1 时默认本身为最大值,最小值取 0
if (mapData.length === 1) {
min = 0;
}
// 重绘图表时,把之前已经渲染好的图表清空,避免报错
if (this.chart) {
this.chart.dispose();
}
// 创建一个 ECharts 实例
this.chart = echarts.init(this.$refs.DistributionMap, {
renderer: "svg",
});
//注册可用的地图,只在 geo 组件或者 map 图表类型中使用
if (this.parentInfo.length === 1) {
echarts.registerMap("china", this.geoJson); //注册
} else {
echarts.registerMap("map", this.geoJson); //注册
}
// 设置图表实例的配置项以及数据
this.chart.setOption(
{
// 背景色
backgroundColor: "#03213D",
// 提示框
tooltip: {
trigger: "item", //触发类型,数据项图形触发
formatter: (p) => {
//提示框浮层内容格式器,支持字符串模板和回调函数两种形式。
let val = p.value;
if (!val) {
val = 0;
}
let txtCon = p.name + ":" + val.toFixed(2);
return txtCon;
},
},
// 标题
title: {
show: true,
left: "center",
top: "15",
text: this.parentInfo[this.parentInfo.length - 1].cityName,
textStyle: {
color: "rgba(147, 235, 248, .8)",
fontSize: 16,
},
},
// 工具栏
toolbox: {
// 各工具配置项
feature: {
restore: {
//配置项还原
show: true, //true - 可还原地图缩放,数据栏筛选等功能
},
dataView: {
//数据视图
optionToContent: function (opt) {
let series = opt.series[0].data; //折线图数据
let div = `<div style="display: flex;align-items: center;justify-content: center;height: 100%;">`;
let tdHeads =
'<th style="padding: 0 50px">所在地区</th><th style="padding: 0 50px">销售额</th>'; //表头
let tdBodys = ""; //数据
let table = `<table border="1" style="border-collapse:collapse;font-size:14px;text-align:left;"><tbody><tr>${tdHeads} </tr>`;
for (let i = 0; i < series.length; i++) {
table += `<tr>
<td style="padding: 0 50px">${series[i].name}</td>
<td style="padding: 0 50px">${series[
i
].value.toFixed(2)}万</td>
</tr>`;
}
table += "</tbody></table></div>";
return div + table;
},
},
saveAsImage: {
//保存为图片
name:
this.parentInfo[this.parentInfo.length - 1].cityName + "地图",
},
dataZoom: {
//数据区域缩放
show: false,
},
magicType: {
//动态类型切换
show: false,
},
},
// 公用的 icon 样式设置
iconStyle: {
borderColor: "#1990DA", //图形的描边颜色
},
top: 15, //工具栏组件离容器上侧的距离
right: 35, //工具栏组件离容器右侧的距离
},
// 视觉映射组件,将数据映射到视觉元素(左下方数据组件)
visualMap: {
min: min, //最小值
max: max, //最大值
left: "3%", //组件离容器左侧的距离
bottom: "5%", // 组件离容器下侧的距离
calculable: true, //是否显示拖拽用的手柄(手柄能拖拽调整选中范围)
seriesIndex: [0], //指定取哪个系列的数据,即哪个系列的 series.data
inRange: {
//定义 在选中范围中 的视觉元素
color: ["#105389", "#3a8abc", "#0D96F1"], //从高到低颜色渐变
},
textStyle: {
//文字的颜色
color: "#24CFF4",
},
},
series: [
{
name: "地图分布",
type: "map", //地图
map: this.parentInfo.length === 1 ? "china" : "map", //使用 registerMap 注册的地图名称 ,必须和 registerMap 注册的一致
roam: false, //是否开启鼠标缩放和平移漫游
zoom: 1.1, //当前视角的缩放比例
data: mapData,
label: {
//图形上的文本标签
show: true,
color: "rgb(249, 249, 249)", //省份标签字体颜色
formatter: (p) => {
switch (p.name) {
case "内蒙古自治区":
p.name = "内蒙古";
break;
case "西藏自治区":
p.name = "西藏";
break;
case "新疆维吾尔自治区":
p.name = "新疆";
break;
case "宁夏回族自治区":
p.name = "宁夏";
break;
case "广西壮族自治区":
p.name = "广西";
break;
case "香港特别行政区":
p.name = "香港";
break;
case "澳门特别行政区":
p.name = "澳门";
break;
default:
break;
}
return p.name;
},
},
itemStyle: {
//地图区域的多边形 图形样式
areaColor: "#24CFF4",
borderColor: "#53D9FF",
borderWidth: 1.3,
shadowBlur: 15,
shadowColor: "rgb(58,115,192)",
shadowOffsetX: 7,
shadowOffsetY: 6,
},
emphasis: {
//高亮状态下的多边形和标签样式
label: {
show: true,
color: "#f75a00",
},
itemStyle: {
areaColor: "#8dd7fc",
borderWidth: 1.6,
shadowBlur: 25,
},
},
},
],
},
true
);
let that = this;
// 解绑鼠标点击事件处理函数,以防重复点击
this.chart.off("click");
// 绑定鼠标点击事件处理函数
this.chart.on("click", (params) => {
if (
that.parentInfo[that.parentInfo.length - 1].code ==
params.data.cityCode
) {
return;
}
let data = params.data;
that.parentInfo.push({
cityName: data.name,
code: data.cityCode,
});
that.getGeoJson(data.cityCode);
});
},
/**
* @description 选择切换市县
* @param {object} val
* @param {number} index
*/
chooseArea(val, index) {
// 如果点击自己,直接return
if (this.parentInfo.length === index + 1) {
return;
}
//从aparentInfo索引为 index + 1 的位置开始其后面的都删除,返回的是移除的所有元素所构成的新数组
this.parentInfo.splice(index + 1);
this.getGeoJson(this.parentInfo[this.parentInfo.length - 1].code);
},
},
};
</script>
<style lang="scss" scoped>
.echarts {
width: 100%;
height: 100%;
position: relative;
}
.mapChoose {
position: absolute;
left: 20px;
top: 55px;
color: #eee;
.button {
position: relative;
padding: 8px 15px;
border: none;
background-color: transparent;
cursor: pointer;
outline: none;
font-size: 14px;
}
.button.type1 {
color: rgba(147, 235, 248, 0.8);
}
}
</style>
}
let data = params.data;
that.parentInfo.push({
cityName: data.name,
code: data.cityCode,
});
that.getGeoJson(data.cityCode);
});
},
/**
* @description 选择切换市县
* @param {object} val
* @param {number} index
*/
chooseArea(val, index) {
// 如果点击自己,直接return
if (this.parentInfo.length === index + 1) {
return;
}
//从aparentInfo索引为 index + 1 的位置开始其后面的都删除,返回的是移除的所有元素所构成的新数组
this.parentInfo.splice(index + 1);
this.getGeoJson(this.parentInfo[this.parentInfo.length - 1].code);
},
},
};
```
