电信计费系列3-短信计费

7-1 电信计费系列3-短信计费

分数 50

全屏浏览题目

切换布局

作者 蔡轲

单位 南昌航空大学

实现一个简单的电信计费程序,针对手机的短信采用如下计费方式
1、接收短信免费,发送短信0.1元/条,超过3条0.2元/条,超过5条0.3元/条。
2、如果一次发送短信的字符数量超过10个,按每10个字符一条短信进行计算。

输入:
输入信息包括两种类型
1、逐行输入南昌市手机用户开户的信息,每行一个用户。
格式:u-号码 计费类型 (计费类型包括:0-座机 1-手机实时计费 2-手机A套餐 3-手机短信计费)
例如:u-13305862264 3
座机号码由区号和电话号码拼接而成,电话号码包含7-8位数字,区号最高位是0。
手机号码由11位数字构成,最高位是1。
本题只针对类型3-手机短信计费。
2、逐行输入本月某些用户的短信信息,短信的格式:
m-主叫号码,接收号码,短信内容 (短信内容只能由数字、字母、空格、英文逗号、英文句号组成)
m-18907910010 13305862264 welcome to jiangxi.
m-13305862264 18907910010 thank you.

注意:以上两类信息,先输入所有开户信息,再输入所有通讯信息,最后一行以“end”结束。
输出:
根据输入的详细短信信息,计算所有已开户的用户的当月短信费用(精确到小数点后2位,单位元)。假设每个用户初始余额是100元。
每条短信信息均单独计费后累加,不是将所有信息累计后统一计费。
格式:号码+英文空格符+总的话费+英文空格符+余额
每个用户一行,用户之间按号码字符从小到大排序。
错误处理:
输入数据中出现的不符合格式要求的行一律忽略。
本题只做格式的错误判断,无需做内容上不合理的判断,比如同一个电话两条通讯记录的时间有重合、开户号码非南昌市的号码、自己给自己打电话等,此类情况都当成正确的输入计算。但时间的输入必须符合要求,比如不能输入2022.13.61 28:72:65。

本题只考虑短信计费,不考虑通信费用以及月租费。

建议类图:
参见图1、2、3:

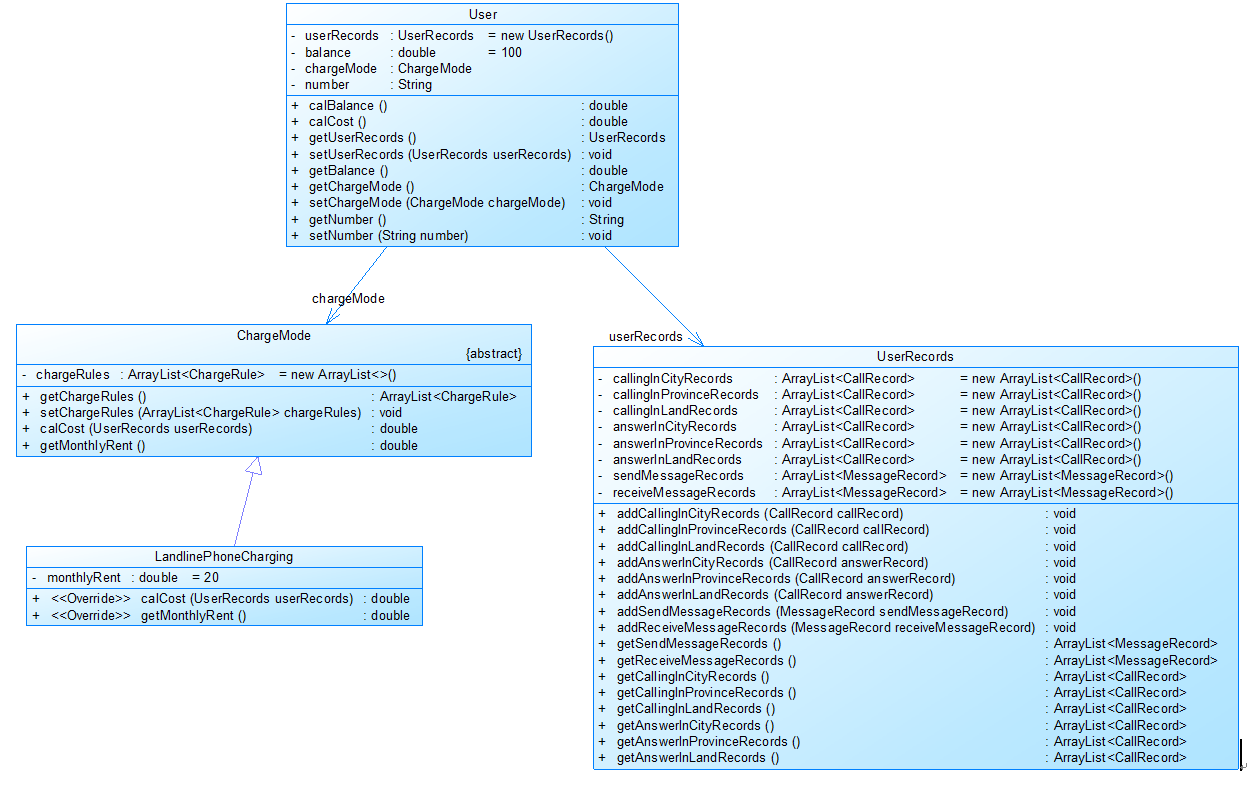

图1

图1中User是用户类,包括属性:
userRecords (用户记录)、balance(余额)、chargeMode(计费方式)、number(号码)。
ChargeMode是计费方式的抽象类:
chargeRules是计费方式所包含的各种计费规则的集合,ChargeRule类的定义见图3。
getMonthlyRent()方法用于返回月租(monthlyRent)。
UserRecords是用户记录类,保存用户各种通话、短信的记录,
各种计费规则将使用其中的部分或者全部记录。
其属性从上到下依次是:
市内拨打电话、省内(不含市内)拨打电话、省外拨打电话、
市内接听电话、省内(不含市内)接听电话、省外接听电话的记录
以及发送短信、接收短信的记录。

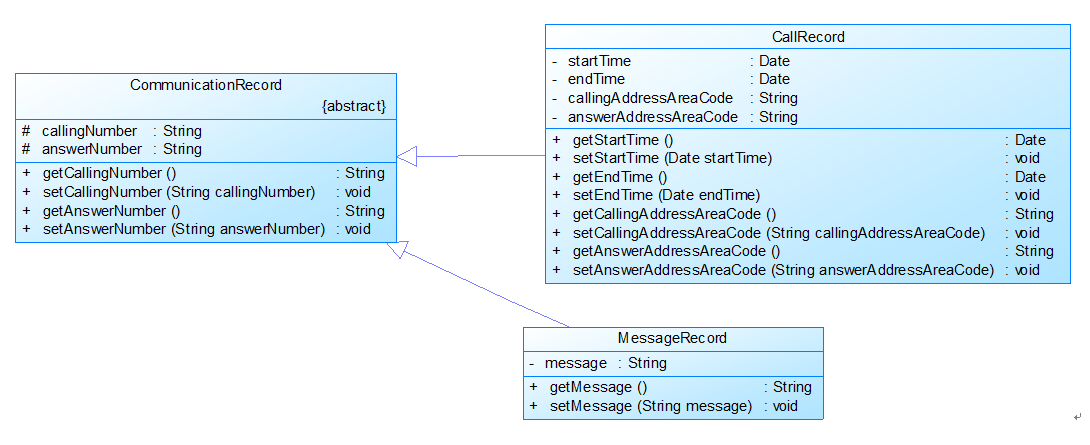

图2

    图2中CommunicationRecord是抽象的通讯记录类:
包含callingNumber拨打号码、answerNumber接听号码两个属性。
CallRecord(通话记录)、MessageRecord(短信记录)是它的子类。

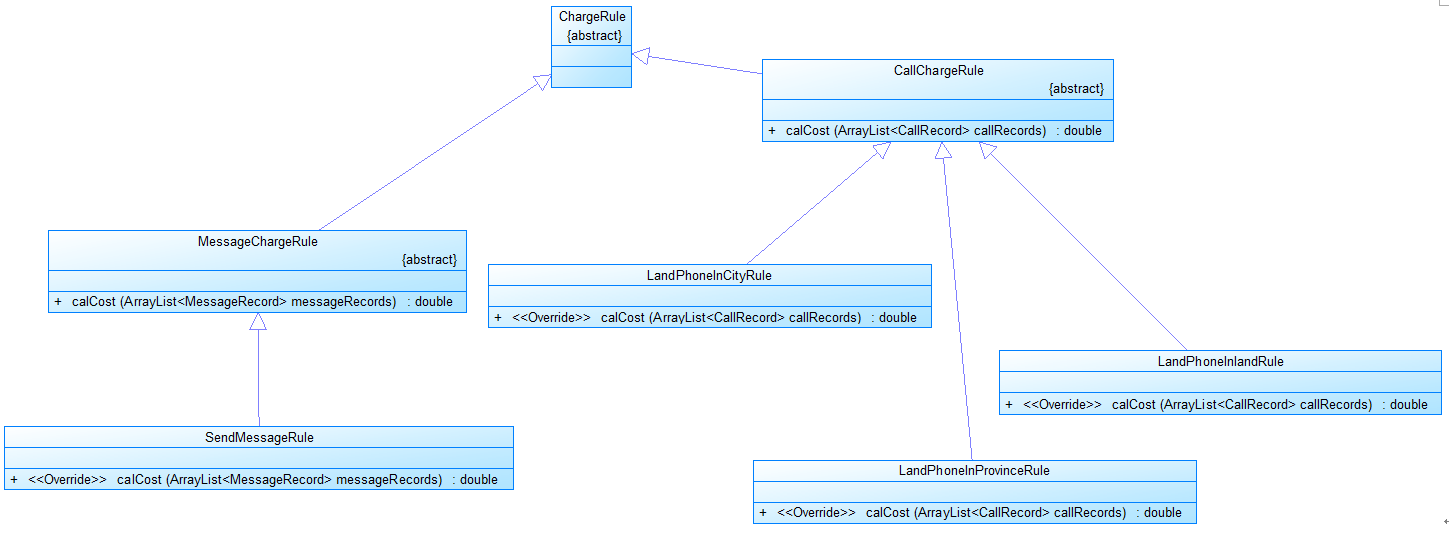

图3
图3是计费规则的相关类,这些类的核心方法是:
calCost(ArrayList callRecords)。
该方法针根据输入参数callRecords中的所有记录计算某用户的某一项费用;如市话费。
输入参数callRecords的约束条件:必须是某一个用户的符合计费规则要求的所有记录。
SendMessageRule是发送短信的计费规则类,用于计算发送短信的费用。
LandPhoneInCityRule、LandPhoneInProvinceRule、LandPhoneInLandRule三个类分别是座机拨打市内、省内、省外电话的计费规则类,用于实现这三种情况的费用计算。

(提示:可以从UserRecords类中获取各种类型的callRecords)。

注意:以上图中所定义的类不是限定要求,根据实际需要自行补充或修改。

输入样例:

在这里给出一组输入。例如:

u-18907910010 3
m-18907910010 13305862264 aaaaaaaaaaaaaaaaaaaaaaa
end

输出样例:

在这里给出相应的输出。例如:

18907910010 0.3 99.7
### 输入样例1:

在这里给出一组输入。例如:

u-18907910010 3
m-18907910010 13305862264 aaaaaaaaaaaa
m-18907910010 13305862264 aaaaaaa.
m-18907910010 13305862264 bb,bbbb
end

输出样例1:

在这里给出相应的输出。例如:

18907910010 0.5 99.5

代码长度限制

20 KB

时间限制

400 ms

内存限制

64 MB

我滴代码:



import java.util.ArrayList;
import java.util.Comparator;
import java.util.Scanner;
import java.util.regex.Matcher;
import java.util.regex.Pattern;
import java.math.BigDecimal;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Locale;
import java.text.ParseException;

public class Main {

	public static void main(String[] args) {

		Outputtool outputtool = new Outputtool();

		Inputdeal inputdeal = new Inputdeal();

		ArrayList<User> users = new ArrayList<>();

		Scanner in = new Scanner(System.in);

		String input = in.nextLine();

		while (!input.equals("end")) {
			if (1 == inputdeal.check(input)) {
				inputdeal.writeUser(users, input);
			} else if (2 == inputdeal.check(input)) {
				inputdeal.writeRecord(users, input);
			}
			input = in.nextLine();
		}

		users.sort(new Comparator<User>() {

			@Override
			public int compare(User u1, User u2) {
				if (u1.getNumber().charAt(0) == '0' && u2.getNumber().charAt(0) != '0') {
					return -1;
				} else if (u1.getNumber().charAt(0) != '0' && u2.getNumber().charAt(0) == '0') {
					return 1;
				}
				if (Double.parseDouble(u1.getNumber()) > Double.parseDouble(u2.getNumber())) {
					return 1;
				} else {
					return -1;
				}
			}
		});

		for (User u : users) {
			System.out.print(u.getNumber() + " ");
			outputtool.output(u.calCost());
			System.out.print(" ");
			outputtool.output(u.calBalance());
			System.out.println();

		}

	}

}

abstract class ChargeMode {
	protected ArrayList<ChargeRule> chargeRules = new ArrayList<>();

	public abstract double calCost(UserRecords userRecords);

	public abstract double getMonthlyRent();

	public ArrayList<ChargeRule> getChargeRules() {
		return chargeRules;
	}

	public void setChargeRules(ArrayList<ChargeRule> chargeRules) {
		this.chargeRules = chargeRules;
	}
}

class UserRecords {

	private ArrayList<CallRecord> callingInCityRecords = new ArrayList<CallRecord>();
	private ArrayList<CallRecord> callingInProvinceRecords = new ArrayList<CallRecord>();
	private ArrayList<CallRecord> callingInLandRecords = new ArrayList<CallRecord>();
	private ArrayList<CallRecord> answerInCityRecords = new ArrayList<CallRecord>();
	private ArrayList<CallRecord> answerInProvinceRecords = new ArrayList<CallRecord>();
	private ArrayList<CallRecord> answerInLandRecords = new ArrayList<CallRecord>();
	private ArrayList<MessageRecord> sendMessageRecords = new ArrayList<MessageRecord>();
	private ArrayList<MessageRecord> receiveMessageRecords = new ArrayList<MessageRecord>();

	public void addCallingInCityRecords(CallRecord callRecord) {
		callingInCityRecords.add(callRecord);
	}

	public void addCallingInProvinceRecords(CallRecord callRecord) {
		callingInProvinceRecords.add(callRecord);
	}

	public void addCallingInLandRecords(CallRecord callRecord) {
		callingInLandRecords.add(callRecord);
	}

	public void addAnswerInCityRecords(CallRecord callRecord) {
		answerInCityRecords.add(callRecord);
	}

	public void aaddAnswerInProvinceRecords(CallRecord callRecord) {
		answerInProvinceRecords.add(callRecord);
	}

	public void addAnswerInLandRecords(CallRecord callRecord) {
		answerInLandRecords.add(callRecord);
	}

	public void addSendMessageRecords(MessageRecord callRecord) {
		sendMessageRecords.add(callRecord);
	}

	public void addReceiveMessageRecords(MessageRecord callRecord) {
		receiveMessageRecords.add(callRecord);
	}

	public ArrayList<CallRecord> getCallingInCityRecords() {
		return callingInCityRecords;
	}

	public void setCallingInCityRecords(ArrayList<CallRecord> callingInCityRecords) {
		this.callingInCityRecords = callingInCityRecords;
	}

	public ArrayList<CallRecord> getCallingInProvinceRecords() {
		return callingInProvinceRecords;
	}

	public void setCallingInProvinceRecords(ArrayList<CallRecord> callingInProvinceRecords) {
		this.callingInProvinceRecords = callingInProvinceRecords;
	}

	public ArrayList<CallRecord> getCallingInLandRecords() {
		return callingInLandRecords;
	}

	public void setCallingInLandRecords(ArrayList<CallRecord> callingInLandRecords) {
		this.callingInLandRecords = callingInLandRecords;
	}

	public ArrayList<CallRecord> getAnswerInCityRecords() {
		return answerInCityRecords;
	}

	public void setAnswerInCityRecords(ArrayList<CallRecord> answerInCityRecords) {
		this.answerInCityRecords = answerInCityRecords;
	}

	public ArrayList<CallRecord> getAnswerInProvinceRecords() {
		return answerInProvinceRecords;
	}

	public void setAnswerInProvinceRecords(ArrayList<CallRecord> answerInProvinceRecords) {
		this.answerInProvinceRecords = answerInProvinceRecords;
	}

	public ArrayList<CallRecord> getAnswerInLandRecords() {
		return answerInLandRecords;
	}

	public void setAnswerInLandRecords(ArrayList<CallRecord> answerInLandRecords) {
		this.answerInLandRecords = answerInLandRecords;
	}

	public ArrayList<MessageRecord> getSendMessageRecords() {
		return sendMessageRecords;
	}

	public void setSendMessageRecords(ArrayList<MessageRecord> sendMessageRecords) {
		this.sendMessageRecords = sendMessageRecords;
	}

	public ArrayList<MessageRecord> getReceiveMessageRecords() {
		return receiveMessageRecords;
	}

	public void setReceiveMessageRecords(ArrayList<MessageRecord> receiveMessageRecords) {
		this.receiveMessageRecords = receiveMessageRecords;
	}

}

class LandlinePhoneCharging extends ChargeMode {

	private double monthlyRent = 20;

	public LandlinePhoneCharging() {
		super();
		chargeRules.add(new LandPhoneInCityRule());
		chargeRules.add(new LandPhoneInProvinceRule());
		chargeRules.add(new LandPhoneInlandRule());
	}

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (ChargeRule rule : chargeRules) {
			sumCost += rule.calCost(userRecords);
		}
		return sumCost;
	}

	@Override
	public double getMonthlyRent() {
		return monthlyRent;
	}

}

class MobilePhoneCharging extends ChargeMode {

	private double monthlyRent = 15;

	public MobilePhoneCharging() {
		super();
		chargeRules.add(new MobilePhoneInCityRule());
		chargeRules.add(new MobilePhoneInProvinceRule());
		chargeRules.add(new MobilePhoneInlandRule());
	}

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (ChargeRule rule : chargeRules) {
			sumCost += rule.calCost(userRecords);
		}
		return sumCost;
	}

	@Override
	public double getMonthlyRent() {
		return monthlyRent;
	}

}

class MobilePhoneMassageCharging extends ChargeMode {

	private double monthlyRent = 0;

	public MobilePhoneMassageCharging() {
		super();
		chargeRules.add(new MobilePhoneMessageRule());
	}

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (ChargeRule rule : chargeRules) {
			sumCost += rule.calCost(userRecords);
		}
		return sumCost;
	}

	@Override
	public double getMonthlyRent() {
		return monthlyRent;
	}

}

class Inputdeal {

	public int check(String input) {
		if (input.matches("[u]-0791[0-9]{7,8}\\s[0]") || input.matches("[u]-1[0-9]{10}\\s[13]")) {
			return 1;
		} else if (input.matches("[m]-1[0-9]{10}\\s" + "1[0-9]{10}\\s" + "[0-9a-zA-Z\\s\\.,]+")) {
			return 2;
		}
		return 0;
	}

	public void writeUser(ArrayList<User> users, String input) {
		User usernew = new User();
		String[] inputs = input.split(" ");
		String num = inputs[0].substring(2);
		for (User i : users) {
			if (i.getNumber().equals(num)) {
				return;
			}
		}
		usernew.setNumber(num);
		int mode = Integer.parseInt(inputs[1]);
		if (mode == 0) {
			usernew.setChargeMode(new LandlinePhoneCharging());
		} else if (mode == 1) {
			usernew.setChargeMode(new MobilePhoneCharging());
		} else if (mode == 3) {
			usernew.setChargeMode(new MobilePhoneMassageCharging());
		}
		users.add(usernew);
	}

	public void writeRecord(ArrayList<User> users, String input) {
		String[] inputs = input.split(" ");
		inputs[0] = inputs[0].substring(2);

		User callu = null, answeru = null;

		String out = inputs[0];
		String in = "";
		if (inputs.length == 6) {
			in = inputs[1];
		} else if (inputs.length == 7) {
			in = inputs[1];
		} else if (inputs.length == 8) {
			in = inputs[2];
		} else {
			in = inputs[1];
		}

		for (User i : users) {
			if (i.getNumber().equals(out)) {
				callu = i;
			}
			if (i.getNumber().equals(in)) {
				answeru = i;
			}
			if (callu != null && answeru != null) {
				break;
			}
		}

		if (input.charAt(0) == 'm') {
			MessageRecord messageRecord = new MessageRecord(input);
			if (callu != null) {
				callu.getUserRecords().addSendMessageRecords(messageRecord);
				;
			}
			if (answeru != null) {
				callu.getUserRecords().addReceiveMessageRecords(messageRecord);
			}
		}

	}

}

abstract class CommunicationRecord {
	protected String callingNumber;
	protected String answerNumbe;

	public String getCallingNumber() {
		return callingNumber;
	}

	public void setCallingNumber(String callingNumber) {
		this.callingNumber = callingNumber;
	}

	public String getAnswerNumbe() {
		return answerNumbe;
	}

	public void setAnswerNumbe(String answerNumbe) {
		this.answerNumbe = answerNumbe;
	}

}

abstract class ChargeRule {

	abstract public double calCost(UserRecords userRecords);

}

class CallRecord extends CommunicationRecord {
	private Date startTime;
	private Date endTime;
	private String callingAddressAreaCode;
	private String answerAddressAreaCode;

	public String getCallType() {
		String type = "";
		if (callingAddressAreaCode.equals("0791")) {
			type = type.concat("1");
		} else if (callingAddressAreaCode.matches("^079[023456789]$") || callingAddressAreaCode.equals("0701")) {
			type = type.concat("2");
		} else {
			type = type.concat("3");
		}

		if (answerAddressAreaCode.equals("0791")) {
			type = type.concat("1");
		} else if (answerAddressAreaCode.matches("^079[023456789]$") || answerAddressAreaCode.equals("0701")) {
			type = type.concat("2");
		} else {
			type = type.concat("3");
		}

		return type;
	}

	public CallRecord(String[] inputs) {
		super();

		char type = inputs[0].charAt(0);

		String sd = null, st = null, ed = null, et = null;

		if (type == 't') {
			if (inputs.length == 6) {
				sd = inputs[2];
				st = inputs[3];
				ed = inputs[4];
				et = inputs[5];
				callingAddressAreaCode = inputs[0].substring(0, 4);
				answerAddressAreaCode = inputs[1].substring(0, 4);
			} else if (inputs.length == 7) {
				sd = inputs[3];
				st = inputs[4];
				ed = inputs[5];
				et = inputs[6];
				if (inputs[0].charAt(0) != '0') {
					if (inputs[2].length() == 10) {
						answerAddressAreaCode = inputs[2].substring(0, 3);
					} else {
						answerAddressAreaCode = inputs[2].substring(0, 4);
					}
					callingAddressAreaCode = inputs[1];
				} else {
					if (inputs[0].length() == 10) {
						callingAddressAreaCode = inputs[0].substring(0, 3);
					} else {
						callingAddressAreaCode = inputs[0].substring(0, 4);
					}
					answerAddressAreaCode = inputs[2];
				}
			} else if (inputs.length == 8) {
				sd = inputs[4];
				st = inputs[5];
				ed = inputs[6];
				et = inputs[7];
				callingAddressAreaCode = inputs[1];
				answerAddressAreaCode = inputs[3];
			}
		} else if (type == 'm') {

		}
		SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy.MM.dd HH:mm:ss", Locale.getDefault());
		try {
			startTime = simpleDateFormat.parse(sd + " " + st);
			endTime = simpleDateFormat.parse(ed + " " + et);
		} catch (ParseException e) {
		}

	}

	public CallRecord(Date startTime, Date endTime, String callingAddressAreaCode, String answerAddressAreaCode) {
		super();
		this.startTime = startTime;
		this.endTime = endTime;
		this.callingAddressAreaCode = callingAddressAreaCode;
		this.answerAddressAreaCode = answerAddressAreaCode;
	}

	public Date getStartTime() {
		return startTime;
	}

	public void setStartTime(Date startTime) {
		this.startTime = startTime;
	}

	public Date getEndTime() {
		return endTime;
	}

	public void setEndTime(Date endTime) {
		this.endTime = endTime;
	}

	public String getCallingAddressAreaCode() {
		return callingAddressAreaCode;
	}

	public void setCallingAddressAreaCode(String callingAddressAreaCode) {
		this.callingAddressAreaCode = callingAddressAreaCode;
	}

	public String getAnswerAddressAreaCode() {
		return answerAddressAreaCode;
	}

	public void setAnswerAddressAreaCode(String answerAddressAreaCode) {
		this.answerAddressAreaCode = answerAddressAreaCode;
	}
}

abstract class CallChargeRule extends ChargeRule {

}

class LandPhoneInCityRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (CallRecord call : userRecords.getCallingInCityRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			if (call.getCallType().equals("11")) {
				sumCost += distanceM * 0.1;
			} else if (call.getCallType().equals("12")) {
				sumCost += distanceM * 0.3;
			} else if (call.getCallType().equals("13")) {
				sumCost += distanceM * 0.6;
			}
		}
		return sumCost;
	}

}

class LandPhoneInlandRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (CallRecord call : userRecords.getCallingInLandRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			sumCost += distanceM * 0.6;
		}
		return sumCost;
	}

}

class LandPhoneInProvinceRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (CallRecord call : userRecords.getCallingInProvinceRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			sumCost += distanceM * 0.3;
		}
		return sumCost;
	}

}

class MobilePhoneInCityRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (CallRecord call : userRecords.getCallingInCityRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			if (call.getCallType().equals("11")) {
				sumCost += distanceM * 0.1;
			} else if (call.getCallType().equals("12")) {
				sumCost += distanceM * 0.2;
			} else if (call.getCallType().equals("13")) {
				sumCost += distanceM * 0.3;
			}

		}
		return sumCost;
	}

}

class MobilePhoneInlandRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (CallRecord call : userRecords.getCallingInLandRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			sumCost += distanceM * 0.6;
		}
		for (CallRecord call : userRecords.getAnswerInLandRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			sumCost += distanceM * 0.3;
		}
		return sumCost;
	}

}

class MobilePhoneInProvinceRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		for (CallRecord call : userRecords.getCallingInProvinceRecords()) {
			double distanceS = (-call.getStartTime().getTime() + call.getEndTime().getTime()) / 1000;
			if (distanceS < 0) {
				continue;
			}
			double distanceM = (int) distanceS / 60;
			if (distanceS % 60 != 0) {
				distanceM += 1;
			}
			if (call.getCallType().equals("21")) {
				sumCost += distanceM * 0.3;
			} else if (call.getCallType().equals("22")) {
				sumCost += distanceM * 0.3;
			} else if (call.getCallType().equals("23")) {
				sumCost += distanceM * 0.3;
			}
		}
		return sumCost;
	}

}

class MobilePhoneMessageRule extends CallChargeRule {

	@Override
	public double calCost(UserRecords userRecords) {
		double sumCost = 0;
		int number = 0;
		for (MessageRecord m : userRecords.getSendMessageRecords()) {
			int length = m.getMessage().length();
			if (length <= 10) {
				number++;
			} else {
				number += length / 10;
				if (length % 10 != 0) {
					number++;
				}
			}
		}
		if (number <= 3) {
			sumCost = number * 0.1;
		} else if (number <= 5) {
			sumCost = 0.3 + 0.2 * (number - 3);
		} else {
			sumCost = 0.7 + 0.3 * (number - 5);
		}
		return sumCost;
	}

}

class MessageRecord extends CommunicationRecord {

	private String message;

	public MessageRecord(String input) {
		super();
		this.message = input.substring(26);
	}

	public String getMessage() {
		return message;
	}

	public void setMessage(String message) {
		this.message = message;
	}
}

class User {

	private UserRecords userRecords = new UserRecords();
	private double balance = 100;
	private ChargeMode chargeMode;
	private String number;

	public double calCost() {
		return chargeMode.calCost(userRecords);
	}

	public double calBalance() {
		return balance - chargeMode.getMonthlyRent() - chargeMode.calCost(userRecords);
	}

	public UserRecords getUserRecords() {
		return userRecords;
	}

	public void setUserRecords(UserRecords userRecords) {
		this.userRecords = userRecords;
	}

	public ChargeMode getChargeMode() {
		return chargeMode;
	}

	public void setChargeMode(ChargeMode chargeMode) {
		this.chargeMode = chargeMode;
	}

	public String getNumber() {
		return number;
	}

	public void setNumber(String number) {
		this.number = number;
	}

}

class Outputtool {

	@SuppressWarnings("deprecation")
	public void output(double out) {
//		java.text.DecimalFormat df=new java.text.DecimalFormat("#.##");
//		String a=df.format(out);
//		System.out.print(a);
		BigDecimal numb = new BigDecimal(out);
		out = numb.setScale(2, BigDecimal.ROUND_HALF_UP).doubleValue();
		System.out.print(out);
	}
}

我滴总结:

前面的框架已经搭好,现在只需要在原有基础上增添短信了

没什么好嗦的。

新增短信计费,短信类重写了

短信类容截取输入内容28位后面的就行,

短信计费是分段计费,要注意一下。

我的类图

链接:https://pan.baidu.com/s/1F_6SSG2EtqNJdG6FgZKpsg?pwd=1111
提取码:1111

  • 5
    点赞
  • 13
    收藏
    觉得还不错? 一键收藏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
