VRML实例代码

一、米字造型

代码

DEF gun Shape {
    appearance Appearance {
        material Material { diffuseColor 1.0 1.0 0.0 }
    }
    geometry Box {
        size 0.1 0.02 0.2  # 宽 高 长
    }
}

DEF	 mi Group {
    children [
		Transform	{
		   translation 0 0 0
		   rotation	0 1 0 0
		   children	[
		      USE gun
			  Transform	{
			     translation 0 0 0
				 rotation	 0 0 1 0.785398
		         children	[
					 USE  gun
				     Transform {
						  translation 0 0 0
		   rotation	  0 0 1 1.570796
		   children
		    [USE gun
				Transform	{
					 translation 0 0 0
		   rotation	  0 0 1 -0.785398
		   children	[USE gun

		   ]
				}
			]
					 }
				 ]
			  }
		   ]
		}



	]
}

Transform {
   translation 0 0.3 0
   children	[
	   USE mi
	   Transform {
	     translation 0.3  0	 0
		 children [
		   USE mi
		   Transform {
		     translation -0.6 0 0
			 children [
			   USE mi
			 ]
		   }
		 ]
	   }

   ]
}

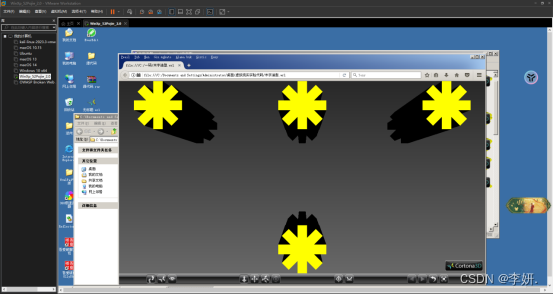

效果图

二、刻度钟

代码

#VRML V2.0 utf8

# 定义钟表面的PROTO原型
PROTO ClockFace [
  field SFVec3f translation 0 0 0        # 位置
  field SFFloat scale 1.0                 # 大小缩放
  field SFColor diffuseColor 0.8 0.8 0.8 # 颜色
]
{
  Transform {
    translation IS translation

    children [
      Shape {
        geometry Cylinder {
          height 0.05
          radius 1.0
        }
        appearance Appearance {
          material Material {
            diffuseColor IS diffuseColor
          }
        }
      }
      # 添加12个小时刻度
      Group {
        children [
          # 遍历12个小时位置，添加刻度
          # 每个小时位置是360度/12 = 30度
          # 使用cos和sin函数计算刻度位置
          # 刻度长度可根据需要调整
          # 假设刻度长度为0.1
          # 从12点位置开始，逆时针添加刻度
          # 12点
          Shape {
            geometry IndexedLineSet {
              coord Coordinate {
                point [ -1 1 0, -0.9 1 0 ]
              }
              coordIndex [ 0 1 -1 ]
            }
            appearance Appearance {
              material Material {
                diffuseColor 0 0 0
              }
            }
          }
          # 11点
          Shape {
            geometry IndexedLineSet {
              coord Coordinate {
                point [ -0.966 0.259 0, -0.866 0.259 0 ]
              }
              coordIndex [ 0 1 -1 ]
            }
            appearance Appearance {
              material Material {
                diffuseColor 0 0 0
              }
            }
          }
          # ... (继续添加其他刻度，直到1点位置)
          # 1点
          Shape {
            geometry IndexedLineSet {
              coord Coordinate {
                point [ 0.866 -0.5 0, 0.766 -0.5 0 ]
              }
              coordIndex [ 0 1 -1 ]
            }
            appearance Appearance {
              material Material {
                diffuseColor 0 0 0
              }
            }
          }
          # 注意：这里只展示了12点、11点和1点的刻度作为示例
          # 你需要继续添加剩余的小时刻度来完成整个圆周
        ]
      }

    ]
  }
}



Group {

  children [
    # 添加多个ClockFace实例，可以调整其位置、大小和颜色
    ClockFace {
      translation 0 2 -3
      scale 1.0
      diffuseColor 0.8 0.5 0.2
    }
    # ... (继续添加其他ClockFace实例)
	 ClockFace {
      translation -2 0 -1
      scale 0.8
      diffuseColor 0.5 0.8 0.2
    }
	ClockFace {
      translation 1 5 5
      scale 1.0
      diffuseColor 0.8 0.5 0.3
    }
	ClockFace {
      translation 0 1 -1.5
      scale 1.0
      diffuseColor 1.0 0.0 0.0
    }

  ]
}

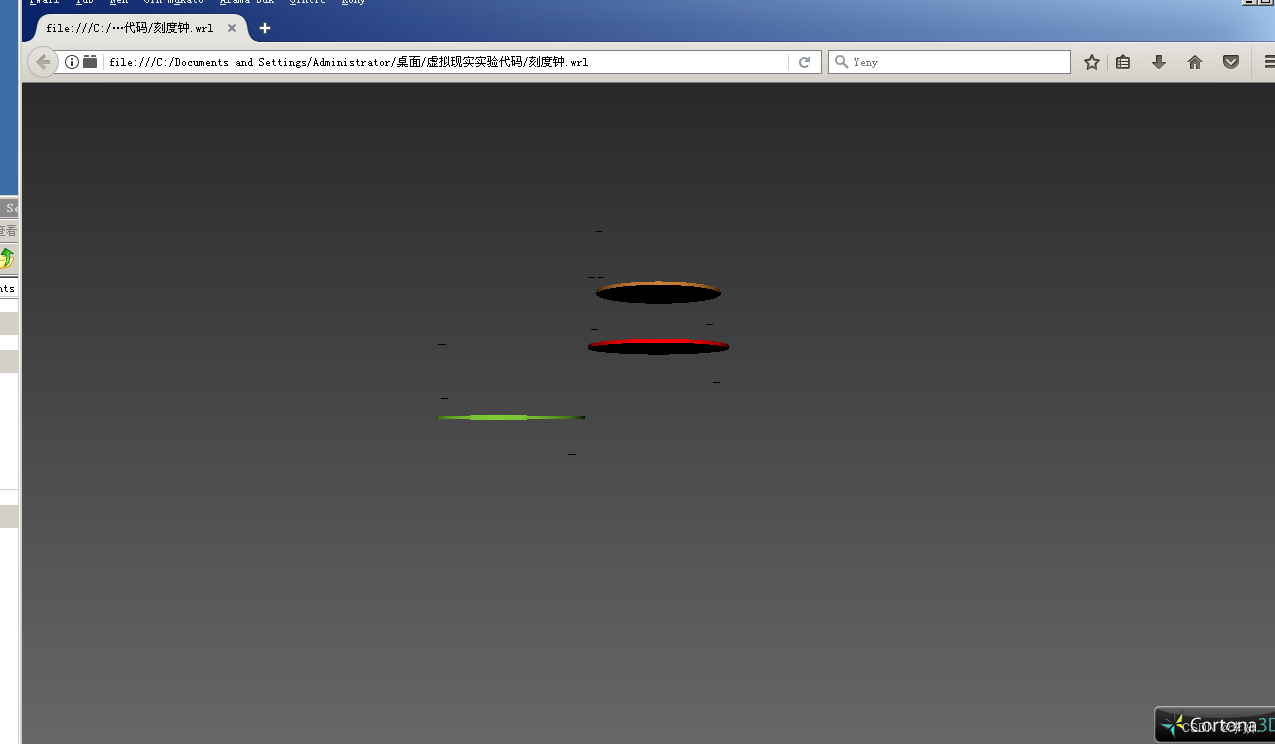

效果图
