FAT12文件系统镜像查看工具linux下的实现（nasm、g++联合编译）
简介
FAT12的这次project实现在linux上用nasm和C++联合编译。
本文代码实现了FAT12的读写，ls命令，ls -l 命令和cat命令，可以实现读取超过512字节的文件。
其中FAT12相关的代码在main.cpp中，my_print.asm中是汇编写的打印函数。
使用makefile进行编译。
构思简介
首先通过FAT12的特性进行其中内容的读取，依次读取boot->根目录->数据区的数据。通过读取FAT表，完成超过512字节文件的读取。在输入命令之前，完成所有的读取，并将其用链表Node装起来，接着不同的命令通过root根节点访问，通过调用my_print.asm中的函数完成打印
具体的可以看代码注释。
附加链接
FA12文件系统相关链接1：
https://blog.csdn.net/judyge/article/details/52373751
FA12文件系统相关链接2：
https://blog.csdn.net/qq_39654127/article/details/88429461#main-toc
借鉴代码，在原代码基础上进行改进，增加了新功能，改掉了FAT值的bug：
https://blog.csdn.net/yxc135/article/details/8769086
windows下FAT12实现(C++)
https://blog.csdn.net/richardzzzZ/article/details/103057517

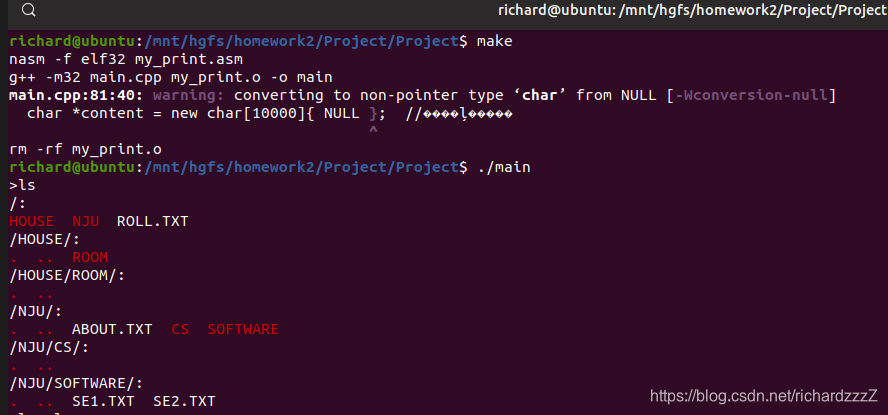

最终实现截图
代码
Makefile代码
Main: main.cpp my_print.asm
nasm -f elf32 my_print.asm
g++ -m32 main.cpp my_print.o -o main
rm -rf my_print.o
clean:
rm -rf main
my_print.asm代码
global asm_print
section .text
asm_print:
push ebp
mov ebp, esp
mov edx, [ebp+12]
mov ecx, [ebp+8]
mov ebx, 1
mov eax, 4
int 80h
pop ebp
ret
main.cpp代码
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include<iostream>
#include<string>
#include<sstream>
#include<vector>
using namespace std;
extern "C" {
void asm_print(const char *, const int);
}
typedef unsigned char u8; //1字节
typedef unsigned short u16; //2字节
typedef unsigned int u32; //4字节
const char *ERR_PARAMETER_WRONG = "error: The parameter of ls is wrong!\n";
const char *ERR_COMMAND_WRONG = "error: command not found!\n";
const char *ERR_NO_DIR = "error: cant find the dir!\n";
const char *ERR_NO_FILE = "error: cant find the file!\n";
const char *ERR_CANT_OPEN = "error:file can not open!\n";
int BytsPerSec; //每扇区字节数
int SecPerClus; //每簇扇区数
int RsvdSecCnt; //Boot记录占用的扇区数
int NumFATs; //FAT表个数
int RootEntCnt; //根目录最大文件数
int FATSz; //FAT扇区数
string str_print;
#pragma pack (1) /*指定按1字节对齐*/
//偏移11个字节
struct BPB {
u16 BPB_BytsPerSec; //每扇区字节数
u8 BPB_SecPerClus; //每簇扇区数
u16 BPB_RsvdSecCnt; //Boot记录占用的扇区数
u8 BPB_NumFATs; //FAT表个数
u16 BPB_RootEntCnt; //根目录最大文件数
u16 BPB_TotSec16; //扇区总数
u8 BPB_Media; //介质描述符
u16 BPB_FATSz16; //FAT扇区数
u16 BPB_SecPerTrk; // 每磁道扇区数（Sector/track）
u16 BPB_NumHeads; //磁头数（面数）
u32 BPB_HiddSec; //隐藏扇区数
u32 BPB_TotSec32; //如果BPB_FATSz16为0，该值为FAT扇区数
};
//BPB至此结束，长度25字节
//根目录条目
struct RootEntry {
char DIR_Name[11];
u8 DIR_Attr; //文件属性
char reserved[10];
u16 DIR_WrtTime;
u16 DIR_WrtDate;
u16 DIR_FstClus; //开始簇号
u32 DIR_FileSize;
};
//根目录条目结束，32字节
#pragma pack () /*取消指定对齐，恢复缺省对齐*/
class Node {//链表的node类
public:
string name; //名字
vector<Node *> next; //下一级目录的Node数组
string path; //记录path，便于打印操作
u32 FileSize; //文件大小
bool isfile = false; //是文件还是目录
bool isval = true; //用于标记是否是.和..
int dir_count = 0; //记录下一级有多少目录
int file_count = 0; //记录下一级有多少文件
char *content = new char[10000]{ NULL }; //存放文件内容
};
void fillBPB(FILE * fat12, struct BPB* bpb_ptr); //载入BPB
void ReadFiles(FILE * fat12, struct RootEntry* rootEntry_ptr, Node *father); //读取根目录
void readChildren(FILE * fat12, int startClus, Node *father); //读取子目录
int getFATValue(FILE * fat12, int num); //读取FAT表，获取下一个簇号
void printLS(Node *root); //打印ls命令
void creatNode(Node *p, Node *father); //创建.和..node，但是并没有实际意义，没有实现cd命令
void printLS_L(Node *root); //打印 ls -l命令
void printLSWithPath(Node *root, string path, int & exist, bool hasL); //打印ls -l 地址 命令
void getContent(FILE * fat12, int startClus, Node* son); //初始化链表时用来获取文件中的信息
void printCat(Node *root, string path, int & exist); //打印cat命令
void myPrint(const char* p);
void split(const string &s, vector<string> &sv, const char flag = ' ');
void pathDeal(string &s);
int main() {
FILE* fat12;
fat12 = fopen("a.img", "rb"); //打开FAT12的映像文件
struct BPB bpb;
struct BPB* bpb_ptr = &bpb;
//创建根节点
Node *root = new Node();
root->name = "";
root->path = "/";
//载入BPB
fillBPB(fat12, bpb_ptr);
//初始化各个全局变量
BytsPerSec = bpb_ptr->BPB_BytsPerSec;
SecPerClus = bpb_ptr->BPB_SecPerClus;
RsvdSecCnt = bpb_ptr->BPB_RsvdSecCnt;
NumFATs = bpb_ptr->BPB_NumFATs;
RootEntCnt = bpb_ptr->BPB_RootEntCnt;
if (bpb_ptr->BPB_FATSz16 != 0) {
FATSz = bpb_ptr->BPB_FATSz16;
}
else {
FATSz = bpb_ptr->BPB_TotSec32;
}
struct RootEntry rootEntry;
struct RootEntry* rootEntry_ptr = &rootEntry;
ReadFiles(fat12, rootEntry_ptr, root);//*****构建文件链表
while (true) { //解析输入的命令
//cout << "> ";
myPrint(">");
string input;
getline(cin, input);
vector<string> input_list;
split(input, input_list, ' ');
for (auto it = input_list.begin(); it != input_list.end();) {//删除数组中空格产生的空位置
if (*it=="") {
it = input_list.erase(it);
}
else {
it++;
}
}
if (input_list[0].compare("exit") == 0) {
//exit 退出情况
myPrint("Bye\n");
fclose(fat12);
return 0;
}
else if (input_list[0].compare("ls") == 0) {
//ls系列命令
//情况1 ls
if (input_list.size() == 1) {
printLS(root);
}
else {
bool hasL = false;
bool hasPath = false;
bool error = false;
string *path=NULL;
for (int i = 1; i < input_list.size(); i++) { //遍历所有参数
string s = input_list[i];
if (s[0] != '-') {
//路径
if (hasPath) {
myPrint(ERR_PARAMETER_WRONG);
error = true;
break;
}
else {
hasPath = true;
pathDeal(input_list[i]);
path = &input_list[i];
}
}
else {
//-参数
if (s.length() == 1) {
// -
myPrint(ERR_PARAMETER_WRONG);
error = true;
break;
}
for (int j = 1; j < s.length(); j++) {
if (s[j] != 'l') {
error = true;
myPrint(ERR_PARAMETER_WRONG);
break;
}
}
hasL = true;
}
}
if (error) {
continue;
}
//情况2 ls -l
int exist = 0;
if (hasL && !hasPath) {
exist = 1;
printLS_L(root);
}
else if (!hasL&&hasPath) {
//情况3 ls NJU
printLSWithPath(root, *path, exist, false);
}
else if (hasL&&hasPath) {
printLSWithPath(root, *path, exist, true);
}
else {
printLS(root);
continue;
}
if (exist == 0) {
myPrint(ERR_NO_DIR);
continue;
}
else if (exist == 2) {
myPrint(ERR_CANT_OPEN);
continue;
}
}
}
else if (input_list[0].compare("cat") == 0) {
//cat系列命令
if (input_list.size() == 2&&input_list[1][0]!='-') {
//cat path
int exist = 0;
pathDeal(input_list[1]);
printCat(root, input_list[1], exist); //执行cat
if (exist == 0) {
myPrint(ERR_NO_FILE);
continue;
}
else if (exist == 2) {
myPrint(ERR_CANT_OPEN);
continue;
}
}
else {
//cat后无参数或者参数过多,error
myPrint(ERR_PARAMETER_WRONG);
continue;
}
}
else {
//错误命令
myPrint(ERR_COMMAND_WRONG);
continue;
}
}
}
void fillBPB(FILE* fat12, struct BPB* bpb_ptr) { //读取boot信息
int check;
//BPB从偏移11个字节处开始
check = fseek(fat12, 11, SEEK_SET);
if (check == -1)
myPrint("fseek in fillBPB failed!\n");
//BPB长度为25字节
check = fread(bpb_ptr, 1, 25, fat12);
if (check != 25)
myPrint("fread in fillBPB failed!\n");
}
void ReadFiles(FILE * fat12, struct RootEntry* rootEntry_ptr, Node *father) {
int base = (RsvdSecCnt + NumFATs * FATSz) * BytsPerSec; //根目录首字节的偏移数
int check;
char realName[12]; //暂存文件名
//依次处理根目录中的各个条目
int i;
for (i = 0; i < RootEntCnt; i++) {
check = fseek(fat12, base, SEEK_SET);
if (check == -1)
myPrint("fseek in printFiles failed!\n");
check = fread(rootEntry_ptr, 1, 32, fat12);
if (check != 32)
myPrint("fread in printFiles failed!\n");
base += 32;
if (rootEntry_ptr->DIR_Name[0] == '\0') continue; //空条目不输出
//过滤非目标文件
int j;
int boolean = 0;
for (j = 0; j < 11; j++) {
if (!(((rootEntry_ptr->DIR_Name[j] >= 48) && (rootEntry_ptr->DIR_Name[j] <= 57)) ||
((rootEntry_ptr->DIR_Name[j] >= 65) && (rootEntry_ptr->DIR_Name[j] <= 90)) ||
((rootEntry_ptr->DIR_Name[j] >= 97) && (rootEntry_ptr->DIR_Name[j] <= 122)) ||
(rootEntry_ptr->DIR_Name[j] == ' '))) {
boolean = 1; //非英文及数字、空格
break;
}
}
if (boolean == 1) continue; //非目标文件不输出
int k; //名字的处理
if ((rootEntry_ptr->DIR_Attr & 0x10) == 0) {
//文件
int tempLong = -1;
for (k = 0; k < 11; k++) {
if (rootEntry_ptr->DIR_Name[k] != ' ') {
tempLong++;
realName[tempLong] = rootEntry_ptr->DIR_Name[k];
}
else {
tempLong++;
realName[tempLong] = '.';
while (rootEntry_ptr->DIR_Name[k] == ' ') k++;
k--;
}
}
tempLong++;
realName[tempLong] = '\0'; //到此为止，把文件名提取出来放到了realName里
Node *son = new Node(); //新建该文件的节点
father->next.push_back(son); //存到father的next数组中
son->name = realName;
son->FileSize = rootEntry_ptr->DIR_FileSize;
son->isfile = true;
son->path = father->path + realName + "/";
father->file_count++;
getContent(fat12, rootEntry_ptr->DIR_FstClus, son);//读取文件的内容
}
else {
//目录
int tempLong = -1;
for (k = 0; k < 11; k++) {
if (rootEntry_ptr->DIR_Name[k] != ' ') {
tempLong++;
realName[tempLong] = rootEntry_ptr->DIR_Name[k];
}
else {
tempLong++;
realName[tempLong] = '\0';
break;
}
} //到此为止，把目录名提取出来放到了realName
Node *son = new Node();
father->next.push_back(son);
son->name = realName;
son->path = father->path + realName + "/";
father->dir_count++;
creatNode(son, father);
//输出目录及子文件
readChildren(fat12, rootEntry_ptr->DIR_FstClus, son); //读取目录的内容
}
}
}
void readChildren(FILE * fat12, int startClus, Node *father) {
//数据区的第一个簇（即2号簇）的偏移字节
int dataBase = BytsPerSec * (RsvdSecCnt + FATSz * NumFATs + (RootEntCnt * 32 + BytsPerSec - 1) / BytsPerSec);
int currentClus = startClus;
int value = 0;//value用来查看是否存在多个簇（查FAT表）
while (value < 0xFF8) {
value = getFATValue(fat12, currentClus);//查FAT表获取下一个簇号
if (value == 0xFF7) {
myPrint("坏簇，读取失败!\n");
break;
}
int startByte = dataBase + (currentClus - 2)*SecPerClus*BytsPerSec;
int check;
int count = SecPerClus * BytsPerSec; //每簇的字节数
int loop = 0;
while (loop < count) {
int i;
RootEntry sonEntry;//读取目录项
RootEntry *sonEntryP = &sonEntry;
check = fseek(fat12, startByte + loop, SEEK_SET);
if (check == -1)
myPrint("fseek in printFiles failed!\n");
check = fread(sonEntryP, 1, 32, fat12);
if (check != 32)
myPrint("fread in printFiles failed!\n");//读取完毕
loop += 32;
if (sonEntryP->DIR_Name[0] == '\0') {
continue;
} //空条目不输出
//过滤非目标文件
int j;
int boolean = 0;
for (j = 0; j < 11; j++) {
if (!(((sonEntryP->DIR_Name[j] >= 48) && (sonEntryP->DIR_Name[j] <= 57)) ||
((sonEntryP->DIR_Name[j] >= 65) && (sonEntryP->DIR_Name[j] <= 90)) ||
((sonEntryP->DIR_Name[j] >= 97) && (sonEntryP->DIR_Name[j] <= 122)) ||
(sonEntryP->DIR_Name[j] == ' '))) {
boolean = 1; //非英文及数字、空格
break;
}
}
if (boolean == 1) {
continue;
}
if ((sonEntryP->DIR_Attr & 0x10) == 0) {
//文件处理
char tempName[12]; //暂存替换空格为点后的文件名
int k;
int tempLong = -1;
for (k = 0; k < 11; k++) {
if (sonEntryP->DIR_Name[k] != ' ') {
tempLong++;
tempName[tempLong] = sonEntryP->DIR_Name[k];
}
else {
tempLong++;
tempName[tempLong] = '.';
while (sonEntryP->DIR_Name[k] == ' ') k++;
k--;
}
}
tempLong++;
tempName[tempLong] = '\0'; //到此为止，把文件名提取出来放到tempName里
Node *son = new Node();
father->next.push_back(son);
son->name = tempName;
son->FileSize = sonEntryP->DIR_FileSize;
son->isfile = true;
son->path = father->path + tempName + "/";
father->file_count++;
getContent(fat12, sonEntryP->DIR_FstClus, son);
}
else {
char tempName[12];
int count = -1;
for (int k = 0; k < 11; k++) {
if (sonEntryP->DIR_Name[k] != ' ') {
count++;
tempName[count] = sonEntryP->DIR_Name[k];
}
else {
count++;
tempName[count] = '\0';
}
}
Node *son = new Node();
father->next.push_back(son);
son->name = tempName;
son->path = father->path + tempName + "/";
father->dir_count++;
creatNode(son, father);
readChildren(fat12, sonEntryP->DIR_FstClus, son);
}
}
currentClus = value;//下一个簇
};
}
int getFATValue(FILE * fat12, int num) {
//FAT1的偏移字节
int fatBase = RsvdSecCnt * BytsPerSec;
//FAT项的偏移字节
int fatPos = fatBase + num * 3 / 2;
//奇偶FAT项处理方式不同，分类进行处理，从0号FAT项开始
int type = 0;
if (num % 2 == 0) {
type = 0;
}
else {
type = 1;
}
//先读出FAT项所在的两个字节
u16 bytes;
u16* bytes_ptr = &bytes;
int check;
check = fseek(fat12, fatPos, SEEK_SET);
if (check == -1)
myPrint("fseek in getFATValue failed!");
check = fread(bytes_ptr, 1, 2, fat12);
if (check != 2)
myPrint("fread in getFATValue failed!");
//u16为short，结合存储的小尾顺序和FAT项结构可以得到
//type为0的话，取byte2的低4位和byte1构成的值，type为1的话，取byte2和byte1的高4位构成的值
if (type == 0) {
bytes = bytes << 4; //这里原文错误，原理建议看网上关于FAT表的文章
return bytes >> 4;
}
else {
return bytes >> 4;
}
}
void printLS(Node *r) {
Node *p = r;//通过root节点，遍历所有的节点
if (p->isfile == true) {
return;
}
else {
//cout << p->path << ":" << endl;
str_print = p->path + ":\n";
myPrint(str_print.c_str());
str_print.clear();
//打印每个next
Node *q;
int leng = p->next.size();
for (int i = 0; i < leng; i++) {
q = p->next[i];
if (q->isfile == false) {
//文件夹
// cout << "\033[31m"<<q->name << "\033[0m"<<" ";
//cout << q->name << " ";
str_print = "\033[31m" + q->name + "\033[0m" + " ";
myPrint(str_print.c_str());
str_print.clear();
}
else {
//文件
//cout << q->name << " ";
str_print = q->name + " ";
myPrint(str_print.c_str());
str_print.clear();
}
}
//cout << endl;
str_print = "\n";
myPrint(str_print.c_str());
str_print.clear();
//进行递归
for (int i = 0; i < leng; i++) {
if (p->next[i]->isval == true) printLS(p->next[i]);
}
}
}
void creatNode(Node *p, Node *father) {
Node *q = new Node();
q->name = ".";
q->isval = false;
p->next.push_back(q);
q = new Node();
q->name = "..";
q->isval = false;
p->next.push_back(q);
}
void printLS_L(Node *root) {
Node *p = root;
if (p->isfile) {
//如果该Node是文件，不处理
return;
}
else {
//cout << p->path <<" "<<p->dir_count<<" "<<p->file_count<< ":" << endl;
str_print = p->path + " " + to_string(p->dir_count) + " " + to_string(p->file_count) + ":\n";
myPrint(str_print.c_str());
str_print.clear();
//打印每个next
Node *q;
int leng = p->next.size();
for (int i = 0; i < leng; i++) {
q = p->next[i];
if (q->isfile == false) {
//文件夹
// cout << "\033[31m"<<q->name << "\033[0m"<<" ";
if (q->isval) {
//cout << q->name << " " << q->dir_count << " " << q->file_count << endl;
str_print = "\033[31m" + q->name + "\033[0m" + " " + to_string(q->dir_count) + " " + to_string(q->file_count) + "\n";
myPrint(str_print.c_str());
str_print.clear();
}
else {
//处理. ..
//cout << q->name << " "<<endl;
str_print = "\033[31m"+q->name + "\033[0m"+" \n";
myPrint(str_print.c_str());
str_print.clear();
}
}
else {
//文件
//cout << q->name << " " << q->FileSize << endl;
str_print = q->name + " " +to_string(q->FileSize) +"\n";
myPrint(str_print.c_str());
str_print.clear();
}
}
//cout << endl;
myPrint("\n");
//进行递归
for (int i = 0; i < leng; i++) {
if (p->next[i]->isval == true) printLS_L(p->next[i]);
}
}
}
void printLSWithPath(Node *root, string p, int & exist, bool hasL) {
if (p.compare(root->path) == 0) { //路径完全相同，说明就是该节点
//查找到
if (root->isfile) { //如果是文件，无法打开
exist = 2;
return;
}
else {
exist = 1;
if (hasL) {
printLS_L(root);
}
else {
printLS(root);
}
}
return;
}
if (p.length() <= root->path.length()) { //出现该情况直接出去
return;
}
string temp = p.substr(0, root->path.length()); //截取输入的path的部分字符串，和当前节点的path比较，如果相同，说明目标在该节点下级
if (temp.compare(root->path) == 0) {
//路径部分匹配
for (Node *q : root->next) {
printLSWithPath(q, p, exist, hasL);
}
}
}
void getContent(FILE * fat12, int startClus, Node *son) {//获取文件内容
int dataBase = BytsPerSec * (RsvdSecCnt + FATSz * NumFATs + (RootEntCnt * 32 + BytsPerSec - 1) / BytsPerSec);
int currentClus = startClus;
int value = 0; //这里用value来进行不同簇的读取（超过512字节）
char *p = son->content;
if (startClus == 0) {
return;
}
while (value < 0xFF8) {
value = getFATValue(fat12, currentClus);//获取下一个簇
if (value == 0xFF7
) {
myPrint("坏簇，读取失败!\n");
break;
}
char* str = (char*)malloc(SecPerClus*BytsPerSec); //暂存从簇中读出的数据
char *content = str;
int startByte = dataBase + (currentClus - 2)*SecPerClus*BytsPerSec;
int check;
check = fseek(fat12, startByte, SEEK_SET);
if (check == -1)
myPrint("fseek in printChildren failed!");
check = fread(content, 1, SecPerClus*BytsPerSec, fat12);//提取数据
if (check != SecPerClus * BytsPerSec)
myPrint("fread in printChildren failed!");
int count = SecPerClus * BytsPerSec;
int loop = 0;
for (int i = 0; i < count; i++) {//读取赋值
*p = content[i];
p++;
}
free(str);
currentClus = value;
}
}
void printCat(Node *root, string p, int & exist) {
if (p.compare(root->path) == 0) {
//查找到
if (root->isfile) {
exist = 1;
if (root->content[0] != 0) {
//cout << root->content << endl;
myPrint(root->content);
myPrint("\n");
}
return;
}
else {
exist = 2;
return;
}
}
if (p.length() <= root->path.length()) {
return;
}
string temp = p.substr(0, root->path.length());
if (temp.compare(root->path) == 0) {
//路径部分匹配
for (Node *q : root->next) {
printCat(q, p, exist);
}
}
}
void myPrint(const char* p) {
asm_print(p, strlen(p));
}
void split(const string &s, vector<string> &sv, const char flag ) {
sv.clear();
istringstream iss(s);
string temp;
while (getline(iss, temp, flag)) {
sv.push_back(temp);
}
return;
}
void pathDeal(string &s) {
if (s[0] != '/') {
s = "/" + s;
}
if (s[s.length() - 1] != '/') {
s += '/';
}
}
扫一扫
2056
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
