简介
FAT12的这次project最终是要实现在linux上用nasm和C++联合编译。
本文代码是属于中间产品，是一开始在windows上编写时候的产品，所以某些地方会有一些bug，且有些混乱，除了这篇博客，我会再发一篇博客，将成品发出来。
本文代码实现了FAT12的读写，ls命令，ls -l path 命令和cat命令，可以实现读取超过512字节的文件。
构思简介
首先通过FAT12的特性进行其中内容的读取，依次读取boot->根目录->数据区的数据。通过读取FAT表，完成超过512字节文件的读取。在输入命令之前，完成所有的读取，并将其用链表Node装起来，接着不同的命令通过root根节点访问，完成相应的打印。
具体的可以看代码注释。
附加链接
FA12文件系统相关链接1：
https://blog.csdn.net/judyge/article/details/52373751
FA12文件系统相关链接2：
https://blog.csdn.net/qq_39654127/article/details/88429461#main-toc
借鉴代码，在原代码基础上进行改进，增加了新功能，改掉了FAT值的bug：
https://blog.csdn.net/yxc135/article/details/8769086
FAT12文件系统镜像查看工具linux下的实现（nasm、g++联合编译)
https://blog.csdn.net/richardzzzZ/article/details/103058903

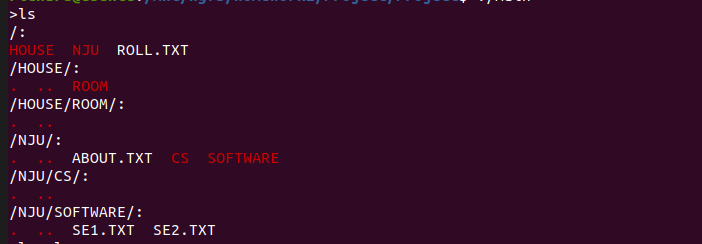

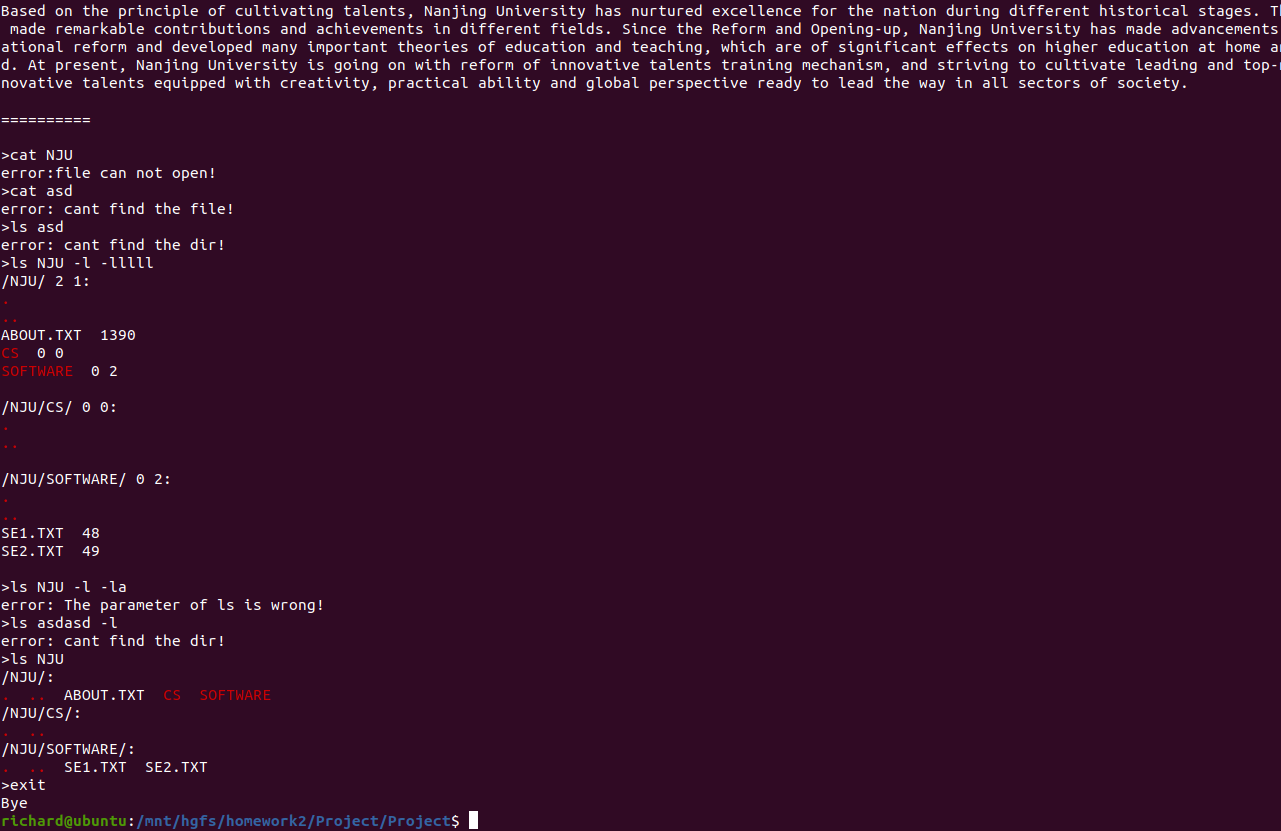

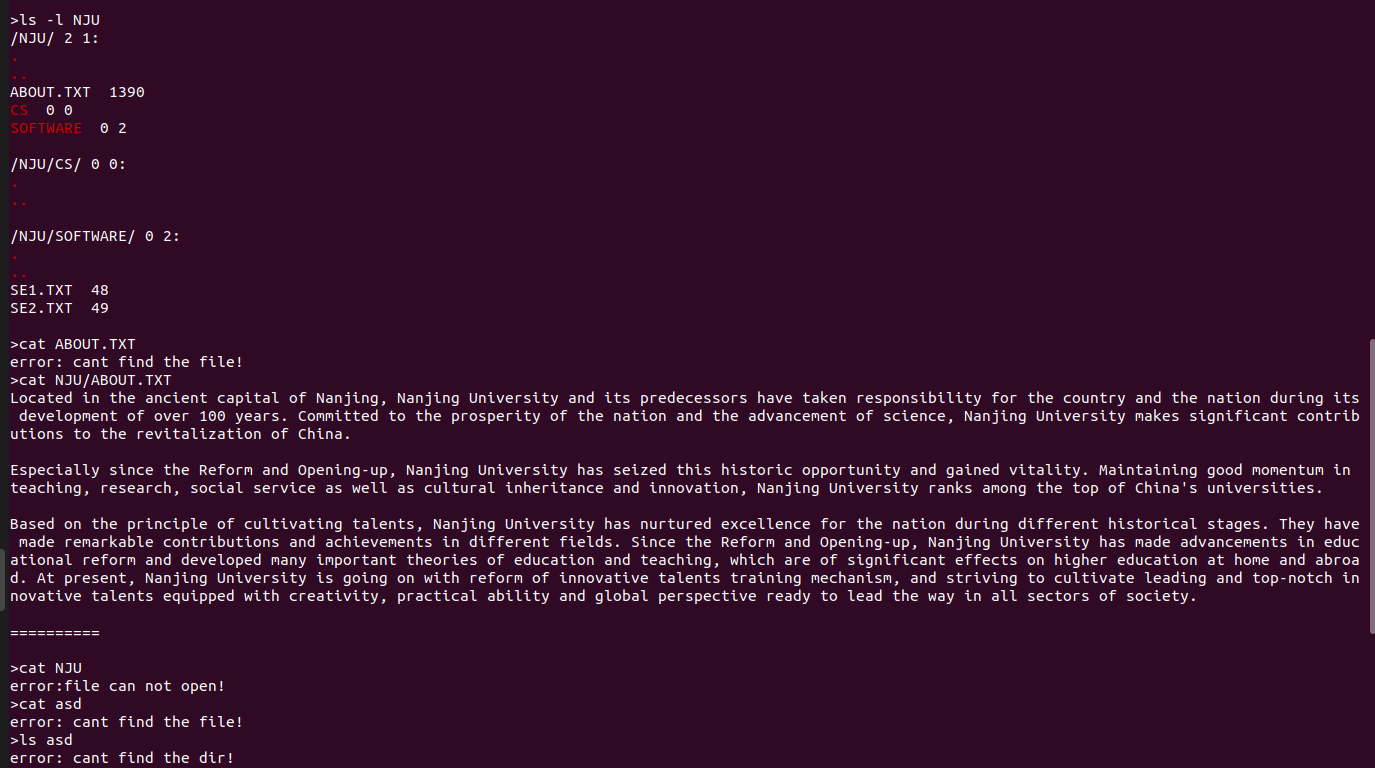

最终实现截图
这是最后在linux上实现的截图，所以额外包括了颜色和ls+path的命令
代码
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include<iostream>
#include<string>
#include<sstream>
#include<vector>
using namespace std;
typedef unsigned char u8; //1字节
typedef unsigned short u16; //2字节
typedef unsigned int u32; //4字节
int BytsPerSec; //每扇区字节数
int SecPerClus; //每簇扇区数
int RsvdSecCnt; //Boot记录占用的扇区数
int NumFATs; //FAT表个数
int RootEntCnt; //根目录最大文件数
int FATSz; //FAT扇区数
#pragma pack (1) /*指定按1字节对齐*/
//偏移11个字节
struct BPB {
u16 BPB_BytsPerSec; //每扇区字节数
u8 BPB_SecPerClus; //每簇扇区数
u16 BPB_RsvdSecCnt; //Boot记录占用的扇区数
u8 BPB_NumFATs; //FAT表个数
u16 BPB_RootEntCnt; //根目录最大文件数
u16 BPB_TotSec16;
u8 BPB_Media;
u16 BPB_FATSz16; //FAT扇区数
u16 BPB_SecPerTrk;
u16 BPB_NumHeads;
u32 BPB_HiddSec;
u32 BPB_TotSec32; //如果BPB_FATSz16为0，该值为FAT扇区数
};
//BPB至此结束，长度25字节
//根目录条目
struct RootEntry {
char DIR_Name[11];
u8 DIR_Attr; //文件属性
char reserved[10];
u16 DIR_WrtTime;
u16 DIR_WrtDate;
u16 DIR_FstClus; //开始簇号
u32 DIR_FileSize;
};
//根目录条目结束，32字节
#pragma pack () /*取消指定对齐，恢复缺省对齐*/
extern"C" {
}
class Node {//链表的node类
public:
string name; //名字
vector<Node *> next; //下一级目录的Node数组
string path; //记录path，便于打印操作
u32 FileSize; //文件大小
bool isfile = false; //是文件还是目录
bool isval = true; //用于标记是否是.和..
int dir_count = 0; //记录下一级有多少目录
int file_count = 0; //记录下一级有多少文件
char *content = new char[10000]{ NULL }; //存放文件内容
};
void fillBPB(FILE * fat12, struct BPB* bpb_ptr); //载入BPB
void ReadFiles(FILE * fat12, struct RootEntry* rootEntry_ptr,Node *father); //打印文件名，这个函数在打印目录时会调用下面的printChildren
void readChildren(FILE * fat12, int startClus, Node *father); //打印目录及目录下子文件名
int getFATValue(FILE * fat12, int num); //读取FAT表，获取下一个簇号
void printLS(Node *root); //打印ls命令
void creatNode(Node *p,Node *father); //创建.和..node，但是并没有实际意义，没有实现cd命令
void printLS_L(Node *root); //打印 ls -l命令
void printLS_LWithPath(Node *root, string path, int & exist); //打印ls -l 地址 命令
void getContent(FILE * fat12, int startClus,Node* son); //初始化链表时用来获取文件中的信息
void printCat(Node *root, string path, int & exist); //打印cat命令
int main() {
FILE* fat12;
fat12 = fopen("a.img", "rb"); //打开FAT12的映像文件
struct BPB bpb;
struct BPB* bpb_ptr = &bpb;
//创建根节点
Node *root = new Node();
root->name = "";
root->path = "/";
//载入BPB
fillBPB(fat12, bpb_ptr);
//初始化各个全局变量
BytsPerSec = bpb_ptr->BPB_BytsPerSec;
SecPerClus = bpb_ptr->BPB_SecPerClus;
RsvdSecCnt = bpb_ptr->BPB_RsvdSecCnt;
NumFATs = bpb_ptr->BPB_NumFATs;
RootEntCnt = bpb_ptr->BPB_RootEntCnt;
if (bpb_ptr->BPB_FATSz16 != 0) {
FATSz = bpb_ptr->BPB_FATSz16;
}
else {
FATSz = bpb_ptr->BPB_TotSec32;
}
struct RootEntry rootEntry;
struct RootEntry* rootEntry_ptr = &rootEntry;
ReadFiles(fat12, rootEntry_ptr, root);//*****构建文件链表
while (true) { //解析输入的命令
cout << "> ";
string input;
getline(cin, input);
if (input.compare("exit")==0) {
//退出
cout << "Bye!" << endl;
fclose(fat12);
system("Pause");
return 0;
}
else if(input.length()<2){
//命令长度小于2，无效命令
cout << "error: command not found!"<<endl;
}
else if (input.substr(0,2).compare("ls")==0) {
//ls命令
if (input.length() == 2) {
// 命令"ls"
printLS(root);
}
else {
//命令"ls /any -l - -llllll"
bool error = false;
bool hasL = false;
bool pathExist = false;
char path[100] = { NULL };
bool isL = false;
for (int i = 2; i < input.length(); i++) {
if (input[i] != ' '&&input[i] != '-') {
//记录path
if (pathExist) {
//第二次出现路径
cout << "error: The parameter of ls is wrong!" << endl;
error = true;
break;
}
else {
//第一次出现
pathExist = true;
char *p = path;
while (i < input.length() && input[i] != ' ') {
*p = input[i];
i++;
p++;
}
}
}
else if (input[i] == '-') {
//出现“-”
if (i == input.length() - 1||input[i + 1] != 'l') {
// - -asd -wqeq
error = true;
cout << "error: The parameter of ls is not found!" << endl;
break;
}
else {
i++;
while (i < input.length() && input[i] != ' ') {
if (input[i] != 'l') {
error = true;
cout << "error: The parameter of ls is not found!"<<endl;
break;
}
i++;
}
hasL = true;
}
}
}
if (hasL == false && pathExist == true && error == false) {
//有路径没有L
error = true;
cout << "error: The parameter of ls is not found!" << endl;
continue;
}
if (error) {
//出现错误继续读取命令
continue;
}
//正常运行
string path_s = path;
if (hasL && !pathExist) {
//ls -l ls -lllllll
printLS_L(root);
}
else if (hasL&&pathExist) {
if (path_s[0] != '/') {
path_s = "/" + path_s;
}
if (path_s[path_s.length() - 1] != '/') {
path_s += '/';
}
int exist = 0;//0不存在 ，2路径错误，1成功
printLS_LWithPath(root, path_s,exist);
if (exist==0) {
cout << "error: no such dir!"<< endl;
continue;
}
else if (exist == 2) {
cout << "error:Not a dir!" << endl;
continue;
}
}
}
}
else if (input.length() <= 3) {
//命令长度小于3，无效命令
cout << "error: command not found!" << endl;
}
else if (input.substr(0, 3).compare("cat") == 0) {
//cat命令
char path[100] = { NULL };
bool pathExist = false;
bool error = false;
for (int i = 3; i < input.length(); i++) {
if (input[i] != ' ') {
//记录path
if (pathExist) {
//第二次出现路径
cout << "error: The parameter of ls is wrong!" << endl;
error = true;
break;
}
else {
//第一次出现
pathExist = true;
char *p = path;
while (i < input.length() && input[i] != ' ') {
*p = input[i];
i++;
p++;
}
}
}
}
if (!pathExist || error) {
cout << "error: The parameter of ls is wrong!" << endl;
continue;
}
int exist =0;
string path_s = path;
if (path_s[0] != '/') {
path_s = "/" + path_s;
}
if (path_s[path_s.length() - 1] != '/') {
path_s += '/';
}
printCat(root, path_s, exist); //执行cat
if (exist == 0) {
cout << "error: no such file!" << endl;
continue;
}
else if (exist == 2) {
cout << "error:file can not open!" << endl;
continue;
}
}
else {
cout << "error: command not found!" << endl;
}
}
}
void fillBPB(FILE* fat12, struct BPB* bpb_ptr) { //读取boot信息
int check;
//BPB从偏移11个字节处开始
check = fseek(fat12, 11, SEEK_SET);
if (check == -1)
printf("fseek in fillBPB failed!");
//BPB长度为25字节
check = fread(bpb_ptr, 1, 25, fat12);
if (check != 25)
printf("fread in fillBPB failed!");
}
void ReadFiles(FILE * fat12, struct RootEntry* rootEntry_ptr , Node *father) {
int base = (RsvdSecCnt + NumFATs * FATSz) * BytsPerSec; //根目录首字节的偏移数
int check;
char realName[12]; //暂存文件名
//依次处理根目录中的各个条目
int i;
for (i = 0; i < RootEntCnt; i++) {
check = fseek(fat12, base, SEEK_SET);
if (check == -1)
printf("fseek in printFiles failed!");
check = fread(rootEntry_ptr, 1, 32, fat12);
if (check != 32)
printf("fread in printFiles failed!");
base += 32;
if (rootEntry_ptr->DIR_Name[0] == '\0') continue; //空条目不输出
//过滤非目标文件
int j;
int boolean = 0;
for (j = 0; j < 11; j++) {
if (!(((rootEntry_ptr->DIR_Name[j] >= 48) && (rootEntry_ptr->DIR_Name[j] <= 57)) ||
((rootEntry_ptr->DIR_Name[j] >= 65) && (rootEntry_ptr->DIR_Name[j] <= 90)) ||
((rootEntry_ptr->DIR_Name[j] >= 97) && (rootEntry_ptr->DIR_Name[j] <= 122)) ||
(rootEntry_ptr->DIR_Name[j] == ' '))) {
boolean = 1; //非英文及数字、空格
break;
}
}
if (boolean == 1) continue; //非目标文件不输出
int k; //名字的处理
if ((rootEntry_ptr->DIR_Attr & 0x10) == 0) {
//文件
int tempLong = -1;
for (k = 0; k < 11; k++) {
if (rootEntry_ptr->DIR_Name[k] != ' ') {
tempLong++;
realName[tempLong] = rootEntry_ptr->DIR_Name[k];
}
else {
tempLong++;
realName[tempLong] = '.';
while (rootEntry_ptr->DIR_Name[k] == ' ') k++;
k--;
}
}
tempLong++;
realName[tempLong] = '\0'; //到此为止，把文件名提取出来放到了realName里
Node *son = new Node(); //新建该文件的节点
father->next.push_back(son); //存到father的next数组中
son->name = realName;
son->FileSize = rootEntry_ptr->DIR_FileSize;
son->isfile = true;
son->path =father->path+realName+ "/";
father->file_count++;
getContent(fat12, rootEntry_ptr->DIR_FstClus,son);//读取文件的内容
}
else {
//目录
int tempLong = -1;
for (k = 0; k < 11; k++) {
if (rootEntry_ptr->DIR_Name[k] != ' ') {
tempLong++;
realName[tempLong] = rootEntry_ptr->DIR_Name[k];
}
else {
tempLong++;
realName[tempLong] = '\0';
break;
}
} //到此为止，把目录名提取出来放到了realName
Node *son = new Node();
father->next.push_back(son);
son->name = realName;
son->path = father->path + realName + "/";
father->dir_count++;
creatNode(son, father);
//输出目录及子文件
readChildren(fat12, rootEntry_ptr->DIR_FstClus,son); //读取目录的内容
}
}
}
void readChildren(FILE * fat12, int startClus, Node *father) {
//数据区的第一个簇（即2号簇）的偏移字节
int dataBase = BytsPerSec * (RsvdSecCnt + FATSz * NumFATs + (RootEntCnt * 32 + BytsPerSec - 1) / BytsPerSec);
int currentClus = startClus;
int value = 0;//value用来查看是否存在多个簇（查FAT表）
while (value < 0xFF8) {
value = getFATValue(fat12, currentClus);//查FAT表获取下一个簇号
if (value == 0xFF7) {
printf("坏簇，读取失败!\n");
break;
}
int startByte = dataBase + (currentClus - 2)*SecPerClus*BytsPerSec;
int check;
int count = SecPerClus * BytsPerSec; //每簇的字节数
int loop = 0;
while (loop < count) {
int i;
RootEntry sonEntry;//读取目录项
RootEntry *sonEntryP = &sonEntry;
check = fseek(fat12, startByte + loop, SEEK_SET);
if (check == -1)
printf("fseek in printFiles failed!");
check = fread(sonEntryP, 1, 32, fat12);
if (check != 32)
printf("fread in printFiles failed!");//读取完毕
loop += 32;
if (sonEntryP->DIR_Name[0] == '\0') {
continue;
} //空条目不输出
//过滤非目标文件
int j;
int boolean = 0;
for (j = 0; j < 11; j++) {
if (!(((sonEntryP->DIR_Name[j] >= 48) && (sonEntryP->DIR_Name[j] <= 57)) ||
((sonEntryP->DIR_Name[j] >= 65) && (sonEntryP->DIR_Name[j] <= 90)) ||
((sonEntryP->DIR_Name[j] >= 97) && (sonEntryP->DIR_Name[j] <= 122)) ||
(sonEntryP->DIR_Name[j] == ' '))) {
boolean = 1; //非英文及数字、空格
break;
}
}
if (boolean == 1) {
continue;
}
if ((sonEntryP->DIR_Attr & 0x10) == 0) {
//文件处理
char tempName[12]; //暂存替换空格为点后的文件名
int k;
int tempLong = -1;
for (k = 0; k < 11; k++) {
if (sonEntryP->DIR_Name[k] != ' ') {
tempLong++;
tempName[tempLong] = sonEntryP->DIR_Name[k];
}
else {
tempLong++;
tempName[tempLong] = '.';
while (sonEntryP->DIR_Name[k] == ' ') k++;
k--;
}
}
tempLong++;
tempName[tempLong] = '\0'; //到此为止，把文件名提取出来放到tempName里
Node *son = new Node();
father->next.push_back(son);
son->name = tempName;
son->FileSize = sonEntryP->DIR_FileSize;
son->isfile = true;
son->path = father->path + tempName + "/";
father->file_count++;
getContent(fat12, sonEntryP->DIR_FstClus, son);
}
else {
char tempName[12];
int count = -1;
for (int k = 0; k < 11; k++) {
if (sonEntryP->DIR_Name[k] != ' ') {
count++;
tempName[count] = sonEntryP->DIR_Name[k];
}
else {
count++;
tempName[count] = '\0';
}
}
Node *son = new Node();
father->next.push_back(son);
son->name = tempName;
son->path = father->path + tempName + "/";
father->dir_count++;
creatNode(son, father);
readChildren(fat12, sonEntryP->DIR_FstClus,son);
}
}
currentClus = value;//下一个簇
};
}
int getFATValue(FILE * fat12, int num) {
//FAT1的偏移字节
int fatBase = RsvdSecCnt * BytsPerSec;
//FAT项的偏移字节
int fatPos = fatBase + num * 3 / 2;
//奇偶FAT项处理方式不同，分类进行处理，从0号FAT项开始
int type = 0;
if (num % 2 == 0) {
type = 0;
}
else {
type = 1;
}
//先读出FAT项所在的两个字节
u16 bytes;
u16* bytes_ptr = &bytes;
int check;
check = fseek(fat12, fatPos, SEEK_SET);
if (check == -1)
printf("fseek in getFATValue failed!");
check = fread(bytes_ptr, 1, 2, fat12);
if (check != 2)
printf("fread in getFATValue failed!");
//u16为short，结合存储的小尾顺序和FAT项结构可以得到
//type为0的话，取byte2的低4位和byte1构成的值，type为1的话，取byte2和byte1的高4位构成的值
if (type == 0) {
bytes=bytes << 4; //这里原文错误，原理建议看网上关于FAT表的文章
return bytes >> 4;
}
else {
return bytes >> 4;
}
}
void printLS(Node *r) {
Node *p = r;//通过root节点，遍历所有的节点
if (p->isfile == true) {
return;
}
else {
cout << p->path << ":" << endl;
//打印每个next
Node *q;
int leng = p->next.size();
for (int i = 0; i <leng; i++) {
q = p->next[i];
if (q->isfile == false) {
//文件夹
// cout << "\033[31m"<<q->name << "\033[0m"<<" ";
cout << q->name << " ";
}
else {
//文件
cout << q->name << " ";
}
}
cout << endl;
//进行递归
for (int i = 0; i < leng; i++) {
if(p->next[i]->isval==true) printLS(p->next[i]);
}
}
}
void creatNode(Node *p, Node *father) {
Node *q = new Node();
q->name = ".";
q->isval = false;
p->next.push_back(q);
q = new Node();
q->name = "..";
q->isval = false;
p->next.push_back(q);
}
void printLS_L(Node *root) {
Node *p = root;
if (p->isfile) {
//如果该Node是文件，不处理
return;
}
else {
cout << p->path <<" "<<p->dir_count<<" "<<p->file_count<< ":" << endl;
//打印每个next
Node *q;
int leng = p->next.size();
for (int i = 0; i < leng; i++) {
q = p->next[i];
if (q->isfile == false) {
//文件夹
// cout << "\033[31m"<<q->name << "\033[0m"<<" ";
if (q->isval) {
cout << q->name << " " << q->dir_count << " " << q->file_count << endl;
}
else {
//处理. ..
cout << q->name << " "<<endl;
}
}
else {
//文件
cout << q->name << " "<<q->FileSize<<endl;
}
}
cout << endl;
//进行递归
for (int i = 0; i < leng; i++) {
if (p->next[i]->isval == true) printLS_L(p->next[i]);
}
}
}
void printLS_LWithPath(Node *root, string p, int & exist) {
if (p.compare(root->path) == 0) { //路径完全相同，说明就是该节点
//查找到
if (root->isfile) { //如果是文件，无法打开
exist = 2;
return;
}
else {
exist = 1;
printLS_L(root);
}
return;
}
if (p.length() <= root->path.length()) { //出现该情况直接出去
return;
}
string temp = p.substr(0, root->path.length()); //截取输入的path的部分字符串，和当前节点的path比较，如果相同，说明目标在该节点下级
if (temp.compare(root->path) == 0) {
//路径部分匹配
for (Node *q : root->next) {
printLS_LWithPath(q, p, exist);
}
}
}
void getContent(FILE * fat12, int startClus,Node *son) {//获取文件内容
int dataBase = BytsPerSec * (RsvdSecCnt + FATSz * NumFATs + (RootEntCnt * 32 + BytsPerSec - 1) / BytsPerSec);
int currentClus = startClus;
int value = 0; //这里用value来进行不同簇的读取（超过512字节）
char *p = son->content;
if (startClus == 0) {
return;
}
while (value < 0xFF8) {
value = getFATValue(fat12, currentClus);//获取下一个簇
if (value == 0xFF7
) {
printf("坏簇，读取失败!\n");
break;
}
char* str = (char*)malloc(SecPerClus*BytsPerSec); //暂存从簇中读出的数据
char *content = str;
int startByte = dataBase + (currentClus - 2)*SecPerClus*BytsPerSec;
int check;
check = fseek(fat12, startByte, SEEK_SET);
if (check == -1)
printf("fseek in printChildren failed!");
check = fread(content, 1, SecPerClus*BytsPerSec, fat12);//提取数据
if (check != SecPerClus * BytsPerSec)
printf("fread in printChildren failed!");
int count = SecPerClus * BytsPerSec;
int loop = 0;
for (int i = 0; i < count; i++) {//读取赋值
*p = content[i];
p++;
}
free(str);
currentClus = value;
}
}
void printCat(Node *root, string p, int & exist) {
if (p.compare(root->path) == 0) {
//查找到
if (root->isfile) {
exist = 1;
if (root->content[0] != 0) {
cout << root->content << endl;
}
return;
}
else {
exist = 2;
return;
}
}
if (p.length() <= root->path.length()) {
return;
}
string temp = p.substr(0, root->path.length());
if (temp.compare(root->path) == 0) {
//路径部分匹配
for (Node *q : root->next) {
printCat(q, p, exist);
}
}
}
3200
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
