prometheus监控node-export的磁盘信息没有正确区分系统盘和数据盘

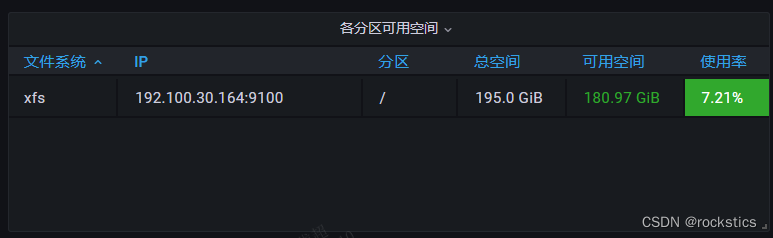

helm默认安装的prometheus，我的版本2.35.0 ，prometheus监控node-export 磁盘信息没有正确区分系统盘和数据盘，如图

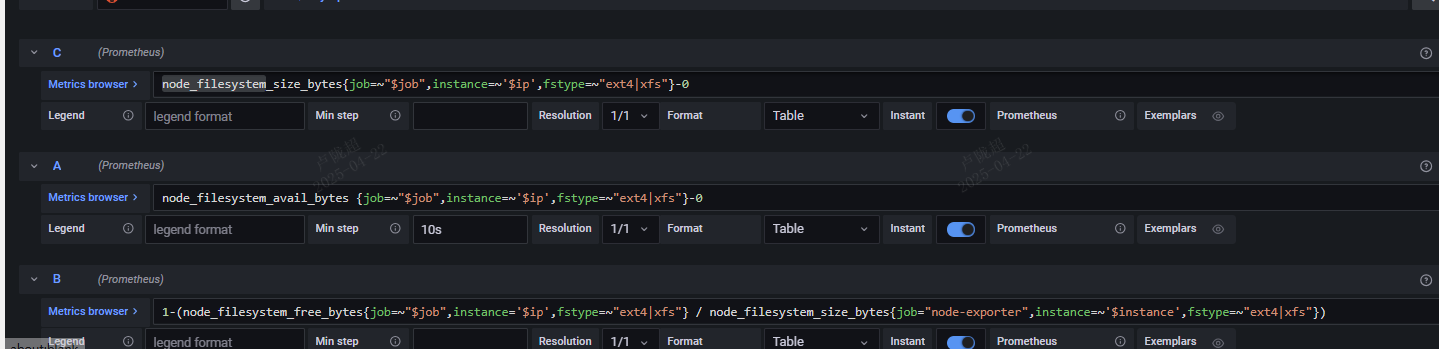

数据源配置如图：

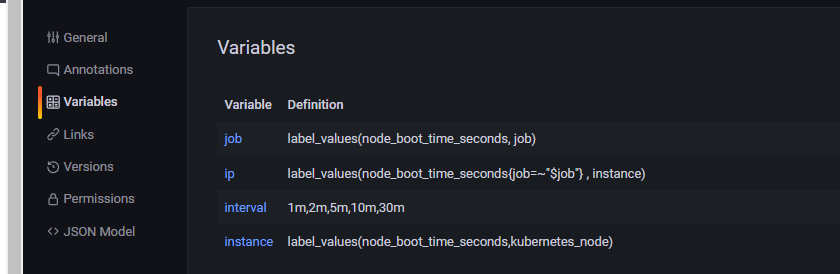

其中变量设置如下图

在使用 Prometheus 监控 Node Exporter 的磁盘信息时，如果无法正确区分系统盘和数据盘，可能是因为磁盘的挂载点（Mount Point）没有正确配置或命名导致的。

默认情况下，Node Exporter 会监控所有挂载点的磁盘信息，并将其暴露给 Prometheus。为了正确区分系统盘和数据盘，需要通过配置文件或启动参数来告诉 Node Exporter 哪些挂载点是系统盘，哪些挂载点是数据盘。

例如，在 Node Exporter 的启动参数中，可以使用 -collector.filesystem.ignored-mount-points 参数来忽略某些挂载点，例如，忽略系统盘的挂载点：

node_exporter --collector.filesystem.ignored-mount-points "^/(sys|proc|dev|run|etc|var/lib/docker/containers|var/lib/kubelet|var/lib/rancher/)"

node_exporter v1.3.1版本此参数为： --collector.filesystem.mount-points-exclude=^/(dev|proc|sys|var/lib/docker/.+|var/lib/kubelet/pods/.+)($|/)
此外，也可以使用 -collector.filesystem.mount-points (此参数v1.3.1 已经不存在)参数来只监控特定的挂载点，例如，只监控数据盘的挂载点：

node_exporter --collector.filesystem.mount-points "/data", "/mnt"

以上示例中，/data 和 /mnt 是数据盘的挂载点，只有这些挂载点的磁盘信息会被监控和暴露给 Prometheus。

需要注意的是，挂载点的命名和配置可能因操作系统和存储设备的不同而有所差异。因此，在配置挂载点时，建议根据实际情况进行调整和修改。
除过以上参数，如果要显示宿主机磁盘使用率还需要在node_exporter挂载 / 目录到容器/host/root下,并且指定启动参数’–path.rootfs=/host/root’ （node_exporter v1.3.1版本适用）
下面是正确配置的示例完整的node_export yaml文件参考

kind: Pod
apiVersion: v1
metadata:
  name: prometheus-node-exporter-zhrc7
  generateName: prometheus-node-exporter-
  namespace: devops
  labels:
    app: prometheus
    chart: prometheus-10.4.0
    component: node-exporter
    controller-revision-hash: 59b8ccf974
    heritage: Helm
    pod-template-generation: '1'
    release: prometheus
spec:
  volumes:
    - name: proc
      hostPath:
        path: /proc
        type: ''
    - name: sys
      hostPath:
        path: /sys
        type: ''
    - name: root
      hostPath:
        path: /
        type: ''
    - name: kube-api-access-86x56
      projected:
        sources:
          - serviceAccountToken:
              expirationSeconds: 3607
              path: token
          - configMap:
              name: kube-root-ca.crt
              items:
                - key: ca.crt
                  path: ca.crt
          - downwardAPI:
              items:
                - path: namespace
                  fieldRef:
                    apiVersion: v1
                    fieldPath: metadata.namespace
        defaultMode: 420
  containers:
    - name: prometheus-node-exporter
      image: 'prom/node-exporter:v1.3.1'
      args:
        - '--path.procfs=/host/proc'
        - '--path.sysfs=/host/sys'
        - '--path.rootfs=/host/root'
        - >-
          --collector.filesystem.fs-types-exclude=^(autofs|binfmt_misc|cgroup|configfs|debugfs|devpts|devtmpfs|fusectl|hugetlbfs|mqueue|overlay|proc|procfs|pstore|rpc_pipefs|securityfs|sysfs|tracefs)$
        - >-
          --collector.filesystem.mount-points-exclude=^/(dev|proc|sys|Siact/docker/.+|var/lib/kubelet/pods/.+)($|/)
        - '--collector.netclass.ignored-devices=^(veth.*|[a-f0-9]{15})$'
        - '--collector.netdev.device-exclude=^(veth.*|[a-f0-9]{15})$'
      ports:
        - name: metrics
          hostPort: 9100
          containerPort: 9100
          protocol: TCP
      resources:
        limits:
          cpu: 300m
          memory: 250Mi
        requests:
          cpu: 100m
          memory: 200Mi
      volumeMounts:
        - name: proc
          readOnly: true
          mountPath: /host/proc
        - name: sys
          readOnly: true
          mountPath: /host/sys
        - name: root
          mountPath: /host/root
        - name: kube-api-access-86x56
          readOnly: true
          mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      terminationMessagePath: /dev/termination-log
      terminationMessagePolicy: File
      imagePullPolicy: IfNotPresent
  restartPolicy: Always
  terminationGracePeriodSeconds: 30
  dnsPolicy: ClusterFirst
  serviceAccountName: prometheus-node-exporter
  serviceAccount: prometheus-node-exporter
  nodeName: kubernetesm02
  hostNetwork: true
  hostPID: true
  securityContext: {}
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
          - matchFields:
              - key: metadata.name
                operator: In
                values:
                  - kubernetesm02
  schedulerName: default-scheduler
  tolerations:
    - operator: Exists
      effect: NoSchedule
    - key: node.kubernetes.io/not-ready
      operator: Exists
      effect: NoExecute
    - key: node.kubernetes.io/unreachable
      operator: Exists
      effect: NoExecute
    - key: node.kubernetes.io/disk-pressure
      operator: Exists
      effect: NoSchedule
    - key: node.kubernetes.io/memory-pressure
      operator: Exists
      effect: NoSchedule
    - key: node.kubernetes.io/pid-pressure
      operator: Exists
      effect: NoSchedule
    - key: node.kubernetes.io/unschedulable
      operator: Exists
      effect: NoSchedule
    - key: node.kubernetes.io/network-unavailable
      operator: Exists
      effect: NoSchedule
  priority: 0
  enableServiceLinks: true
  preemptionPolicy: PreemptLowerPriority

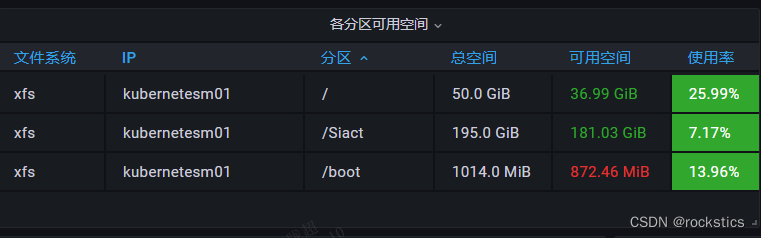

修复后的各分区可用空间监控如下：
