Air780E连接点灯科技-LuatOS

前面发了腾讯云点灯以后，有朋友提到了点灯科技，人家都叫点灯科技了，那咱们学点灯必须连一下试试呀。本文将记录如何将设备连接点灯云平台，并通过手机进行远程控制

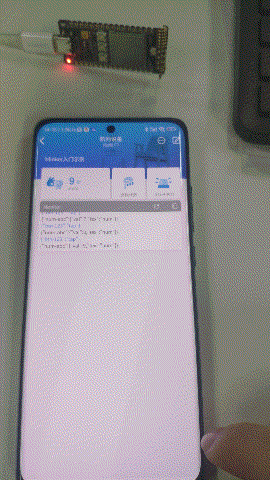

先上成果演示

一、点灯云准备

下载点灯科技的app-blinker，注册账号，这部分就不用写了

1、添加设备

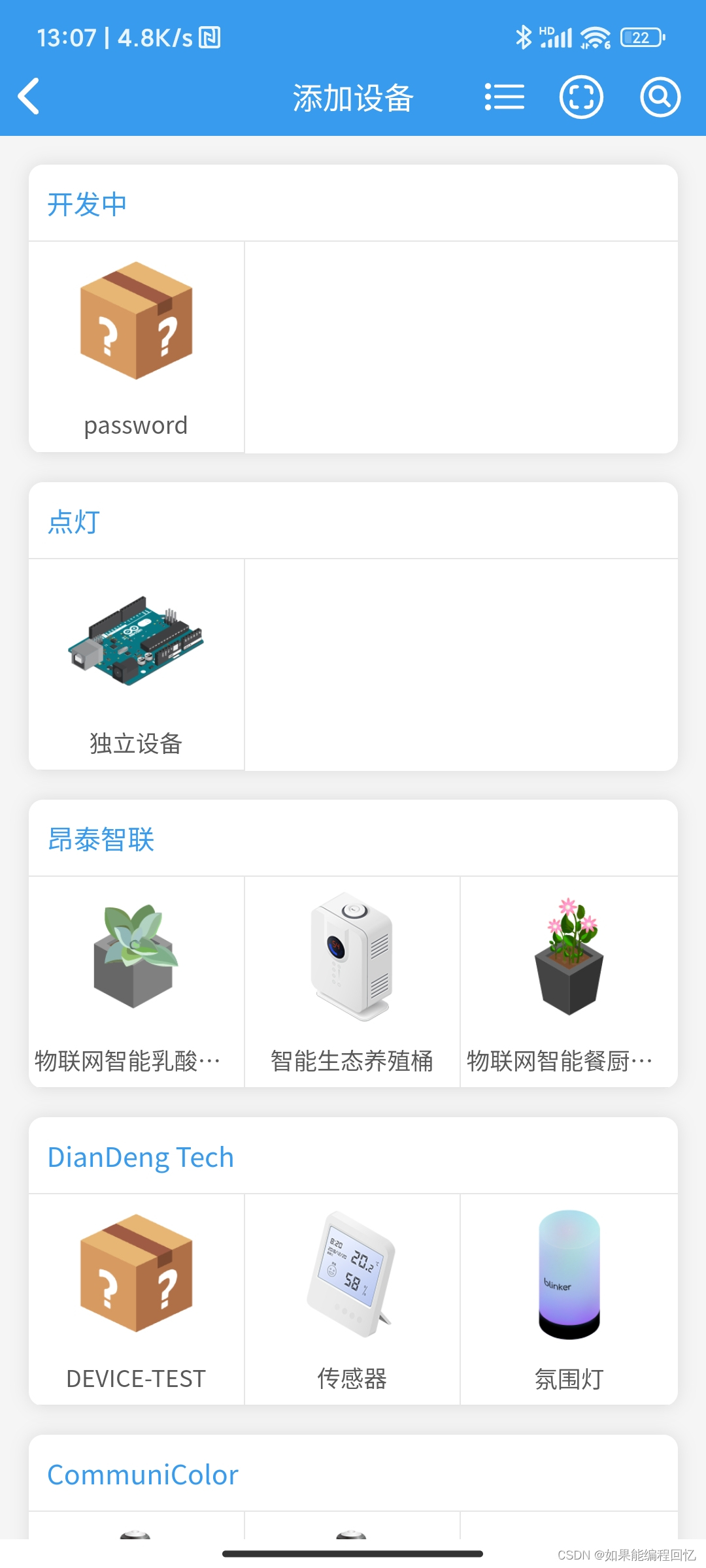

点击右上角添加设备，设备类型选独立设备

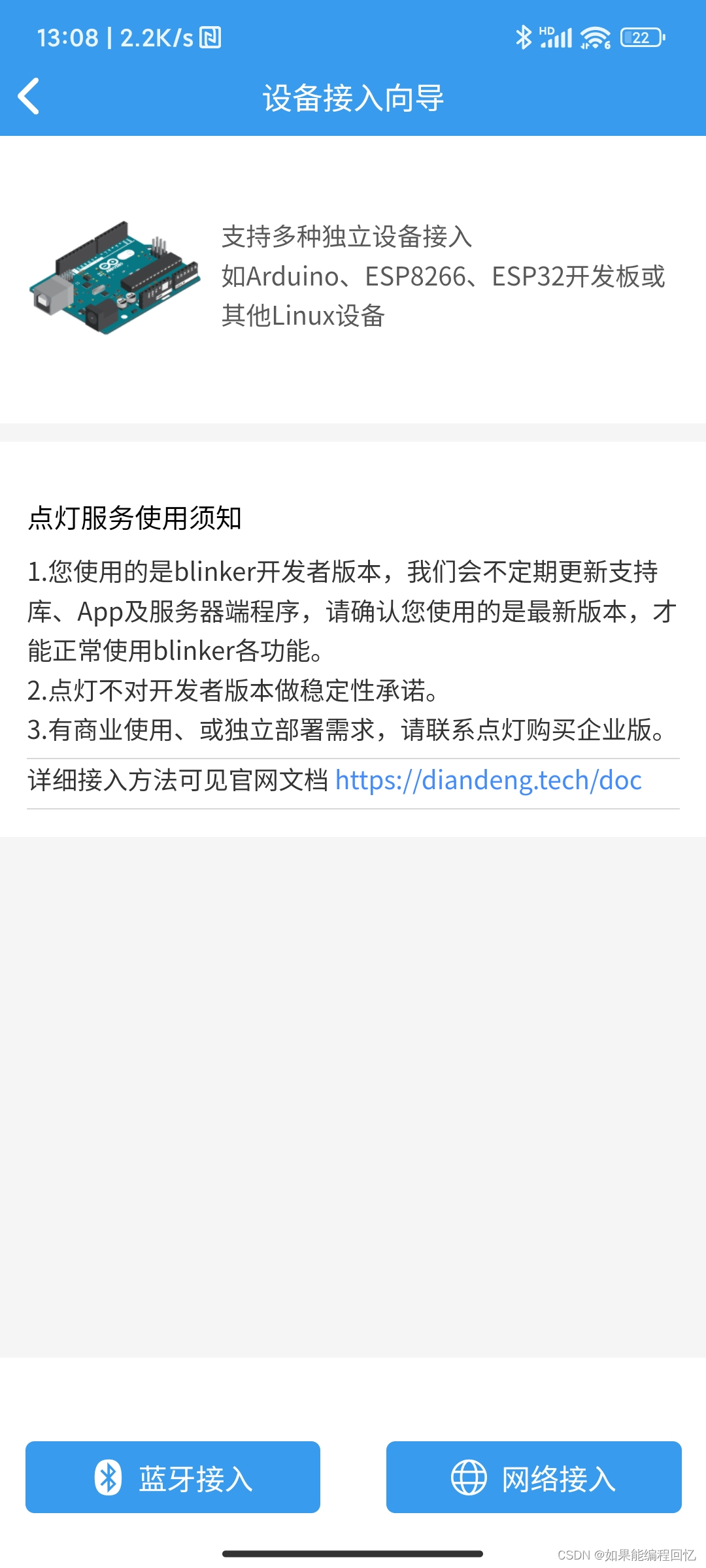

 右下角选择网络接入

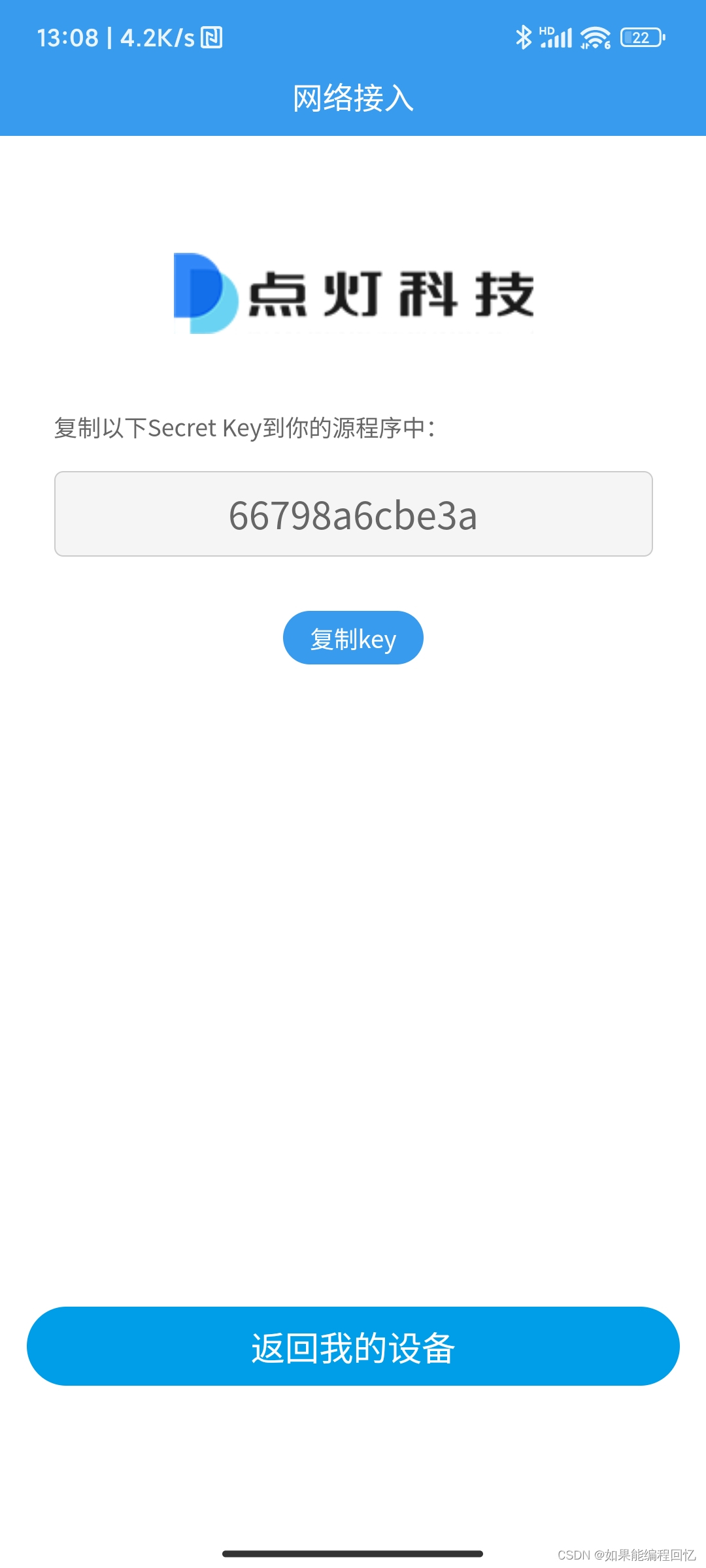

 然后复制得到的key

2、配置设备

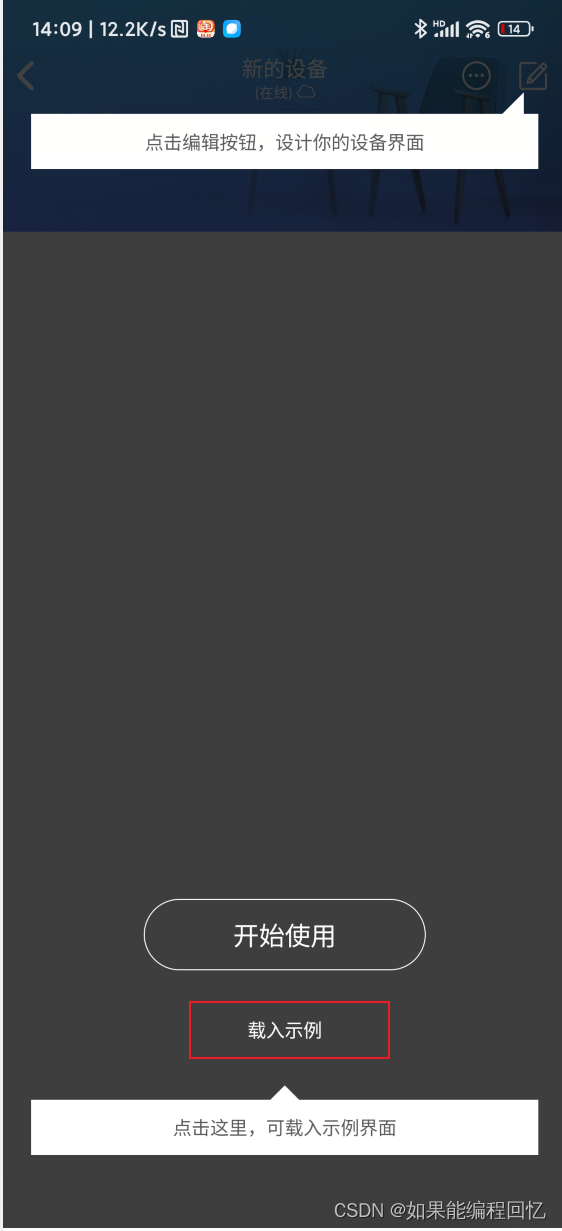

点击我们刚添加的设备，根据提示，我们直接点载入示例

 二、设备端开发

思路一样，首先找文档，看看如何接入。可以看到有http和mqtt方式接入，那我们肯定是mqtt呀，因为我们要长连接才能保证设备实时被控制。

1、鉴权

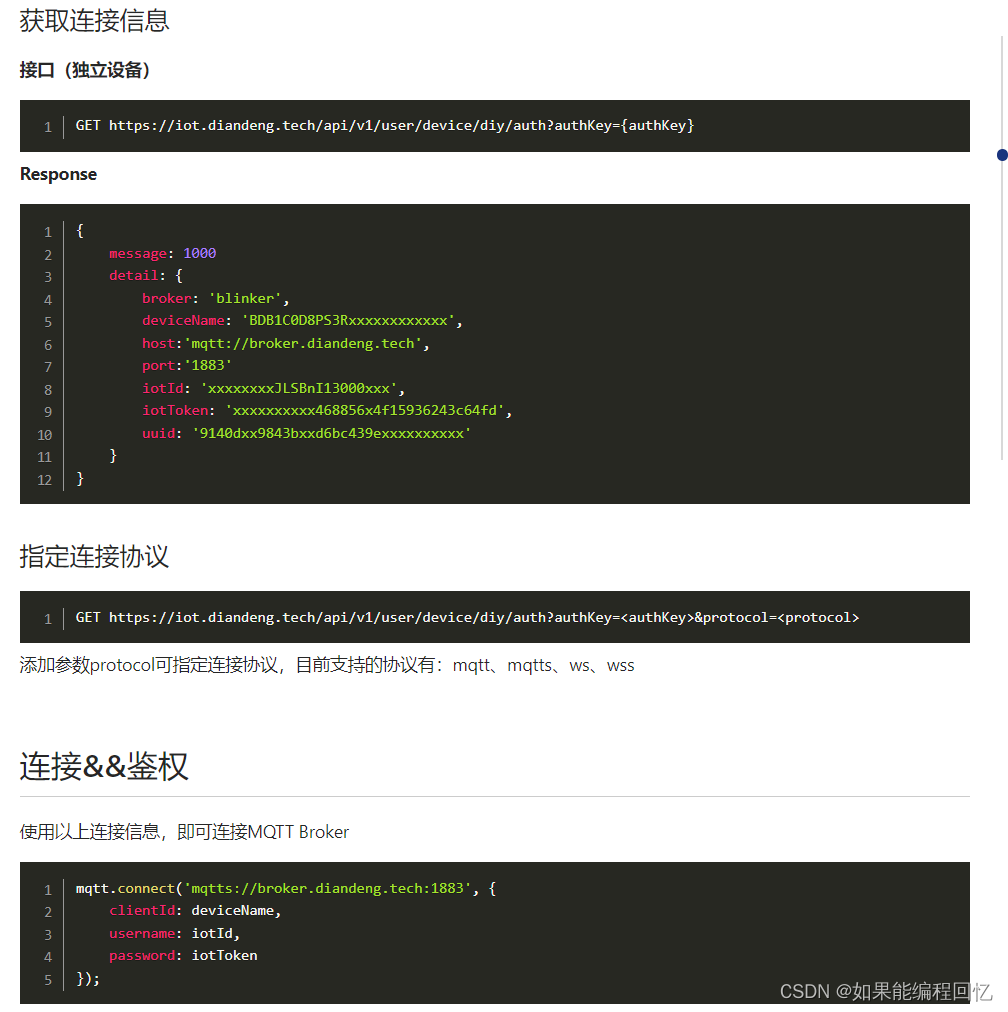

所以查找文档点灯科技 (diandeng.tech)可以看到mqtt的鉴权需要先使用http请求获得连接参数

 找一下luatos的http的库http2 - http2客户端 - LuatOS 文档可看到很简单，就一行代码，而且接口使用和其他语言基本一致



 所以直接上代码，我们直接封装一个函数，传入authKey就可以获得连接参数

local function getDeviceInfo(authKey)
    local code, headers, data = http2.request("GET", serverAdress .. authKey .. "&protocol=mqtt").wait()
    if data and json.decode(data) then
        local authdata = json.decode(data)
        if authdata.message == 1000 then
            log.info(
                "获取设备信息成功",
                authdata.detail.host:sub(8, -1),
                authdata.detail.deviceName,
                authdata.detail.iotId,
                authdata.detail.iotToken,
                authdata.detail.uuid
            )
            return true, authdata.detail.host:sub(8, -1), authdata.detail.deviceName, authdata.detail.iotId, authdata.detail.iotToken, authdata.detail.uuid
        end
    end
    return false
end

2、连接

连接部分的代码就和昨天连腾讯云没啥两样了，都是连mqtt，然后订阅数据，收到数据以后根据文档进行处理

直接上完整代码吧，一样是Air780E，Air105，ESP32C3通用代码

PROJECT = "gpiodemo"
VERSION = "1.0.0"
local sys = require "sys"
require("sysplus")
--{"deviceType": "OwnApp", "fromDevice": "856ED5F216FO23SKEEDQJ8LL", "toDevice": "0451f7667f1c11ec94755254", "data": {"state": "online"}}
local wifi_ssid = "NAS"
local wifi_password = "Air123456"
--如果是wifi设备，这里改成你的wifi账号和密码
local authKey = "" --点灯云申请的设备authKey
local serverAdress = "http://iot.diandeng.tech/api/v1/user/device/diy/auth?authKey=" --http鉴权地址
local mqttc = nil
local led_state = 0
local num = 0
local function getDeviceInfo(authKey)
    local code, headers, data = http2.request("GET", serverAdress .. authKey .. "&protocol=mqtt").wait()
    if data and json.decode(data) then
        local authdata = json.decode(data)
        if authdata.message == 1000 then
            log.info(
                "获取设备信息成功",
                authdata.detail.host:sub(8, -1),
                authdata.detail.deviceName,
                authdata.detail.iotId,
                authdata.detail.iotToken,
                authdata.detail.uuid
            )
            return true, authdata.detail.host:sub(8, -1), authdata.detail.deviceName, authdata.detail.iotId, authdata.detail.iotToken, authdata.detail.uuid
        end
    end
    return false
end
sys.taskInit(
    function()
        log.info("BSP", rtos.bsp())
        if rtos.bsp() == "ESP32C3" then
            LED = gpio.setup(12, 0, gpio.PULLUP)
            wlan.init()
            wlan.setMode(wlan.STATION)
            wlan.connect(ssid, password, 1)
            local result, data = sys.waitUntil("IP_READY")
            log.info("wlan", "IP_READY", result, data)
        elseif rtos.bsp() == "AIR105" then
            w5500.init(spi.HSPI_0, 24000000, pin.PC14, pin.PC01, pin.PC00)
            w5500.config() --默认是DHCP模式
            w5500.bind(socket.ETH0)
            LED = gpio.setup(62, 0, gpio.PULLUP)
            sys.wait(1000)
        elseif rtos.bsp() == "EC618" then
            mobile.simid(2)
            LED = gpio.setup(27, 0, gpio.PULLUP)
        end
        result, host, deviceName, iotId, iotToken, uuid = getDeviceInfo(authKey)
        if not result then
            log.info("获取设备信息失败")
            return
        end
        log.info("result", host, deviceName, iotId, iotToken)

        mqttc = mqtt.create(nil, host, 1883)
        -- mqttc:debug(true)
        mqttc:auth(deviceName, iotId, iotToken)
        mqttc:keepalive(30) -- 默认值240s
        mqttc:autoreconn(true, 3000) -- 自动重连机制
        local mqtt_topic = "/device/" .. deviceName .. "/r"
        mqtt_topic_pub = "/device/" .. deviceName .. "/s"
        local send_date = {}
        mqttc:on(
            function(mqtt_client, event, data, payload)
                if event == "conack" then
                    sys.publish("mqtt_conack")
                    log.info("mqtt", "mqtt已连接")
                    mqtt_client:subscribe(mqtt_topic)
                    send_date.dedeviceType = "OwnApp"
                    send_date.fromDevice = deviceName
                    send_date.toDevice = uuid
                    send_date.data = {}
                    send_date.data.state = "online"
                    mqttc:publish(mqtt_topic_pub, json.encode(send_date), 0)
                elseif event == "recv" then
                    log.info("mqtt", "收到消息", data, payload)
                    local data = json.decode(payload)
                    if data.data["btn-abc"] == "tap" then
                        led_state = (~led_state) & 1
                        LED(led_state)
                        send_date.data = {}
                        send_date.data["btn-abc"] = "tap"
                        mqttc:publish(mqtt_topic_pub, json.encode(send_date), 0)
                    elseif data.data.get == "state" then
                        send_date.data = {}
                        send_date.data.state = "online"
                        log.info("mqtt", "回复状态为在线", json.encode(send_date))
                        mqttc:publish(mqtt_topic_pub, json.encode(send_date), 0)
                    elseif data.data["btn-123"] == "tap" then
                        log.info("mqtt", "数字")
                        num = num + 1
                        send_date.data = {}
                        send_date.data["num-abc"] = {}
                        send_date.data["num-abc"].tex = "num"
                        send_date.data["num-abc"].val = num
                        mqttc:publish(mqtt_topic_pub, json.encode(send_date), 0)
                    end
                elseif event == "sent" then
                    log.info("mqtt", "sent", "pkgid", data)
                end
            end
        )
        mqttc:connect()
        sys.wait(10000)
        sys.waitUntil("mqtt_conack")
        while true do
            -- mqttc自动处理重连
            local ret, topic, data, qos = sys.waitUntil("mqtt_pub", 30000)
            if ret then
                if topic == "close" then
                    break
                end
                mqttc:publish(mqtt_topic_pub, data, qos)
            end
        end
        mqttc:close()
        mqttc = nil
    end
)

-- 用户代码已结束---------------------------------------------
-- 结尾总是这一句
sys.run()
-- sys.run()之后后面不要加任何语句!!!!!

三、测试

把完整代码烧录进设备，不会烧录的可以看 AIR780E二次开发点灯(LuatOS)

底层固件要用最新的，可以自行编译CSDK里的luatos项目，也可以用我这里编译好的LuatOS-SoC_V1001_EC618.soc

烧录好以后，打开点灯app，然后就可以开始测试了。点击开灯按钮可以翻转开发板上带的灯的状态；点击计数按钮，设备端会累加次数并上报，在app可以看到次数不断增加。
