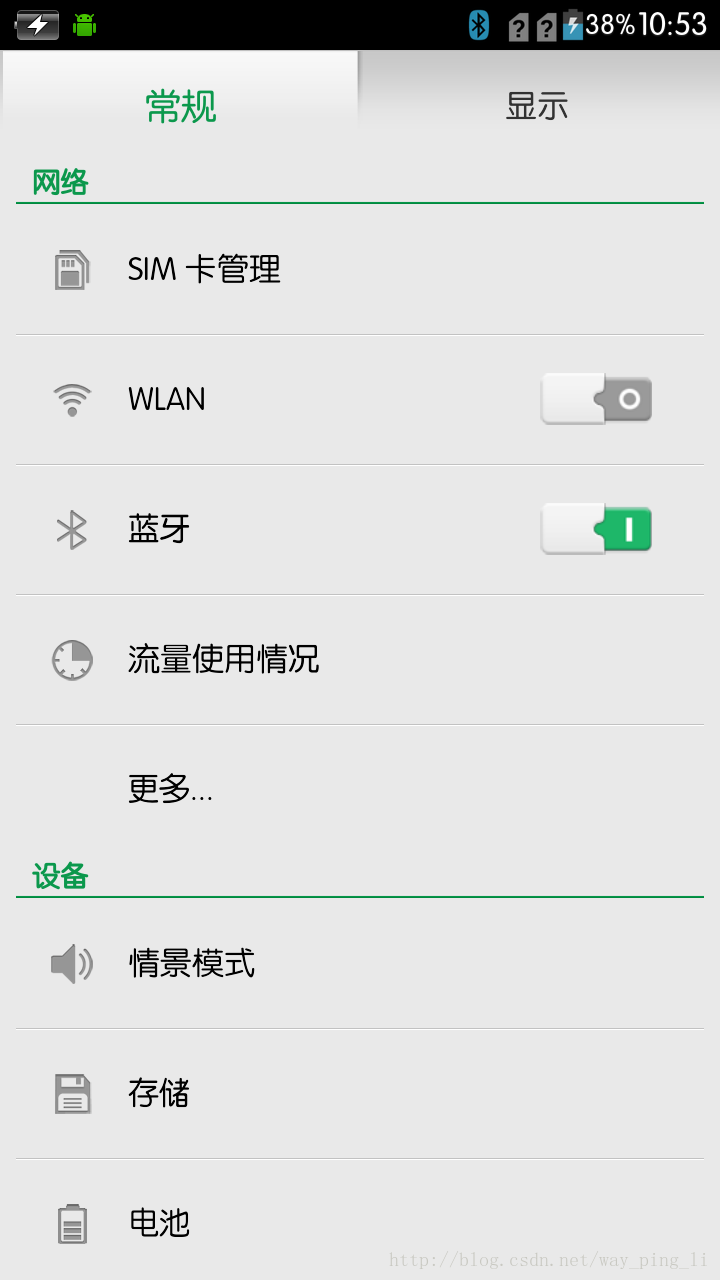

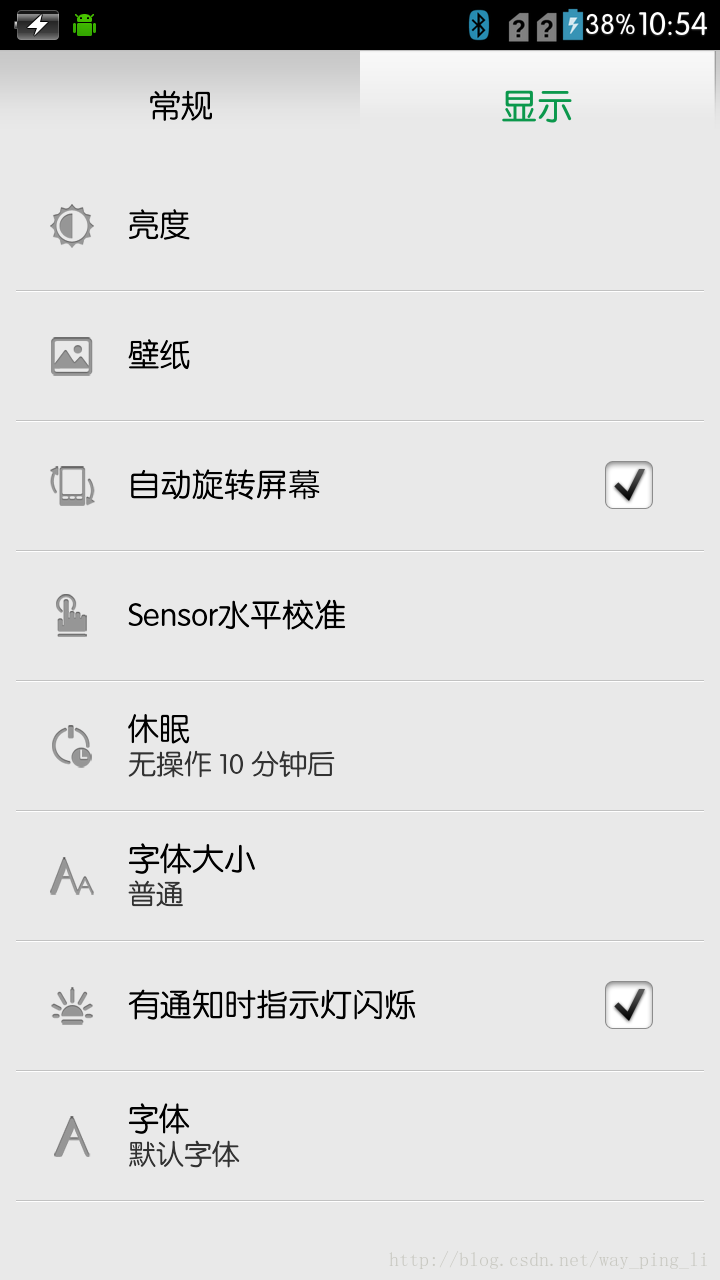

之前有跟大家分享设置Tab风格和Item圆角的实现，希望能给有需要的朋友一点点帮助，今天再和大家分享一下用ViewPager实现设置分页，小米和OPPO就是这样的设置，先来看看效果图：

为了帮助大家更清晰的理解，我单独拿出一个小例子，有需要的朋友可以下载下来看看：

http://git.oschina.net/way/SettingTab/tree/master

其实要实现这样的风格并不难，只要能比较深入的理解PreferenceActivity.java就可以了。我们都知道Settings.java是继承自PreferenceActivity.java，所用的布局文件layout也是父类的，而且他的二级界面都是Fragment，都是依赖他这个Activity，如果在onCreate函数中通过setContentView()改变Settings.java的布局，岂不是也会影响他的二级界面？相信很多遇到困难的朋友就是这个原因。

答案是否定的！很明显，我们只需要在显示Settings的第一个界面的时候才setContentView()，也就是说在onCreate里面判断一下： if (this.getClass().equals(Settings.class))，为什么是这样呢？我们可以滚动到Settings.java文件末尾，会发现，其实二级菜单都是一些Fragment，但是它们也有虚拟的类名的，都是Settings的内部类，所以，进到二级菜单就不满足这个条件了。

如下所示：

[java] view plain copy print ?

if (this.getClass().equals(Settings.class)) {
setContentView(R.layout.tab_settings);
mTabCursor = (ImageView) findViewById(R.id.tab_cursor);
ViewPager viewPager = (ViewPager) findViewById(R.id.pager);
viewPager.setAdapter(new ViewPagerAdapter(getFragmentManager()));
viewPager.setOnPageChangeListener(mPageChangeListener);
mViewPager = viewPager;
mTabGeneral = (TextView) findViewById(R.id.tab_general);
mTabDisplay = (TextView) findViewById(R.id.tab_display);
mTabGeneral.setOnClickListener(mTabOnClickListener);
mTabDisplay.setOnClickListener(mTabOnClickListener);
mTabGeneral.setTextColor(COLOR_SELECTED);
mTabGeneral.setTextSize(TEXT_SIZE_SELECTED);
}

		if (this.getClass().equals(Settings.class)) {
			setContentView(R.layout.tab_settings);
			mTabCursor = (ImageView) findViewById(R.id.tab_cursor);
			ViewPager viewPager = (ViewPager) findViewById(R.id.pager);
			viewPager.setAdapter(new ViewPagerAdapter(getFragmentManager()));
			viewPager.setOnPageChangeListener(mPageChangeListener);
			mViewPager = viewPager;

			mTabGeneral = (TextView) findViewById(R.id.tab_general);
			mTabDisplay = (TextView) findViewById(R.id.tab_display);
			mTabGeneral.setOnClickListener(mTabOnClickListener);
			mTabDisplay.setOnClickListener(mTabOnClickListener);
			mTabGeneral.setTextColor(COLOR_SELECTED);
			mTabGeneral.setTextSize(TEXT_SIZE_SELECTED);
		}

相信，看完上面这段代码，遇到困难的朋友应该会豁然开朗。下面都可以不用继续看下去了。

不过为了善始善终，我会继续贴下去。

接下来，我们看看tab_settings.xml的布局，由于PreferenceActivity的特性，布局中必须要有一个id为android:id/list的ListView，因为所有的xml目录下的preference解析出来都是显示在上面，虽然我们改变了布局，但还是不能改变他的代码嘛！就弄一个高度宽度为0的ListView骗一下它就可以了，呵呵：

[html] view plain copy print ?

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
>
<ListView
android:id="@android:id/list"
android:layout_width="0dp"
android:layout_height="0dp"
android:visibility="gone"/>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical" >
<FrameLayout
android:layout_width="match_parent"
android:layout_height="@dimen/tab_height"
android:background="@drawable/tab_background" >
<ImageView
android:id="@+id/tab_cursor"
android:layout_width="@dimen/tab_width"
android:layout_height="@dimen/tab_height"
android:background="@drawable/tab_cursor"/>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="@dimen/tab_height">
<TextView
android:id="@+id/tab_general"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:layout_gravity="center_vertical"
android:gravity="center"
android:text="@string/tab_general"
android:singleLine="true"
android:textSize="@dimen/tab_text_size" />
<TextView
android:id="@+id/tab_display"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:gravity="center"
android:layout_gravity="center_vertical"
android:text="@string/tab_display"
android:singleLine="true"
android:textSize="@dimen/tab_text_size" />
</LinearLayout>
</FrameLayout>
<android.support.v4.view.ViewPager
android:id="@+id/pager"
android:layout_width="match_parent"
android:layout_height="match_parent" />
</LinearLayout>
</FrameLayout>

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    >
    <ListView
        android:id="@android:id/list"
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:visibility="gone"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical" >
        <FrameLayout
           android:layout_width="match_parent"
           android:layout_height="@dimen/tab_height"
           android:background="@drawable/tab_background" >
    <ImageView
                android:id="@+id/tab_cursor"
                android:layout_width="@dimen/tab_width"
                android:layout_height="@dimen/tab_height"
                android:background="@drawable/tab_cursor"/>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="@dimen/tab_height">
                <TextView
                    android:id="@+id/tab_general"
                    android:layout_width="0dp"
                    android:layout_height="wrap_content"
                    android:layout_weight="1"
                    android:layout_gravity="center_vertical"
                    android:gravity="center"
                    android:text="@string/tab_general"
                    android:singleLine="true"
                    android:textSize="@dimen/tab_text_size" />
                <TextView
                    android:id="@+id/tab_display"
                    android:layout_width="0dp"
                    android:layout_height="wrap_content"
                    android:layout_weight="1"
                    android:gravity="center"
                    android:layout_gravity="center_vertical"
                    android:text="@string/tab_display"
                    android:singleLine="true"
                    android:textSize="@dimen/tab_text_size" />
            </LinearLayout>
        </FrameLayout>

        <android.support.v4.view.ViewPager
            android:id="@+id/pager"
            android:layout_width="match_parent"
            android:layout_height="match_parent" />
    </LinearLayout>

</FrameLayout>

接下来便是普通ViewPager的使用了，我这里就不多说了。

下面把整个Settings.java的源代码分享一下：

[java] view plain copy print ?

/*
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.android.settings;
import android.app.ActionBar;
import android.app.ActivityManager;
import android.app.Fragment;
import android.app.FragmentManager;
import com.android.internal.util.ArrayUtils;
import com.android.settings.accounts.AccountSyncSettings;
import com.android.settings.accounts.AuthenticatorHelper;
import com.android.settings.accounts.ManageAccountsSettings;
import com.android.settings.applications.ManageApplications;
import com.android.settings.bluetooth.BluetoothEnabler;
import com.android.settings.deviceinfo.Memory;
import com.android.settings.fuelgauge.PowerUsageSummary;
import com.android.settings.inputmethod.UserDictionaryAddWordFragment;
import com.android.settings.wifi.WifiEnabler;
import com.android.settings.wristwatch.WristwatchEnabler;
import static com.sprd.android.config.OptConfig.LC_RAM_SUPPORT;
import android.accounts.Account;
import android.accounts.AccountManager;
import android.accounts.OnAccountsUpdateListener;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.pm.ActivityInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.os.INetworkManagementService;
import android.os.RemoteException;
import android.os.ServiceManager;
import android.os.UserId;
import android.os.SystemProperties;
import android.os.TopwiseProp;
import android.preference.Preference;
import android.preference.PreferenceActivity;
import android.preference.PreferenceActivity.Header;
import android.preference.PreferenceFragment;
import android.support.v13.app.FragmentPagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.telephony.TelephonyManager;
import android.text.TextUtils;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Window;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.BaseAdapter;
import android.widget.Button;
import android.widget.CompoundButton;
import android.widget.ImageView;
import android.widget.ListAdapter;
import android.widget.Switch;
import android.widget.TextView;
import java.util.ArrayList;
import java.util.Collections;
import java.util.Comparator;
import java.util.HashMap;
import java.util.List;
/**
* Top-level settings activity to handle single pane and double pane UI layout.
*/
public class Settings extends PreferenceActivity
implements ButtonBarHandler, OnAccountsUpdateListener {
private static final String LOG_TAG = "Settings";
private static final String META_DATA_KEY_HEADER_ID =
"com.android.settings.TOP_LEVEL_HEADER_ID";
private static final String META_DATA_KEY_FRAGMENT_CLASS =
"com.android.settings.FRAGMENT_CLASS";
private static final String META_DATA_KEY_PARENT_TITLE =
"com.android.settings.PARENT_FRAGMENT_TITLE";
private static final String META_DATA_KEY_PARENT_FRAGMENT_CLASS =
"com.android.settings.PARENT_FRAGMENT_CLASS";
private static final String EXTRA_CLEAR_UI_OPTIONS = "settings:remove_ui_options";
private static final String SAVE_KEY_CURRENT_HEADER = "com.android.settings.CURRENT_HEADER";
private static final String SAVE_KEY_PARENT_HEADER = "com.android.settings.PARENT_HEADER";
//fix bug 210641 the text of "backup and reset" not appropriate ,when os did not support backup on 2013.9.4 start
private static final String GSETTINGS_PROVIDER = "com.google.settings";
//fix bug 210641 the text of "backup and reset" not appropriate ,when os did not support backup on 2013.9.4 send
public static boolean UNIVERSEUI_SUPPORT = SystemProperties.getBoolean("universe_ui_support",false);
public static final boolean CU_SUPPORT = SystemProperties.get("ro.operator").equals("cucc");
private String mFragmentClass;
private int mTopLevelHeaderId;
private Header mFirstHeader;
private Header mCurrentHeader;
private Header mParentHeader;
private boolean mInLocalHeaderSwitch;
// Show only these settings for restricted users
private int[] SETTINGS_FOR_RESTRICTED = {
R.id.wifi_settings,
R.id.bluetooth_settings,
R.id.sound_settings,
R.id.display_settings,
R.id.security_settings,
R.id.account_settings,
R.id.about_settings
};
private boolean mEnableUserManagement = false;
// TODO: Update Call Settings based on airplane mode state.
protected HashMap<Integer, Integer> mHeaderIndexMap = new HashMap<Integer, Integer>();
private AuthenticatorHelper mAuthenticatorHelper;
private Header mLastHeader;
private boolean mListeningToAccountUpdates;
private boolean mBluetoothEnable;
private boolean mVoiceCapable;
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
//private boolean mIsOpenWristwatchCfg = TopwiseProp.getDefaultSettingBoolean("topwise_open_wristwatch");
private boolean mIsOpenWristwatchCfg = TopwiseProp.getDefaultSettingBoolean("topwise_wristwatch_unlock");
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
@Override
protected void onCreate(Bundle savedInstanceState) {
mBluetoothEnable = (SystemProperties.getInt("ro.tablet.bluetooth.enable", 1) != 0);
mBluetoothEnable = (SystemProperties.getInt("ro.tablet.bluetooth.enable", 1) != 0);
mVoiceCapable = getResources().getBoolean(com.android.internal.R.bool.config_voice_capable);
if (getIntent().getBooleanExtra(EXTRA_CLEAR_UI_OPTIONS, false)) {
getWindow().setUiOptions(0);
}
if (android.provider.Settings.Secure.getInt(getContentResolver(), "multiuser_enabled", -1)
> 0) {
mEnableUserManagement = true;
}
mAuthenticatorHelper = new AuthenticatorHelper();
mAuthenticatorHelper.updateAuthDescriptions(this);
mAuthenticatorHelper.onAccountsUpdated(this, null);
getMetaData();
mInLocalHeaderSwitch = true;
//add by daiwei for tab
if (getClass().getName().equals("com.android.settings.Settings")) {
setTheme(android.R.style.Theme_Holo_Light_NoActionBar);
}
//end by daiwei
super.onCreate(savedInstanceState);
mInLocalHeaderSwitch = false;
//For LowCost case, define the list selector by itself
if (LC_RAM_SUPPORT)
getListView().setSelector(R.drawable.list_selector_holo_dark);
if (!onIsHidingHeaders() && onIsMultiPane()) {
highlightHeader(mTopLevelHeaderId);
// Force the title so that it doesn't get overridden by a direct launch of
// a specific settings screen.
setTitle(R.string.settings_label);
}
// Retrieve any saved state
if (savedInstanceState != null) {
mCurrentHeader = savedInstanceState.getParcelable(SAVE_KEY_CURRENT_HEADER);
mParentHeader = savedInstanceState.getParcelable(SAVE_KEY_PARENT_HEADER);
}
// If the current header was saved, switch to it
if (savedInstanceState != null && mCurrentHeader != null) {
//switchToHeaderLocal(mCurrentHeader);
showBreadCrumbs(mCurrentHeader.title, null);
}
if (mParentHeader != null) {
setParentTitle(mParentHeader.title, null, new OnClickListener() {
public void onClick(View v) {
switchToParent(mParentHeader.fragment);
}
});
}
// Override up navigation for multi-pane, since we handle it in the fragment breadcrumbs
if (onIsMultiPane()) {
getActionBar().setDisplayHomeAsUpEnabled(false);
getActionBar().setHomeButtonEnabled(false);
}
//add by daiwei for tab setting
if (getClass().getName().equals("com.android.settings.Settings")) {
setContentView(R.layout.tab_settings);
mTabCursor = (ImageView)findViewById(R.id.tab_cursor);
ViewPager viewPager = (ViewPager)findViewById(R.id.pager);
viewPager.setAdapter(new ViewPagerAdapter(getFragmentManager()));
viewPager.setOnPageChangeListener(mPageChangeListener);
mViewPager = viewPager;
View tab_general = findViewById(R.id.tab_general);
View tab_display = findViewById(R.id.tab_display);
tab_general.setOnClickListener(mTabOnClickListener);
tab_display.setOnClickListener(mTabOnClickListener);
mTabGeneral = (TextView)tab_general;
mTabDisplay = (TextView)tab_display;
mTabGeneral.setTextColor(COLOR_SELECTED);
mTabGeneral.setTextSize(TEXT_SIZE_SELECTED);
}
//end by daiwei
}
@Override
protected void onSaveInstanceState(Bundle outState) {
super.onSaveInstanceState(outState);
// Save the current fragment, if it is the same as originally launched
if (mCurrentHeader != null) {
outState.putParcelable(SAVE_KEY_CURRENT_HEADER, mCurrentHeader);
}
if (mParentHeader != null) {
outState.putParcelable(SAVE_KEY_PARENT_HEADER, mParentHeader);
}
}
@Override
public void onResume() {
super.onResume();
ListAdapter listAdapter = getListAdapter();
if (listAdapter instanceof HeaderAdapter) {
((HeaderAdapter) listAdapter).resume();
}
invalidateHeaders();
setActionBarStyle();//add by liweiping 20140210 for bug 173
}
//start by liweiping 20140210 for bug 173
/* Set ActionBar with popup function */
protected void setActionBarStyle() {
ActionBar actionBar = getActionBar();
if (actionBar == null){
return;
}
if ( this.toString().contains("SubSettings") ) {
actionBar.setDisplayOptions(ActionBar.DISPLAY_HOME_AS_UP, ActionBar.DISPLAY_HOME_AS_UP);
actionBar.setDisplayHomeAsUpEnabled(true);
}
else {
actionBar.setDisplayOptions(ActionBar.DISPLAY_HOME_AS_UP
^ ActionBar.DISPLAY_HOME_AS_UP
, ActionBar.DISPLAY_HOME_AS_UP);
actionBar.setDisplayHomeAsUpEnabled(false);
}
}
//end by liweiping 20140210
@Override
public void onPause() {
super.onPause();
ListAdapter listAdapter = getListAdapter();
if (listAdapter instanceof HeaderAdapter) {
((HeaderAdapter) listAdapter).pause();
}
}
private String getRunningActivityName() {
ActivityManager activityManager = (ActivityManager) getSystemService(Context.ACTIVITY_SERVICE);
return activityManager != null ? activityManager.getRunningTasks(1).get(0).topActivity
.getClassName() : null;
}
// fix bug 185285 to avoid jump out of Settings when Locale changed on 20130819 begin
/*@Override
public void onBackPressed() {
if (!moveTaskToBack(false)) {
super.onBackPressed();
}
}*/
// fix bug 185285 to avoid jump out of Settings when Locale changed on 20130819 end
@Override
public void onDestroy() {
super.onDestroy();
if (mListeningToAccountUpdates) {
AccountManager.get(this).removeOnAccountsUpdatedListener(this);
}
}
private void switchToHeaderLocal(Header header) {
mInLocalHeaderSwitch = true;
switchToHeader(header);
mInLocalHeaderSwitch = false;
}
@Override
public void switchToHeader(Header header) {
if (!mInLocalHeaderSwitch) {
mCurrentHeader = null;
mParentHeader = null;
}
super.switchToHeader(header);
}
/**
* Switch to parent fragment and store the grand parent's info
* @param className name of the activity wrapper for the parent fragment.
*/
private void switchToParent(String className) {
final ComponentName cn = new ComponentName(this, className);
try {
final PackageManager pm = getPackageManager();
final ActivityInfo parentInfo = pm.getActivityInfo(cn, PackageManager.GET_META_DATA);
if (parentInfo != null && parentInfo.metaData != null) {
String fragmentClass = parentInfo.metaData.getString(META_DATA_KEY_FRAGMENT_CLASS);
CharSequence fragmentTitle = parentInfo.loadLabel(pm);
Header parentHeader = new Header();
parentHeader.fragment = fragmentClass;
parentHeader.title = fragmentTitle;
mCurrentHeader = parentHeader;
switchToHeaderLocal(parentHeader);
highlightHeader(mTopLevelHeaderId);
mParentHeader = new Header();
mParentHeader.fragment
= parentInfo.metaData.getString(META_DATA_KEY_PARENT_FRAGMENT_CLASS);
mParentHeader.title = parentInfo.metaData.getString(META_DATA_KEY_PARENT_TITLE);
}
} catch (NameNotFoundException nnfe) {
Log.w(LOG_TAG, "Could not find parent activity : " + className);
}
}
@Override
public void onNewIntent(Intent intent) {
super.onNewIntent(intent);
// If it is not launched from history, then reset to top-level
if ((intent.getFlags() & Intent.FLAG_ACTIVITY_LAUNCHED_FROM_HISTORY) == 0
&& mFirstHeader != null && !onIsHidingHeaders() && onIsMultiPane()) {
switchToHeaderLocal(mFirstHeader);
}
}
private void highlightHeader(int id) {
if (id != 0) {
Integer index = mHeaderIndexMap.get(id);
if (index != null) {
getListView().setItemChecked(index, true);
getListView().smoothScrollToPosition(index);
}
}
}
@Override
public Intent getIntent() {
Intent superIntent = super.getIntent();
String startingFragment = getStartingFragmentClass(superIntent);
// This is called from super.onCreate, isMultiPane() is not yet reliable
// Do not use onIsHidingHeaders either, which relies itself on this method
if (startingFragment != null && !onIsMultiPane()) {
Intent modIntent = new Intent(superIntent);
modIntent.putExtra(EXTRA_SHOW_FRAGMENT, startingFragment);
Bundle args = superIntent.getExtras();
if (args != null) {
args = new Bundle(args);
} else {
args = new Bundle();
}
args.putParcelable("intent", superIntent);
modIntent.putExtra(EXTRA_SHOW_FRAGMENT_ARGUMENTS, superIntent.getExtras());
return modIntent;
}
return superIntent;
}
/**
* Checks if the component name in the intent is different from the Settings class and
* returns the class name to load as a fragment.
*/
protected String getStartingFragmentClass(Intent intent) {
if (mFragmentClass != null) return mFragmentClass;
String intentClass = intent.getComponent().getClassName();
if (intentClass.equals(getClass().getName())) return null;
if ("com.android.settings.ManageApplications".equals(intentClass)
|| "com.android.settings.RunningServices".equals(intentClass)
|| "com.android.settings.applications.StorageUse".equals(intentClass)) {
// Old names of manage apps.
intentClass = com.android.settings.applications.ManageApplications.class.getName();
}
return intentClass;
}
/**
* Override initial header when an activity-alias is causing Settings to be launched
* for a specific fragment encoded in the android:name parameter.
*/
@Override
public Header onGetInitialHeader() {
String fragmentClass = getStartingFragmentClass(super.getIntent());
if (fragmentClass != null) {
Header header = new Header();
header.fragment = fragmentClass;
header.title = getTitle();
header.fragmentArguments = getIntent().getExtras();
mCurrentHeader = header;
return header;
}
return mFirstHeader;
}
@Override
public Intent onBuildStartFragmentIntent(String fragmentName, Bundle args,
int titleRes, int shortTitleRes) {
Intent intent = super.onBuildStartFragmentIntent(fragmentName, args,
titleRes, shortTitleRes);
// some fragments want to avoid split actionbar
if (DataUsageSummary.class.getName().equals(fragmentName) ||
PowerUsageSummary.class.getName().equals(fragmentName) ||
AccountSyncSettings.class.getName().equals(fragmentName) ||
UserDictionarySettings.class.getName().equals(fragmentName) ||
Memory.class.getName().equals(fragmentName) ||
ManageApplications.class.getName().equals(fragmentName) ||
WirelessSettings.class.getName().equals(fragmentName) ||
SoundSettings.class.getName().equals(fragmentName) ||
PrivacySettings.class.getName().equals(fragmentName) ||
// SPRD: Modify 20130830 Spreadst of Bug 207441 clipboard can not be called
UserDictionaryAddWordFragment.class.getName().equals(fragmentName) ||
ManageAccountsSettings.class.getName().equals(fragmentName)) {
intent.putExtra(EXTRA_CLEAR_UI_OPTIONS, true);
}
//fix bug 226565 select englisg in userdictoryaddwors, rotate, the language change to chinses on 20131012 begin
intent.setClass(this, SubSettings.class);
/*
// fix bug 194403 to make the activity execute onCreate() method when orientation changed on 20130802 begin
Log.i(LOG_TAG,"fragmentName = " + fragmentName);
if (UserDictionaryAddWordFragment.class.getName().equals(fragmentName)) {
intent.setClass(this, LanguageSubSettings.class);
} else {
intent.setClass(this, SubSettings.class);
}
// fix bug 194403 to make the activity execute onCreate() method when orientation changed on 20130802 end
*/
// fix bug 226565 select englisg in userdictoryaddwors, rotate, the language change to chinses on 20131012 end
return intent;
}
/**
* Populate the activity with the top-level headers.
*/
@Override
public void onBuildHeaders(List<Header> headers) {
if(UNIVERSEUI_SUPPORT){
loadHeadersFromResource(R.xml.settings_headers_uui, headers);
}else{
loadHeadersFromResource(R.xml.settings_headers, headers);
}
updateHeaderList(headers);
}
private void updateHeaderList(List<Header> target) {
int i = 0;
boolean IsSupVoice = Settings.this.getResources().getBoolean(com.android.internal.R.bool.
config_voice_capable);
while (i < target.size()) {
Header header = target.get(i);
// Ids are integers, so downcasting
int id = (int) header.id;
if (id == R.id.dock_settings) {
if (!needsDockSettings())
target.remove(header);
} else if (id == R.id.operator_settings || id == R.id.manufacturer_settings) {
Utils.updateHeaderToSpecificActivityFromMetaDataOrRemove(this, target, header);
} else if (id == R.id.wifi_settings) {
// Remove WiFi Settings if WiFi service is not available.
// Start by changyan 2014.01.02
//if (!getPackageManager().hasSystemFeature(PackageManager.FEATURE_WIFI)) {
if (!SystemProperties.getBoolean("ro.device.support.wifi", true)) {
//End by changyan
target.remove(header);
}
} else if (id == R.id.bluetooth_settings) {
//Start by changyan 2014.01.03
// Remove Bluetooth Settings if Bluetooth service is not available.
//if ((!getPackageManager().hasSystemFeature(PackageManager.FEATURE_BLUETOOTH))
// || (!mBluetoothEnable)) {
if (!SystemProperties.getBoolean("ro.device.support.bt", true)) {
//End by changyan
target.remove(header);
}
} else if (id == R.id.data_usage_settings) {
// Remove data usage when kernel module not enabled
final INetworkManagementService netManager = INetworkManagementService.Stub
.asInterface(ServiceManager.getService(Context.NETWORKMANAGEMENT_SERVICE));
// fix bug 182580 to delete the data usage item of settings on 20130717 begin
boolean support_cmcc = SystemProperties.get("ro.operator").equals("cmcc");
try {
if (!netManager.isBandwidthControlEnabled() || support_cmcc) {
target.remove(header);
}
} catch (RemoteException e) {
// ignored
}
// fix bug 182580 to delete the data usage item of settings on 20130717 end
} else if (id == R.id.account_settings) {
int headerIndex = i + 1;
i = insertAccountsHeaders(target, headerIndex);
} else if (id == R.id.user_settings) {
if (!mEnableUserManagement
|| !UserId.MU_ENABLED || UserId.myUserId() != 0
|| !getResources().getBoolean(R.bool.enable_user_management)
|| Utils.isMonkeyRunning()) {
target.remove(header);
}
} else if (id == R.id.dual_sim_settings) {
if (!TelephonyManager.isMultiSim() || (!mVoiceCapable)) {
target.remove(header);
}
} else if (id == R.id.network_preference_settings) {
if (!CU_SUPPORT) {
target.remove(header);
}
}
else if (id == R.id.sound_settings && IsSupVoice)
{
target.remove(header);
}
else if (id == R.id.audio_profiles && !IsSupVoice)
{
target.remove(header);
}
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
else if (id == R.id.wristwatch_settings && false == mIsOpenWristwatchCfg) {
target.remove(header);
}
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
if (UserId.MU_ENABLED && UserId.myUserId() != 0
&& !ArrayUtils.contains(SETTINGS_FOR_RESTRICTED, id)) {
target.remove(header);
}
// Increment if the current one wasn't removed by the Utils code.
if (target.get(i) == header) {
// Hold on to the first header, when we need to reset to the top-level
if (mFirstHeader == null &&
HeaderAdapter.getHeaderType(header) != HeaderAdapter.HEADER_TYPE_CATEGORY) {
mFirstHeader = header;
}
mHeaderIndexMap.put(id, i);
i++;
}
}
}
private int insertAccountsHeaders(List<Header> target, int headerIndex) {
String[] accountTypes = mAuthenticatorHelper.getEnabledAccountTypes();
List<Header> accountHeaders = new ArrayList<Header>(accountTypes.length);
for (String accountType : accountTypes) {
if (accountType.startsWith("sprd")) {
continue;
}
CharSequence label = mAuthenticatorHelper.getLabelForType(this, accountType);
if (label == null) {
continue;
}
Account[] accounts = AccountManager.get(this).getAccountsByType(accountType);
boolean skipToAccount = accounts.length == 1
&& !mAuthenticatorHelper.hasAccountPreferences(accountType);
Header accHeader = new Header();
accHeader.title = label;
if (accHeader.extras == null) {
accHeader.extras = new Bundle();
}
if (skipToAccount) {
accHeader.breadCrumbTitleRes = R.string.account_sync_settings_title;
accHeader.breadCrumbShortTitleRes = R.string.account_sync_settings_title;
accHeader.fragment = AccountSyncSettings.class.getName();
accHeader.fragmentArguments = new Bundle();
// Need this for the icon
accHeader.extras.putString(ManageAccountsSettings.KEY_ACCOUNT_TYPE, accountType);
accHeader.extras.putParcelable(AccountSyncSettings.ACCOUNT_KEY, accounts[0]);
accHeader.fragmentArguments.putParcelable(AccountSyncSettings.ACCOUNT_KEY,
accounts[0]);
} else {
accHeader.breadCrumbTitle = label;
accHeader.breadCrumbShortTitle = label;
accHeader.fragment = ManageAccountsSettings.class.getName();
accHeader.fragmentArguments = new Bundle();
accHeader.extras.putString(ManageAccountsSettings.KEY_ACCOUNT_TYPE, accountType);
accHeader.fragmentArguments.putString(ManageAccountsSettings.KEY_ACCOUNT_TYPE,
accountType);
if (!isMultiPane()) {
accHeader.fragmentArguments.putString(ManageAccountsSettings.KEY_ACCOUNT_LABEL,
label.toString());
}
}
accountHeaders.add(accHeader);
}
// Sort by label
Collections.sort(accountHeaders, new Comparator<Header>() {
@Override
public int compare(Header h1, Header h2) {
return h1.title.toString().compareTo(h2.title.toString());
}
});
for (Header header : accountHeaders) {
target.add(headerIndex++, header);
}
if (!mListeningToAccountUpdates) {
AccountManager.get(this).addOnAccountsUpdatedListener(this, null, true);
mListeningToAccountUpdates = true;
}
return headerIndex;
}
private boolean needsDockSettings() {
return getResources().getBoolean(R.bool.has_dock_settings);
}
private void getMetaData() {
try {
ActivityInfo ai = getPackageManager().getActivityInfo(getComponentName(),
PackageManager.GET_META_DATA);
if (ai == null || ai.metaData == null) return;
mTopLevelHeaderId = ai.metaData.getInt(META_DATA_KEY_HEADER_ID);
mFragmentClass = ai.metaData.getString(META_DATA_KEY_FRAGMENT_CLASS);
// Check if it has a parent specified and create a Header object
final int parentHeaderTitleRes = ai.metaData.getInt(META_DATA_KEY_PARENT_TITLE);
String parentFragmentClass = ai.metaData.getString(META_DATA_KEY_PARENT_FRAGMENT_CLASS);
if (parentFragmentClass != null) {
mParentHeader = new Header();
mParentHeader.fragment = parentFragmentClass;
if (parentHeaderTitleRes != 0) {
mParentHeader.title = getResources().getString(parentHeaderTitleRes);
}
}
} catch (NameNotFoundException nnfe) {
// No recovery
}
}
@Override
public boolean hasNextButton() {
return super.hasNextButton();
}
@Override
public Button getNextButton() {
return super.getNextButton();
}
private static class HeaderAdapter extends ArrayAdapter<Header> {
static final int HEADER_TYPE_CATEGORY = 0;
static final int HEADER_TYPE_NORMAL = 1;
static final int HEADER_TYPE_SWITCH = 2;
private static final int HEADER_TYPE_COUNT = HEADER_TYPE_SWITCH + 1;
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
private final WristwatchEnabler mWristwatchEnabler;
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
private final WifiEnabler mWifiEnabler;
private final BluetoothEnabler mBluetoothEnabler;
private AuthenticatorHelper mAuthHelper;
private static class HeaderViewHolder {
ImageView icon;
TextView title;
TextView summary;
Switch switch_;
}
private LayoutInflater mInflater;
static int getHeaderType(Header header) {
if (header.fragment == null && header.intent == null) {
return HEADER_TYPE_CATEGORY;
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
} else if (header.id == R.id.wifi_settings || header.id == R.id.bluetooth_settings || header.id == R.id.wristwatch_settings) {
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
return HEADER_TYPE_SWITCH;
} else {
return HEADER_TYPE_NORMAL;
}
}
@Override
public int getItemViewType(int position) {
Header header = getItem(position);
return getHeaderType(header);
}
@Override
public boolean areAllItemsEnabled() {
return false; // because of categories
}
@Override
public boolean isEnabled(int position) {
return getItemViewType(position) != HEADER_TYPE_CATEGORY;
}
@Override
public int getViewTypeCount() {
return HEADER_TYPE_COUNT;
}
@Override
public boolean hasStableIds() {
return true;
}
public HeaderAdapter(Context context, List<Header> objects,
AuthenticatorHelper authenticatorHelper) {
super(context, 0, objects);
mAuthHelper = authenticatorHelper;
mInflater = (LayoutInflater)context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
// Temp Switches provided as placeholder until the adapter replaces these with actual
// Switches inflated from their layouts. Must be done before adapter is set in super
mWifiEnabler = new WifiEnabler(context, new Switch(context));
mBluetoothEnabler = new BluetoothEnabler(context, new Switch(context));
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
mWristwatchEnabler = new WristwatchEnabler(context, new Switch(context));
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
HeaderViewHolder holder;
Header header = getItem(position);
int headerType = getHeaderType(header);
View view = null;
if (convertView == null) {
holder = new HeaderViewHolder();
switch (headerType) {
case HEADER_TYPE_CATEGORY:
view = new TextView(getContext(), null,
android.R.attr.listSeparatorTextViewStyle);
holder.title = (TextView) view;
break;
case HEADER_TYPE_SWITCH:
view = mInflater.inflate(R.layout.preference_header_switch_item, parent,
false);
holder.icon = (ImageView) view.findViewById(R.id.icon);
holder.title = (TextView)
view.findViewById(com.android.internal.R.id.title);
holder.summary = (TextView)
view.findViewById(com.android.internal.R.id.summary);
holder.switch_ = (Switch) view.findViewById(R.id.switchWidget);
break;
case HEADER_TYPE_NORMAL:
view = mInflater.inflate(
R.layout.preference_header_item, parent,
false);
holder.icon = (ImageView) view.findViewById(R.id.icon);
holder.title = (TextView)
view.findViewById(com.android.internal.R.id.title);
holder.summary = (TextView)
view.findViewById(com.android.internal.R.id.summary);
break;
}
view.setTag(holder);
} else {
view = convertView;
holder = (HeaderViewHolder) view.getTag();
}
// All view fields must be updated every time, because the view may be recycled
switch (headerType) {
case HEADER_TYPE_CATEGORY:
holder.title.setText(header.getTitle(getContext().getResources()));
break;
case HEADER_TYPE_SWITCH:
// Would need a different treatment if the main menu had more switches
if (header.id == R.id.wifi_settings) {
mWifiEnabler.setSwitch(holder.switch_);
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
} else if (header.id == R.id.wristwatch_settings) {
mWristwatchEnabler.setSwitch(holder.switch_);
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
} else {
mBluetoothEnabler.setSwitch(holder.switch_);
}
// No break, fall through on purpose to update common fields
//$FALL-THROUGH$
case HEADER_TYPE_NORMAL:
if (header.extras != null
&& header.extras.containsKey(ManageAccountsSettings.KEY_ACCOUNT_TYPE)) {
String accType = header.extras.getString(
ManageAccountsSettings.KEY_ACCOUNT_TYPE);
ViewGroup.LayoutParams lp = holder.icon.getLayoutParams();
lp.width = getContext().getResources().getDimensionPixelSize(
R.dimen.header_icon_width);
lp.height = lp.width;
holder.icon.setLayoutParams(lp);
Drawable icon = mAuthHelper.getDrawableForType(getContext(), accType);
holder.icon.setImageDrawable(icon);
} else {
holder.icon.setImageResource(header.iconRes);
}
holder.title.setText(header.getTitle(getContext().getResources()));
//fix bug 210641 the text of "backup and reset" not appropriate ,when os did not support backup on 2013.9.4 start
if(header.id == R.id.privacy_settings) {
if (getContext().getPackageManager().resolveContentProvider(GSETTINGS_PROVIDER, 0) == null) {
holder.title.setText(getContext().getResources().getText(R.string.privacy_settings));
}
}
//fix bug 210641 the text of "backup and reset" not appropriate ,when os did not support backup on 2013.9.4 end
CharSequence summary = header.getSummary(getContext().getResources());
if (!TextUtils.isEmpty(summary)) {
holder.summary.setVisibility(View.VISIBLE);
holder.summary.setText(summary);
} else {
holder.summary.setVisibility(View.GONE);
}
break;
}
return view;
}
public void resume() {
mWifiEnabler.resume();
mBluetoothEnabler.resume();
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
mWristwatchEnabler.resume();
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
}
public void pause() {
mWifiEnabler.pause();
mBluetoothEnabler.pause();
// Start by luqiang, topwise, 2014.2.27 [wristwatch config]
mWristwatchEnabler.pause();
// End by luqiang, topwise, 2014.2.27 [wristwatch config]
}
}
@Override
public void onHeaderClick(Header header, int position) {
boolean revert = false;
if (header.id == R.id.account_add) {
revert = true;
}
//start,added by topwise hehuadong in 2014.01.16
if (TopwiseProp.getDefaultSettingString("default_customize_about_device")!=null){
if (header != null && header.fragment != null && header.fragment.equals("com.android.settings.DeviceInfoSettings")){
header.fragment="com.android.settings.AboutDeviceSettings";
}
}
//end,added by topwise hehuadong in 2014.01.16
super.onHeaderClick(header, position);
if (revert && mLastHeader != null) {
// fix bug 200478 to avoid list scroll when account_add item selected on 20130810 begin
//highlightHeader((int) mLastHeader.id);
// fix bug 200478 to avoid list scroll when account_add item selected on 20130810 end
} else {
mLastHeader = header;
}
}
@Override
public boolean onPreferenceStartFragment(PreferenceFragment caller, Preference pref) {
// Override the fragment title for Wallpaper settings
int titleRes = pref.getTitleRes();
if (pref.getFragment().equals(WallpaperTypeSettings.class.getName())) {
titleRes = R.string.wallpaper_settings_fragment_title;
}
startPreferencePanel(pref.getFragment(), pref.getExtras(), titleRes, pref.getTitle(),
null, 0);
return true;
}
public boolean shouldUpRecreateTask(Intent targetIntent) {
return super.shouldUpRecreateTask(new Intent(this, Settings.class));
}
@Override
public void setListAdapter(ListAdapter adapter) {
if (adapter == null) {
super.setListAdapter(null);
} else {
super.setListAdapter(new HeaderAdapter(this, getHeaders(), mAuthenticatorHelper));
}
}
@Override
public void onAccountsUpdated(Account[] accounts) {
mAuthenticatorHelper.onAccountsUpdated(this, accounts);
invalidateHeaders();
}
//add by daiwei for tab settings
static final int COLOR_SELECTED = 0xff0b984c;
static final int COLOR_UNSELECTED = 0xff000000;
static final int TEXT_SIZE_SELECTED = 18;
static final int TEXT_SIZE_UNSELECTED = 16;
private ImageView mTabCursor = null;
private ViewPager mViewPager = null;
private TextView mTabGeneral = null;
private TextView mTabDisplay = null;
private OnPageChangeListener mPageChangeListener = new OnPageChangeListener() {
@Override
public void onPageScrollStateChanged(int state) {
if (state == ViewPager.SCROLL_STATE_IDLE) {
mTabCursor.setX(mViewPager.getCurrentItem() * mTabCursor.getWidth());
}
}
@Override
public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
if (positionOffset == 0.0f) return;
mTabCursor.setX(positionOffset * mTabCursor.getWidth());
}
@Override
public void onPageSelected(int position) {
if (0 == position) {
mTabGeneral.setTextColor(COLOR_SELECTED);
mTabGeneral.setTextSize(TEXT_SIZE_SELECTED);
mTabDisplay.setTextColor(COLOR_UNSELECTED);
mTabDisplay.setTextSize(TEXT_SIZE_UNSELECTED);
} else if (1 == position) {
mTabGeneral.setTextColor(COLOR_UNSELECTED);
mTabGeneral.setTextSize(TEXT_SIZE_UNSELECTED);
mTabDisplay.setTextColor(COLOR_SELECTED);
mTabDisplay.setTextSize(TEXT_SIZE_SELECTED);
}
}
};
public class ViewPagerAdapter extends FragmentPagerAdapter {
public ViewPagerAdapter(FragmentManager fm) {
super(fm);
}
@Override
public Fragment getItem(int position) {
switch(position) {
case 0:
return new SettingsFragment();
case 1:
return new DisplaySettings();
}
return null;
}
@Override
public int getCount() {
return 2;
}
}
private OnClickListener mTabOnClickListener = new OnClickListener() {
@Override
public void onClick(View v) {
if (v.getId() == R.id.tab_general) {
mViewPager.setCurrentItem(0);
} else if (v.getId() == R.id.tab_display) {
mViewPager.setCurrentItem(1);
}
}
};
//end by daiwei
/*
* Settings subclasses for launching independently.
*/
public static class BluetoothSettingsActivity extends Settings { /* empty */ }
public static class WirelessSettingsActivity extends Settings { /* empty */ }
public static class TetherSettingsActivity extends Settings { /* empty */ }
public static class VpnSettingsActivity extends Settings { /* empty */ }
public static class DateTimeSettingsActivity extends Settings { /* empty */ }
public static class StorageSettingsActivity extends Settings { /* empty */ }
public static class WifiSettingsActivity extends Settings { /* empty */ }
public static class WifiP2pSettingsActivity extends Settings { /* empty */ }
public static class InputMethodAndLanguageSettingsActivity extends Settings { /* empty */ }
public static class KeyboardLayoutPickerActivity extends Settings { /* empty */ }
public static class InputMethodAndSubtypeEnablerActivity extends Settings { /* empty */ }
public static class SpellCheckersSettingsActivity extends Settings { /* empty */ }
public static class LocalePickerActivity extends Settings { /* empty */ }
public static class UserDictionarySettingsActivity extends Settings { /* empty */ }
public static class SoundSettingsActivity extends Settings { /* empty */ }
public static class DisplaySettingsActivity extends Settings { /* empty */ }
public static class DeviceInfoSettingsActivity extends Settings { /* empty */ }
public static class ApplicationSettingsActivity extends Settings { /* empty */ }
public static class ManageApplicationsActivity extends Settings { /* empty */ }
public static class StorageUseActivity extends Settings { /* empty */ }
public static class DevelopmentSettingsActivity extends Settings { /* empty */ }
public static class AccessibilitySettingsActivity extends Settings { /* empty */ }
public static class SecuritySettingsActivity extends Settings { /* empty */ }
public static class LocationSettingsActivity extends Settings { /* empty */ }
public static class PrivacySettingsActivity extends Settings { /* empty */ }
public static class DockSettingsActivity extends Settings { /* empty */ }
public static class RunningServicesActivity extends Settings { /* empty */ }
public static class ManageAccountsSettingsActivity extends Settings { /* empty */ }
public static class PowerUsageSummaryActivity extends Settings { /* empty */ }
public static class AccountSyncSettingsActivity extends Settings { /* empty */ }
public static class AccountSyncSettingsInAddAccountActivity extends Settings { /* empty */ }
public static class CryptKeeperSettingsActivity extends Settings { /* empty */ }
public static class DeviceAdminSettingsActivity extends Settings { /* empty */ }
public static class DataUsageSummaryActivity extends Settings { /* empty */ }
public static class AdvancedWifiSettingsActivity extends Settings { /* empty */ }
public static class TextToSpeechSettingsActivity extends Settings { /* empty */ }
public static class AndroidBeamSettingsActivity extends Settings { /* empty */ }
}
