主题模式
direct 类型的交换机路由规则是完全匹配 BindingKey 和 RoutingKey,但是这种严格的匹配方式在很多情况下不能满足实际业务的需求。
topic 类型的交换机在匹配规则上进行了扩展,它与 direct 类型的交换机类似,也是将消息路由到 BindingKey 和 RoutingKey 相匹配的队列中,但这里的匹配规则有些不同,它约定:
- RoutingKey 为一个点号 “.” 分割的字符串(被点号 “.” 分割开的每一段独立的字符串成为一个单词)。如:com.rabbitmq.client、java.util.concurrent
- BindingKey 和 RountingKey 一样,也是点号 “.” 分割的字符串
- BindingKey 中可以存在两种特殊的字符串 “*” 和 “#”,用于做模糊匹配。其中,
*
用于匹配一个单词,#
用于匹配多个单词(可以是零个)。
模糊匹配举例:
- com.#:可以匹配:com.zzc.java、com.zzc 等
- com.*:可以匹配:com.zzc、com.java 等
Topic 模型如下图:
对上图进行举例说明:
- 路由键为 com.rabbitmq.client 的消息会同时路由到 Q1、Q2、Q3
- 路由键为 com.hidden.client 的消息会路由到 Q2、Q3
- 路由键为 com.hidden.demo 的消息会路由到 Q3
- 路由键为 java.util.concurrent 的消息会被丢弃或者返回给生产者,因为,它没有匹配任何路由键
后台页面管理
Topic 在 direct 模式上面进一步筛选

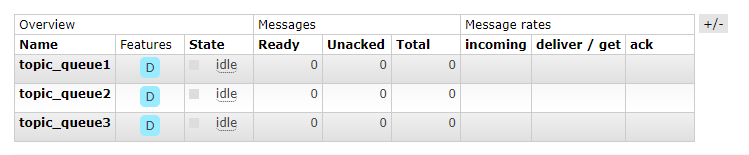

新建3个队列:topic_queue1、topic_queue2、topic_queue3

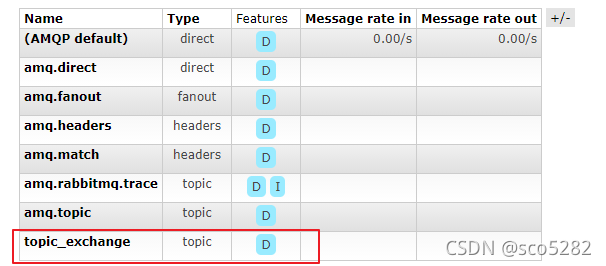

新建一个交换机 topic_exchange

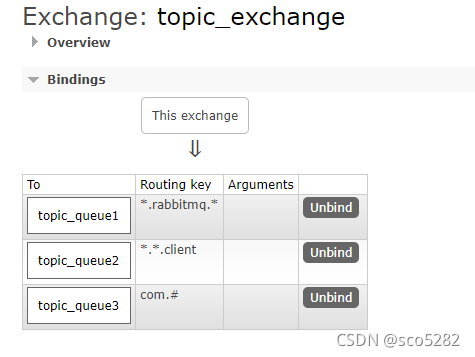

绑定交换机和队列的关系(需要添加绑定键。# 代表0个或多个;* 代表一个)

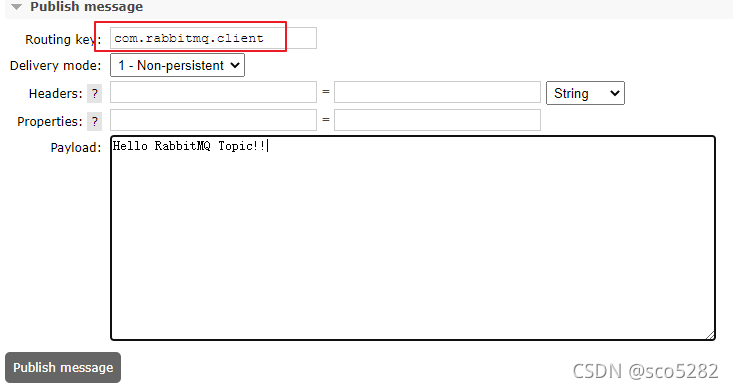

在交换机中发送消息(需要指定路由键)

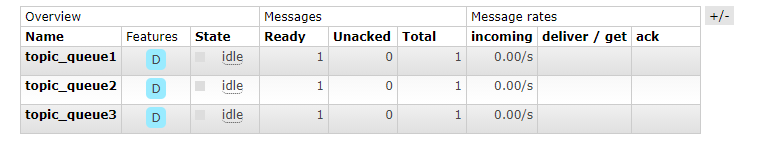

只有路由键和绑定键相匹配的队列才收到消息
代码实现
生产者
和路由模式不同:
- 路由键 RoutingKey 由多个单词构成
public class Producer {
private static final String TOPIC_EXCHANGE_NAME = "code_topic_exchange";
public static void main(String[] args) throws Exception{
// 1. 获取连接
Connection connection = RabbitMqUtil.getConnection("生产者");
// 2. 通过连接获取通道 Channel
Channel channel = connection.createChannel();
// 3. 通过通道声明交换机,以及交换机类型为 direct
/**
* @param1:交换机名称
* @param2:交换机类型
*/
channel.exchangeDeclare(TOPIC_EXCHANGE_NAME, BuiltinExchangeType.TOPIC);
// 4. 消息内容
String message = "Hello RabbitMQ Topic!!";
String routingKey = "com.rabbitmq.client";
// 5. 发送消息到交换机,并指定路由键 RoutingKey 为 com.rabbitmq.client
channel.basicPublish(TOPIC_EXCHANGE_NAME, routingKey, null, message.getBytes());
System.out.println("消息发送完成~~~发送的消息为:" + message);
// 6. 关闭信道、连接
RabbitMqUtil.close(connection, channel);
}
}
消费者
和路由模式不同:
- 绑定键 BindingKey 中带有模糊匹配
public class Consumer {
private static final String TOPIC_QUEUE_NAME = "topic_queue1";
private static final String TOPIC_EXCHANGE_NAME = "code_topic_exchange";
public static void main(String[] args) throws Exception{
// 获取连接
Connection connection = RabbitMqUtil.getConnection("消费者");
// 获取通道
Channel channel = connection.createChannel();
String bindingKey = "*.rabbitmq.*";
// 绑定队列到交换机,并指定一个绑定键 BindingKey
channel.queueBind(TOPIC_QUEUE_NAME, TOPIC_EXCHANGE_NAME, bindingKey);
// 定义消费者
com.rabbitmq.client.Consumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
// body 消息体
String msg = new String(body,"utf-8");
System.out.println("收到消息:" + msg);
}
};
// 监听队列
channel.basicConsume(TOPIC_QUEUE_NAME, true, consumer);
System.out.println("开始接收消息~~~");
System.in.read();
// 关闭信道、连接
RabbitMqUtil.close(connection, channel);
}
}
public class Consumer2 {
private static final String TOPIC_QUEUE_NAME = "topic_queue2";
private static final String TOPIC_EXCHANGE_NAME = "code_topic_exchange";
public static void main(String[] args) throws Exception{
// 获取连接
Connection connection = RabbitMqUtil.getConnection("消费者");
// 获取通道
Channel channel = connection.createChannel();
String bindingKey = "*.*.client";
// 绑定队列到交换机,并指定一个绑定键 BindingKey
channel.queueBind(TOPIC_QUEUE_NAME, TOPIC_EXCHANGE_NAME, bindingKey);
// 定义消费者
com.rabbitmq.client.Consumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
// body 消息体
String msg = new String(body,"utf-8");
System.out.println("收到消息:" + msg);
}
};
// 监听队列
channel.basicConsume(TOPIC_QUEUE_NAME, true, consumer);
System.out.println("开始接收消息~~~");
System.in.read();
// 关闭信道、连接
RabbitMqUtil.close(connection, channel);
}
}
