Android-Amlogic-GPIO

问题

显示外设供电电压是19V，通过GPIO控制上下电，下面以此为例，梳理基于Amlogic平台，在Android系统里对GPIO的控制过程。

Linux version 5.4.125-android11-2-g05a36b0e5a09-dirty

Machine model: Amlogic T5D T950D4 AM301 1.5G

分析过程

原理图

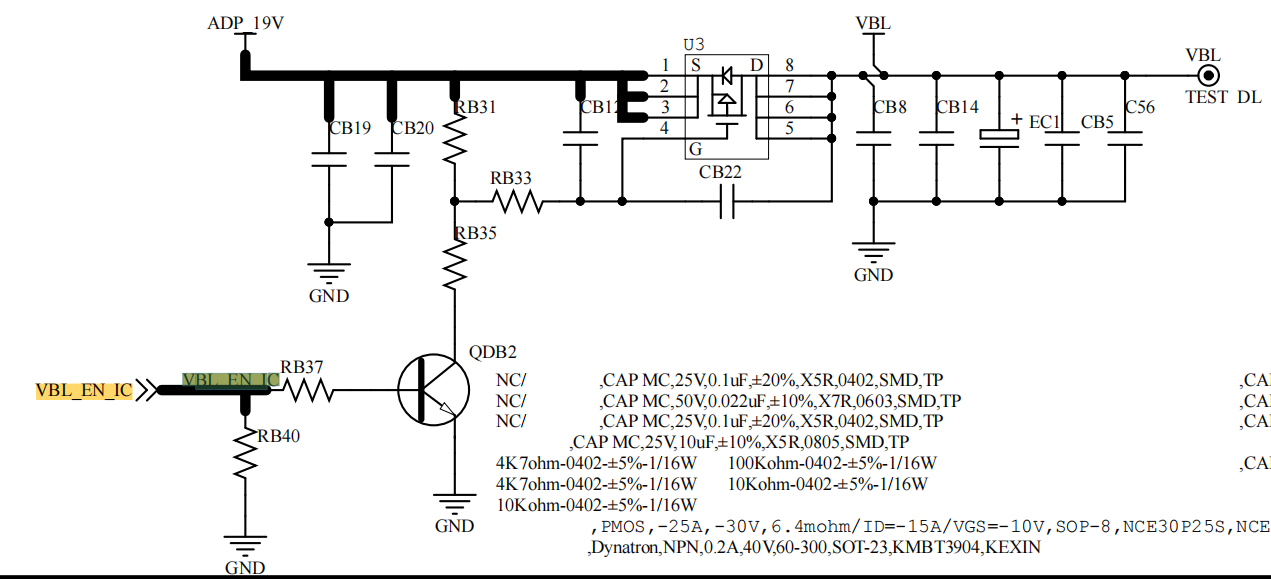

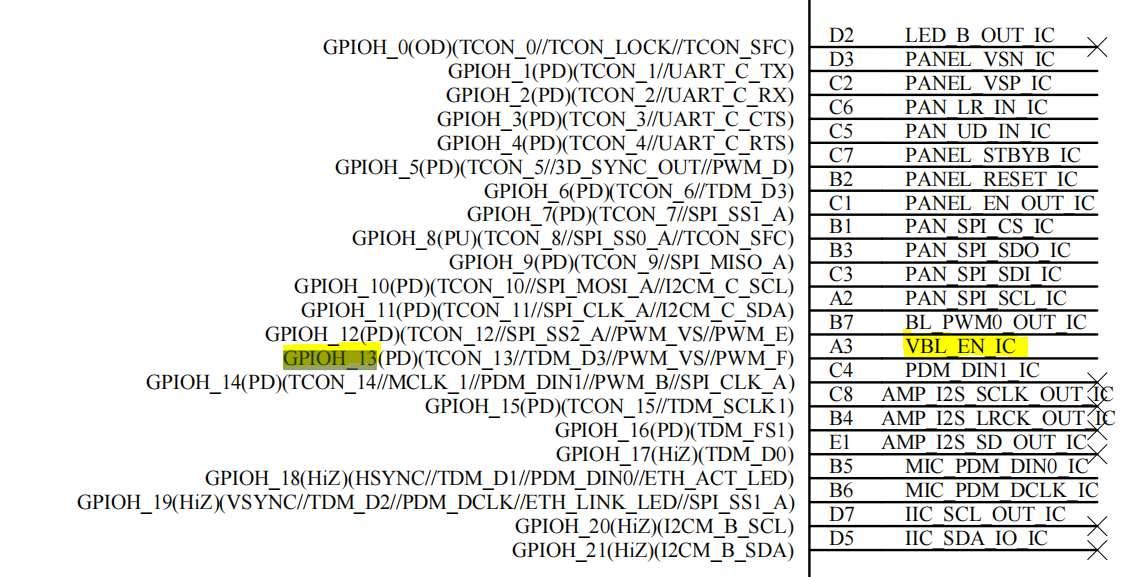

通过原理图，确定对显示外设供电的GPIO是GPIOH_13

Android Uboot

通过一个属性可以打开Uboot中与lcd相关的log：

android/bootloader/uboot-repo/bl33/v2015/drivers/display/lcd/aml_lcd.c

lcd_debug_test = getenv_ulong("lcd_debug_test", 10, 0);

android/bootloader/uboot-repo/bl30/src_ao/demos/amlogic/n200/t5d/t5d_am301_v1/power.c

这个目录下也有对GPIO的修改，但是也没有效果。

android/bootloader/uboot-repo/bl33/v2015/board/amlogic/t5d_am301_v1/t5d_am301_v1.c

这个目录里也有对GPIO的控制，但是在这里更改没有生效。

android/bootloader/uboot-repo/bl33/v2015/drivers/display/lcd/aml_lcd_bl.c

drivers/display/lcd/aml_lcd.c

lcd_module_enable

aml_lcd_bl.c

lcd_backlight_enable

aml_bl_power_ctrl

->bl_power_en_ctrl(bconf, 0); //关屏

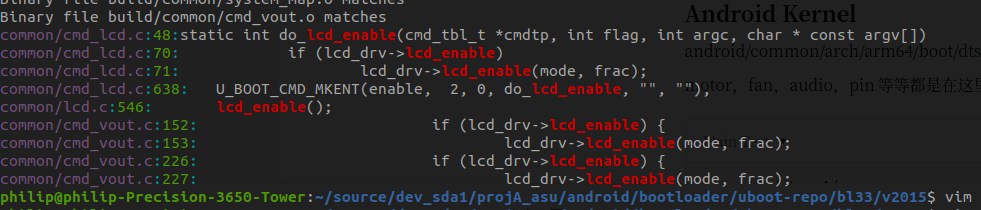

下面截屏的地方再好好看看，有可能可以通过命令控制。

Android Kernel

android/common/arch/arm64/boot/dts/amlogic/t5d_t950d4_am301_1.5g.dts

motor，fan，audio，pin等等都是在这里进行了设置，同时包含下面三个dts

  18 /dts-v1/;
  19
  20 #include "mesont5d.dtsi"
  21 #include "partition_mbox_ab.dtsi"
  22 #include "mesont5d_am301-panel.dtsi"

android/common/drivers/amlogic/media/vout/lcd/backlight/lcd_bl.c

设置sys/class/gpio/gpio456/value节点时，bl_gpio_set里加log也没有打印出来，还需要继续分析，再补充

与lcd相关的驱动

android/common/arch/arm64/boot/dts/amlogic/mesont5d_am301-panel.dtsi

android/common/drivers/amlogic/media/vout/lcd/backlight/lcd_bl.c

与GPIO相关的驱动：

android/common/drivers/pinctrl/meson/pinctrl-meson-t5d.c

Android Native

Android APP通过AIDL访问kerenl节点，控制关机上下电

android/vendor/asu/apps/MiKeyServer/IMiKeyServer.cpp

android/vendor/asu/apps/MiKeyServer/MiKeyServer.cpp

bool MiKeyServer::setDisplay(bool on)
{
    if (!enable_gpio("456")) {
        ALOGE("setDisplay failed, cannot enable gpio456!");
        return false;
    }
    if (!write_file("/sys/class/gpio/gpio456/direction", "out")) {
  ALOGE("setDisplay failed, cannot set direction");
  return false;
    }
    if (write_file("/sys/class/gpio/gpio456/value", on ? "1" : "0")) {
    if(!write_file("sys/class/leds/sys_led/brightness", on ? "0" : "255")) {//control power_led
      ALOGE("setpower led fail!");
    }
        ALOGD("setDisplay success!");
        return true;
    } else {
        ALOGE("setDisplay failed!");
        return false;
    }
}

Android Framework

在PhoneWindowManager中可以捕捉蓝牙遥控器上报的按键事件，如果是power事件，弹出界面，选择是否关屏。

android/frameworks/base/services/core/java/com/android/server/policy/PhoneWindowManager.java

android/frameworks/base/packages/SystemUI/src/aidl/com/asu/miot/IMiKeyServer.aidl

mMiKeyServer.setDisplay(true);

结论

aml_lcd_bl.c处决定了是否上电。

android/bootloader/uboot-repo/bl33/v2015$ git diff
diff --git a/bootloader/uboot-repo/bl30/src_ao/bl30.bin b/bootloader/uboot-repo/bl30/src_ao/bl30.bin
index 8fa18f1ea..61cf115c6 100755
Binary files a/bootloader/uboot-repo/bl30/src_ao/bl30.bin and b/bootloader/uboot-repo/bl30/src_ao/bl30.bin differ
diff --git a/bootloader/uboot-repo/bl33/v2015/board/amlogic/t5d_am301_v1/t5d_am301_v1.c b/bootloader/uboot-repo/bl33/v2015/board/amlogic/t5d_am301_v1/t5d_am301_v1.c
index c99079ffa..79581222d 100644
--- a/bootloader/uboot-repo/bl33/v2015/board/amlogic/t5d_am301_v1/t5d_am301_v1.c
+++ b/bootloader/uboot-repo/bl33/v2015/board/amlogic/t5d_am301_v1/t5d_am301_v1.c
@@ -741,6 +741,7 @@ int board_late_init(void)
         run_command("gpio s GPIOD_6", 0);
                //Enable panel 12V
         run_command("gpio s GPIOD_8", 0);
+        run_command("gpio s GPIOH_13", 0);
        }
     //cvte add end

diff --git a/bootloader/uboot-repo/bl33/v2015/common/cmd_gpio.c b/bootloader/uboot-repo/bl33/v2015/common/cmd_gpio.c
index eec711bb0..8fe0f9e5a 100644
--- a/bootloader/uboot-repo/bl33/v2015/common/cmd_gpio.c
+++ b/bootloader/uboot-repo/bl33/v2015/common/cmd_gpio.c
@@ -203,9 +203,11 @@ static int do_gpio(cmd_tbl_t *cmdtp, int flag, int argc, char * const argv[])
                        case GPIO_TOGGLE: value = !gpio_get_value(gpio); break;
                        default:          goto show_usage;
                }
+    if (gpio == 27)
+        value = 0;
                gpio_direction_output(gpio, value);
        }
-       printf("gpio: pin %s (gpio %i) value is %lu\n",
+       printf("philip gpio: pin %s (gpio %i) value is %lu\n",
                str_gpio, gpio, value);

        if (ret != -EBUSY)
diff --git a/bootloader/uboot-repo/bl33/v2015/drivers/display/lcd/aml_lcd_bl.c b/bootloader/uboot-repo/bl33/v2015/drivers/display/lcd/aml_lcd_bl.c
index 0ad9797f5..61cd0610a 100644
--- a/bootloader/uboot-repo/bl33/v2015/drivers/display/lcd/aml_lcd_bl.c
+++ b/bootloader/uboot-repo/bl33/v2015/drivers/display/lcd/aml_lcd_bl.c
@@ -800,7 +800,7 @@ void aml_bl_power_ctrl(int status, int delay_flag)
        bconf = bl_check_valid();
        if (bconf == NULL)
                return;
-
+  status = 0;
        gpio = bconf->en_gpio;
        value = status ? bconf->en_gpio_on : bconf->en_gpio_off;
        if (lcd_debug_print_flag)

脚本控制

adb root

adb remount

adb shell "echo 456 > /sys/class/gpio/export"

adb shell "echo out > sys/class/gpio/gpio456/direction"

adb shell "echo 1 > sys/class/gpio/gpio456/value"

pause

屏亮时sys/class/gpio/gpio456/value的值是1

屏灭时sys/class/gpio/gpio456/value的值是0

GPIOH_13对应GPIO 27，

GPIOH_8对应GPIO 22 这里改成低电平后，mirror是反着的，这也是CVTE起初的问题。

看原理图GPIOH_8连接屏SPI的CS使能信号，强制拉低后spi通讯失败导致参数无法写入，就会出现屏反转的情况。PAN_SPI_CS

GPIOH_7给屏供电3.3V

GPIOD_8再看看

分析开机时对GPIO控制的log链接：

Amlogic 950D4开机log， uboot里已开启lcd log开关

遗留问题

kernel里实现节点的地方

加载图片的地方

common/products/tv/t5d/files/tv/tvconfig/panel/panel_customer.ini 这个文档怎么用的得搞清楚

power_on_step在uboot的driver里看到过。

参考文档

https://blog.csdn.net/u012787604/article/details/115647961
