目录
一、LDAP和CDH配置
1)LDAP和Hive的集成
2)LDAP和Hive的测试
3)LDAP和impala的集成
4)LDAP和impala的测试
5)LDAP和HUE的集成（搜索绑定）
a)hue配置
b)创建ldap组
c)创建ldap用户
d)前台展示组
e)前台展示用户
二、Ladp的操作使用
1)基本操作
2)Ldap建立组和建立用户
三、Error
1)Ldap启动错误
2)ldapmodify执行出错
3)Ldap和hive、impala集成错误
4)Hue连接hive和impala错误
5)Hue添加用户
6)Hue用户无法同步
7)Hue组无法同步
8)HDFS错误
9)Impala错误
四、Hue元数据表说明
1)auth_group 组名称表
2)auth_user 用户表
3)auth_user_groups 用户和组对应表
4)useradmin_grouppermission hue组权限表
5)useradmin_huepermission hue的权限表
6)useradmin_ldapgroup ldap组和hue组关联表
7)useradmin_userprofile 用户hdfs路径表信息
五、参看其余文档
一、LDAP和CDH配置
1)LDAP和Hive的集成
http://cxy7.com/articles/2018/07/17/1531808242972.html
ldap://silentwolfyh.com
ou=people,dc=silentwolfyh,dc=com

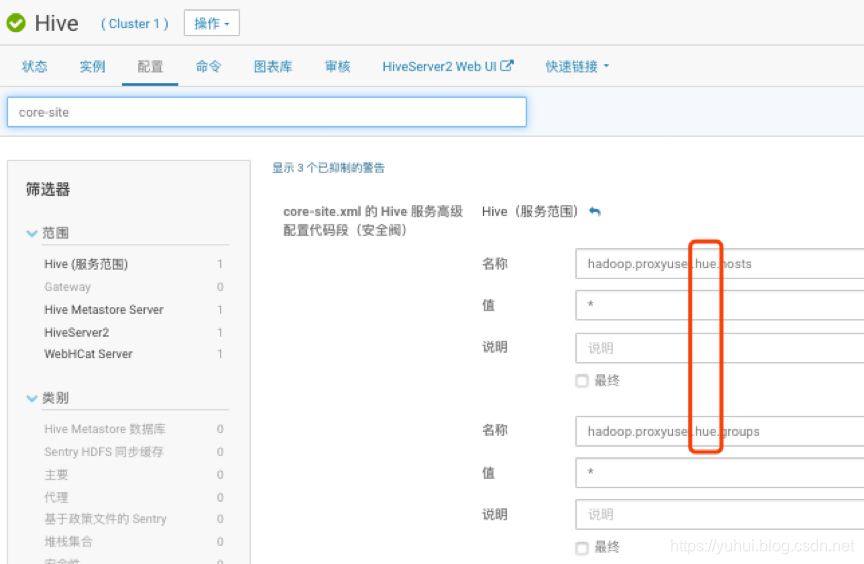

hadoop.proxyuser.hue.hosts (hue是代理用户)
hadoop.proxyuser.hue.groups (hue是代理用户)
账号test ， 密码123456

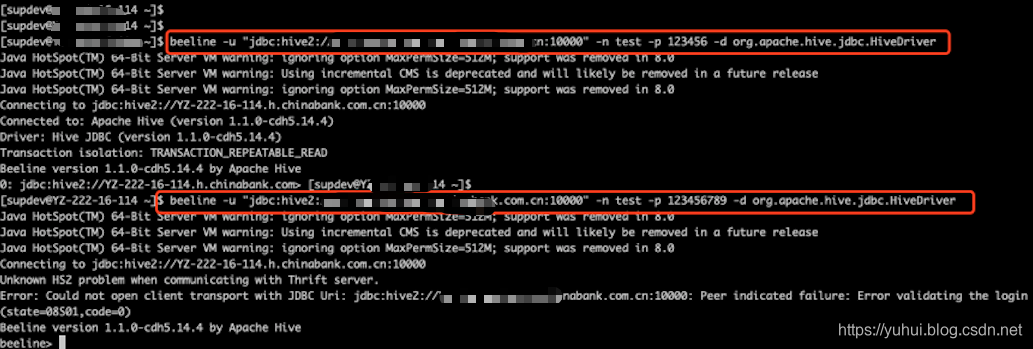

[yuhui@hadoop11 ~]$ beeline -u "jdbc:hive2://hadoop11:10000" -n yuhui1 -p 123456 -d org.apache.hive.jdbc.HiveDriver

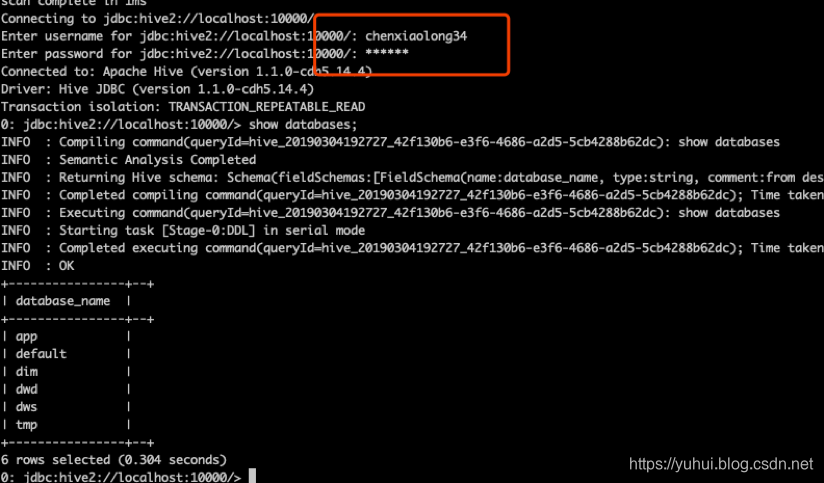

2)LDAP和Hive的测试
!connect jdbc:hive2://hadoop11:10000/
chenxiaolong34
123456

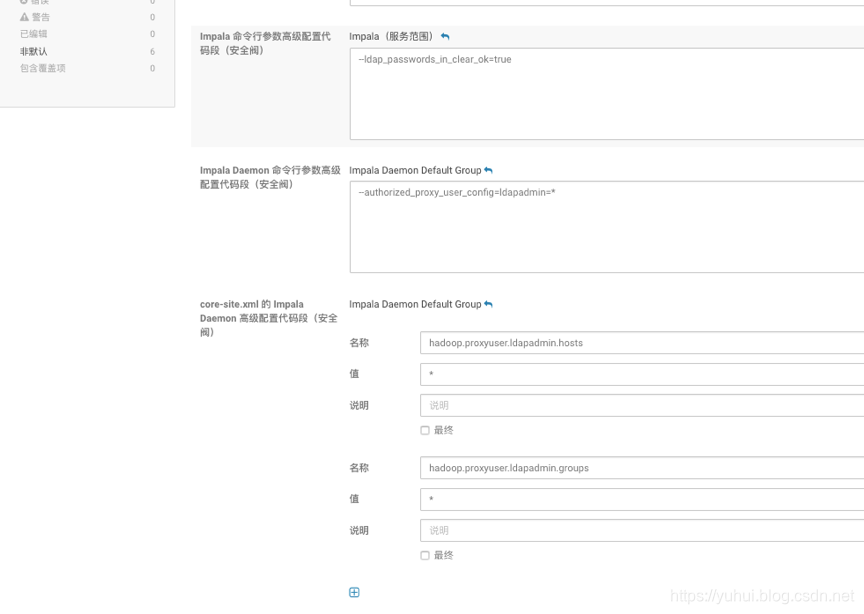

3)LDAP和impala的集成
http://cxy7.com/articles/2018/07/17/1531827540376.html(重点)

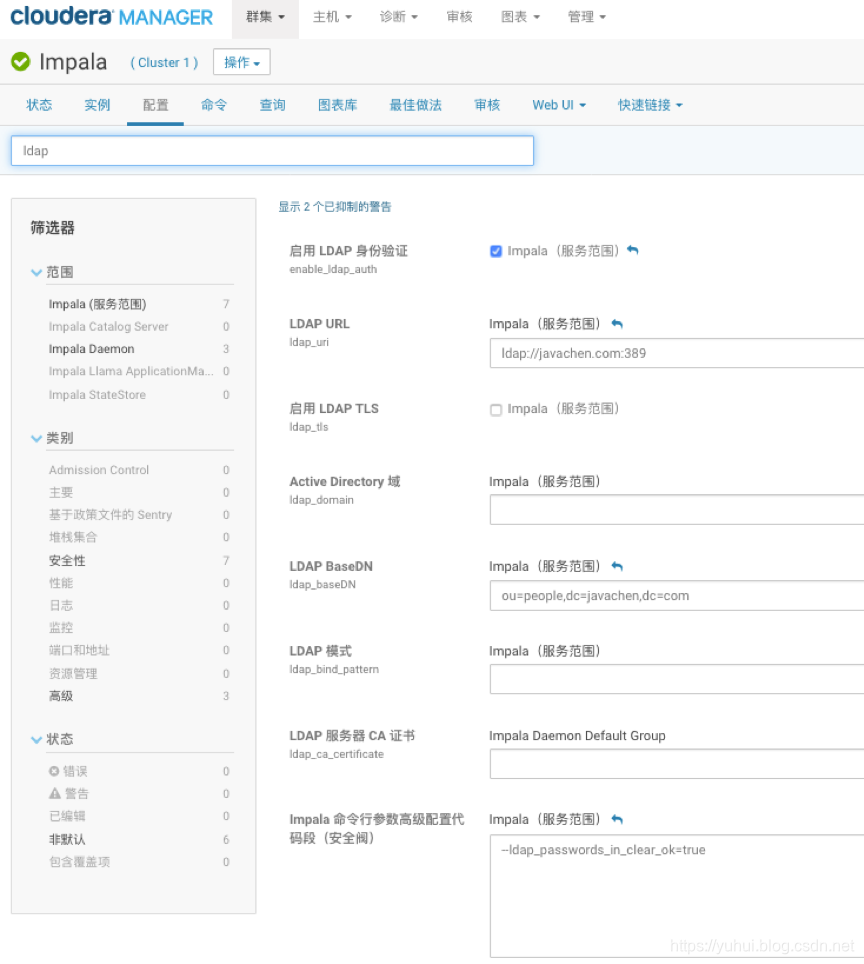

enable_ldap_auth
ldap_uri=ldap://silentwolfyh.com:389
LDAP BaseDN=ou=people,dc=silentwolfyh,dc=com

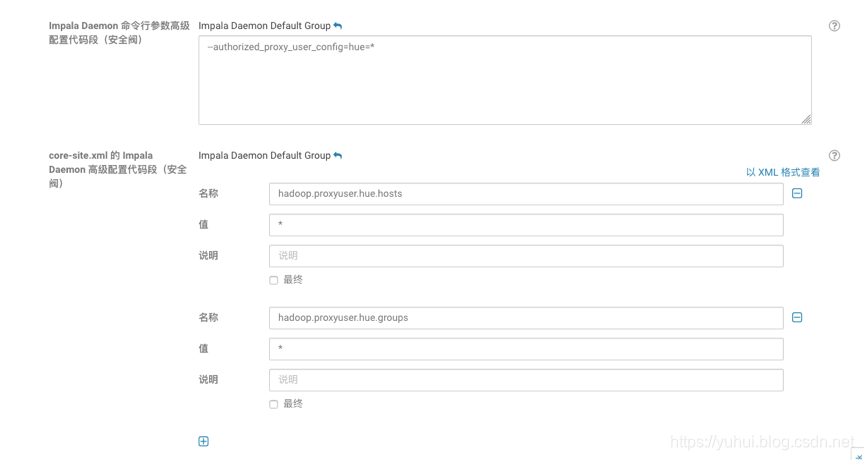

--ldap_passwords_in_clear_ok=true
--authorized_proxy_user_config=hue=*
hadoop.proxyuser.hue.hosts （hue代理用户）
hadoop.proxyuser.hue.groups（hue代理用户）

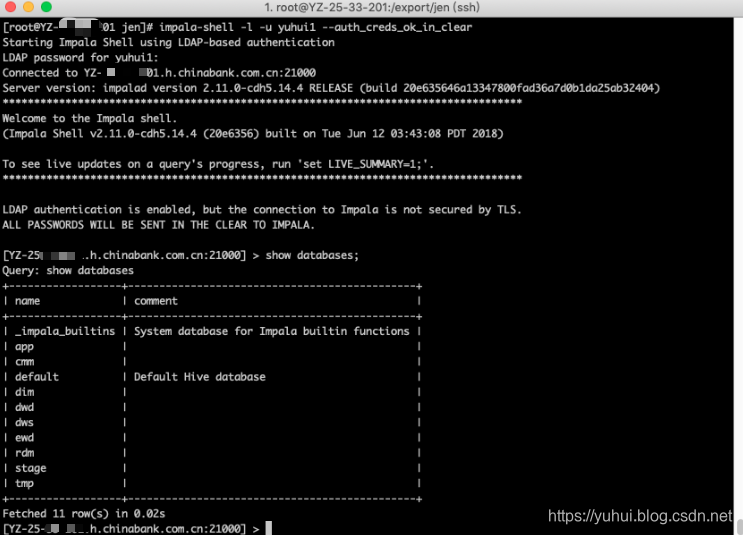

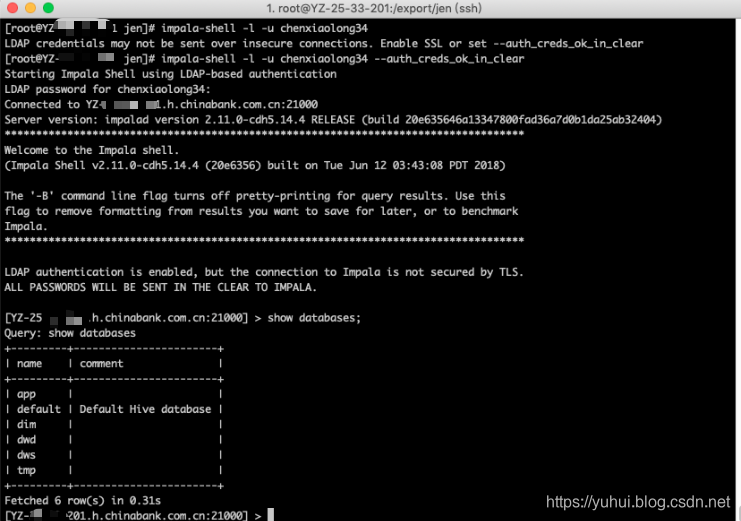

4)LDAP和impala的测试
impala-shell -l -u chenxiaolong34 --auth_creds_ok_in_clear
5)LDAP和HUE的集成（搜索绑定）
https://blog.csdn.net/u011026329/article/details/79171890
a)hue配置

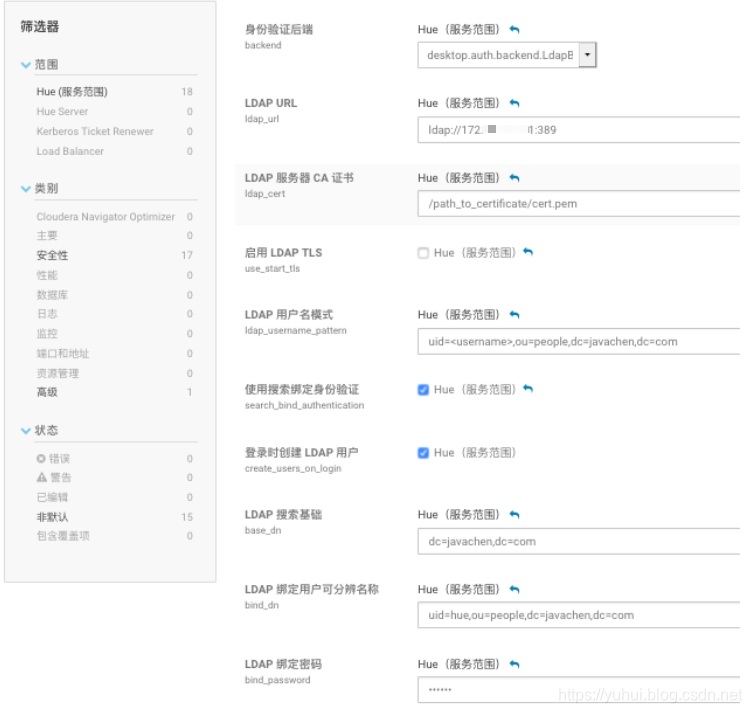

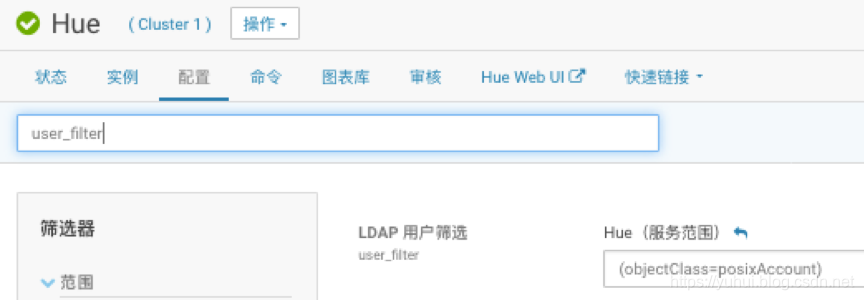

界面配置内容如下，图片如下：
backend=desktop.auth.backend.LdapBackend
ldap_url= ldap://172.25.33.131:389
ldap_cert= /path_to_certificate/cert.pem
use_start_tls= false
ldap_username_pattern="uid=<username>,ou=people,dc=silentwolfyh,dc=com "
使用搜索绑定身份验证
search_bind_authentication = true
create_users_on_login=true
LDAP 搜索基础
base_dn="dc=silentwolfyh,dc=com "
LDAP 绑定用户可分辨名称
bind_dn="uid=hue,ou=people,dc=silentwolfyh,dc=com "
LDAP 绑定密码
bind_password=hue

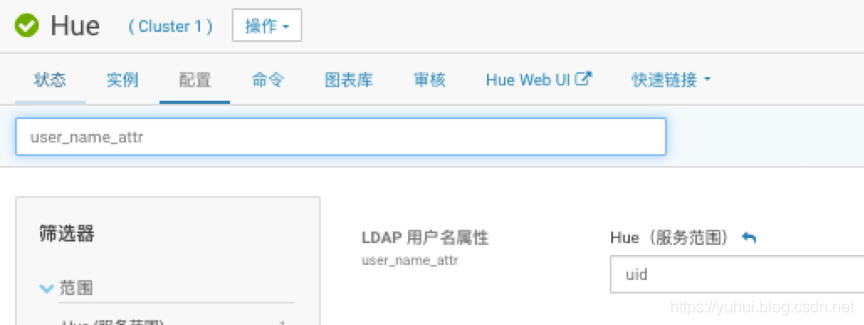

LDAP 用户名属性(LDAP Username Attribute)：user_name_attr = uid
LDAP 用户筛选（LDAP User Filter）：user_filter = (objectClass=posixAccount)

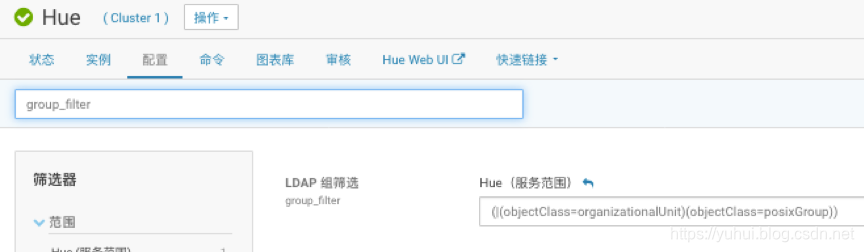

LDAP 组筛选（LDAP Group Filter：group_filter = (|(objectClass=organizationalUnit)(objectClass=posixGroup))

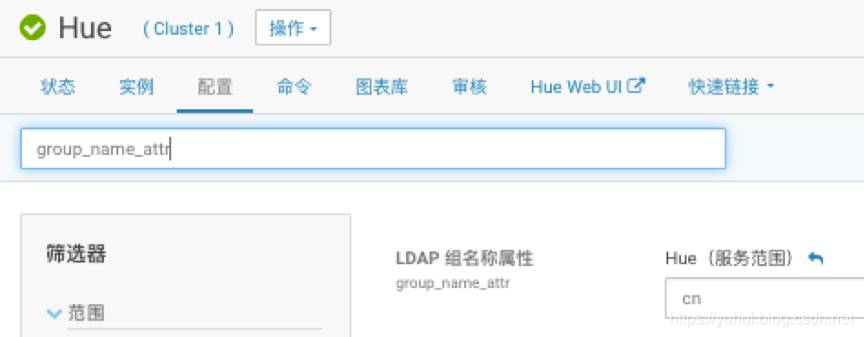

LDAP 组名称属性（LDAP Group Name Attribute）：group_name_attr = cn

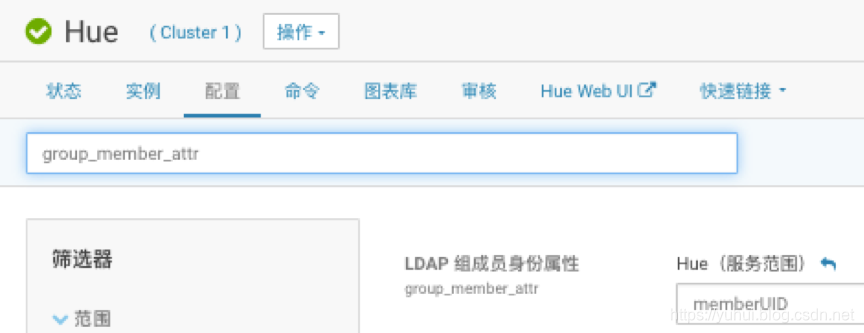

LDAP 组成员身份属性（LDAP Group Membership Attribute）：group_member_attr = memberUID # 非常重要，否则无法识别映射

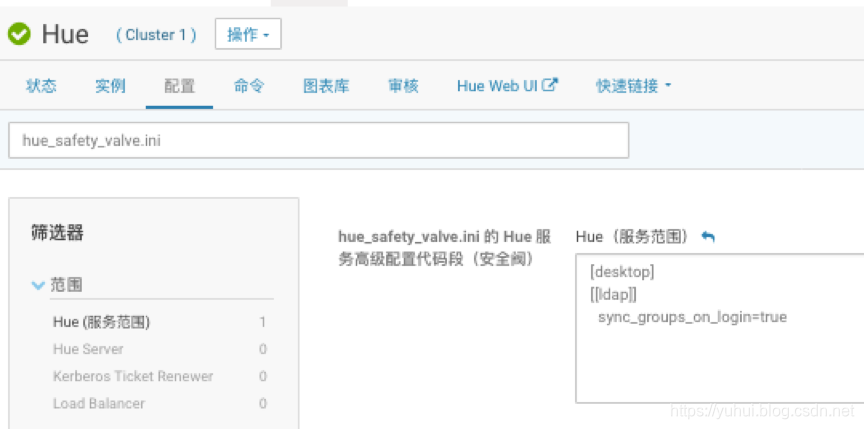

hue_safety_valve.ini
[desktop]
[[ldap]]
sync_groups_on_login=true
b)创建ldap组
useradd songxitang
sudo groupadd silentwolfyh_ops
usermod -g silentwolfyh_ops songxitang
passwd songxitang (123456)
[root@hadoop11 ~]# id songxitang
uid=810(songxitang) gid=811(silentwolfyh_ops) groups=811(silentwolfyh_ops)
[root@ hadoop11 ~]# cat /tmp/create_group_silentwolfyh_ops.ldif
dn: cn=silentwolfyh_ops,ou=silentwolfyh,dc=silentwolfyh,dc=com
objectClass: top
objectClass: posixGroup
gidNumber: 810
memberUID: ${MEMBER_UID}
description: ${DESCRIPTION_STIRNG}
ldapadd -x -D "uid=hue,ou=people,dc=silentwolfyh,dc=com" -w hue -f /tmp/create_group_silentwolfyh_ops.ldif
c)创建ldap用户
[root@hadoop11 ~]# cat /tmp/create_user_songxitang.ldif
dn: uid=songxitang,cn=silentwolfyh_ops,ou=silentwolfyh,dc=silentwolfyh,dc=com
objectClass: top
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: shadowAccount
givenName: xitang
sn: song
cn: songxitang
mail: songxitang@domain.com
telephoneNumber: 0101-3333333
mobile: 13111111111
uid: songxitang
uidNumber: 1005
gidNumber: 1006
homeDirectory: /home/songxitang
loginShell: /bin/bash
ldapadd -x -D "uid=hue,ou=people,dc=silentwolfyh,dc=com" -w hue -f /tmp/create_user_songxitang.ldif
修改用户密码
ldappasswd -x -D "uid=hue,ou=people,dc=silentwolfyh,dc=com" -w hue "uid=songxitang,cn=silentwolfyh_ops,ou=silentwolfyh,dc=example,dc=com" -S

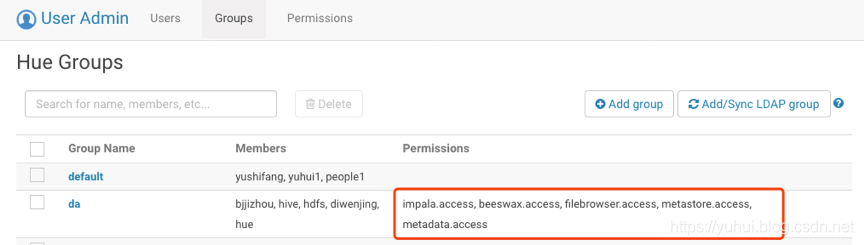

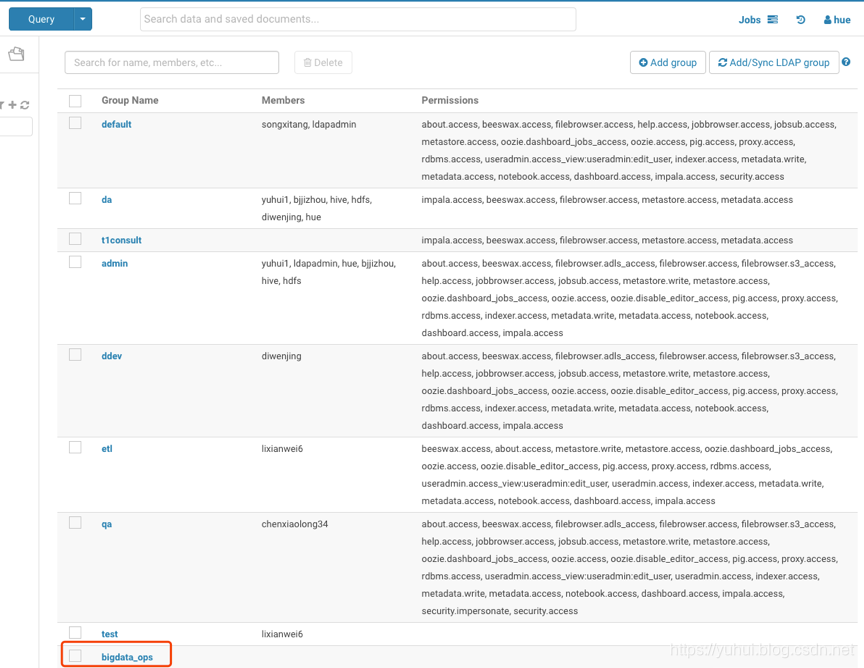

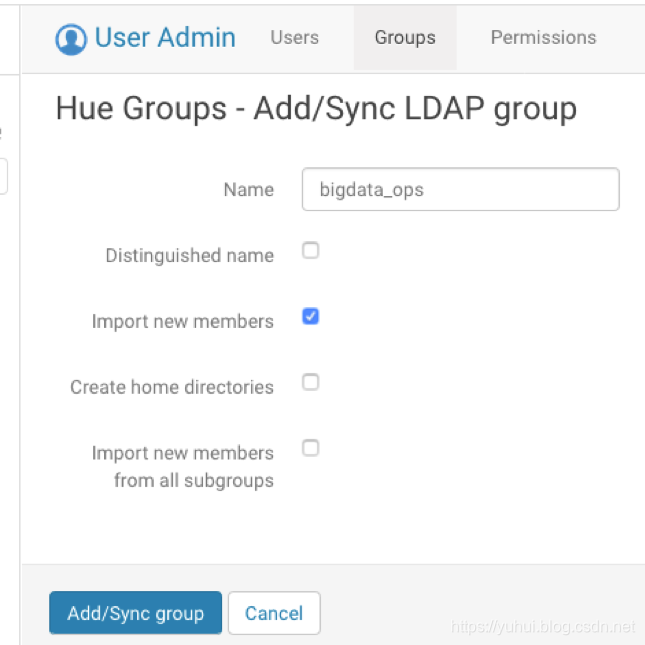

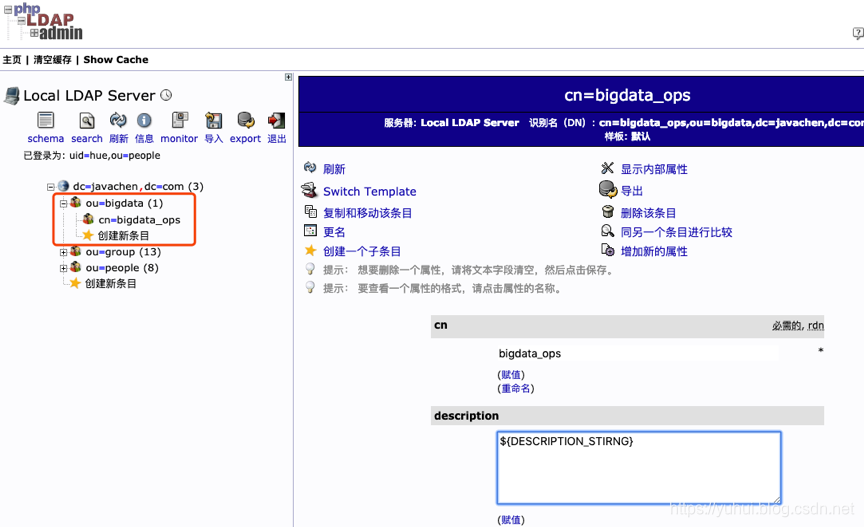

d)前台展示组

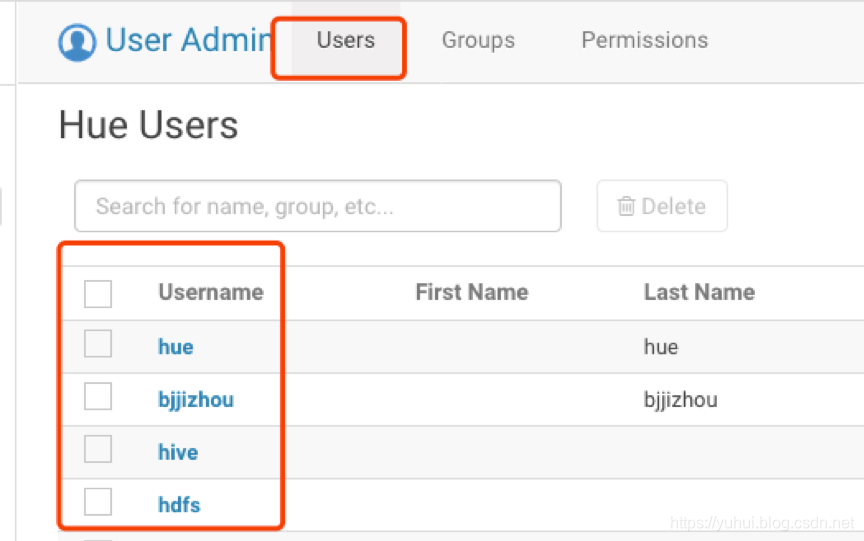

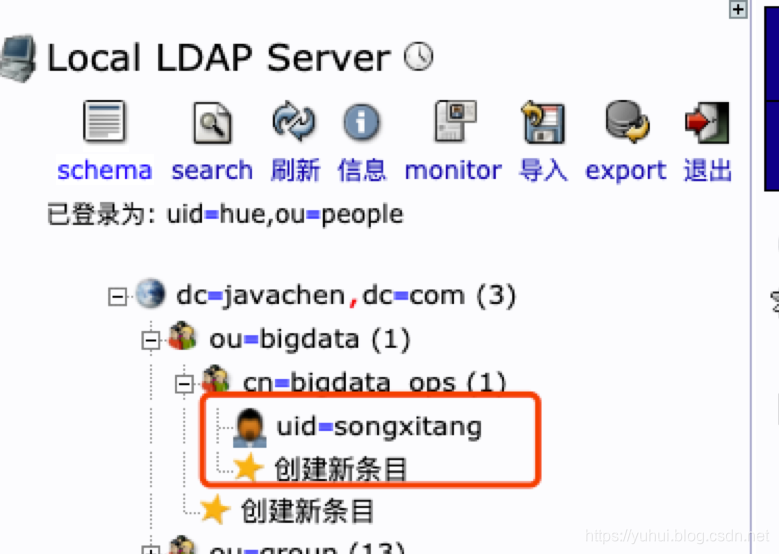

e)前台展示用户
二、Ladp的操作使用
1)基本操作
https://blog.csdn.net/u011026329/article/details/79171996
https://www.zhukun.net/archives/7980
添加ldap的文件
ldapadd -x -D "uid=hue,ou=people,dc=javachen,dc=com" -w hue -f xxx.ldif
修改ldap密码
ldappasswd -x -D "uid=hue,ou=people,dc=javachen,dc=com" -w hue "uid=people1,cn=silentwolfyh_ops,ou=silentwolfyh,dc=javachen,dc=com" -S
查询
ldapsearch -x -D "uid=hue,ou=people,dc=javachen,dc=com" -w hue -b "uid=user1,cn=silentwolfyh_ops,ou=silentwolfyh,dc=javachen,dc=com"
删除:用户或组条目
$ ldapdelete -x -w root -D 'uid=ldapadmin,ou=people,dc=example,dc=com' "uid=test,ou=people,dc=example,dc=com"
$ ldapdelete -x -w root -D 'uid=ldapadmin,ou=people,dc=example,dc=com' "cn=test,ou=group,dc=example,dc=com"

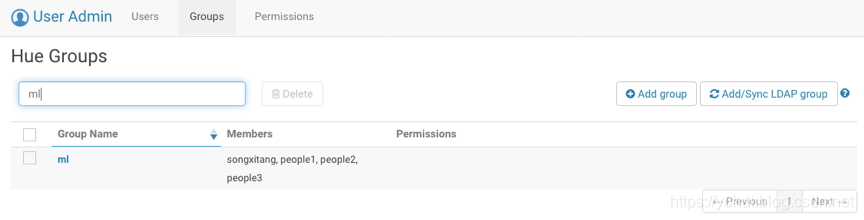

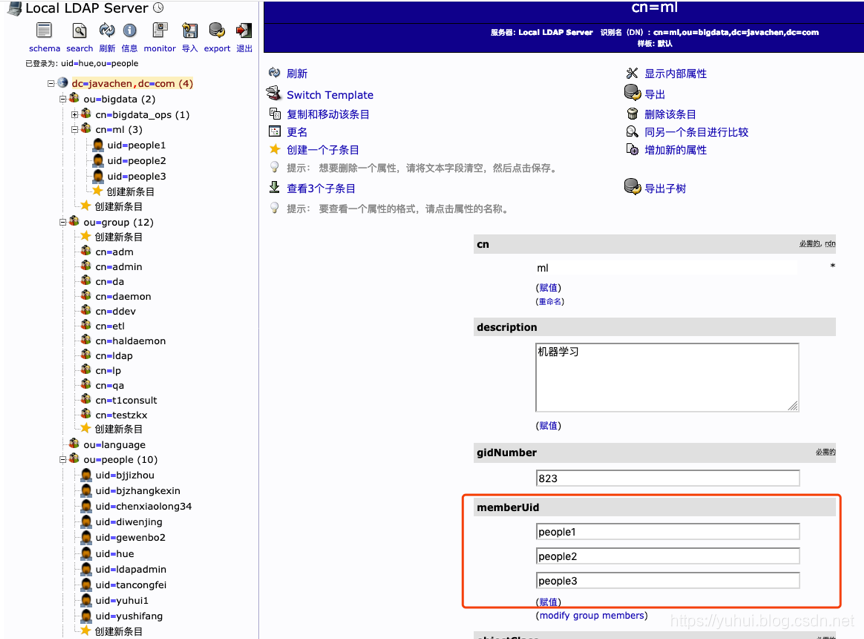

2)Ldap建立组和建立用户
建立组织单元:organizationalUnit
dn: ou=language,dc=javachen,dc=com
objectClass: organizationalUnit
ou: language
建立组：在organizationalUnit的silentwolfyh部门下面建立ml组
dn: cn=ml,ou=silentwolfyh,dc=javachen,dc=com
objectClass: top
objectClass: posixGroup
cn: ml
gidNumber: 823
description: 机器学习
建立用户1，2，3(可以建多个用户放入一个ldif文件中，批量加用户)
dn: uid=people1,cn=ml,ou=silentwolfyh,dc=javachen,dc=com
objectClass: top
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: shadowAccount
sn:people1
cn:people1
uid: people1
uidNumber: 817
gidNumber: 823
homeDirectory: /home/people1
loginShell: /bin/bash
#用户和组的映射 add_user_to_group.ldif
dn: cn=ml,ou=silentwolfyh,dc=javachen,dc=com
changetype: modify
add: memberUid
memberUid: people1
三、Error

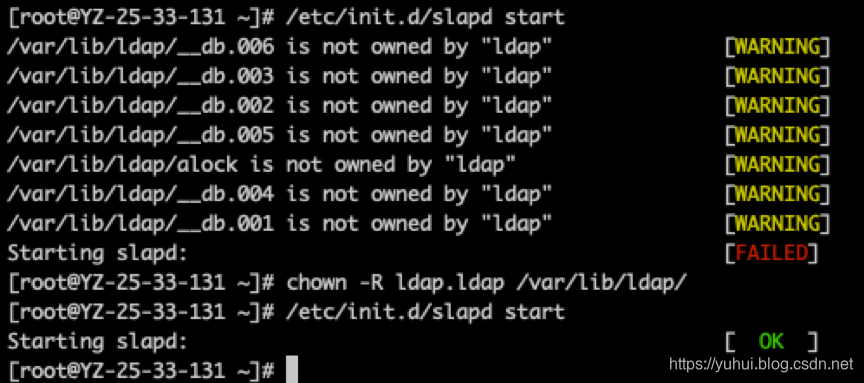

1)Ldap启动错误
启动 LDAP 服务：
chkconfig --add slapd
chkconfig --level 345 slapd on
/etc/init.d/slapd start
授权
chown -R ldap.ldap /var/lib/ldap/
2)ldapmodify执行出错
[yuhui@hadoop11 ldapshell]# ldapmodify -Y EXTERNAL -H ldapi:/// -f m1.ldif
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
modifying entry "olcDatabase={2}bdb,cn=config"
ldap_modify: Inappropriate matching (18)
additional info: modify/add: olcRootPW: no equality matching rule
解决办法：
修改modify.ldif中对应选项的"add"为"replace"即可
3)Ldap和hive、impala集成错误
https://www.cloudera.com/documentation/enterprise/latest/topics/cdh_sg_hiveserver2_security.html#concept_vxf_pgx_nm
User 'hue' is not authorized to delegate to ‘hue’
解决：
hadoop.proxyuser.hue.hosts
hadoop.proxyuser.hue.groups
4)Hue连接hive和impala错误
https://stackoverflow.com/questions/51854958/user-impersonation-for-access-to-hive
http://cxy7.com/articles/2018/07/17/1531827540376.html

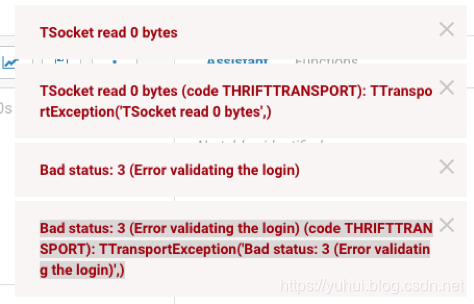

只配置了hive和ladp。hue出现错误
TSocket read 0 bytes
TSocket read 0 bytes (code THRIFTTRANSPORT): TTransportException('TSocket read 0 bytes',)

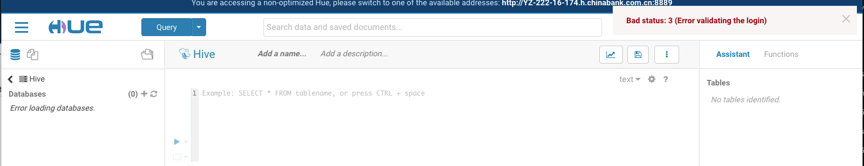

Bad status: 3 (Error validating the login)
Bad status: 3 (Error validating the login) (code THRIFTTRANSPORT): TTransportException('Bad status: 3 (Error validating the login)',)
10:10:25 上午 WARNING thrift_util Out of retries for thrift call: GetSchemas
10:10:25 上午 INFO thrift_util Thrift saw a transport exception: TSocket read 0 bytes
Failed to validate proxy privilege of ldapadmin for yuhui1
Bad status for request TOpenSessionReq(username=u'yuhui1', password=None, client_protocol=6, configuration={'hive.server2.proxy.user': u'yuhui1'}): TOpenSessionResp(status=TStatus(errorCode=0, errorMessage='Failed to validate proxy privilege of ldapadmin for yuhui1', sqlState='08S01', infoMessages=['*org.apache.hive.service.cli.HiveSQLException:Failed to validate proxy privilege of ldapadmin for yuhui1:14:13', 'org.apache.hive.service.auth.HiveAuthFactory:verifyProxyAccess:HiveAuthFactory.java:326', 'org.apache.hive.service.cli.thrift.ThriftCLIService:getProxyUser:ThriftCLIService.java:753', 'org.apache.hive.service.cli.thrift.ThriftCLIService:getUserName:ThriftCLIService.java:384', 'org.apache.hive.service.cli.thrift.ThriftCLIService:getSessionHandle:ThriftCLIService.java:411', 'org.apache.hive.service.cli.thrift.ThriftCLIService:OpenSession:ThriftCLIService.java:316', 'org.apache.hive.service.cli.thrift.TCLIService$Processor$OpenSession:getResult:TCLIService.java:1253', 'org.apache.hive.service.cli.thrift.TCLIService$Processor$OpenSession:getResult:TCLIService.java:1238', 'org.apache.thrift.ProcessFunction:process:ProcessFunction.java:39', 'org.apache.thrift.TBaseProcessor:process:TBaseProcessor.java:39', 'org.apache.hive.service.auth.TSetIpAddressProcessor:process:TSetIpAddressProcessor.java:56', 'org.apache.thrift.server.TThreadPoolServer$WorkerProcess:run:TThreadPoolServer.java:286', 'java.util.concurrent.ThreadPoolExecutor:runWorker:ThreadPoolExecutor.java:1142', 'java.util.concurrent.ThreadPoolExecutor$Worker:run:ThreadPoolExecutor.java:617', 'java.lang.Thread:run:Thread.java:745', '*org.apache.hadoop.security.authorize.AuthorizationException:User: ldapadmin is not allowed to impersonate yuhui1:0:-1'], statusCode=3), sessionHandle=None, configuration=None, serverProtocolVersion=6)
解决：hue中修改如下

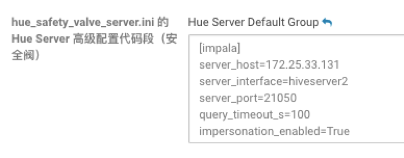

hue_safety_valve_server.ini 的 Hue Server 高级配置代码段（安全阀）
[impala]
server_host=hadoop11
server_interface=hiveserver2
server_port=21050
query_timeout_s=100
impersonation_enabled=True
auth_username=hue
auth_password=hue
[beeswax]
close_queries=True
use_sasl=False
auth_username=hue
auth_password=hue
5)Hue添加用户
Could not get LDAP details for users in pattern yuhui1.
Could not get LDAP details for users with pattern 123
Failed to find LDAP user: Distinguished Name provided does not contain configured Base DN. Base DN: ou=people,dc=silentwolfyh,dc=com, DN: bjjizhou
Could not get LDAP details for users with pattern bjjizhou
解决：只能添加ldap中的用户
6)Hue用户无法同步
https://community.cloudera.com/t5/Web-UI-Hue-Beeswax/Failed-to-validate-proxy-privilege-of-hue-hive-for/td-p/49686
Could not create home directory at login for hue.

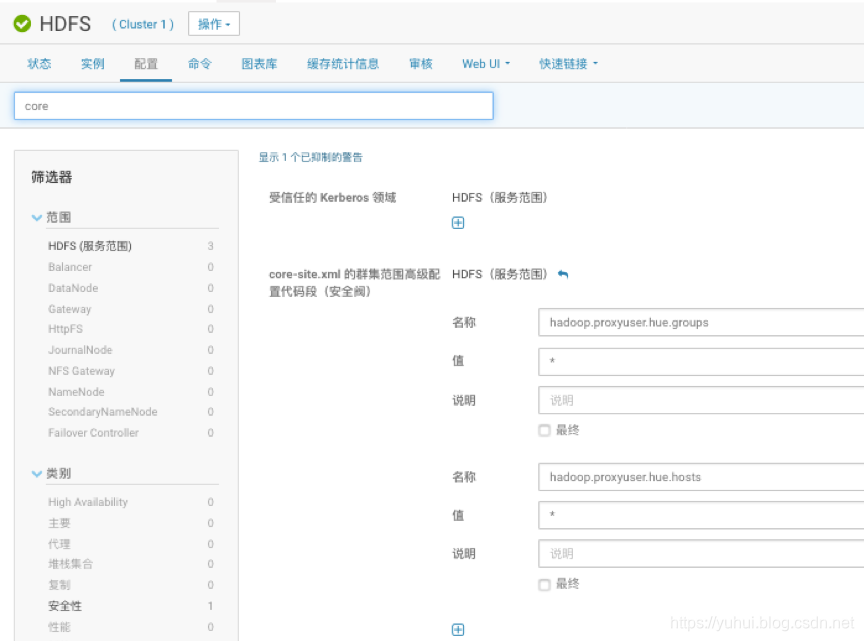

将Hue配置为所有其他用户和组的代理用户，这意味着它可以代表任何其他用户提交请求。添加核心的site.xml：
hadoop.proxyuser.hue.groups
hadoop.proxyuser.hue.hosts
7)Hue组无法同步

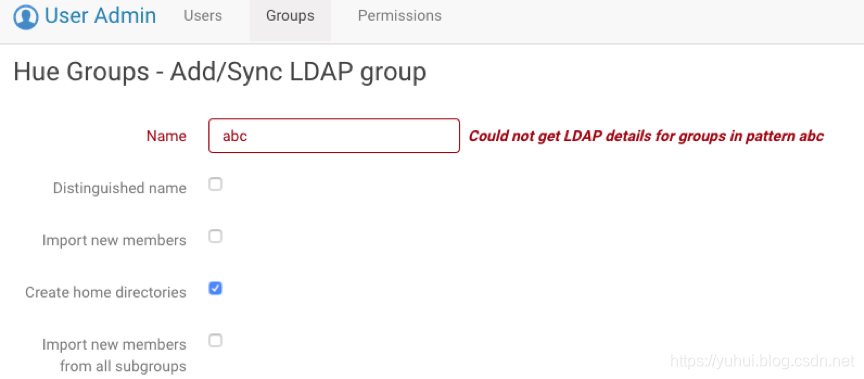

Could not get LDAP details for group pattern abc

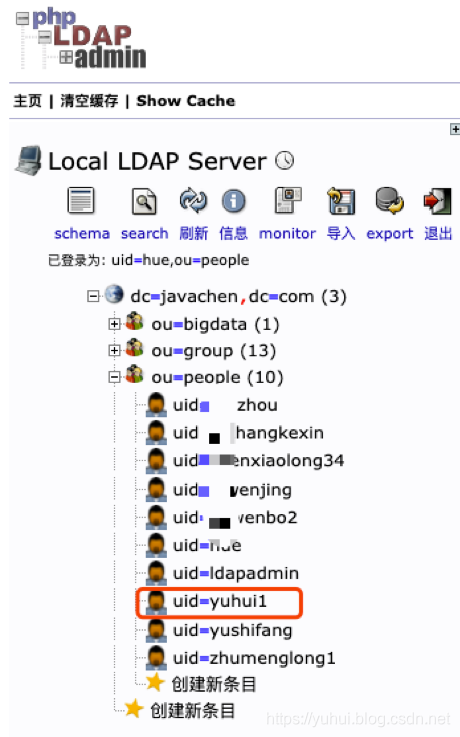

同步组只能是ldap中的组，通过phpLDAPadmin界面去看
8)HDFS错误
Resetting dropped connection: YZ-25-33-141.h.chinabank.com.cn 50070
Potential detail: StandbyException: Operation category READ is not supported in state standby. Visit https://s.apache.org/sbnn-error (error 403)
解决：将141的hdfs变成active
9)Impala错误
LDAP authentication specified, but without TLS. Passwords would go over the network in the clear. Enable TLS with --ldap_tls or use an ldaps:// URI. To override this is non-production environments, specify --ldap_passwords_in_clear_ok
. Impalad exiting.
Wrote minidump to /var/log/impala-minidumps/impalad/e50eb300-de19-4486-380a6c8f-0b3aa37c.dmp
解决：

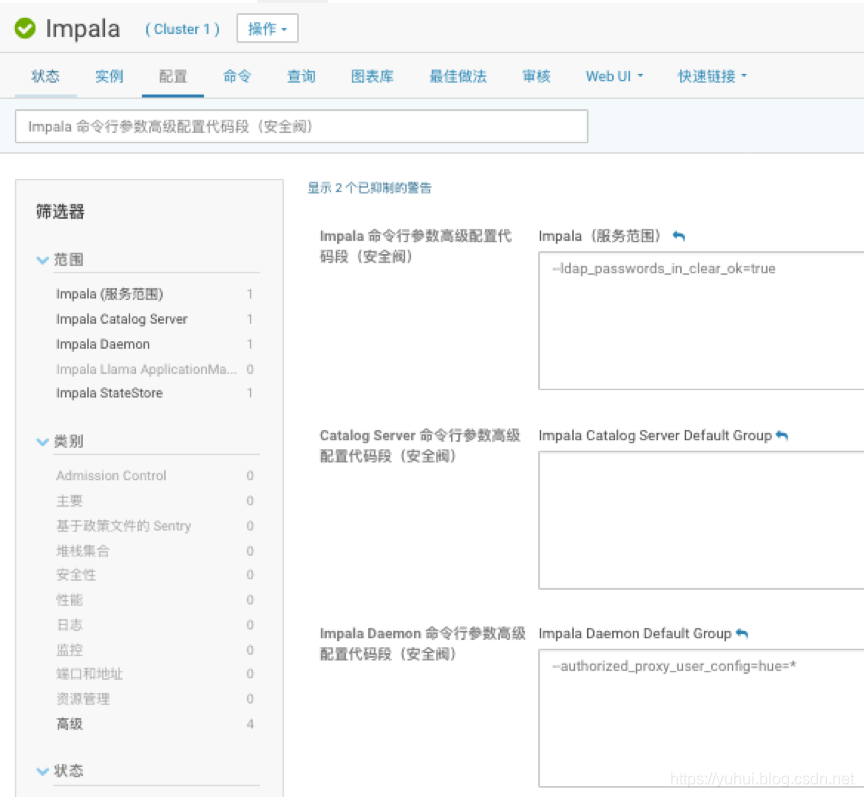

Impala 命令行参数高级配置代码段（安全阀）
--ldap_passwords_in_clear_ok=true
--auth_creds_ok_in_clear
--authorized_proxy_user_config=hue=*
四、Hue元数据表说明

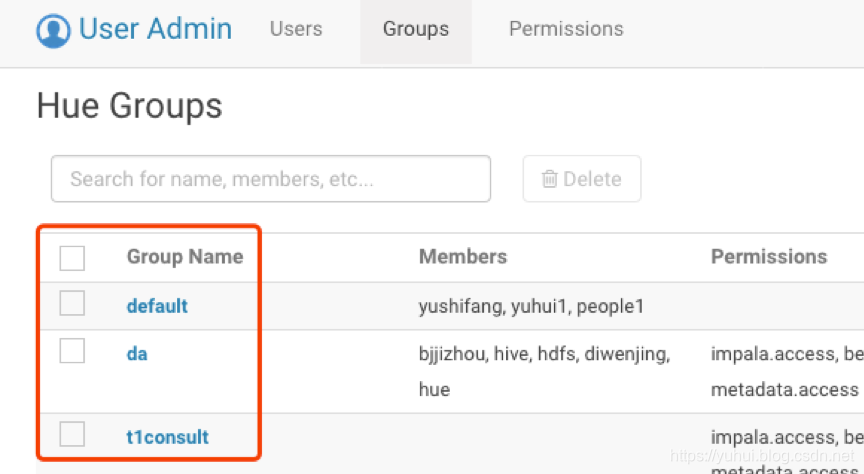

1)auth_group 组名称表
备注：hue创建组的时候表中新增组名称
2)auth_user 用户表
备注：hue创建用户或者hue登录时候创建用户

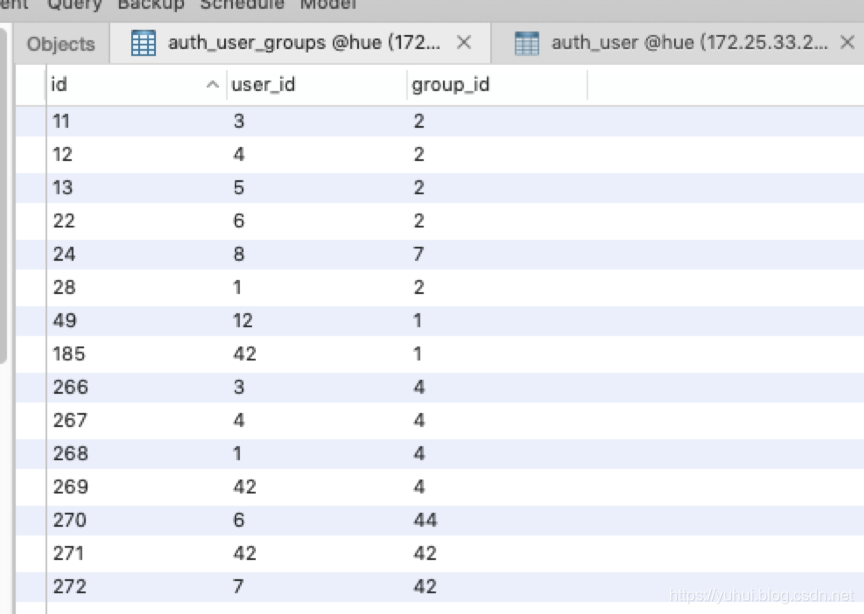

3)auth_user_groups 用户和组对应表
备注：用户登录的时候自动和组进行关联
4)useradmin_grouppermission hue组权限表

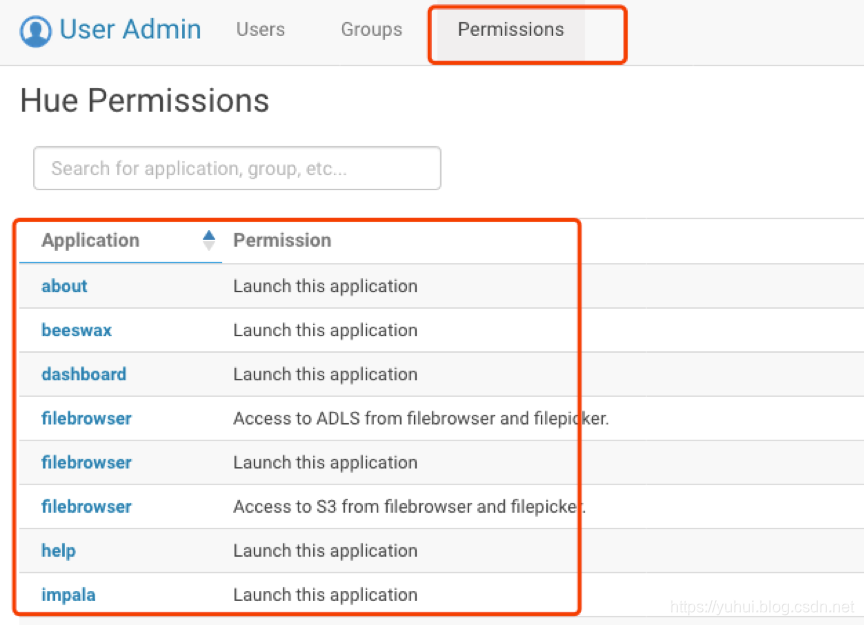

5)useradmin_huepermission hue的权限表

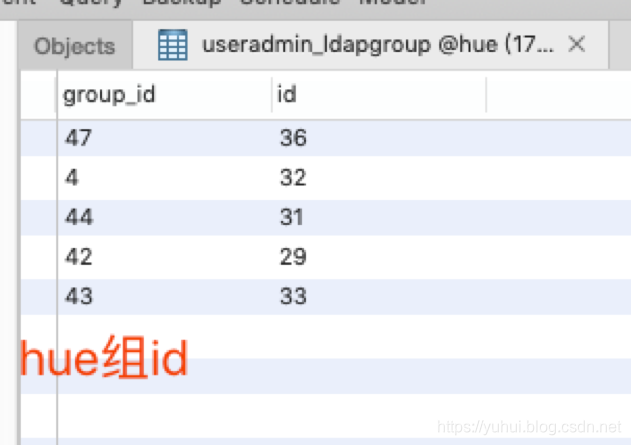

6)useradmin_ldapgroup ldap组和hue组关联表
备注：ldap查询的组名称在此表中出现

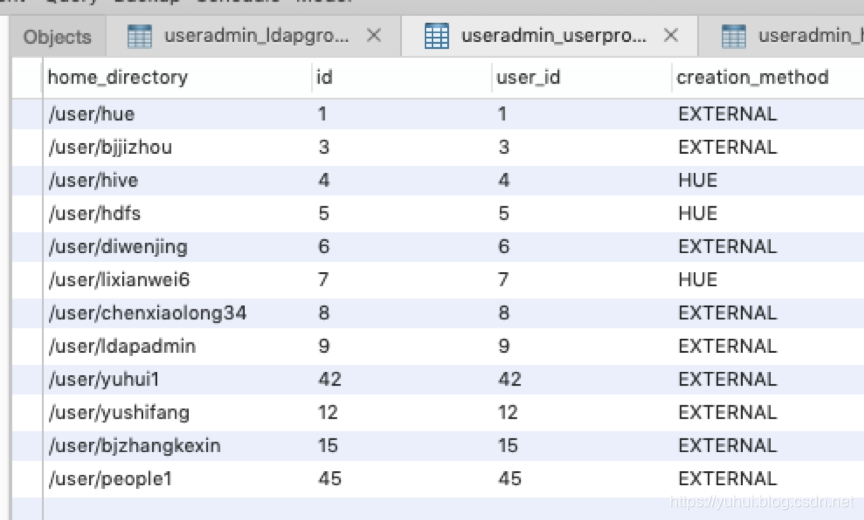

7)useradmin_userprofile 用户hdfs路径表信息
五、参看其余文档
https://blog.csdn.net/u014728303/article/details/53908412
https://blog.csdn.net/u011026329/article/details/79171996
https://blog.csdn.net/mnasd/article/details/84947690
Ldap解释及理解
https://blog.csdn.net/xiaowen_1990/article/details/79074949
https://blog.51cto.com/407711169/1439623
https://www.cnblogs.com/yjd_hycf_space/p/7994597.html
（LDAP的相关概念与objectClass介绍）
https://blog.csdn.net/qq_27376871/article/details/52037317
