stroke-dasharray
stroke-dasharray用来绘制路径虚线。可以有一个或者多个参数,下面看一下它在不同参数下的效果。
1.不添加stroke-dasharray属性
#rect {
stroke-width: 6px;
fill: yellow;
stroke: red;
/*stroke-dasharrry:10;*/
}
<svg height="100" width="300">
<rect id="rect" height="100" width="300" />
</svg>

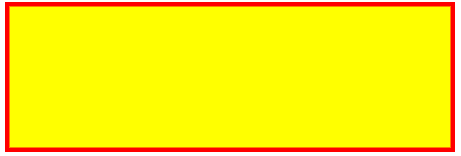

图1:矩形的边框为实线
2.一个参数
stroke-dasharray:10;

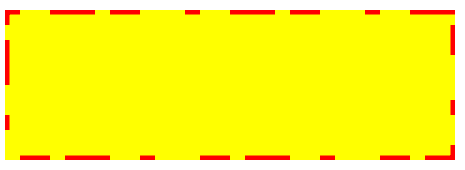

图2:矩形的边框为虚线。红色线段和间隙都是10px;
3.两个参数
stroke-dasharray:10 20;

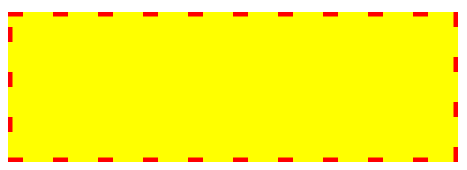

图3:矩形的边框为虚线。红色线段:10px , 间隙是20px;
4.三个参数
stroke-dasharray:10 20 30;

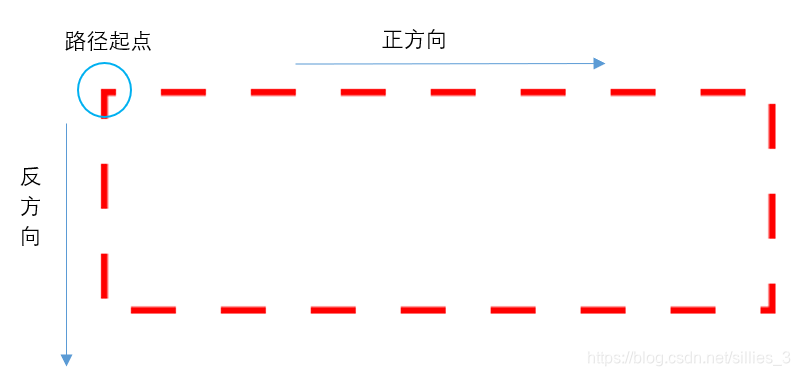

图4:红色线段和间隙长短不一。从矩形绘制的起点左上角开始:红->10,间隙->20,红->30,间隙->10,…
可以发现它是以所给的参数为一个周期,从路径起点开始进行循环绘制。
stroke-dashoffset
stroke-dashoffset 是对整条虚线从起点开始向相反的方向做偏移。
stroke-dashoffset:100;

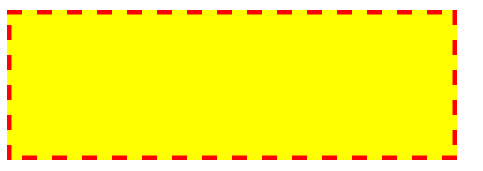

图5:向反方向偏移100px;
应用:
stroke-dashoffset动画
#rect {
stroke-width: 6px;
fill: #fff;
stroke: red;
stroke-dasharray: 20;
animation: path-animation 5s;
animation-timing-function:linear;
animation-iteration-count:infinite;
}
@keyframes path-animation {
from {
stroke-dashoffset: 100%;
}
to {
stroke-dashoffset: 0%;
}
}
动画效果:
