FilterPolicy
FilterPolicy 是一个接口类,定义了两个方法:
CreateFilter(const Slice* keys, int n, std::string* dst)
:为 keys 中的所有 key 创建一个 filter,将 filter 编码后压入 dst 里。KeyMayMatch(const Slice& key, const Slice& filter)
:判断 key 是否在 filter 中。
// Filter 接口类,只有两个方法:
class LEVELDB_EXPORT FilterPolicy {
public:
virtual ~FilterPolicy();
// 为了判断 encode 时使用的 filter 与 decode 时使用的 filter 是否一致,
// 需要为 filter 设置一个名字,通过名字来区分是否是同种类的 filter。
virtual const char* Name() const = 0;
// 为 keys 中的所有 key 创建一个 filter,将 filter 编码后压入 dst 里。
virtual void CreateFilter(const Slice* keys, int n, std::string* dst) const = 0;
// 判断 key 是否在 filter 中。
virtual bool KeyMayMatch(const Slice& key, const Slice& filter) const = 0;
};
BloomFilterPolicy
LevelDB 中提供了一个 BloomFilterPolicy,以布隆过滤器的方式实现了 FilterPolicy 接口。
class BloomFilterPolicy : public FilterPolicy {
public:
explicit BloomFilterPolicy(int bits_per_key) : bits_per_key_(bits_per_key) {
// k_ 表示 Bloom Filter 使用的 hash 函数个数。
// 要使得 Bloom Filter 的误判率最小,k_的计算方法为:
// k_ = (size_of_bloom_filter_in_bits/number_of_keys) * ln(2),
// 也就是 k_ = bits_per_key * ln(2)。
k_ = static_cast<size_t>(bits_per_key * 0.69); // 0.69 =~ ln(2)
if (k_ < 1) k_ = 1;
if (k_ > 30) k_ = 30;
}
const char* Name() const override { return "leveldb.BuiltinBloomFilter2"; }
void CreateFilter(const Slice* keys, int n, std::string* dst) const override;
bool KeyMayMatch(const Slice& key, const Slice& bloom_filter) const override;
private:
size_t bits_per_key_; // 每个 key 占用的 bit 数
size_t k_; // BloomFilter 使用的 hash 函数个数
};

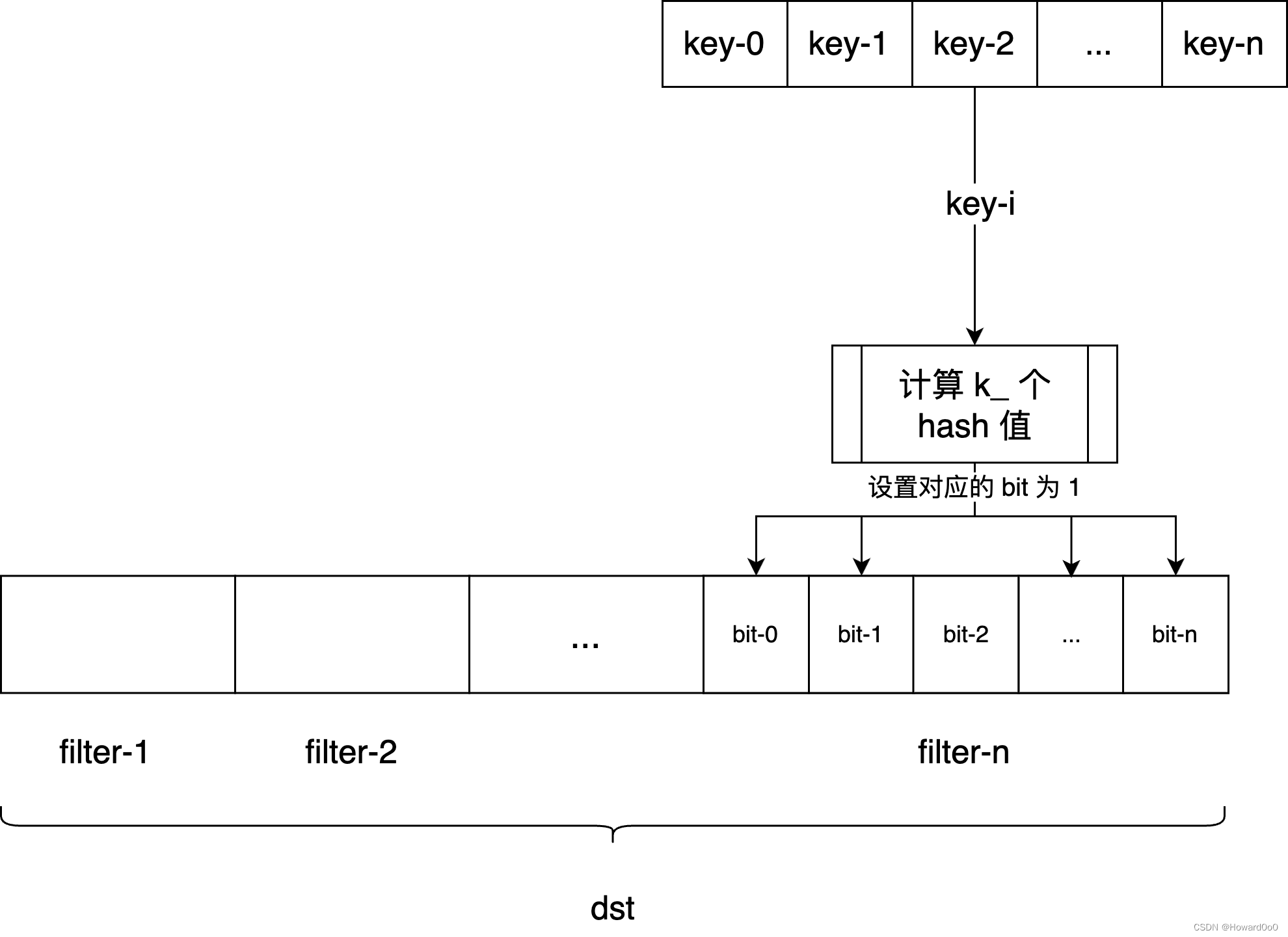

BloomFilterPolicy::CreateFilter(const Slice* keys, int n, std::string* dst)
为 keys 中的所有 key 创建一个 BloomFilter,将该 filter 编码后压入 dst 里。
void CreateFilter(const Slice* keys, int n, std::string* dst) const override {
// 计算 Bloom Filter 的大小,
// bits = key 的数量 * 每个 key 占用的 bit 数
size_t bits = n * bits_per_key_;
// 当 n 太小的时候,计算出来的 bits 太小会导致 Bloom Filter 的误判率很高,
// 所以这里设置一个最小值 64。
if (bits < 64) bits = 64;
// 根据 bits 计算出 bytes,再反算 bits。
// bytes = (bits + 7) / 8 表示 bits/8 向上取整。
size_t bytes = (bits + 7) / 8;
bits = bytes * 8;
// dst 里可能已经有其他 fitler 了,先将 dst 的容量扩大 bytes,
// 把当前 filter 的空间给创建出来。
const size_t init_size = dst->size();
dst->resize(init_size + bytes, 0);
// 在 filter 的末尾压入 k_,以供 KeyMayMatch 解码 filter 的时候使用。
dst->push_back(static_cast<char>(k_)); // Remember # of probes in filter
// 获取当前 BloomFilter 在 dst 中的起始位置。
char* array = &(*dst)[init_size];
for (int i = 0; i < n; i++) {
// 使用 double-hashing 来计算每个 key 的 hash 值。
// double-hashing 是一种优秀的 hash 实现算法,
// 能够在输入不均匀分布的情况下,提供均匀分布的 hash。
// double-hashing 的详情可见原文: https://www.eecs.harvard.edu/~michaelm/postscripts/rsa2008.pdf
uint32_t h = BloomHash(keys[i]);
const uint32_t delta = (h >> 17) | (h << 15); // Rotate right 17 bits
for (size_t j = 0; j < k_; j++) {
const uint32_t bitpos = h % bits;
// 设置 Bloom Filter 中对应的 bit 位为 1。
array[bitpos / 8] |= (1 << (bitpos % 8));
h += delta;
}
}
}
BloomFilterPolicy::KeyMayMatch(const Slice& key, const Slice& bloom_filter)
给定一个BloomFilterPolicy::CreateFilter
创建出来的bloom_filter
,判断一个key
是否在bloom_filter
中。
bool KeyMayMatch(const Slice& key, const Slice& bloom_filter) const override {
// len 为该 bloom_filter 的长度,bit 数。
const size_t len = bloom_filter.size();
// 当 bloom_filter 的长度小于 2 时,该 bloom_filter 是无效的。
if (len < 2) return false;
const char* array = bloom_filter.data();
// len - 1 是因为 array 里的最后一个字节是 k_。
const size_t bits = (len - 1) * 8;
// 取出该 bloom_filter 的 k_ 值,以供解码 bloom_filter 使用。
const size_t k = array[len - 1];
if (k > 30) {
// 当前版本的 bloom_filter 不支持 k_ > 30,但是未来可能会支持。
// 如果用老版本的 bloom_filter 解析未来新版的 bloom_filter,
// 则直接返回 true,当成是 false-positive 的情况。
return true;
}
// 用与 CreateFilter 同样的 double-hashing 算法计算出 key 的 hash 值,
// 检查对应的 bit 是否都为 1。
uint32_t h = BloomHash(key);
const uint32_t delta = (h >> 17) | (h << 15); // Rotate right 17 bits
for (size_t j = 0; j < k; j++) {
const uint32_t bitpos = h % bits;
if ((array[bitpos / 8] & (1 << (bitpos % 8))) == 0) return false;
h += delta;
}
return true;
}
