aws beanstalk 测试用到的eb cli命令

ebcli帮助程序

commands:
  abort        Cancels an environment update or deployment.
  appversion   Listing and managing application versions
  clone        Clones an environment.
  codesource   Configures the code source for the EB CLI to use by default.
  config       Modify an environment's configuration. Use subcommands to manage saved configurations.
  console      Opens the environment in the AWS Elastic Beanstalk Management Console.
  create       Creates a new environment.
  deploy       Deploys your source code to the environment.
  events       Gets recent events.
  health       Shows detailed environment health.
  init         Initializes your directory with the EB CLI. Creates the application.
  labs         Extra experimental commands.
  list         Lists all environments.
  local        Runs commands on your local machine.
  logs         Gets recent logs.
  open         Opens the application URL in a browser.
  platform     Commands for managing platforms.
  printenv     Shows the environment variables.
  restore      Restores a terminated environment.
  scale        Changes the number of running instances.
  setenv       Sets environment variables.
  ssh          Opens the SSH client to connect to an instance.
  status       Gets environment information and status.
  swap         Swaps two environment CNAMEs with each other.
  tags         Allows adding, deleting, updating, and listing of environment tags.
  terminate    Terminates the environment.
  upgrade      Updates the environment to the most recent platform version.
  use          Sets default environment.

eb init/create

分别对应创建应用和创建环境，一个应用可以对应多个环境，之前已经介绍过了此处略过

eb config

修改默认的配置文件，增加自定义配置。此处列出了默认的环境配置，涉及到以下方面

• 环境的语言和平台版本
• elb监听器和规则
• asg容量配置，扩缩策略，更新策略
• cw告警规则
• 启动配置参数
• 实例类型和大小
• 其他额外配置

更新环境配置后，环境会自动进行更新。

• 如果需要放弃更新，可以执行eb abort终止环境更新
• 环境变动过程中，可以执行eb events -f查看最新的event（和控制台一致）

ApplicationName: test-beanpython
DateUpdated: 2023-03-30 03:26:48+00:00
EnvironmentName: test-beanpython-dev
PlatformArn: arn:aws-cn:elasticbeanstalk:cn-north-1::platform/Python 3.8 running on
  64bit Amazon Linux 2/3.5.0
settings:
  :default.aws:elbv2:listener:8095:
    Rules: default
  :default.aws:elbv2:listenerrule:default:
    HostHeaders: test-beanpython-dev.cn-north-1.eb.amazonaws.com.cn
    PathPatterns: /*
    Priority: '1'
    Process: default
  AWSEBAutoScalingScaleDownPolicy.aws:autoscaling:trigger:
    LowerBreachScaleIncrement: '-1'
  AWSEBAutoScalingScaleUpPolicy.aws:autoscaling:trigger:
    UpperBreachScaleIncrement: '1'
  AWSEBCloudwatchAlarmHigh.aws:autoscaling:trigger:
    UpperThreshold: '6000000'
  AWSEBCloudwatchAlarmLow.aws:autoscaling:trigger:
    BreachDuration: '5'
    EvaluationPeriods: '1'
    LowerThreshold: '2000000'
    MeasureName: NetworkOut
    Period: '5'
    Statistic: Average
    Unit: Bytes
  aws:autoscaling:asg:
    Availability Zones: Any
    Cooldown: '360'
    Custom Availability Zones: ''
    EnableCapacityRebalancing: 'false'
    MaxSize: '4'
    MinSize: '1'
  aws:autoscaling:launchconfiguration:
    BlockDeviceMappings: null
    DisableIMDSv1: 'false'
    EC2KeyName: temp-key
    IamInstanceProfile: aws-elasticbeanstalk-ec2-role
    ImageId: ami-07595fd9680882696
    InstanceType: t2.micro
    MonitoringInterval: 5 minute
    RootVolumeIOPS: null
    RootVolumeSize: null
    RootVolumeThroughput: null
    RootVolumeType: null
    SSHSourceRestriction: tcp,22,22,0.0.0.0/0
    SecurityGroups: awseb-e-npzn8apcmw-stack-AWSEBSecurityGroup-1IV9P7J8WDOKP
 aws:autoscaling:updatepolicy:rollingupdate:
    MaxBatchSize: '1'
    MinInstancesInService: '1'
    PauseTime: null
    RollingUpdateEnabled: 'true'
    RollingUpdateType: Health
    Timeout: PT30M
  aws:ec2:instances:
    EnableSpot: 'false'
    InstanceTypes: t2.micro, t2.small
    SpotFleetOnDemandAboveBasePercentage: '70'
    SpotFleetOnDemandBase: '0'
    SpotMaxPrice: null
    SupportedArchitectures: x86_64
  aws:ec2:vpc:
    AssociatePublicIpAddress: null
    ELBScheme: public
    ELBSubnets: null
    Subnets: null
    VPCId: null
  aws:elasticbeanstalk:application:
    Application Healthcheck URL: ''
  aws:elasticbeanstalk:cloudwatch:logs:
    DeleteOnTerminate: 'false'
    RetentionInDays: '7'
    StreamLogs: 'false'
  aws:elasticbeanstalk:cloudwatch:logs:health:
    DeleteOnTerminate: 'false'
    HealthStreamingEnabled: 'false'
    RetentionInDays: '7'
  aws:elasticbeanstalk:command:
    BatchSize: '30'
    BatchSizeType: Percentage
    DeploymentPolicy: Rolling
    IgnoreHealthCheck: 'false'
    Timeout: '600'
  aws:elasticbeanstalk:container:python:
    NumProcesses: '1'
    NumThreads: '15'
    WSGIPath: application
aws:elasticbeanstalk:control:
    DefaultSSHPort: '22'
    LaunchTimeout: '0'
    LaunchType: Migration
    RollbackLaunchOnFailure: 'false'
  aws:elasticbeanstalk:environment:
    EnvironmentType: LoadBalanced
    ExternalExtensionsS3Bucket: null
    ExternalExtensionsS3Key: null
    LoadBalancerIsShared: 'true'
    LoadBalancerType: application
    ServiceRole: aws-elasticbeanstalk-service-role
  aws:elasticbeanstalk:environment:process:default:
    DeregistrationDelay: '20'
    HealthCheckInterval: '15'
    HealthCheckPath: /
    HealthCheckTimeout: '5'
    HealthyThresholdCount: '3'
    MatcherHTTPCode: null
    Port: '80'
    Protocol: HTTP
    StickinessEnabled: 'false'
    StickinessLBCookieDuration: '86400'
    StickinessType: lb_cookie
    UnhealthyThresholdCount: '5'
  aws:elasticbeanstalk:environment:proxy:
    ProxyServer: nginx
  aws:elasticbeanstalk:healthreporting:system:
    ConfigDocument: '{"Version":1,"CloudWatchMetrics":{"Instance":{"CPUIrq":null,"LoadAverage5min":null,"ApplicationRequests5xx":null,"ApplicationRequests4xx":null,"CPUUser":null,"LoadAverage1min":null,"ApplicationLatencyP50":null,"CPUIdle":null,"InstanceHealth":null,"ApplicationLatencyP95":null,"ApplicationLatencyP85":null,"RootFilesystemUtil":null,"ApplicationLatencyP90":null,"CPUSystem":null,"ApplicationLatencyP75":null,"CPUSoftirq":null,"ApplicationLatencyP10":null,"ApplicationLatencyP99":null,"ApplicationRequestsTotal":null,"ApplicationLatencyP99.9":null,"ApplicationRequests3xx":null,"ApplicationRequests2xx":null,"CPUIowait":null,"CPUNice":null},"Environment":{"InstancesSevere":null,"InstancesDegraded":null,"ApplicationRequests5xx":null,"ApplicationRequests4xx":null,"ApplicationLatencyP50":null,"ApplicationLatencyP95":null,"ApplicationLatencyP85":null,"InstancesUnknown":null,"ApplicationLatencyP90":null,"InstancesInfo":null,"InstancesPending":null,"ApplicationLatencyP75":null,"ApplicationLatencyP10":null,"ApplicationLatencyP99":null,"ApplicationRequestsTotal":null,"InstancesNoData":null,"ApplicationLatencyP99.9":null,"ApplicationRequests3xx":null,"ApplicationRequests2xx":null,"InstancesOk":null,"InstancesWarning":null}}}'
    EnhancedHealthAuthEnabled: 'true'
    HealthCheckSuccessThreshold: Ok
    SystemType: enhanced
aws:elasticbeanstalk:hostmanager:
    LogPublicationControl: 'false'
  aws:elasticbeanstalk:managedactions:
    ManagedActionsEnabled: 'false'
    PreferredStartTime: null
    ServiceRoleForManagedUpdates: aws-elasticbeanstalk-service-role
  aws:elasticbeanstalk:managedactions:platformupdate:
    InstanceRefreshEnabled: 'false'
    UpdateLevel: null
  aws:elasticbeanstalk:monitoring:
    Automatically Terminate Unhealthy Instances: 'true'
  aws:elasticbeanstalk:sns:topics:
    Notification Endpoint: null
    Notification Protocol: email
    Notification Topic ARN: null
    Notification Topic Name: null
  aws:elasticbeanstalk:trafficsplitting:
    EvaluationTime: null
    NewVersionPercent: null
  aws:elasticbeanstalk:xray:
    XRayEnabled: 'false'
  aws:elbv2:loadbalancer:
    SecurityGroups: sg-0d892xxxxx36e51
    SharedLoadBalancer: arn:aws-cn:elasticloadbalancing:cn-north-1:xxxxxxxxdbalancer/app/main-alb/17ec2f283414a86a
  aws:rds:dbinstance:
    HasCoupledDatabase: 'false'

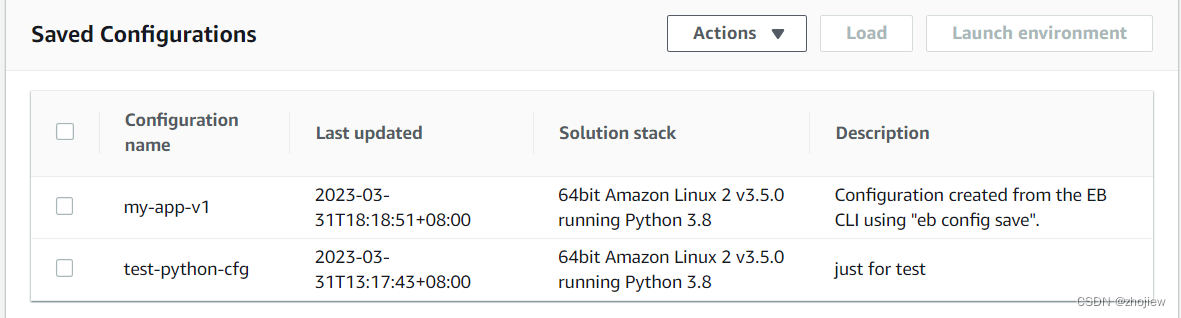

可以选择保存当前配置

$ eb config save --cfg my-app-v1
Configuration saved at: xxxxx/.elasticbeanstalk/saved_configs/my-app-v1.cfg.yml

eb deploy

当对应用程序或扩展配置进行更新之后，可以执行eb deploy命令推送新部署

查看日志如下

2023-03-31 04:59:36    INFO    Successfully deployed new configuration to environment.
2023-03-31 04:59:36    INFO    Environment update completed successfully.
2023-03-31 05:00:00    INFO    Removed instance [i-0d825b2d28f9e5ab4] from your environment.
2023-03-31 05:01:00    WARN    Environment health has transitioned from Info to Degraded. 1 instance online is below Auto Scaling group minimum size 2. Configuration update completed 26 seconds ago and took 4 minutes.
2023-03-31 05:02:00    INFO    Environment health has transitioned from Degraded to Ok.
2023-03-31 05:02:21    INFO    requestEnvironmentInfo is starting.
2023-03-31 05:02:23    INFO    Instance deployment completed successfully.
2023-03-31 05:02:28    INFO    Pulled logs for environment instances.
2023-03-31 05:12:08    INFO    Environment update is starting.
2023-03-31 05:12:16    INFO    Updating environment test-beanpython-dev's configuration settings.
2023-03-31 05:12:59    INFO    Added instance [i-03e2081eee3a9715e] to your environment.
2023-03-31 05:13:03    INFO    Auto Scaling group update progress: New instance(s) added to autoscaling group - Waiting on 1 resource signal(s) with a timeout of PT30M.
2023-03-31 05:16:22    INFO    Successfully deployed new configuration to environment.
2023-03-31 05:16:22    INFO    Environment update completed successfully.
2023-03-31 05:17:22    INFO    Deleted log fragments for this environment.
2023-03-31 05:17:43    INFO    createConfigurationTemplate is starting.
2023-03-31 05:17:44    INFO    Created new Configuration template: test-python-cfg at https://s3.cn-north-1.amazonaws.com.cn/elasticbeanstalk-cn-north-1-xxxxxxxx/resources/templates/test-beanpython/test-python-cfg
2023-03-31 05:17:44    INFO    createConfigurationTemplate completed successfully.
2023-03-31 05:27:46    INFO    Environment update is starting.
2023-03-31 05:27:58    INFO    Environment health has transitioned from Ok to Info. Application update in progress (running for 6 seconds).
2023-03-31 05:28:26    INFO    Deploying new version to instance(s).
2023-03-31 05:28:27    INFO    Batch 1: Starting application deployment on instance(s) [i-03exxxxxx15e].
2023-03-31 05:28:49    INFO    Batch 1: Starting application deployment command execution.
2023-03-31 05:28:51    INFO    Instance deployment successfully generated a 'Procfile'.
2023-03-31 05:28:55    INFO    Instance deployment completed successfully.
2023-03-31 05:28:59    INFO    Batch 1: Completed application deployment command execution.
2023-03-31 05:28:59    INFO    Command execution completed on 1 of 2 instances in environment.
2023-03-31 05:28:59    INFO    Batch 1: Registering instance(s) with the load balancer and waiting for them to be healthy.
2023-03-31 05:31:03    INFO    Batch 1: Completed application deployment.
2023-03-31 05:31:04    INFO    Batch 2: Starting application deployment on instance(s) [i-01bxxxxxx1c0].
2023-03-31 05:31:26    INFO    Batch 2: Starting application deployment command execution.
2023-03-31 05:31:27    INFO    Instance deployment successfully generated a 'Procfile'.
2023-03-31 05:31:31    INFO    Instance deployment completed successfully.
2023-03-31 05:31:35    INFO    Batch 2: Completed application deployment command execution.
2023-03-31 05:31:35    INFO    Command execution completed on 2 of 2 instances in environment.
2023-03-31 05:31:36    INFO    Batch 2: Registering instance(s) with the load balancer and waiting for them to be healthy.

eb health/status

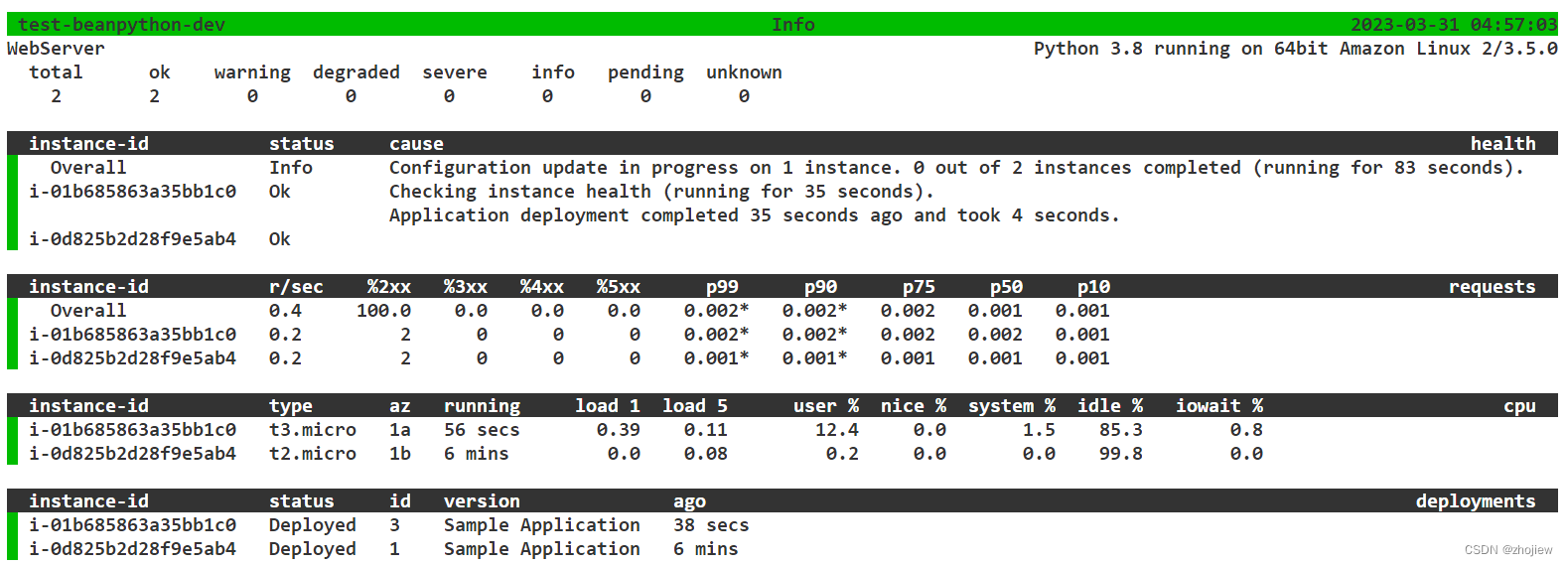

eb health查看当前应用和环境的整体状况

标题和颜色会显示当前状态

降级会导致环境为red状态

eb status功能类似

$ eb status
Environment details for: test-beanpython-dev
  Application name: test-beanpython
  Region: cn-north-1
  Deployed Version: Sample Application
  Environment ID: e-npzn8apcmw
  Platform: arn:aws-cn:elasticbeanstalk:cn-north-1::platform/Python 3.8 running on 64bit Amazon Linux 2/3.5.0
  Tier: WebServer-Standard-1.0
  CNAME: test-beanpython-dev.cn-north-1.eb.amazonaws.com.cn
  Updated: 2023-03-31 05:02:28.576000+00:00
  Status: Ready
  Health: Green

eb labs

下载当前应用部署包

$ eb labs download
Downloading application version...
Application version downloaded to: xxx/test-beanpython/.elasticbeanstalk/downloads/sample.zip

创建cw监控，会在.ebextensions下创建配置文件，需要重新部署

$ eb labs setup-cloudwatchlogs
.ebextensions created. In order to complete setup you will need
to check in any changes, (if applicable) and run "eb deploy".
You will also need the cloudwatch log permissions for this IAM User
as well as for the environments instance profile.
For more information see: http://docs.aws.amazon.com/elasticbeanstalk/latest/dg/AWSHowTo.cloudwatchlogs.html

$ ls .ebextensions/
00sample_log.config  cwl-activity-logs-v1.config  cwl-setup-v1.config  eb-logs-v1.config
$ cat 00sample_log.config
files:
  "/opt/elasticbeanstalk/tasks/bundlelogs.d/01-sample-app.conf":
    content: |
      /tmp/sample-app*

  "/opt/elasticbeanstalk/tasks/taillogs.d/01-sample-app.conf":
    content: |
      /tmp/sample-app.log

eb labs setup-ssl可以设置环境的ssl通信加密

eb local

eb local只能在beanstalk和docker环境集成时使用，详细可以看这篇

aws beanstalk 使用docker平台部署beanstalk应用程序

eb logs

可以获取eb环境中ec2实例的日志，可以查看这些日志来对应用程序或配置文件进行故障排除

https://docs.amazonaws.cn/elasticbeanstalk/latest/dg/using-features.logging.html?icmpid=docs_elasticbeanstalk_console

注意：由于beanstalk会将结尾和捆绑日志存储在s3存储桶中，并生成可用于访问日志的预签名url。但是由于中国区的预签名功能只有备案之后才能使用，因此无论是控制台还是cli都会出现401的报错

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-HrKyhNVp-1680242328207)(assets/image-20230331130544565.png)]

eb platform

看样子是管理用户自定义平台版本的命令，详情可以看这篇

aws beanstalk 结合packer创建自定义平台

eb scale

手动扩缩容eb环境对应的asg容量

$ eb scale
usage: eb scale {number} <environment_name> [options ...]

将desired count扩容为2

$ eb scale 2

eb ssh

ssh登录eb实例的快捷命令，可以选择需要登陆的实例id

$ eb ssh
Select an instance to ssh into
1) i-03e208xxxxa9715e
2) i-01bxxxxxxxbb1c0
(default is 1): 1

eb printenv

打印环境变量

$ eb printenv
 Environment Variables:
     PYTHONPATH = /var/app/venv/staging-LQM1lest/bin

进入eb实例查看该路径

$ ls /var/app/venv/staging-LQM1lest/bin
activate  activate.csh  activate.fish  Activate.ps1  gunicorn  pip  pip3  pip3.8  python  python3  python3.8

eb tags

对环境tag的

$ eb tags test-beanpython-dev -l
Showing tags for resource 'arn:aws-cn:elasticbeanstalk:cn-north-1:xxxxxxxx:environment/test-beanpython/test-beanpython-dev':
Key                                 Value
Name                                test-beanpython-dev
elasticbeanstalk:environment-id     e-npzn8apcmw
elasticbeanstalk:environment-name   test-beanpython-dev
