剖析 HashMap 和 HashSet
1. 剖析 HashMap
1.1 Map 接口
Map 有键和值的概念,一个键映射到一个值,Map 按照键存储和访问值,键不能重复,给同一个键重复赋值会覆盖原来的值。数组、ArrayList、LinkedList 可以看作一种特殊的 Map,键为索引,值为对象。
Java 8 中 Map 接口的定义如下所示:
public interface Map<K,V> {
// Query Operations
int size();
boolean isEmpty();
boolean containsKey(Object key);
boolean containsValue(Object value);
V get(Object key);
// Modification Operations
V put(K key, V value);
V remove(Object key);
// Bulk Operations
void putAll(Map<? extends K, ? extends V> m);
void clear();
// Views
Set<K> keySet();//获取Map中键的集合
Collection<V> values();//获取Map中所有值的集合
Set<Map.Entry<K, V>> entrySet();//获取Map中的所有的键值对
interface Entry<K,V> {//嵌套接口,表示一条键值对
K getKey();
V getValue();
V setValue(V value);
boolean equals(Object o);
int hashCode();
public static <K extends Comparable<? super K>, V> Comparator<Map.Entry<K,V>> comparingByKey() {
return (Comparator<Map.Entry<K, V>> & Serializable)
(c1, c2) -> c1.getKey().compareTo(c2.getKey());
}
public static <K, V extends Comparable<? super V>> Comparator<Map.Entry<K,V>> comparingByValue() {
return (Comparator<Map.Entry<K, V>> & Serializable)
(c1, c2) -> c1.getValue().compareTo(c2.getValue());
}
public static <K, V> Comparator<Map.Entry<K, V>> comparingByKey(Comparator<? super K> cmp) {
Objects.requireNonNull(cmp);
return (Comparator<Map.Entry<K, V>> & Serializable)
(c1, c2) -> cmp.compare(c1.getKey(), c2.getKey());
}
public static <K, V> Comparator<Map.Entry<K, V>> comparingByValue(Comparator<? super V> cmp) {
Objects.requireNonNull(cmp);
return (Comparator<Map.Entry<K, V>> & Serializable)
(c1, c2) -> cmp.compare(c1.getValue(), c2.getValue());
}
}
// Comparison and hashing
boolean equals(Object o);
int hashCode();
// Defaultable methods
default V getOrDefault(Object key, V defaultValue) {
V v;
return (((v = get(key)) != null) || containsKey(key))
? v : defaultValue;
}
default void forEach(BiConsumer<? super K, ? super V> action) {
Objects.requireNonNull(action);
for (Map.Entry<K, V> entry : entrySet()) {
K k;
V v;
try {
k = entry.getKey();
v = entry.getValue();
} catch(IllegalStateException ise) {
// this usually means the entry is no longer in the map.
throw new ConcurrentModificationException(ise);
}
action.accept(k, v);
}
}
default void replaceAll(BiFunction<? super K, ? super V, ? extends V> function) {
Objects.requireNonNull(function);
for (Map.Entry<K, V> entry : entrySet()) {
K k;
V v;
try {
k = entry.getKey();
v = entry.getValue();
} catch(IllegalStateException ise) {
// this usually means the entry is no longer in the map.
throw new ConcurrentModificationException(ise);
}
// ise thrown from function is not a cme.
v = function.apply(k, v);
try {
entry.setValue(v);
} catch(IllegalStateException ise) {
// this usually means the entry is no longer in the map.
throw new ConcurrentModificationException(ise);
}
}
}
default V putIfAbsent(K key, V value) {
V v = get(key);
if (v == null) {
v = put(key, value);
}
return v;
}
default boolean remove(Object key, Object value) {
Object curValue = get(key);
if (!Objects.equals(curValue, value) ||
(curValue == null && !containsKey(key))) {
return false;
}
remove(key);
return true;
}
default boolean replace(K key, V oldValue, V newValue) {
Object curValue = get(key);
if (!Objects.equals(curValue, oldValue) ||
(curValue == null && !containsKey(key))) {
return false;
}
put(key, newValue);
return true;
}
default V replace(K key, V value) {
V curValue;
if (((curValue = get(key)) != null) || containsKey(key)) {
curValue = put(key, value);
}
return curValue;
}
default V computeIfAbsent(K key,
Function<? super K, ? extends V> mappingFunction) {
Objects.requireNonNull(mappingFunction);
V v;
if ((v = get(key)) == null) {
V newValue;
if ((newValue = mappingFunction.apply(key)) != null) {
put(key, newValue);
return newValue;
}
}
return v;
}
default V computeIfPresent(K key,
BiFunction<? super K, ? super V, ? extends V> remappingFunction) {
Objects.requireNonNull(remappingFunction);
V oldValue;
if ((oldValue = get(key)) != null) {
V newValue = remappingFunction.apply(key, oldValue);
if (newValue != null) {
put(key, newValue);
return newValue;
} else {
remove(key);
return null;
}
} else {
return null;
}
}
default V compute(K key,
BiFunction<? super K, ? super V, ? extends V> remappingFunction) {
Objects.requireNonNull(remappingFunction);
V oldValue = get(key);
V newValue = remappingFunction.apply(key, oldValue);
if (newValue == null) {
// delete mapping
if (oldValue != null || containsKey(key)) {
// something to remove
remove(key);
return null;
} else {
// nothing to do. Leave things as they were.
return null;
}
} else {
// add or replace old mapping
put(key, newValue);
return newValue;
}
}
default V merge(K key, V value,
BiFunction<? super V, ? super V, ? extends V> remappingFunction) {
Objects.requireNonNull(remappingFunction);
Objects.requireNonNull(value);
V oldValue = get(key);
V newValue = (oldValue == null) ? value :
remappingFunction.apply(oldValue, value);
if(newValue == null) {
remove(key);
} else {
put(key, newValue);
}
return newValue;
}
}
Set 是一个接口,表示的是数学中的基本集合概念,即没有重复的元素集合。Java 8 中 Set 定义为:
public interface Set<E> extends Collection<E>{
}
它扩展了 Collection,但是没有定义任何新的方法,不过,它要求所有的实现者都必须确保 Set 的语义描述,即不能有重复元素。
Map 中的键是没有重复的,所以 keySet() 返回了一个 Set。keySet、values 和 entrySet() 三个有一个共同的特点:它们返回的都是视图,不是复制的值,基于返回值的修改会直接修改 Map 自身。比如:
map.keySet().clear();
会删除所有的键值对。
1.2 HashMap
HashMap 是一个利用哈希表原理来存储元素的集合。遇到冲突时,HashMap 是采用的链地址法来解决,在 JDK1.7 中,HashMap 是由 数组+链表构成的。但是在 JDK1.8 中,HashMap 是由 数组+链表+红黑树构成,新增了红黑树作为底层数据结构,结构变得复杂了,但是效率也变的更高效。下面我们来具体介绍在 JDK1.8 中 HashMap 是如何实现的。
HashMap 中的字段属性如下:
//序列化和反序列化时,通过该字段进行版本一致性验证
private static final long serialVersionUID = 362498820763181265L;
//默认 HashMap 集合初始容量为16(必须是 2 的倍数)
static final int DEFAULT_INITIAL_CAPACITY = 1 << 4; // aka 16
//集合的最大容量,如果通过带参构造指定的最大容量超过此数,默认还是使用此数
static final int MAXIMUM_CAPACITY = 1 << 30;
//默认的填充因子
static final float DEFAULT_LOAD_FACTOR = 0.75f;
//当桶(bucket)上的结点数大于这个值时会转成红黑树(JDK1.8新增)
static final int TREEIFY_THRESHOLD = 8;
//当桶(bucket)上的节点数小于这个值时会转成链表(JDK1.8新增)
static final int UNTREEIFY_THRESHOLD = 6;
/**(JDK1.8新增)
* 当集合中的容量大于这个值时,表中的桶才能进行树形化 ,否则桶内元素太多时会扩容,
* 而不是树形化 为了避免进行扩容、树形化选择的冲突,这个值不能小于 4 * TREEIFY_THRESHOLD
*/
static final int MIN_TREEIFY_CAPACITY = 64;
注意:后面三个字段是 JDK1.8 新增的,主要是用来进行红黑树和链表的互相转换。
HashMap 有如下构造方法:
public HashMap() //默认构造方法
public HashMap(int initialCapacity)
public HashMap(int initialCapacity, float loadFactor)
//以一个已知的Map构造,复制其中所有的键值对到当前Map
public HashMap(Map<? extends K, ? extends V> m)
1.3 HashMap 实现原理
1.3.1 内部组成
HashMap 内部主要有以下成员:
/**
* The table, initialized on first use, and resized as necessary. When allocated, length is always a power of two.
*/
transient Node<K,V>[] table;
/**
* Holds cached entrySet(). Note that AbstractMap fields are used for keySet() and values().
*/
transient Set<Map.Entry<K,V>> entrySet;
/**
* The number of key-value mappings contained in this map.
*/
transient int size;
/**
* The number of times this HashMap has been structurally modified
*/
transient int modCount;
/**
* The next size value at which to resize (capacity * load factor).
*/
int threshold;
/**
* The load factor for the hash table.
*/
final float loadFactor;
table 是一个 Node 类型的数组,其中的每个元素指向一个单向链表,链表中的每个结点表示一个键值对,Node 是一个内部类,它的实例变量和构造方法代码如下:
static class Node<K,V> implements Map.Entry<K,V> {
final int hash;//hash是key的hash值,直接存储hash值是为了比较的时候加快计算
final K key;
V value;
Node<K,V> next;//指向下一个Node结点
Node(int hash, K key, V value, Node<K,V> next) {
this.hash = hash;
this.key = key;
this.value = value;
this.next = next;
}
}

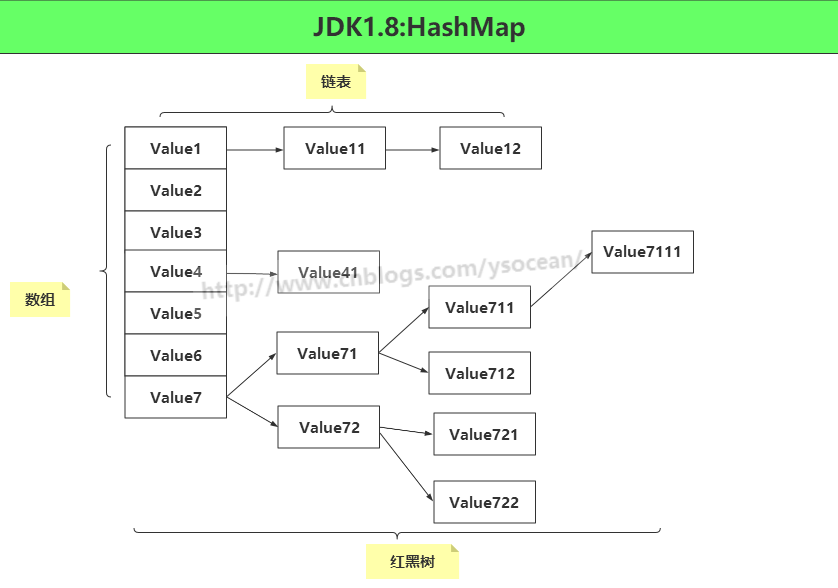

table 开始为空,随着键值对的添加进行扩容。我们知道JDK 1.8中 HashMap 是由数组+链表+红黑树
构成,向 HashMap 中插入元素时,如果HashMap 集合的元素已经大于最大承载容量threshold(capacity * loadFactor)
,这里的threshold
不是数组的最大长度。那么必须扩大数组的长度(2倍扩容)
,Java中数组是无法自动扩容的,我们采用的方法是用一个更大的数组代替这个小的数组,就好比以前是用小桶装水,现在小桶装不下了,我们使用一个更大的桶。
JDK1.8融入了红黑树的机制,比较复杂,这里我们先介绍 JDK1.7的扩容源码,便于理解,然后再介绍JDK1.8的源码。
//参数 newCapacity 为新数组的大小
void resize(int newCapacity) {
Entry[] oldTable = table;//引用扩容前的 Entry 数组
int oldCapacity = oldTable.length;
if (oldCapacity == MAXIMUM_CAPACITY) {//扩容前的数组大小如果已经达到最大(2^30)了
threshold = Integer.MAX_VALUE;///修改阈值为int的最大值(2^31-1),这样以后就不会扩容了
return;
}
Entry[] newTable = new Entry[newCapacity];//初始化一个新的Entry数组
transfer(newTable, initHashSeedAsNeeded(newCapacity));//将数组元素转移到新数组里面
table = newTable;
threshold = (int)Math.min(newCapacity * loadFactor, MAXIMUM_CAPACITY + 1);//修改阈值
}
void transfer(Entry[] newTable, boolean rehash) {
int newCapacity = newTable.length;
for (Entry<K,V> e : table) {//遍历数组
while(null != e) {
Entry<K,V> next = e.next;
if (rehash) {
e.hash = null == e.key ? 0 : hash(e.key);
}
int i = indexFor(e.hash, newCapacity);//重新计算每个元素在数组中的索引位置
e.next = newTable[i];//标记下一个元素,添加是链表头添加
newTable[i] = e;//将元素放在链上
e = next;//访问下一个 Entry 链上的元素
}
}
}
通过方法我们可以看到,JDK1.7 中首先是创建一个新的大容量数组,然后依次重新计算原集合所有元素的索引,然后重新赋值。如果数组某个位置发生了 hash 冲突,使用的是单链表的头插入方法
,同一位置的新元素总是放在链表的头部,这样与原集合链表对比,扩容之后的可能就是倒序的链表了。
下面我们再看看 JDK1.8 的扩容代码:
final Node<K,V>[] resize() {
Node<K,V>[] oldTab = table;
int oldCap = (oldTab == null) ? 0 : oldTab.length;//原数组如果为null,则长度赋值为0
int oldThr = threshold;
int newCap, newThr = 0;
if (oldCap > 0) {//如果原数组长度 > 0
if (oldCap >= MAXIMUM_CAPACITY) {//数组大小如果已经大于等于最大值(2^30)
threshold = Integer.MAX_VALUE;//修改阈值为int的最大值(2^31-1),这样以后就不会扩容了
return oldTab;
}
//原数组长度大于等于初始化长度16,并且原数组长度扩大1倍也小于2^30次方
else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
oldCap >= DEFAULT_INITIAL_CAPACITY)
newThr = oldThr << 1; // double threshold (阈值扩大一倍)
}
else if (oldThr > 0) // 旧阈值大于0,则将新容量直接等于旧阈值
newCap = oldThr;
else { // 旧阈值 = 0 并且 原数组长度 = 0(集合未进行初始化)
newCap = DEFAULT_INITIAL_CAPACITY;//数组长度初始化为 16
newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);//阈值=16*0.75=12
}
//计算新的阈值上限
if (newThr == 0) {
float ft = (float)newCap * loadFactor;
newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
(int)ft : Integer.MAX_VALUE);
}
threshold = newThr;
@SuppressWarnings({"rawtypes","unchecked"})
Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
table = newTab;
if (oldTab != null) {
//把每个bucket都移动到新的bucket中
for (int j = 0; j < oldCap; ++j) {
Node<K,V> e;
if ((e = oldTab[j]) != null) {
oldTab[j] = null;//原数据j位置置为null,便于垃圾回收
//如果节点为空,则直接计算在新数组中的位置,放入即可
if (e.next == null)//数组没有下一个引用(不是链表)
newTab[e.hash & (newCap - 1)] = e;
else if (e instanceof TreeNode)//红黑树,拆分树节点
((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
else { // preserve order
Node<K,V> loHead = null, loTail = null;//保存在原有索引的链表
Node<K,V> hiHead = null, hiTail = null;//保存在新索引的链表
Node<K,V> next;
do {
next = e.next;
//哈希值和原数组长度进行&操作,为0则在原数组的索引位置,非0则在原数组索引位置+原数组长度的新位置
//原索引
if ((e.hash & oldCap) == 0) {
if (loTail == null)
loHead = e;
else
loTail.next = e;
loTail = e;
}
//原索引+oldCap
else {
if (hiTail == null)
hiHead = e;
else
hiTail.next = e;
hiTail = e;
}
} while ((e = next) != null);
//原索引放到bucket里
if (loTail != null) {
loTail.next = null;
newTab[j] = loHead;
}
//原索引+oldCap放到bucket里
if (hiTail != null) {
hiTail.next = null;
newTab[j + oldCap] = hiHead;
}
}
}
}
}
return newTab;
}

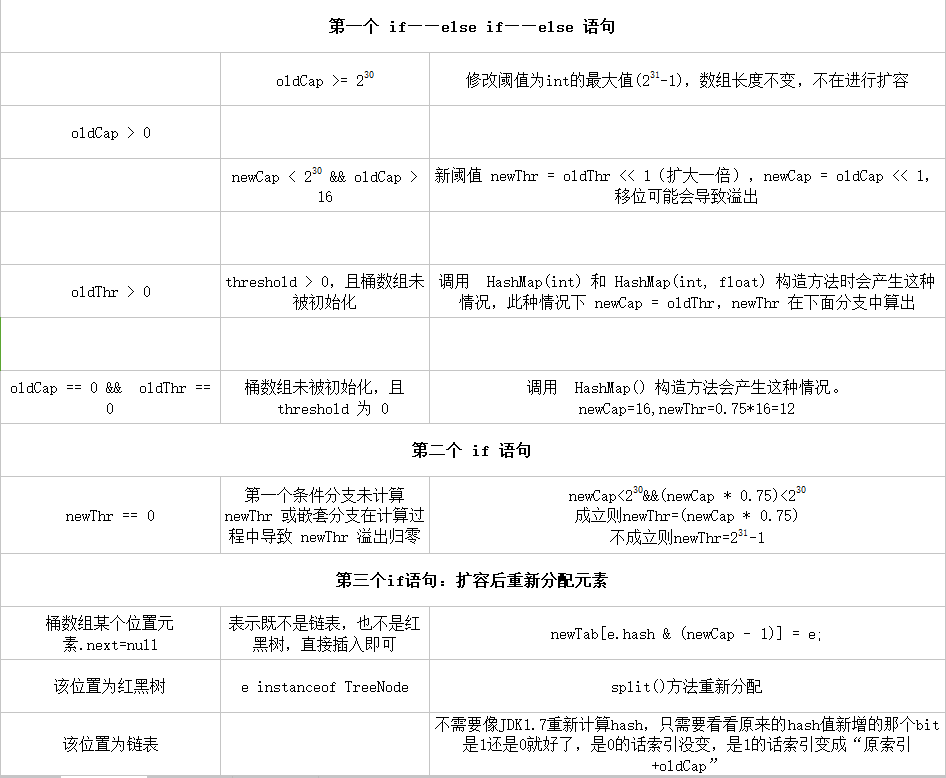

该方法分为两部分,首先是计算新桶数组的容量 newCap 和新阈值 newThr,然后将原集合的元素重新映射到新集合中。
相比于JDK1.7,1.8使用的是2次幂的扩展(指长度扩为原来2倍),所以,元素的位置要么是在原位置,要么是在原位置再移动2次幂的位置。我们在扩充HashMap的时候,不需要像JDK1.7的实现那样重新计算hash,只需要看看原来的hash值新增的那个bit是1还是0就好了,是0的话索引没变,是1的话索引变成“原索引+oldCap”。有一点注意区别,JDK1.7中rehash的时候,旧链表迁移新链表的时候,如果在新表的数组索引位置相同,则链表元素会倒置,但JDK1.8不会倒置。
hash冲突的几种情况:
-
两个节点的key值相同(hash值一定相同),导致冲突
-
两个节点的key值不同,由于hash函数的局限性导致hash值相同,导致冲突
-
两个节点的key值不同,hash值不同,但hash值对数组长度取模后相同,导致冲突
1.3.2 构造方法
/**
* Constructs an empty <tt>HashMap</tt> with the default initial capacity
* (16) and the default load factor (0.75).
*/
public HashMap() {
this.loadFactor = DEFAULT_LOAD_FACTOR; // all other fields defaulted
}
/**
* Constructs an empty <tt>HashMap</tt> with the specified initial capacity
* (16) and the default load factor (0.75).
*/
public HashMap(int initialCapacity) {
this(initialCapacity, DEFAULT_LOAD_FACTOR);
}
/**
* Constructs an empty <tt>HashMap</tt> with the specified initial capacity
* (16) and the specified load factor.
*/
public HashMap(int initialCapacity, float loadFactor) {
if (initialCapacity < 0)
throw new IllegalArgumentException("Illegal initial capacity: " +
initialCapacity);
if (initialCapacity > MAXIMUM_CAPACITY)
initialCapacity = MAXIMUM_CAPACITY;
if (loadFactor <= 0 || Float.isNaN(loadFactor))
throw new IllegalArgumentException("Illegal load factor: " +
loadFactor);
this.loadFactor = loadFactor;
this.threshold = tableSizeFor(initialCapacity);
}
/**
* Constructs a new <tt>HashMap</tt> with the same mappings as the
* specified <tt>Map</tt>. The <tt>HashMap</tt> is created with
* default load factor (0.75) and an initial capacity sufficient to
* hold the mappings in the specified <tt>Map</tt>.
*/
public HashMap(Map<? extends K, ? extends V> m) {
this.loadFactor = DEFAULT_LOAD_FACTOR;
putMapEntries(m, false);
}
1.3.3 保存键值对
下面,我们看一下 HashMap 是如何把键值对保存起来的,代码为:
public V put(K key, V value) {
return putVal(hash(key), key, value, false, true);
}
/**
* @param onlyIfAbsent true 表示不要更改现有值
* @param evict false表示table处于创建模式
*/
final V putVal(int hash, K key, V value, boolean onlyIfAbsent, boolean evict) {
Node<K,V>[] tab; Node<K,V> p; int n, i;
if ((tab = table) == null || (n = tab.length) == 0)//判断键值对数组 table 是否为空
n = (tab = resize()).length;
//根据键值key计算hash值得到插入的数组索引i
if ((p = tab[i = (n - 1) & hash]) == null)
//找到key值对应的位置并且是第一个,直接插入
tab[i] = newNode(hash, key, value, null);//tab[i] = null,直接新建节点添加
else {//tab[i] != null
Node<K,V> e; K k;
//判断table[i]的首个元素是否和key一样,如果相同直接覆盖value
if (p.hash == hash &&
((k = p.key) == key || (key != null && key.equals(k))))
e = p;
//判断table[i] 是否为TreeNode,即table[i] 是否是红黑树,如果是红黑树,则直接在树中插入键值对
else if (p instanceof TreeNode)
e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
//如果不是TreeNode的话,即为链表,然后遍历链表table[i]
else {
for (int binCount = 0; ; ++binCount) {
//链表的尾端也没有找到key值相同的节点,则生成一个新的Node
//并且判断链表的节点个数是不是到达转换成红黑树的上界达到,则转换成红黑树
if ((e = p.next) == null) {
//创建链表节点并插入尾部
p.next = newNode(hash, key, value, null);
//判断链表长度是否到达8,达到8的话把链表转换为红黑树
if (binCount >= TREEIFY_THRESHOLD - 1) // binCount >= 7
treeifyBin(tab, hash);
break;
}
if (e.hash == hash &&
((k = e.key) == key || (key != null && key.equals(k))))
break;
p = e;
}
}
if (e != null) { // existing mapping for key
V oldValue = e.value;
if (!onlyIfAbsent || oldValue == null)
e.value = value;
afterNodeAccess(e);
return oldValue;
}
}
++modCount;
if (++size > threshold)
resize();
afterNodeInsertion(evict);
return null;
}
putVal 方法中的 hash 方法是用来计算 key 的 hash 值的,HashMap 的哈希算法为:
static final int hash(Object key) {
int h;
return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}
i = (table.length - 1) & hash;//这一步是在后面添加元素putVal()方法中进行位置的确定
主要分为三步:
①、取 hashCode 值: key.hashCode()
②、高位参与运算:h>>>16
③、取模运算:(n-1) & hash
这里获取 hashCode()
方法的值是变量,但是我们知道,对于任意给定的对象,只要它的 hashCode()
返回值相同,那么程序调用 hash(Object key)
所计算得到的 hash 码值总是相同的。
为了让数组元素分布均匀,我们首先想到的是把获得的 hash 码对数组长度取模运算( hash%length
),但是计算机都是二进制进行操作,取模运算相对开销还是很大的,那该如何优化呢?
HashMap 使用的方法很巧妙,它通过 hash & (table.length -1)
来得到该对象的保存位,我们知道 HashMap 底层数组的长度总是2的n次方,这是HashMap在速度上的优化。当 length 总是2的n次方时,hash & (length-1)
运算等价于对 length 取模,也就是 hash%length
,但是&比%具有更高的效率。比如 n % 32 = n & (32 -1)
下面,我们再接着回到 putValue 方法中,其实现过程如下:
①、判断键值对数组 table 是否为空或为null,否则执行resize()
进行扩容;
②、根据键值key计算hash值得到插入的数组索引 i,如果table[i]==null
,直接新建节点添加,转向⑥,如果table[i]不为空,转向③;
③、判断table[i]的首个元素是否和key一样,如果相同直接覆盖value,否则转向④,这里的相同指的是hashCode以及equals;
④、判断table[i] 是否为TreeNode,即table[i] 是否是红黑树,如果是红黑树,则直接在树中插入键值对,否则转向⑤;
⑤、遍历table[i],判断链表长度是否大于8,大于8的话把链表转换为红黑树,在红黑树中执行插入操作,否则进行链表的插入操作;遍历过程中若发现key已经存在直接覆盖value即可;
⑥、插入成功后,判断实际存在的键值对数量size是否超过了最大容量threshold,如果超过,进行扩容。
⑦、如果新插入的key不存在,则返回null,如果新插入的key存在,则返回原key对应的value值(注意新插入的value会覆盖原value值)。
其中,要注意这两行代码:
if (++size > threshold)//超过最大容量,进行扩容
resize();
这里有个考点,我们知道 HashMap 是由数组+链表+红黑树(JDK1.8)组成,如果在添加元素时,发生冲突,会将冲突的数放在链表上,当链表长度超过8时,会自动转换成红黑树。在插入元素的时候,因为 JDK1.7 是用单链表进行的纵向延伸,采用头插法就是能够提高插入的效率,但是也会容易出现逆序且环形链表死循环问题。但是在 JDK1.8 之后是因为加入了红黑树使用尾插法,能够避免出现逆序且链表死循环的问题。
1.3.4 查找方法
首先通过 key 找到计算索引,找到桶位置,先检查第一个节点,如果是则返回,如果不是,则遍历其后面的链表或者红黑树。是树节点的话,就以树节点的方式遍历整棵树来查找,不是的话那就说明存储结构是链表,以遍历链表的方式查找。其余情况全部返回 null。
public V get(Object key) {
Node<K,V> e;
return (e = getNode(hash(key), key)) == null ? null : e.value;
}
final Node<K,V> getNode(int hash, Object key) {
Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
if ((tab = table) != null && (n = tab.length) > 0 &&
(first = tab[(n - 1) & hash]) != null) {
//查看第一个元素
if (first.hash == hash && // always check first node
((k = first.key) == key || (key != null && key.equals(k))))
return first;
if ((e = first.next) != null) {
if (first instanceof TreeNode)
return ((TreeNode<K,V>)first).getTreeNode(hash, key);
do {
if (e.hash == hash &&
((k = e.key) == key || (key != null && key.equals(k))))
return e;
} while ((e = e.next) != null);
}
}
return null;
}
containsKey 方法的逻辑与get是类似的,具体代码为:
public boolean containsKey(Object key) {
return getNode(hash(key), key) != null;
}
HashMap 可以方便高效的按照键进行操作,但如果要根据值进行操作,则需要遍历,containsValue 方法的代码为:
public boolean containsValue(Object value) {
Node<K,V>[] tab; V v;
if ((tab = table) != null && size > 0) {
//遍历桶
for (int i = 0; i < tab.length; ++i) {
//遍历桶中的每个节点元素
for (Node<K,V> e = tab[i]; e != null; e = e.next) {
if ((v = e.value) == value ||
(value != null && value.equals(v)))
return true;
}
}
}
return false;
}
1.3.5 根据键删除键值对
HashMap 删除元素首先是要找到 桶的位置,然后如果是链表,则进行链表遍历,找到需要删除的元素后,进行删除;如果是红黑树,也是进行树的遍历,找到元素删除后,进行平衡调节,注意,当红黑树的节点数小于 6 时,会转化成链表。
public V remove(Object key) {
Node<K,V> e;
return (e = removeNode(hash(key), key, null, false, true)) == null ?
null : e.value;
}
final Node<K,V> removeNode(int hash, Object key, Object value,
boolean matchValue, boolean movable) {
Node<K,V>[] tab; Node<K,V> p; int n, index;
//(n - 1) & hash 找到桶的位置
if ((tab = table) != null && (n = tab.length) > 0 &&
(p = tab[index = (n - 1) & hash]) != null) {
Node<K,V> node = null, e; K k; V v;
//如果键的值与链表第一个节点相等,则将 node 指向该节点
if (p.hash == hash &&
((k = p.key) == key || (key != null && key.equals(k))))
node = p;
//如果桶节点存在下一个节点
else if ((e = p.next) != null) {
if (p instanceof TreeNode)//结点为红黑树
node = ((TreeNode<K,V>)p).getTreeNode(hash, key);//找到需要删除的红黑树节点
else {//结点为链表
do {//遍历链表,找到待删除的节点
if (e.hash == hash &&
((k = e.key) == key ||
(key != null && key.equals(k)))) {
node = e;
break;
}
p = e;
} while ((e = e.next) != null);
}
}
//删除节点,并进行调节红黑树平衡
if (node != null && (!matchValue || (v = node.value) == value ||
(value != null && value.equals(v)))) {
if (node instanceof TreeNode)
((TreeNode<K,V>)node).removeTreeNode(this, tab, movable);
else if (node == p)
tab[index] = node.next;
else
p.next = node.next;
++modCount;
--size;
afterNodeRemoval(node);
return node;
}
}
return null;
}
1.3.6 遍历元素
首先构造一个 HashMap 集合:
HashMap<String, Integer> map = new HashMap<>();
map.put("a", 10);
map.put("b", 20);
map.put("c", 30);
①、分别获取 key 集合和 value 集合。
for(String key : map.keySet()){
System.out.println(key);
}
for(Integer value : map.values()){
System.out.println(value);
}
②、获取 key 集合,然后遍历key集合,根据key分别得到相应value
Set<String> keySet = map.keySet();
for(String str : keySet){//增强for循环实际的底层就是Iterator实现的
System.out.println(str+": "+map.get(str));
}
③、得到 Entry 集合,然后遍历 Entry
Set<Map.Entry<String, Integer>> entrySet = map.entrySet();
for(Map.Entry<String, Integer> entry: entrySet){
System.out.println(entry.getKey()+": "+entry.getValue());
}
④、迭代(使用Iterator)
Iterator<Map.Entry<String, Integer>> ite = map.entrySet().iterator();
while(ite.hasNext()){
Map.Entry<String, Integer> mapEntry = ite.next();
System.out.println(mapEntry.getKey()+": "+mapEntry.getValue());
}
基本上使用第三种方法是性能最好的,
第一种遍历方法在我们只需要 key 集合或者只需要 value 集合时使用;
第二种方法效率很低,不推荐使用;
第四种方法效率也挺好,关键是在遍历的过程中我们可以对集合中的元素进行删除。
1.3 HashMap 总结
①、基于JDK1.8的HashMap是由数组+链表+红黑树组成,当链表长度超过 8 时会自动转换成红黑树,当红黑树节点个数小于 6 时,又会转化成链表。相对于早期版本的 JDK HashMap 的实现,新增了红黑树作为底层数据结构,在数据量较大且哈希碰撞较多时,能够极大的增加检索的效率。
②、允许 key 和 value 都为 null。允许 key 重复,key 重复会被覆盖,value 允许重复。
③、不是线程安全的。
④、无序(遍历HashMap得到元素的顺序不是按照插入的顺序)
⑤、根据键保存和获取值的效率比较高,为O(1)。
2. 剖析 HashSet
在上面我们提到过 Set 接口,Map 接口的两个方法 keySet 和 entrySet 返回的都是 Set,这里介绍 Set 接口的一个重要实现类 HashSet。与 HashMap 类似,字面上,HashSet 由两个单词构成,Hash 和 Set。其中,Set 表示接口,实现 Set 的方式也有多种,各有特点,HashSet 实现的方式利用了 Hash,下面,我们来看一下 HashSet 的用法,然后看实现原理,最后总结分析 HashSet 的特点。
2.1 Set 接口
Set 表示的是没有重复元素、且不保证顺序的容器接口,它扩展了 Collection,但没有定义任何新的方法,不过,对于其中的一些方法,它有自己的规范。Set 接口的完整定义如下:
public interface Set<E> extends Collection<E> {
// Query Operations
int size();
boolean isEmpty();
boolean contains(Object o);
Iterator<E> iterator();
Object[] toArray();
<T> T[] toArray(T[] a);
// Modification Operations
boolean add(E e);
boolean remove(Object o);
// Bulk Operations
boolean containsAll(Collection<?> c);
boolean addAll(Collection<? extends E> c);
boolean retainAll(Collection<?> c);
boolean removeAll(Collection<?> c);
void clear();
// Comparison and hashing
boolean equals(Object o);
int hashCode();
@Override
default Spliterator<E> spliterator() {
return Spliterators.spliterator(this, Spliterator.DISTINCT);
}
}
2.1 HashSet
与 HashMap 类似, HashSet 的构造方法有:
public HashSet()
public HashSet(int initialCapacity)
public HashSet(int initialCapacity, float loadFactor)
HashSet(int initialCapacity, float loadFactor, boolean dummy)
public HashSet(Collection<? extends E> c)
initialCapacity
和 loadFactor
的含义和 HashMap 中的一样。
与 HashMap 类似,HashSet 也要求 元素重写 hashCode 和 equals 方法,且对于两个对象,如果 equals 相同,则 hashCode 也必须相同,如果是自定义类,则需要注意这一点。
HashSet 有很多应用场景,比如:
(1)排重,如果对排重后的元素没有顺序要求,那么HashSet 可以很方便的用于排重。
(2)保存特殊值,根据是否为特殊值判断是否进行特殊处理
(3)集合运算。
2.3 HashSet 实现原理
2.3.1 HashSet 内部组成
HashSet 内部是用 HashMap 实现的,它的内部有一个 HashMap 的实例变量,如下所示:
private transient HashMap<E,Object> map;
我们知道,Map 有键和值,HashSet 相当于只有键,值都是相同的固定值,这个值的定义如下:
private static final Object PRESENT = new Object();
2.3.2 HashSet 构造方法
HashSet 中有五个构造方法:
/**
* Constructs a new, empty set; the backing <tt>HashMap</tt> instance
* has default initial capacity (16) and load factor (0.75).
*/
public HashSet() {
map = new HashMap<>();
}
/**
* Constructs a new, empty set; the backing <tt>HashMap</tt> instance has the specified initial capacity and
* default load factor (0.75).
*/
public HashSet(int initialCapacity) {
map = new HashMap<>(initialCapacity);
}
/**
* Constructs a new, empty set; the backing <tt>HashMap</tt> instance has
* the specified initial capacity and the specified load factor.
*/
public HashSet(int initialCapacity, float loadFactor) {
map = new HashMap<>(initialCapacity, loadFactor);
}
/**
* Constructs a new, empty linked hash set. (This package private constructor is only used
* by LinkedHashSet.) The backing HashMap instance is a LinkedHashMap with the specified initial
* capacity and the specified load factor.
*/
HashSet(int initialCapacity, float loadFactor, boolean dummy) {//不是对外开放的构造方法
map = new LinkedHashMap<>(initialCapacity, loadFactor);
}
/**
* Constructs a new set containing the elements in the specified
* collection. The <tt>HashMap</tt> is created with default load factor
* (0.75) and an initial capacity sufficient to contain the elements in
* the specified collection.
*/
public HashSet(Collection<? extends E> c) {
map = new HashMap<>(Math.max((int) (c.size()/.75f) + 1, 16));
addAll(c);
}
我们可以看到,HashSet 的构造方法主要是调用了 HashMap 的构造方法。
接受 Collection 参数的构造方法稍微不一样,其中代码为:
public HashSet(Collection<? extends E> c) {
map = new HashMap<>(Math.max((int) (c.size()/.75f) + 1, 16));
addAll(c);
}
c.size()/.75f
用于计算 initialCapacity
,0.75f
是 loadFactor
的默认值。
另外,HashSet 中比 HashMap 多了一个带参构造方法(用于LinkedHashSet实现,不对外开放),传入HashMap的初始容量和加载因子,dummy参数用来和上一个构造函数作区分,表明实例化一个LinkedHashMap:
HashSet(int initialCapacity, float loadFactor, boolean dummy) {
map = new LinkedHashMap<>(initialCapacity, loadFactor);
}
该方法调用了 LinkedHashMap 的构造方法:
public LinkedHashMap(int initialCapacity, float loadFactor) {
super(initialCapacity, loadFactor);//调用了HashMap的构造方法
accessOrder = false;
}
2.3.3 增加元素
我们来看一下 add 方法:
public boolean add(E e) {
return map.put(e, PRESENT)==null;
}
就是调用 map 的 put 方法,元素 e 用于键,值就是固定的 PRESENT,put 返回 null 表示原来没有对应的键,添加成功了。HashMap 中的一个键只会保存一份,所以重复添加 HashMap 不会有变化。
2.3.3 查找方法
检查是否包含元素,代码为:
public boolean contains(Object o) {
return map.containsKey(o);
}
就是检查 map 中是否包含对应的键。
2.3.4 删除元素
public boolean remove(Object o) {
return map.remove(o)==PRESENT;
}
就是调用 map 的 remove 方法,返回值为 PRESENT 表示原来有对应的键且删除了。
2.3.5 遍历元素
HashSet 中迭代器的代码为:
public Iterator<E> iterator() {
return map.keySet().iterator();
}
就是返回 map 的 keySet 的迭代器。
其实际应用如下:
首先构造一个 HashSet 集合:
HashSet<String> set = new HashSet<>();
set.add("a");
set.add("b");
set.add("c");
①、使用 Iterator 遍历
Iterator<String> ite = set.iterator();
while(ite.hasNext()){
System.out.println(ite.next());
}
}
②、使用增强 for 循环遍历
for(String key: set){
System.out.println(key);
}
2.3 HashSet 总结
①、内部实现利用了HashMap
②、没有重复元素
③、可以高效的添加、删除元素、判断元素是否存在,效率为 O(1)。
④、没有顺序
⑤、HashSet不是线程安全的
⑥、集合元素可以是null
