第三章高性能存储方案

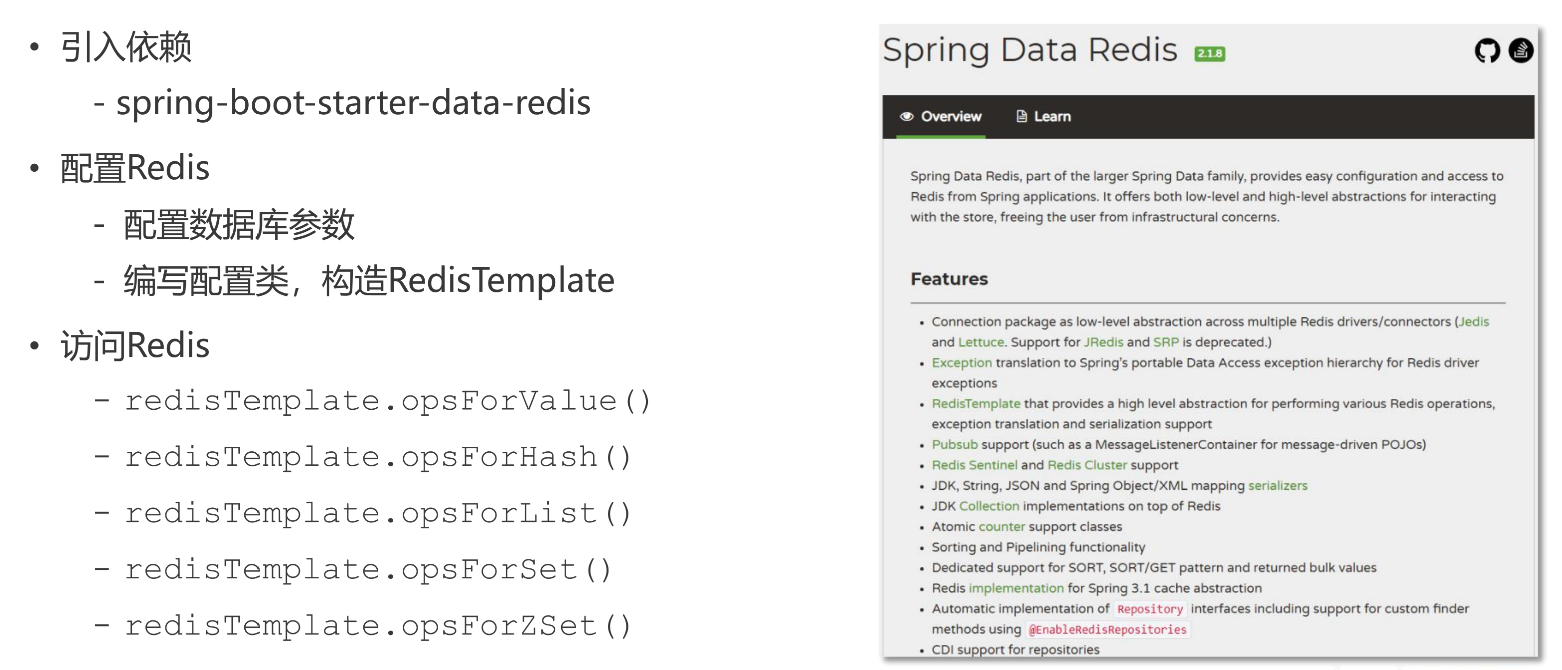

Spring 整合 Redis

Untitled

引入依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

Redis 相关配置类

@Configuration
public class RedisConfig {

    @Bean
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) {
        RedisTemplate<String, Object> template = new RedisTemplate<>();
        template.setConnectionFactory(factory);

        // 设置key的序列化方式
        template.setKeySerializer(RedisSerializer.string());

        // 设置value的序列化方式
        template.setValueSerializer(RedisSerializer.json());

        // 设置hash的key的序列化方式
        template.setHashKeySerializer(RedisSerializer.string());

        // 设置hash的value的序列化方式
        template.setHashValueSerializer(RedisSerializer.json());

        // 让设置生效
        template.afterPropertiesSet();

        return template;
    }

}

测试

@SpringBootTest
@ContextConfiguration(classes = CommunityApplication.class)
public class RedisTests {

    @Autowired
    private RedisTemplate redisTemplate;

    @Test
    public void testStrings() {
        String redisKey = "test:count";

        redisTemplate.opsForValue().set(redisKey, 1);

        System.out.println(redisTemplate.opsForValue().get(redisKey));
        System.out.println(redisTemplate.opsForValue().increment(redisKey));
        System.out.println(redisTemplate.opsForValue().decrement(redisKey));
    }

    @Test
    public void testHashes() {
        String redisKey = "test:user";

        redisTemplate.opsForHash().put(redisKey, "id", 1);
        redisTemplate.opsForHash().put(redisKey, "username", "zhangsan");

        System.out.println(redisTemplate.opsForHash().get(redisKey, "id"));
        System.out.println(redisTemplate.opsForHash().get(redisKey, "username"));
    }

    @Test
    public void testLists() {
        String redisKey = "test:ids";

        redisTemplate.opsForList().leftPush(redisKey, 101);
        redisTemplate.opsForList().leftPush(redisKey, 102);
        redisTemplate.opsForList().leftPush(redisKey, 103);

        System.out.println(redisTemplate.opsForList().size(redisKey));
        System.out.println(redisTemplate.opsForList().index(redisKey, 0));
        System.out.println(redisTemplate.opsForList().range(redisKey, 0, 2));

        System.out.println(redisTemplate.opsForList().leftPop(redisKey));
        System.out.println(redisTemplate.opsForList().leftPop(redisKey));
        System.out.println(redisTemplate.opsForList().leftPop(redisKey));
    }

    @Test
    public void testSets() {
        String redisKey = "test:teachers";

        redisTemplate.opsForSet().add(redisKey, "刘备", "关羽", "张飞", "赵云", "诸葛亮");

        System.out.println(redisTemplate.opsForSet().size(redisKey));
        System.out.println(redisTemplate.opsForSet().pop(redisKey));
        System.out.println(redisTemplate.opsForSet().members(redisKey));
    }

    @Test
    public void testSortedSets() {
        String redisKey = "test:students";

        redisTemplate.opsForZSet().add(redisKey, "唐僧", 80);
        redisTemplate.opsForZSet().add(redisKey, "悟空", 90);
        redisTemplate.opsForZSet().add(redisKey, "八戒", 50);
        redisTemplate.opsForZSet().add(redisKey, "沙僧", 70);
        redisTemplate.opsForZSet().add(redisKey, "白龙马", 60);

        System.out.println(redisTemplate.opsForZSet().zCard(redisKey));
        System.out.println(redisTemplate.opsForZSet().score(redisKey, "八戒"));
        System.out.println(redisTemplate.opsForZSet().reverseRank(redisKey, "八戒"));
        System.out.println(redisTemplate.opsForZSet().reverseRange(redisKey, 0, 2));
    }

    @Test
    public void testKeys() {
        redisTemplate.delete("test:user");

        System.out.println(redisTemplate.hasKey("test:user"));

        redisTemplate.expire("test:students", 10, TimeUnit.SECONDS);
    }

    // 多次访问同一个key
    @Test
    public void testBoundOperations() {
        String redisKey = "test:count";
        BoundValueOperations operations = redisTemplate.boundValueOps(redisKey);
        operations.increment();
        operations.increment();
        operations.increment();
        operations.increment();
        operations.increment();
        System.out.println(operations.get());
    }

    // 编程式事务
    @Test
    public void testTransactional() {
        Object obj = redisTemplate.execute(new SessionCallback() {
            @Override
            public Object execute(RedisOperations operations) throws DataAccessException {
                String redisKey = "test:tx";

                operations.multi(); // 启动事务

                operations.opsForSet().add(redisKey, "zhangsan");
                operations.opsForSet().add(redisKey, "lisi");
                operations.opsForSet().add(redisKey, "wangwu");

                System.out.println(operations.opsForSet().members(redisKey));

                return operations.exec(); // 提交事务
            }
        });
        System.out.println(obj);
    }

}

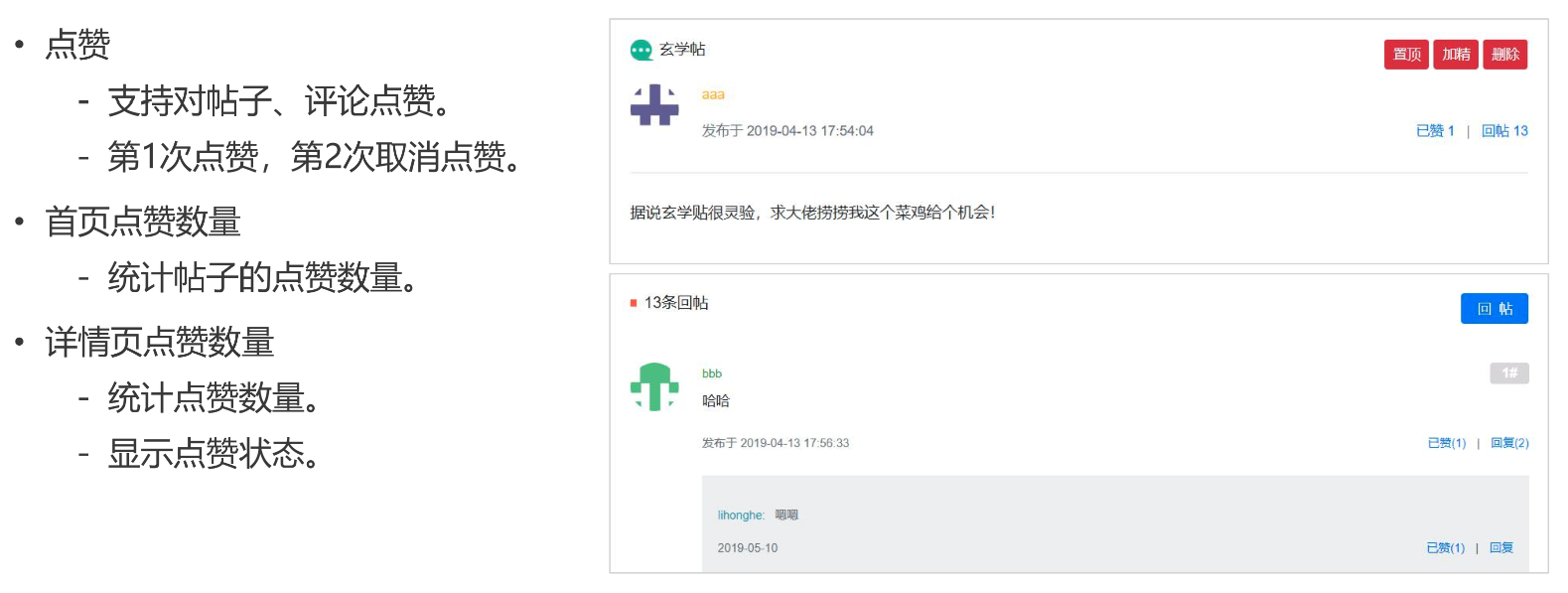

整合点赞功能

Untitled

工具类

RedisKeyUtil.java

public class RedisKeyUtil {

    private static final String SPLIT = ":";
    private static final String PREFIX_ENTITY_LIKE = "like:entity";

    // 某个实体的赞
    // like:entity:entityType:entityId -> set（userId）
    public static String getEntityLikeKey(int entityType, int entityId) {
        return PREFIX_ENTITY_LIKE + SPLIT + entityType + SPLIT + entityId;
    }

}

业务层

LikeService.java

@Service
public class LikeService {

    @Autowired
    private RedisTemplate redisTemplate;

    /**
     * 点赞
     *
     * @param userId     要给哪个帖子或者评论点赞的当前用户
     * @param entityType 实体类型，帖子或者评论，1表示帖子，2表示评论或回复
     * @param entityId   实体的id，帖子id或评论id
     */
    public void like(int userId, int entityType, int entityId) {
        String entityLikeKey = RedisKeyUtil.getEntityLikeKey(entityType, entityId);
        // 判断当前实体是否被点过赞
        Boolean isMember = redisTemplate.opsForSet().isMember(entityLikeKey, userId);
        if (isMember) { // 点过赞就需要取消点赞
            redisTemplate.opsForSet().remove(entityLikeKey, userId);
        } else { // 没点过赞就需要进行点赞操作
            redisTemplate.opsForSet().add(entityLikeKey, userId);
        }
    }

    // 查询实体被点赞的数量
    public long findEntityLikeCount(int entityType, int entityId) {
        String entityLikeKey = RedisKeyUtil.getEntityLikeKey(entityType, entityId);
        return redisTemplate.opsForSet().size(entityLikeKey);
    }

    // 查询某个人对实体的点赞状态（有没有点过赞），1表示点过赞，0表示没点过赞
    public int findEntityLikeStatus(int userId, int entityType, int entityId) {
        String entityLikeKey = RedisKeyUtil.getEntityLikeKey(entityType, entityId);
        return redisTemplate.opsForSet().isMember(entityLikeKey, userId) ? 1 : 0;
    }

}

控制层

HomeController.java

		@RequestMapping(path = "/index", method = RequestMethod.GET)
    public String getIndexPage(Model model, Page page) {
        // 方法调用前，SpringMVC会自动实例化Model和Page，并将Page注入Model
        // 所以，在thymeleaf中可以直接访问Page对象中的数据
        page.setRows(discussPostService.findDiscussPostRows(0));
        page.setPath("/index");

        List<DiscussPost> list = discussPostService.findDiscussPosts(0, page.getOffset(), page.getLimit());
        List<Map<String, Object>> discussPosts = new ArrayList<>();
        if (list != null) {
            for (DiscussPost post : list) {
                Map<String, Object> map = new HashMap<>();
                map.put("post", post);
                User user = userService.findUserById(post.getUserId());
                map.put("user", user);

                // 给帖子显示点赞数量
                long likeCount = likeService.findEntityLikeCount(ENTITY_TYPE_POST, post.getId());
                map.put("likeCount", likeCount);

                discussPosts.add(map);
            }
        }
        model.addAttribute("discussPosts", discussPosts);
        return "/index";
    }

LikeController.java

@Controller
public class LikeController {

    @Autowired
    private LikeService likeService;

    @Autowired
    private HostHolder hostHolder;

    @RequestMapping(path = "/like", method = RequestMethod.POST)
    @ResponseBody
    public String like(int entityType, int entityId) {
        User user = hostHolder.getUser();

        // 点赞
        likeService.like(user.getId(), entityType, entityId);
        // 数量
        long likeCount = likeService.findEntityLikeCount(entityType, entityId);
        // 状态
        int likeStatus = likeService.findEntityLikeStatus(user.getId(), entityType, entityId);
        // 返回的结果
        HashMap<String, Object> map = new HashMap<>();
        map.put("likeCount", likeCount);
        map.put("likeStatus", likeStatus);

        return CommunityUtil.getJSONString(0, null, map);
    }

}

DiscussPostController.java

		@RequestMapping(path = "/detail/{discussPostId}", method = RequestMethod.GET)
    public String getDiscussPost(@PathVariable("discussPostId") int discussPostId, Model model, Page page) {
        // 查询帖子
        DiscussPost post = discussPostService.findDiscusspostById(discussPostId);
        model.addAttribute("post", post);
        // 作者
        User user = userService.findUserById(post.getUserId());
        model.addAttribute("user", user);
        // 帖子的点赞数量
        long likeCount = likeService.findEntityLikeCount(ENTITY_TYPE_POST, discussPostId);
        model.addAttribute("likeCount", likeCount);
        // 帖子的点赞状态
        int likeStatus = hostHolder.getUser() == null ? 0 : likeService.findEntityLikeStatus(hostHolder.getUser().getId(), ENTITY_TYPE_POST, discussPostId);
        model.addAttribute("likeStatus", likeStatus);

        // 查询评论信息
        // 评论分页信息
        page.setLimit(5);
        page.setPath("/discuss/detail/" + discussPostId);
        page.setRows(post.getCommentCount());

        /**
         * 说明：
         * 评论：给帖子的评论
         * 回复：给评论的评论
         * vo：view object
         */
        // 查询当前帖子的所有评论，下面这个commentList是评论列表
        List<Comment> commentList = commentService.findCommentsByEntity(ENTITY_TYPE_POST, post.getId(), page.getOffset(), page.getLimit());

        // 评论的vo列表
        List<Map<String, Object>> commentVoList = new ArrayList<>();
        if (commentList != null) {
            for (Comment comment : commentList) {
                // 一个评论的vo
                Map<String, Object> commentVo = new HashMap<>();
                // 往vo里添加评论
                commentVo.put("comment", comment);
                // 往vo里添加评论的作者
                commentVo.put("user", userService.findUserById(comment.getUserId()));

                // 评论的点赞数量
                likeCount = likeService.findEntityLikeCount(ENTITY_TYPE_COMMENT, comment.getId());
                commentVo.put("likeCount", likeCount);
                // 评论的点赞状态
                likeStatus = hostHolder.getUser() == null ? 0 : likeService.findEntityLikeStatus(hostHolder.getUser().getId(), ENTITY_TYPE_COMMENT, comment.getId());
                commentVo.put("likeStatus", likeStatus);

                // 下面这个replyList是回复列表，（offset：0，limit：Integer.MAX_VALUE  表示有多少评论就查多少评论，不分页）
                List<Comment> replyList = commentService.findCommentsByEntity(ENTITY_TYPE_COMMENT, comment.getId(), 0, Integer.MAX_VALUE);

                // 回复的vo列表
                List<Map<String, Object>> replyVoList = new ArrayList<>();
                if (replyList != null) {
                    for (Comment reply : replyList) {
                        // 一个回复的vo
                        Map<String, Object> replyVo = new HashMap<>();
                        // 往vo里添加回复
                        replyVo.put("reply", reply);
                        // 往vo里添加回复的作者
                        replyVo.put("user", userService.findUserById(reply.getUserId()));
                        /**
                         * 往vo里添加回复的目标
                         * target：0表示普通回复
                         * target：非0 表示回复作者的评论
                         */
                        User target = reply.getTargetId() == 0 ? null : userService.findUserById(reply.getTargetId());
                        replyVo.put("target", target);

                        // 回复的点赞数量
                        likeCount = likeService.findEntityLikeCount(ENTITY_TYPE_COMMENT, reply.getId());
                        replyVo.put("likeCount", likeCount);
                        // 回复的点赞状态
                        likeStatus = hostHolder.getUser() == null ? 0 : likeService.findEntityLikeStatus(hostHolder.getUser().getId(), ENTITY_TYPE_COMMENT, reply.getId());
                        replyVo.put("likeStatus", likeStatus);

                        replyVoList.add(replyVo);
                    }
                }
                commentVo.put("replys", replyVoList);

                // 回复的数量
                int replyCount = commentService.findCommentCount(ENTITY_TYPE_COMMENT, comment.getId());
                commentVo.put("replyCount", replyCount);

                commentVoList.add(commentVo);
            }
        }

        model.addAttribute("comments", commentVoList);

        return "/site/discuss-detail";
    }

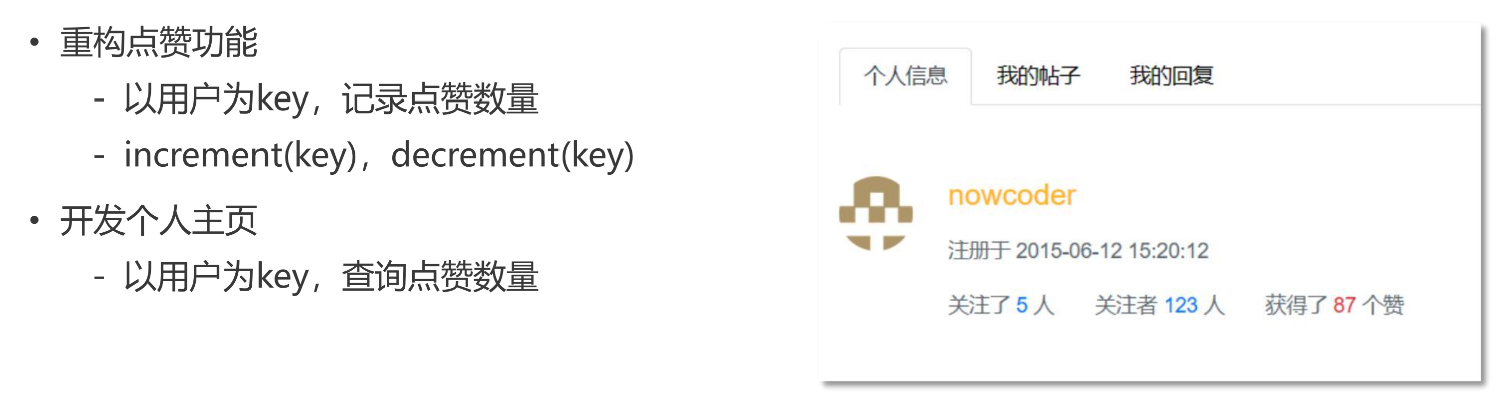

重构点赞功能及开发个人主页

Untitled

工具类

RedisKeyUtil.java

public class RedisKeyUtil {

    private static final String SPLIT = ":";
    private static final String PREFIX_ENTITY_LIKE = "like:entity";
    private static final String PREFIX_USER_LIKE = "like:user";

    // 某个实体的赞
    // like:entity:entityType:entityId -> set（userId）
    public static String getEntityLikeKey(int entityType, int entityId) {
        return PREFIX_ENTITY_LIKE + SPLIT + entityType + SPLIT + entityId;
    }

    // 某个用户的赞
    // like:user:userId -> int
    public static String getUserLikeKey(int userId) {
        return PREFIX_USER_LIKE + SPLIT + userId;
    }

}

业务层

LikeService.java

@Service
public class LikeService {

    @Autowired
    private RedisTemplate redisTemplate;

    /**
     * 点赞
     *
     * @param userId       要给哪个帖子或者评论点赞的当前用户
     * @param entityType   实体类型，帖子或者评论，1表示帖子，2表示评论或回复
     * @param entityId     实体的id，帖子id或评论id
     * @param entityUserId 实体的用户id
     */
    public void like(int userId, int entityType, int entityId, int entityUserId) {
        // 编程式事务
        redisTemplate.execute(new SessionCallback() {
            @Override
            public Object execute(RedisOperations operations) throws DataAccessException {
                String entityLikeKey = RedisKeyUtil.getEntityLikeKey(entityType, entityId);
                // 这里的entityUserId是被赞的那个用户
                String userLikeKey = RedisKeyUtil.getUserLikeKey(entityUserId);
                // 判断当前用户有没有对这个实体点过赞
                boolean isMember = operations.opsForSet().isMember(entityLikeKey, userId);

                // 开启事务
                operations.multi();

                if (isMember) { // 已经点过赞
                    // 需要取消点赞
                    operations.opsForSet().remove(entityLikeKey, userId);
                    operations.opsForValue().decrement(userLikeKey);
                } else {
                    // 没点过赞就需要增加点赞
                    operations.opsForSet().add(entityLikeKey, userId);
                    operations.opsForValue().increment(userLikeKey);
                }

                // 提交事务
                return operations.exec();
            }
        });
    }

    // 查询实体被点赞的数量
    public long findEntityLikeCount(int entityType, int entityId) {
        String entityLikeKey = RedisKeyUtil.getEntityLikeKey(entityType, entityId);
        return redisTemplate.opsForSet().size(entityLikeKey);
    }

    // 查询某个人对实体的点赞状态（有没有点过赞），1表示点过赞，0表示没点过赞
    public int findEntityLikeStatus(int userId, int entityType, int entityId) {
        String entityLikeKey = RedisKeyUtil.getEntityLikeKey(entityType, entityId);
        return redisTemplate.opsForSet().isMember(entityLikeKey, userId) ? 1 : 0;
    }

    // 查询某个用户获得的赞的数量
    public int findUserLikeCount(int userId) {
        String userLikeKey = RedisKeyUtil.getUserLikeKey(userId);
        Integer count = (Integer) redisTemplate.opsForValue().get(userLikeKey);
        return count == null ? 0 : count.intValue();
    }

}

控制层

LikeController.java

@Controller
public class LikeController {

    @Autowired
    private LikeService likeService;

    @Autowired
    private HostHolder hostHolder;

    @RequestMapping(path = "/like", method = RequestMethod.POST)
    @ResponseBody
    public String like(int entityType, int entityId, int entityUserId) {
        User user = hostHolder.getUser();

        // 点赞
        likeService.like(user.getId(), entityType, entityId, entityUserId);
        // 数量
        long likeCount = likeService.findEntityLikeCount(entityType, entityId);
        // 状态
        int likeStatus = likeService.findEntityLikeStatus(user.getId(), entityType, entityId);
        // 返回的结果
        HashMap<String, Object> map = new HashMap<>();
        map.put("likeCount", likeCount);
        map.put("likeStatus", likeStatus);

        return CommunityUtil.getJSONString(0, null, map);
    }

}

UserController.java

		// 个人主页
    @RequestMapping(path = "/profile/{userId}", method = RequestMethod.GET)
    public String getProfilePage(@PathVariable("userId") int userId, Model model) {
        User user = userService.findUserById(userId);
        if (user == null) {
            throw new RuntimeException("该用户不存在！");
        }

        // 用户
        model.addAttribute("user", user);
        // 用户的获赞数量
        int likeCount = likeService.findUserLikeCount(userId);
        model.addAttribute("likeCount", likeCount);

        return "/site/profile";
    }

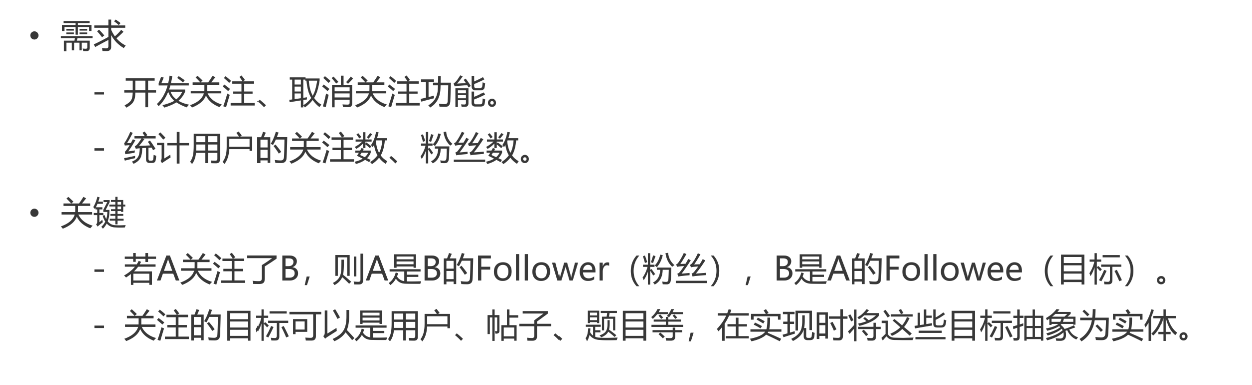

整合关注功能

Untitled

工具类

RedisKeyUtil.java

public class RedisKeyUtil {

    private static final String SPLIT = ":";
    // 关注的目标
    private static final String PREFIX_FOLLOWEE = "followee";
    // 该用户的粉丝
    private static final String PREFIX_FOLLOWER = "follower";

    // 某个用户关注的实体
    // followee:userId:entityType -> zset(entityId,now)
    public static String getFolloweeKey(int userId, int entityType) {
        return PREFIX_FOLLOWEE + SPLIT + userId + SPLIT + entityType;
    }

    // 某个实体拥有的粉丝
    // follower:entityType:entityId -> zset(userId,now)
    public static String getFollowerKey(int entityType, int entityId) {
        return PREFIX_FOLLOWER + SPLIT + entityType + SPLIT + entityId;
    }

}

CommunityConstant.java

public interface CommunityConstant {

    /**
     * 实体类型: 帖子
     */
    int ENTITY_TYPE_POST = 1;

    /**
     * 实体类型: 评论
     */
    int ENTITY_TYPE_COMMENT = 2;

    /**
     * 实体类型: 用户
     */
    int ENTITY_TYPE_USER = 3;

}

业务层

FollowService.java

@Service
public class FollowService {

    @Autowired
    private RedisTemplate redisTemplate;

    // 关注
    public void follow(int userId, int entityType, int entityId) {
        redisTemplate.execute(new SessionCallback() {
            @Override
            public Object execute(RedisOperations operations) throws DataAccessException {
                String followeeKey = RedisKeyUtil.getFolloweeKey(userId, entityType);
                String followerKey = RedisKeyUtil.getFollowerKey(entityType, entityId);

                // 开启事务
                operations.multi();

                operations.opsForZSet().add(followeeKey, entityId, System.currentTimeMillis());
                operations.opsForZSet().add(followerKey, userId, System.currentTimeMillis());

                // 提交事务
                return operations.exec();
            }
        });
    }

    // 取消关注
    public void unfollow(int userId, int entityType, int entityId) {
        redisTemplate.execute(new SessionCallback() {
            @Override
            public Object execute(RedisOperations operations) throws DataAccessException {
                String followeeKey = RedisKeyUtil.getFolloweeKey(userId, entityType);
                String followerKey = RedisKeyUtil.getFollowerKey(entityType, entityId);

                // 开启事务
                operations.multi();

                operations.opsForZSet().remove(followeeKey, entityId);
                operations.opsForZSet().remove(followerKey, userId);

                // 提交事务
                return operations.exec();
            }
        });
    }

    // 查询某个用户关注的实体的数量
    public long findFolloweeCount(int userId, int entityType) {
        String followeeKey = RedisKeyUtil.getFolloweeKey(userId, entityType);
        return redisTemplate.opsForZSet().zCard(followeeKey);
    }

    // 查询实体的粉丝数量
    public long findFollowerCount(int entityType, int entityId) {
        String followerKey = RedisKeyUtil.getFollowerKey(entityType, entityId);
        return redisTemplate.opsForZSet().zCard(followerKey);
    }

    // 判断当前用户是否已关注该实体
    public boolean hasFollowed(int userId, int entityType, int entityId) {
        String followeeKey = RedisKeyUtil.getFolloweeKey(userId, entityType);
        return redisTemplate.opsForZSet().score(followeeKey, entityId) != null;
    }

}

控制层

FollowController.java

@Controller
public class FollowController {

    @Autowired
    private FollowService followService;

    @Autowired
    private HostHolder hostHolder;

    // 关注
    @RequestMapping(path = "/follow", method = RequestMethod.POST)
    @ResponseBody
    public String follow(int entityType, int entityId) {
        User user = hostHolder.getUser();
        followService.follow(user.getId(), entityType, entityId);

        return CommunityUtil.getJSONString(0, "已关注！");
    }

    // 取消关注
    @RequestMapping(path = "/unfollow", method = RequestMethod.POST)
    @ResponseBody
    public String unfollow(int entityType, int entityId) {
        User user = hostHolder.getUser();
        followService.unfollow(user.getId(), entityType, entityId);

        return CommunityUtil.getJSONString(0, "已取消关注！");
    }

}

UserController.java

		// 个人主页
    @RequestMapping(path = "/profile/{userId}", method = RequestMethod.GET)
    public String getProfilePage(@PathVariable("userId") int userId, Model model) {
        User user = userService.findUserById(userId);
        if (user == null) {
            throw new RuntimeException("该用户不存在！");
        }

        // 用户
        model.addAttribute("user", user);
        // 用户的获赞数量
        int likeCount = likeService.findUserLikeCount(userId);
        model.addAttribute("likeCount", likeCount);

        // 用户的关注数量
        long followeeCount = followService.findFolloweeCount(userId, ENTITY_TYPE_USER);
        model.addAttribute("followeeCount", followeeCount);

        // 用户的粉丝数量
        long followerCount = followService.findFollowerCount(ENTITY_TYPE_USER, userId);
        model.addAttribute("followerCount", followerCount);

        // 当前用户对该用户是否已关注
        boolean hasFollowed = false;
        if (hostHolder.getUser() != null) {
            hasFollowed = followService.hasFollowed(hostHolder.getUser().getId(), ENTITY_TYPE_USER, userId);
        }
        model.addAttribute("hasFollowed", hasFollowed);

        return "/site/profile";
    }

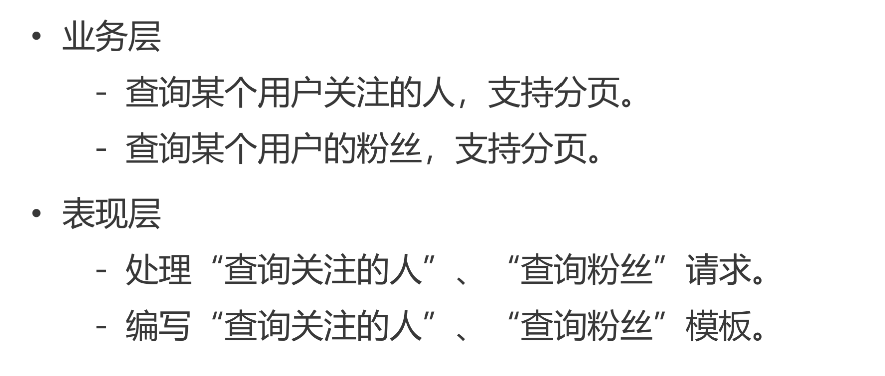

关注列表、粉丝列表

Untitled

业务层

FollowService.java

		// 查询某个用户关注的人
    public List<Map<String, Object>> findFollowees(int userId, int offset, int limit) {
        String followeeKey = RedisKeyUtil.getFolloweeKey(userId, ENTITY_TYPE_USER);
        // 倒序查询，按照score(时间)从大到小
        Set<Integer> targetIds = redisTemplate.opsForZSet().reverseRange(followeeKey, offset, offset + limit - 1);
        if (targetIds == null) {
            return null;
        }
        List<Map<String, Object>> list = new ArrayList<>();
        for (Integer targetId : targetIds) {
            Map<String, Object> map = new HashMap<>();
            User user = userService.findUserById(targetId);
            map.put("user", user);
            Double score = redisTemplate.opsForZSet().score(followeeKey, targetId);
            // 将毫秒数转成时间
            map.put("followTime", new Date(score.longValue()));
            list.add(map);
        }
        return list;
    }

    // 查询某个用户的粉丝
    public List<Map<String, Object>> findFollowers(int userId, int offset, int limit) {
        String followerKey = RedisKeyUtil.getFollowerKey(ENTITY_TYPE_USER, userId);
        Set<Integer> targetIds = redisTemplate.opsForZSet().reverseRange(followerKey, offset, offset + limit - 1);
        if (targetIds == null) {
            return null;
        }
        List<Map<String, Object>> list = new ArrayList<>();
        for (Integer targetId : targetIds) {
            Map<String, Object> map = new HashMap<>();
            User user = userService.findUserById(targetId);
            map.put("user", user);
            Double score = redisTemplate.opsForZSet().score(followerKey, targetId);
            // 将毫秒数转成时间
            map.put("followTime", new Date(score.longValue()));
            list.add(map);
        }
        return list;
    }

控制层

FollowController.java

		@RequestMapping(path = "/followees/{userId}", method = RequestMethod.GET)
    public String getFollowees(@PathVariable("userId") int userId, Page page, Model model) {
        User user = userService.findUserById(userId);
        if (user == null) {
            throw new RuntimeException("该用户不存在！");
        }
        model.addAttribute("user", user);

        // 设置分页信息
        page.setLimit(5);
        page.setPath("/followees/" + userId);
        page.setRows((int) followService.findFolloweeCount(userId, ENTITY_TYPE_USER));

        // 当前用户的关注列表
        List<Map<String, Object>> userList = followService.findFollowees(userId, page.getOffset(), page.getLimit());
        if (userList != null) {
            // 遍历关注列表
            for (Map<String, Object> map : userList) {
                // 关注列表的每一个用户
                User u = (User) map.get("user");
                // 当前用户对关注列表的每个用户的关注状态
                map.put("hasFollowed", hasFollowed(u.getId()));
            }
        }
        model.addAttribute("users", userList);

        return "/site/followee";
    }

    // 判断当前用户对这个用户(userId)的关注状态
    private boolean hasFollowed(int userId) {
        // 如果当前用户没有登录直接返回false就行
        if (hostHolder.getUser() == null) {
            return false;
        }
        return followService.hasFollowed(hostHolder.getUser().getId(), ENTITY_TYPE_USER, userId);
    }

    @RequestMapping(path = "/followers/{userId}", method = RequestMethod.GET)
    public String getFollowers(@PathVariable("userId") int userId, Page page, Model model) {
        User user = userService.findUserById(userId);
        if (user == null) {
            throw new RuntimeException("该用户不存在！");
        }
        model.addAttribute("user", user);

        // 设置分页信息
        page.setLimit(5);
        page.setPath("/followers/" + userId);
        page.setRows((int) followService.findFollowerCount(ENTITY_TYPE_USER, userId));

        // 当前用户的粉丝列表
        List<Map<String, Object>> userList = followService.findFollowers(userId, page.getOffset(), page.getLimit());
        if (userList != null) {
            // 遍历粉丝列表
            for (Map<String, Object> map : userList) {
                // 粉丝列表的每一个用户
                User u = (User) map.get("user");
                // 当前用户对粉丝列表的每个用户的关注状态
                map.put("hasFollowed", hasFollowed(u.getId()));
            }
        }
        model.addAttribute("users", userList);

        return "/site/follower";
    }

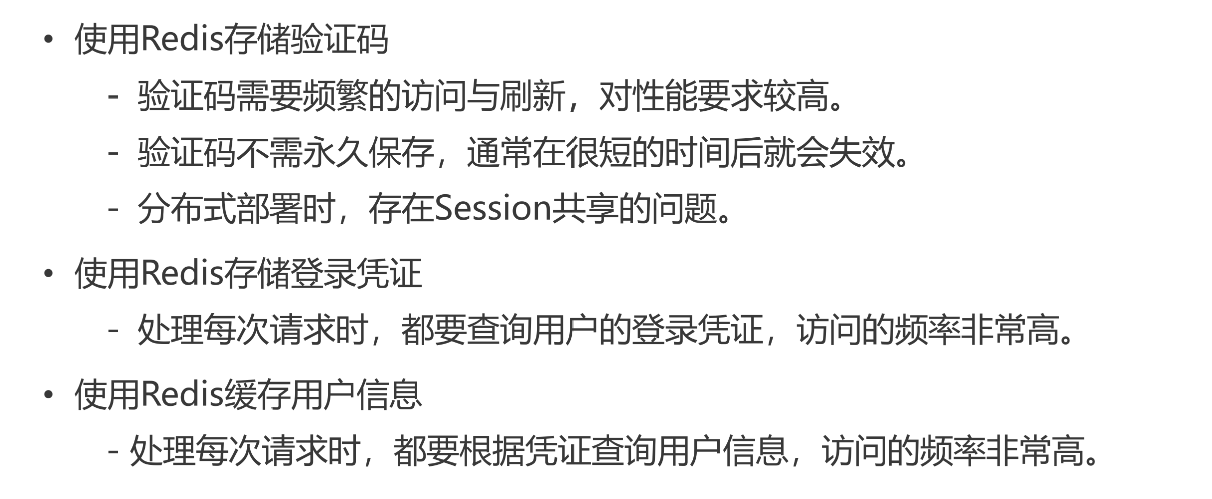

优化登录模块

Untitled

使用 Redis 存储验证码

工具类

RedisKeyUtil.java

public class RedisKeyUtil {

    // 验证码
    private static final String PREFIX_KAPTCHA = "kaptcha";

    // 登录验证码，owner代表临时令牌
    public static String getKaptchaKey(String owner) {
        return PREFIX_KAPTCHA + SPLIT + owner;
    }

}

控制层

LoginController.java

		// 生成验证码的方法
    @RequestMapping(path = "/kaptcha", method = RequestMethod.GET)
    public void getKaptcha(HttpServletResponse response /*, HttpSession session*/) { // 因为验证码属于敏感数据，所以存在session比较合适
        // 生成验证码文本
        String text = kaptchaProducer.createText();
        // 通过验证码文本生成验证码图片
        BufferedImage image = kaptchaProducer.createImage(text);

        // 将验证码存入session
        //session.setAttribute("kaptcha", text); 替换成下面的redis

        // 验证码的归属者
        String kaptchaOwner = CommunityUtil.generateUUID();
        Cookie cookie = new Cookie("kaptchaOwner", kaptchaOwner);
        cookie.setMaxAge(60); // cookie失效时间为60秒
        cookie.setPath(contextPath); // cookie在整个路径范围都有效
        response.addCookie(cookie);
        // 将验证码存入redis
        String redKey = RedisKeyUtil.getKaptchaKey(kaptchaOwner);
        redisTemplate.opsForValue().set(redKey, text, 60, TimeUnit.SECONDS); // 验证码过期时间60s

        // 将验证码图片输出给浏览器
        response.setContentType("image/png"); // 设置传输的格式
        try {
            OutputStream os = response.getOutputStream(); // 获取输出字节流
            ImageIO.write(image, "png", os);
        } catch (IOException e) {
            logger.error("响应验证码失败：" + e.getMessage());
        }
    }

    // 登录
    @RequestMapping(path = "/login", method = RequestMethod.POST)
    public String login(String username, String password, String code, boolean rememberme, Model model, /* HttpSession session, */ HttpServletResponse response, @CookieValue("kaptchaOwner") String kaptchaOwner) {

        // 检查验证码
        // String kaptcha = (String) session.getAttribute("kaptcha"); 替换成下面的redis
        String kaptcha = null;
        if (StringUtils.isNoneBlank(kaptchaOwner)) {
            String redisKey = RedisKeyUtil.getKaptchaKey(kaptchaOwner);
            kaptcha = (String) redisTemplate.opsForValue().get(redisKey);
        }

        // equalsIgnoreCase表示验证码忽略大小写
        if (StringUtils.isBlank(kaptcha) || StringUtils.isBlank(code) || !kaptcha.equalsIgnoreCase(code)) {
            model.addAttribute("codeMsg", "验证码不正确！");
            // 跳转到登录页面
            return "/site/login";
        }

        // 检查账号和密码
        int expiredSeconds = rememberme ? REMEMBER_EXPIRED_SECONDS : DEFAULT_EXPIRED_SECONDS;
        Map<String, Object> map = userService.login(username, password, expiredSeconds);
        if (map.containsKey("ticket")) {
            // cookie的key和value都必须是字符串类型
            Cookie cookie = new Cookie("ticket", map.get("ticket").toString());
            // 设置cookie在什么范围内有效，这里设置整个项目的访问路径都有效
            cookie.setPath(contextPath);
            // 设置cookie有效时间
            cookie.setMaxAge(expiredSeconds);
            // 发送cookie到浏览器
            response.addCookie(cookie);

            // 拿到ticket，说明登录成功，重定向到首页
            return "redirect:/index";
        } else {
            model.addAttribute("usernameMsg", map.get("usernameMsg"));
            model.addAttribute("passwordMsg", map.get("passwordMsg"));

            // 登录失败，跳转到登录页面
            return "/site/login";
        }
    }

使用 Redis 存储登录凭证

工具类

RedisKeyUtil.java

public class RedisKeyUtil {

    // 登录凭证
    private static final String PREFIX_TICKET = "ticket";

    // 登录的凭证
    public static String getTicketKey(String ticket) {
        return PREFIX_TICKET + SPLIT + ticket;
    }

}

数据层

UserService.java

		/**
     * 登录方法
     *
     * @param username
     * @param password
     * @param expiredSeconds 单位是毫秒
     * @return
     */
    public Map<String, Object> login(String username, String password, int expiredSeconds) {
        Map<String, Object> map = new HashMap<>();

        // 空值处理
        if (StringUtils.isBlank(username)) {
            map.put("usernameMsg", "账号不能为空！");
            return map;
        }
        if (StringUtils.isBlank(password)) {
            map.put("passwordMsg", "密码不能为空！");
            return map;
        }

        // 验证账号
        User user = userMapper.selectByName(username);
        if (user == null) {
            map.put("usernameMsg", "该账号不存在！");
            return map;
        }
        // 验证状态
        if (user.getStatus() == 0) { // 等于0表示该账号没有激活
            map.put("usernameMsg", "该账号未激活！");
            return map;
        }
        // 验证密码
        password = CommunityUtil.md5(password + user.getSalt());
        if (!user.getPassword().equals(password)) {
            map.put("passwordMsg", "密码不正确！");
            return map;
        }

        // 登录成功，需要生成登录凭证
        LoginTicket loginTicket = new LoginTicket();
        loginTicket.setUserId(user.getId());
        loginTicket.setTicket(CommunityUtil.generateUUID());
        loginTicket.setStatus(0); // 0表示该凭证有效
        loginTicket.setExpired(new Date(System.currentTimeMillis() + expiredSeconds * 1000));
        // loginTicketMapper.insertLoginTicket(loginTicket); 替换成下面的redis

        String redisKey = RedisKeyUtil.getTicketKey(loginTicket.getTicket());
        redisTemplate.opsForValue().set(redisKey, loginTicket); // redis会把loginTicket对象保存为json格式的字符串

        map.put("ticket", loginTicket.getTicket()); // 将ticket数据存放到map中
        return map;
    }

    /**
     * 退出登录的方法
     *
     * @param ticket
     */
    public void loginOut(String ticket) {
        // loginTicketMapper.updateStatus(ticket, 1); // 1表示该凭证无效  替换成下面的redis
        String redisKey = RedisKeyUtil.getTicketKey(ticket);
        LoginTicket loginTicket = (LoginTicket) redisTemplate.opsForValue().get(redisKey);
        loginTicket.setStatus(1); // 1表示该凭证无效
        redisTemplate.opsForValue().set(redisKey, loginTicket);
    }

    /**
     * 通过ticket查询用户信息
     *
     * @param ticket
     * @return
     */
    public LoginTicket findLoginTicket(String ticket) {
        // return loginTicketMapper.selectByTicket(ticket); 替换成下面的redis
        String redisKey = RedisKeyUtil.getTicketKey(ticket);
        return (LoginTicket) redisTemplate.opsForValue().get(redisKey);
    }

使用 Redis 缓存用户信息

工具类

RedisKeyUtil.java

public class RedisKeyUtil {

    // 用户信息
    private static final String PREFIX_USER = "user";

    // 用户信息
    public static String getUserKey(int userId) {
        return PREFIX_USER + SPLIT + userId;
    }
}

业务层

UserService.java

		public User findUserById(int id) {
        // return userMapper.selectById(id);
        User user = getCache(id);
        if (user == null) {
            user = initCache(id);
        }
        return user;
    }

		/**
     * 激活邮件的方法
     *
     * @param userId 用户id
     * @param code   激活码
     * @return
     */
    public int activation(int userId, String code) {
        User user = userMapper.selectById(userId);
        if (user.getStatus() == 1) { // 用户状态已激活：1，未激活：0
            return ACTIVATION_REPEAT; // 重复激活
        } else if (user.getActivationCode().equals(code)) { // 激活码匹配上了
            // 将用户的status状态修改为1
            userMapper.updateStatus(userId, 1);
            // 清理缓存
            clearCache(userId);
            return ACTIVATION_SUCCESS; // 激活成功
        } else {
            return ACTIVATION_FAILURE; // 激活失败
        }
    }

		/**
     * 更新用户头像的路径
     *
     * @param userId
     * @param headerUrl
     * @return
     */
    public int updateHeader(int userId, String headerUrl) {
        // return userMapper.updateHeader(userId, headerUrl);
        int rows = userMapper.updateHeader(userId, headerUrl);
        // 清理缓存
        clearCache(userId);
        return rows;
    }

		/**
     * 修改密码
     *
     * @param userId      要修改密码的用户id
     * @param oldPassword 原始密码
     * @param newPassword 新密码
     */
    public boolean updatePassword(int userId, String oldPassword, String newPassword) {
        User user = userMapper.selectById(userId);
        // 获取原密码的盐值
        String salt = user.getSalt();
        // 先校验原密码是否匹配
        if (CommunityUtil.md5(oldPassword + salt).equals(user.getPassword())) {
            // 设置新密码
            newPassword = CommunityUtil.md5(newPassword + salt);
            userMapper.updatePassword(userId, newPassword);
            // 清理缓存
            clearCache(userId);
            return true;
        }
        return false;
    }

		// 重点：保证数据库和缓存的数据一致性
    // 1. 优先从缓存中取值
    private User getCache(int userId) {
        String redisKey = RedisKeyUtil.getUserKey(userId);
        return (User) redisTemplate.opsForValue().get(redisKey);
    }

    // 2. 取不到时初始化缓存数据
    private User initCache(int userId) {
        User user = userMapper.selectById(userId);
        String redisKey = RedisKeyUtil.getUserKey(userId);
        // 设置缓存过期时间一小时
        redisTemplate.opsForValue().set(redisKey, user, 3600, TimeUnit.SECONDS);
        return user;
    }

    // 3. 当数据发生变更时清除缓存数据
    private void clearCache(int userId) {
        String redisKey = RedisKeyUtil.getUserKey(userId);
        // 删除对应的key
        redisTemplate.delete(redisKey);
    }

猿小羽

关注

1
点赞
踩
0

收藏

觉得还不错? 一键收藏
打赏
0
评论
第三章高性能存储方案

Redis 相关配置类测试整合点赞功能业务层LikeService.java控制层HomeController.javaLikeController.javaDiscussPostController.java重构点赞功能及开发个人主页业务层LikeService.java控制层LikeController.javaUserController.java整合关注功能CommunityConstant.java业务层
复制链接

扫一扫
