本文已Juniper防火墙为例，介绍IP monitoring。

Juniper的IP monitor类似于思科的SLA ,华为的NQA ， Juniper使用到的工具叫做real-time performance monitoring (RPM) ，当你看到RPM这个单词的时候不要陌生。RPM可以用在很多路由相关的地方，比如静态，比如动态路由等等。详细内容如下。

1.这个RPM有很多的探测功能如下

The device sends out the following probe types:

HTTP GET request at a target URL
HTTP GET request for metadata at a target URL
ICMP echo request to a target address (the default)
ICMP timestamp request to a target address
UDP ping packets to a target device
UDP timestamp requests to a target address
TCP ping packets to a target device

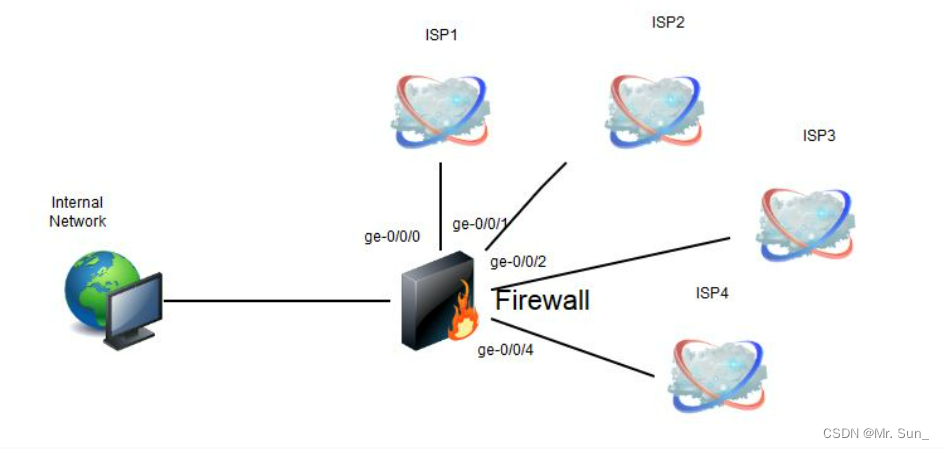

我们以常用的PING举例，看下如下的图片，内网接入了四家运营商，那么如何使用RPM去做运营商线路的监控与切换呢？

2.Juniper SRX的接口配置

root@SRX-Firewall# show interfaces | display set
set interfaces ge-0/0/0 unit 0 family inet address 2.1.1.1/30
set interfaces ge-0/0/1 unit 1 family inet address 2.1.1.5/30
set interfaces ge-0/0/2 unit 2 family inet address 2.1.1.9/30
set interfaces ge-0/0/4 unit 80 family inet address 80.10.126.1/24

3.实现的目标是，当ISP1线路down ，ISP2链路接管; ISP1与ISP2链路down ， ISP3接管，以此类推，具体的RPM配置如下

set services rpm probe Failover1 test probe-ge1 probe-type icmp-ping
set services rpm probe Failover1 test probe-ge1 target address 2.1.1.2<<<< Monitoring 1 address
set services rpm probe Failover1 test probe-ge1 probe-count 5
set services rpm probe Failover1 test probe-ge1 probe-interval 1
set services rpm probe Failover1 test probe-ge1 test-interval 5
set services rpm probe Failover1 test probe-ge1 thresholds total-loss 3
set services rpm probe Failover1 test probe-ge1 next-hop 2.1.1.2

set services rpm probe Failover2 test probe2-ge1 probe-type icmp-ping
set services rpm probe Failover2 test probe2-ge1 target address 2.1.1.2 <<<< 1st address in probe2
set services rpm probe Failover2 test probe2-ge1 probe-count 5
set services rpm probe Failover2 test probe2-ge1 probe-interval 1
set services rpm probe Failover2 test probe2-ge1 test-interval 5
set services rpm probe Failover2 test probe2-ge1 thresholds total-loss 3
set services rpm probe Failover2 test probe2-ge1 next-hop 2.1.1.2
set services rpm probe Failover2 test probe2-ge2 probe-type icmp-ping
set services rpm probe Failover2 test probe2-ge2 target address 2.1.1.6<<<< 2nd address in probe2
set services rpm probe Failover2 test probe2-ge2 probe-count 5
set services rpm probe Failover2 test probe2-ge2 probe-interval 1
set services rpm probe Failover2 test probe2-ge2 test-interval 5
set services rpm probe Failover2 test probe2-ge2 thresholds total-loss 3
set services rpm probe Failover2 test probe2-ge2 next-hop 2.1.1.6

set services rpm probe Failover3 test probe3-ge1 probe-type icmp-ping
set services rpm probe Failover3 test probe3-ge1 target address 2.1.1.2<<<< 1st address in probe3
set services rpm probe Failover3 test probe3-ge1 probe-count 5
set services rpm probe Failover3 test probe3-ge1 probe-interval 1
set services rpm probe Failover3 test probe3-ge1 test-interval 5
set services rpm probe Failover3 test probe3-ge1 thresholds total-loss 3
set services rpm probe Failover3 test probe3-ge1 next-hop 2.1.1.2
set services rpm probe Failover3 test probe3-ge2 probe-type icmp-ping
set services rpm probe Failover3 test probe3-ge2 target address 2.1.1.6<<<< 2nd address in probe3
set services rpm probe Failover3 test probe3-ge2 probe-count 5
set services rpm probe Failover3 test probe3-ge2 probe-interval 1
set services rpm probe Failover3 test probe3-ge2 test-interval 5
set services rpm probe Failover3 test probe3-ge2 thresholds total-loss 3
set services rpm probe Failover3 test probe3-ge2 next-hop 2.1.1.6
set services rpm probe Failover3 test probe3-ge3 probe-type icmp-ping
set services rpm probe Failover3 test probe3-ge3 target address 2.1.1.10<<<< 3rd address in probe3
set services rpm probe Failover3 test probe3-ge3 probe-count 5
set services rpm probe Failover3 test probe3-ge3 probe-interval 1
set services rpm probe Failover3 test probe3-ge3 test-interval 5
set services rpm probe Failover3 test probe3-ge3 thresholds total-loss 3
set services rpm probe Failover3 test probe3-ge3 next-hop 2.1.1.10

4.接下来调用监控策略，如果ISP1链路down了，就走ISP2的链路，我们看下ip-monitoring的状态就很清晰了。

set services ip-monitoring policy GE1 match rpm-probe Failover1
set services ip-monitoring policy GE1 then preferred-route route 0.0.0.0/0 next-hop 2.1.1.6
set services ip-monitoring policy GE1 then preferred-route route 0.0.0.0/0 preferred-metric 4
set services ip-monitoring policy GE1_2 match rpm-probe Failover2
set services ip-monitoring policy GE1_2 then preferred-route route 0.0.0.0/0 next-hop 2.1.1.10
set services ip-monitoring policy GE1_2 then preferred-route route 0.0.0.0/0 preferred-metric 3
set services ip-monitoring policy GE1_2_3 match rpm-probe Failover3
set services ip-monitoring policy GE1_2_3 then preferred-route route 0.0.0.0/0 next-hop 80.10.126.254
set services ip-monitoring policy GE1_2_3 then preferred-route route 0.0.0.0/0 preferred-metric 2

---------------------All ISPs are up-----------------------------------

[edit]
root@SRX-Firewall# run show services ip-monitoring status
#这里解释一下，当步骤3的failover1探测正常时，那么路由的下一跳是走2.1.1.2； 当failover1探测失败后，那么会匹配步骤4的策略，下一跳走2.1.1.6，以此类推。
Policy - GE1 (Status: PASS)
  RPM Probes:
    Probe name             Test Name       Address          Status
    ---------------------- --------------- ---------------- ---------
    Failover1              probe-ge1       2.1.1.2          PASS
  Route-Action:
    route-instance    route             next-hop         state
    ----------------- ----------------- ---------------- -------------
    inet.0            0.0.0.0/0         2.1.1.6          NOT-APPLIED

Policy - GE1_2 (Status: PASS)
  RPM Probes:
    Probe name             Test Name       Address          Status
    ---------------------- --------------- ---------------- ---------
    Failover2              probe2-ge1      2.1.1.2          PASS
    Failover2              probe2-ge2      2.1.1.6          PASS
  Route-Action:
    route-instance    route             next-hop         state
    ----------------- ----------------- ---------------- -------------
    inet.0            0.0.0.0/0         2.1.1.10         NOT-APPLIED

Policy - GE1_2_3 (Status: PASS)
  RPM Probes:
    Probe name             Test Name       Address          Status
    ---------------------- --------------- ---------------- ---------
    Failover3              probe3-ge1      2.1.1.2          PASS
    Failover3              probe3-ge2      2.1.1.6          PASS
    Failover3              probe3-ge3      2.1.1.10         PASS
  Route-Action:
    route-instance    route             next-hop         state
    ----------------- ----------------- ---------------- -------------
    inet.0            0.0.0.0/0         80.10.126.254    NOT-APPLIED

[edit]
root@SRX-Firewall# run show route 0.0.0.0

inet.0: 28 destinations, 28 routes (28 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 08:57:12
                    > to 2.1.1.2 via ge-0/0/0.0
