华为ensp配置AC+AP配置无线



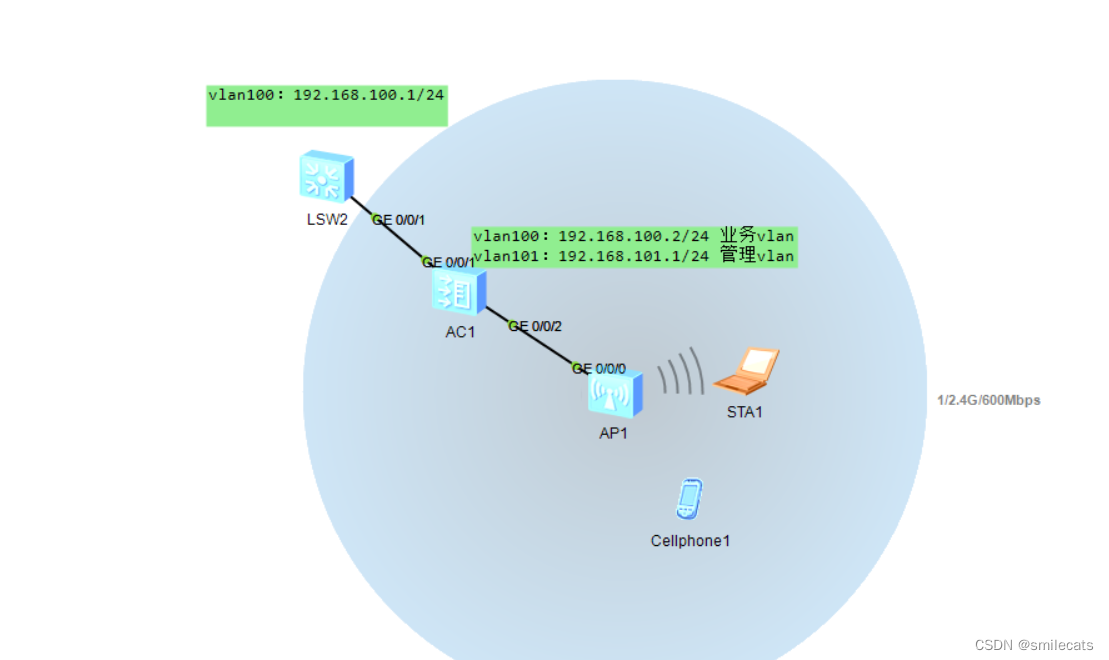

 整体配置都在AC上面完成

[AC]undo info-center enable

创建vlan:

[AC]vlan batch 100 101

进端口开trunk：

[AC]int g0/0/1
[AC-GigabitEthernet0/0/1]port link-type trunk
[AC-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[AC-GigabitEthernet0/0/1]int g0/0/2
[AC-GigabitEthernet0/0/2]port link-type trunk
[AC-GigabitEthernet0/0/2]port trunk pvid vlan 101
[AC-GigabitEthernet0/0/2]port trunk all vlan all
[AC-GigabitEthernet0/0/2]quit

创建dhcp地址池 ：

[AC]ip pool huawei
Info: It is successful to create an IP address pool.
[AC-ip-pool-huawei]network 192.168.100.0 mask 24
[AC-ip-pool-huawei]gateway-list 192.168.100.254
[AC-ip-pool-huawei]dns-list 192.168.100.254
排除掉一些IP地址：

[AC-ip-pool-huawei]excluded-ip-address 192.168.100.201 192.168.100.253
[AC-ip-pool-huawei]excluded-ip-address 192.168.100.1
[AC-ip-pool-huawei]excluded-ip-address 192.168.100.2
[AC-ip-pool-huawei]qu
启动DHCP服务
[AC]dhcp enable

创建端口应用DHCP

[AC]int vlanif 100
[AC-Vlanif100]ip add 192.168.100.2 255.255.255.0
[AC-Vlanif100]dhcp select global
管理vlan接口

[AC-Vlanif100]int vlanif 101
[AC-Vlanif101]ip add 192.168.101.1 24
[AC-Vlanif101]dhcp select interface
[AC-Vlanif101]quit

capwap隧道绑定端口
[AC]capwap source interface vlan101

前四布完成。

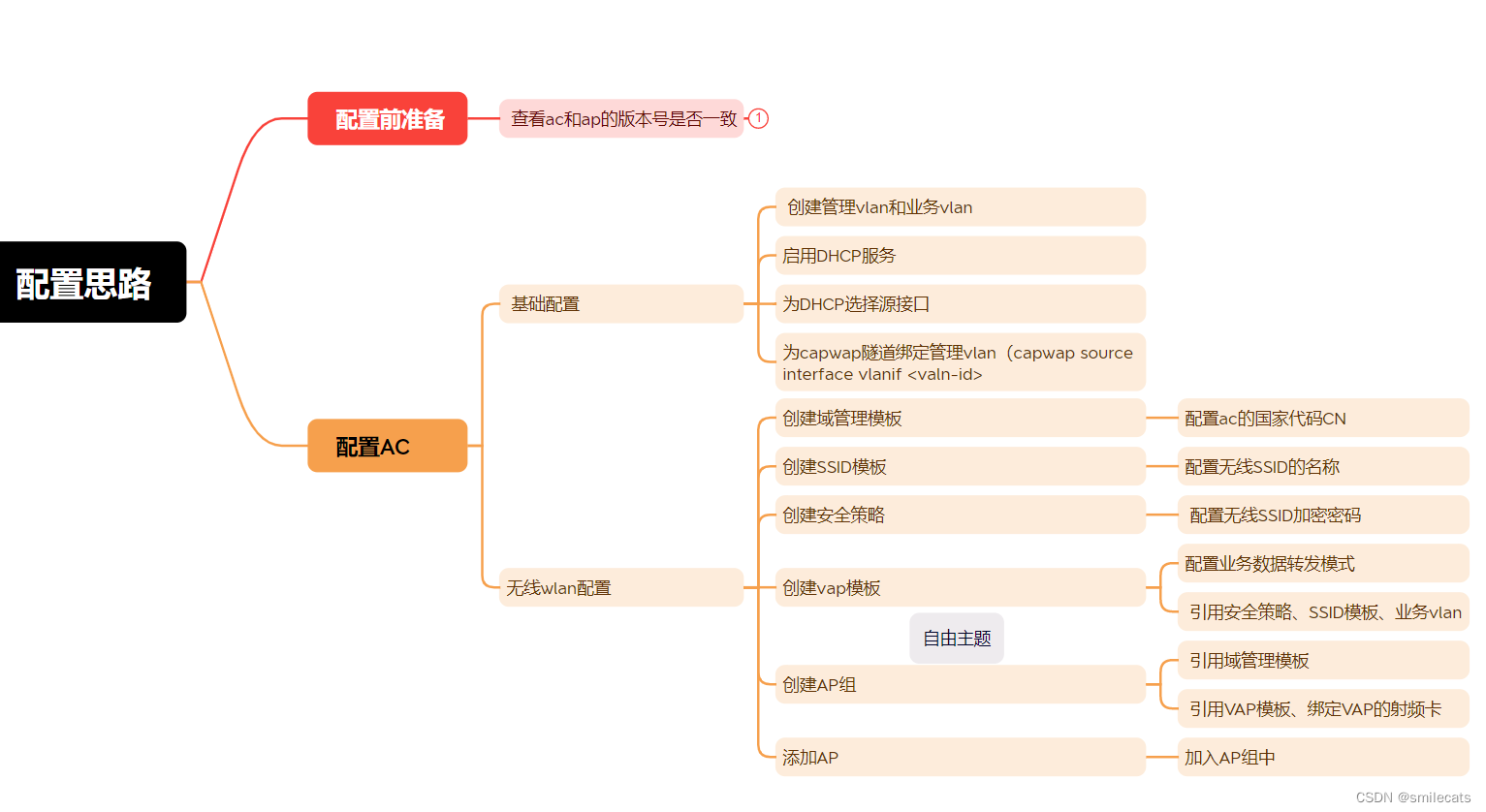

配置WLAN



[AC]wlan
创建AP 组
[AC-wlan-view]ap-group name ap
Info: This operation may take a few seconds. Please wait for a moment.done.
[AC-wlan-ap-group-ap]quit
创建域管理模板
[AC-wlan-view]regulatory-domain-profile name domain
城市代码CN
[AC-wlan-regulate-domain-domain]country-code CN
Info: The current country code is same with the input country code.
[AC-wlan-regulate-domain-domain]q
应用到AP组中
[AC-wlan-view]ap-group name ap
[AC-wlan-ap-group-ap]regulatory-domain-profile name domain
[AC-wlan-regulate-domain-domain]quit

绑定AP到AC的AP组中
[AC]wlan
MAC认证的方式
[AC-wlan-view]ap auth-mode mac-auth
[AC-wlan-view]ap-id 0 ap-mac 00e0-fcde-34e0  MAC地址为AP的MAC
[AC-wlan-ap-0]ap-name area_1
[AC-wlan-ap-0]ap-group ap
Warning: This operation may cause AP reset. If the country code changes, it will
 clear channel, power and antenna gain configurations of the radio, Whether to c
ontinue? [Y/N]:y
Info: This operation may take a few seconds. Please wait for a moment.. done.

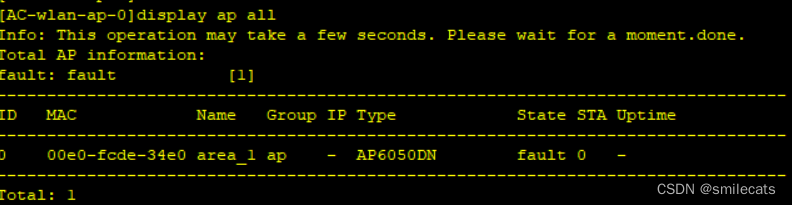

查看AP上线情况：[AC-wlan-ap-0]display ap all

[AC]wlan
安全模板
[AC-wlan-view]security-profile name sec
[AC-wlan-sec-prof-sec]security wpa2 psk pass-phrase huawei@123 aes
[AC-wlan-sec-prof-sec]q
WLAN的名字：



[AC-wlan-view]ssid-profile name ssid
[AC-wlan-ssid-prof-ssid]ssid huawei
Info: This operation may take a few seconds, please wait.done.
[AC-wlan-ssid-prof-ssid]quit

创建VAP
[AC-wlan-view]vap-profile name vap
[AC-wlan-vap-prof-vap]forward-mode tunnel
Info: This operation may take a few seconds, please wait.done.

[AC-wlan-vap-prof-vap]service-vlan vlan-id 100
Info: This operation may take a few seconds, please wait.done.

[AC-wlan-vap-prof-vap]security-profile sec
Info: This operation may take a few seconds, please wait.done.

[AC-wlan-vap-prof-vap]ssid-profile ssid
Info: This operation may take a few seconds, please wait.done.
[AC-wlan-vap-prof-vap]q
[AC-wlan-vap-prof-vap]quit

[AC-wlan-view]ap-group name ap
[AC-wlan-ap-group-ap]vap-profile vap wlan 1 radio 0
Info: This operation may take a few seconds, please wait...done.
[AC-wlan-ap-group-ap]qu
[AC-wlan-ap-group-ap]return

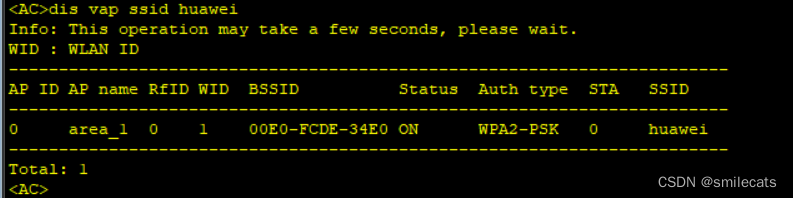

<AC>dis vap ssid huawei
