气象-数据同化学习（OBSPROC）(2)

*以下内容总结自NCAR-2017 WRFDA Tutorial Agenda (WRFDA Practice (ucar.edu))

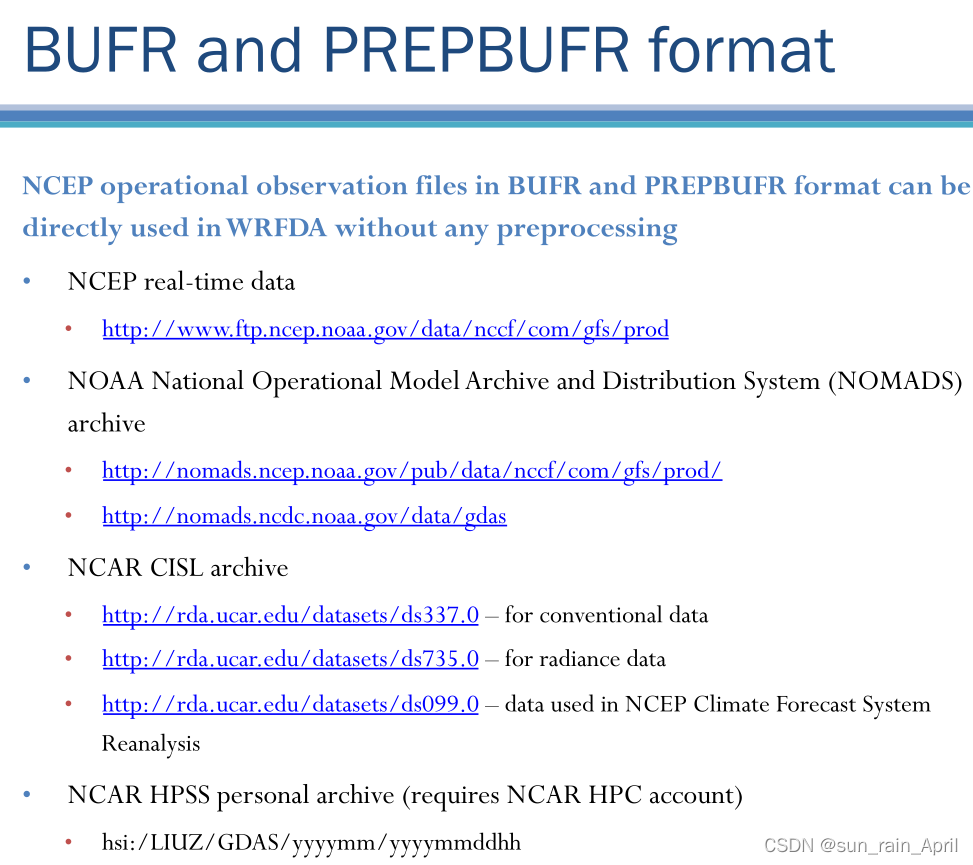

NCEP real-time data
•  http://www .ftp.ncep.noaa.gov/data/nccf/com/gfs/prod
•  NOAA National Operational Model Archive and Distribution System (NOMADS)
archive
•  http://nomads.ncep.noaa.gov/pub/data/nccf/com/gfs/prod/
•  http://nomads.ncdc.noaa.gov/data/gdas
•  NCAR CISL archive
•  http://rda.ucar.edu/datasets/ds337.0 – for conventional data
•  http://rda.ucar.edu/datasets/ds735.0 – for radiance data
•  http://rda.ucar.edu/datasets/ds099.0 – data used in NCEP Climate Forecast System
Reanalysis

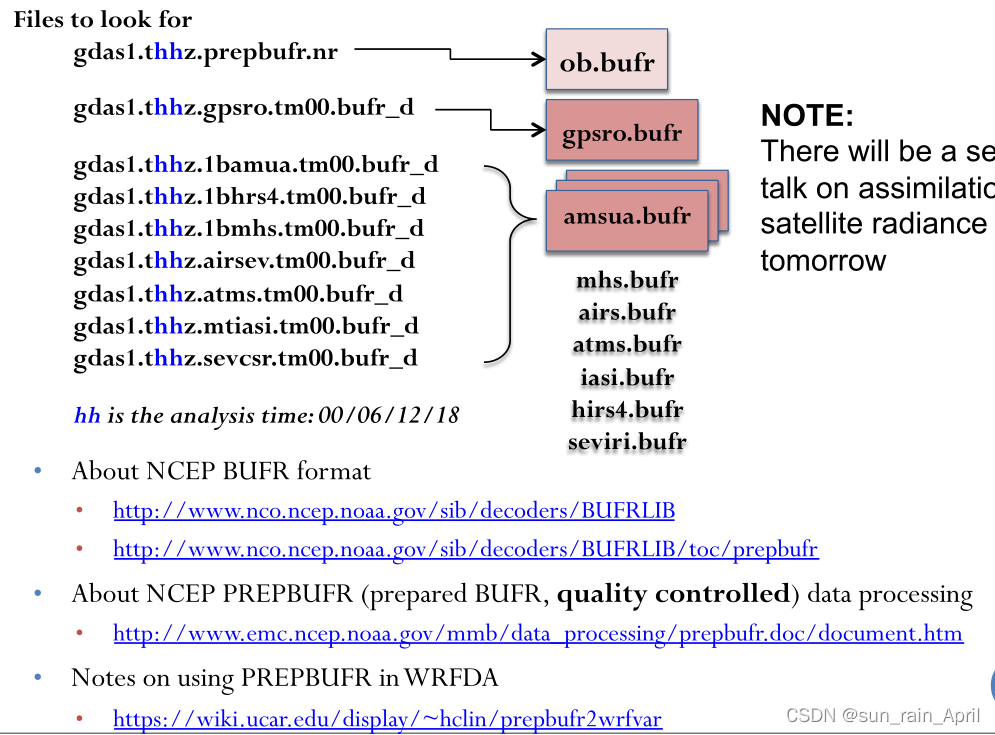

 About NCEP BUFR format
•  http://www .nco.ncep.noaa.gov/sib/decoders/BUFRLIB
•  http://www .nco.ncep.noaa.gov/sib/decoders/BUFRLIB/toc/prepbufr
•  About NCEP PREPBUFR (prepared BUFR, quality controlled) data processing
•  http://www .emc.ncep.noaa.gov/mmb/data_processing/prepbufr.doc/document.htm
•  Notes on using PREPBUFR in WRFDA
•  https://wiki.ucar.edu/display/~hclin/prepbufr2wrfvar

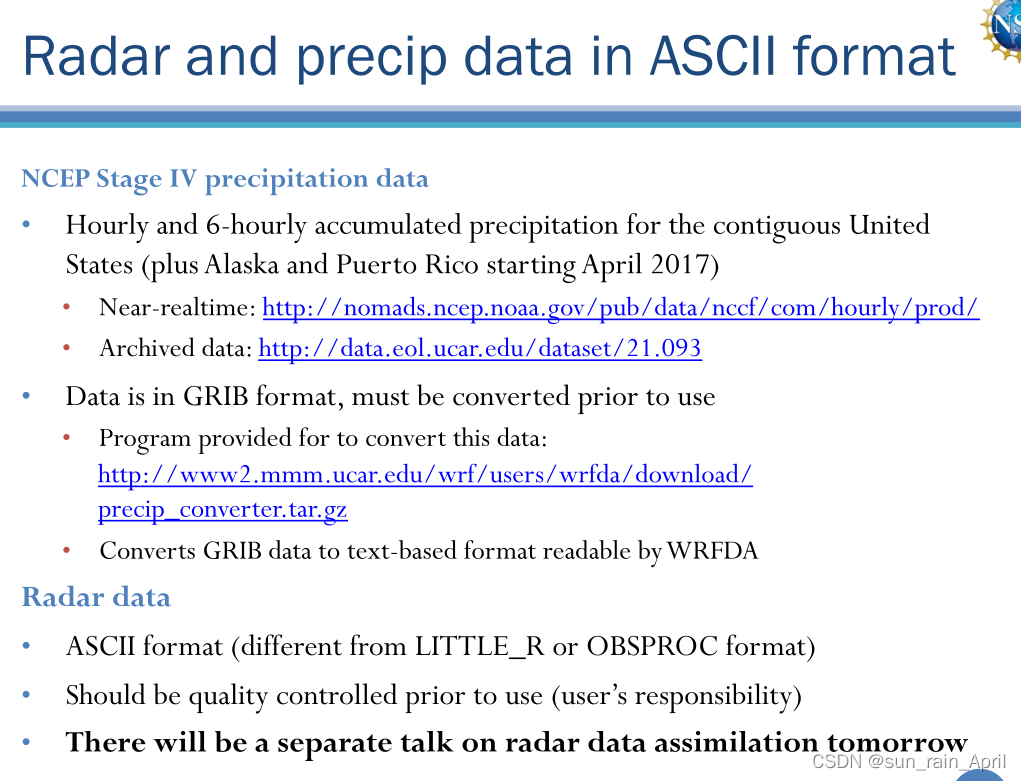

 NCEP Stage IV precipitation data
•  Hourly and 6-hourly accumulated precipitation for the contiguous United
States (plus Alaska and Puerto Rico starting April 2017)
•  Near-realtime: http://nomads.ncep.noaa.gov/pub/data/nccf/com/hourly/prod/
•  Archived data: http://data.eol.ucar.edu/dataset/21.093
•  Data is in GRIB format, must be converted prior to use
•  Program provided for to convert this data:
http://www2.mmm.ucar.edu/wrf/users/wrfda/download/
precip_converter.tar.gz
•  Converts GRIB data to text-based format readable by WRFDA

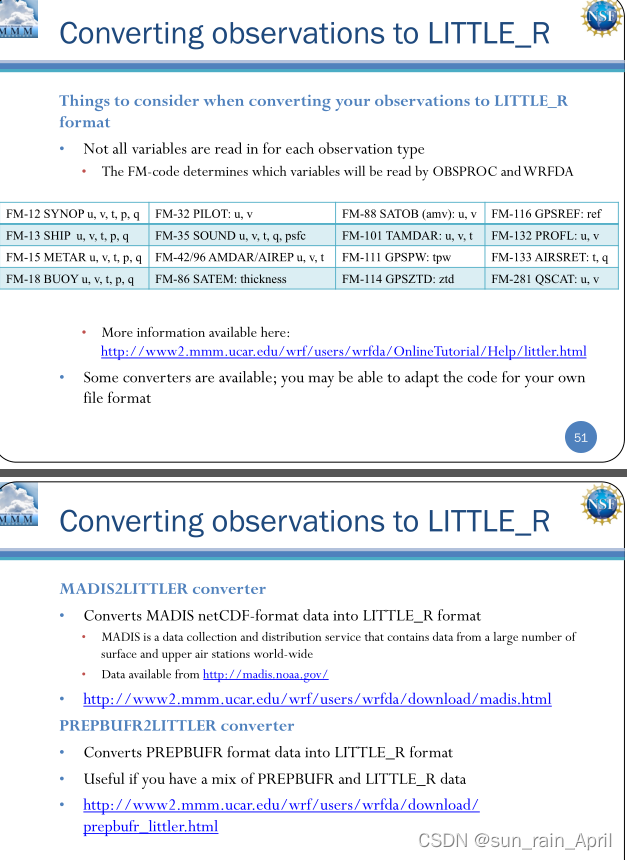

 MADIS2LITTLER converter
•  Converts MADIS netCDF-format data into LITTLE_R format
•  MADIS is a data collection and distribution service that contains data from a large number of
surface and upper air stations world-wide
•  Data available from http://madis.noaa.gov/
•  http://www2.mmm.ucar.edu/wrf/users/wrfda/download/madis.html
PREPBUFR2LITTLER converter
•  Converts PREPBUFR format data into LITTLE_R format
•  Useful if you have a mix of PREPBUFR and LITTLE_R data
•  http://www2.mmm.ucar.edu/wrf/users/wrfda/download/
prepbufr_littler.html

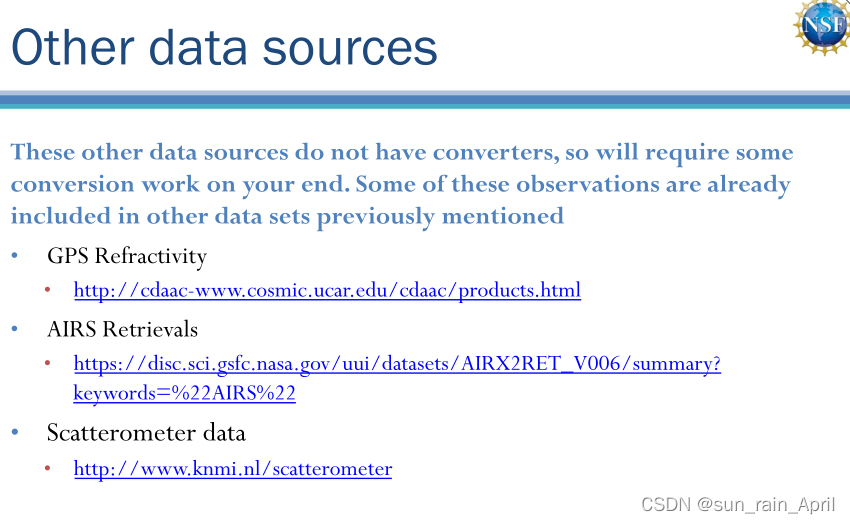

 GPS Refractivity
•  http://cdaac-www .cosmic.ucar.edu/cdaac/products.html
•  AIRS Retrievals
•  https://disc.sci.gsfc.nasa.gov/uui/datasets/AIRX2RET_V006/summary?
keywords=%22AIRS%22
•  Scatterometer data
•  http://www .knmi.nl/scatterometer
