rajawali-实现自定义Line

源代码

import android.graphics.Color;
import android.opengl.GLES20;
import java.util.Stack;
import org.rajawali3d.math.vector.Vector3.Axis;
import org.rajawali3d.Object3D;
import org.rajawali3d.math.vector.Vector3;

public class MyLine3D extends Object3D {
    protected Stack<Vector3> mPoints;
    protected float mLineThickness;
    protected int[] mColors;
    private Axis mUpAxis;

    public MyLine3D() {
    }

    public MyLine3D(Stack<Vector3> points, float thickness, int color) {
        this(points, thickness, null);
        setColor(color);
    }

    public MyLine3D(Stack<Vector3> points, float thickness, int[] colors) {
        this(points, thickness, colors, true);
    }

    public MyLine3D(Stack<Vector3> points, float thickness, int[] colors, boolean createVBOs) {
        super();
        mPoints = points;
        mLineThickness = thickness;
        mColors = colors;
        if (colors != null && colors.length != points.size())
            throw new RuntimeException("The number of line points and colors is not the same.");
        mUpAxis = Axis.Z;
        init(createVBOs);
    }


    public void setColor(int color) {
        mColor[RED] = Color.red(color) / 255.f;
        mColor[GREEN] = Color.green(color) / 255.f;
        mColor[BLUE] = Color.blue(color) / 255.f;
        mColor[ALPHA] = Color.alpha(color) / 255.f;
        mOverrideMaterialColor = true;
    }

    public Vector3 getPoint(int point) {
        return mPoints.get(point);
    }

    public Vector3 normalize(Vector3 v3) {
        double length = Math.sqrt(v3.x * v3.x + v3.y * v3.y + v3.z * v3.z);
        if (length != 0) {
            return new Vector3(v3.x / length, v3.y / length, v3.z / length);
        }
        throw new IllegalArgumentException("Cannot normalize a zero vector.");
    }

    protected void init(boolean createVBOs) {
         setDoubleSided(true);
        setDrawingMode(GLES20.GL_TRIANGLES);

        int numPoints = mPoints.size();
        int numVertices = numPoints * 2;

        float[] normals = new float[numVertices * 3];

        float[] vertices = new float[numVertices * 3];

        int[] indices = new int[(numPoints - 1) * 6];

        float[] colors = new float[numVertices * 4];

        for (int index = 0; index < numPoints -1; index++) {
            Vector3 p1 = mPoints.get(index);
            Vector3 p2 = mPoints.get(index + 1);

            if(Math.abs(p2.x - p1.x) <= 0.0001){
                double newP2X = p1.x / Math.abs(p1.x) * (Math.abs(p1.x) + 0.001);
                p2.x = newP2X;
            }

            if(Math.abs(p2.y - p1.y) <= 0.0001){
                double newP2Y = p1.y / Math.abs(p1.y) * (Math.abs(p1.y) + 0.001);
                p2.y = newP2Y;
            }

            mPoints.set(index + 1, p2);

            Vector3 dir = normalize(p2.clone().subtract(p1));
            Vector3 normal = new Vector3(-dir.y, dir.x, 0);
            normal.multiply(mLineThickness / 2);

            Vector3 left1 = p1.clone().add(normal);
            Vector3 right1 = p1.clone().subtract(normal);

            int verticeIndex = index * 6;
            vertices[verticeIndex] = (float) left1.x;
            vertices[verticeIndex + 1] = (float) left1.y;
            vertices[verticeIndex + 2] = (float) left1.z;

            vertices[verticeIndex + 3] = (float) right1.x;
            vertices[verticeIndex + 4] = (float) right1.y;
            vertices[verticeIndex + 5] = (float) right1.z;

            if(index == numPoints - 2){
                Vector3 left2 = p2.clone().add(normal);
                Vector3 right2 = p2.clone().subtract(normal);

                vertices[verticeIndex + 6] = (float) left2.x;
                vertices[verticeIndex + 7] = (float) left2.y;
                vertices[verticeIndex + 8] = (float) left2.z;

                vertices[verticeIndex + 9] = (float) right2.x;
                vertices[verticeIndex + 10] = (float) right2.y;
                vertices[verticeIndex + 11] = (float) right2.z;
            }
        }

        for(int index = 0; index < numVertices; index++){
            int normalIndex = index * 3;

            normals[normalIndex] = mUpAxis == Axis.X ? 1 : 0;
            normals[normalIndex + 1] = mUpAxis == Axis.Y ? 1 : 0;
            normals[normalIndex + 2] = mUpAxis == Axis.Z ? 1 : 0;
        }

        for(int index = 1; index < numPoints; index ++){
            int indiceIndex = (index - 1) * 6;
            indices[indiceIndex] = index * 2;
            indices[indiceIndex + 1] = index * 2 - 2;
            indices[indiceIndex + 2] = index * 2 + 1;

            indices[indiceIndex + 3] = index * 2 + 1;
            indices[indiceIndex + 4] = index * 2 - 2;
            indices[indiceIndex + 5] = index * 2 -1;

        }

        for (int index  = 0; index < numVertices; index++)
        {
            int colorIndex = index * 4;
            colors[colorIndex] = 1.0f;
            colors[colorIndex + 1] = 1.0f;
            colors[colorIndex + 2] = 1.0f;
            colors[colorIndex + 3] = 1.0f;
        }
        setData(vertices, normals, null, colors, indices, createVBOs);

        vertices = null;
        normals = null;
        colors = null;
        indices = null;
    }

    public void preRender() {
        super.preRender();
    }

    public void setLineThickness(final float lineThickness) {
        mLineThickness = lineThickness;
    }

    public float getLineThickness() {
        return mLineThickness;
    }
}

使用

绘制圆曲线

     Stack<Vector3> vector3s = new Stack<>();
        double rad = 2 * Math.PI;
        double part = rad / 360;
        for (int index = 0; index <= 360; index++) {
            double x = Math.cos(index * part) * 5;
            double y = Math.sin(index * part) * 5;
            vector3s.add(new Vector3(x, y, 0));
        }
        vector3s.add(vector3s.get(0));

        Stack<Vector3> points = new Stack<>();
        MyLine3D myLine3D = new MyLine3D (vector3s, 0.5, Color.RED);
        Material material = new Material();
        myLine3D .setMaterial(material);
        scene.addChild(myLine3D );

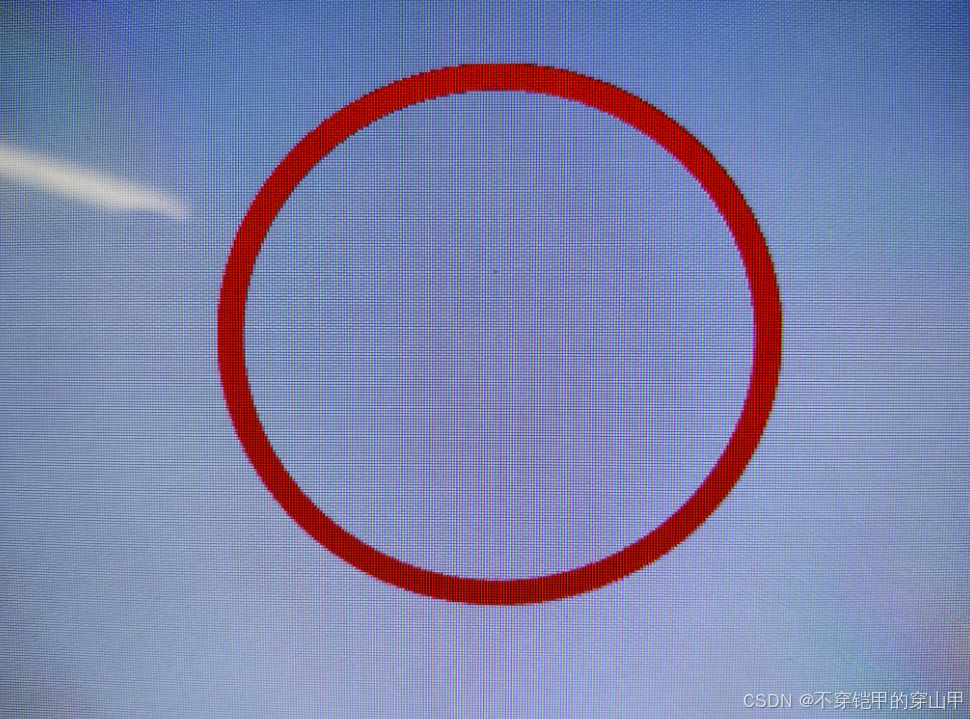

效果图：

绘制直线：

   Stack<Vector3> points = new Stack<>();
   points.add(new Vector3(-11,0,0));
   points.add(new Vector3(11,0,0));
   MyLine3D myLine3D = new MyLine3D (points , 0.5, Color.RED);
   Material material = new Material();
   myLine3![请添加图片描述](https://i-blog.csdnimg.cn/direct/f1f74e83952b4f1da85af372d3f20389.webp)
D .setMaterial(material);
   scene.addChild(myLine3D );

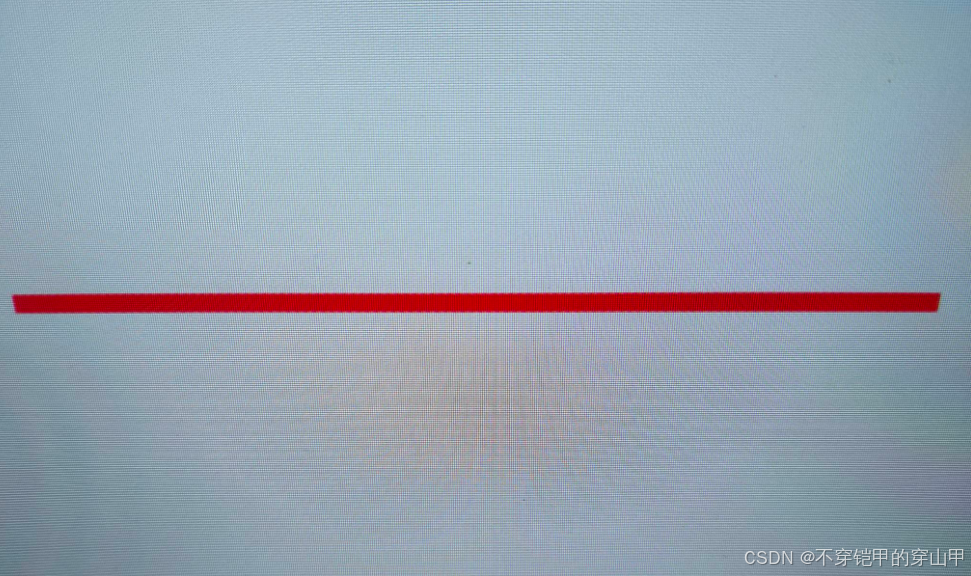

效果图：
